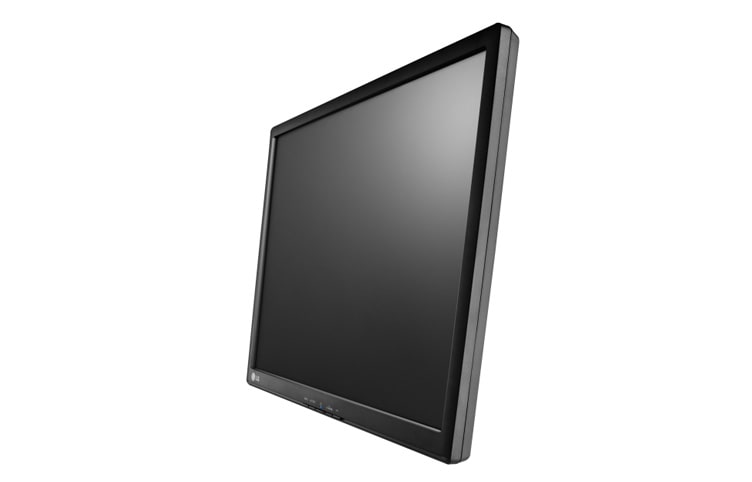

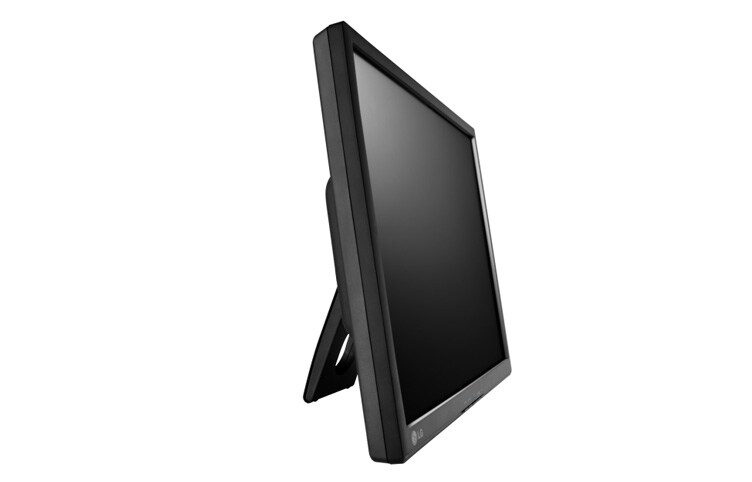

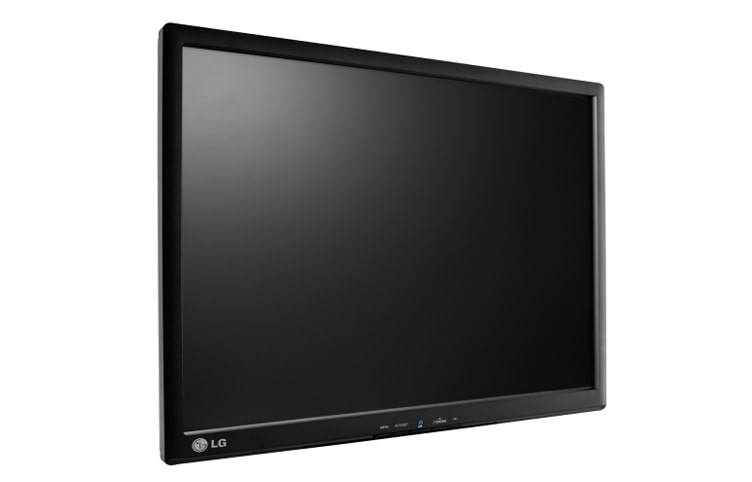

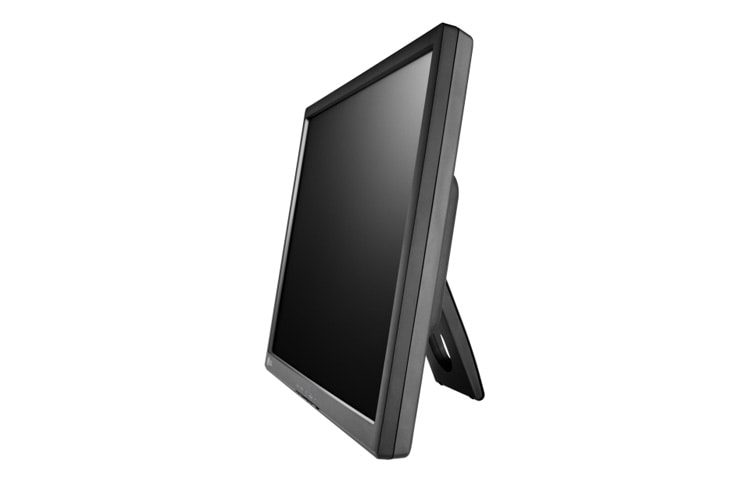

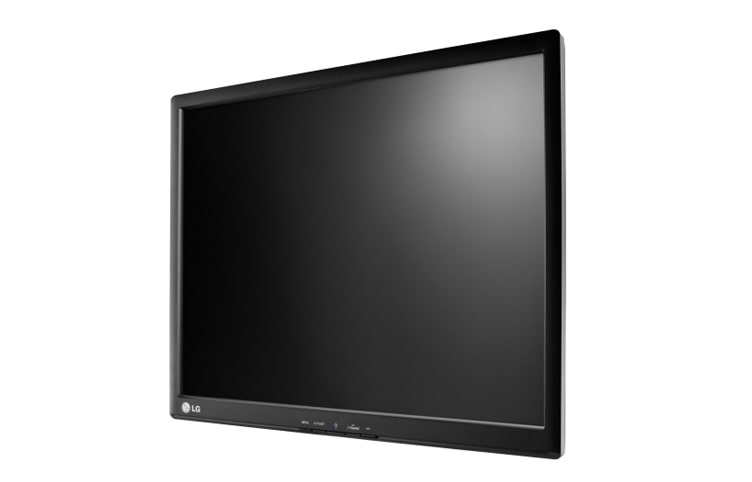

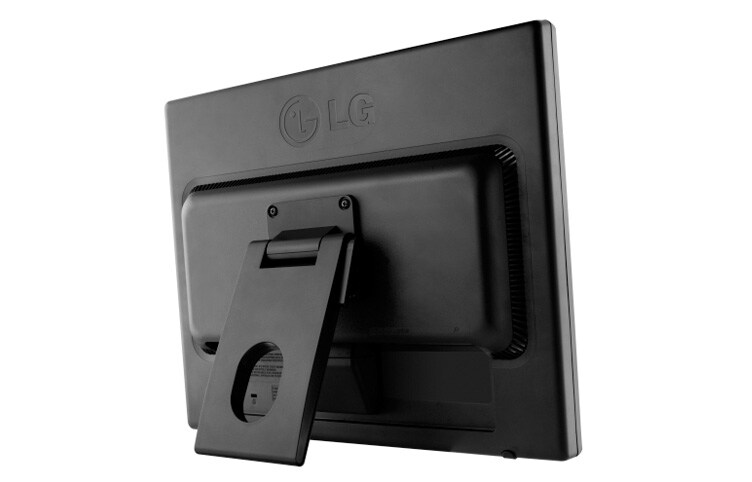

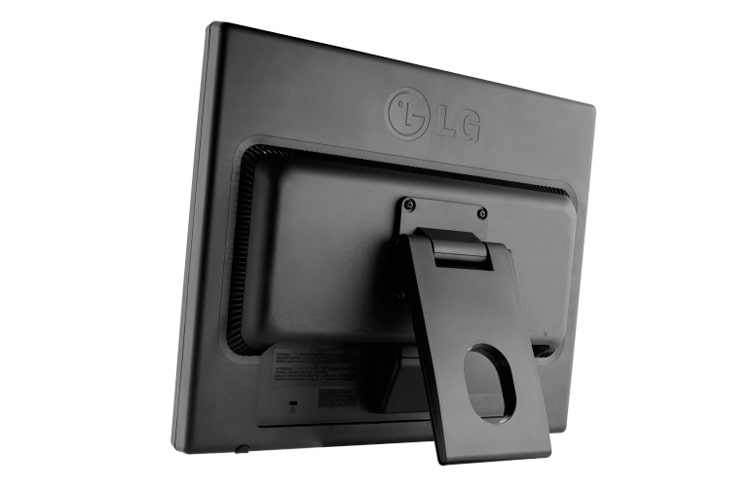

Business-Monitor mit 43 cm (17 Zoll) Bildschirmdiagonale, HD-Auflösung und Touch-Screen

Business-Monitor mit 43 cm (17 Zoll) Bildschirmdiagonale, HD-Auflösung und Touch-Screen

Alle Spezifikationen


  • Max. Auflösung

    1.280 x 1.024

  • Farbdarstellung

    16,7 Mio.

  • Helligkeit (cd/m²)

    250

  • Frequenzbereich horizontal

    30-83 kHz

  • Frequenzbereich vertikal

    56-75 Hz

  • Pixelfrequenz

    135 MHz

  • Multiscan Support

    1.024 x 768 (60/75Hz), 1 680 x 1.050 (60 Hz), 1.280 x 1.024 (60/75Hz), 640 x 350 (70 Hz), 720 x 400 (70 Hz), 640 x 480 (60/75 Hz), 800 x 600 (60/75 Hz), 832 x 624 (75 Hz), 1.152 x 900 (65 Hz), 1.152 x 870 (75 Hz)

  • Speichermodi

    13 voreingestellte, 10 benutzerdefinierbare

  • Display-Typ

    TFT-LCD Aktiv Matrix

  • Bildschirmgröße (Zoll)

    17

  • Bildschirmgröße (cm)

    43,18

  • Aktive Bildfläche

    337,92 mm x 270, 336 mm

  • Pixel Pitch

    0,264 mm x 0,264 mm

  • Pixelkonfiguration

    RGB Streifen

  • Weitwinkeltechnologie

    TN (Twisted Nematic)

  • Oberflächenvergütung

    Hard Coating (3H) Anti Glare

  • Kontrastverhältnis

    5.000.000:1 (dynamisch) / 1.000:1 (statisch)

  • Reaktionszeit

    5 ms (ISO)

  • Blickwinkel

    170° horizontal, 160° vertikal

ALLGEMEINE DATEN

  • Anwendungsbereich

    Office Monitor (B2B)

  • Maße mit Standfuß (Breite x Höhe x Tiefe) in mm

    370 x 315 x 62 mm (ohne Standfuß)

  • Farbe

    Klavierlack Schwarz hochglänzend

  • Gewicht mit Standfuß

    3,3 kg (inkl. Standfuß)

  • Spannungsbereich

    100 - 240 Vac

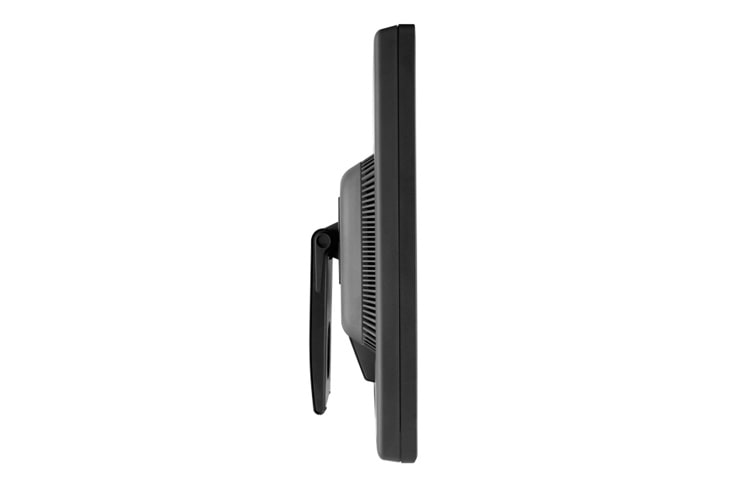

  • Neigungswinkel

    Nach hinten 14° - 68°

  • Zubehör

    DVI auf HDMI Kabel, Netzkabel, VGA Kabel, Handbuch- und Treiber-CD

  • Besonderheiten

    Int. Netzteil, Kensington Lock vorbereitet, Touchscreen

  • Garantie

    36 Monate inklusive Backlights und Vor-Ort-Service

EINSTELLMÖGLICHKEITEN

  • Manuell

    Power Ein/Aus, OSD Sperre, Autosetup, OSD Ein/Aus

EINGÄNGE

  • Eingangssignal

    RGB analog (0,7 V)

  • Synchronisation

    Separat H/V (5V), Composite, SOG, Digital

  • Eingangsbuchse

    15 pol. D-SUB, USB

  • VESA Plug & Play

    DDC2B

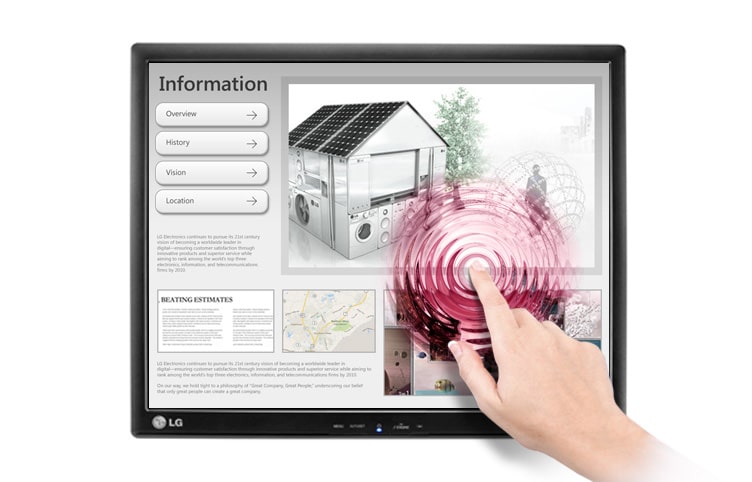

TOUCH PANEL SCHNITTSTELLE

  • Touch-Type

    4-Draht analog resistiv

  • Unterstützte Betriebssysteme

    Microsoft Windows: XP / Vista / 7 / Linux

Compliance-Informationen

The safety information for accessories is included with the safety information for the product and is not provided separately.
Die Sicherheitshinweise für Zubehörteile sind in den Sicherheitshinweisen des Produkts enthalten und werden nicht separat bereitgestellt.
