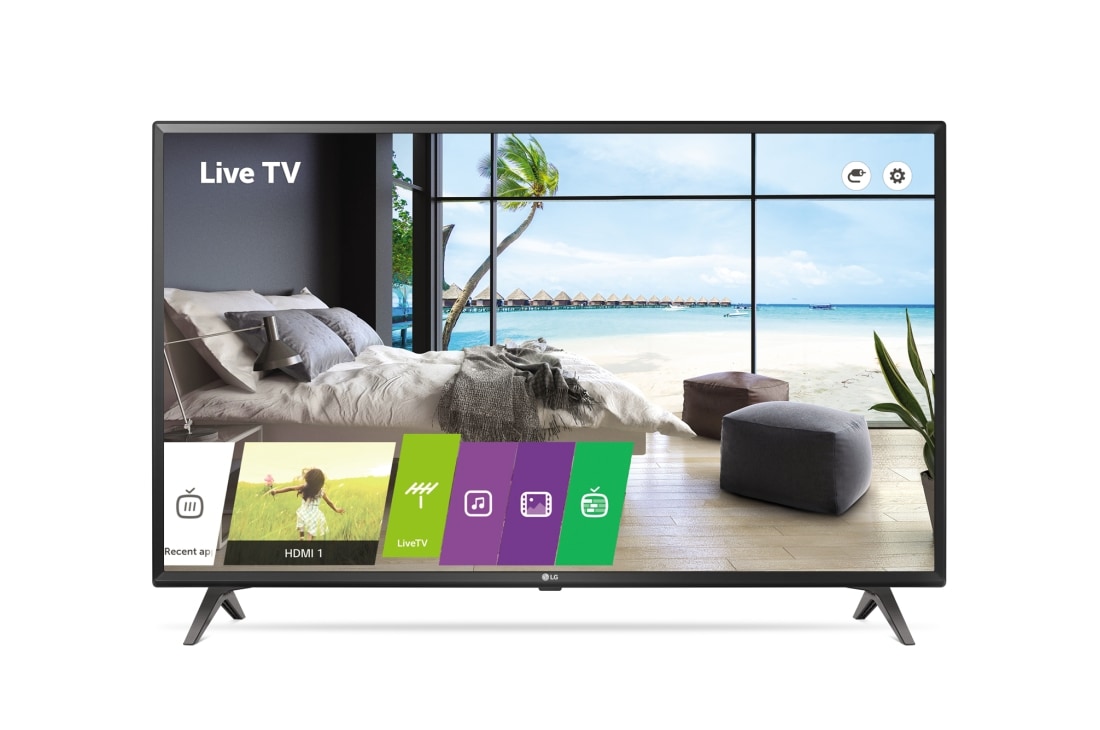

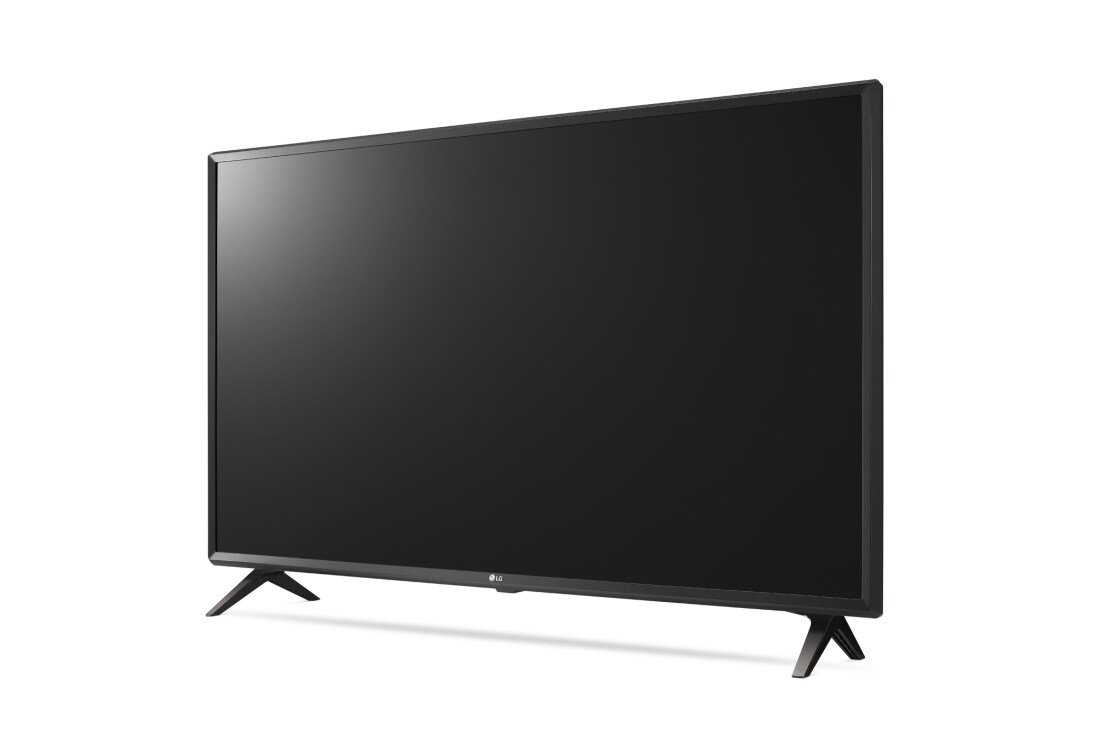

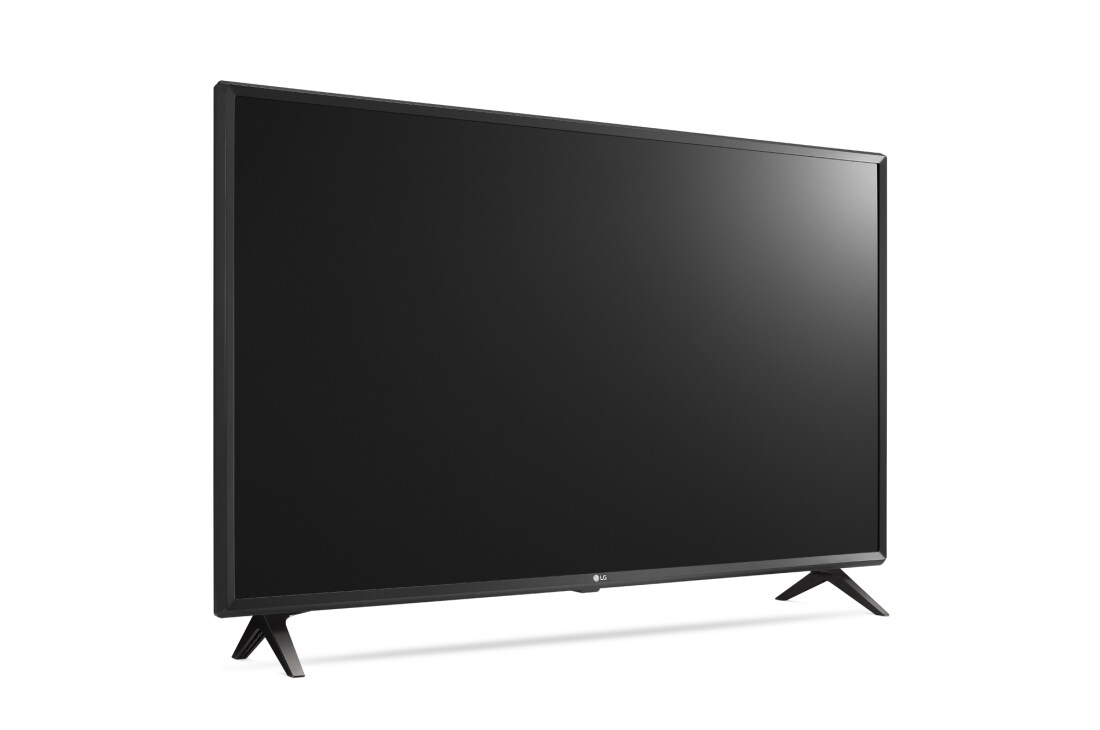

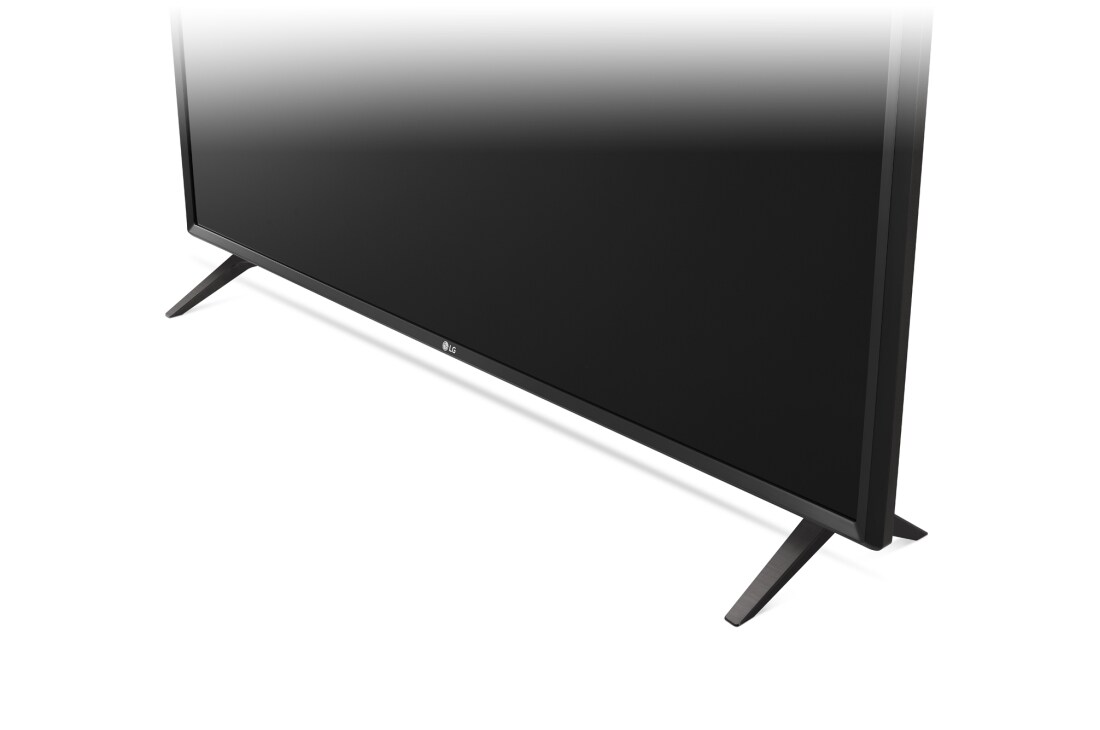

UU660H Series

Key Features

Choose your Size

component-OBScountrySelectDesc

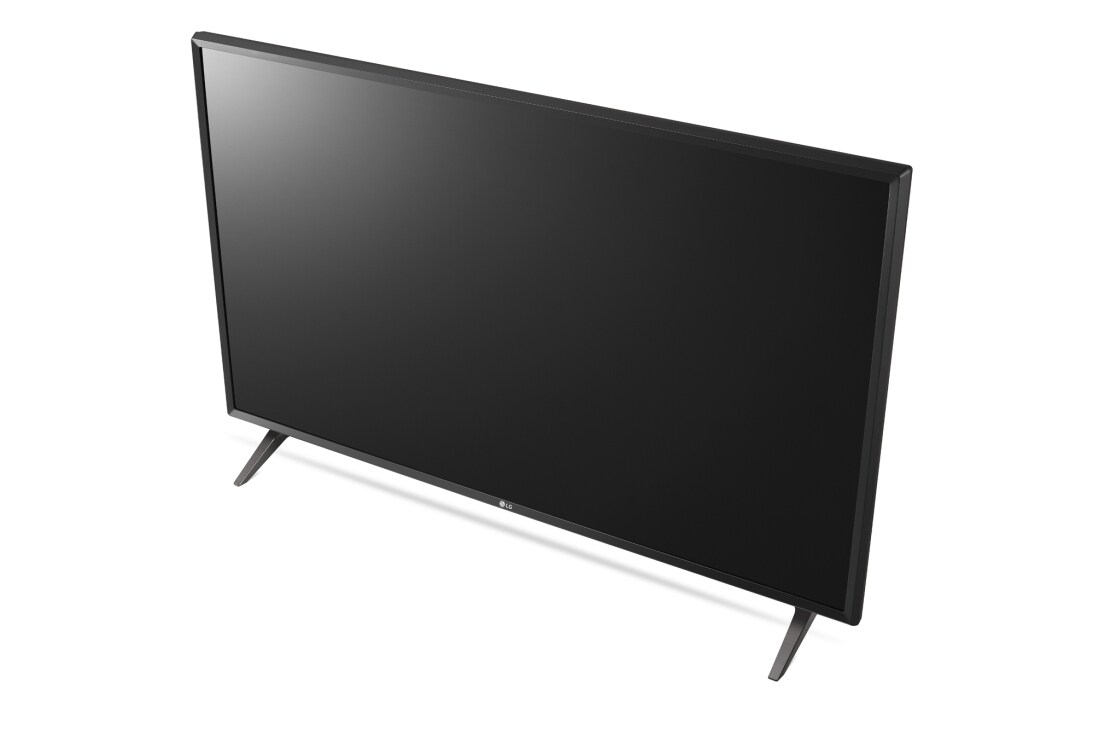

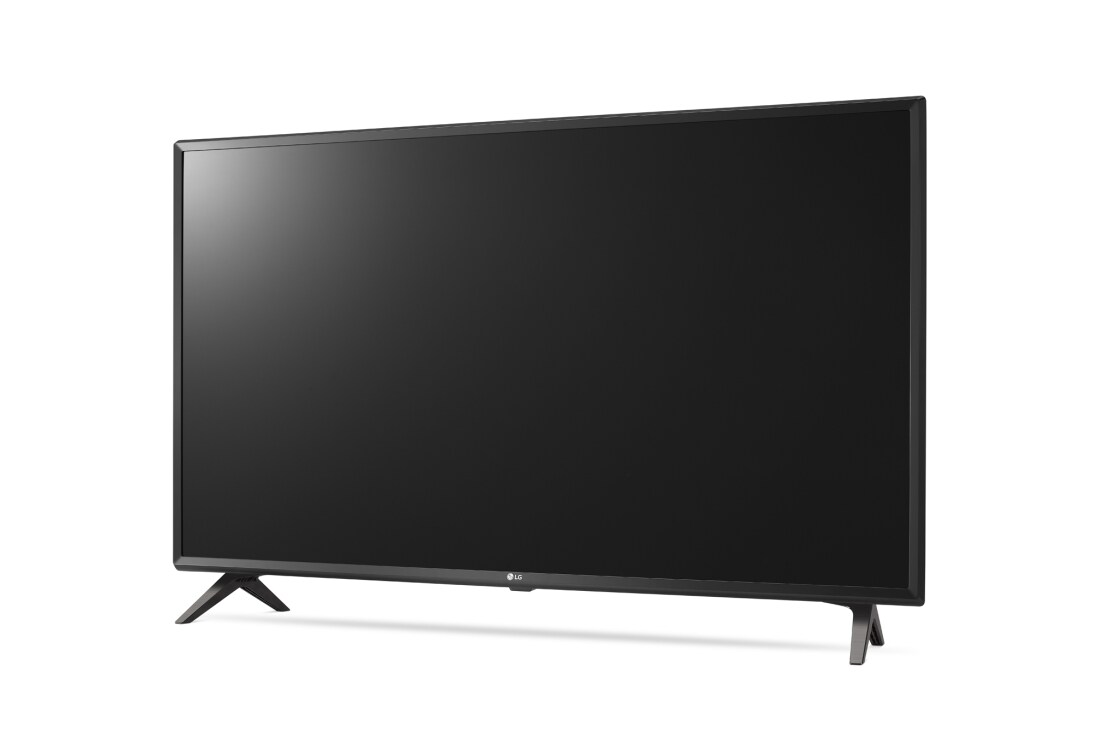

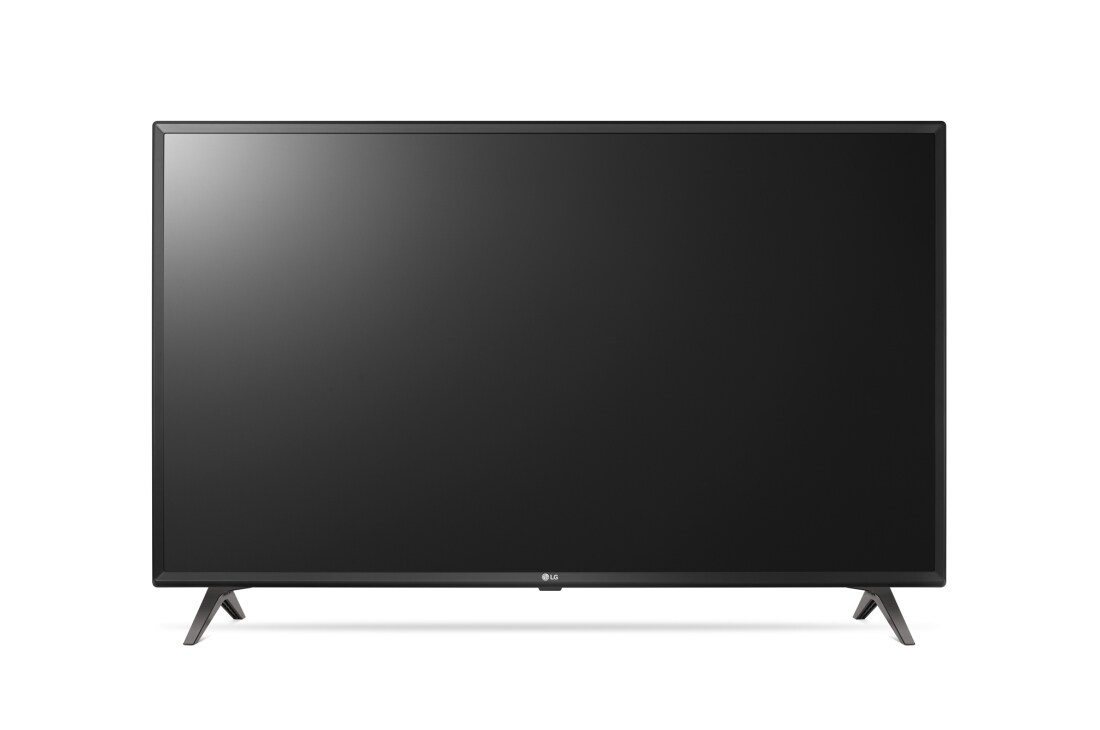

UU660H Series
PANEL
  • Screen Size
    43"
    Backlight Type
    LED (Direct)
  • Resolution
    3,840 x 2,160 (4K UHD)
    Brightness (cd/m²)
    400
BROADCASTING SYSTEM
  • Analog
    • (PAL/SECAM)
    Digital
    • (varied by countries)
VIDEO
  • XD Engine
    Aspect Ratio
    • 5 modes(16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom)
  • HDR 10 / HDR Dolby Vision
    • / -
AUDIO
  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • Sound Mode
    • 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)• 6 modes (Only for India, Sri Lanka) (Standard, Cinema, Clear Voice III, Cricket, Music, Game)
    Clear Voice
    • (Clear VoiceⅢ)

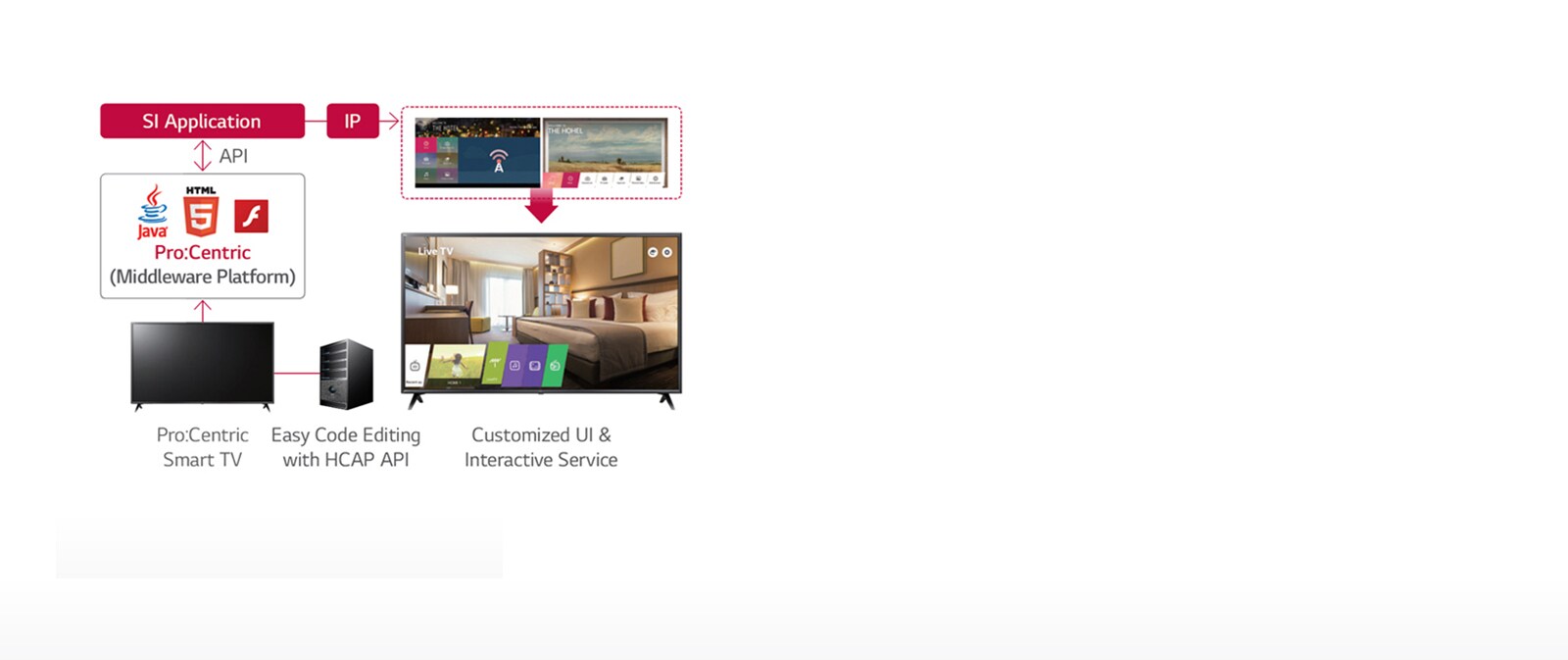

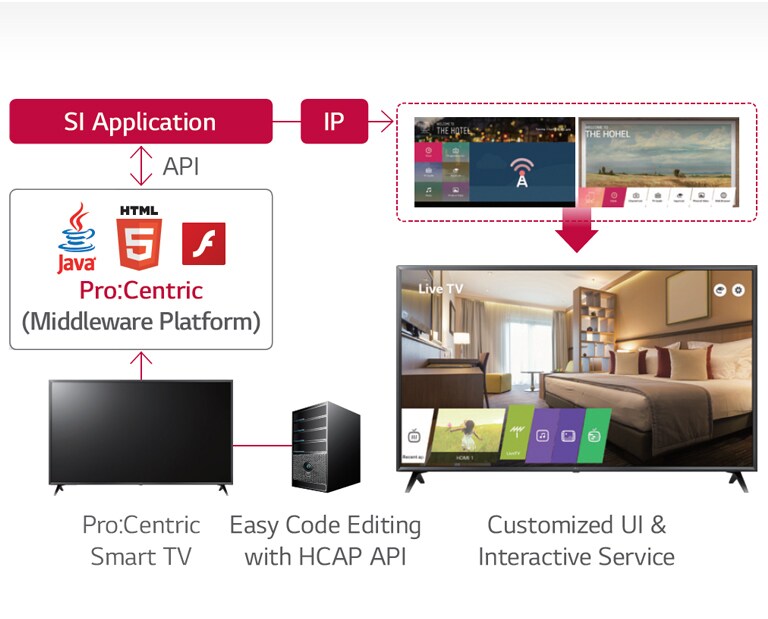

HOSPITALITY SOLUTION
  • Solution Type

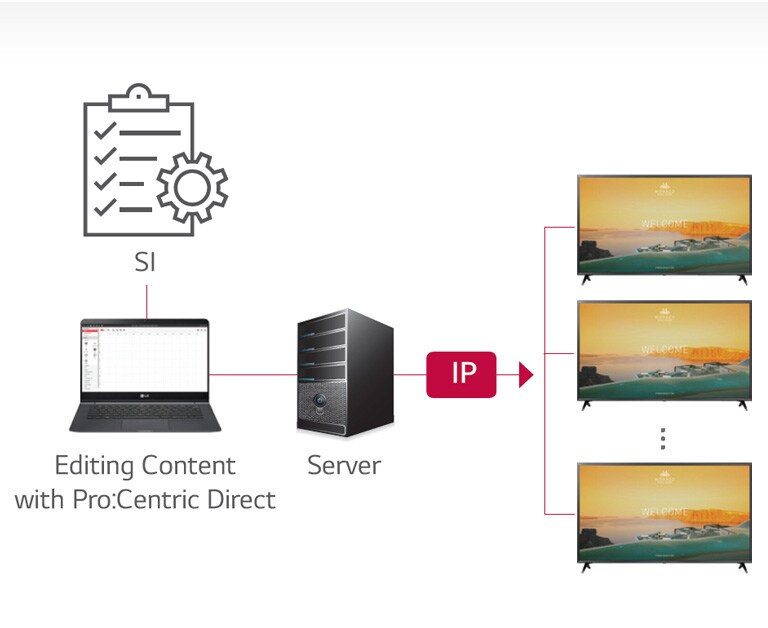

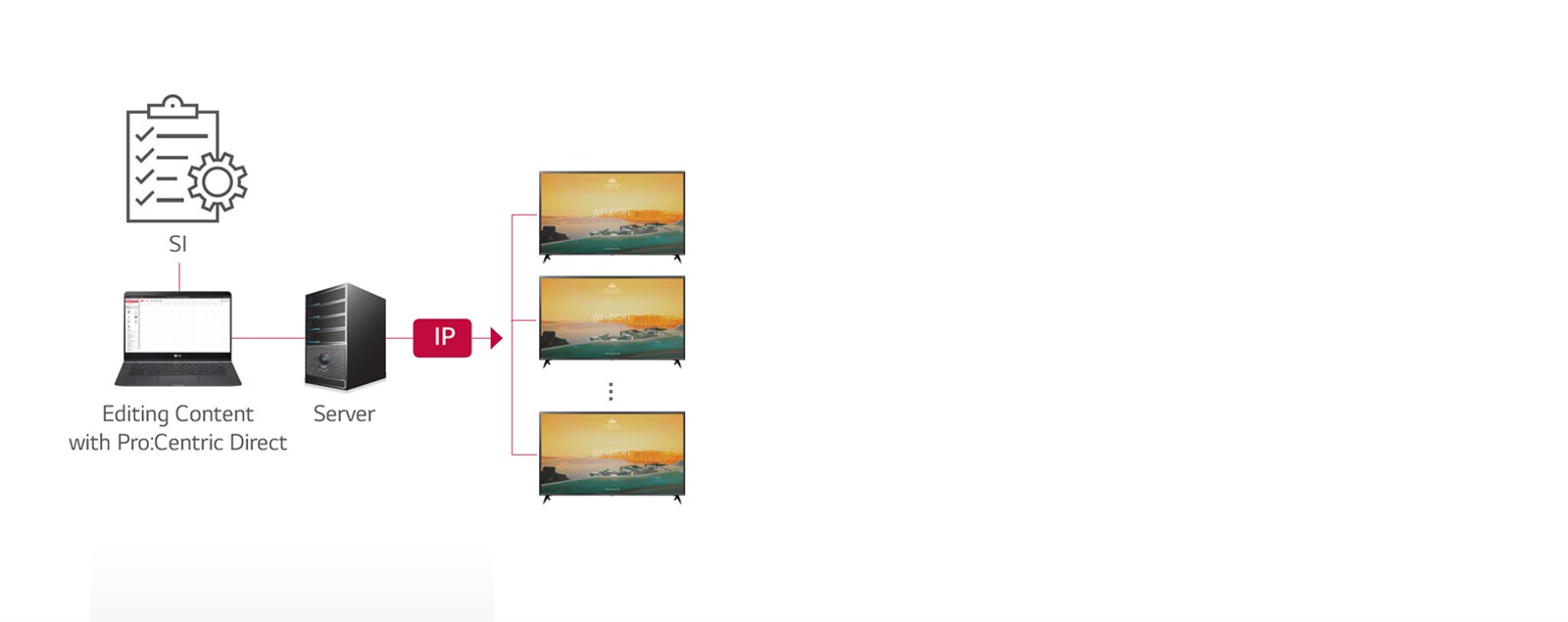

    Pro:Centric (Smart, V, Direct)
    Data Streaming (IP & RF)
  • RF
    • (1 Tuner)
    HCAP (GEM/FLASH/HTML)※ Service Carousel (TLL/XML)
    GEM / Flash / HTML5

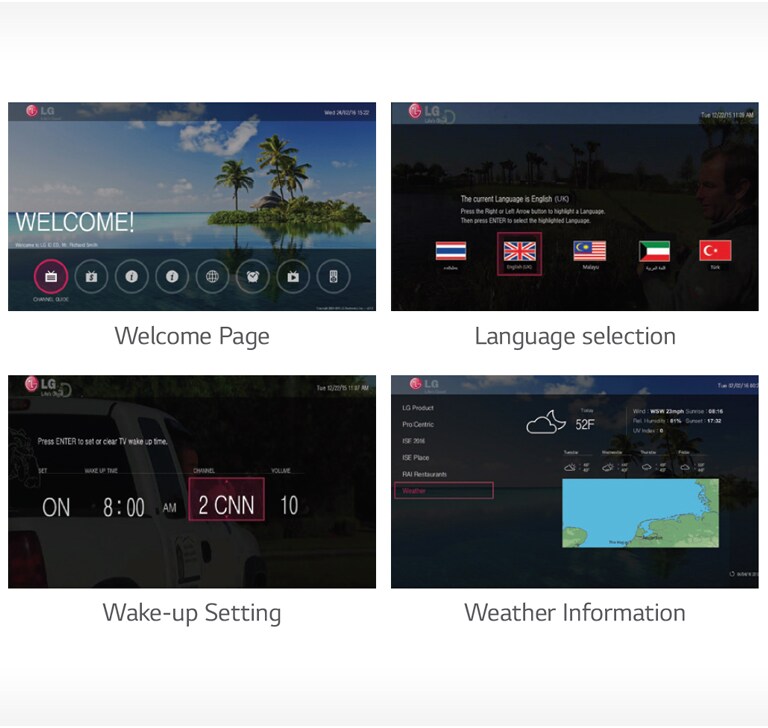

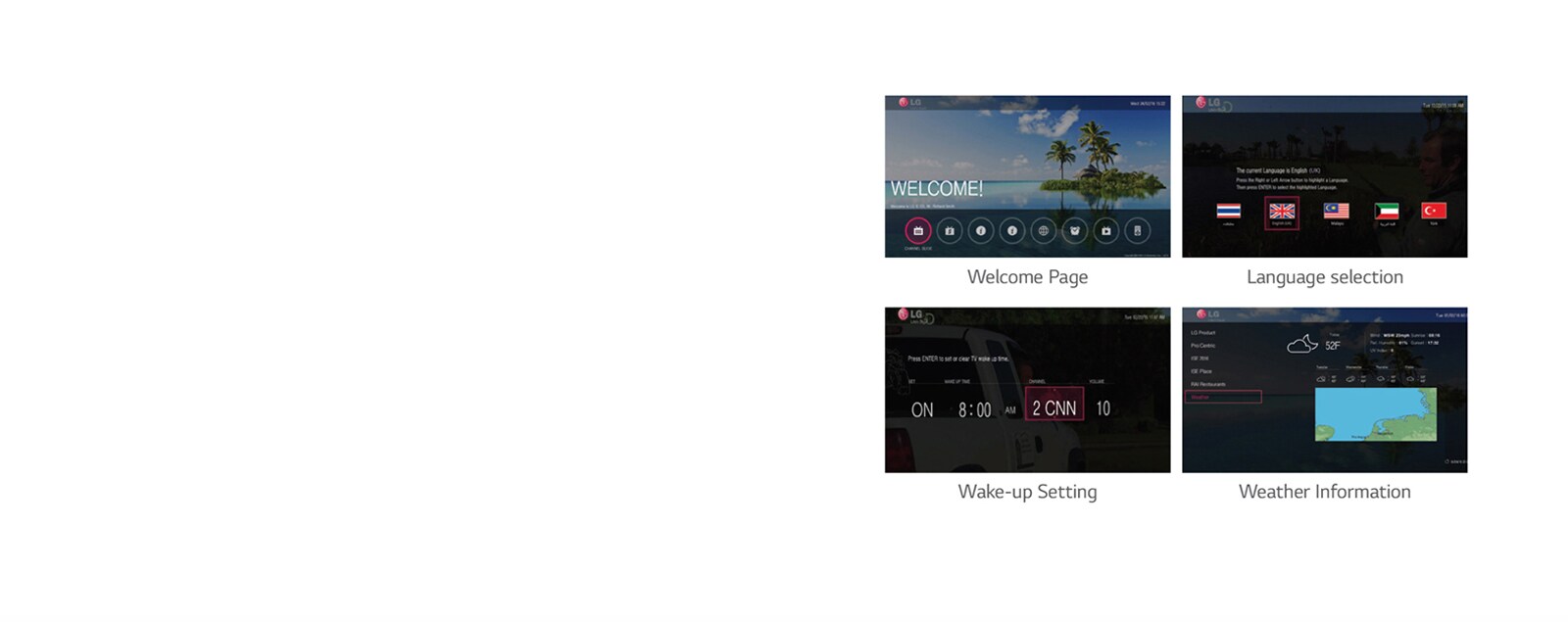

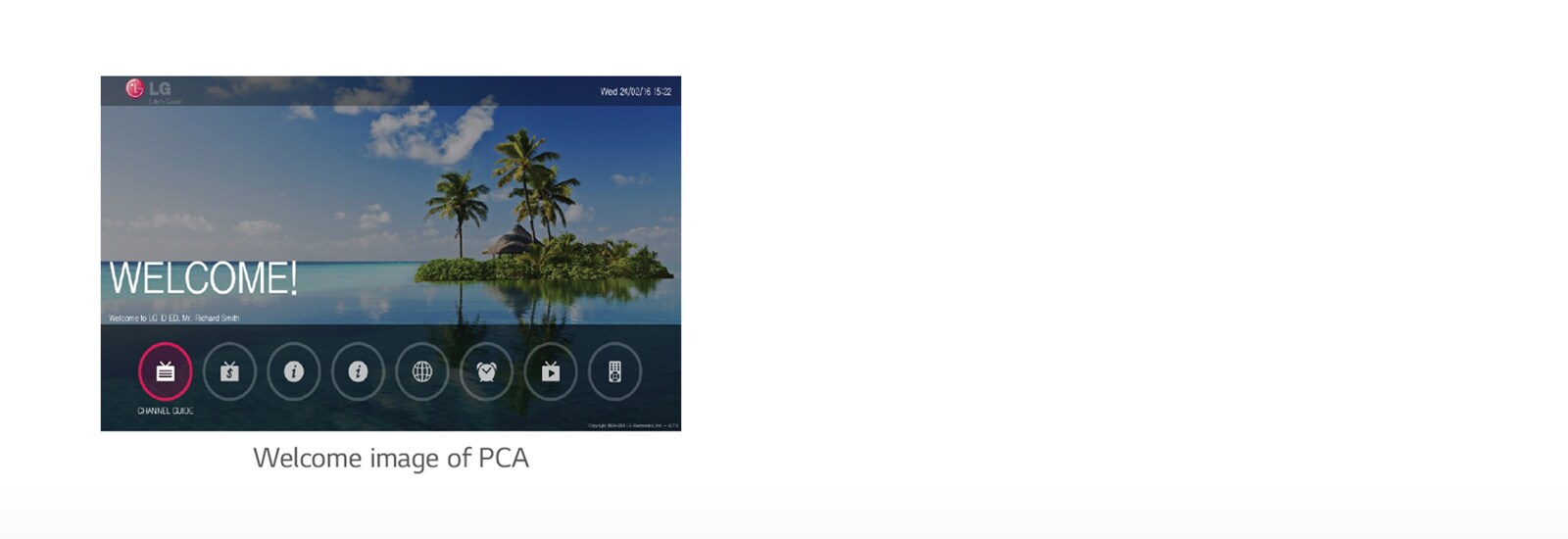

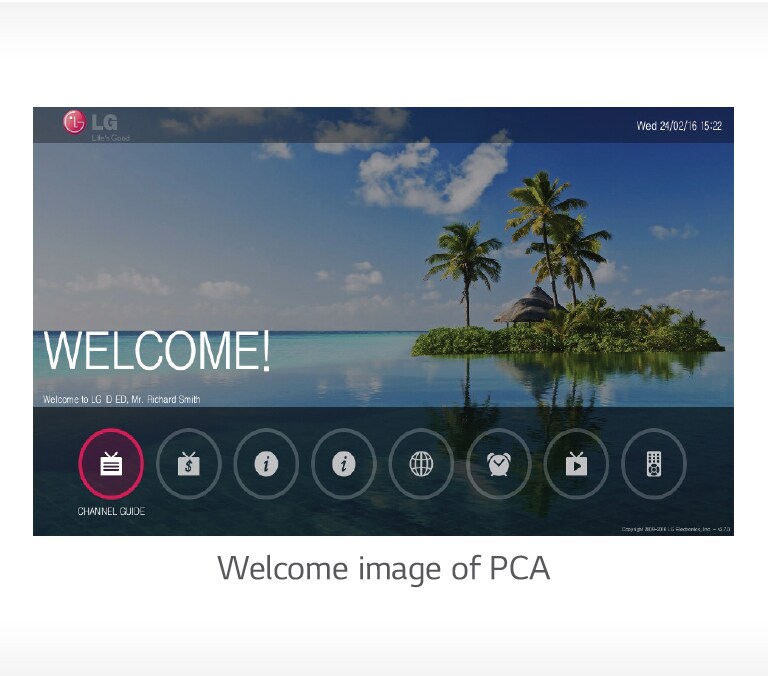

  • Pro:Centric Application
    PCA 3.8
    DRM
    Pro:Idiom (S/W Type)
JACK INTERFACE
  • Set Side
    HDMI In, USB 2.0 (2), CI Slot

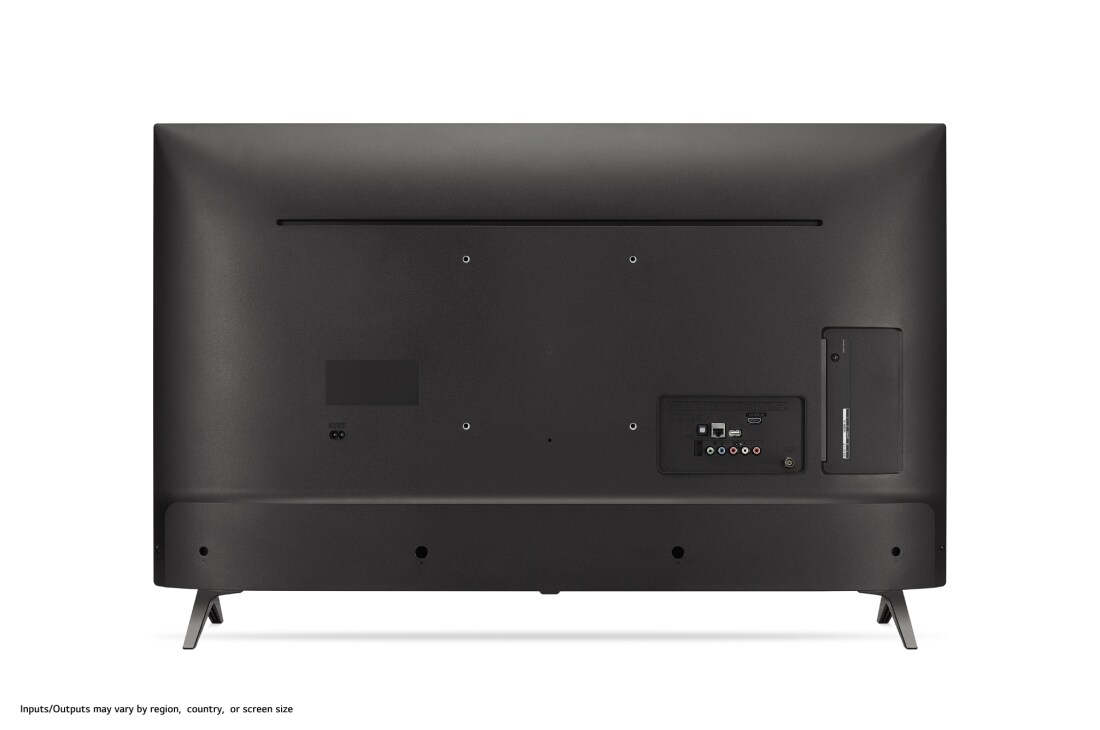

    Set Rear

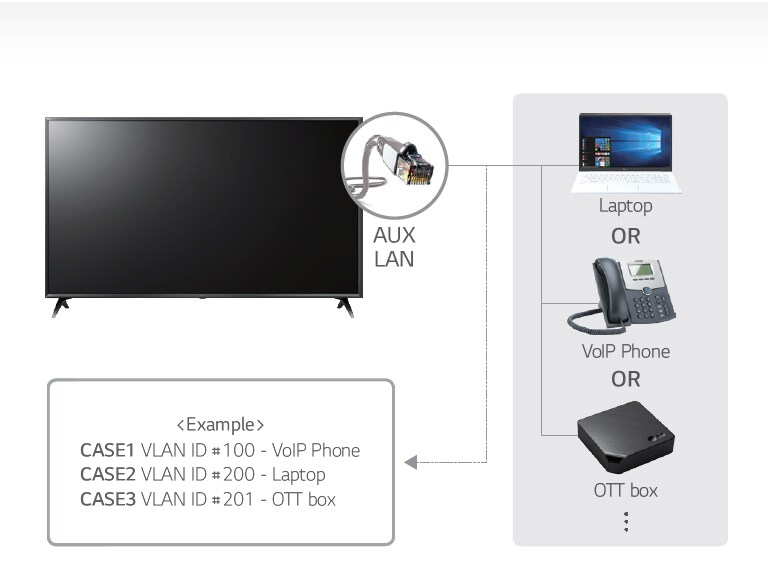

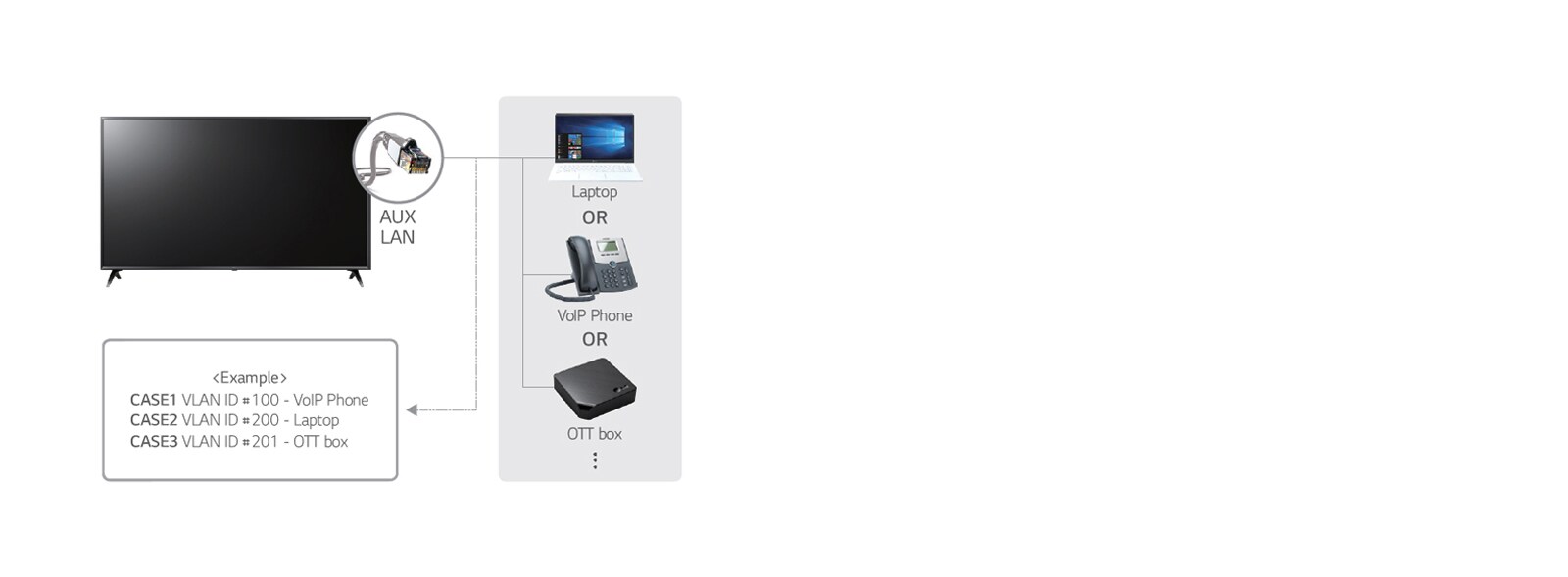

    RF In, AV In, Component in (Y,Pb,Pr-Video), Digital Audio Out (Optical), HDMI / HDCP Input (2.0), RS-232C (Control & Service), Headphone Out, Clock Interface (RJ12), RJ45 (2), External Speaker Out
MECHANIC
  • Vesa
    200 x 200 mm
    W x H x D / Weight (with stand)
    977 x 695 x 216 mm / 8.4 kg
  • W x H x D / Weight (without stand)
    977 x 575 x 71.7 mm (SPK: 80.8) / 8.3 kg
    W x H x D / Weight (Packing)
    1,060 x 660 x 152 mm / 10.5 kg
POWER(UNIT : WATTS)
  • Voltage, Hz
    100~240V, 50 / 60 Hz
    Max
    115.2 W
  • Typical
    89.1 W
    Energy saving (Min / Med / Max)
    26.73 W / 49.00 W / 71.28 W
  • Stand-by
    0.5 W
GENERAL
  • Region
    ASIA
