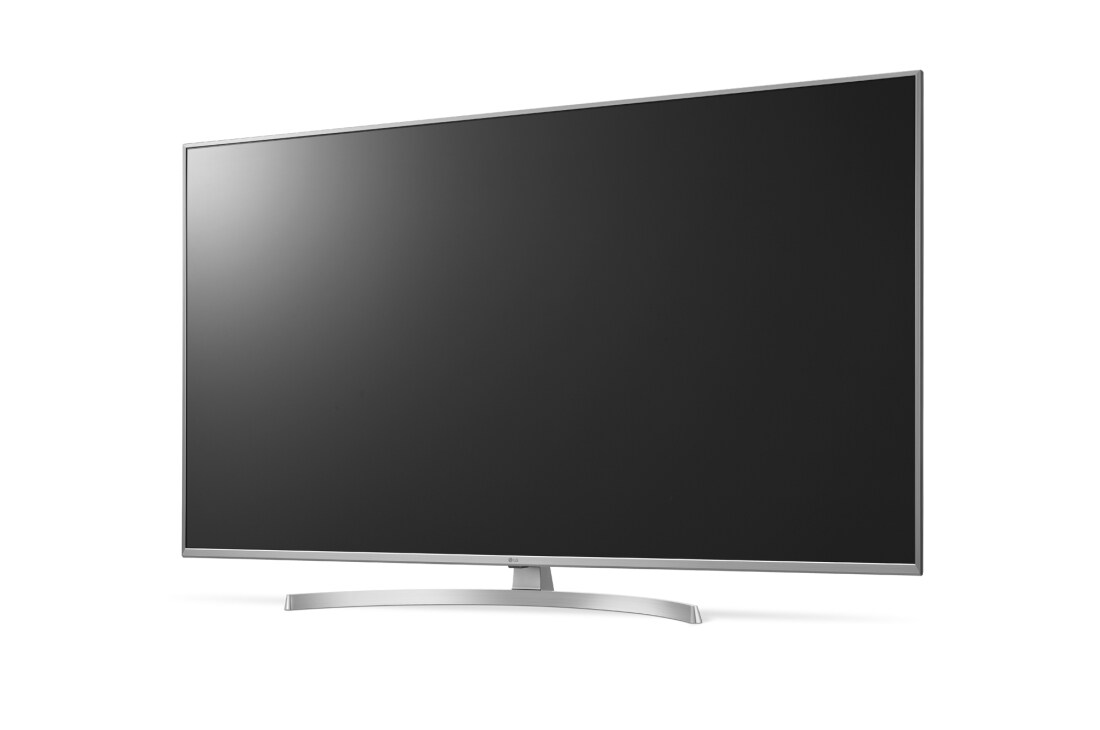

UU761H Series

Key Features

Choose your Size

component-OBScountrySelectDesc

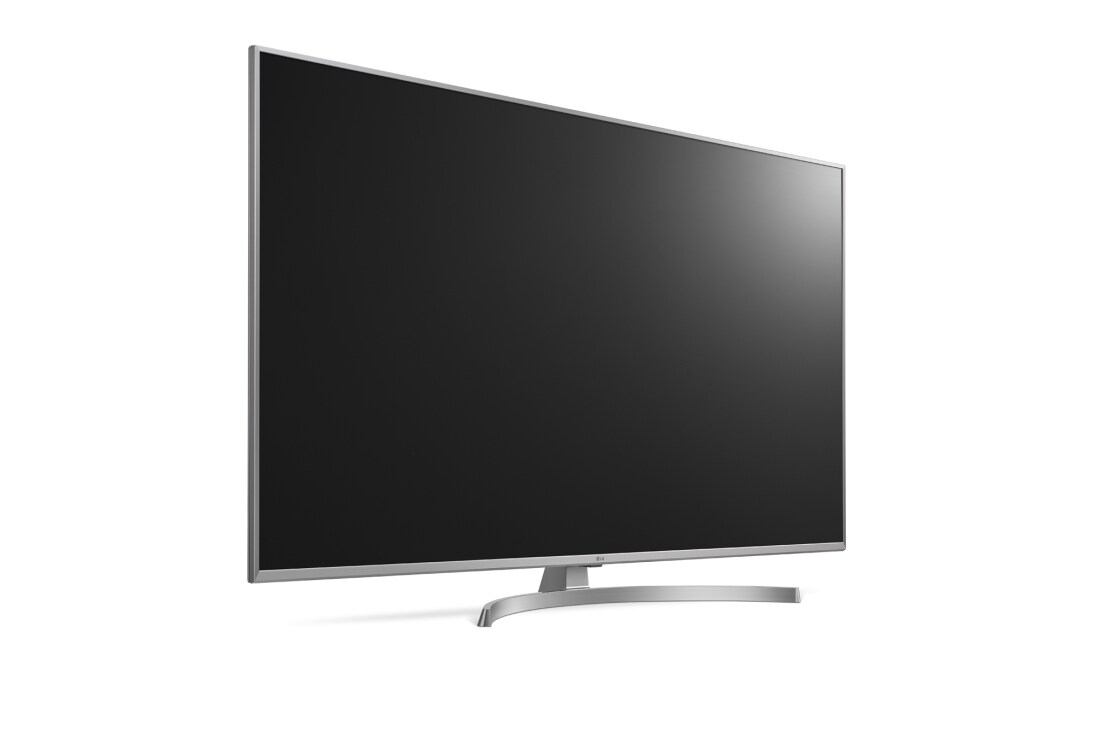

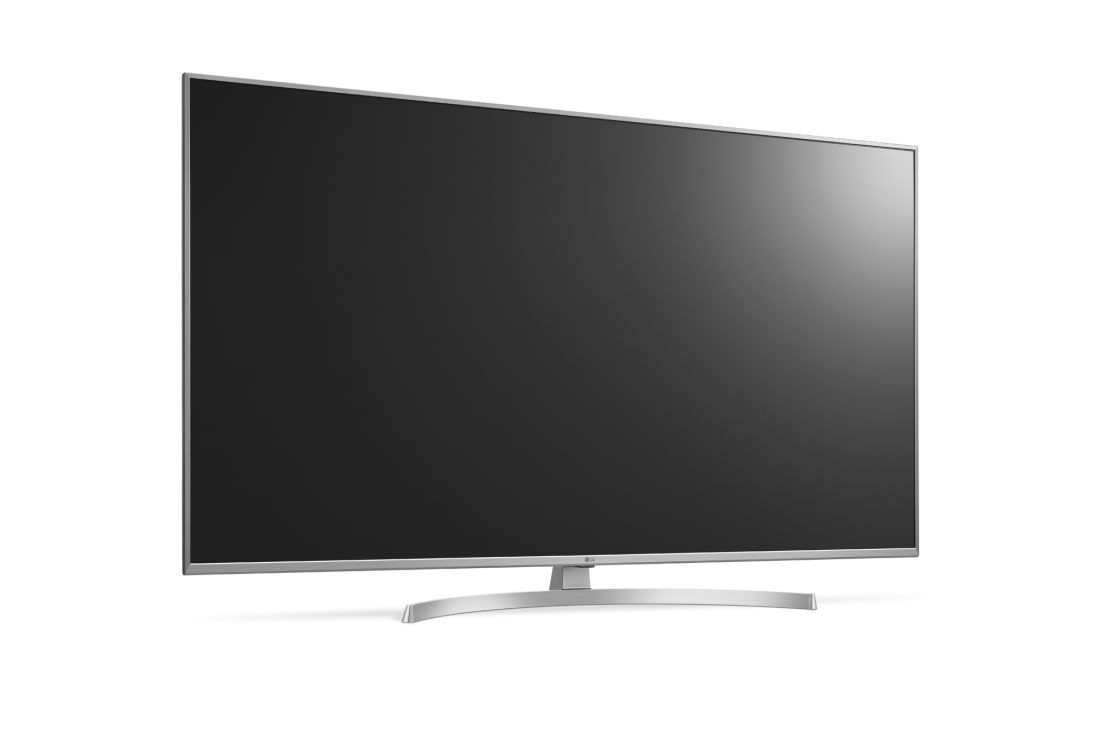

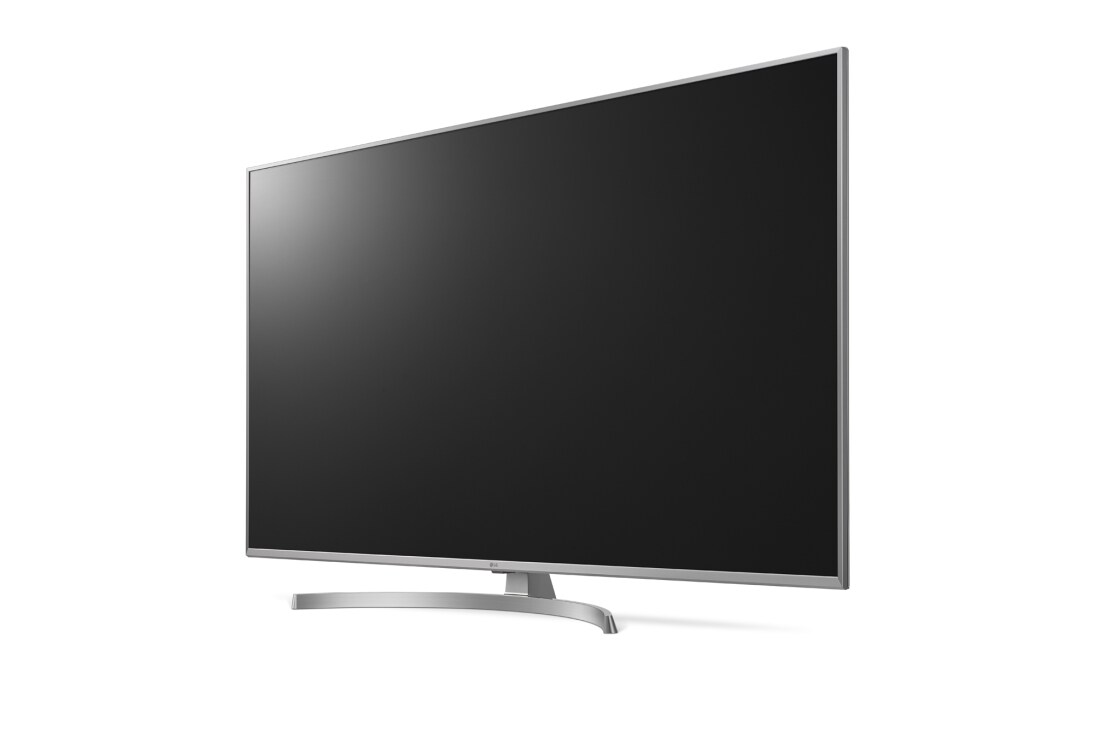

UU761H Series
DISPLAY
  • Backlight Type
    LED (Edge)
    Resolution
    3,840 x 2,160 (4K UHD)
  • Brightness (cd/m²)
    400
BROADCASTING SYSTEM
  • Analog
    • (PAL/SECAM)
    Digital
VIDEO
  • XD Engine
    Aspect Ratio
    • 6 modes (16:9, Original, Full wide, 4:3, Vertical Zoom, All-Direction Zoom)
  • HDR 10 / HDR Dolby Vision
    • / -
AUDIO
  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • Sound Mode
    • 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
    Clear Voice
    • (Clear VoiceⅢ)

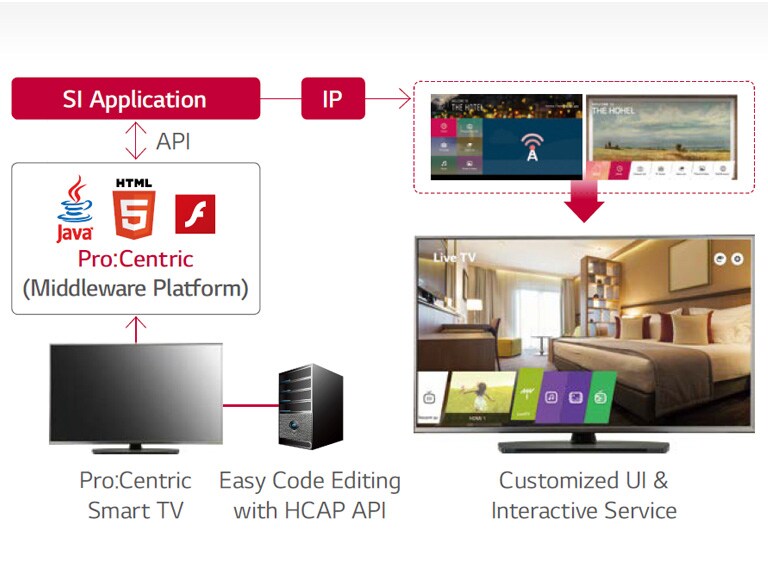

HOSPITALITY SOLUTION
  • Solution Type

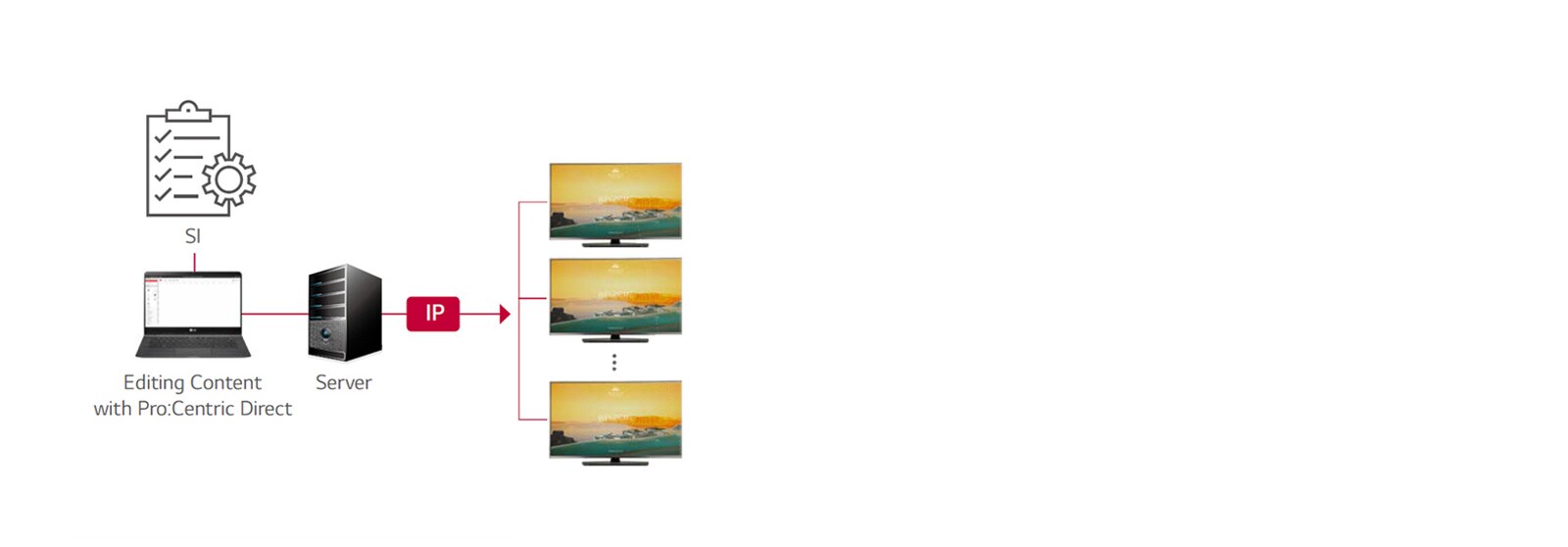

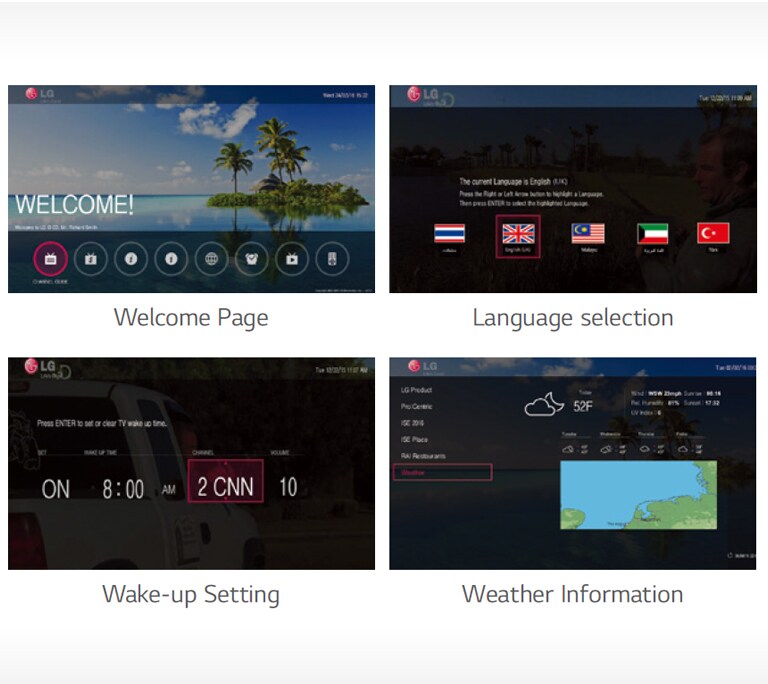

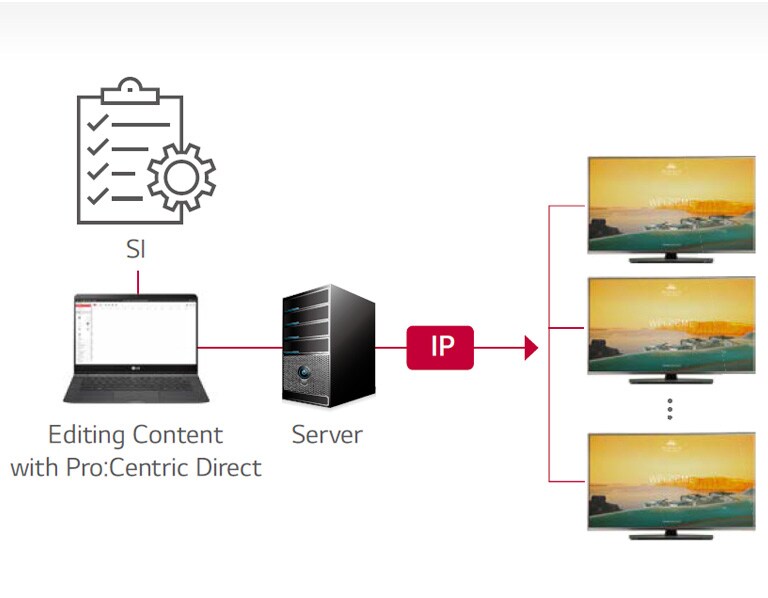

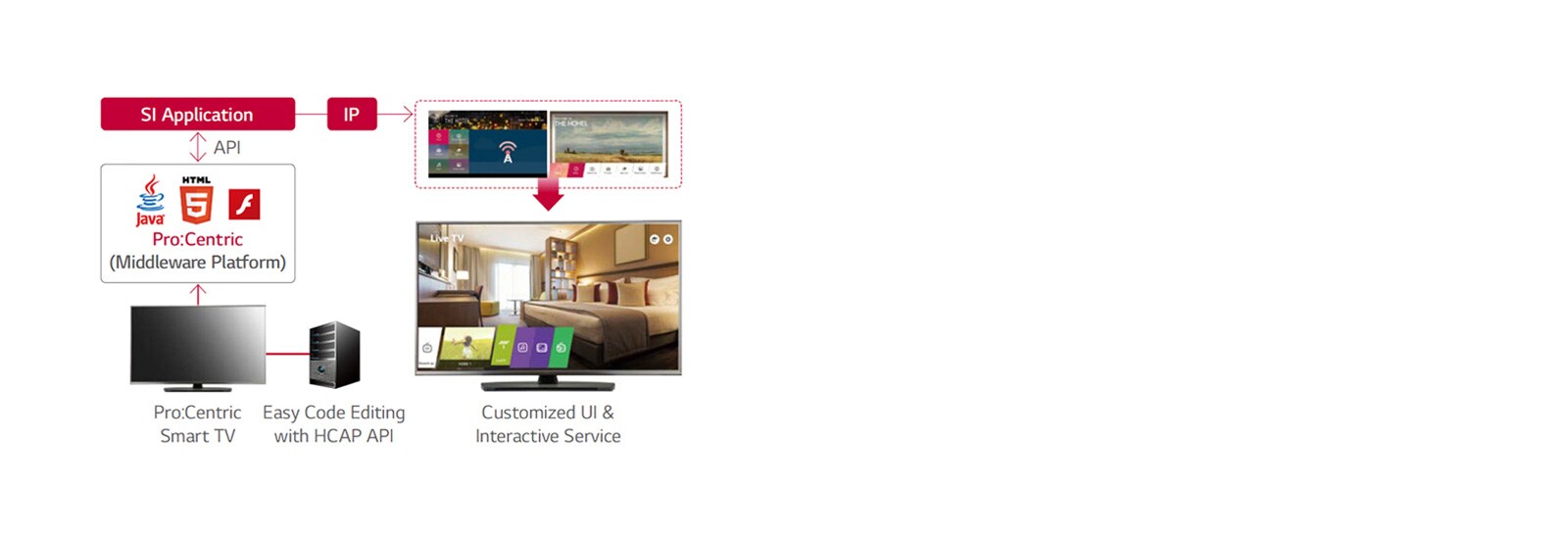

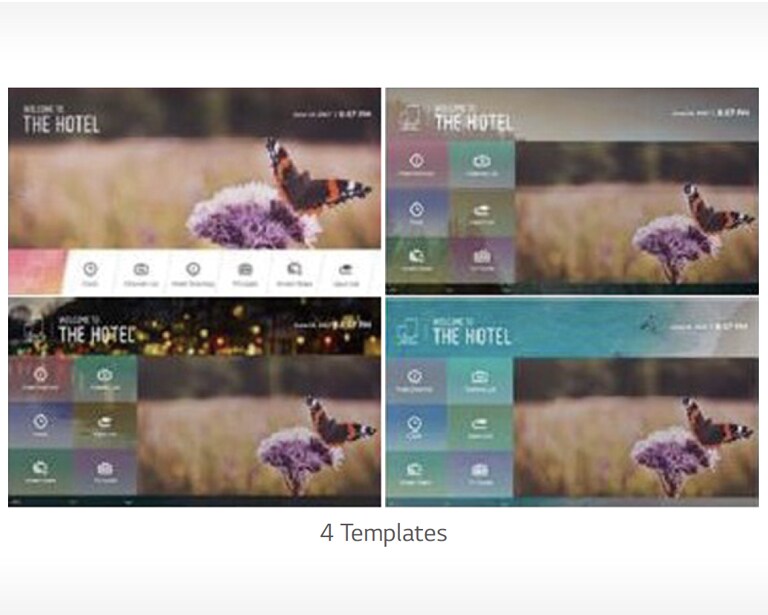

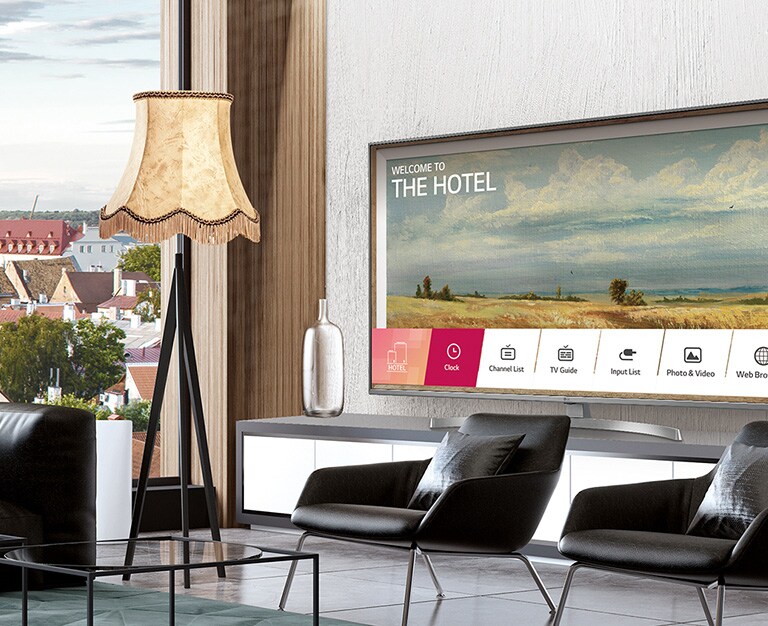

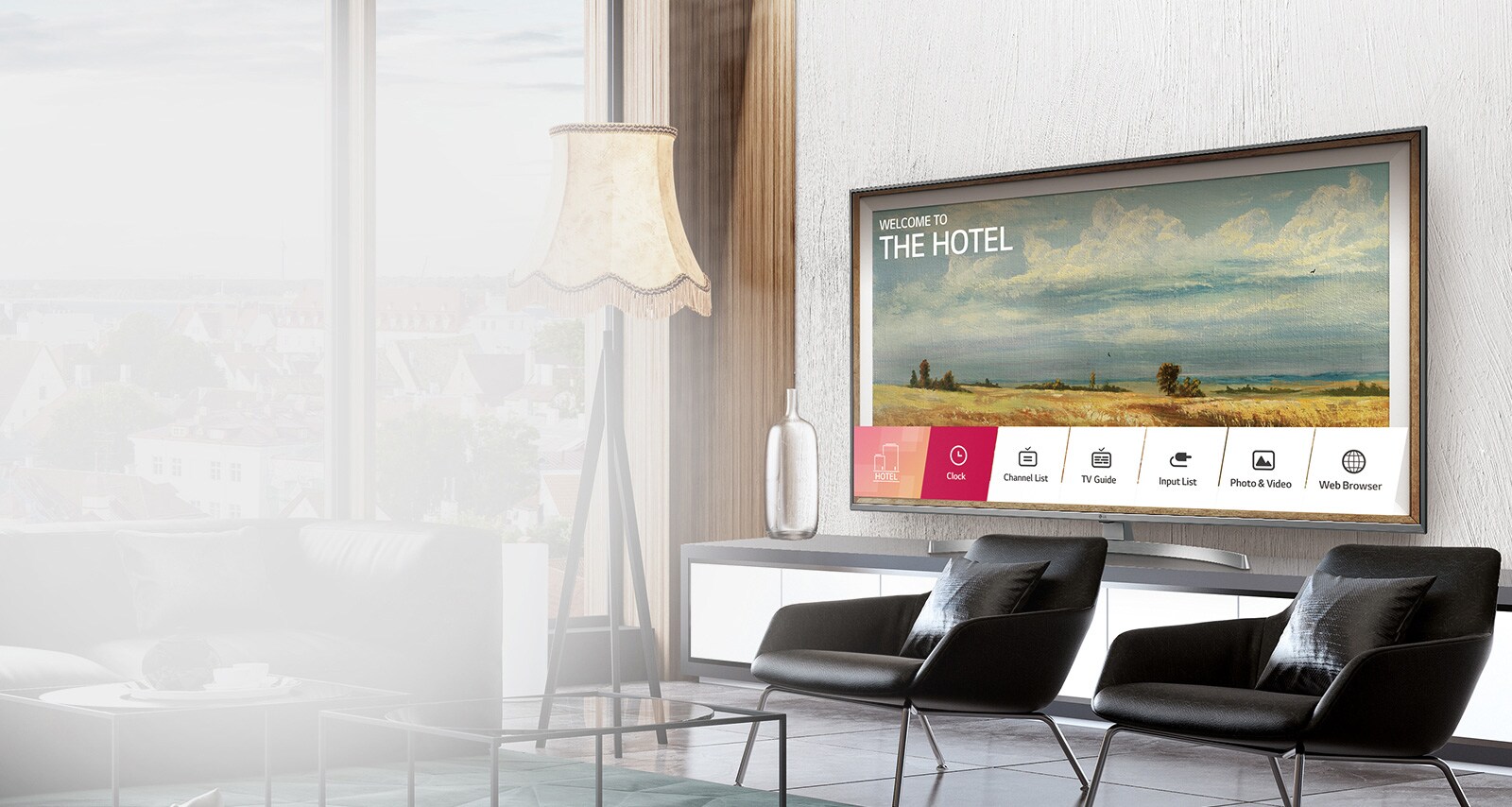

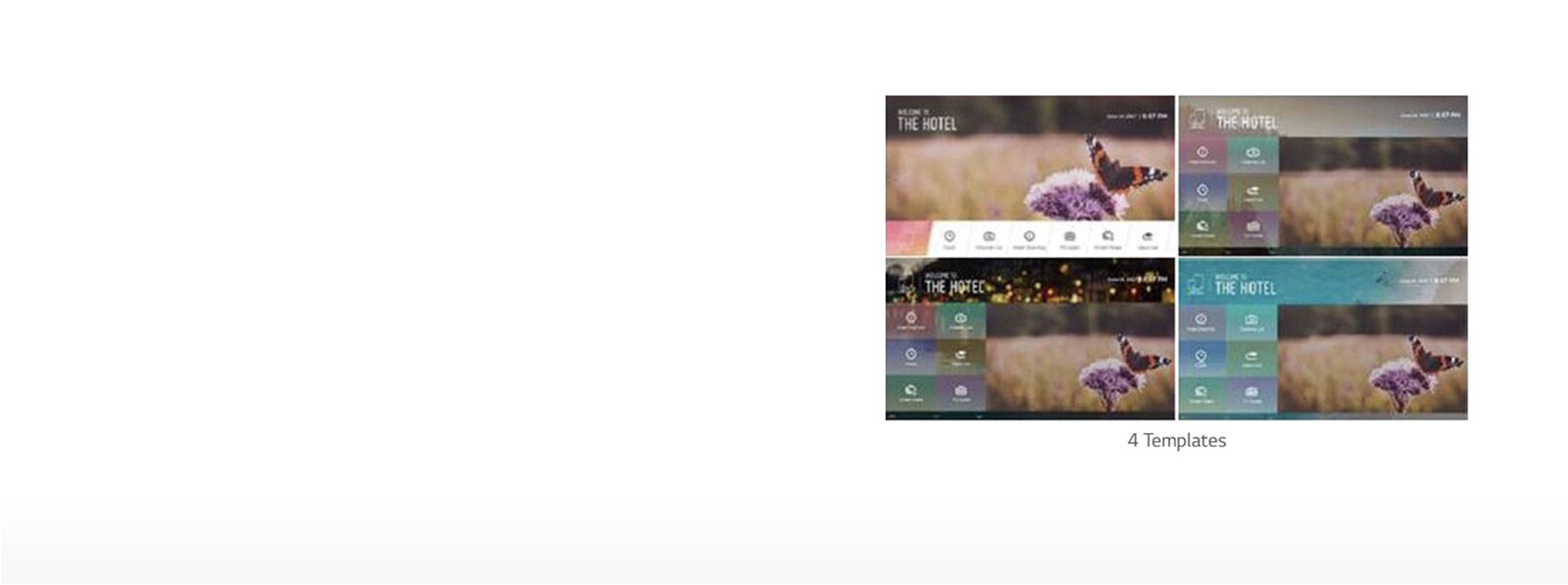

    Pro:Centric (Smart, V, Direct), Quick Menu 2.0
    Data Streaming (IP & RF)
  • RF
    • (1 Tuner)
    HCAP (GEM/FLASH/HTML)※ Service Carousel (TLL/XML)
    GEM / Flash / HTML5

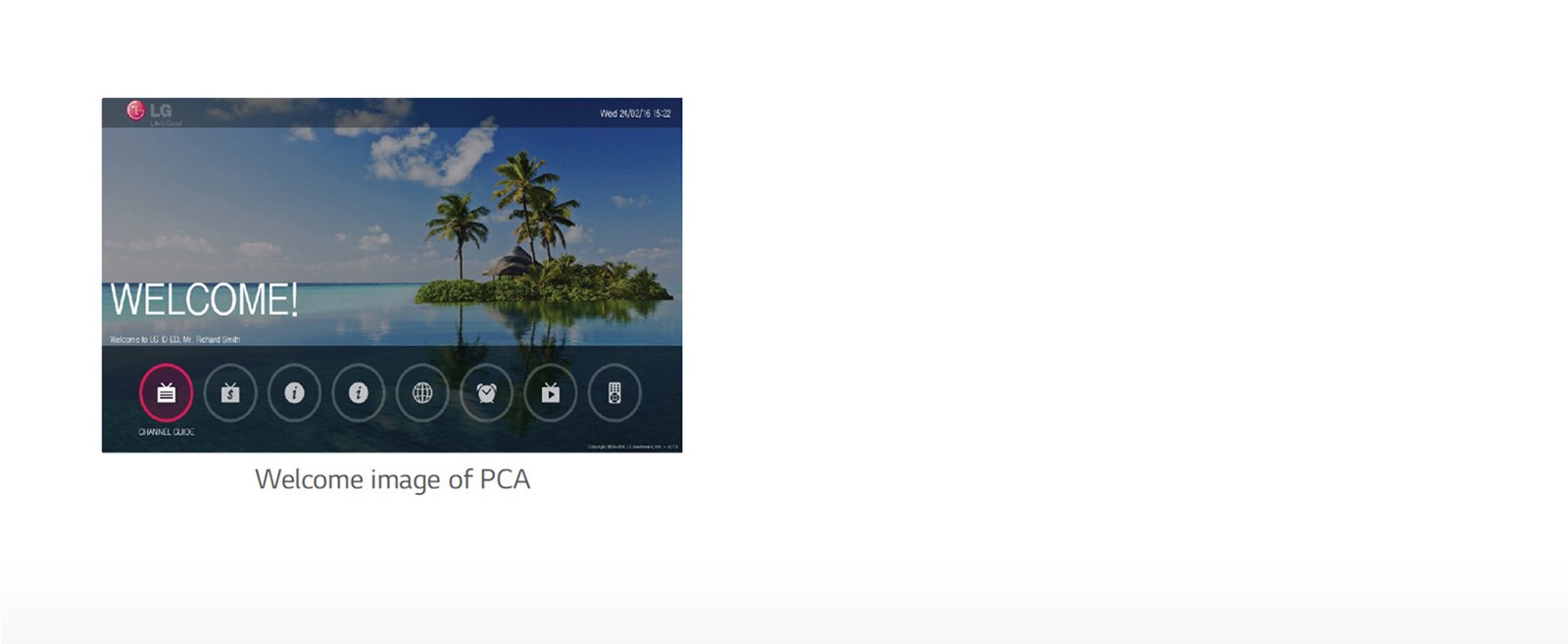

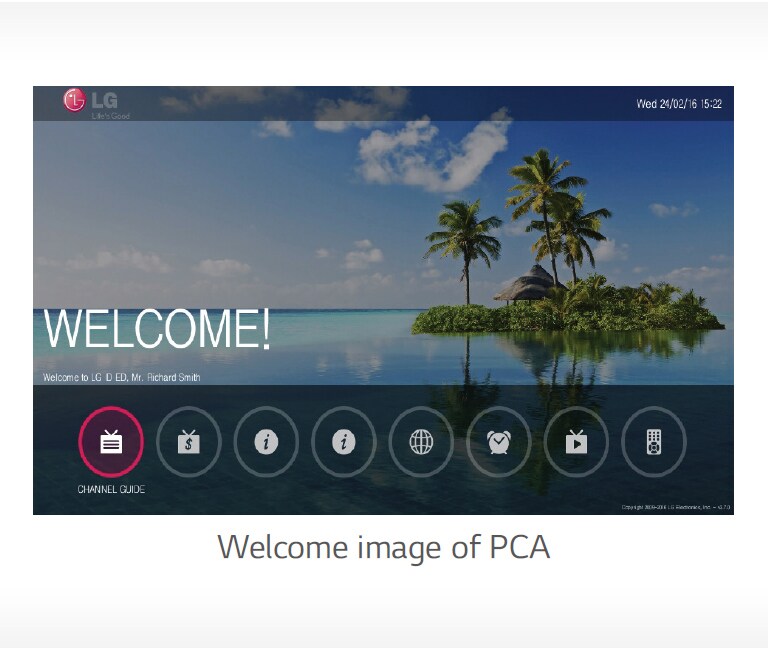

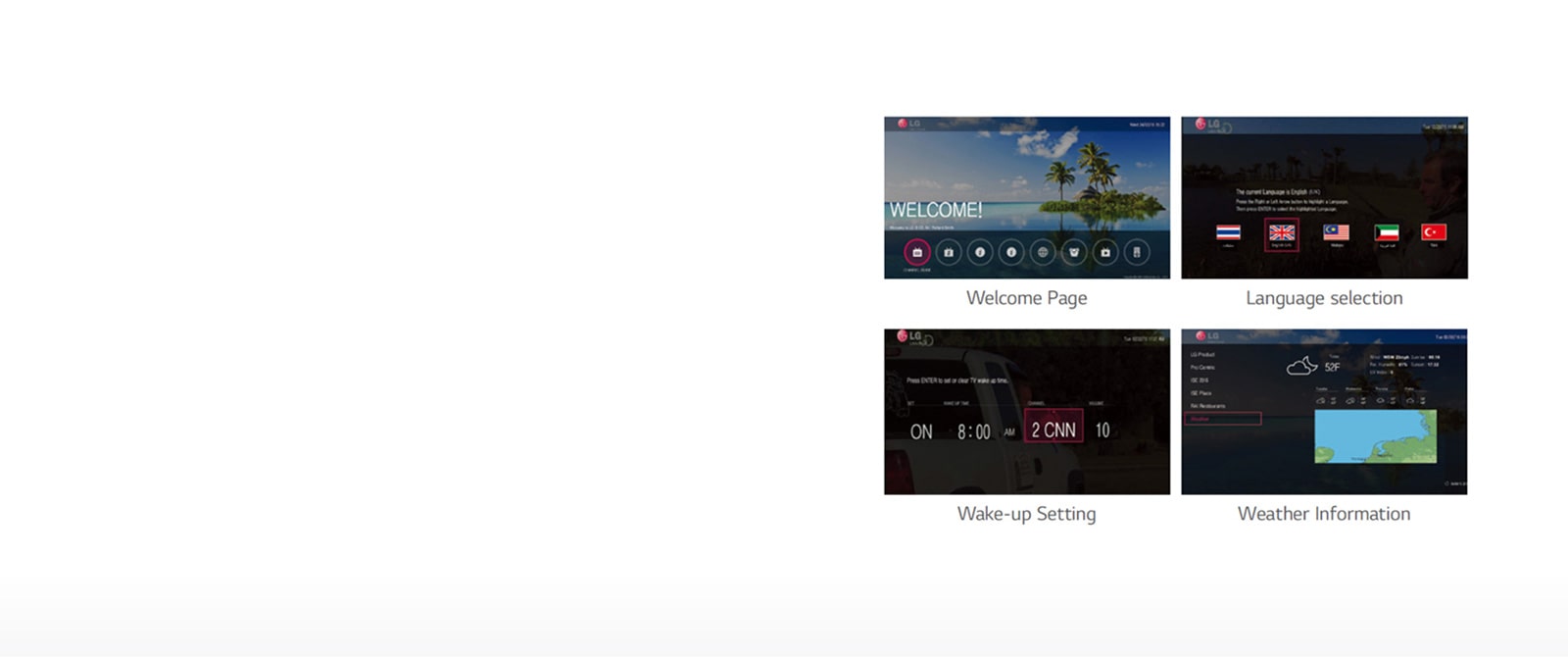

  • Pro:Centric Application
    PCA 3.7
    DRM
    Pro:Idiom (S/W Type)
FEATURE
  • Hospitality

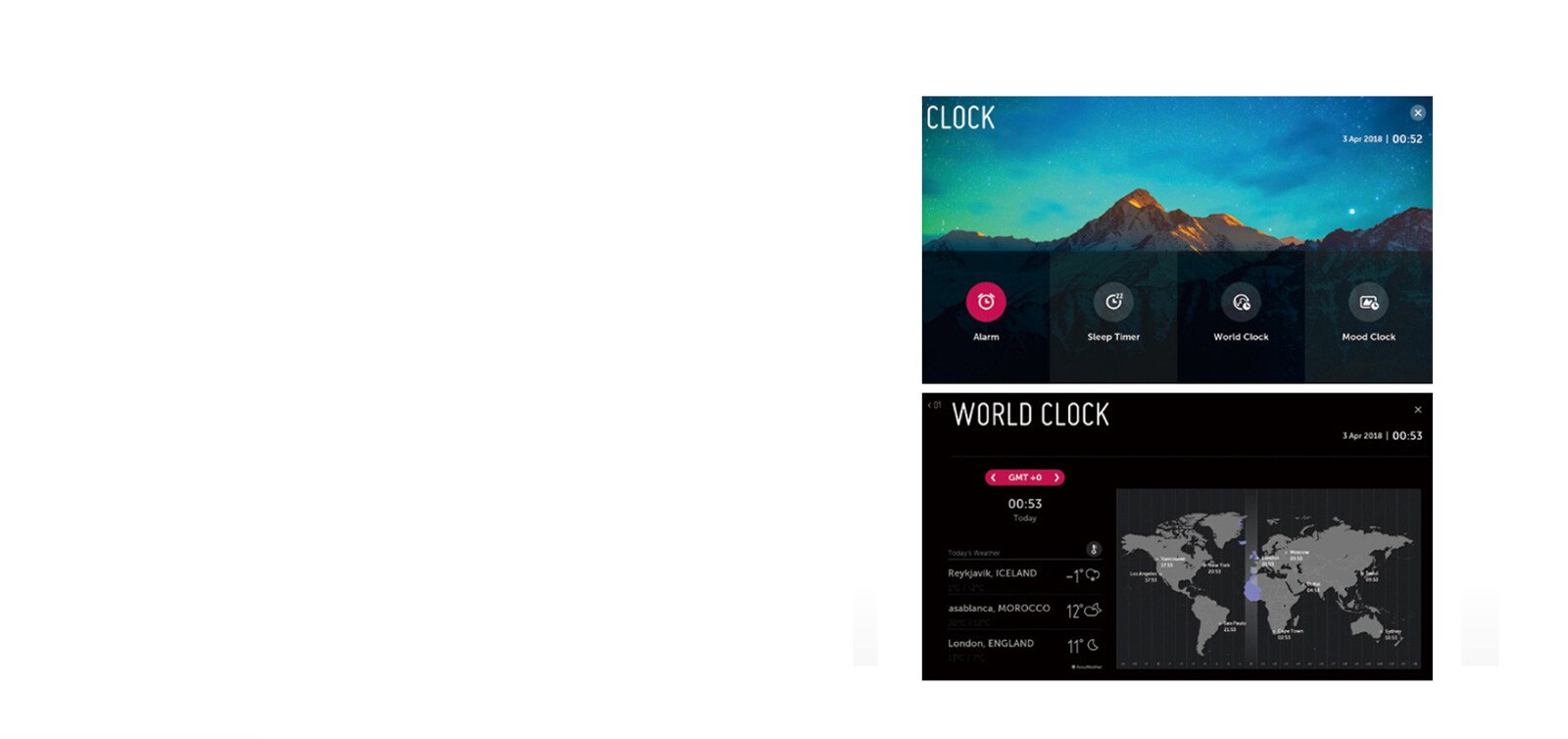

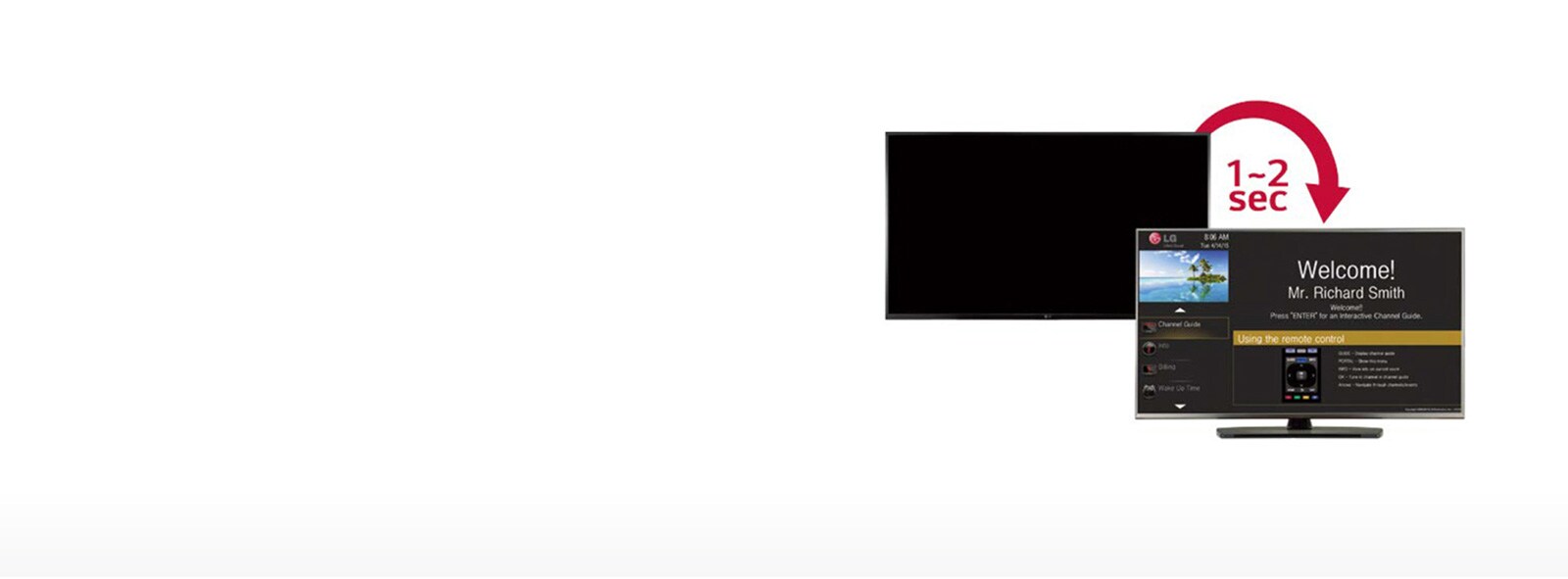

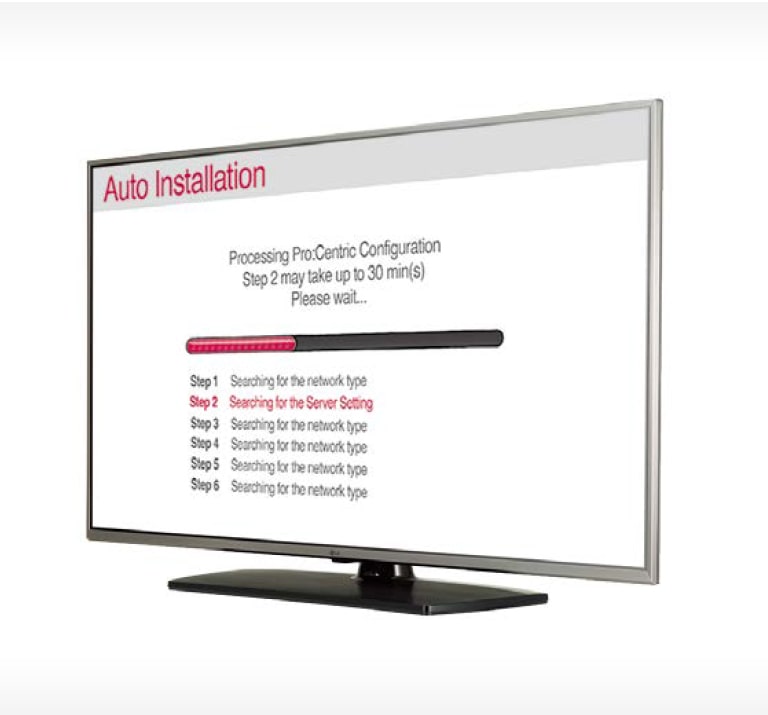

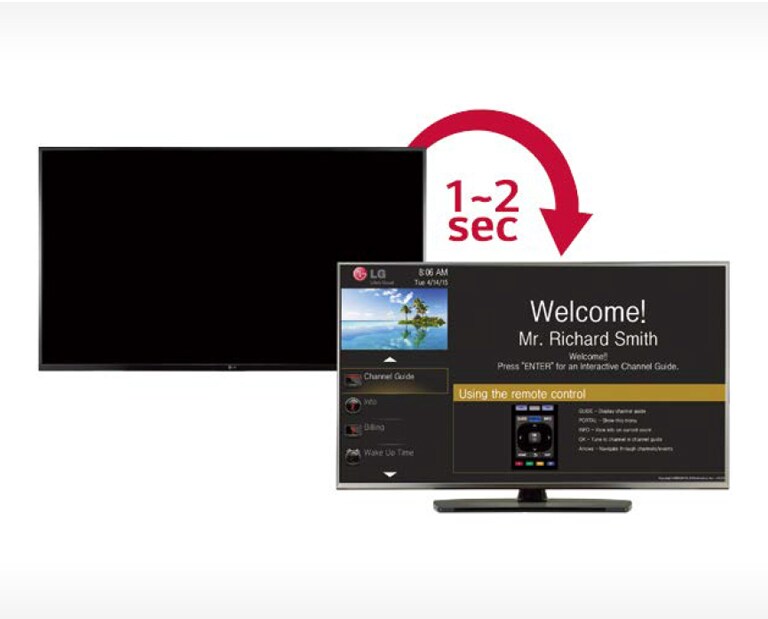

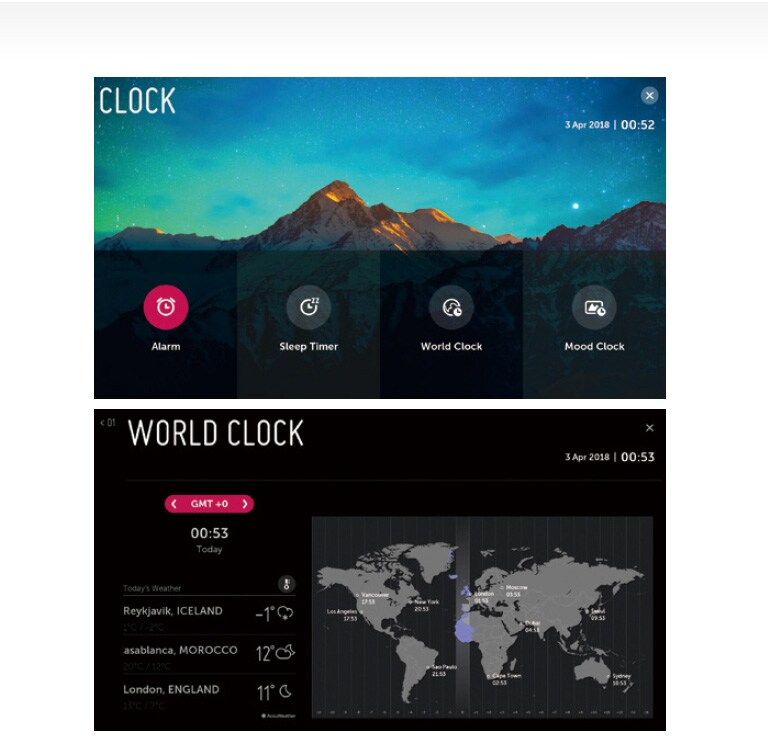

    Hotel Mode / PDM / Installer Menu, Lock Mode, Welcome Screen, Insert Image, One Channel Map, External Speaker Out, Instant On, External Power, V-Lan Tag, RJP Interface, RJP Compatibility, External Clock Compatibility, Clock (World Clock / Alarm), 360 Viewer
JACK INTERFACE
  • Set Side
    HDMI In 2.0, USB 2.0 (2), CI Slot
    Set Rear

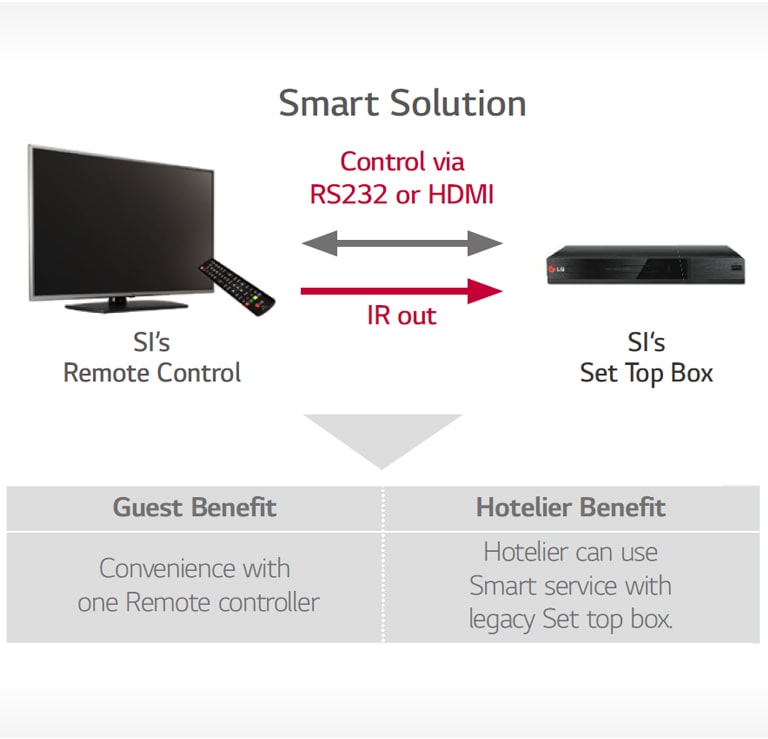

    RF In, AV In, Component In (Phone Jack Type), Digital Audio Out (Optical), HDMI / HDCP Input, RS-232C (Control & Service), Headphone Out, Clock Interface (RJ12), RJ45 (2), External Speaker Out
DIMENSION(UNIT: MM)
  • Vesa
    300 x 300
    W x H x D / weight (with stand)
    1,456 x 916 x 318.5 / 26.2kg
  • W x H x D / Weight (without stand)
    1,456 X 844 x 37.2 (SPK: 63.9) / 24.5kg
    W x H x D / weight (Packing)
    1,600 x 1,035 x 190 / 33.6 kg
POWER(UNIT : WATTS)
  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Max
    185
  • Typical
    167
    Energy saving (Min / Med / Max)
    114 / 82 / 52
  • Stand-by
    0.5 ↓
GENERAL
  • Region
    Middle East & Africa
