Pro:Centric® Server
Contact Us

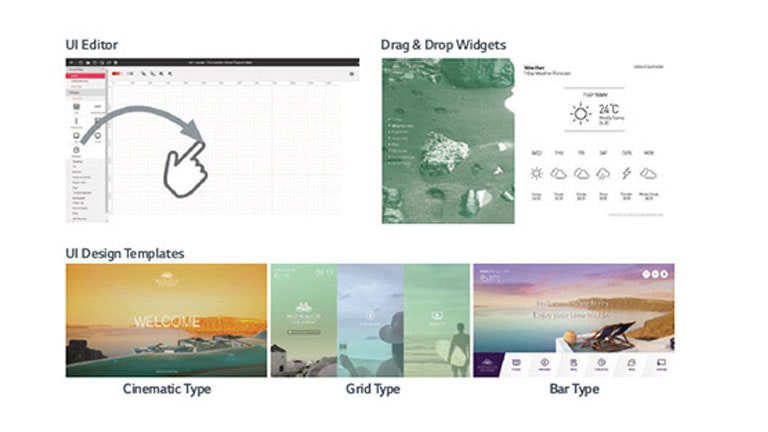

Supports Pro:Centric Direct (PCD)

Supports Pro:Centric Direct (PCD)

The PCS400R supports LG’s new Pro:Centric Direct, HTML5 Content Management Software. Pro:Centric Direct offers a comprehensive UI (User Interface) Editor, along with customizable widgets and multiple theme templates to enable system integrators to create a unique guest user experience and express the hotel’s brand identity and individuality through LG's Pro:Centric In-Room television.

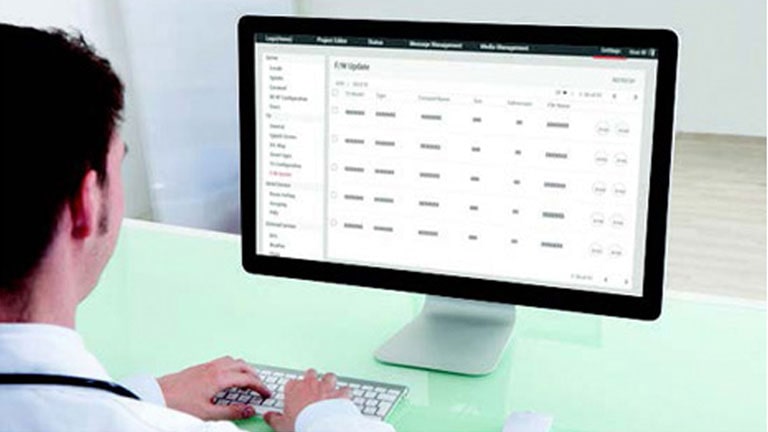

SERVER ADMIN CLIENT

SERVER ADMIN CLIENT

PCA or PCD Admin Client Graphical User Interface (GUI) is provided and is remotely accessible via the Internet using VPN service and a standard web browser, to provide System Integrator administration users with a full suite of features to manage and support the Pro:Centric system, including:
• System status and logs, and server settings
• Configuration for Channel lineup and Electronic Program Guide
• UI Editor and customization tools
• Managing television configurations settings and software updates

For further details, refer to the appropriate

Pro:Centric™ Admin Client User Guide

(also accessible on the system).

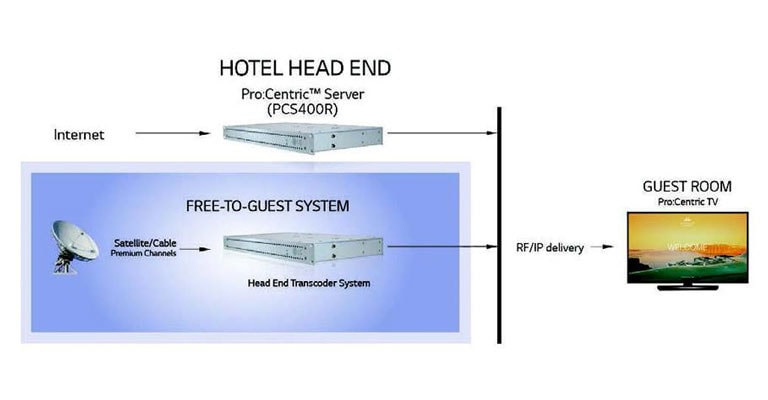

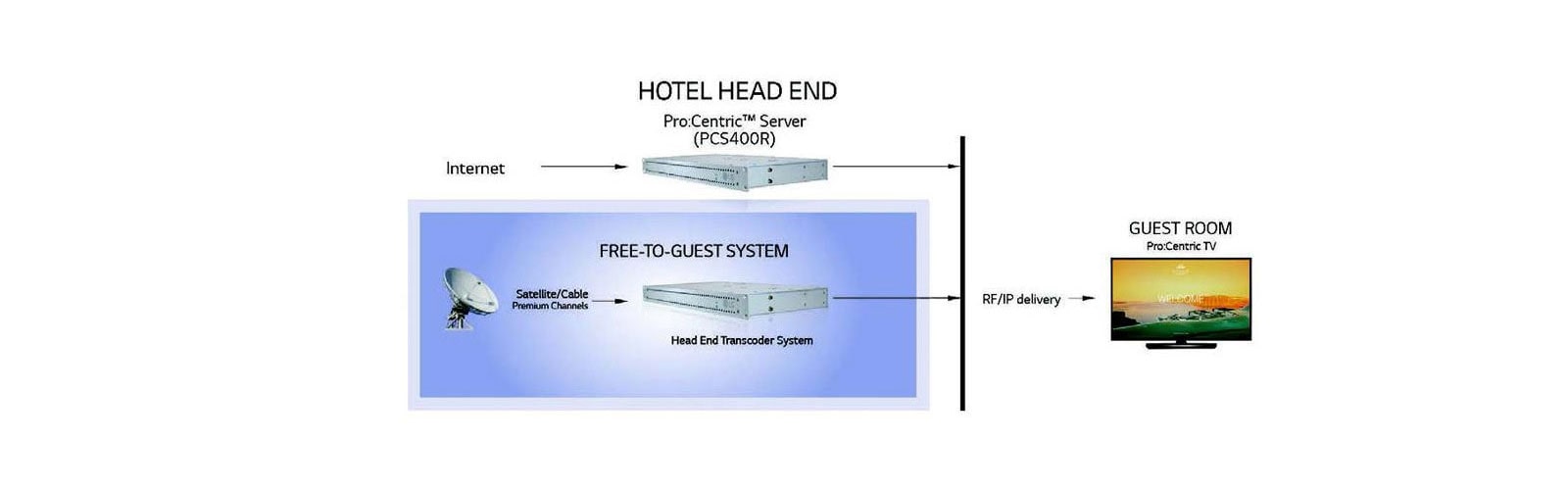

TYPICAL FTG Pro:Centric PCS400R INSTALLATION

Remote management of the PCS400R server functionality is provided via a secure, built-in VPN client that connects to the centralized VPN server. In this way, remote configuration management, remote software updates and other services are supported. Free hosting of the service is provided by LGE during the warranty period. Extended support plans are available.INSTALLATION REQUIREMENTS:Installation of the PCS400R requires the following:– 1U rack space in the Head-end room– Ethernet Connection (VPN and FTP open)– 1 x 110/120VAC power outlet– 1 coax drop to the RF combiner to feed the output of theserver into the RF network or 1 Ethernet cable to connectFeature Port to the IP network switch
TYPICAL FTG Pro:Centric PCS400R INSTALLATION TYPICAL FTG Pro:Centric PCS400R INSTALLATION
Close
SYSTEM SOFTWARE
  • System Software
    Linux OS kernel 3.10, PCA (Java) and PCD (HTML) server applications
ELECTRICAL
  • Active Output Level at RF Out jack
    -1 dBm (+47.75 dBmV) Typical
    DC Input
    +19V DC @ 2.2 Amps Adaptor
  • RF Output Span
    Up to 8 Contiguous Channels (Typically 48-64 MHz)
    Ethernet Connector (Control Port)
    10/100/1000 BaseT, RJ-45
  • Ethernet Connector (Feature Port)
    100/1000BaseT, Full Duplex RJ-45
    RF Output Frequency Range
    54 MHz to 865 MHz
  • RS-232 DB-9
    Command Line Interface port (5V TTL)
    Level at ASI Out Jack
    800 mv
  • Frequency Accuracy
    +/- 5 ppm
    ASI Out Jack
    75 ohms, BNC
  • Data Output
    ASI,RF, 100/1000T Ethernet

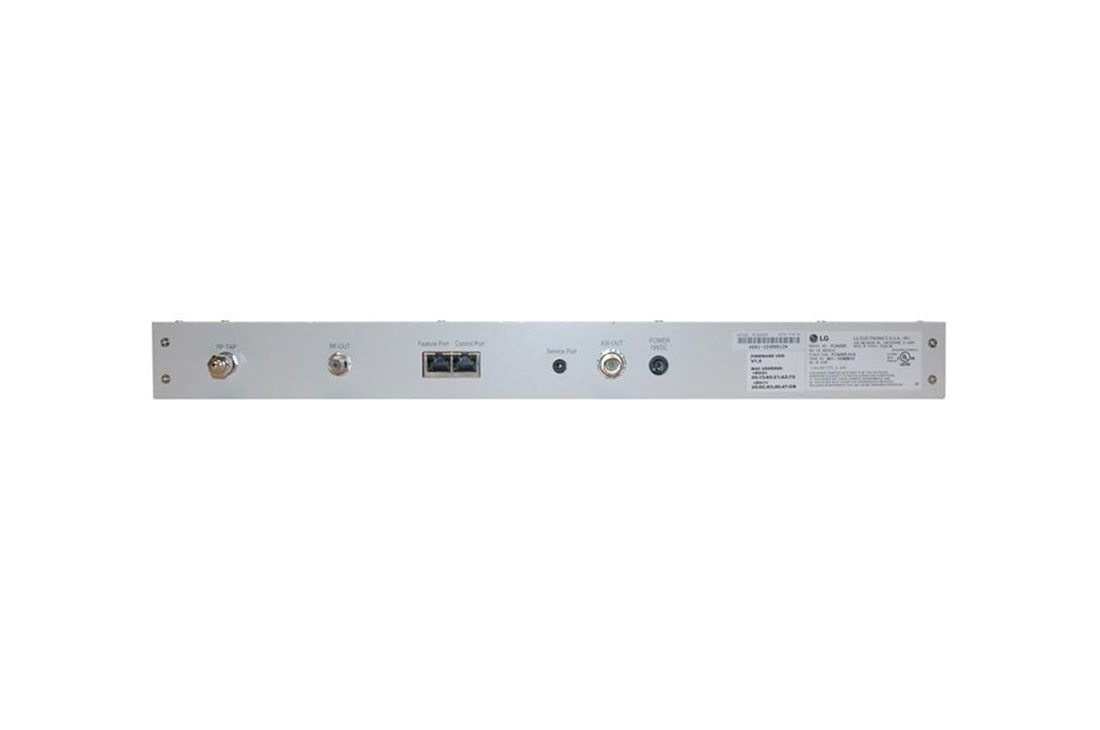

    Rear Port
    ASI/RF/RF Tap/TTL serial, Ethernet 2 Port
  • Active Output Level
    -1 dBm (+47.75 dBmV) Typical
    Test Output Level
    -47.75 dBm (+1 dBmV) Typical
  • CPU/Memory / Storage
    64 bit Intel Atom (4 Cores @ 1.91GHz ) processor / 8GB memory / 275GB SSD
MODULATION SPECIFICATIONS
  • Standard
    ITU-T J.83 Annex B (QAM-B)
    Constellations
    64-QAM, 256 QAM
  • Symbol Rate
    64-QAM / 256-QAM / 5.056 MBaud, 6.111 Mbaud, 6.9 MBaud
    Interleaving
    Fixed I=128, J=1
  • Parameters
    64-QAM, 7/8 Convolutional Code, 1/32 Guard Interval Ratio, 2K FFT, 13 Segments
    Sample Rate
    8.126984 Ms/s
ENVIRONMENTAL STORAGE CONDITIONS
  • Humidity
    95% Non-condensing
    Temperature
    32° to 104° Fahrenheit
ENVIRONMENTAL OPERATING CONDITIONS
  • Humidity
    95% Non-condensing
    Temperature
    -4° to 158° Fahrenheit (-20° to 70° Celsius)
DIMENSIONS
  • Unit Dimensions (W × H × D)
    19.0” x 1.7” x 8.5”
    Unit Weight (Rack-only)
    5.65 Ibs.
REGULATORY COMPLIANCE
  • Regulatory Compliance
    FCC, UL, RoHS
WARRANTY/UPC
  • Warranty
    1 Year
