22SM3G-B component-copyModelName

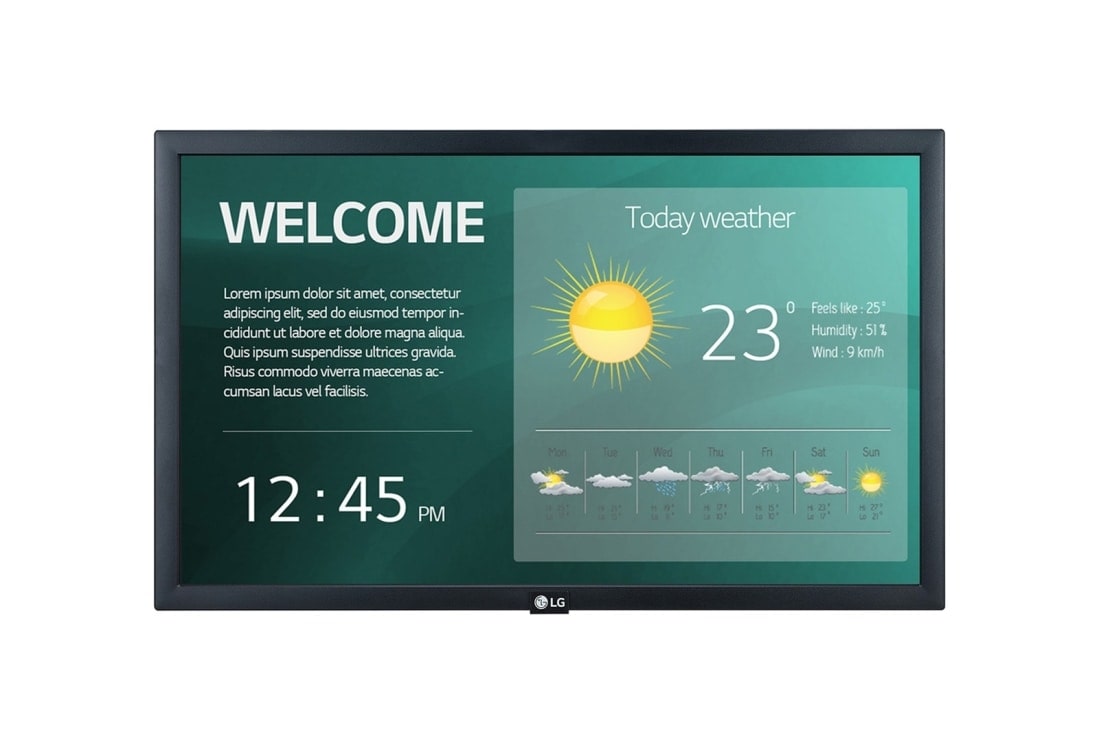

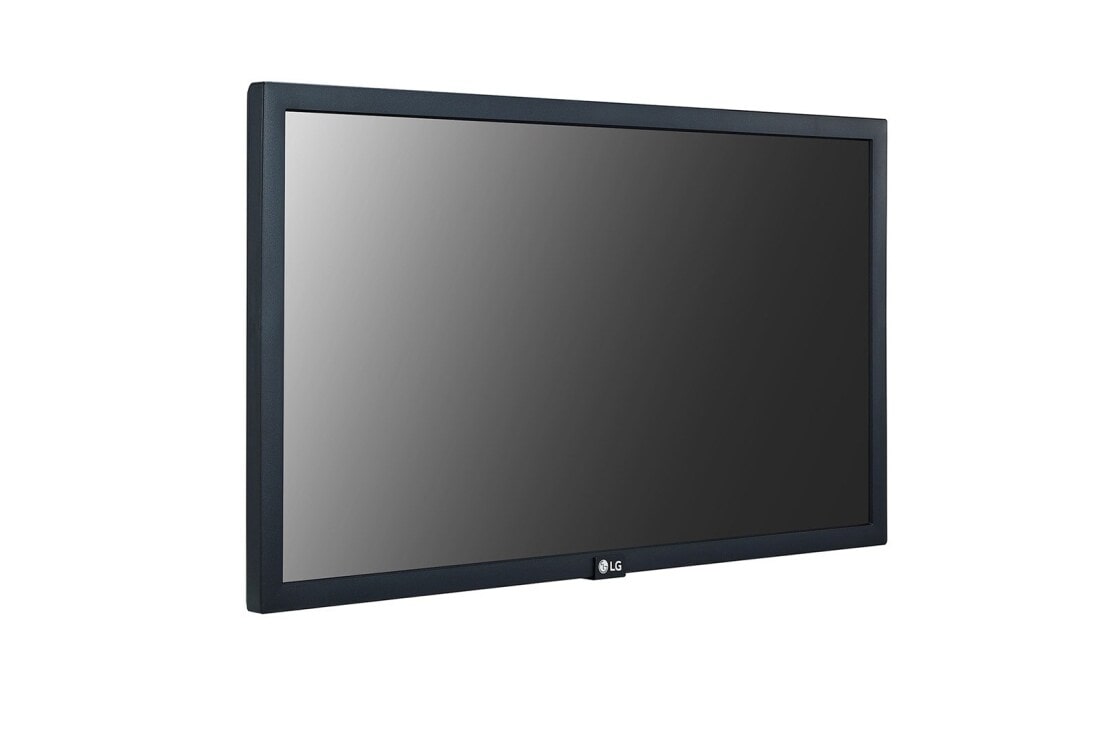

LG Small Digital Display Screen, Wifi Signage Display, 22 Inch, webOS, Perfect Brightness

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (22SM3G-B)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (22SM3G-B)
    $
    $
    LG Members Price
Total

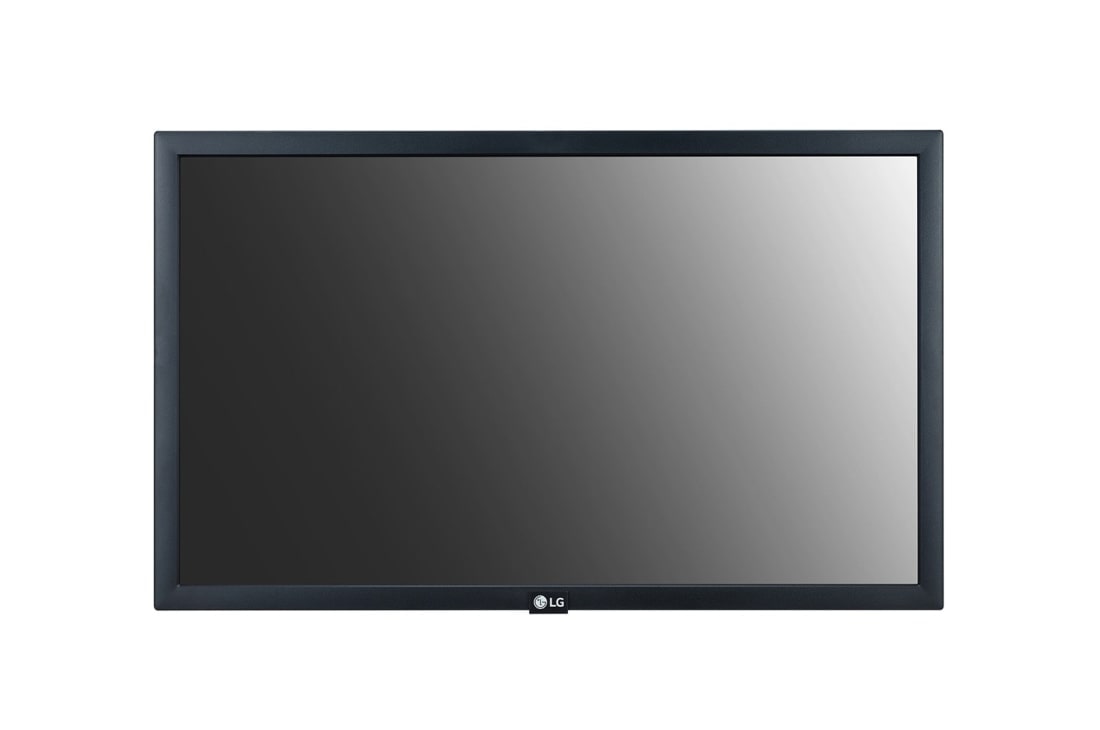

LG Small Digital Display Screen, Wifi Signage Display, 22 Inch, webOS, Perfect Brightness
Contact Us
22" Signage with More Utility for Commercial Space 22" Signage with More Utility for Commercial Space

22" Signage with More Utility for Commercial Space

22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.
High Performance SoC with webOS High Performance SoC with webOS
SMART SIGNAGE PLATFORM

High Performance SoC with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

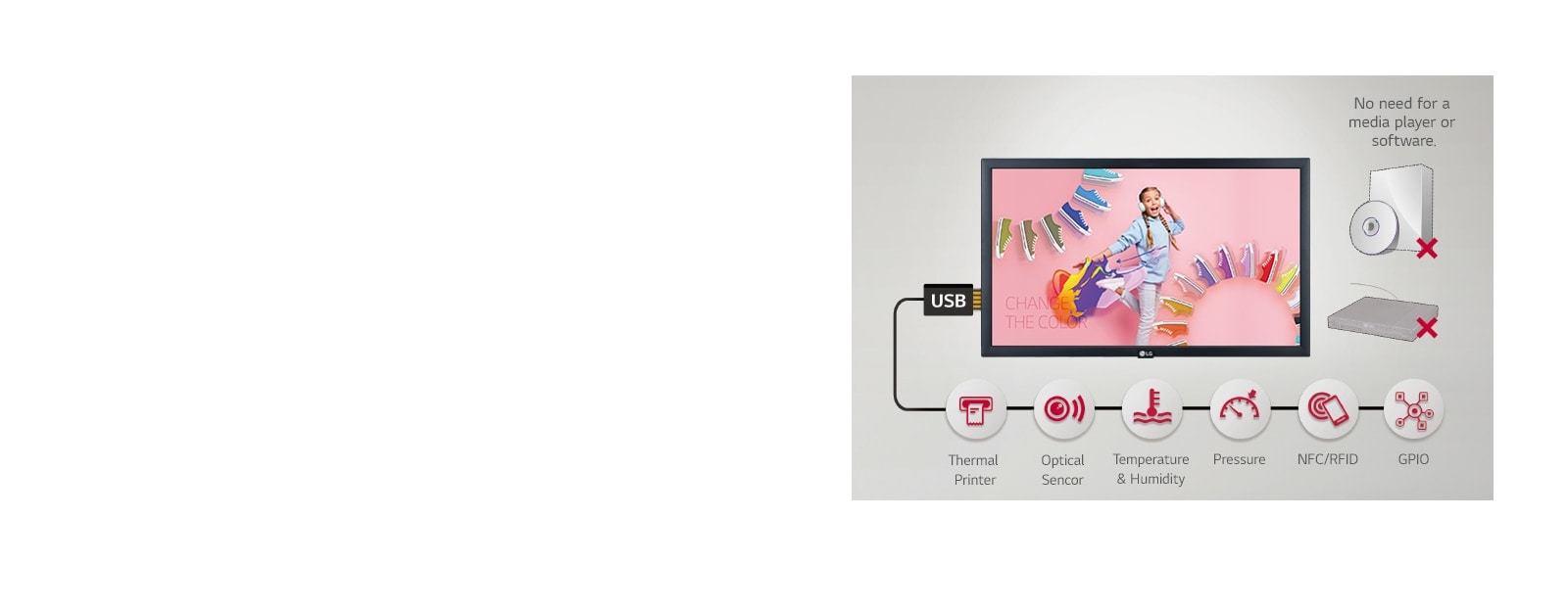

Various Sensor Applications Various Sensor Applications
SMART SIGNAGE PLATFORM

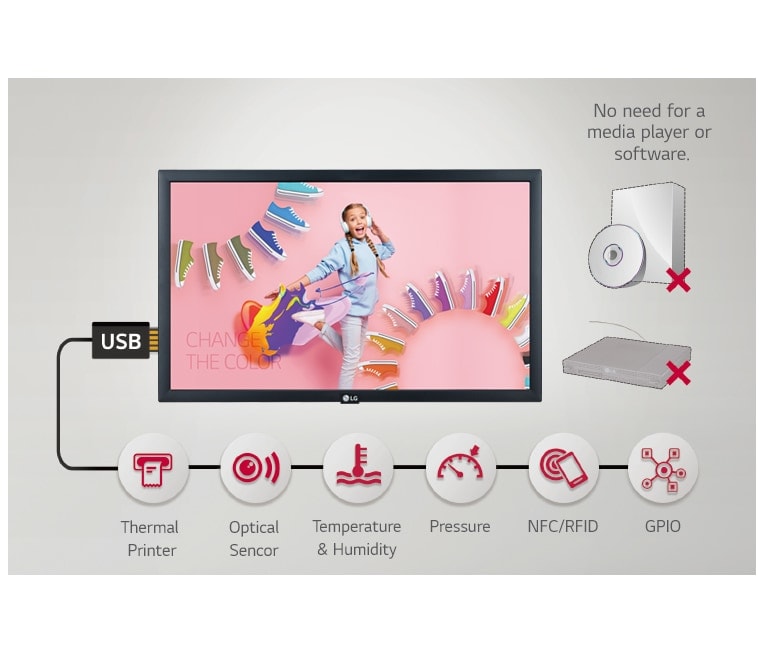

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.
A Wide Range of Interfaces A Wide Range of Interfaces
SMART SIGNAGE PLATFORM

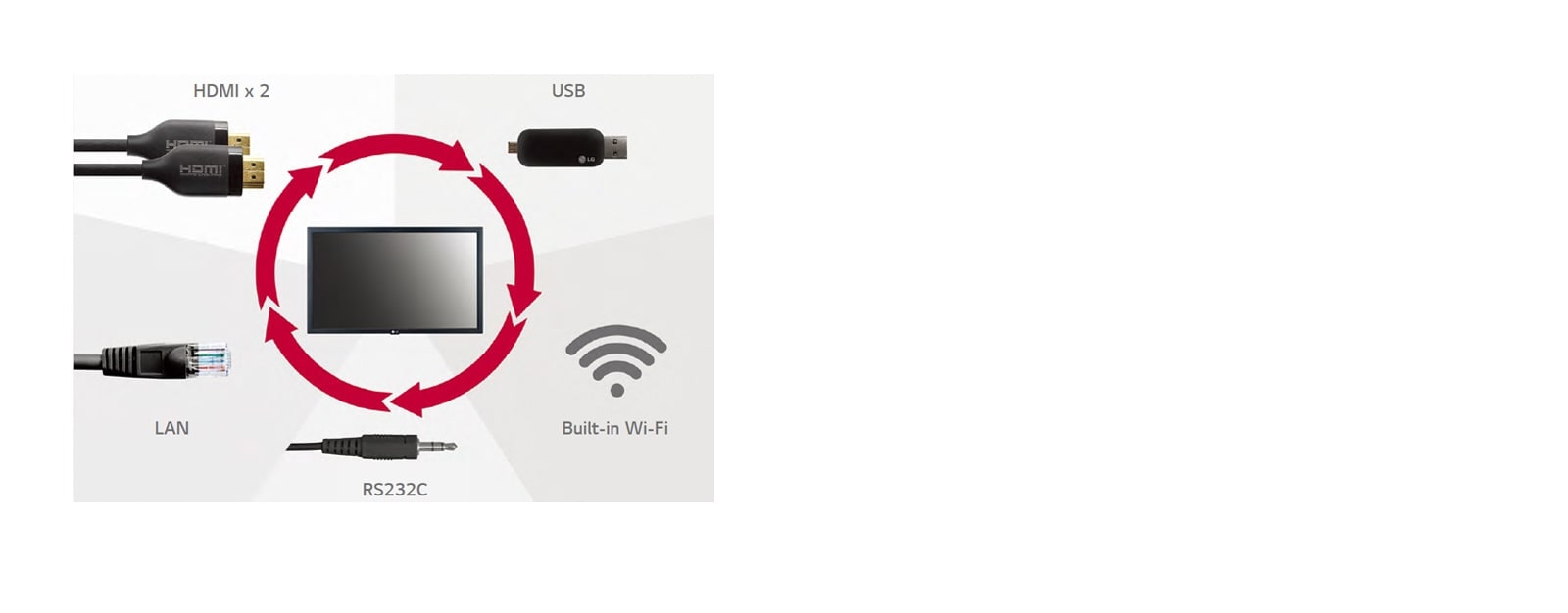

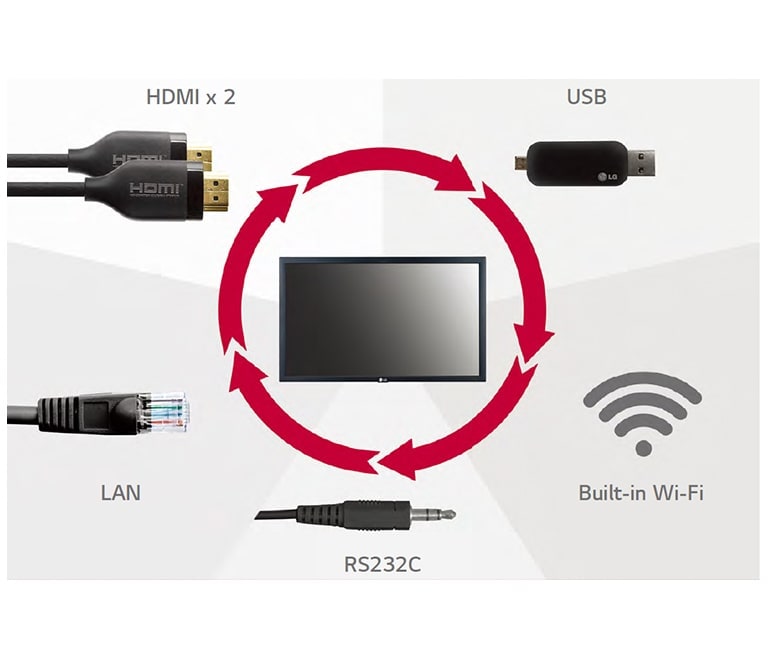

A Wide Range of Interfaces

Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.

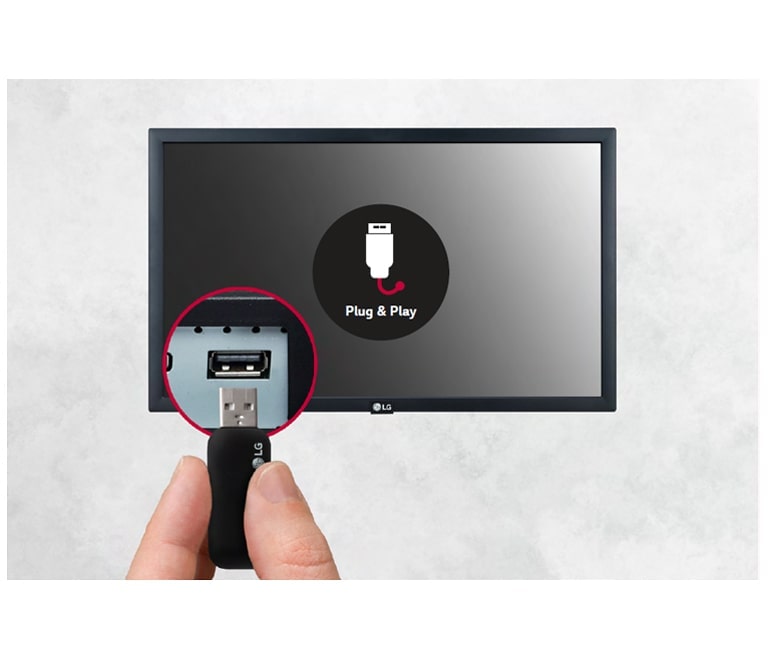

USB Plug & Play USB Plug & Play
SMART SIGNAGE PLATFORM

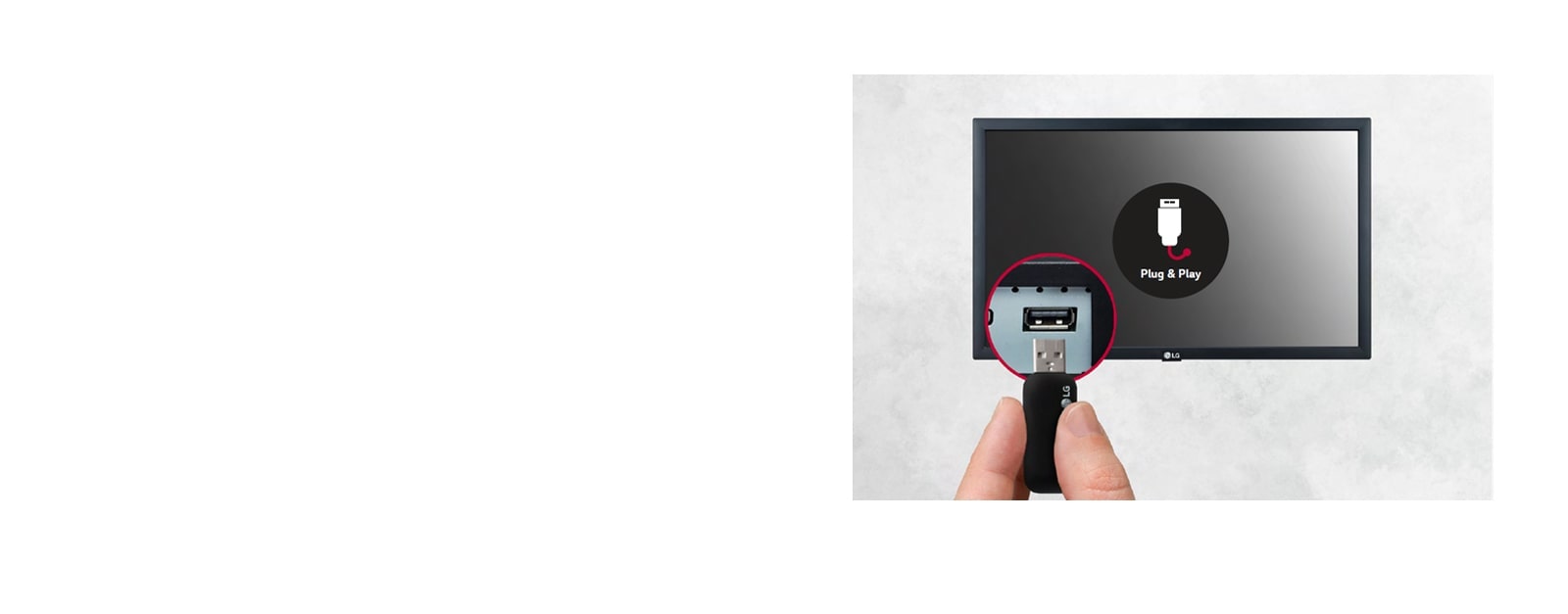

USB Plug & Play

22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.

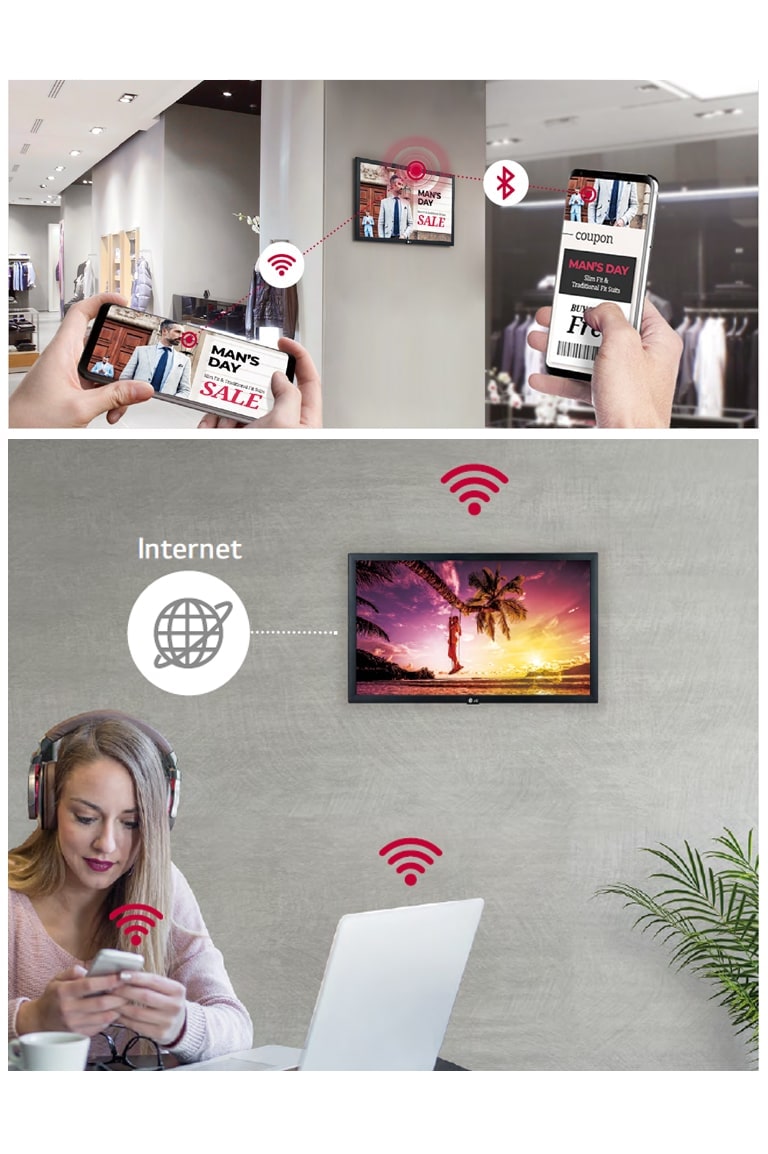

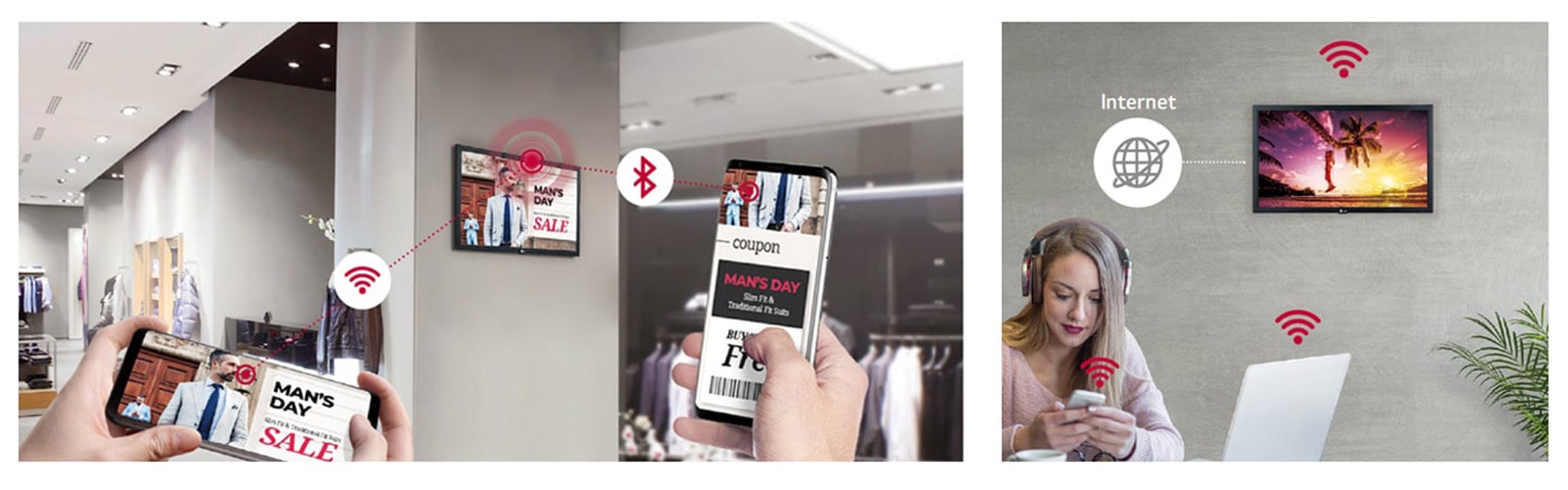

Smart Signage Platform

Smart Signage Platform Smart Signage Platform

  • Content Sharing

    Content Mirroring among devices is more convenient on a Wi-Fi network.

  • Real-time Promotion

    With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.

  • Wireless Solution

    22SM3G operates as a virtual router which can be a wireless access point for mobile devices.

Remote Monitoring and Control Remote Monitoring and Control
OPERATIONAL EFFICIENCY

Remote Monitoring and Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

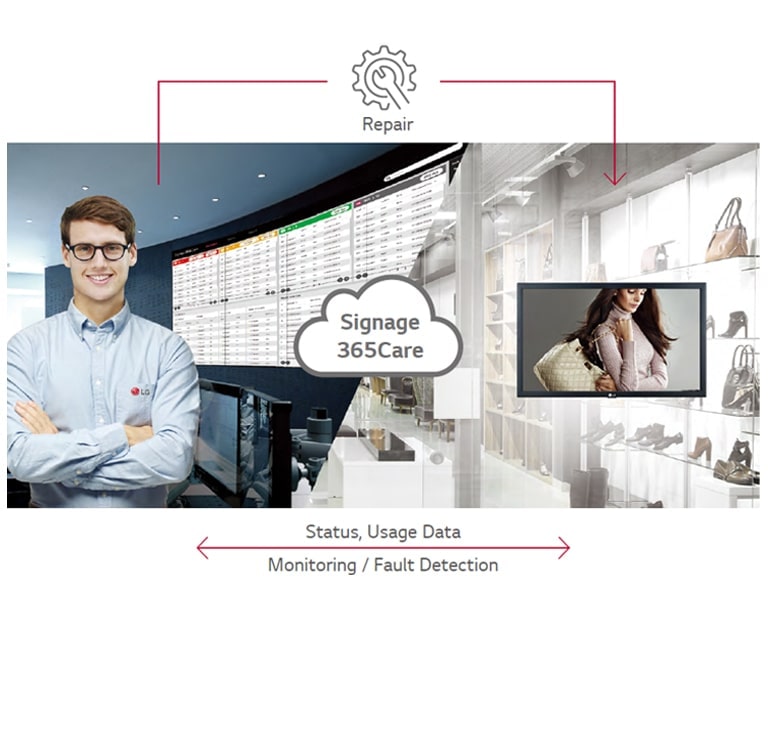

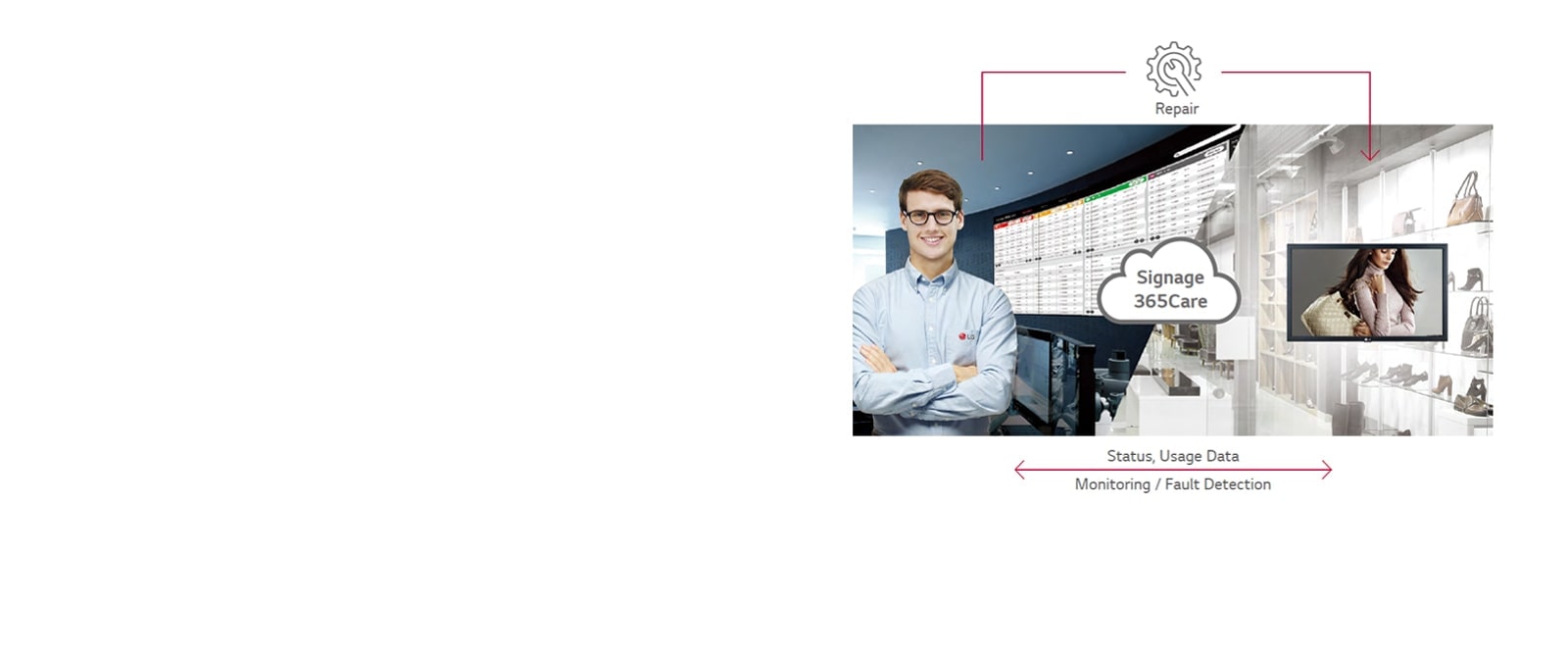

Real-time Care Service with LG Signage365Care Real-time Care Service with LG Signage365Care
OPERATIONAL EFFICIENCY

Real-time Care Service with LG Signage365Care

The maintenance gets easier and faster with the optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client’s business.
* The availability of “Signage365Care” service can differ by region, so please contact the LG sales representative in your region for further details.
Close
PANEL
  • Screen Size
    21.5"
    Panel Technology
    IPS
  • Aspect Ratio
    16:9
    Native Resolution
    1,920 x 1,080 (FHD)
  • Refresh Rate
    60Hz
    Brightness (Typ., cd/m²)
    250
  • Contrast Ratio
    1,000:1
    Viewing Angle (H x V)
    178 x 178
  • Response Time
    14ms (G to G)
    Surface Treatment (Haze)
    25 %
  • Life Time (Min.)
    30,000 Hrs
    Operation Hours (Hours / Day)
    16 / 7
  • Portrait / Landscape
    Yes / Yes
CONNECTIVITY
  • Input
    HDMI (2, HDCP2.2), USB 2.0 Type A, Audio In
    Output
    -
  • External Control
    RS232C In (Phone-jack), RJ45 (LAN) In, IR In
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    16.3 mm (Even Bezel)
  • Weight (Head)
    3.34 kg
    Packed Weight
    4.74 kg
  • Monitor Dimensions (W × H × D)
    510.3 x 302.1 x 53.8 mm
    Carton Dimensions (W × H × D)
    565.0 x 357.0 x 103.0 mm
  • Handle
    No
    VESA™ Standard Mount Interface
    100 x 100 mm
FEATURE
  • Key Feature
    Internal Memory 8GB, Built-in Wi-Fi, Temperature Sensor, Local Key Operation, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), PIP, PBP (2), Screen Share, Play via URL, Setting Data Cloning, SNMP, ISM (Image Sticking Minimization) Method, Control Manager, Crestron Connected® (Network based control), Smart Energy Saving, PM Mode, Wake on LAN,Beacon, HDMI-CEC (Compatibility may differ by equipment), SI Server Setting, webRTC, Pro:Idiom
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption (Typ. / Max.)
    30 W / 33 W
    Power Consumption (Smart Energy Saving)
    15 W ± 5 %
SOUND
  • Speaker
    Yes (1 W x 2 ea)
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE
  • ErP
    Yes (EU Only)
    ePEAT (US Only)
    No
OPS COMPATIBILITY
  • OPS Type Compatible
    No
    OPS Power Built In
    No
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/ Control+
  • Signage365Care
    Yes (The availability of the “Signage365Care” service differs by region.)
ACCESSORY
  • Basic
    Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS232C Gender, External IR, IR Sheet
GENERAL
  • Region
    Global
