WV30 Series

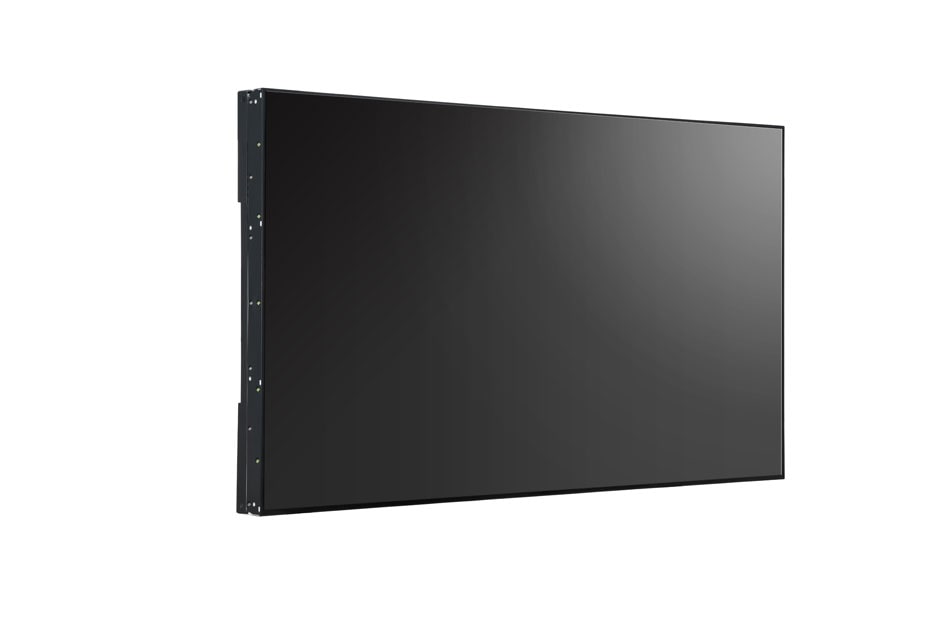

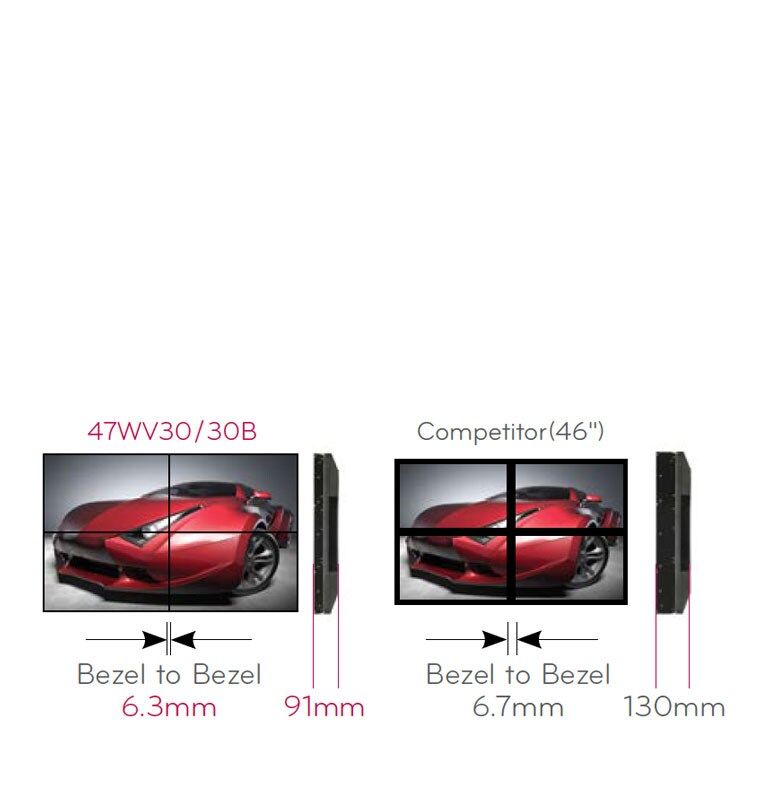

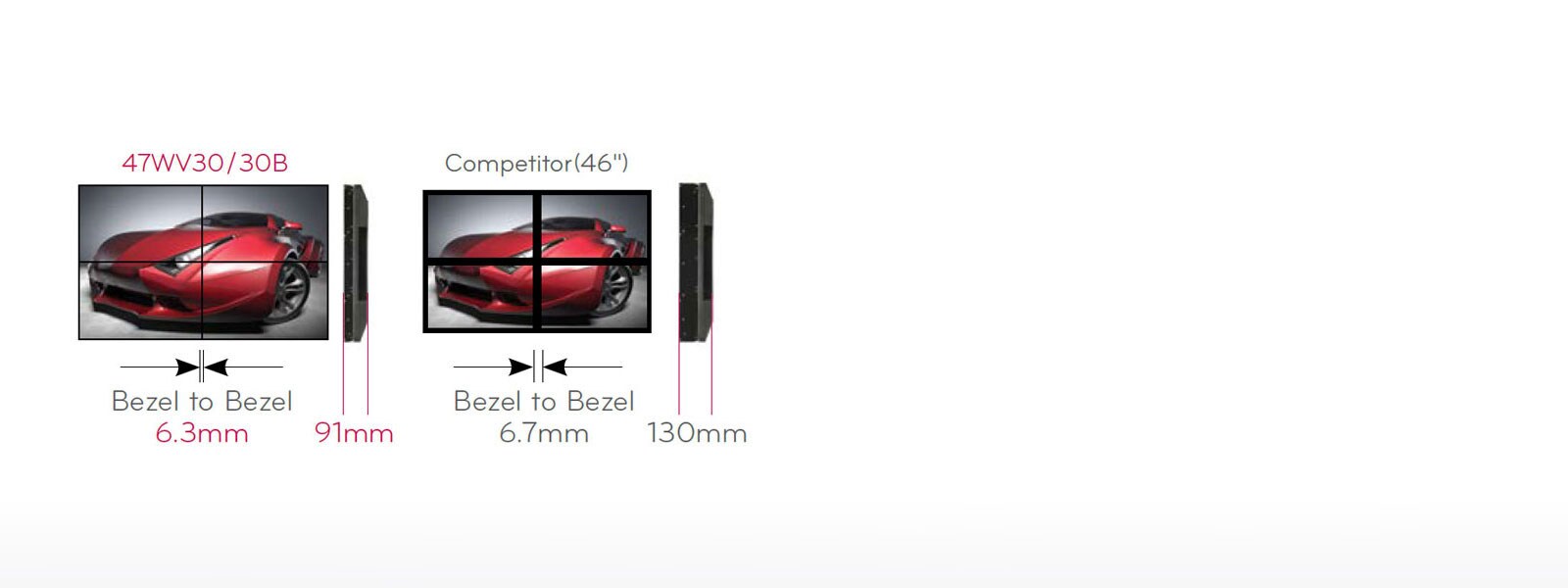

Slimmer Bezel & Depth

6.3-mm thick and 91-mm deep. The slim bezels create powerful and impactful video walls that can be easily installed, maintained and managed.

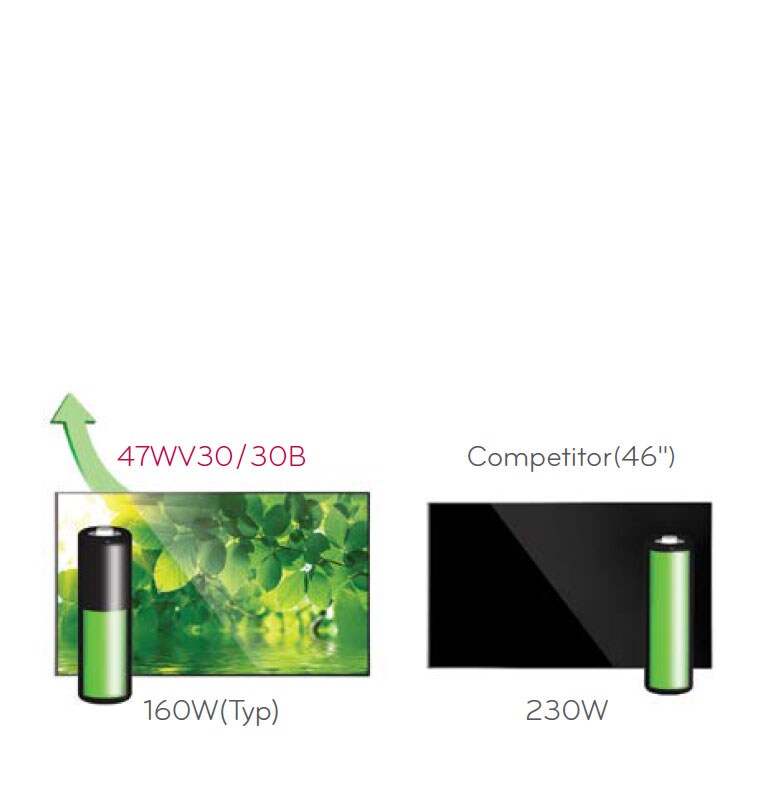

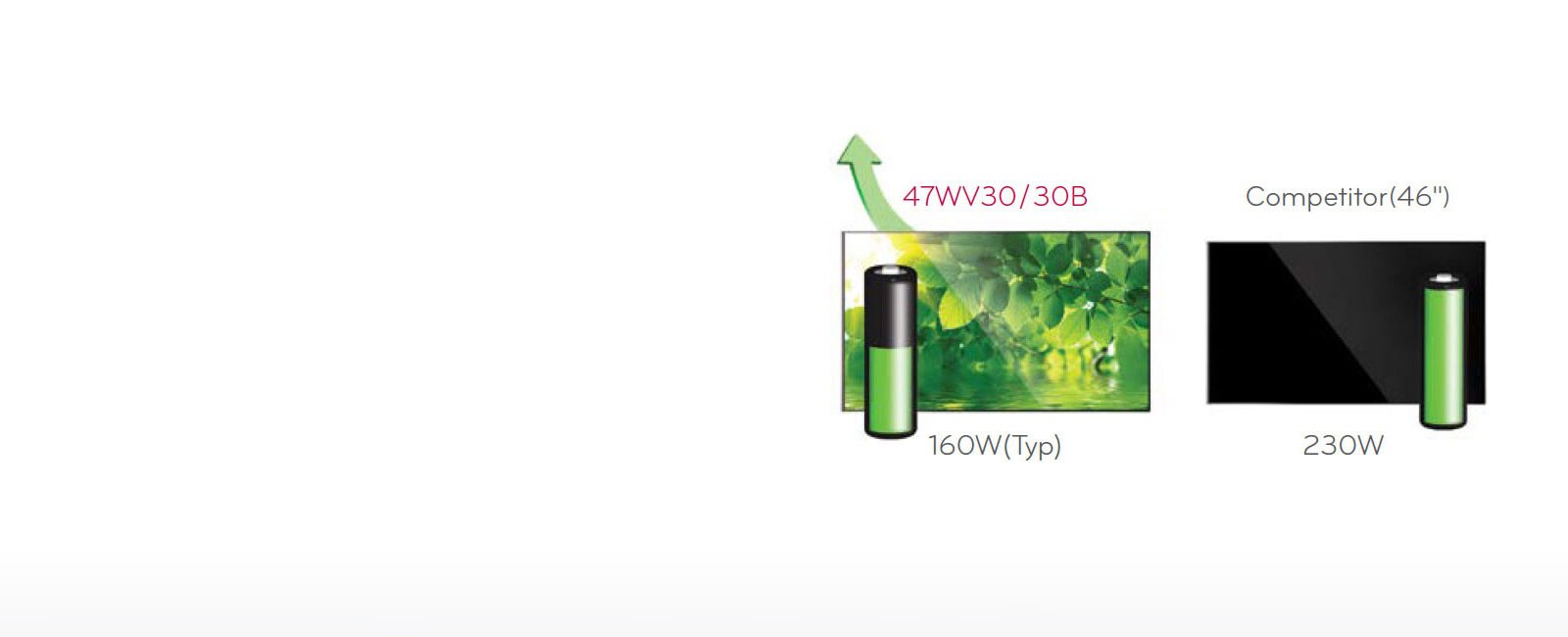

LED Low Power Consumption

By using LED panels without mercury or other
harmful substances, WV30 Series is ecofriendlier than any of its competitors. Most of all, WV30 Series consumes less energy.

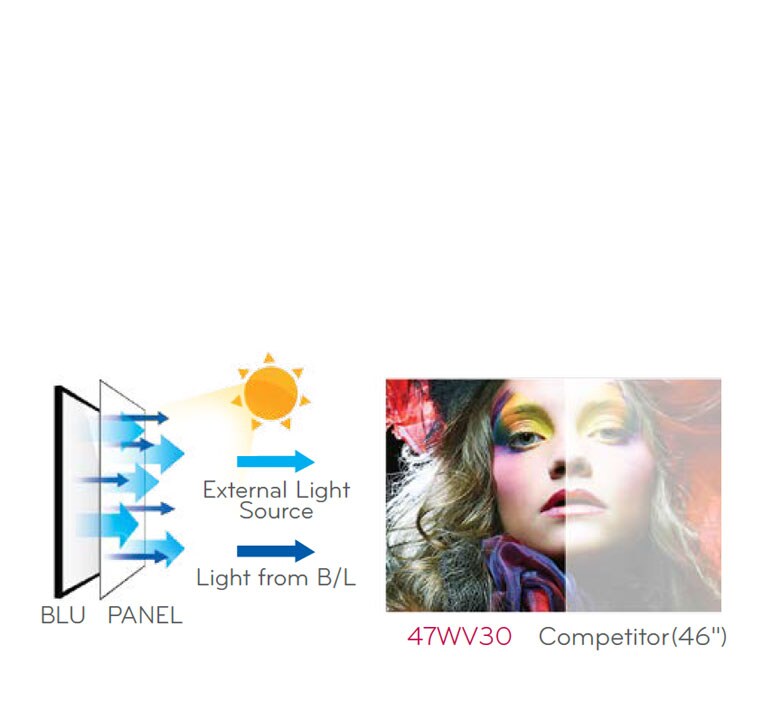

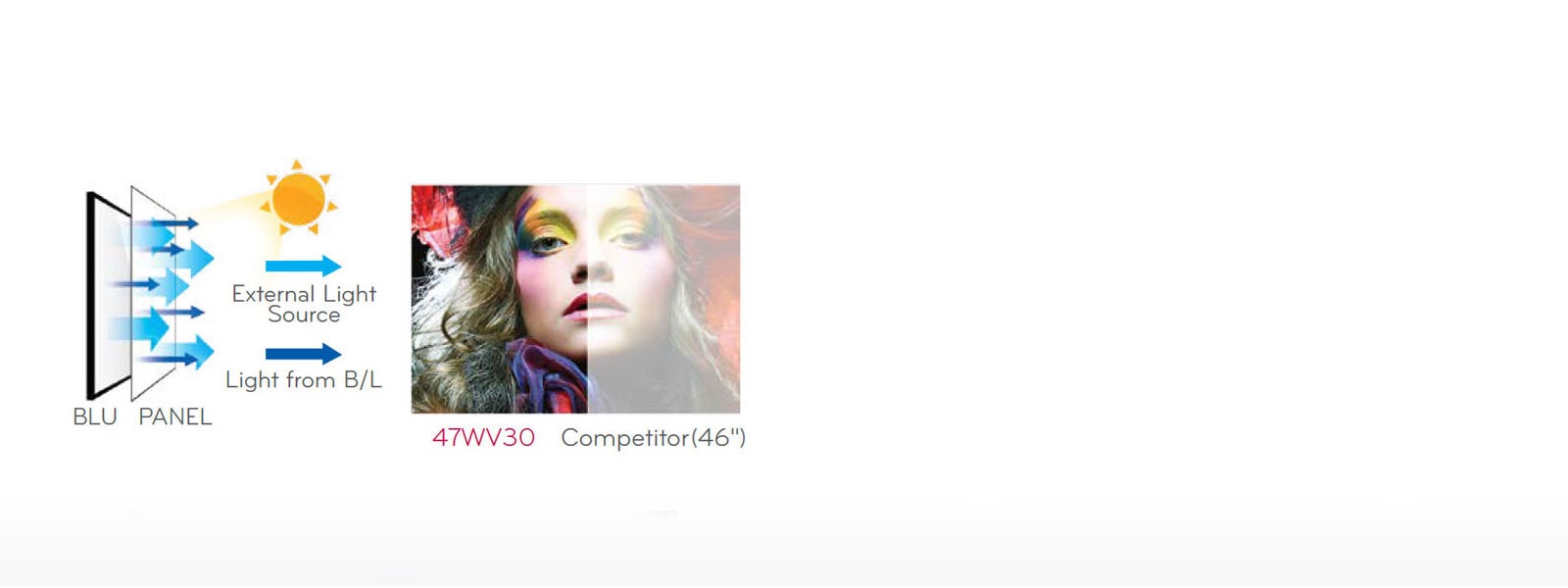

Shine-out

Perfect fit for window display by reflecting away the sunlight for best image visibility and clearer display under direct sunlight than conventional panel.

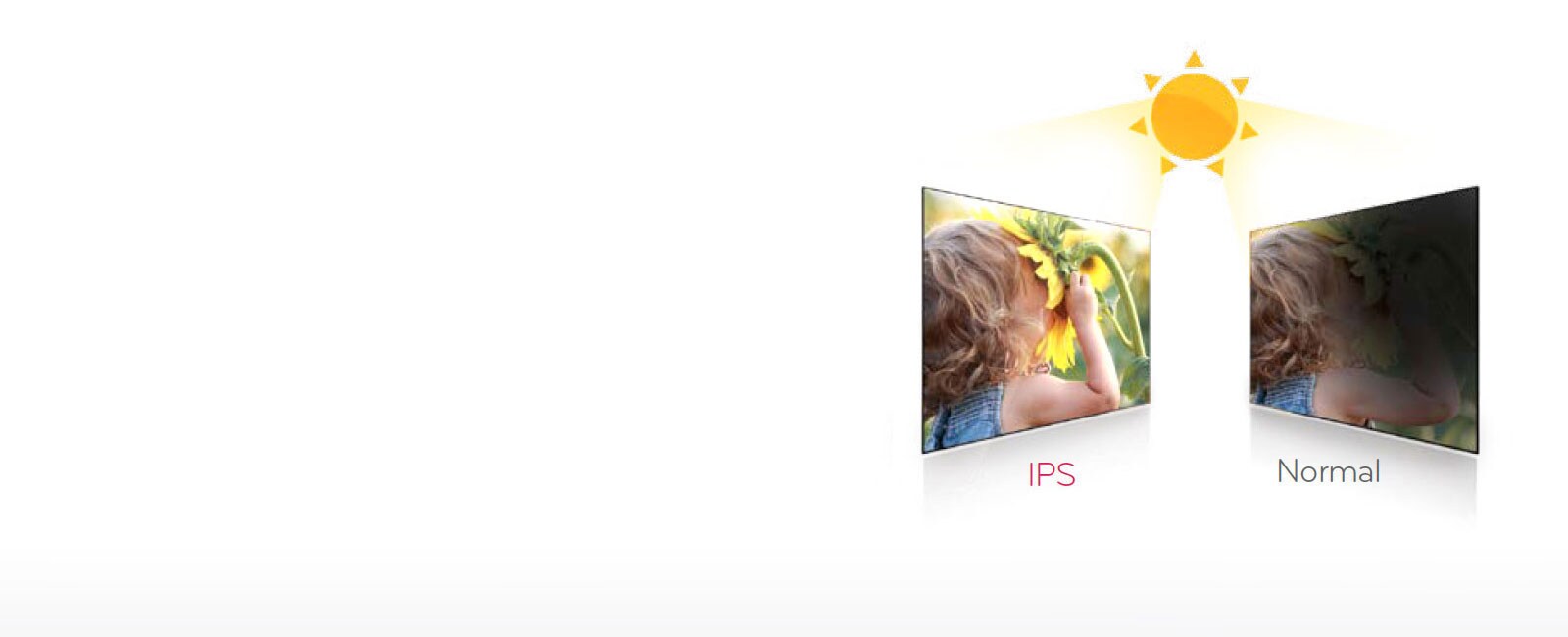

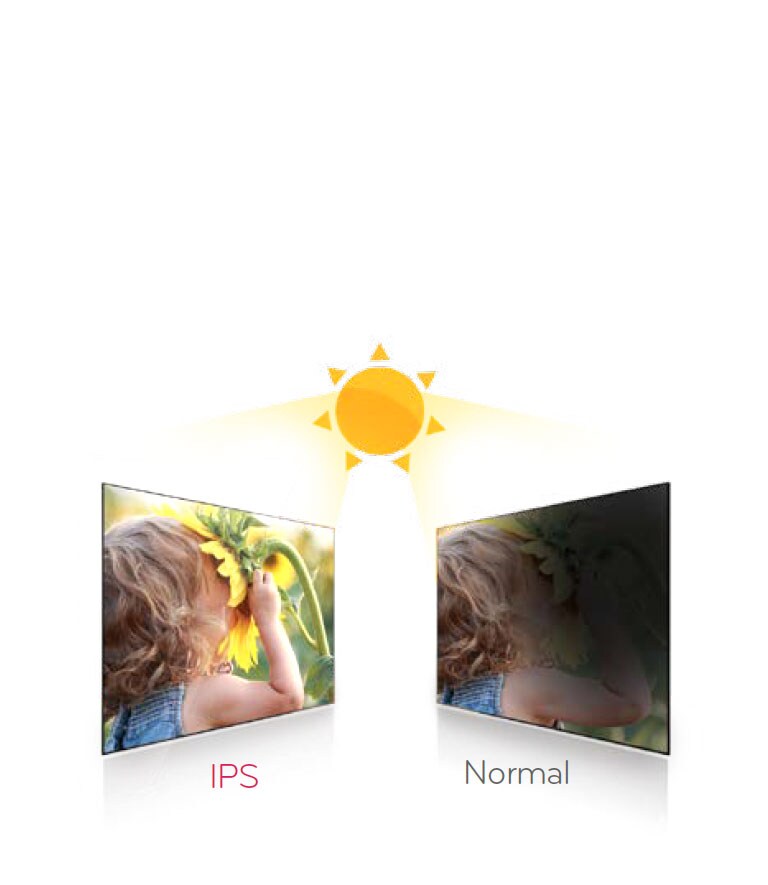

No blackening Defect

Hardly affected by light or heat, hence no
blackening.

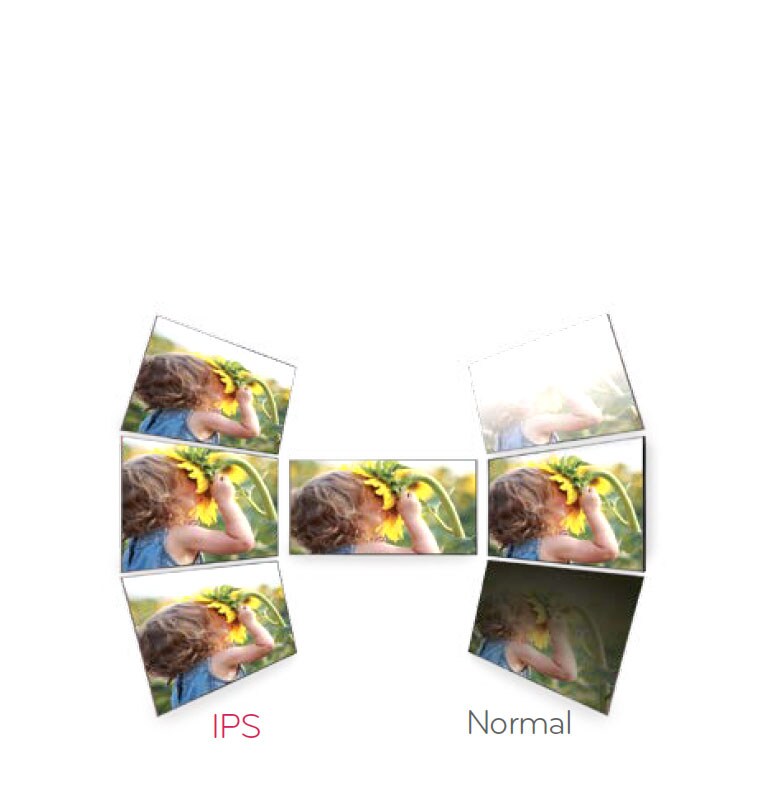

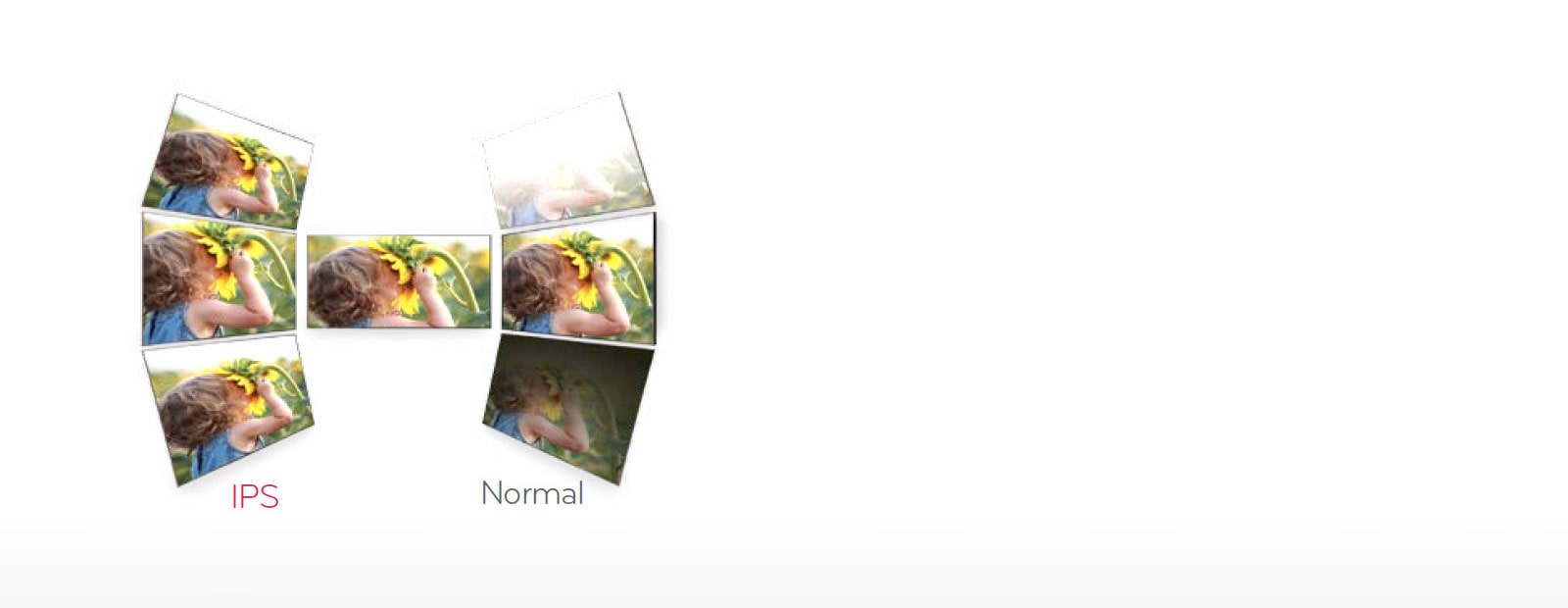

True Wide

No color changes or distortion from any
viewing angle

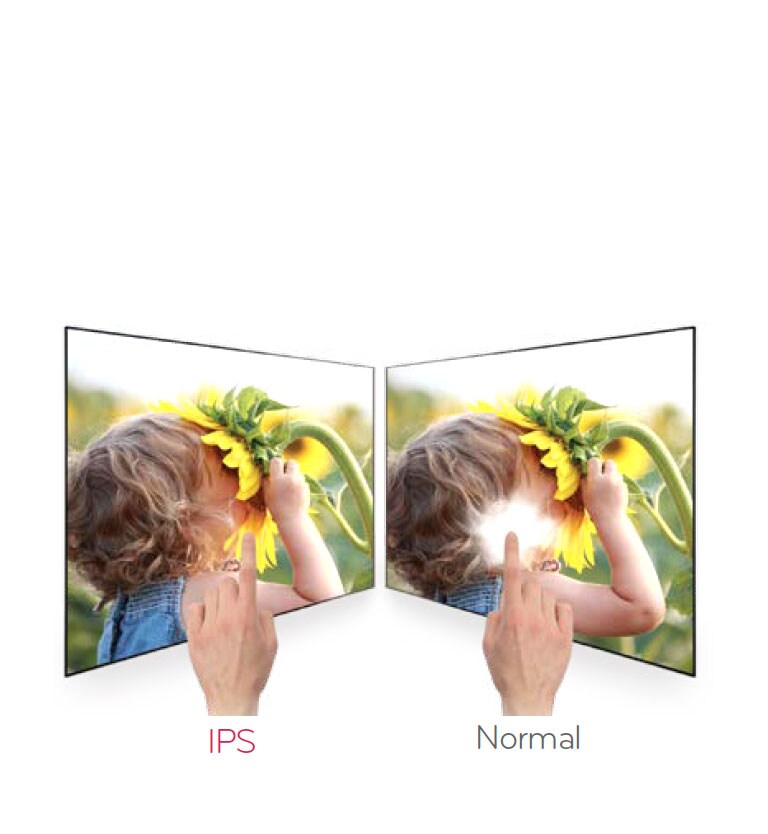

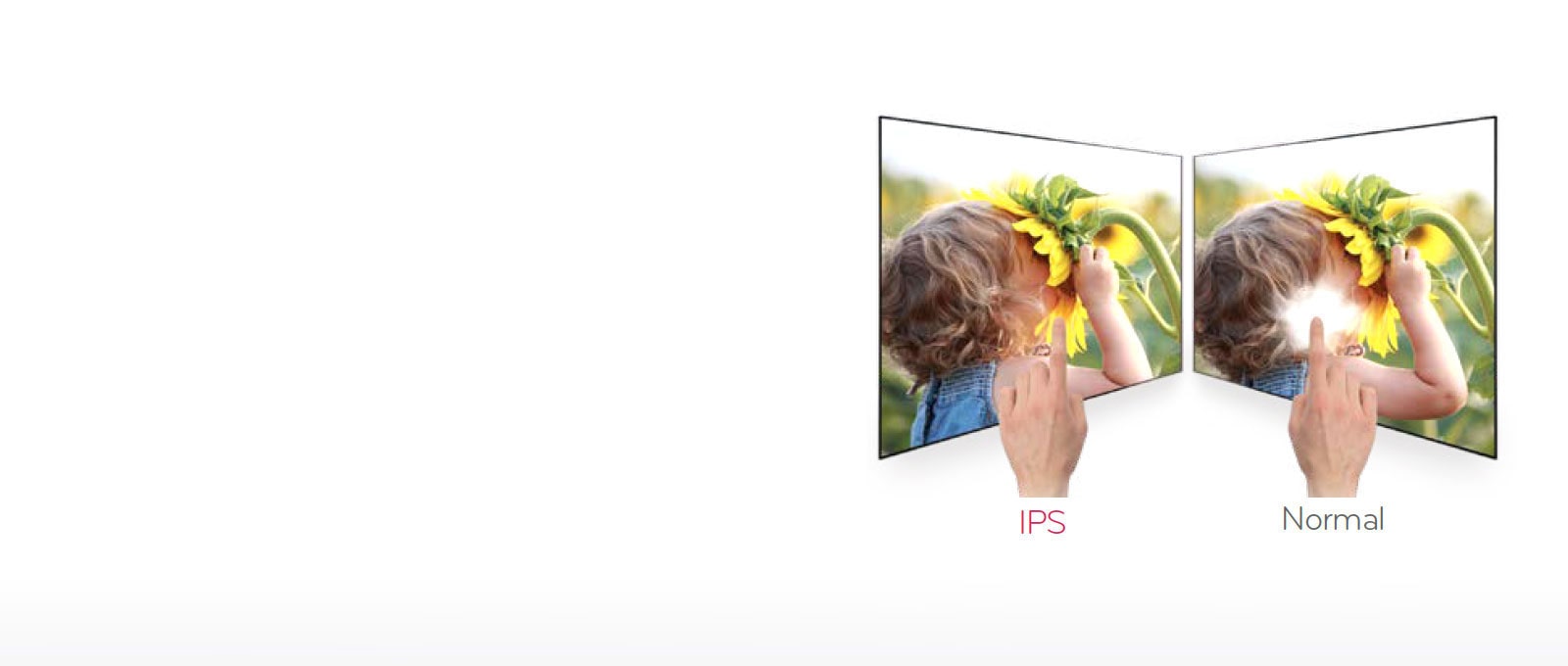

Stable Panel

When touch the screen, it can also display
consistently with leaving no mark.

PANEL

Screen Size

47"

Resolution

1,366 x 768 (HD) , 1,920x 1,080 at Video Wall
Brightness

800nit

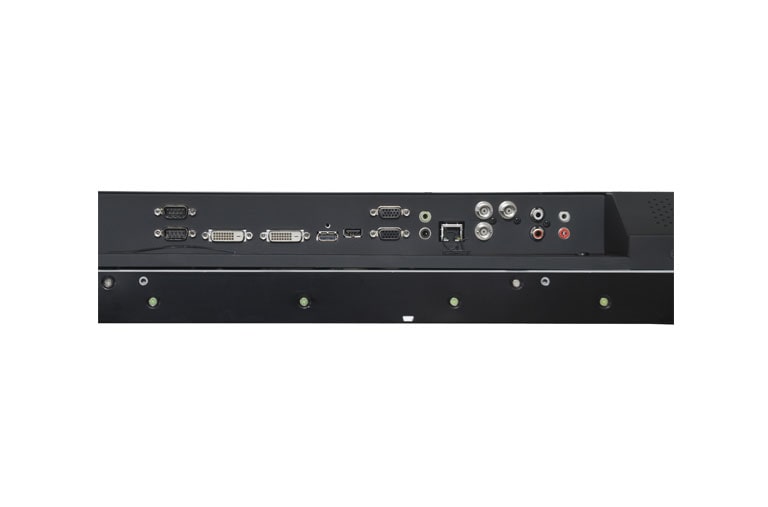

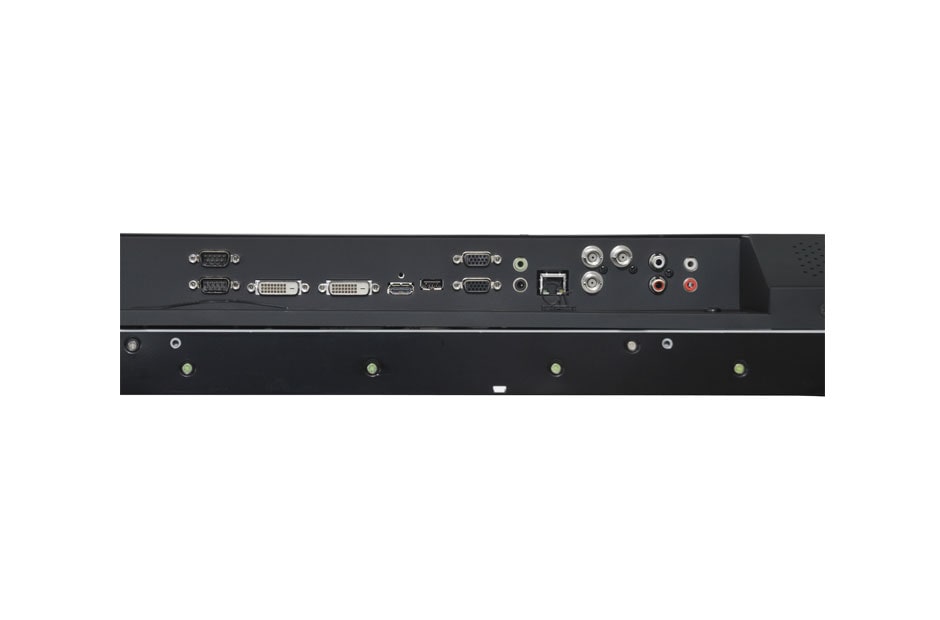

CONNECTIVITY - INTPUT

Digital

DVI, HDMI/DVI with HDCP

Analog

RGB(1), Component(BNC, 1), AV(BNC, 1)
Audio

PC Audio In (1), AV/Component Audio(RCA,1)

External Control

RS232C (1), RJ45 (1), IR Receiver (1)
USB

USB (1)

CONNECTIVITY - OUTPUT

Digital

DVI-D(1)

Analog

RGB
Audio

External Speaker

External Control

RS232C

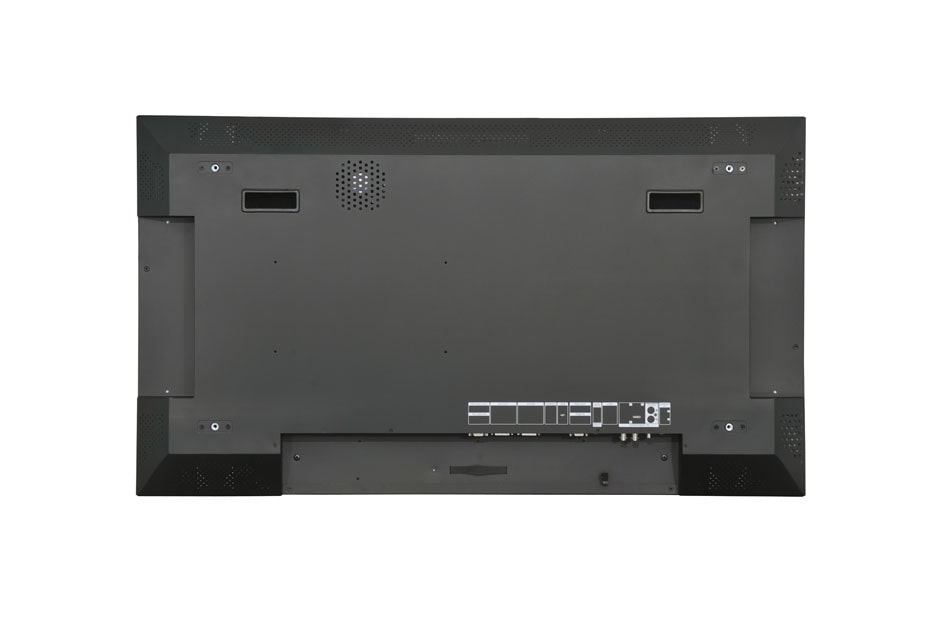

PHYSICAL SPECIFICATION

Bezel Width

3.9 (left/top) / 2.4 (right/bottom) mm

Monitor Dimension (W x H x D)

104.68cm X 59.16cm X 9.11cm
Weight (Head)

29kg

VESA™ Standard Mount Interface

800mm x 400mm

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

POWER

Power Supply

100-240V~, 50/60Hz

POWER CONSUMPTION

Typical / Smart Energy Saving

160W (Typ), 110W (SES)

DPMS

1.0W (RGB), 1.0W (HDMI)
Power off

0.5 W

STANDARD(CERTIFICATION)

Safety

UL / c-UL / CB / TUV / KC

EMC

FCC / CE / KCC / VCCI / JQA
ErP / Energy Star

Yes / Yes (Energy Star 5.1)

MEDIA PLAYER COMPATIBILITY

Slot PC compatible (optional)

No

External Media player Attatchable

Yes

SOFTWARE COMPATIBILITY

Supersign Compatibility

Elite-w / Elite-w lite (Only control)

ACCESSORY

Basic

Remote Controller, Power cable, RGB Cable, DVI Cable, Manual, IR Receiver, RS-232C Cable, Tiling Guide, Screw, Ring Core

Optional

Wall Mount
