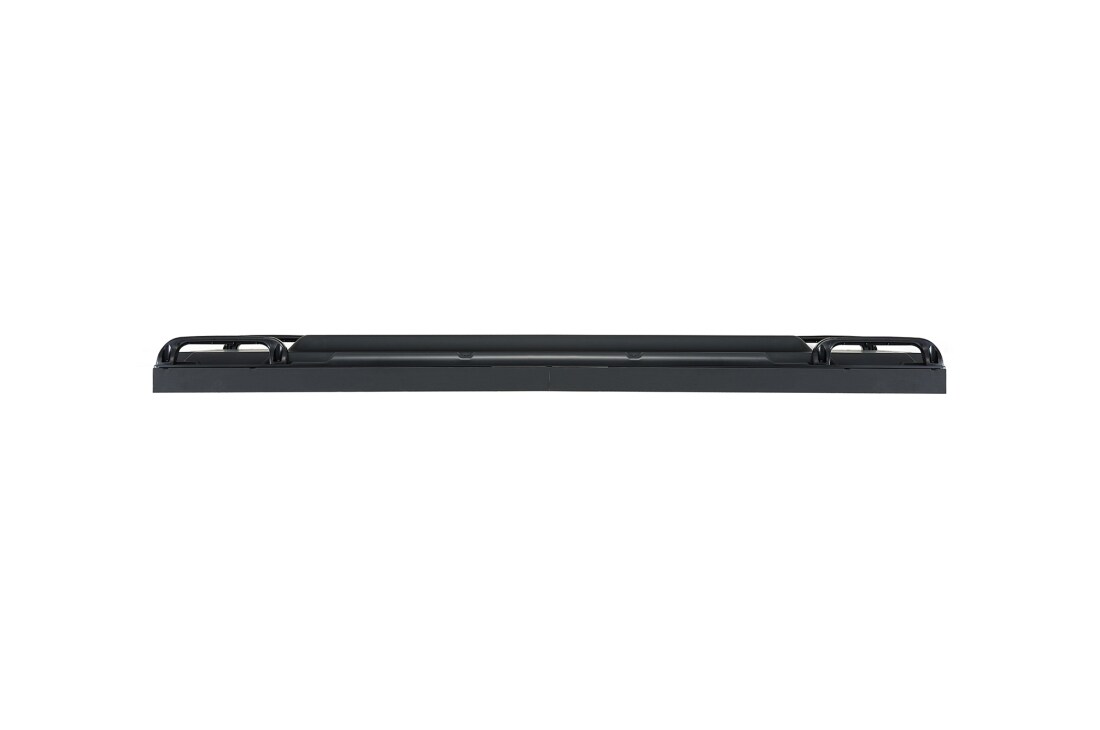

LG SVH7E Series, 55SVH7E-A, thumbnail 10

LG SVH7E Series, 55SVH7E-A, thumbnail 11

ADD TO WISHLIST

Discontinued

55SVH7E-A component-copyModelName

SVH7E Series

Key Features

Brightness(Typ.) : 700 cd/m²
Bezel : 0.44 mm (Even)
Depth : 86.5 mm
Interface : HDMI(2)/ DP/ DVI-D/ RGB/ USB 2.0/ RS232C/ RJ45/ Audio/ IR

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 700 cd/m²
Bezel : 0.44 mm (Even)
Depth : 86.5 mm
Interface : HDMI(2)/ DP/ DVI-D/ RGB/ USB 2.0/ RS232C/ RJ45/ Audio/ IR

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

SVH7E Series

Beyond a Video Wall

The World's Narrowest 0.44mm Even Bezel Video Wall

Learn More

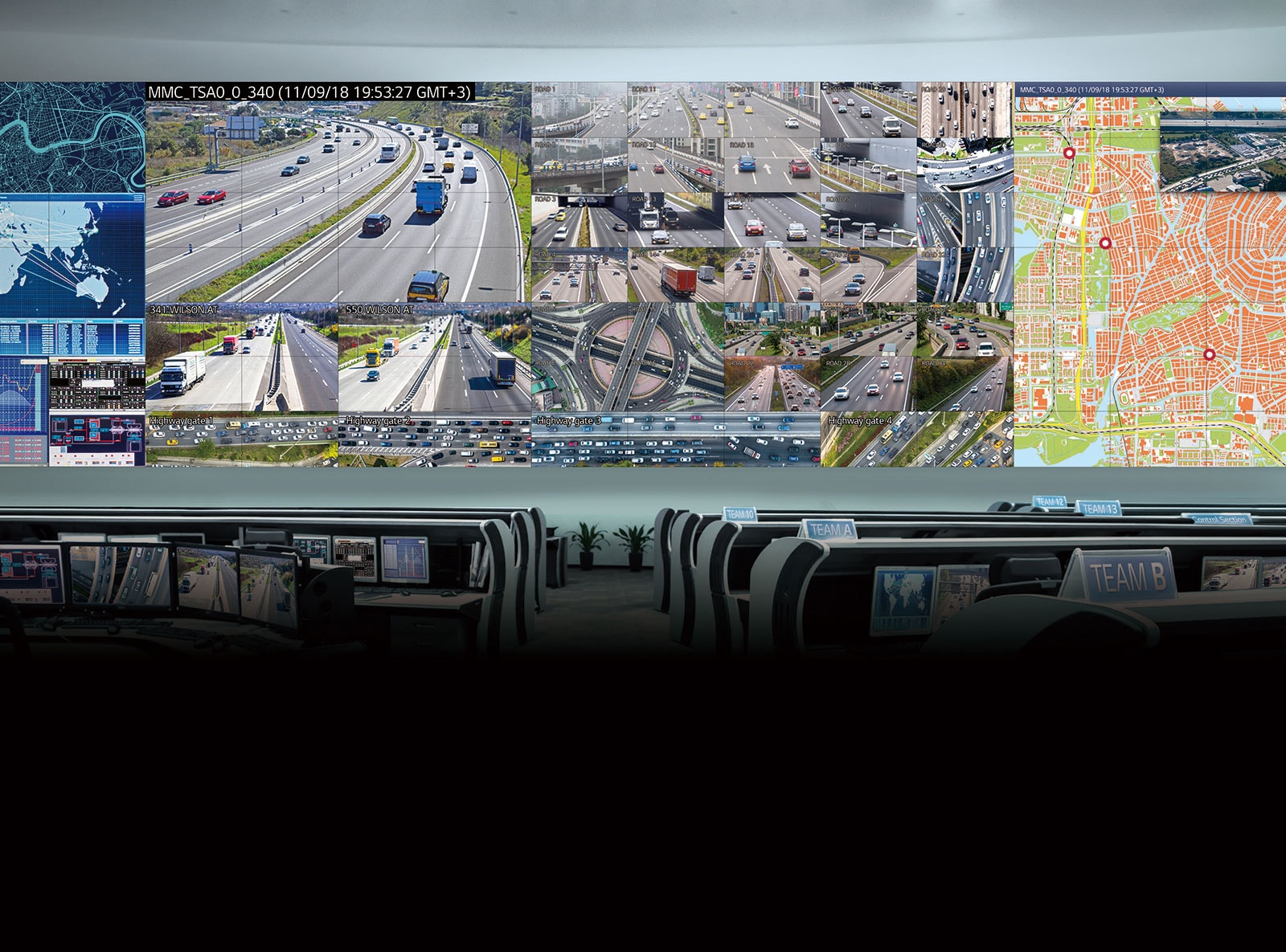

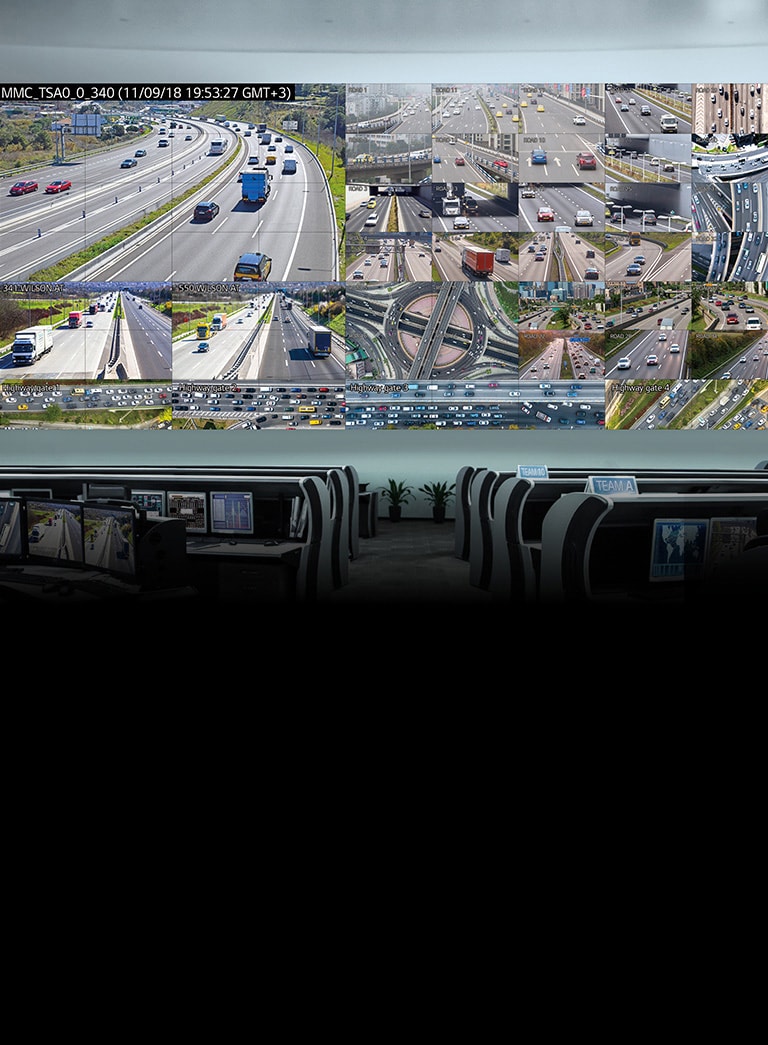

ZERO. VIDEO WALL

LG has finally introduced the world's first* slim bezel under 1 mm, the 0.44 mm even bezel. Instead of contrasting the reduced bezel size with previous bezels, LG's 55SVH7E highlights the similarity of its display with the bezel-less ‘original' picture.

*As of November 2018

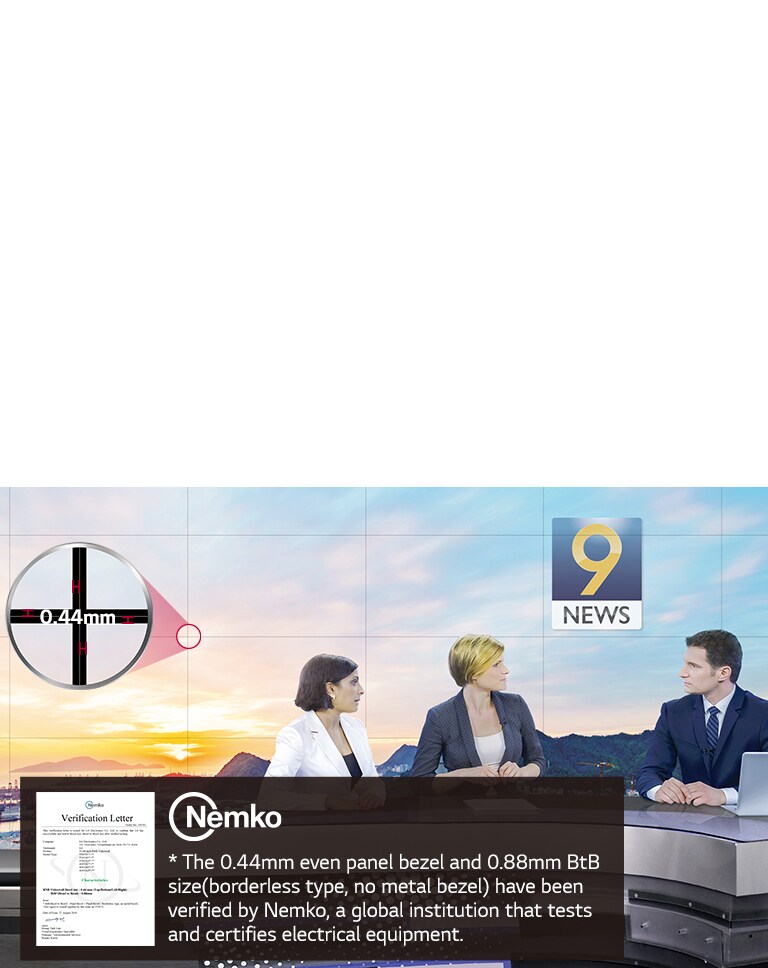

Groundbreaking 0.44mm Even Bezel

The unprecedented razor-thin bezel – 0.44 mm EVEN BEZEL and 0.88 mm BEZEL TO BEZEL – which has been verified by Nemko*, makes content look like the actual original image by depicting a subject perfectly true to form, without any distortions.

Vivid and Dynamic Picture Quality

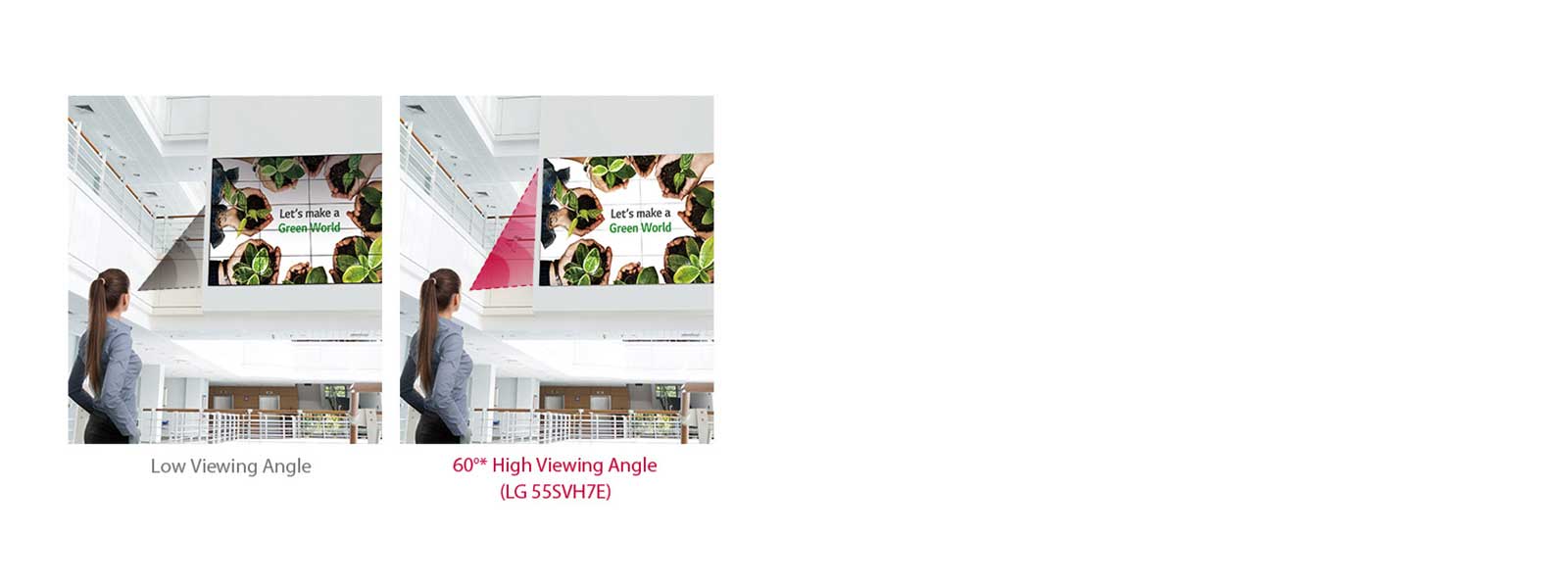

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the 55SVH7E is superior to that of conventional video walls, allowing it to display vivid colors throughout the screen with no distortion.

* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

Vivid and Dynamic Picture Quality

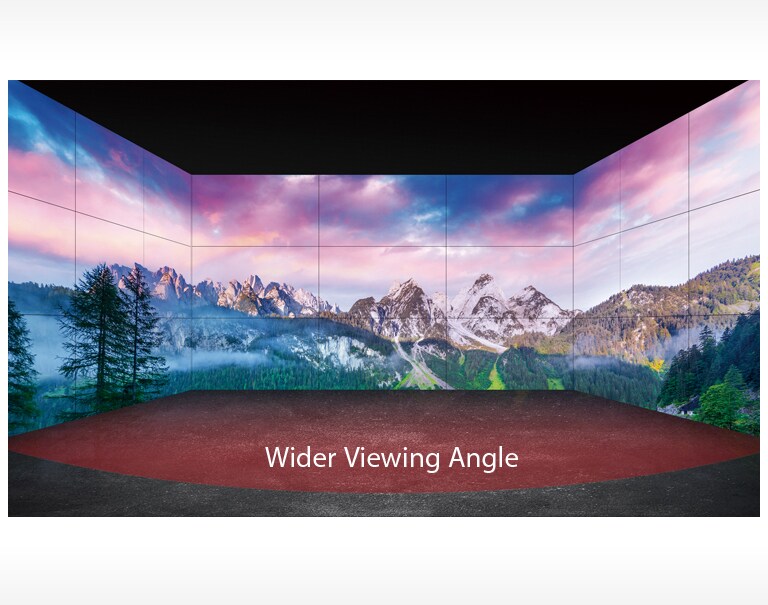

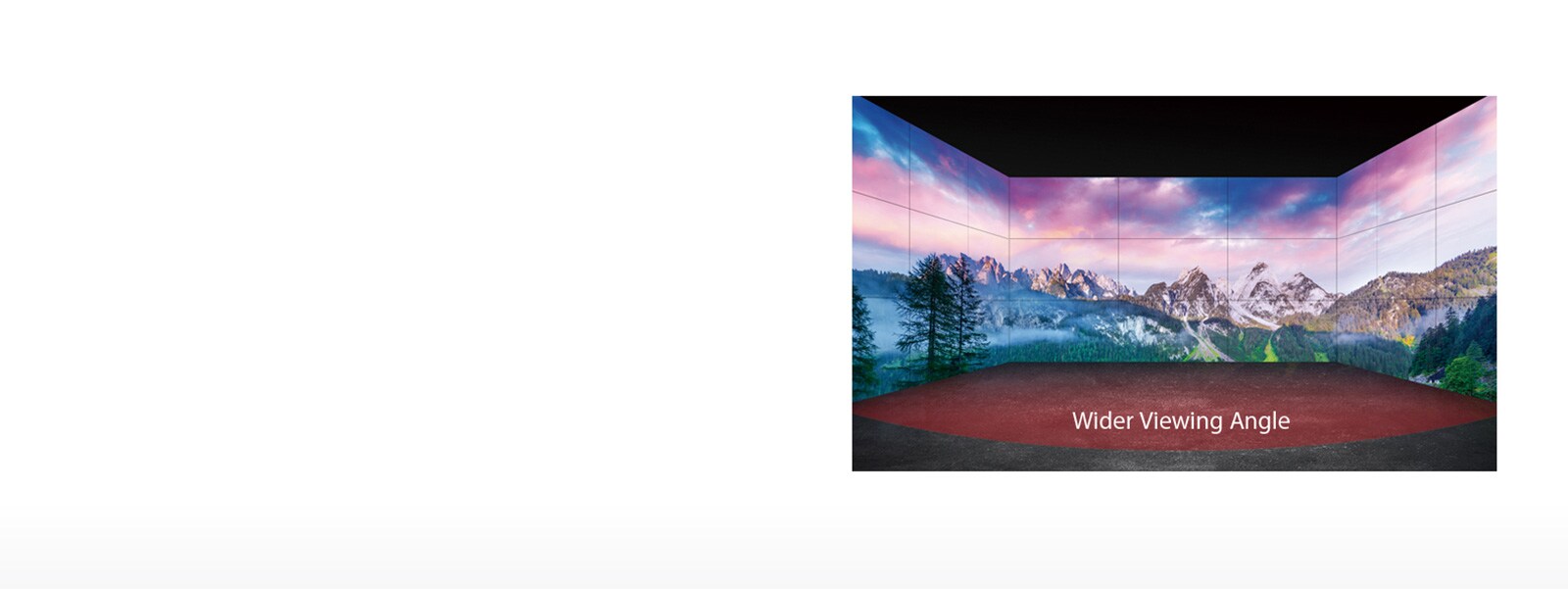

Wider Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the 55SVH7E captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

Vivid and Dynamic Picture Quality

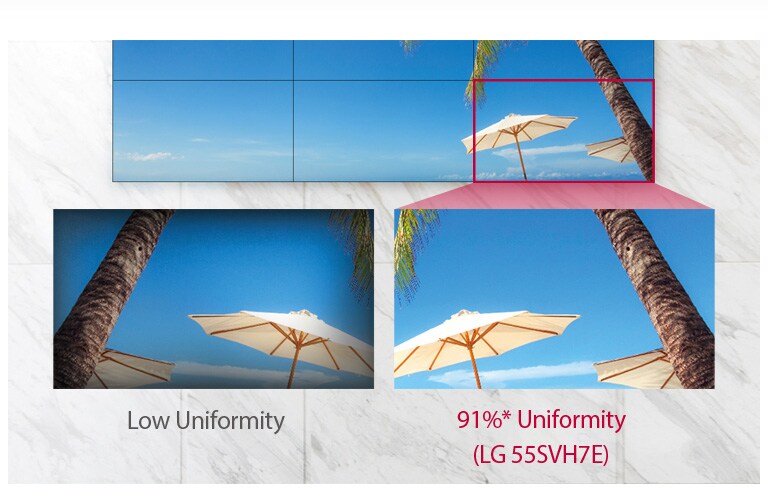

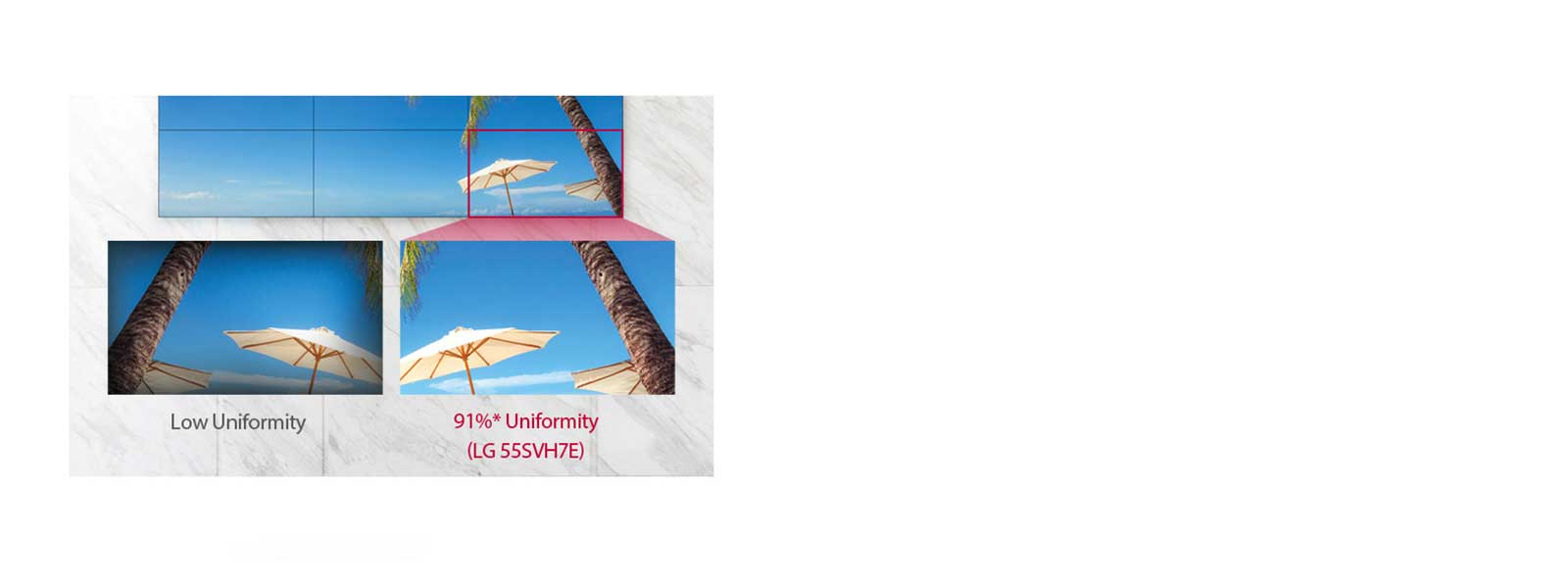

Uniform Color Expression

Poor uniformity around bezel boundaries can give the corners a darker appearance, which doesn't look good on a large screen. However, the 55SVH7E has enhanced uniformity, even within the four corners of the display, to deliver vivid and consistent color throughout the screen.

* Uniformity among 13 points of the screen. Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

Vivid and Dynamic Picture Quality

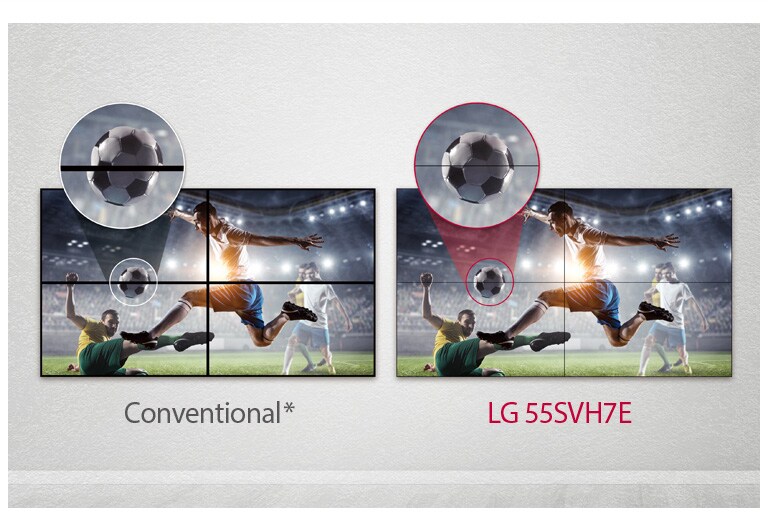

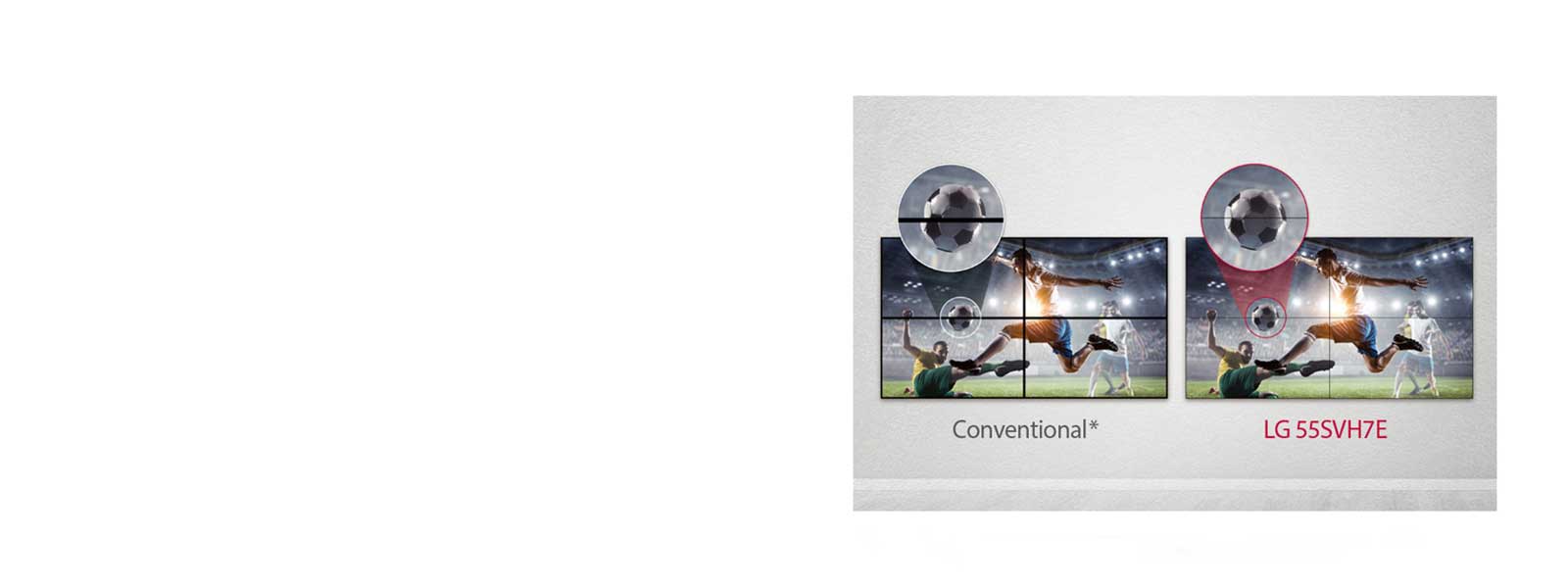

Image Gap Reduction

The 55SVH7E includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

* The "Conventional" refers to displays which do not include an image improvement algorithm.

High Performance and Great Scalability<br>1

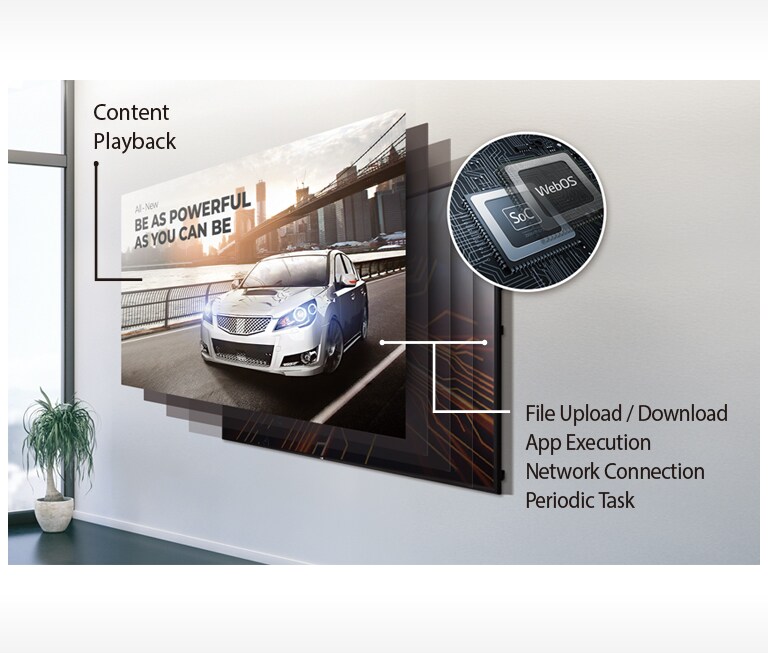

Powerful Smart Signage Platform

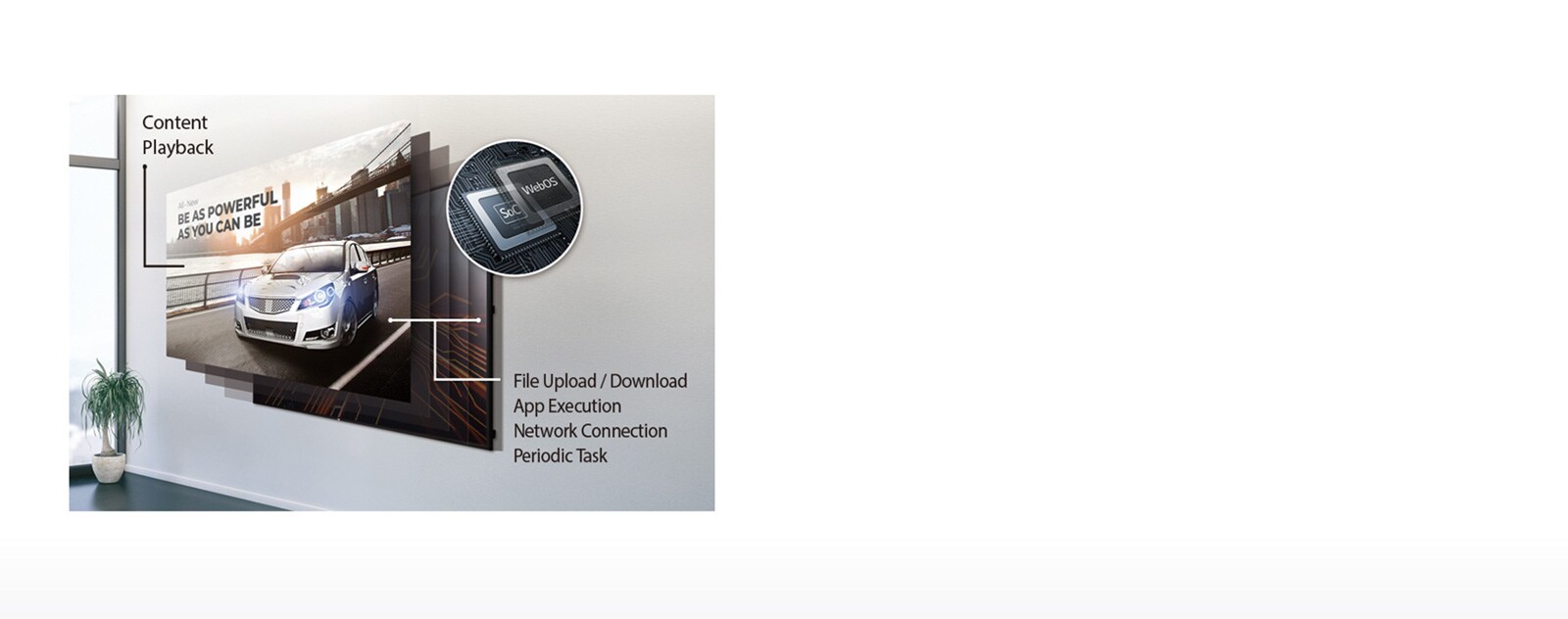

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the 55SVH7E can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK^{(Soft Development Kit)}, it is even easier for SIs to build and optimize.

User-Friendly Smart Signage UX

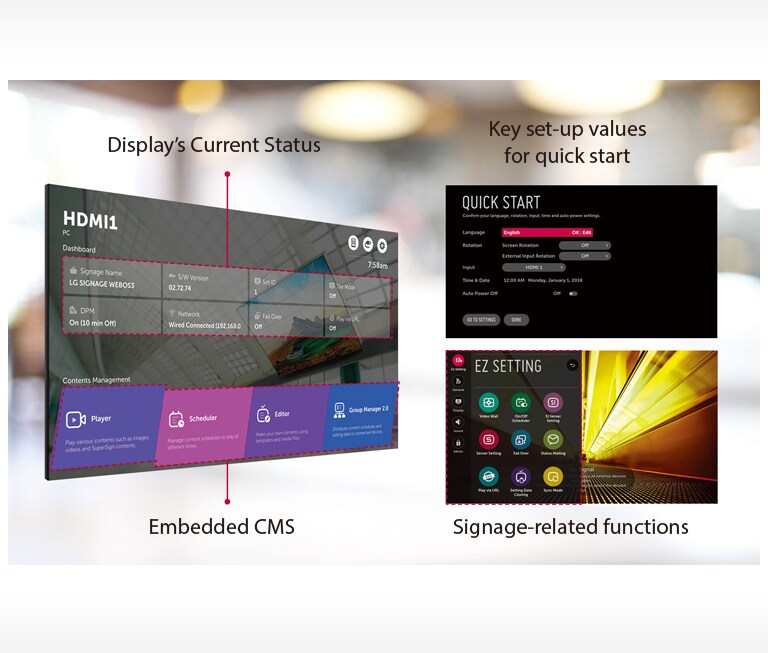

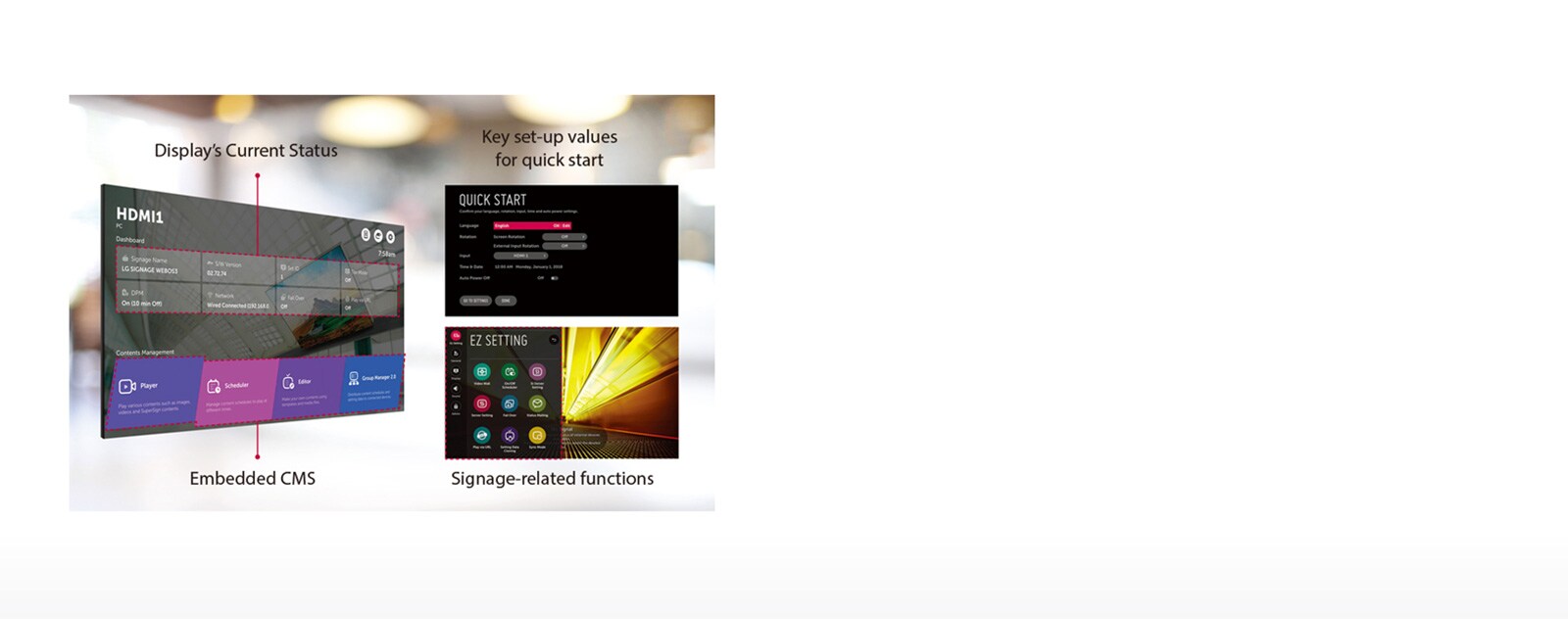

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trialand-error when exploring desired functions and managing displays.

Dedicated GUI for Portrait Orientation<br>1

User-Friendly Smart Signage UX

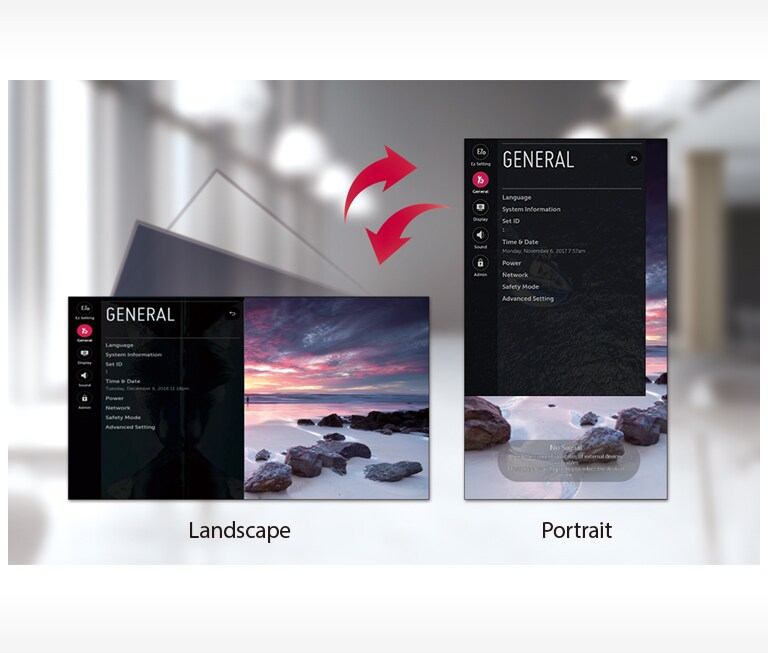

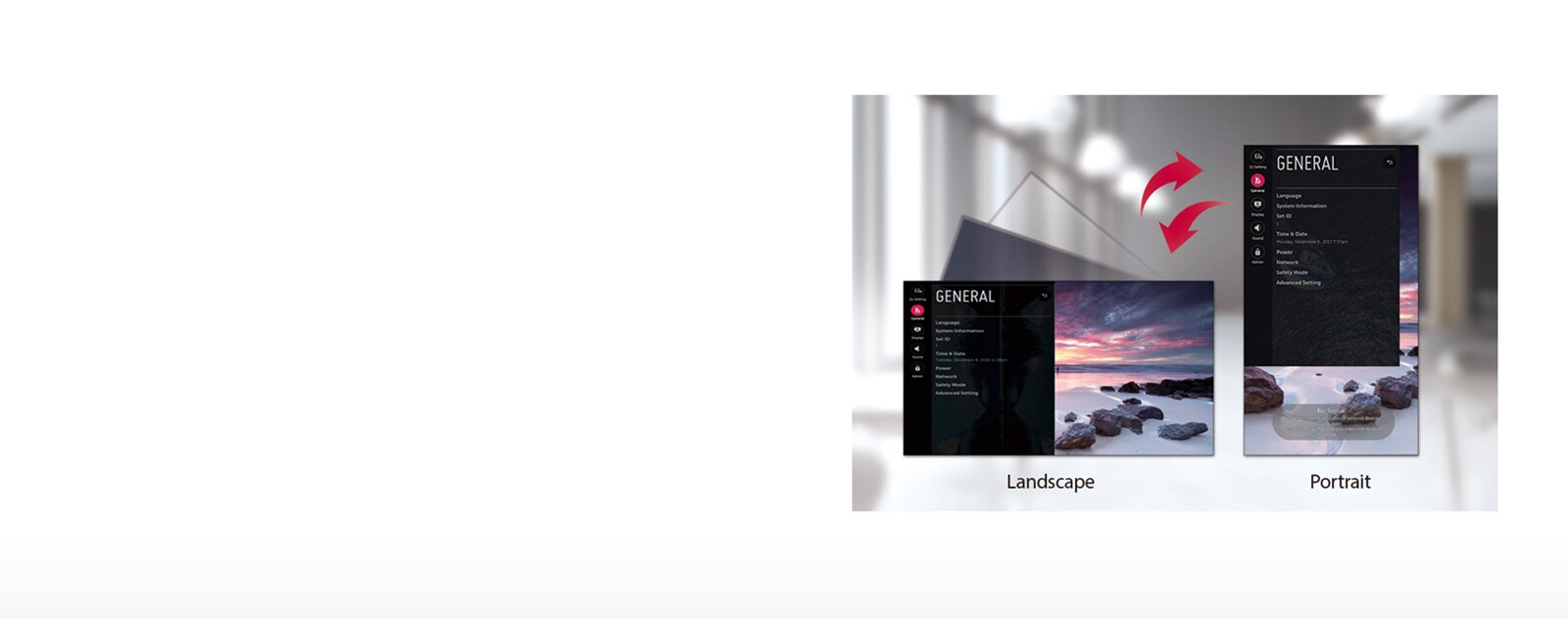

Dedicated GUI for Portrait Orientation

The conventional GUI^{(Graphic User Interface)} was designed based on landscape-oriented consumer TV usage, so OSD(On Screen Display) wasn't well-suited for screens in portrait mode. The OSD of the 55SVH7E, however, consists of a long range menu with bigger font sizes and a 9:16 ratio.

User Convenience

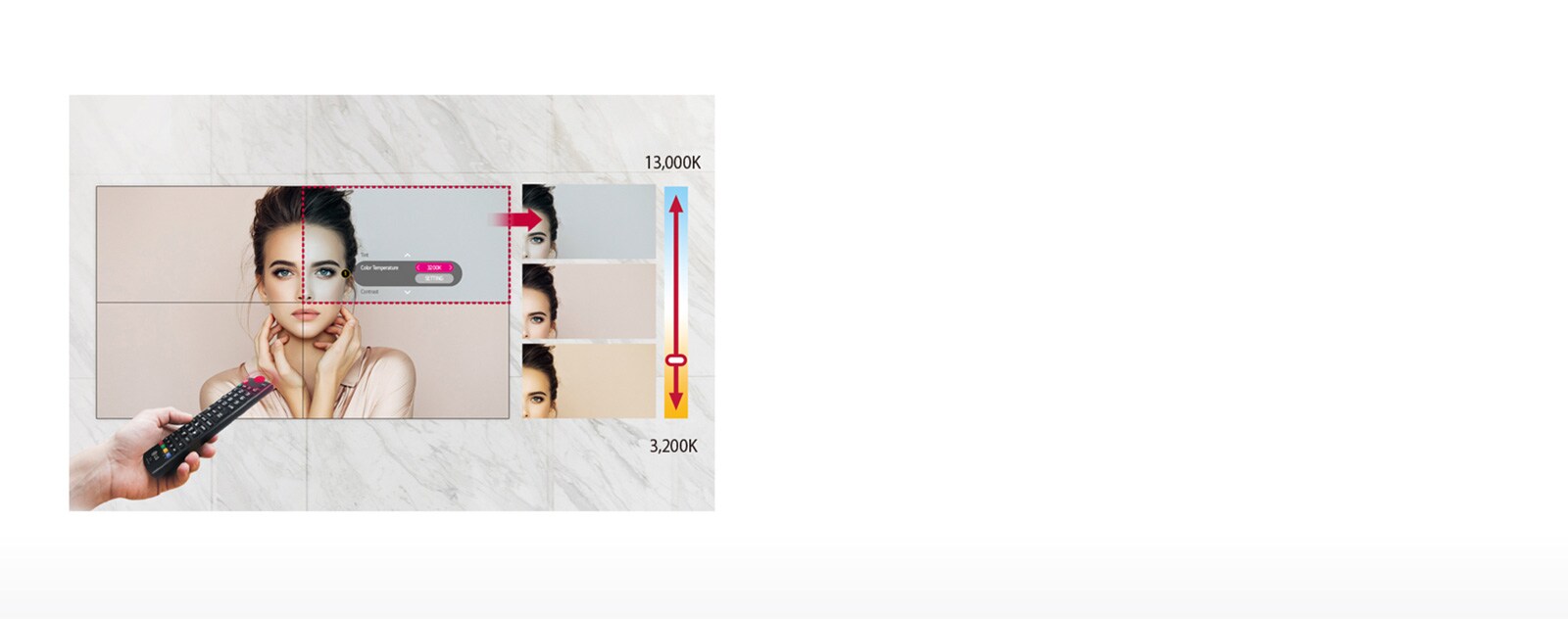

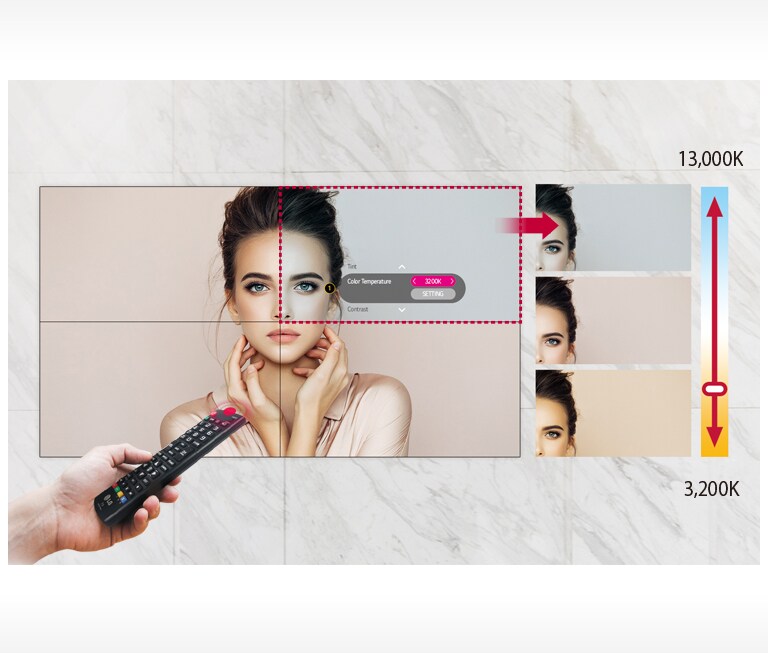

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

User Convenience

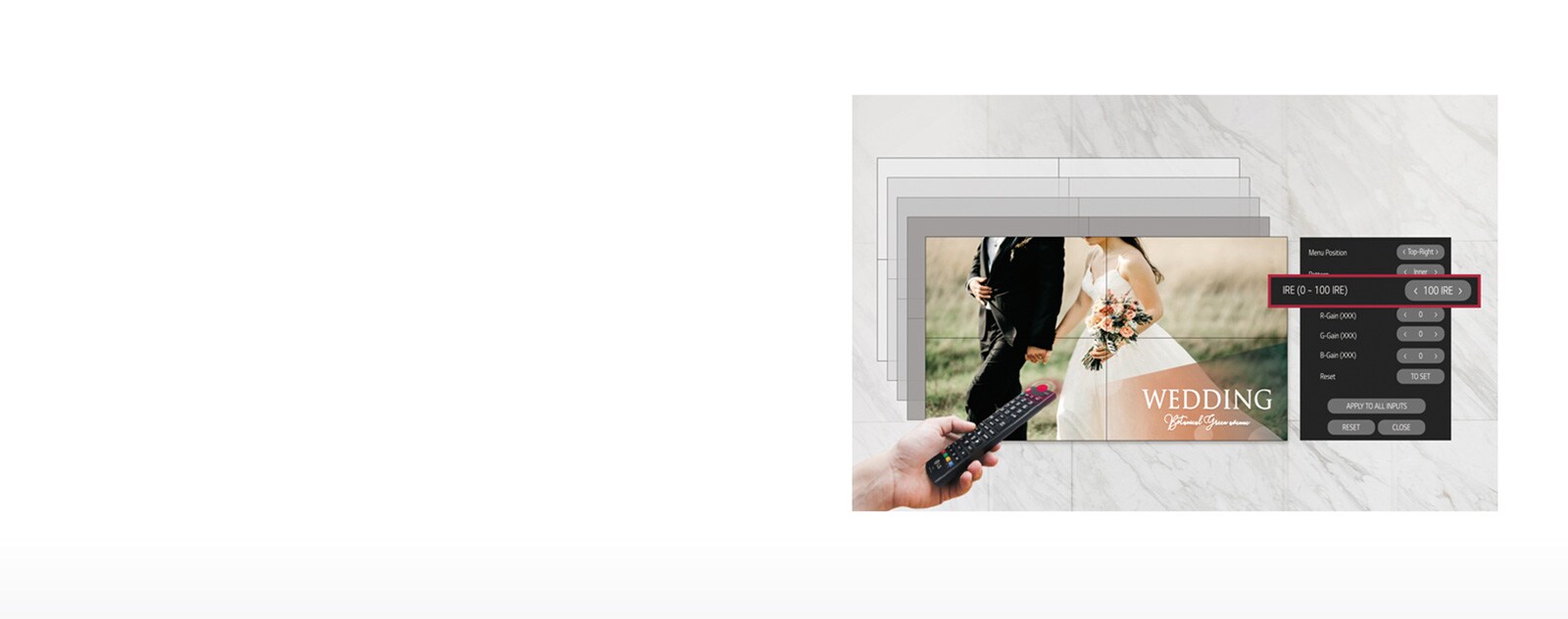

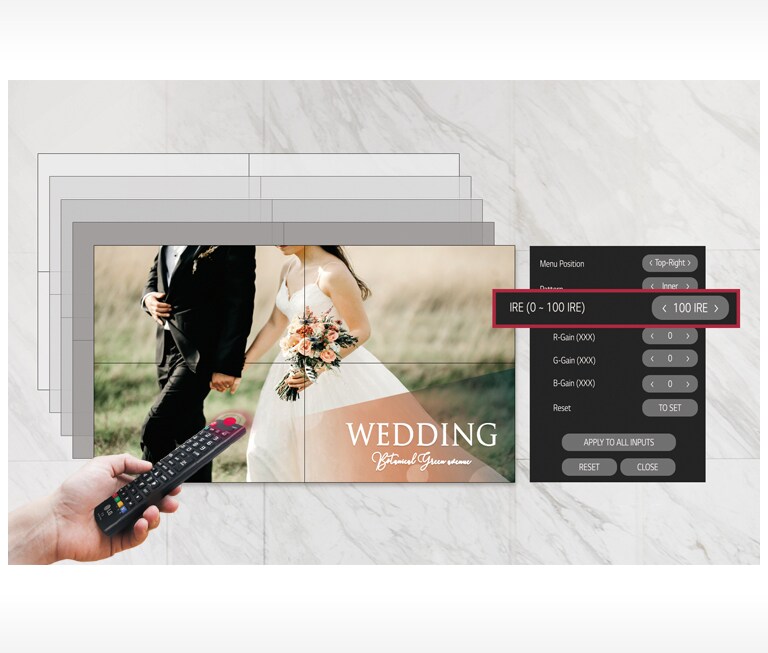

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the 55SVH7E allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

User Convenience

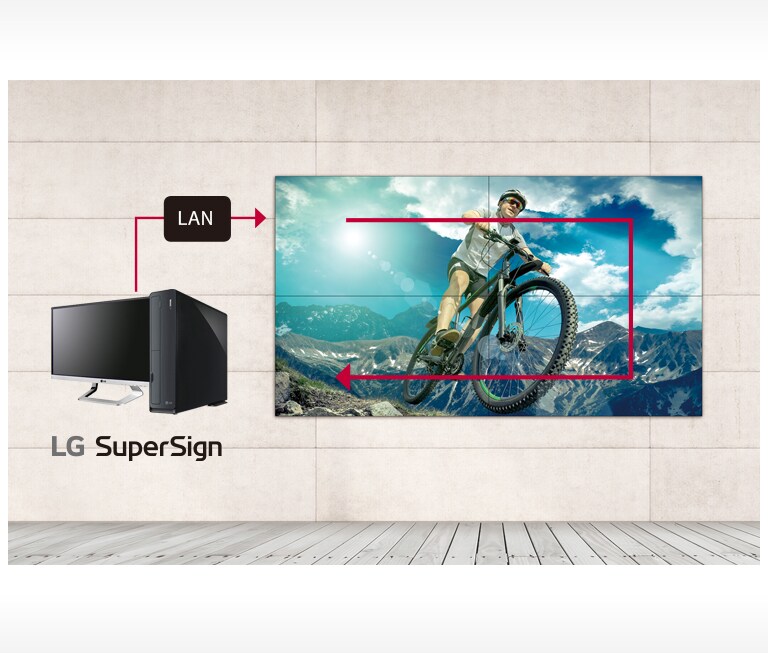

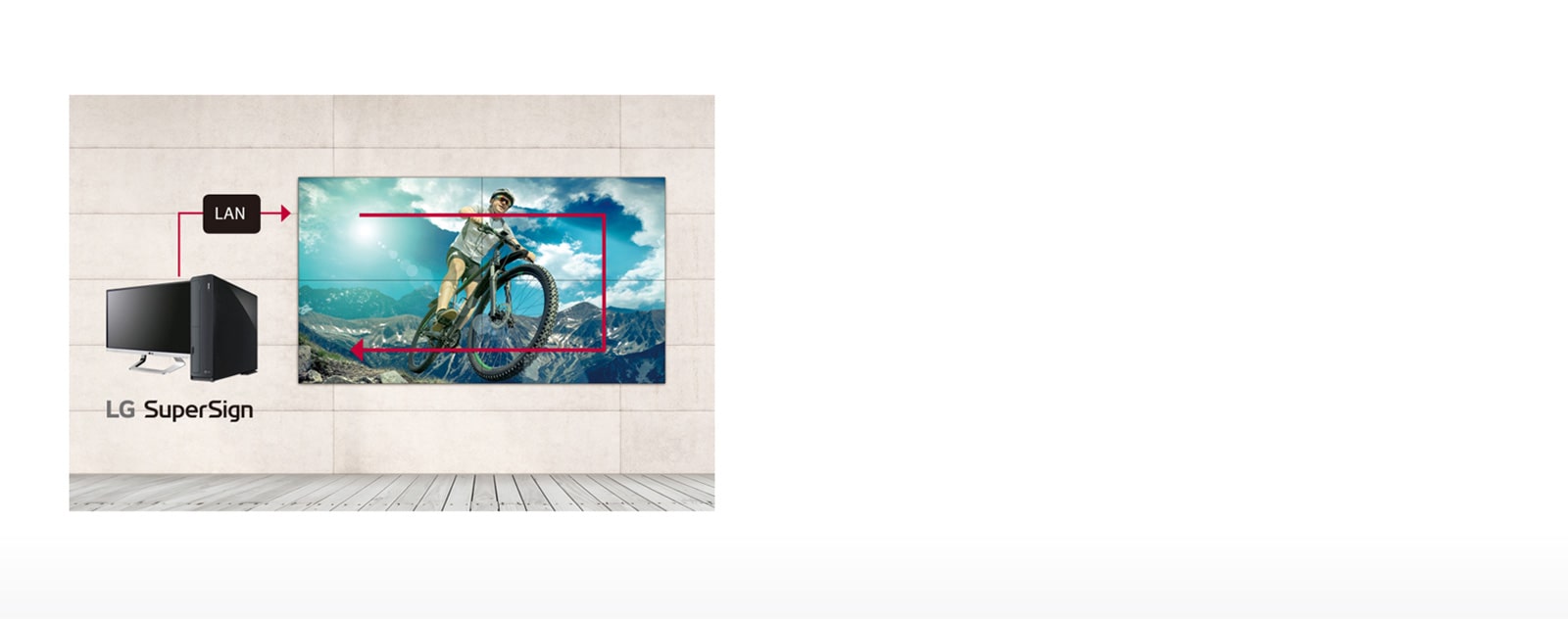

Management

A LAN daisy chain allows you to execute commands to control and monitor video walls and even update their firmwares at once.

User Convenience

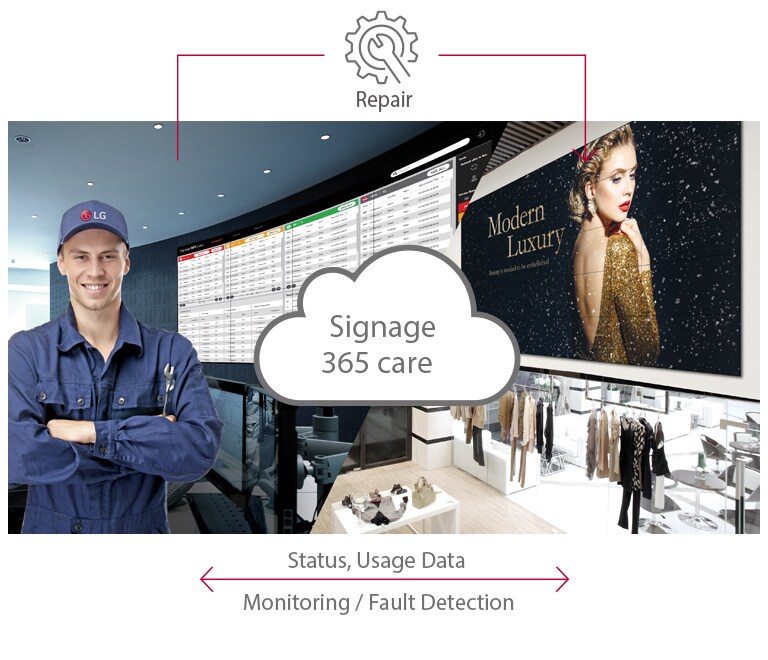

Real-Time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.

* The availability of "Signage 365 Care" service can differ by region, so please contact the LG sales representative in your region for further details.

PANEL

Screen Size

55"

Resolution

1,920 x 1,080 (FHD)
Brightness(Typ.,cd/m²)

700

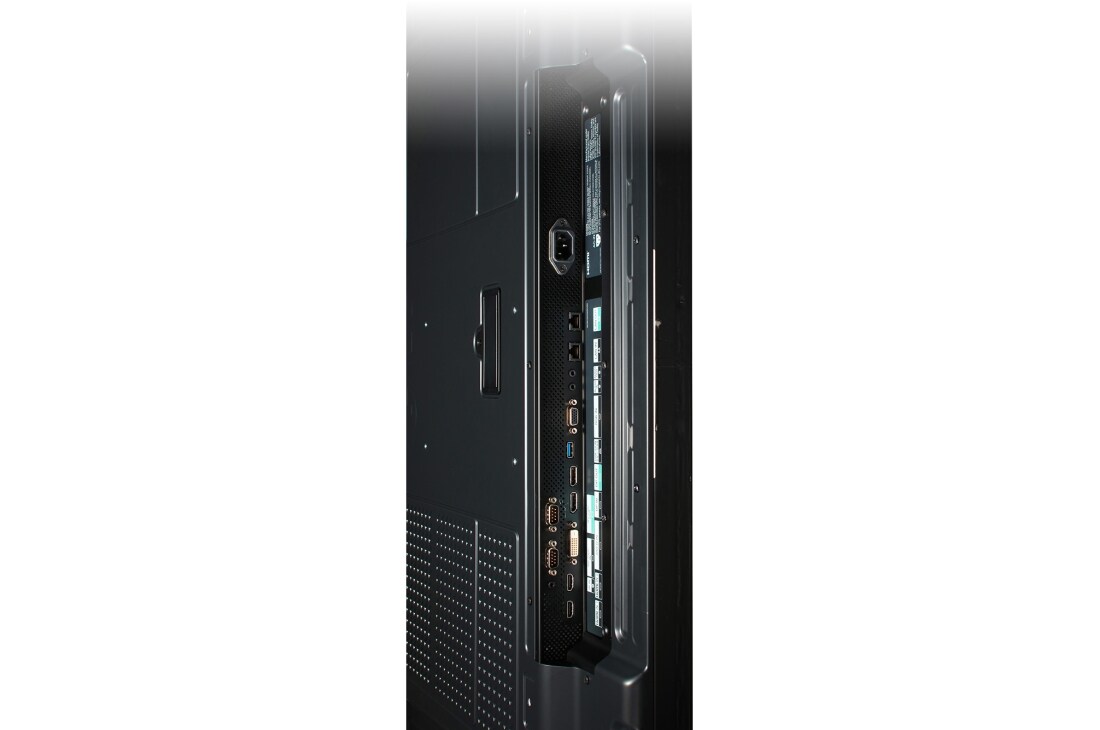

CONNECTIVITY

Input

HDMI (2), DP, DVI-D, RGB, Audio, USB 2.0

Output

DP, Audio
External Control

RS232C In/out, RJ45 In/out, IR In

MECHANICAL SPECIFICATION

Bezel Width

0.44 mm (Even)

Monitor Dimension (W × H × D)

1,210.51 x 681.22 x 86.5 mm
Weight (Head)

16.8 kg

Carton Dimensions (W × H × D)

1,353.0 x 855.0 x 263.0 mm
Packed Weight

23.6 kg

VESA™ Standard Mount Interface

600 x 400 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

170 W

Max

220 W

STANDARD(CERTIFICATION)

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC
ErP / Energy Star

Yes(EU Only) / No

MEDIA PLAYER COMPATIBILITY

OPS type compatible

Yes (Piggyback)

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control / Control+

ACCESSORY

Basic

Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual

Optional

Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V), OPS Kit (KT-OPSA)
