55UH5F-B component-copyModelName

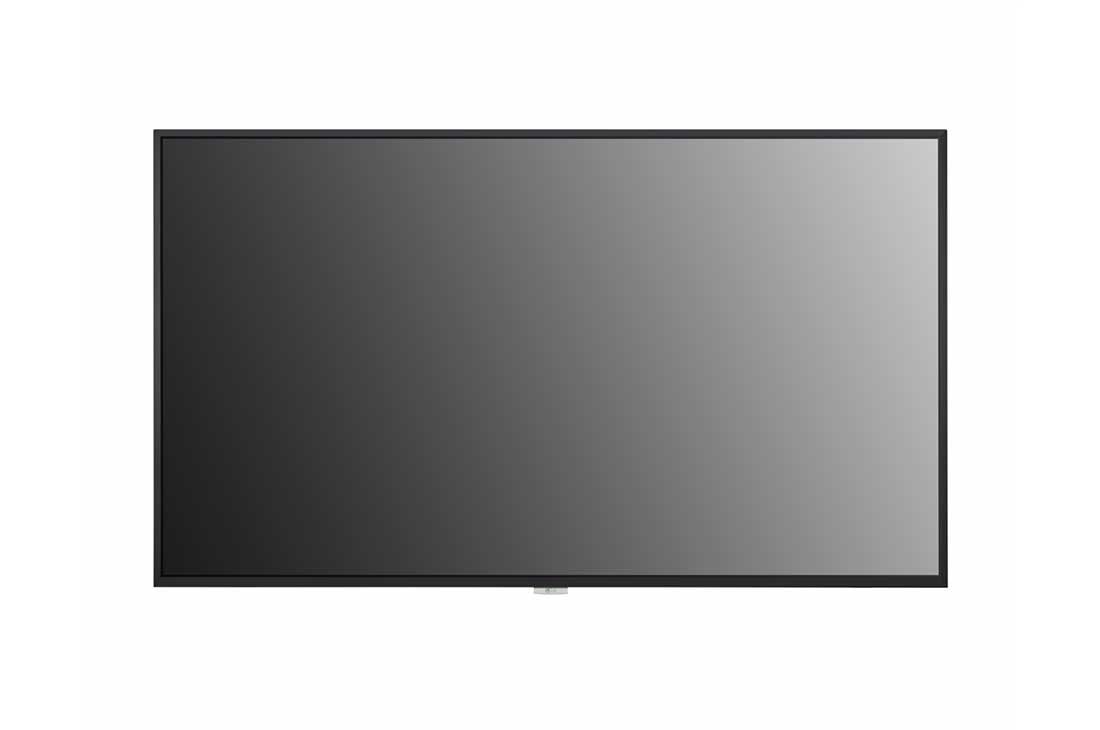

LG Digital Signage Display 55 Inch with UHD and Thin Bezel Display

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55UH5F-B)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55UH5F-B)
    $
    $
    LG Members Price
Total
LG Digital Signage Display 55 Inch with UHD and Thin Bezel Display
Contact Us

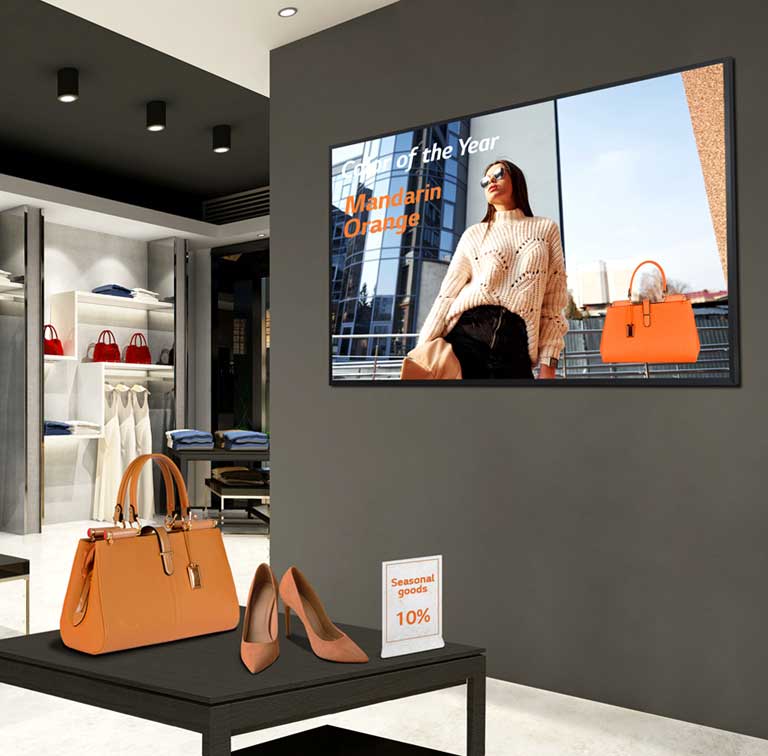

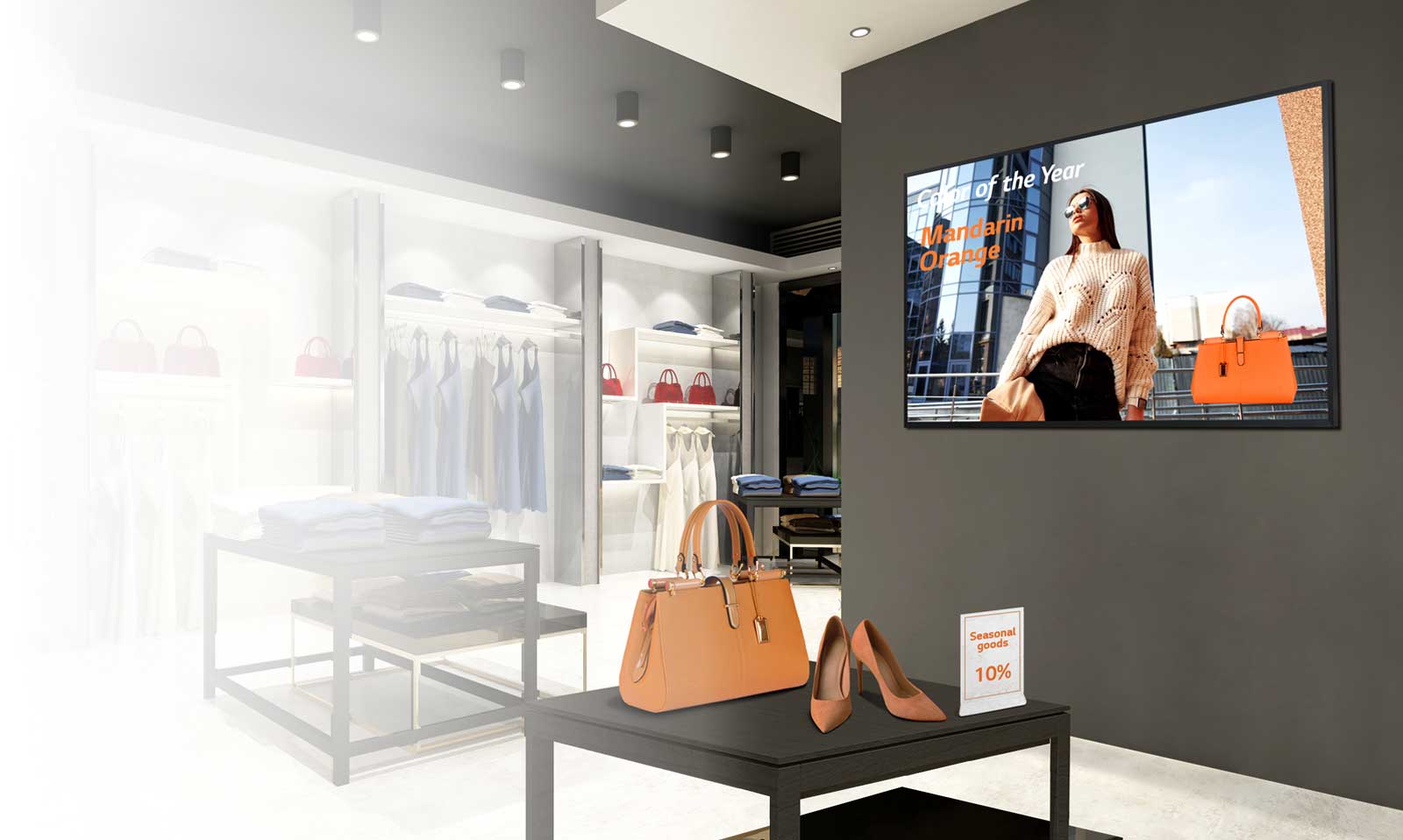

LG UHD Signage Captures Customer's Attention1 LG UHD Signage Captures Customer's Attention2

LG UHD Signage Captures Customer's Attention

The UH5F Series is a UHD Signage that has been optimized for various indoor environments. It features superior UHD quality, slim design, external dust protection, and various convenience for users.

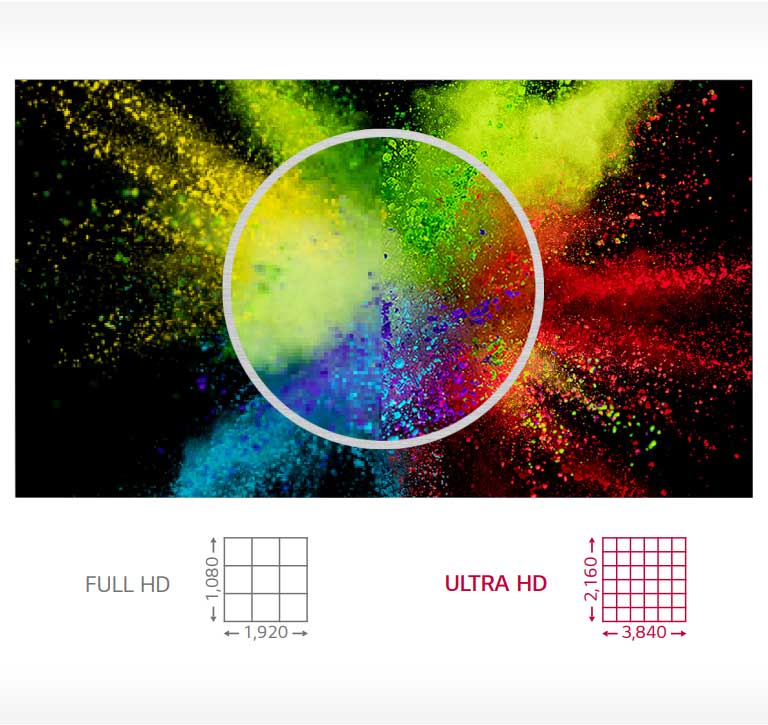

ULTRA HD Resolution 1 ULTRA HD Resolution 2
Superb Picture Quality

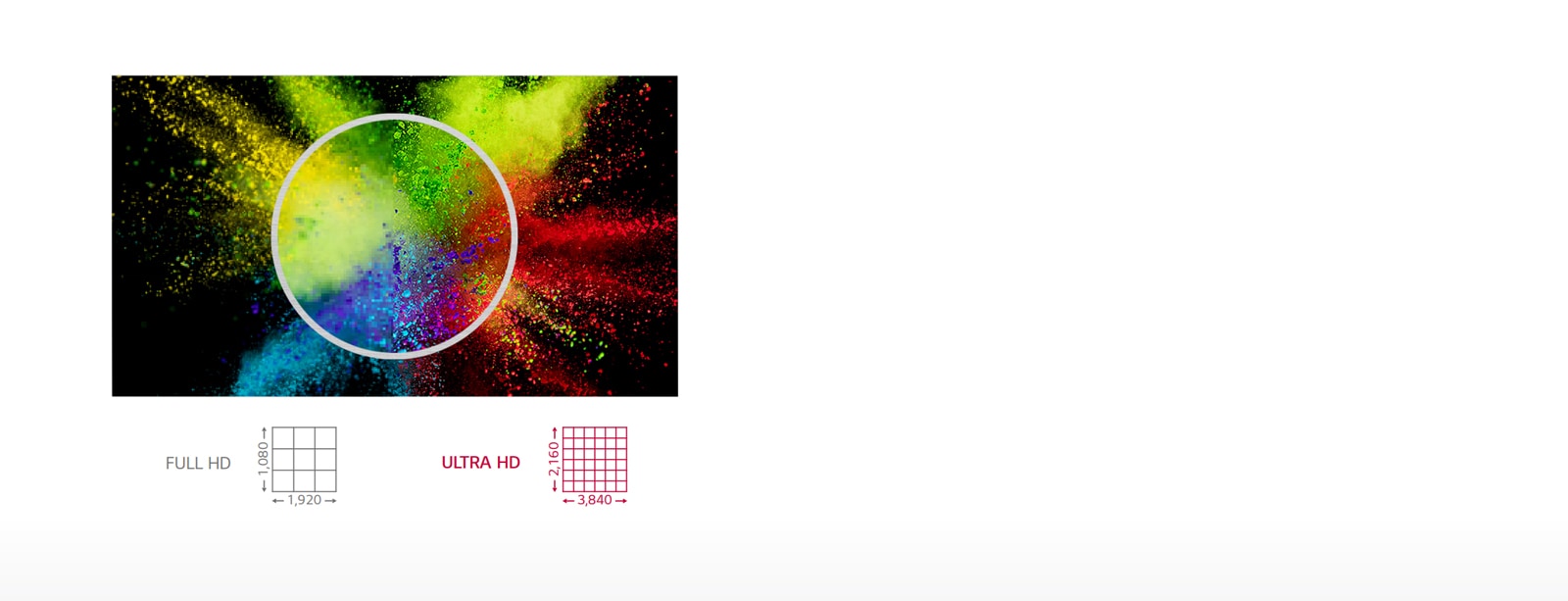

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the Wide Viewing Angle applied with LG IPS Panel, provides clear contents with no distortion.

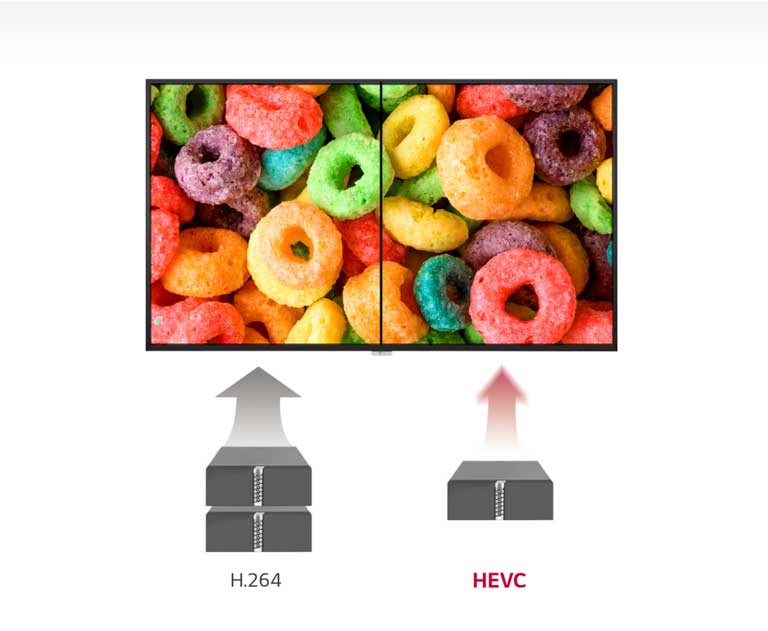

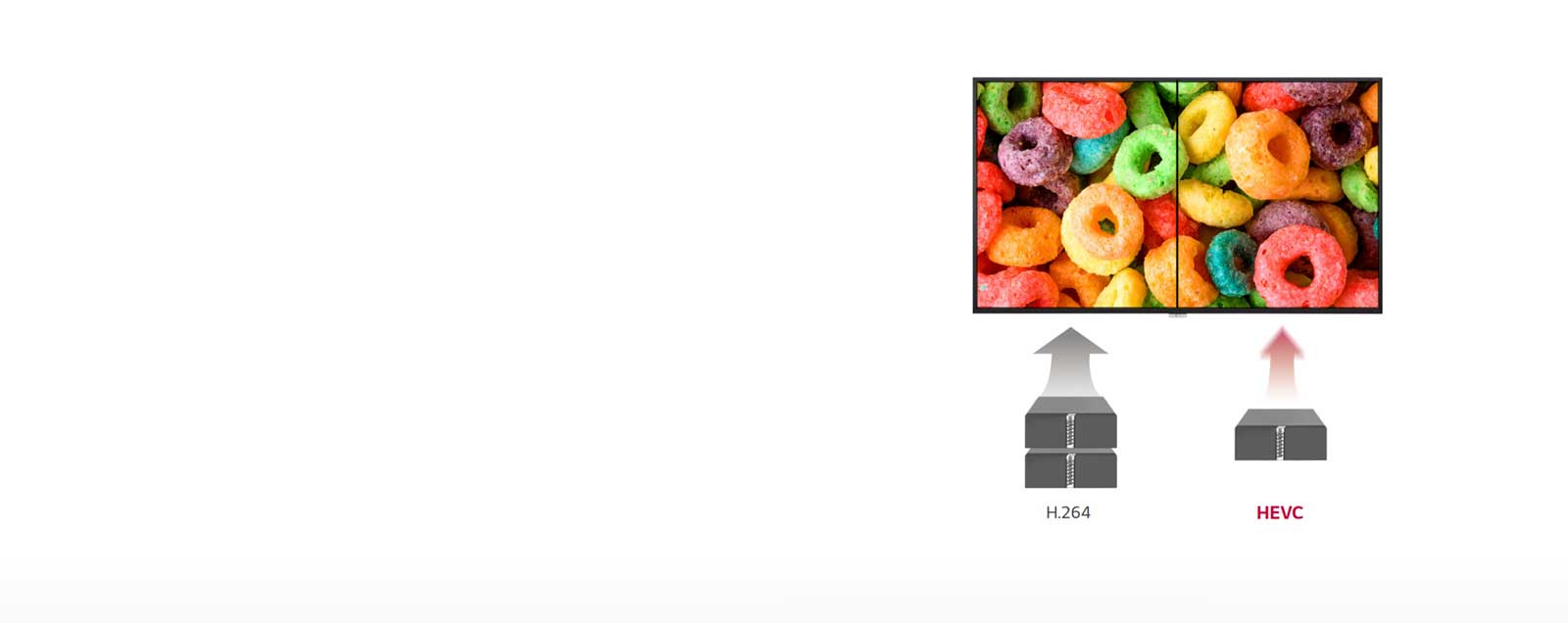

High Efficiency Video Coding1 High Efficiency Video Coding2
Superb Picture Quality

High Efficiency Video Coding

The UH5F series supports HEVC* which efficiently compresses/decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic when compared to the existing H.264 codec.
*HEVC: High Efficiency Video Coding.

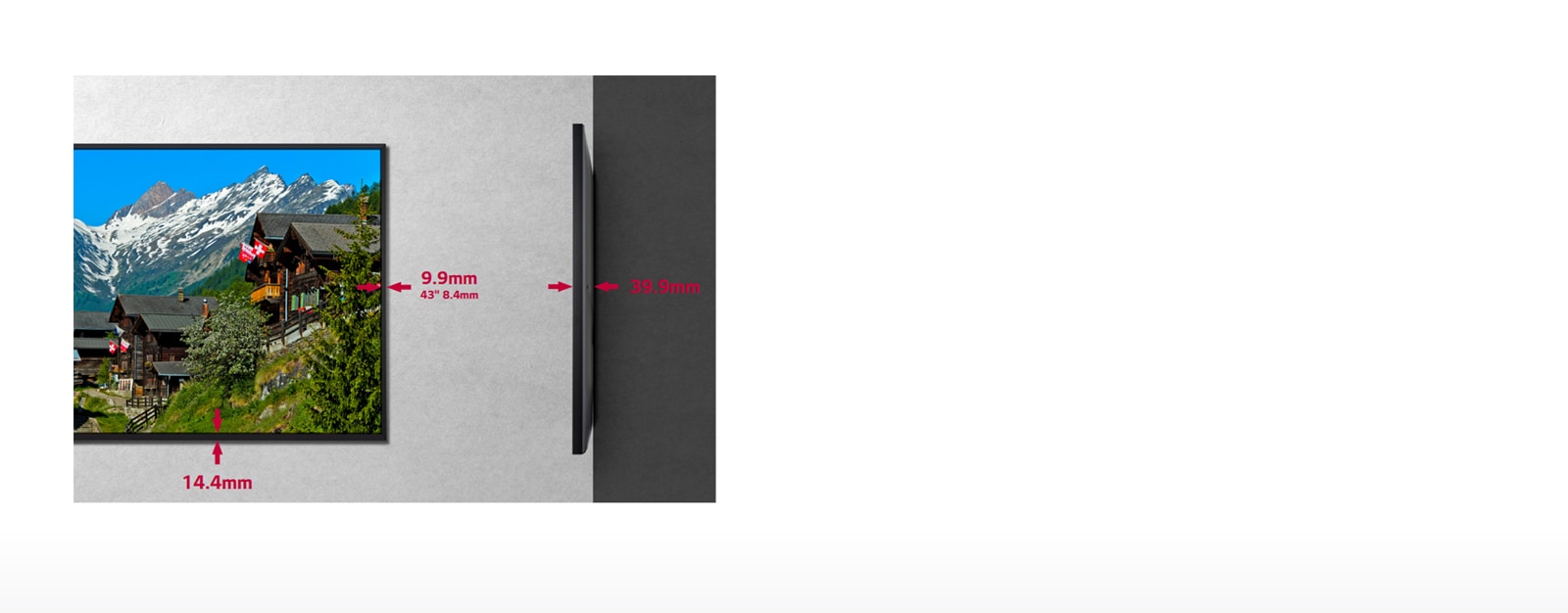

Narrow Bezel & Slim Depth1 Narrow Bezel & Slim Depth2
Sleek and Practical Design

Narrow Bezel & Slim Depth

The UH5F Series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.
Detachable Logo and Built-in Speaker1 Detachable Logo and Built-in Speaker2
Sleek and Practical Design

Detachable Logo and Built-in Speaker

The UH5F series is equipped with a new transparent logo which is well organized with surroundings. Also, its removable feature gives users flexibility for installation. Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
IP5x Certified Design1 IP5x Certified Design2
Product Reliability

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

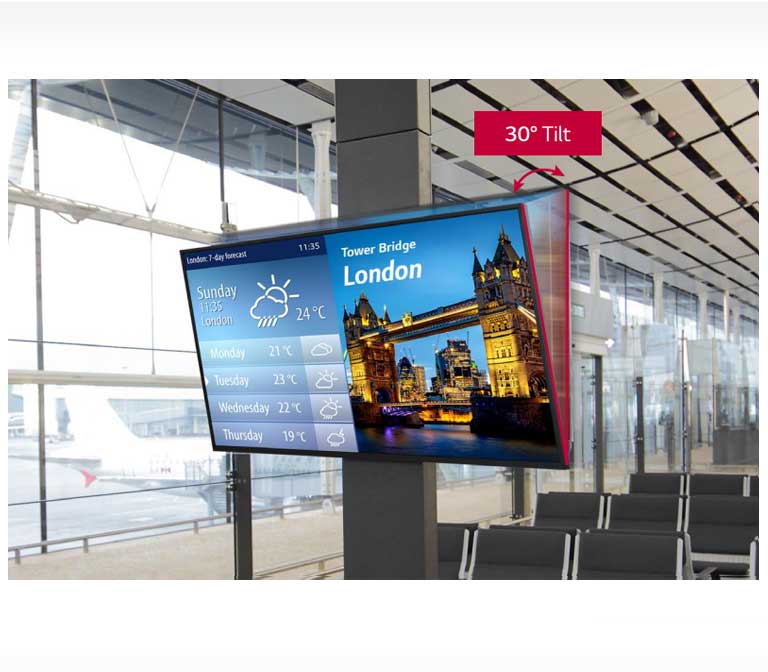

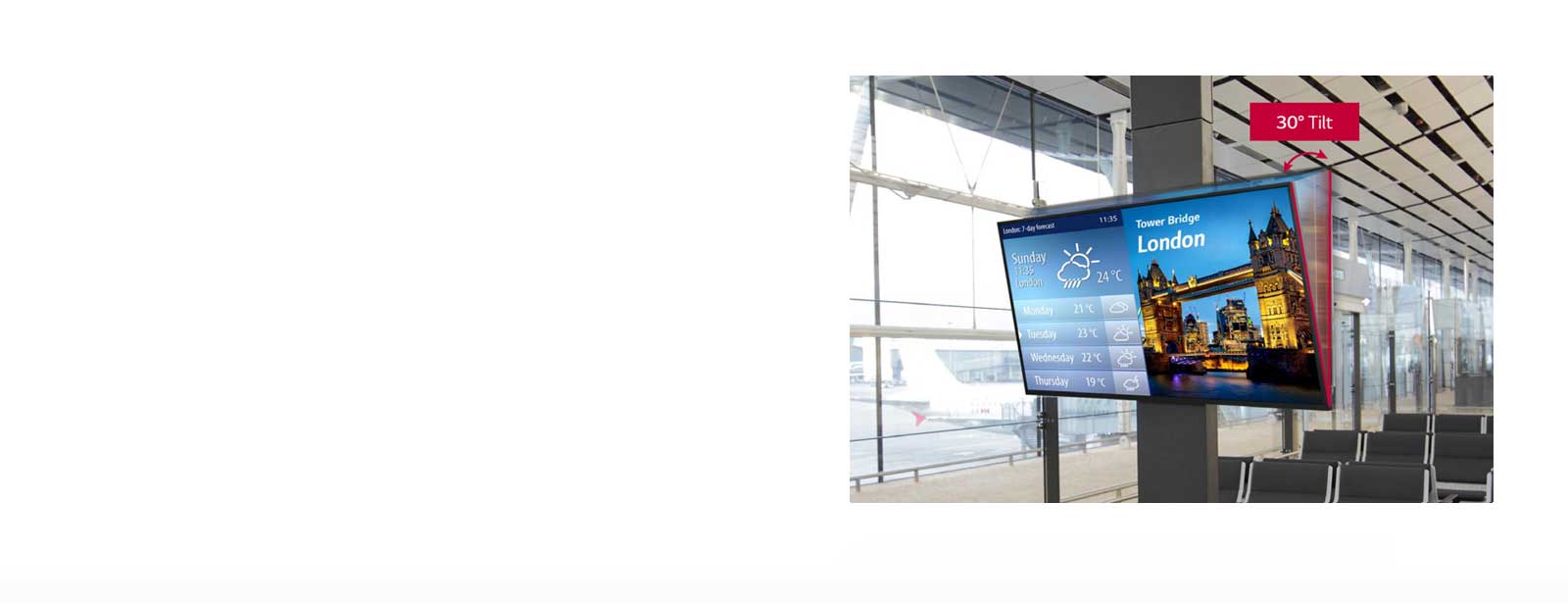

30° Tilting Installation1 30° Tilting Installation2
Product Reliability

30° Tilting Installation

When a display is installed at high places, it is usually tilted for the user's comfort viewing. In consideration of this, the UH5F series supports the installation with 30 degrees of tilt*.
*Tilt installation of up to 30 degrees facedown is supported. (in conditions within 30°C temperature, 50% humidity).

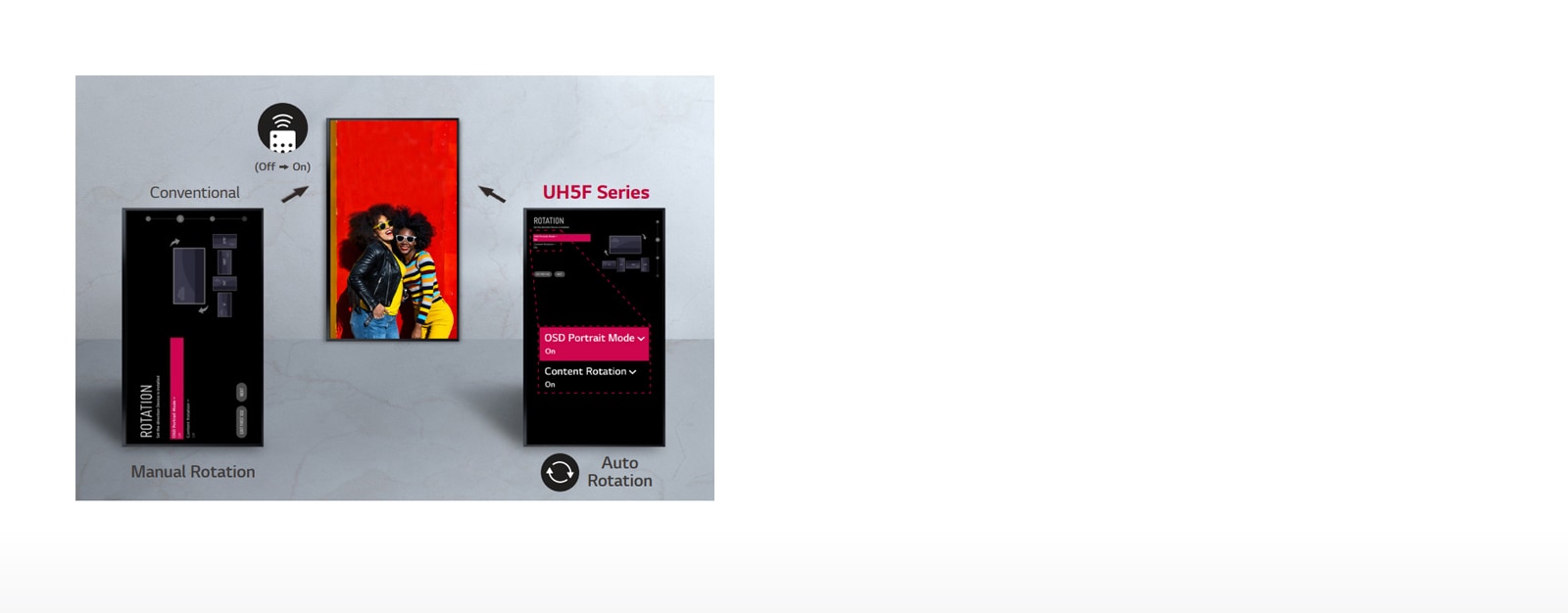

Auto Screen Rotation1 Auto Screen Rotation2
Easy Installation

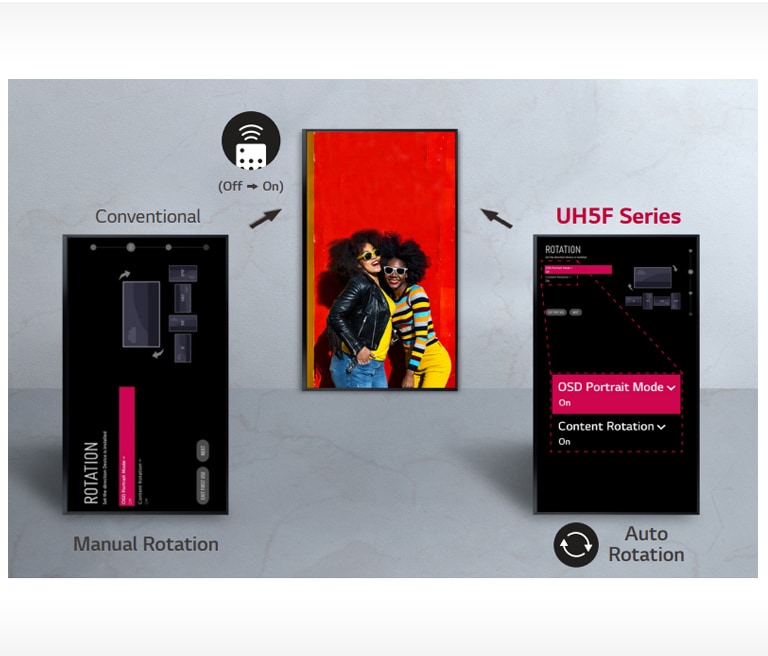

Auto Screen Rotation

The UH5F series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn't required. The direction of OSD and background contents will be already set when you turn on a display at first.

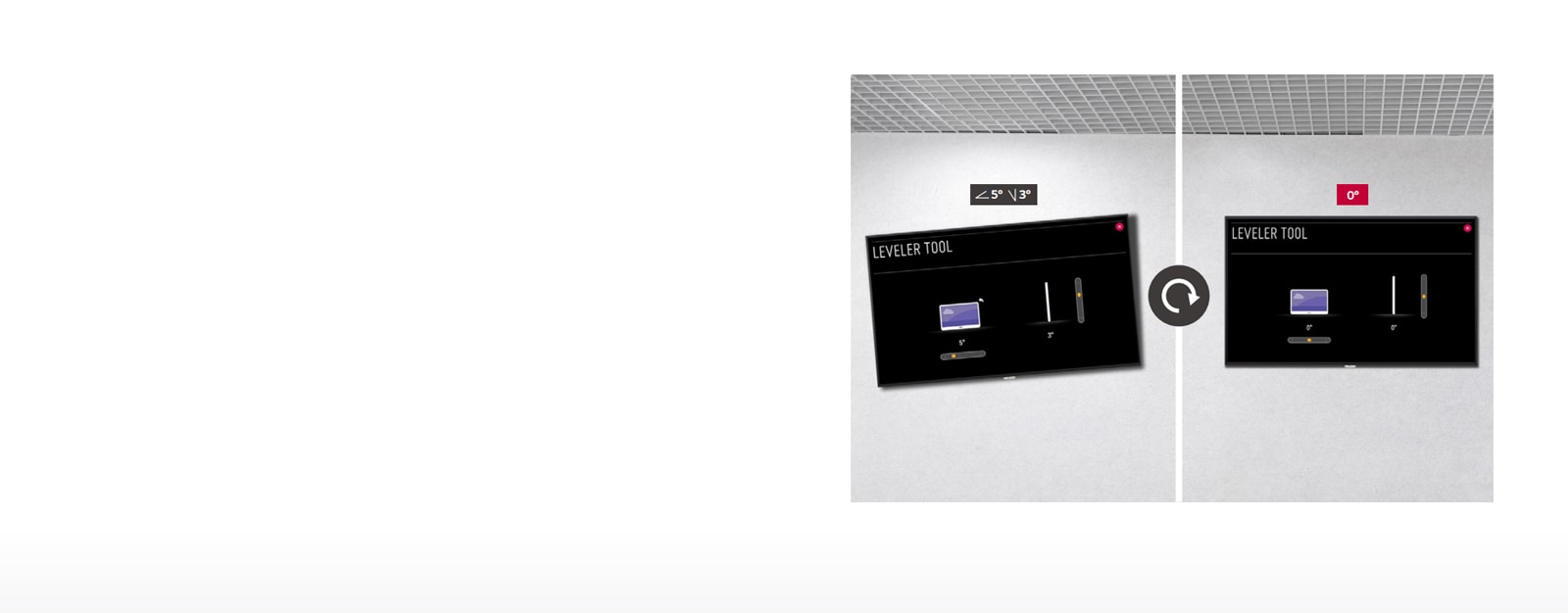

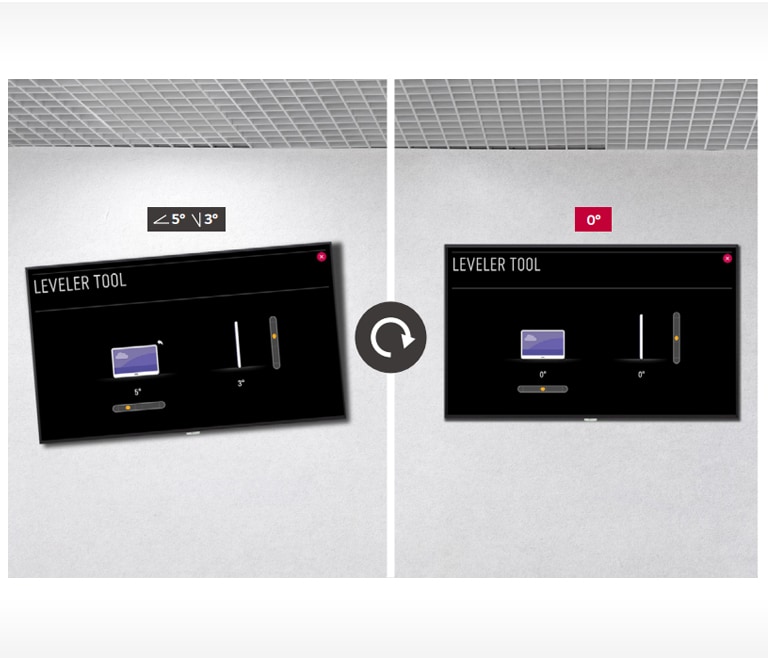

<h3 class="text-normal">Fine Adjustment</h3>1 <h3 class="text-normal">Fine Adjustment</h3>2
Easy Installation

Fine Adjustment

The UH5F Series is equipped with a "horizontal sensor" which shows users how the device is tilt, so that it can be precisely installed.
Remote Monitoring1 Remote Monitoring2
User Convenience

Remote Monitoring

The UH5F Series can email notifications to users when there is a problem, such as tilting of the product by external impact, so users can operate the product in a safer manner as they can get the information about the problem right away.
Simple Accessibility1 Simple Accessibility2
User Convenience

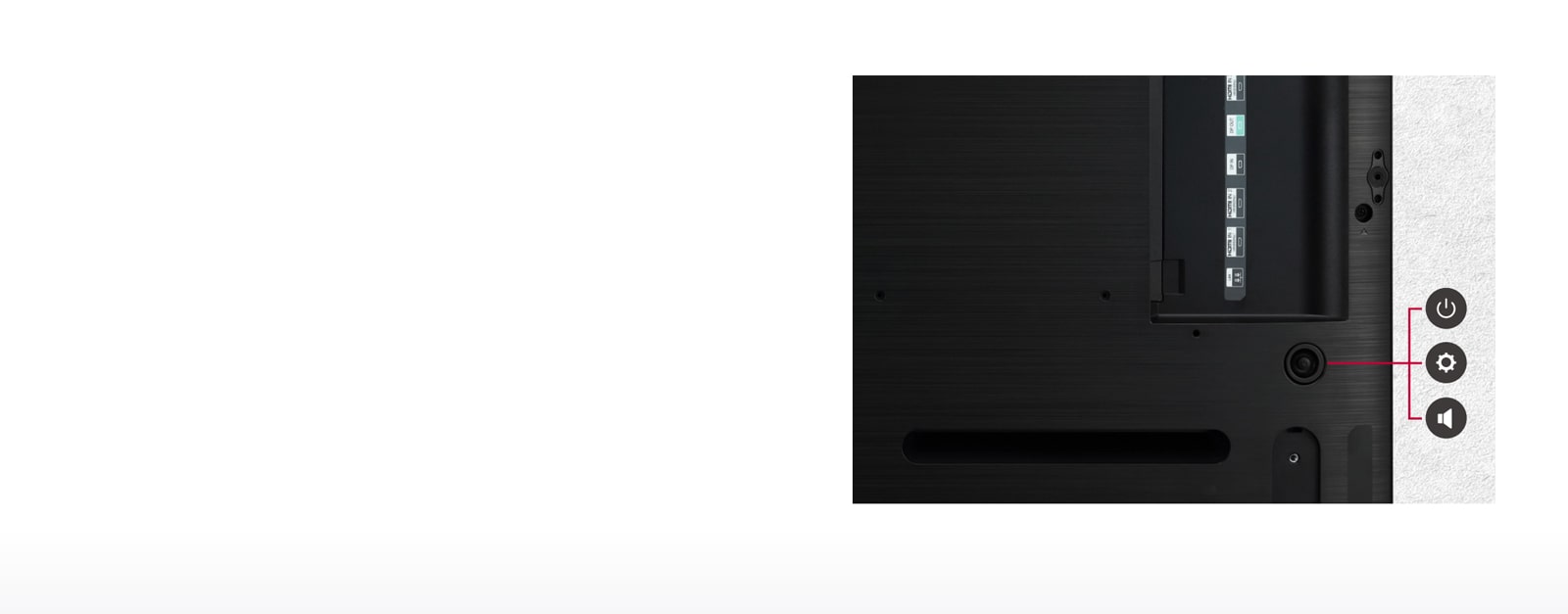

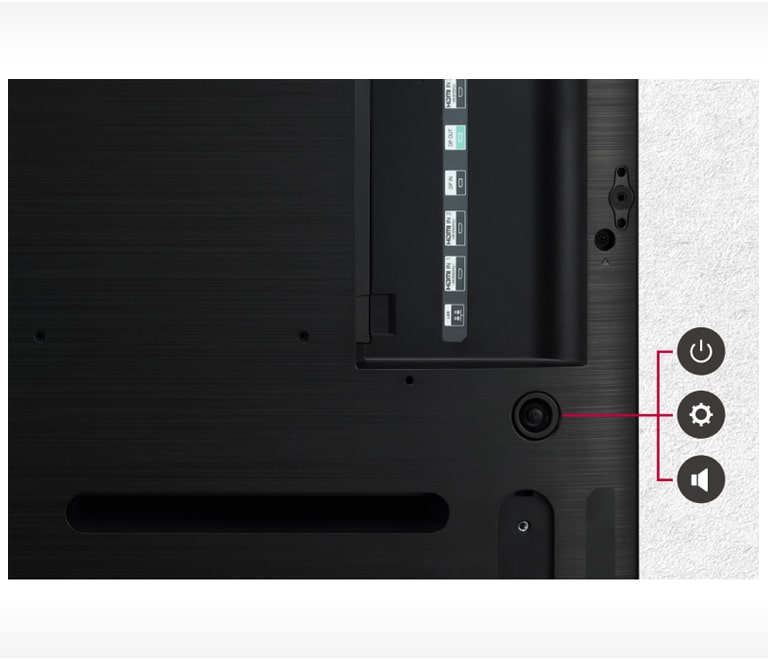

Simple Accessibility

Unlike previous models where various buttons have to be pressed for control, the UH5F Series provides a single joystick to easily facilitate power on/off, input/setting operation, volume control, etc.
High-Performance with webOS1 High-Performance with webOS2
Smart Function

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

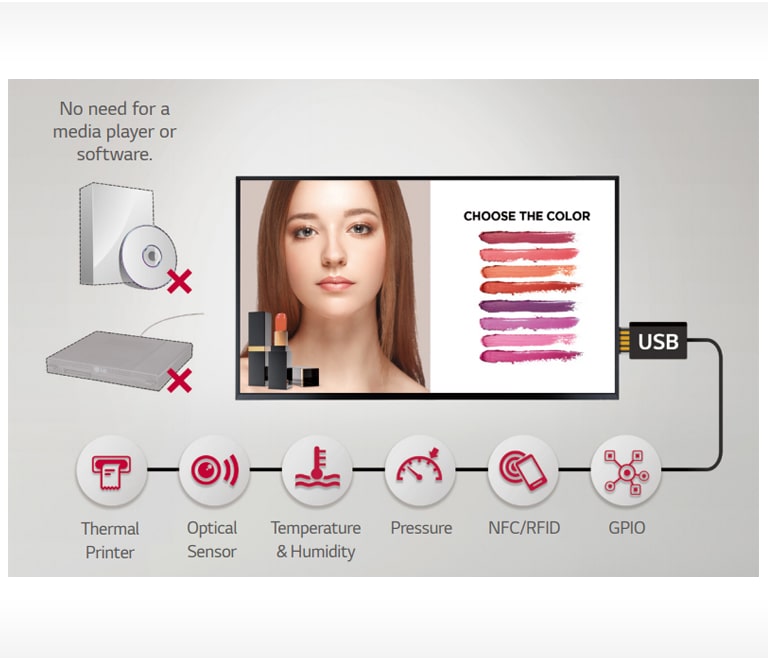

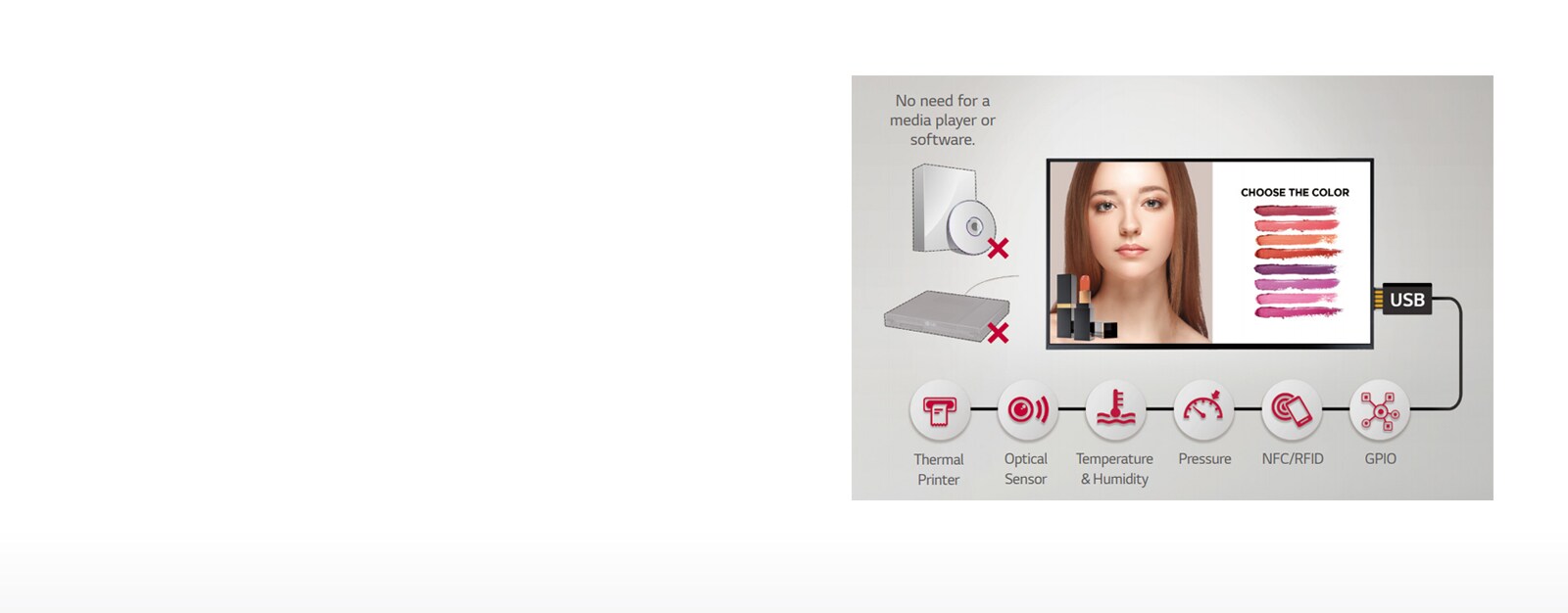

Various Sensor Applications1 Various Sensor Applications2
Smart Function

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

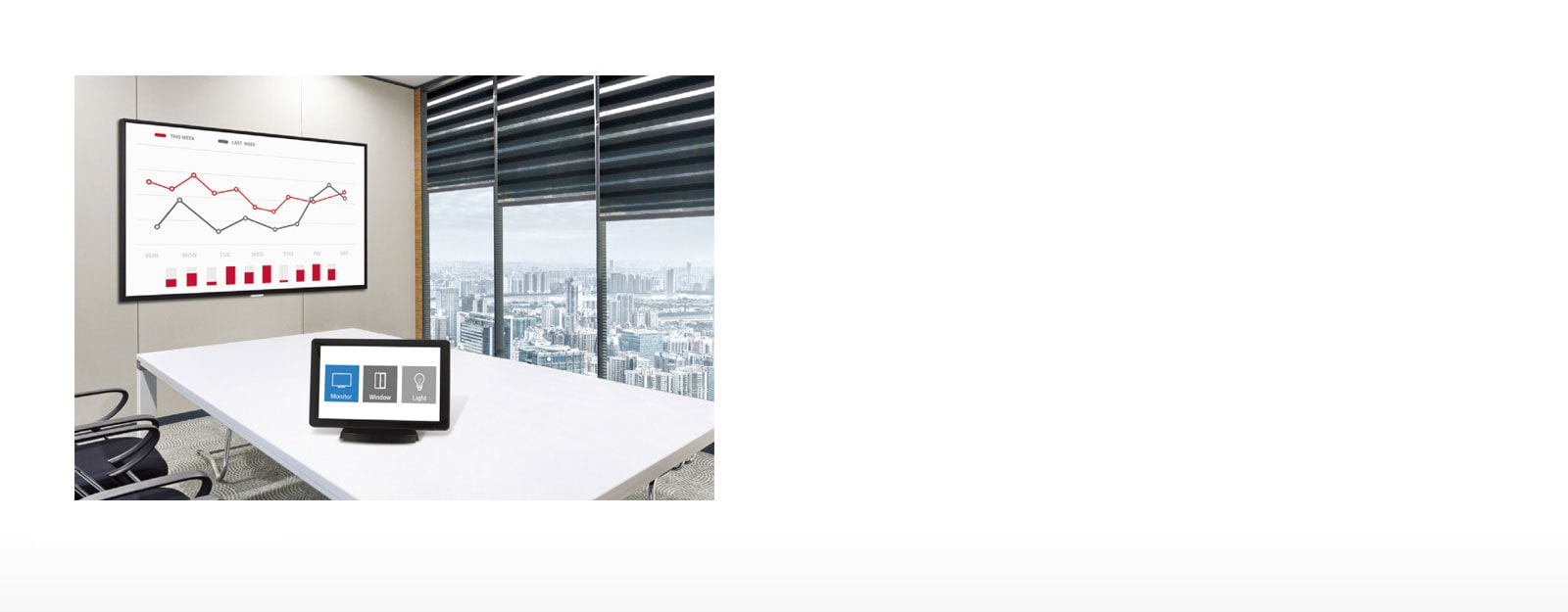

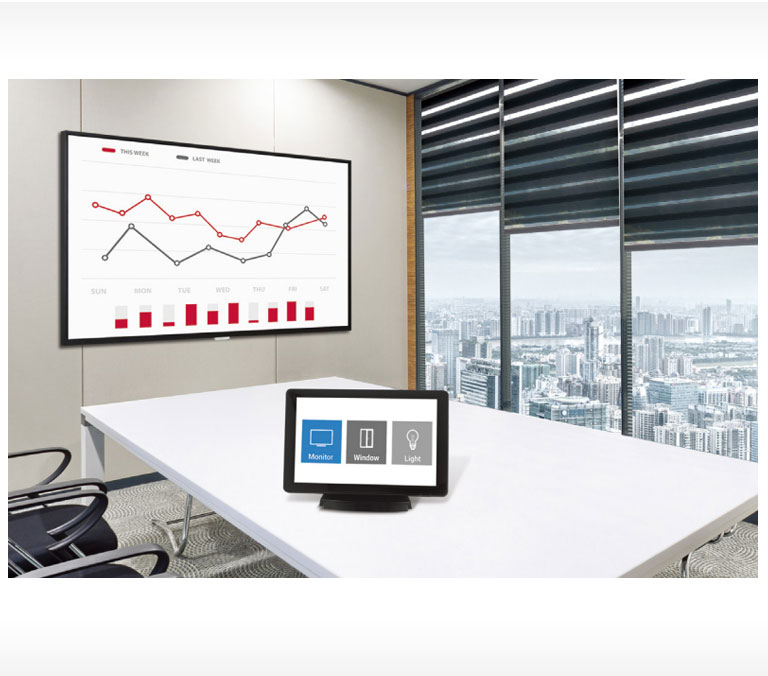

Compatibility with AV Control System1 Compatibility with AV Control System2
Smart Function

Compatibility with AV Control System

The UH5F series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
*Network based control.
Compatibility with Video Conference System1 Compatibility with Video Conference System2
Smart Function

Compatibility with Video Conference System

For the optimum visual meeting, the UH5F series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
*Using an HDMI cable connection.
Close
PANEL
  • Screen Size
    55"
    Panel Technology
    IPS
  • Aspect Ratio
    16 : 9
    Native Resolution
    3,840 x 2,160 (UHD, RGB)
  • Brightness(Typ.,cd/m²)
    500
    Contrast Ratio
    1,100:1
  • Viewing Angle (H x V)
    178 x 178
    Response Time
    8ms (G to G)
  • Surface Treatment (Haze)
    Haze 3%
    Life Time (Typ.)
    50,000 Hrs
  • Operation Hours
    24 Hrs
    Orientation
    Portrait & Landscape
CONNECTIVITY
  • Input
    HDMI (3), DP, DVI-D, Audio, USB 2.0
    Output
    DP, Audio (Off/Fixed/Variable)
  • External Control
    RS232C In/out, RJ45 (LAN) In, IR In
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    9.9mm(T/R/L), 14.4mm(B)
  • Monitor Dimension (W × H × D)
    1,234.4mm x 720.9mm x 39.9mm
    Weight (Head)
    19.0kg
  • Carton Dimensions (W × H × D)
    1,360mm x 835mm x 175mm
    Packed Weight
    24.2kg
  • Handle
    No
    VESA™ Standard Mount Interface
    300 x 300
SPECIAL FEATURE
  • Tilt (Facedown)
    Max. 30º *In conditions within 30ºC temperature, 50% humidity
    IP Rating
    IP5x
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ. / Max.
    105W / 145W
    Smart Energy Saving
    73.5W
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A"/CE/KC
  • ErP / Energy Star
    Yes(EU Only) / Yes (Energy Star 8.0)
MEDIA PLAYER COMPATIBILITY
  • OPS type compatible
    Yes
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+
  • Signage365Care
    Yes
ACCESSORY
  • Basic
    Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
    Optional
    Stand (ST-653T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSF)
