UH5C Series

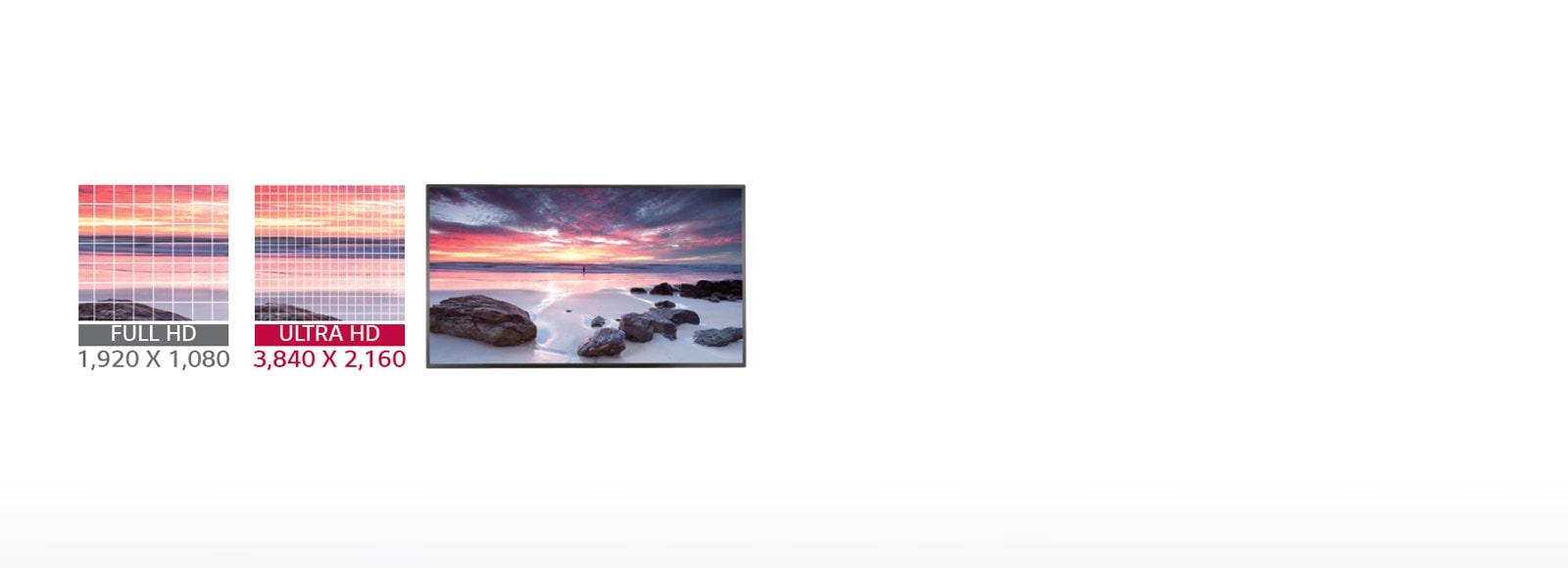

Ultra HD

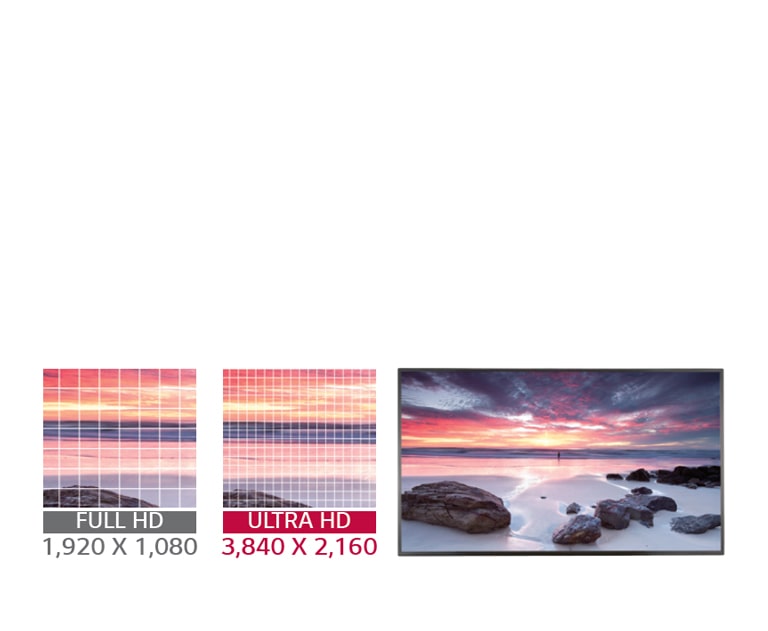

Ultra HD Resolution (3,840 x 2,160)

Ultra HD Large screen delivers immersive viewing
experience by 4 times higher definition picture
quality than FHD.

Ultra HD

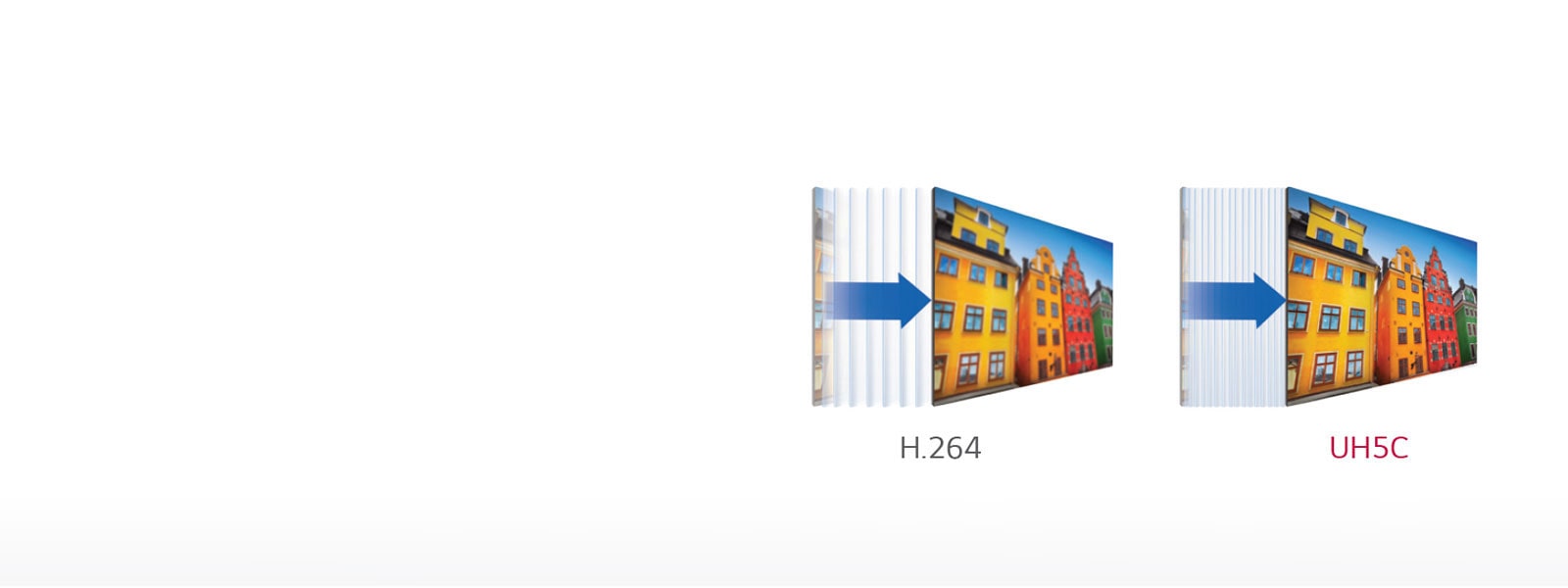

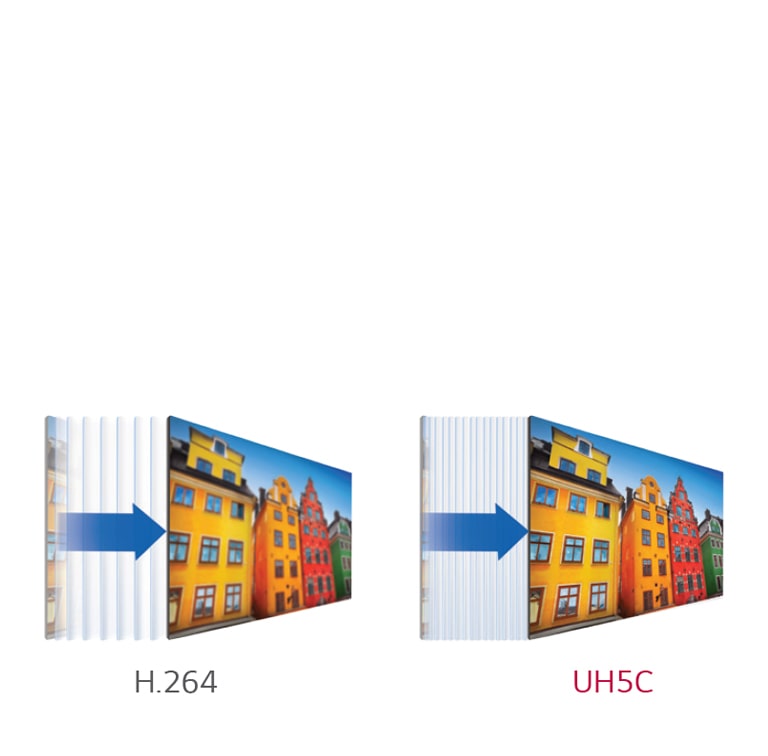

High Efficiency Video Coding

Supports HEVC-based content which has the double data
compression ratio than the H.264, so network traffic can be
reduced by half.

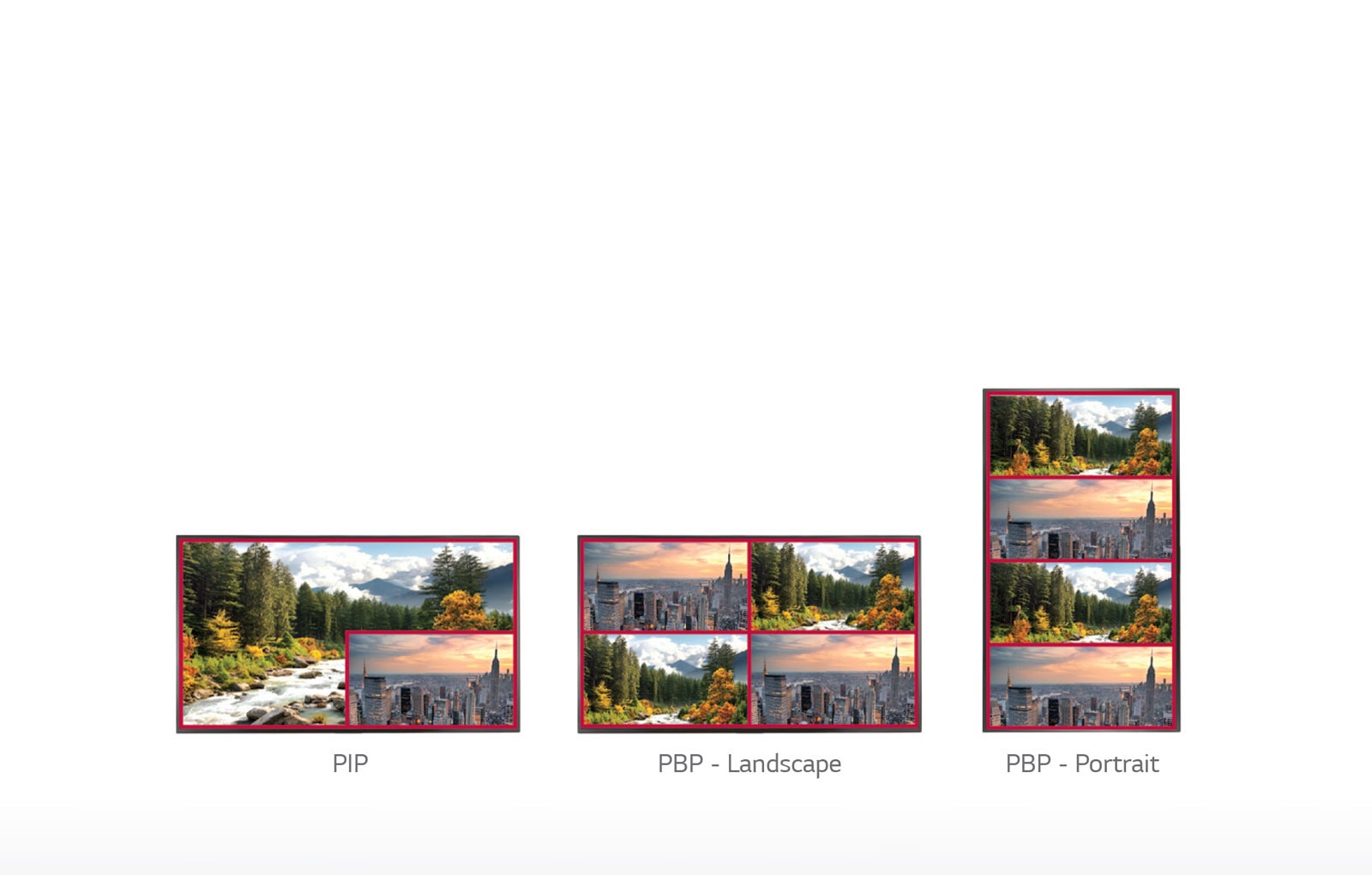

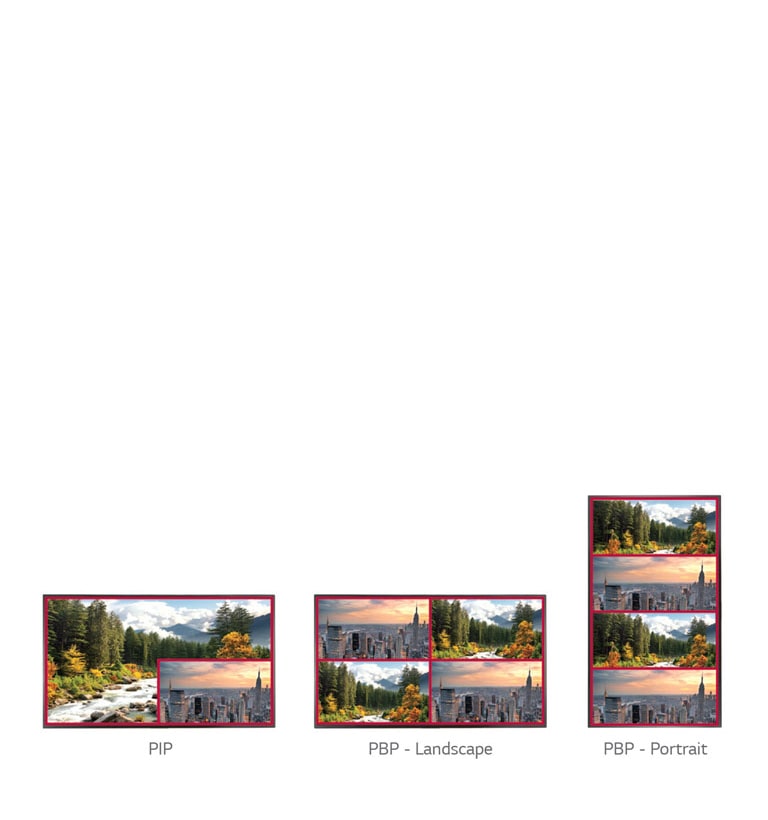

Multiple Screen

Multiple Screen with PBP or PIP
PBP (Picture-By-Picture) and PIP (Picture-In-Picture)
feature gives a chance to compose up to 4 divided split
screen on landscape or portrait display format.

Smart Platform

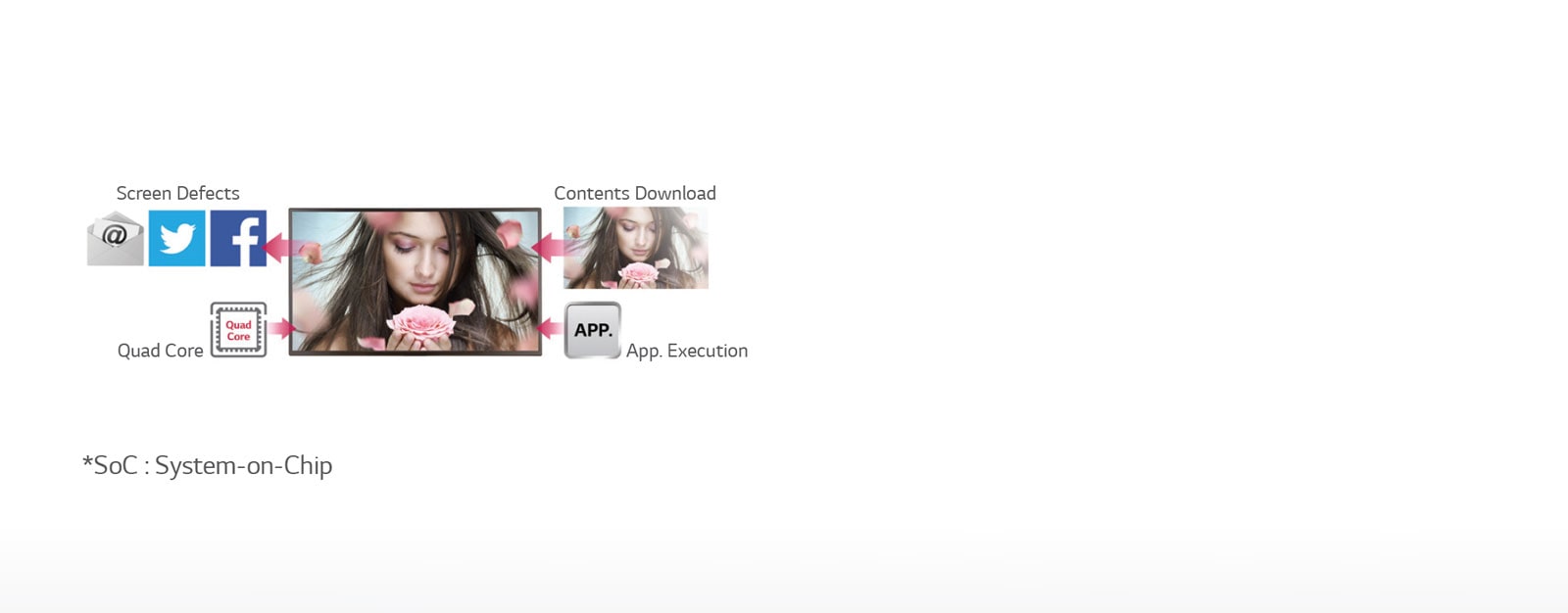

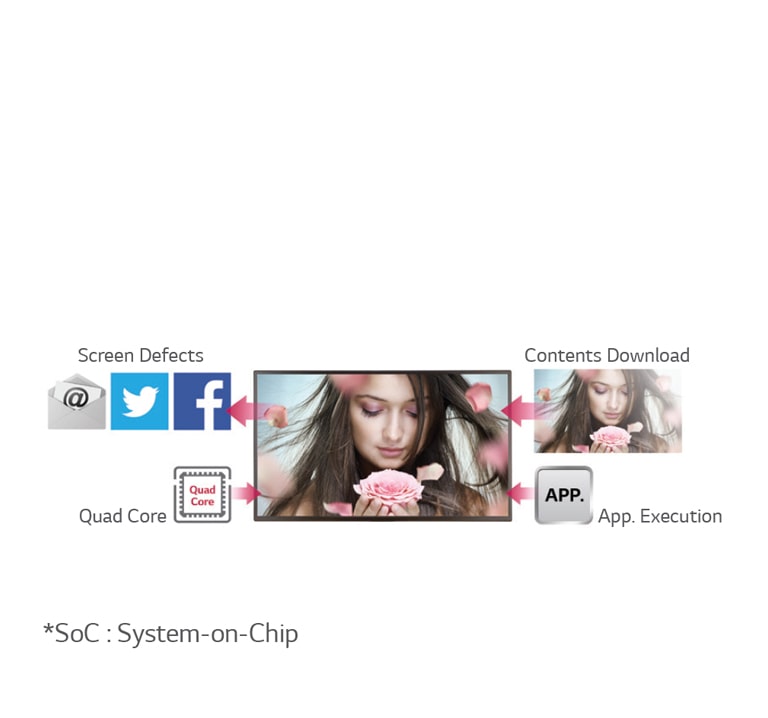

Quad Core SoC*

The High Performance SoC can execute several tasks at
the same time and provides smooth content playback.

Smart Platform

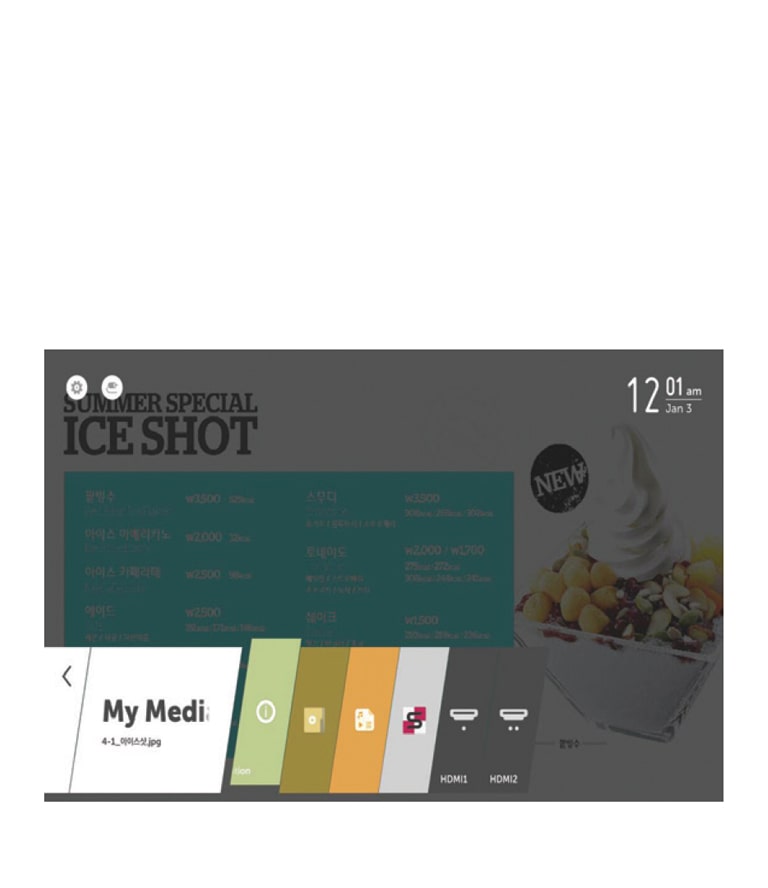

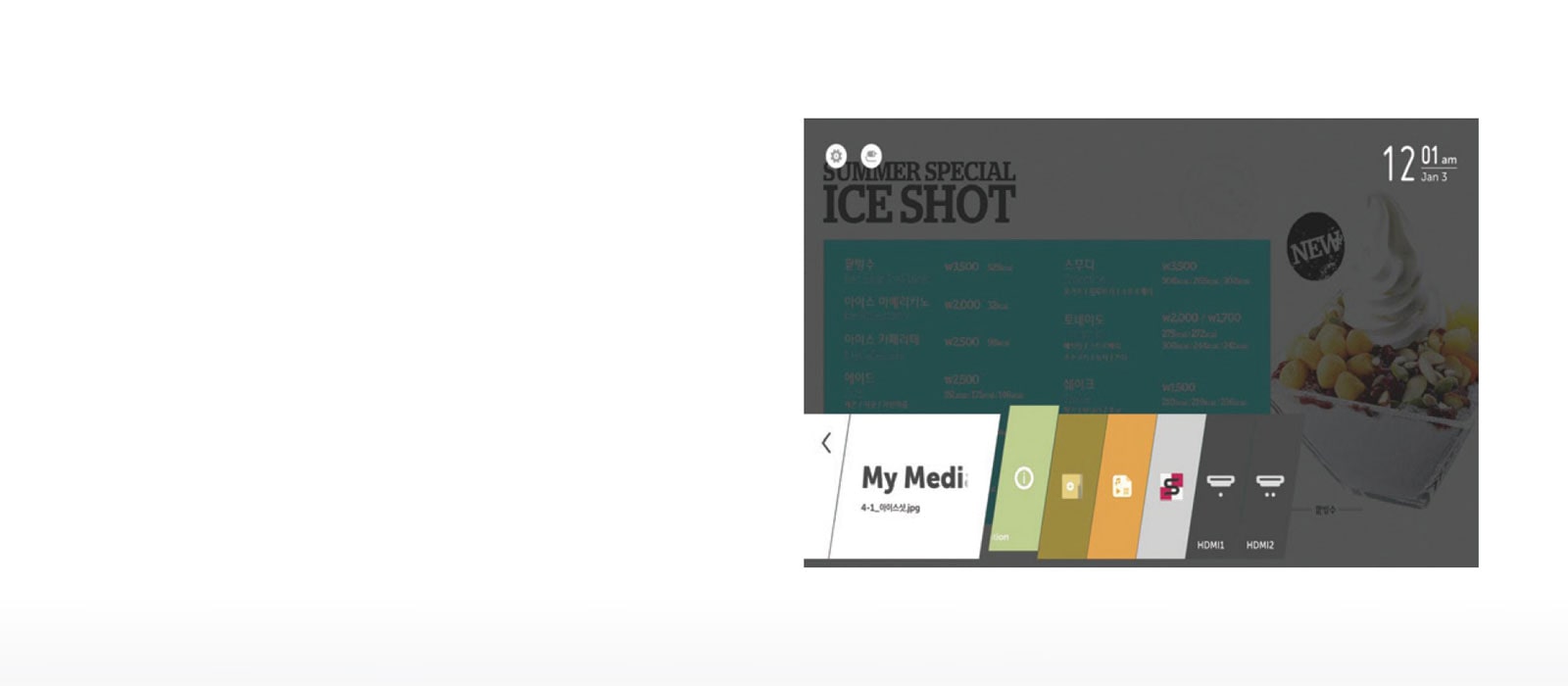

webOS 2.0

The webOS 2.0 platform provides powerful and convenient
tools to create, including app development materials.

Space Management Efficiency

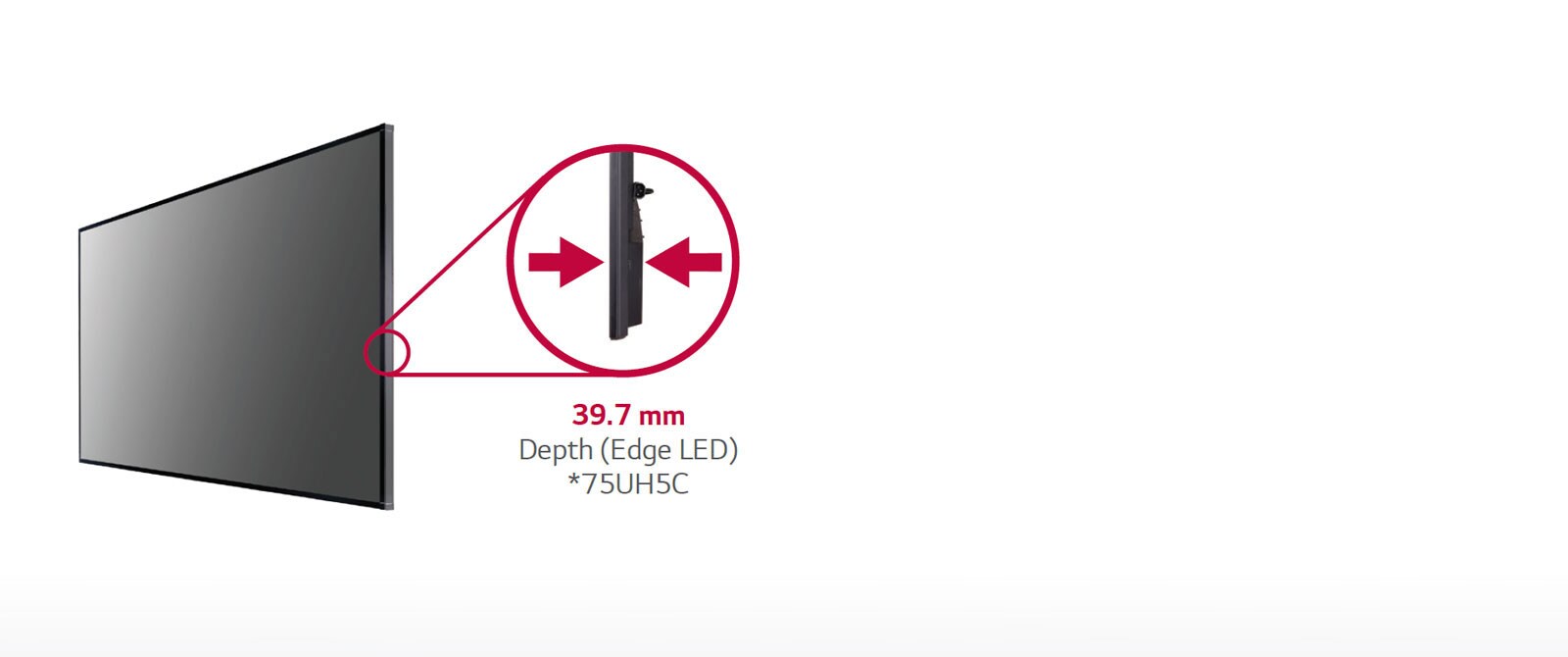

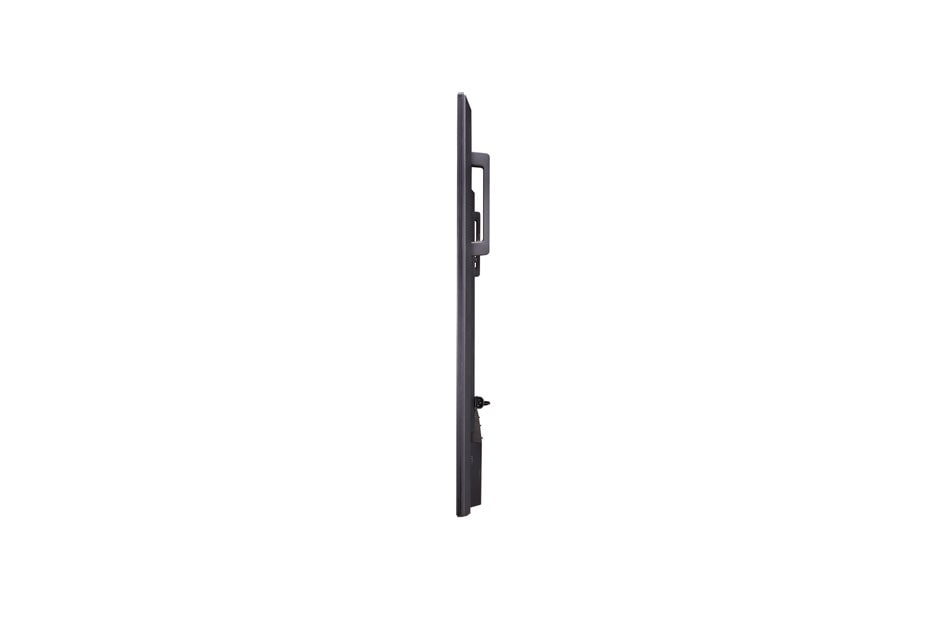

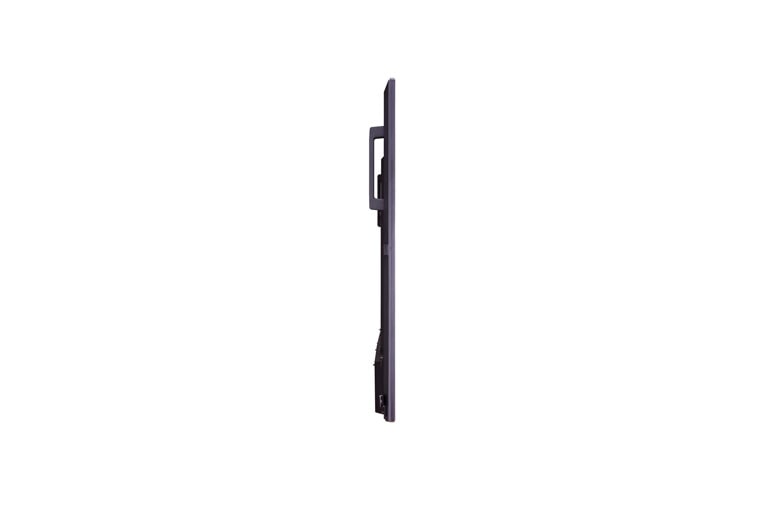

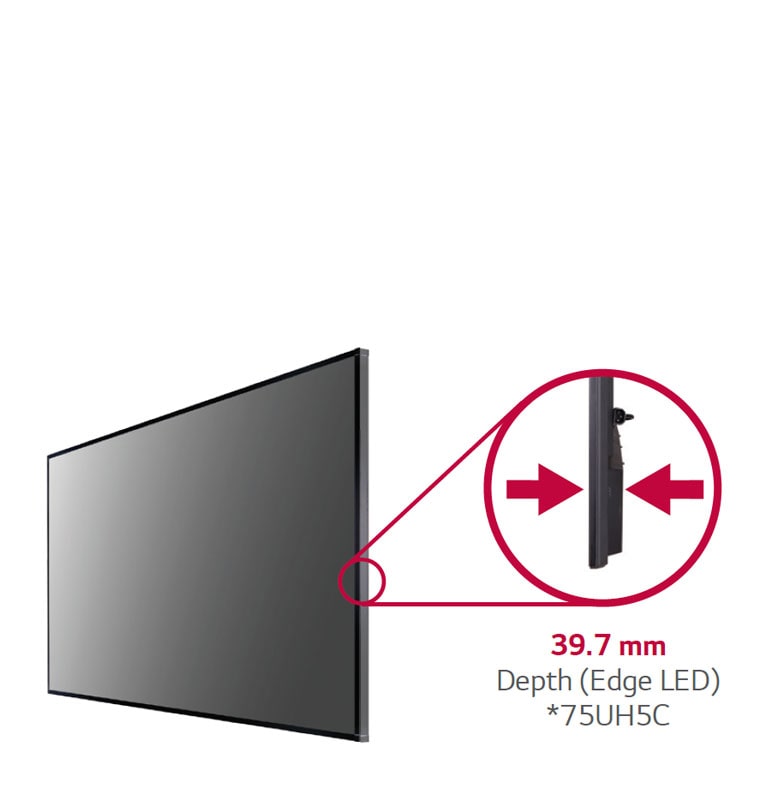

Slimmer Depth

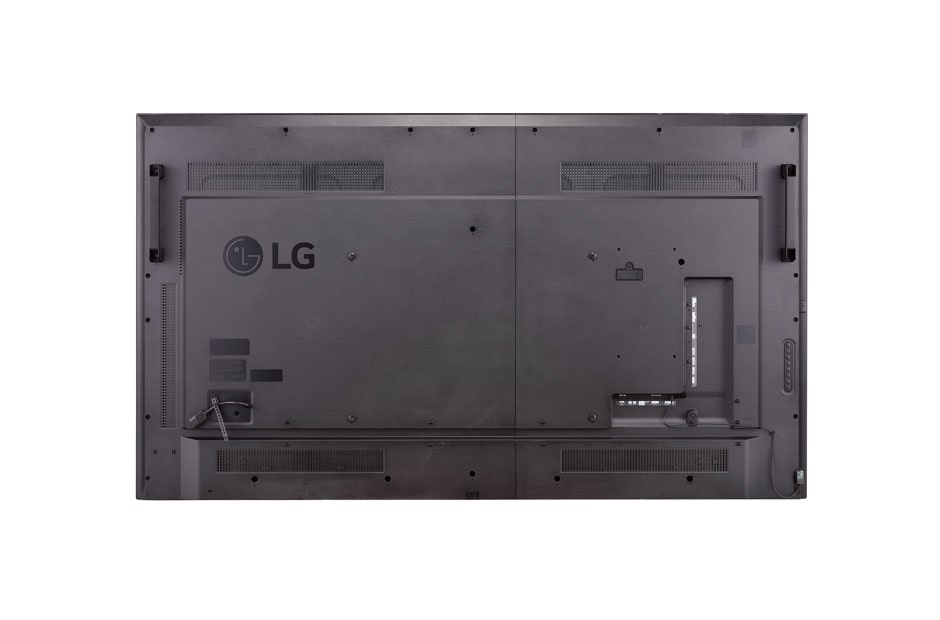

With its slim depth and built-in speaker, which increases
space efficiency, you don't need to install an extra media
player. Also, you can move it conveniently with its handle
on the back side.

Easy Maintenance

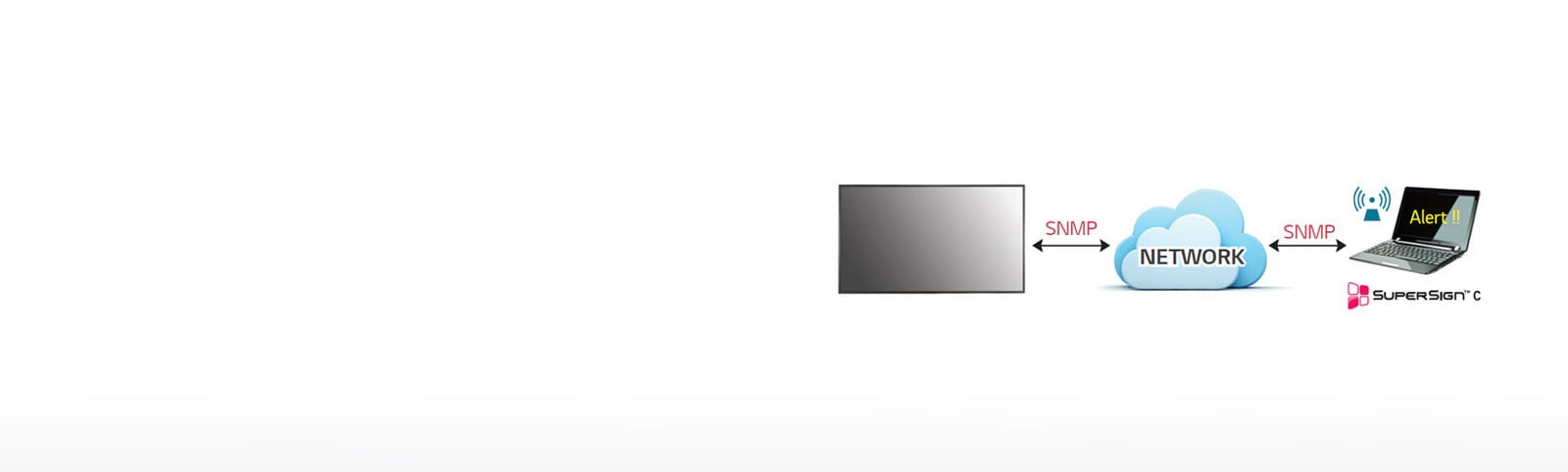

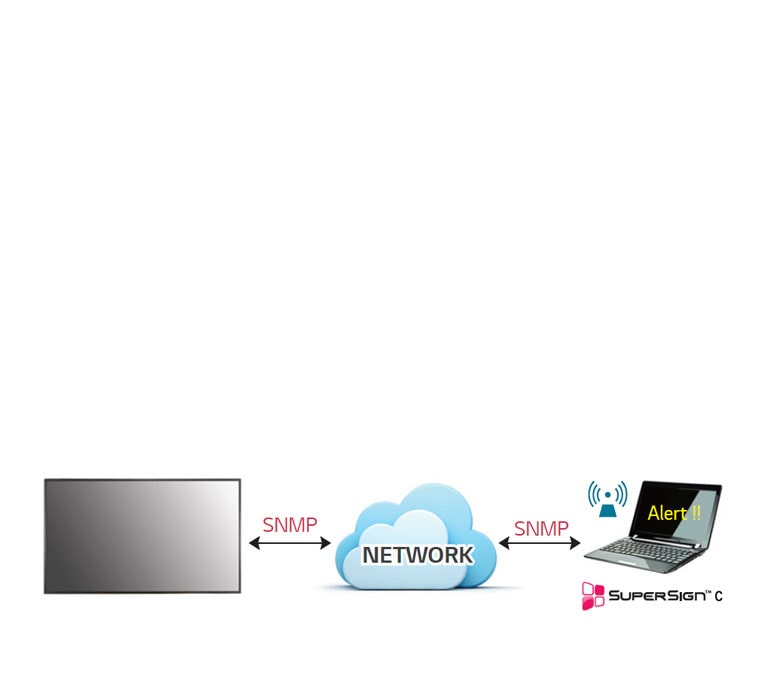

Real-Time Remote Monitoring

When an alarm occurs, an e-mail notification is sent
using SuperSign C or SI SW through the SNMP Protocol.
In case of malfunctions or errors, real-time remote care
is available.

Easy Maintenance

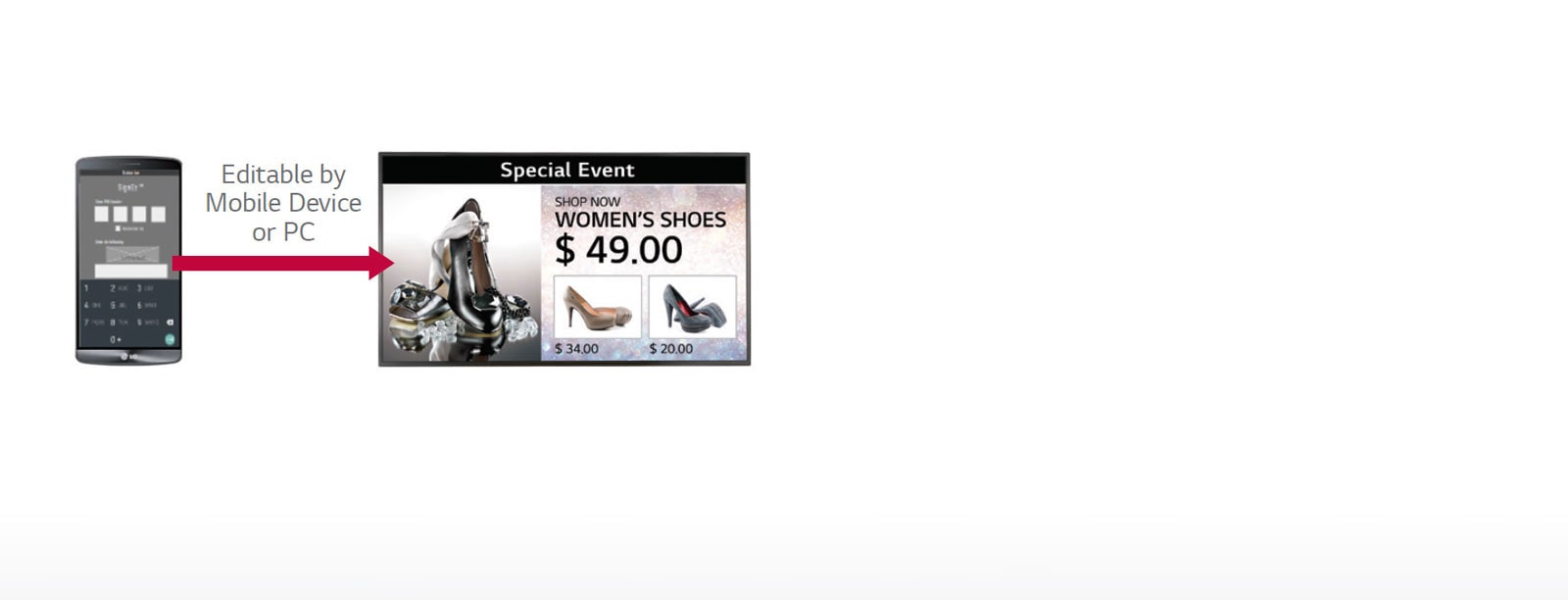

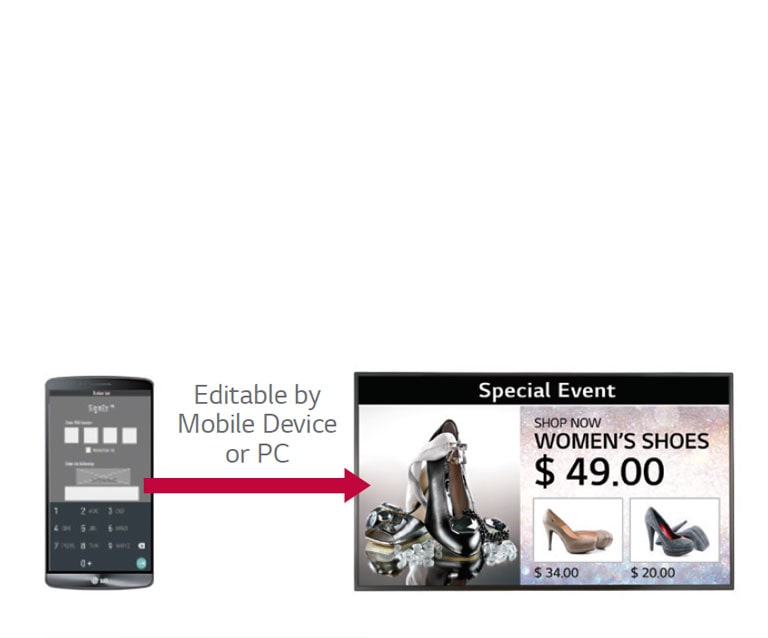

Embedded Template by SuperSign EZ

You can edit content not only on your smart phone
but also on your PC very easily and conveniently at any
time.

Supportive Convenience

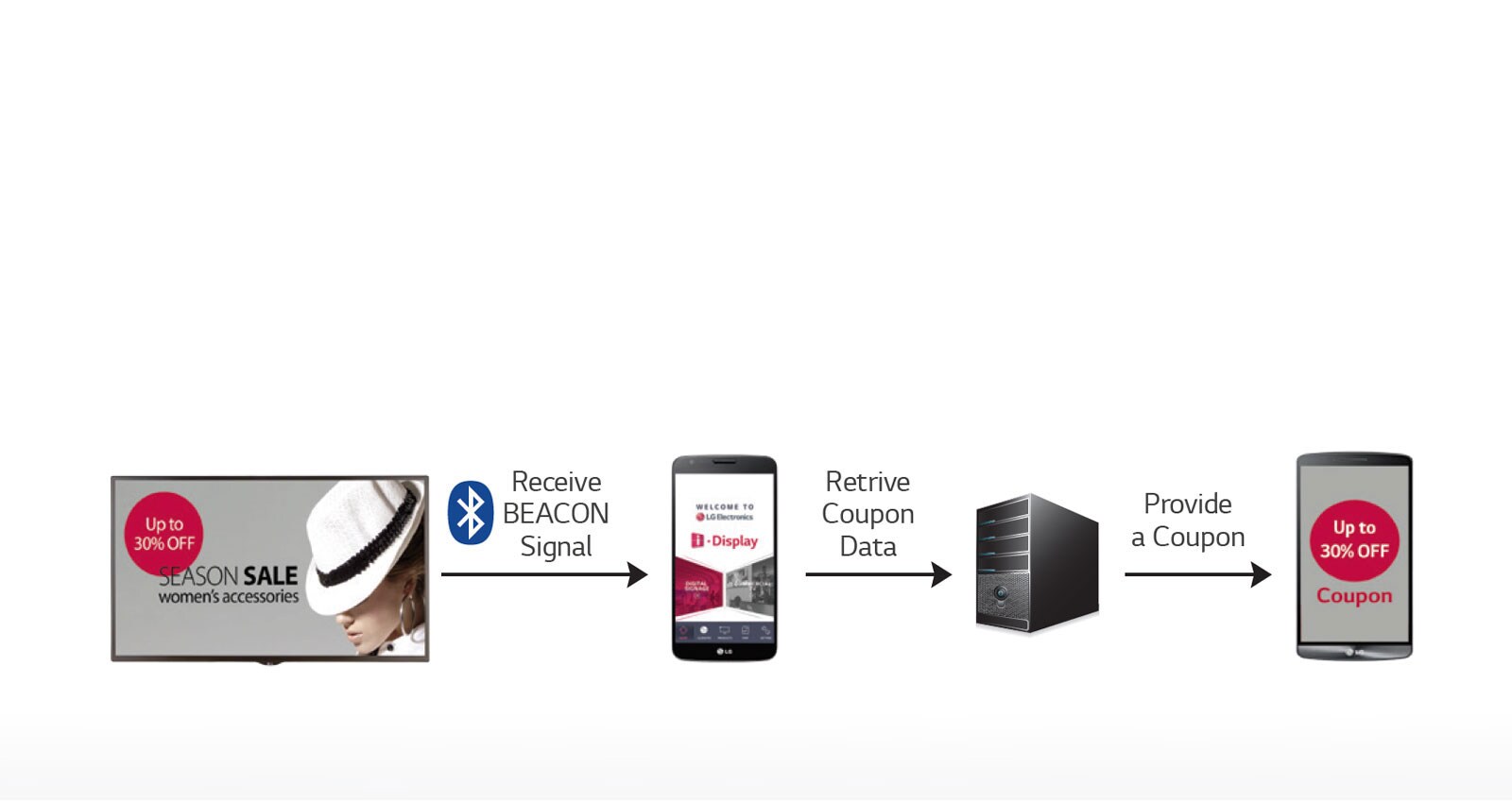

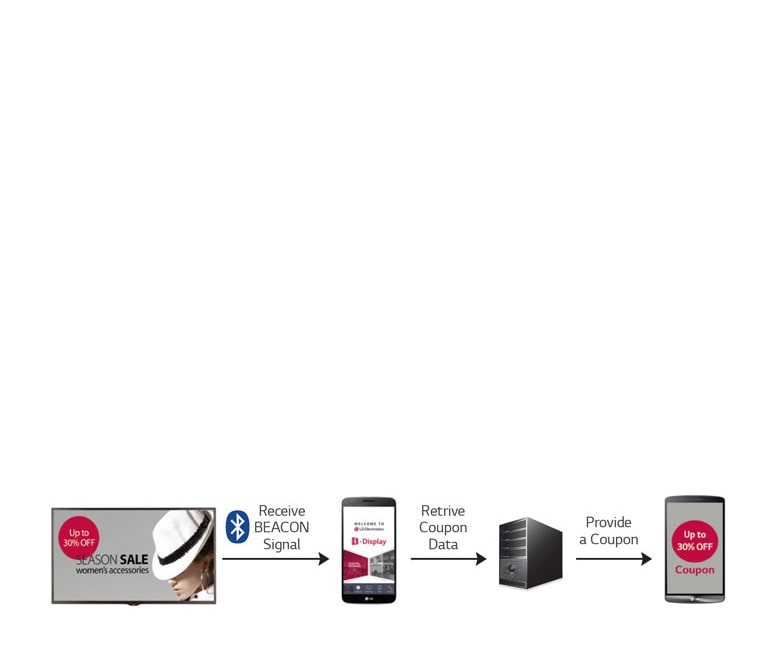

BEACON

With Beacon and Bluetooth Low Energy (BLE) supported
by UH5C, retail stores can provide coupons and information
in real-time.

Supportive Convenience

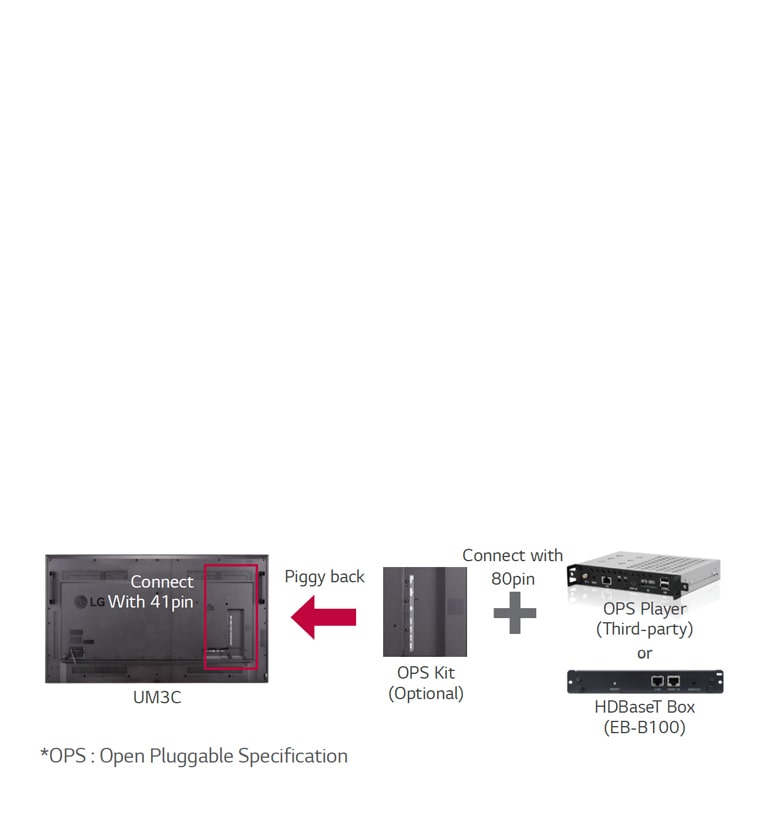

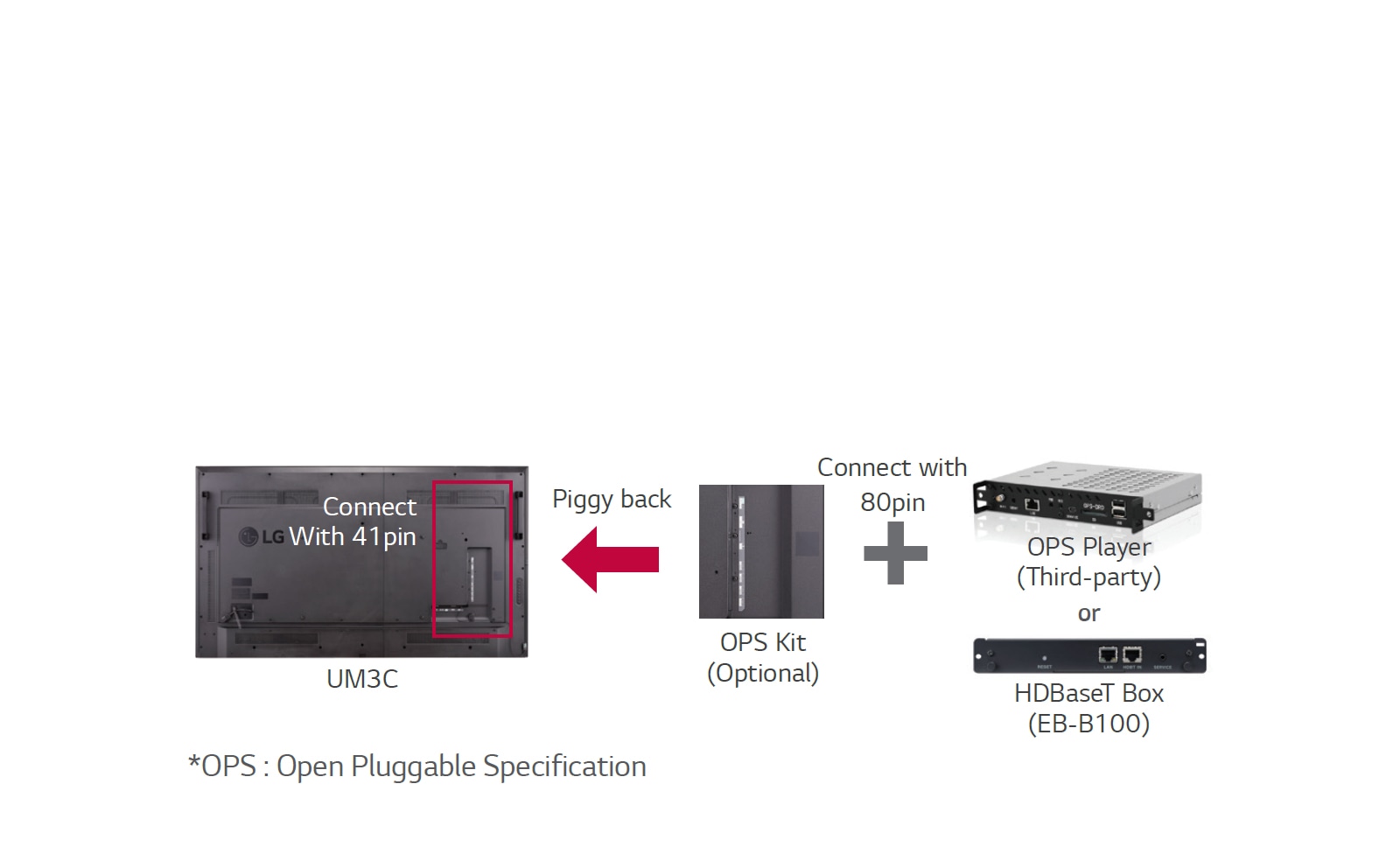

OPS* Kit / HDB aseT Box

The UH5C provides an OPS Kit to connect a third-party OPS
player or HDBaseT box. Users have the flexibility to choose
any media player as long as it complies with the OPS.

PANEL

Screen Size

75"

Resolution

3,840 x 2,160 (UHD)
Brightness

500cd/m²

CONNECTIVITY

Input

HDMI, DP, DVI-D, Audio, USB 3.0, SD Card

Output

DP, Audio
External Control

RS232C, RJ45, IR Receiver, Pixel Sensor

PHYSICAL SPECIFICATION

Bezel Width

14.9mm

Monitor Dimension (W x H x D)

1,682.4 x 960.3 x 39.7mm (without logo / handle)
Weight (Head)

41.5kg

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

240W

Smart Energy Saving

170W

STANDARD(CERTIFICATION)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KCC
ErP / Energy Star

No / No

MEDIA PLAYER COMPATIBILITY

OPS type compatible

Yes

External Media player Attatchable

Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

SuperSign-w lite

Yes

SuperSign-c

Yes

ACCESSORY

Basic

Remote Controller (include 2ea batteries), Power Cord, QSG, DP 1.8M, Regulation Book, Phone to RS232C Gender, Memory Cover

Optional

Pixel Sensor (KT-SP0), Media Player, OPS Kit (KT-OPSA), HDBaseT (EB-B100)
