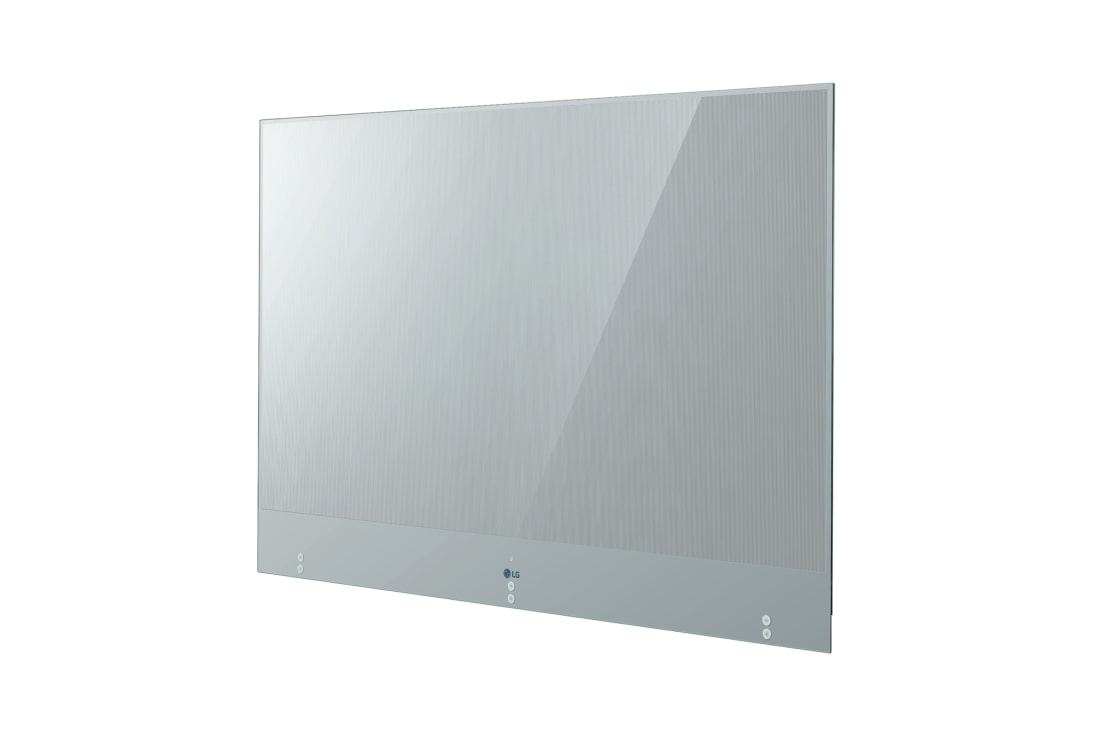

LG Transparent Signage 55 Inch With OLED Signage and SuperSign CMS

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55EW5F-A)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55EW5F-A)
    $
    $
    LG Members Price
Total
LG Transparent Signage 55 Inch With OLED Signage and SuperSign CMS
Contact Us
A New Level of See-through View1 A New Level of See-through View2

A New Level of See-through View

LG Transparent OLED signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings.
* All images used are for illustrative purposes only.
Unrivaled Picture Quality1 Unrivaled Picture Quality2
FULL OF LIFE

Unrivaled Picture Quality

LG's OLED technology, featuring self-lighting pixels, maintains accurate and vivid colors even when the display becomes transparent. It brings content to life, making it difficult for people to separate content from the real objects placed behind the screen.
High Transparency1 High Transparency2
SPACIAL HARMONY

High Transparency

Thanks to its high transparency (38％), much higher than conventional LCD transparent displays, LG Transparent OLED signage blends into its surroundings seamlessly and naturally. The display's see-through view turns places where it is installed into open and interactive spaces.
Customizable and Expandable Design1 Customizable and Expandable Design2
SPACIAL HARMONY

Customizable and Expandable Design

LG Transparent OLED signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. There is no limit to the applications of Transparent OLED signage, and it can complement any venue in which it is installed.
* Installation accessories are not supplied by LG.
Effective Information Delivery1 Effective Information Delivery2
SEE THROUGH

Effective Information Delivery

While clearly showing objects behind the screen, LG Transparent OLED signage overlays information right over them so that viewers can easily see both the object and the relevant information without having to change their view.
AR Effects in the Dark 1 AR Effects in the Dark 2
VISUAL FEAST

AR Effects in the Dark

Using LG transparent OLED signage, you can surprise viewers with AR effects in the dark. The content displayed seems life-like, adding another “wow” factor to the viewing experience.
Robust Design for Safety1 Robust Design for Safety2
PRODUCT DURABILITY

Robust Design for Safety

The tempered front glass protects the screen from external impact, and its certified safety design means it is reliable enough to endure shock and vibration caused by the surrounding environment, such as moving trains.
Close
PANEL
  • Screen Size
    55"
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness (APL25%, Typ., cd/m²)
    400
    Brightness (APL100%, Typ., cd/m²)
    150
  • Transparency (Typ.)
    38% (Panel)
CONNECTIVITY
  • Input
    HDMI, DP, USB (2)
    Output
    DP, Audio
  • External Control
    RS232C In/out, RJ45 (LAN) In/out, IR In
MECHANICAL SPECIFICATION
  • Bezel Width
    7.9 / 7.9 / 7.9 / 121.7 mm (T/L/R/B)
    Monitor Dimension (W × H × D)
    (Head) 1,225.53 x 810.1 x 6.6 mm(Signage Box) 782.8 x 238.4 x 34.7 mm
  • Weight
    (Head) 13.9 kg
    (Signage Box) 3.4 kg
    Carton Dimensions (W × H × D)
    1,329 x 898 x 191 mm
  • Packed Weight
    22.4 kg
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    309 W *8 color bar
    Max.
    318 W *8 color bar
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes (EU Only) / No
MEDIA PLAYER COMPATIBILITY
  • OPS type compatible
    No
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control / Control+
ACCESSORY
  • Basic
    Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (for Connection between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable), Tapes, Screws, Shield Cover Assy', Rubber Dampers
