Server Recommendations to Meet Your Business Requirements

Choose among a wide variety of server recommendations for your business requirements. Find out more about server HW recommendation, port and clustering. Find out more below.
ID_02_ServerRecommendation_00_Hero ID_02_ServerRecommendation_00_Hero_m

Server Recommendation

For your better business, you can find more information of server HW recommendation, port, clustering, including relevant policy.

Server HW Recommendation

It is recommended to increase the Server and memory by each 1,000 client, in case of using over 5,000 client. ( Can be different by scenario)

Horizontal Table
Category Server Construction
~ 50 Single Server
~ 500 Single Server
~ 1000 Single Server
~ 2000 Server Clustering + DB Server (2 server)
~ 5000 Server Clustering + DB Server (5 server)
Category Recommended OS
~ 50 Windows 7 SP1
Windows 8.1
~ 500 Windows 7 SP1
Windows 8.1
~ 1000 Windows 7 SP1
Windows 8.1
Windows Server 2008 R2 SP1
~ 2000 Windows Server 2008 R2 SP1
Windows Server 2012
~ 5000 Windows Server 2008 R2 SP1
Windows Server 2012
Category CPU
~ 50 Intel i5 3rd generation or better
~ 500 Intel i7 3rd generation or better
~ 1000 Intel Xeon E5-2600
~ 2000 Intel Xeon E5-4600
~ 5000 Intel Xeon E7-4800
Category Memory
~ 50 2GB or higher
~ 500 4GB or higher
~ 1000 8GB or higher
~ 2000 16GB or higher
~ 5000 32GB or higher
Category HDD
~ 50 100GB
~ 500 1TB
~ 1000 2TB (RAID 1)
~ 2000 4TB (RAID 1+0 or RAID 6)
~ 5000 8TB (RAID 1+0 or RAID 6)
Category Network Bandwidth
~ 50 10Mbps
~ 500 100Mbps
~ 1000 100Mbps
~ 2000 1Gbps
~ 5000 1Gbps
  • ID_02_ServerRecommendation_01 ID_02_ServerRecommendation_01_m

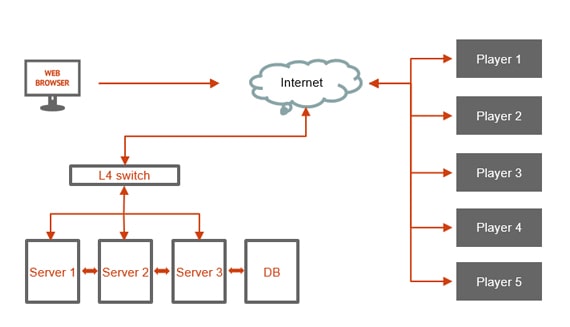

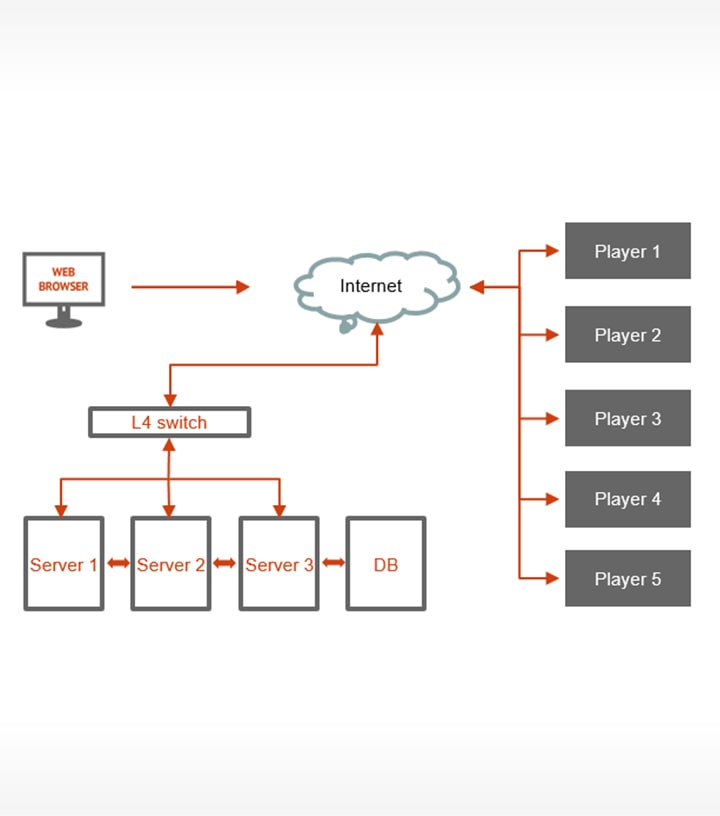

    Server Structure

    In case of using VPN, Server should be in same VPN or using VPN accessible IP.
  • ID_02_ServerRecommendation_02 ID_02_ServerRecommendation_02_m

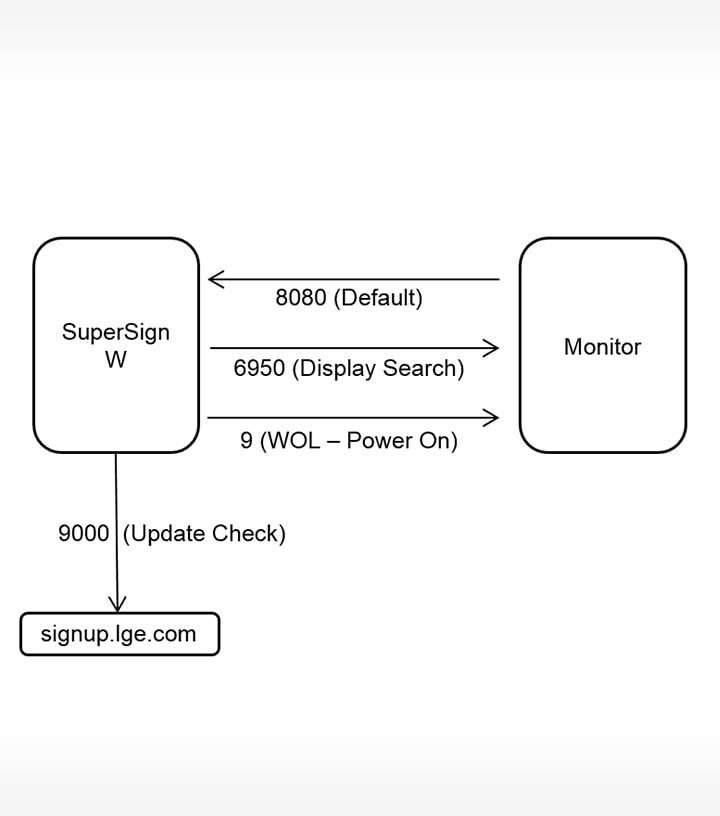

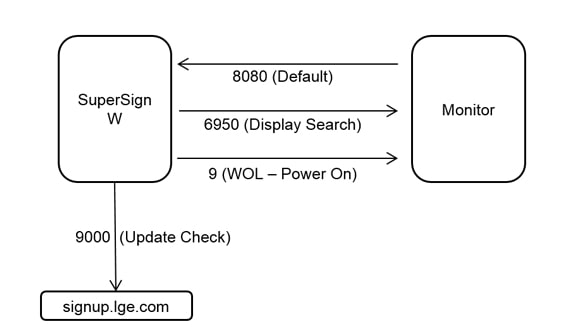

    Port

    Expectation port on the Server that should be applied to user Firewall.

  • Security Policy

    - RSA encryption for web login
    * https will be applied by 2016
    * Remark : System configuration can be different by network status, content size, distribution frequency

  • Back up policy

    - Content storage configuration
    - Real time backup with PostgreSQL DB

    PostgreSQL DB
  • ID_02_ServerRecommendation_03 ID_02_ServerRecommendation_03_m

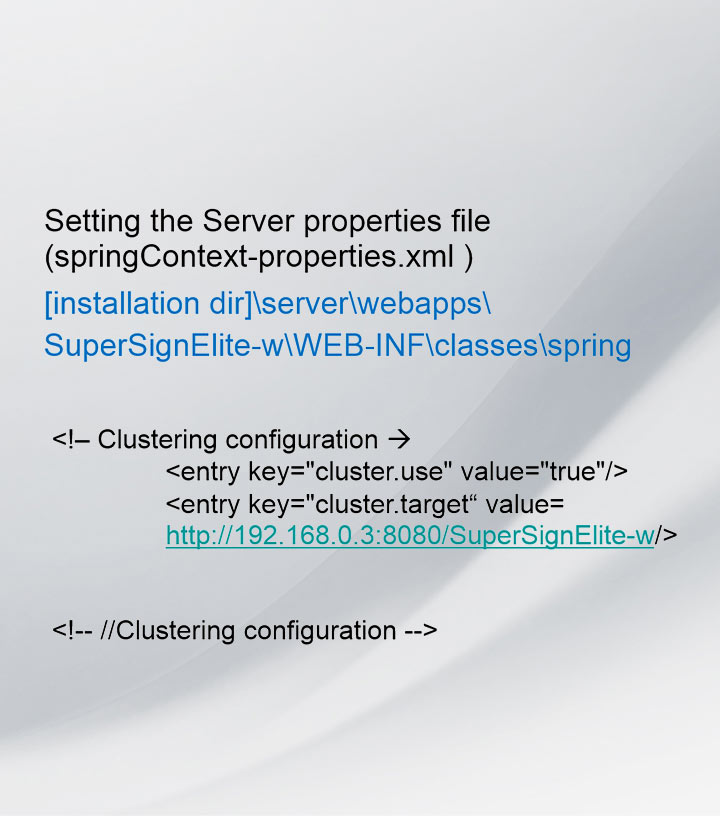

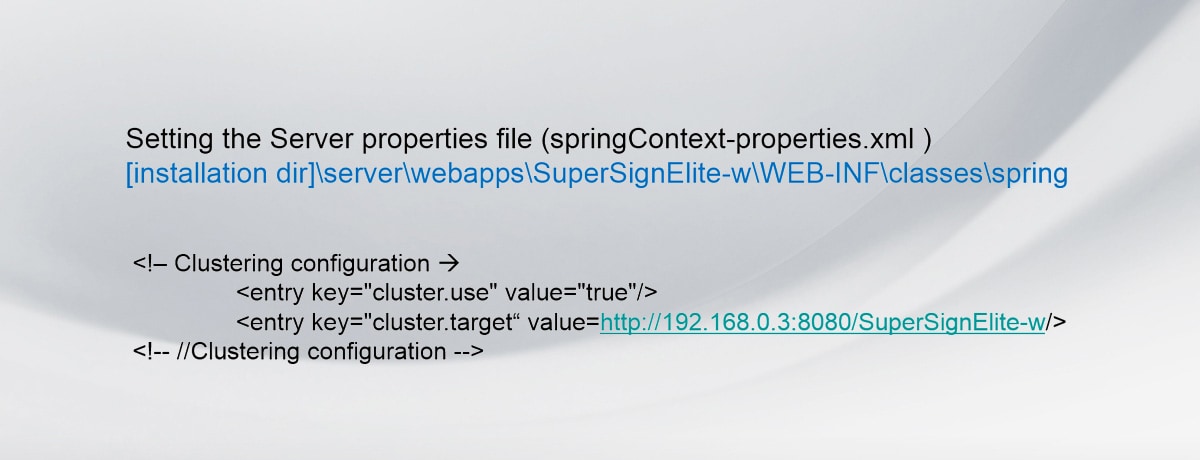

    Server Clustering

    1. Set “cluster.use” value to “true”.
    2. Set “Server1’s “cluster.target value” to Server2’s url
    3. Ser “Server2’s “cluster.target value” to Server3’s url
    4. Set “Server3’s “cluster.target value” to Server1’s url.
    5. Restart Server service

    * Database and Storage folder should be installed separated PC
