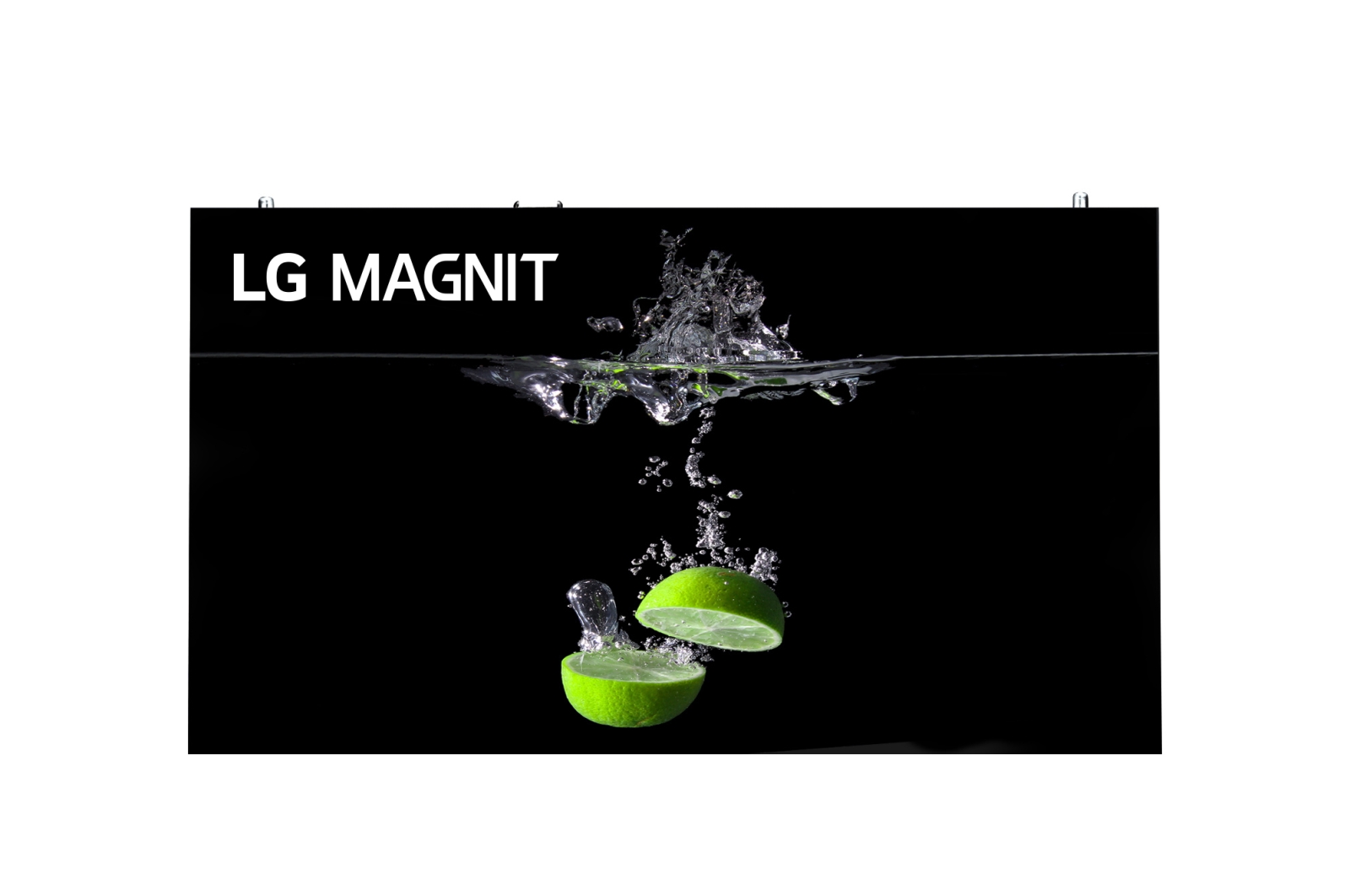

Model name
LSAB009
Pixel Configuration
1R, 1G, 1B (Chip on Board)
Pixel Pitch (mm)
0.93
Module Resolution (WxH)
160 x 180
Module Dimensions(WxH,mm)
150 x 168.8
Weight per Module (kg)
150
No. of Modules per Cabinet (WxH)
8 (4x2)
Cabinet Resolution (WxH)
640 x 360
Cabinet Dimensions (W x H x D, mm)
600 x 337.5 x 44.9
Cabinet Surface Area (㎡)
0.203
Weight per Cabinet (kg/unit)
7.0
Weight per Square Meter (kg/㎡)
34.6
Physical Pixel Density (pixels/㎡)
1,137,778
Flatness of Cabinet (mm)
±0.5 mm
Cabinet material
Die-casting Aluminum
Service access
Front and Rear (Module : Front Only)
Max Brightness (After Calibration, nit)
1,200 / 600
Color Temperature (K)
7,300/3,200~9,300K (Adjustable via LG LED Assistant on PC)
Visual Viewing Angle (Horizontal)
160°
Visual Viewing Angle (Vertical)
160°
Brightness Uniformity
95%
Color Uniformity
±0.02Cx, Cy
Contrast Ratio
150,000:1
Processing Depth (bit)
20
Power Consumption (W/Cabinet, Max.)
125
Power Consumption (W/Cabinet, Avg.)
85
Power Consumption (W/㎡, Max.)
617
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
0∘ to +40∘
Operating Humidity
10-80 %RH
IP rating Front
IP50
IP rating Rear
IP20
Certification
Safety 60950-1, EMC Class A, BS476 Part 7 Class 1
Environment
RoHS
Controller
CSAB-009X
