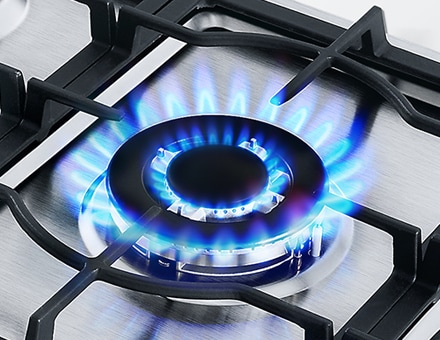

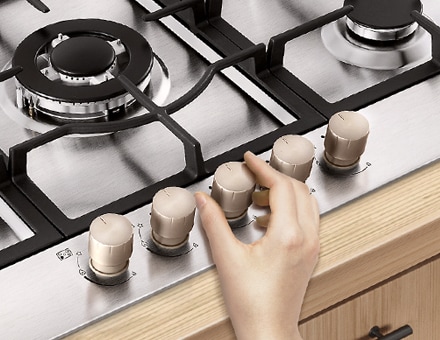

Safe and precise heat control.
Cook fast with the power of 4.0kW.

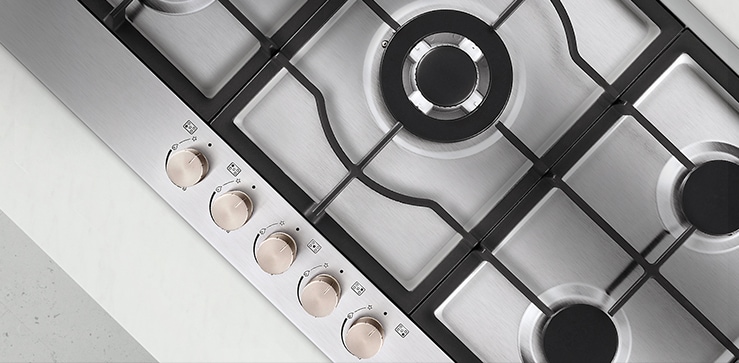

A sleek design for any kitchen.
*Product videos are for illustrative purposes only and may differ from actual product.

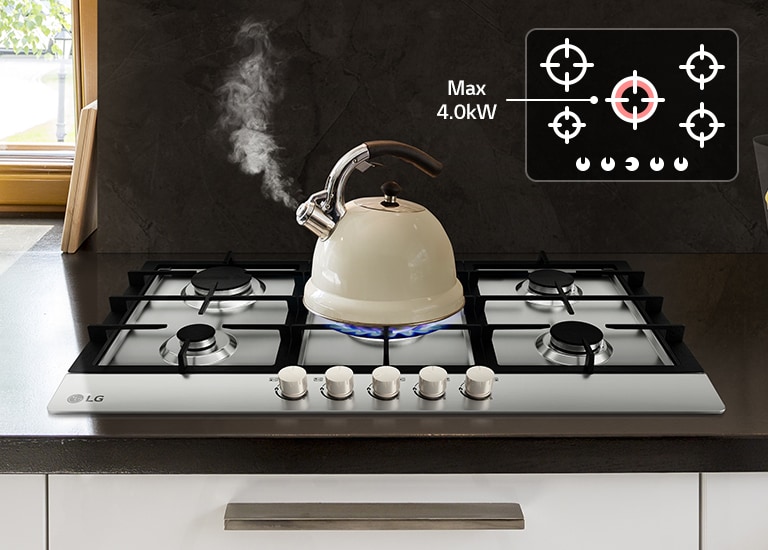

LG gas stovetop with a white kettle steaming on the front burner, and a diagram showing max output of 4.0kW.

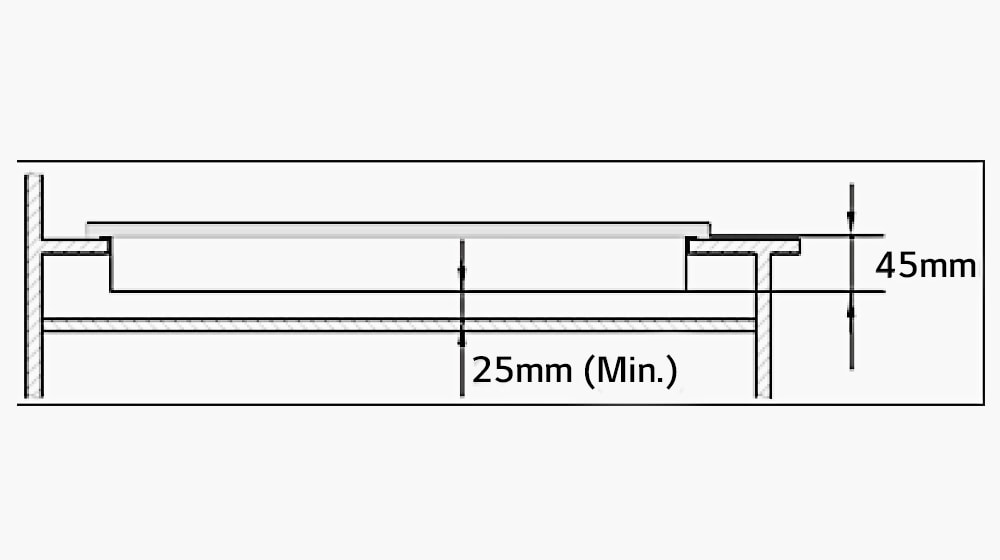

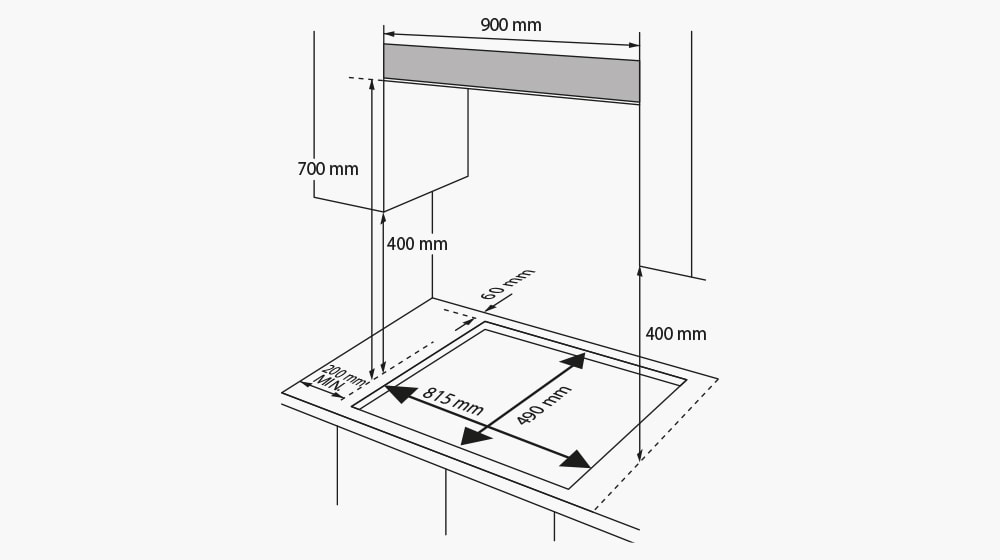

Click for further details on how the built-in gas hob fits into your space, including a guide to measurements and other criteria to heed.

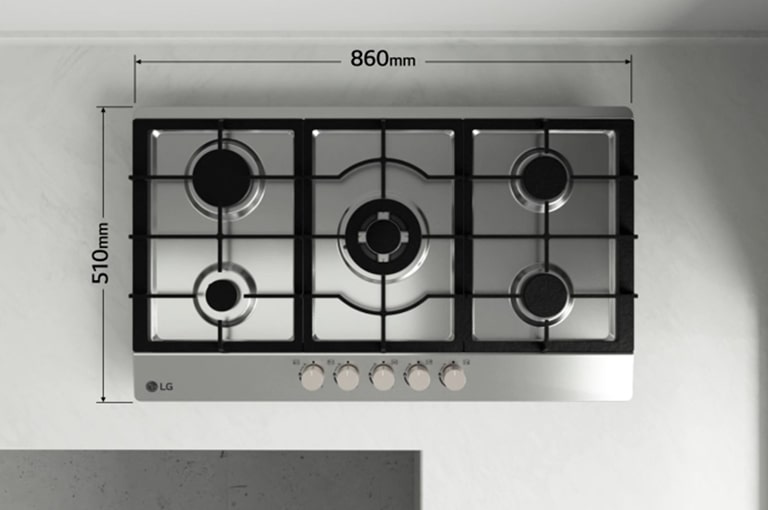

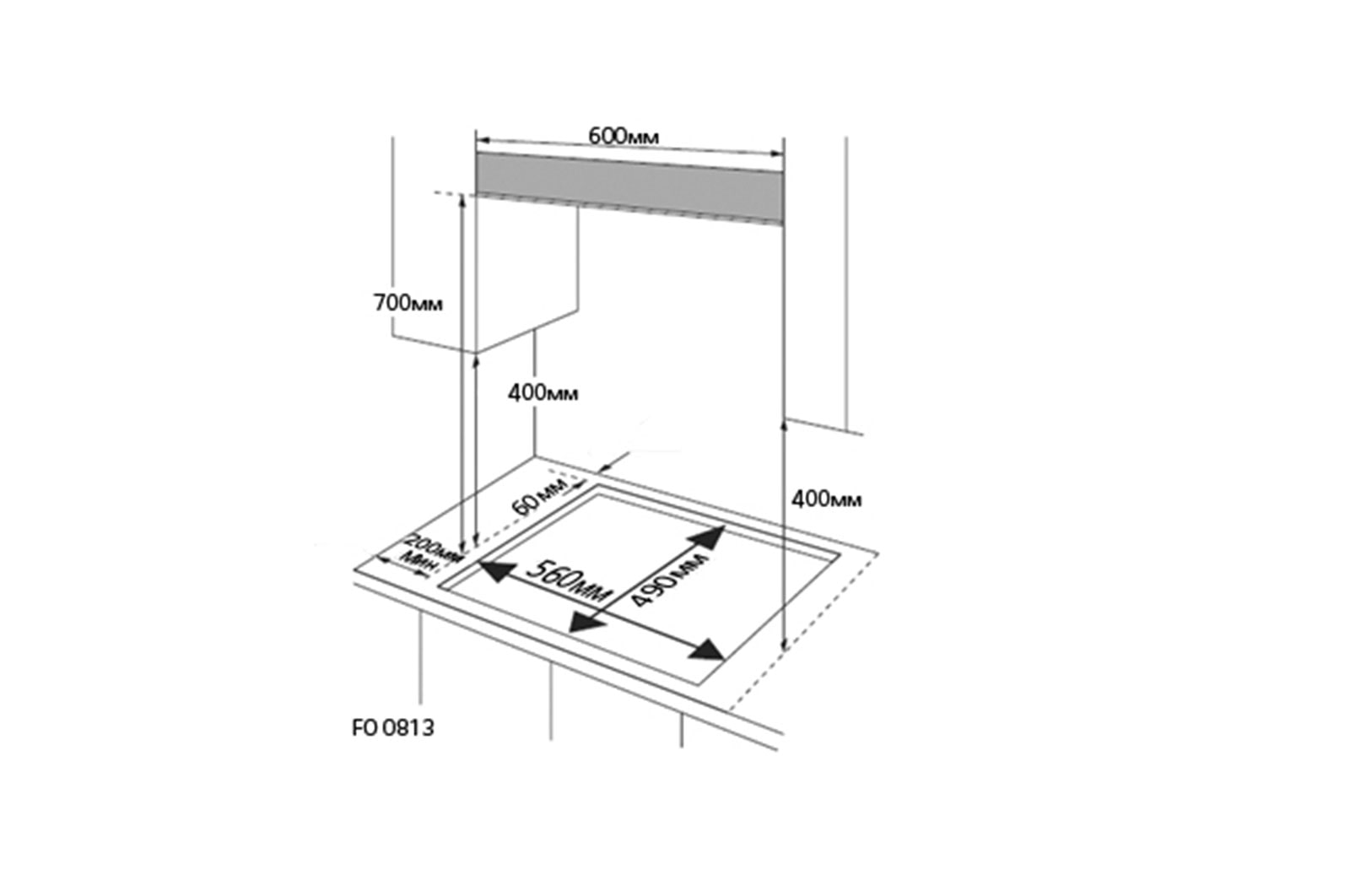

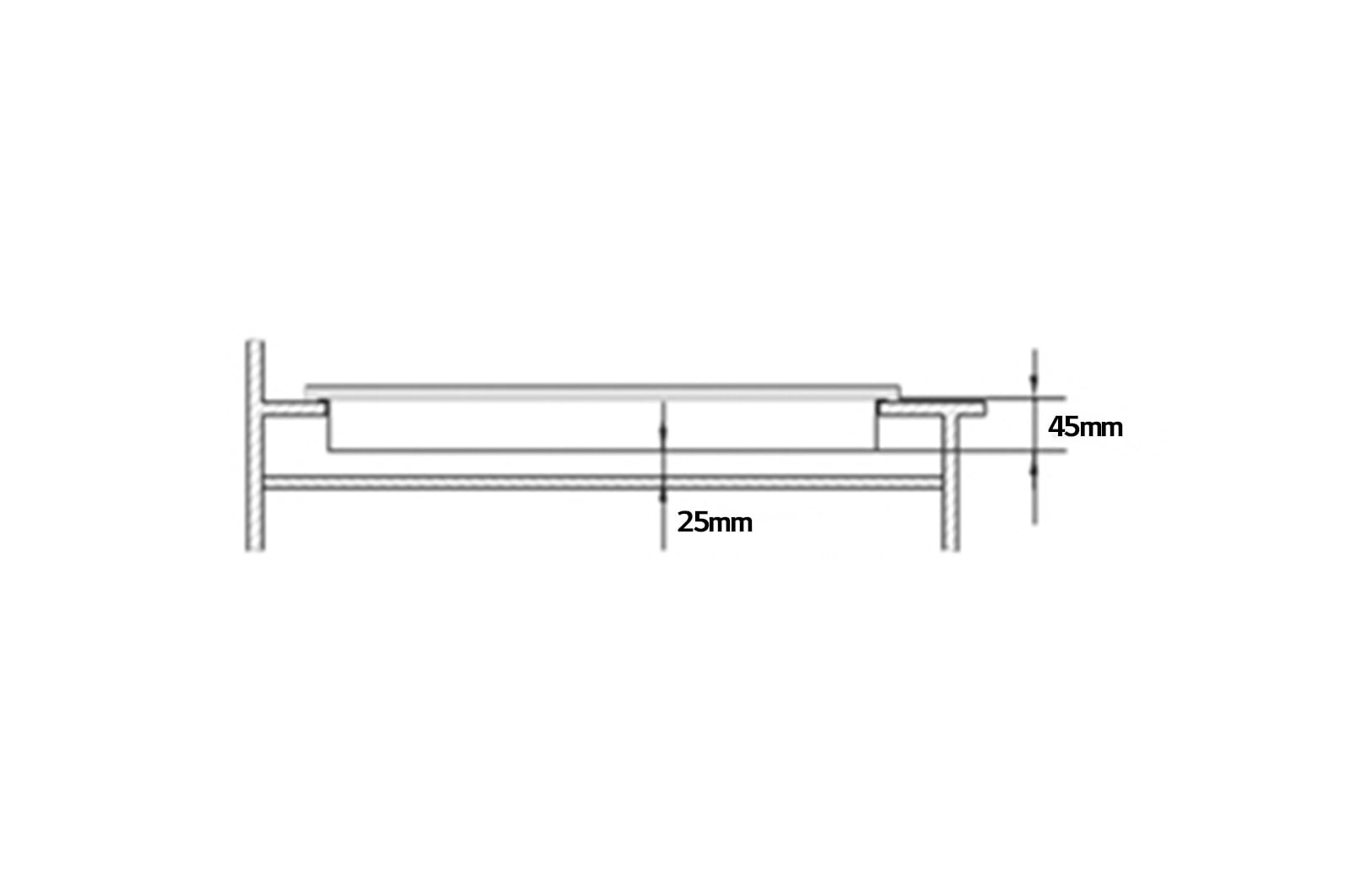

This image shows the dimension of the gas hob.
This image shows the dimension of the gas hob.
*It is recommended to obtain expert assistance when installation.
Image of a box on a kitchen table.

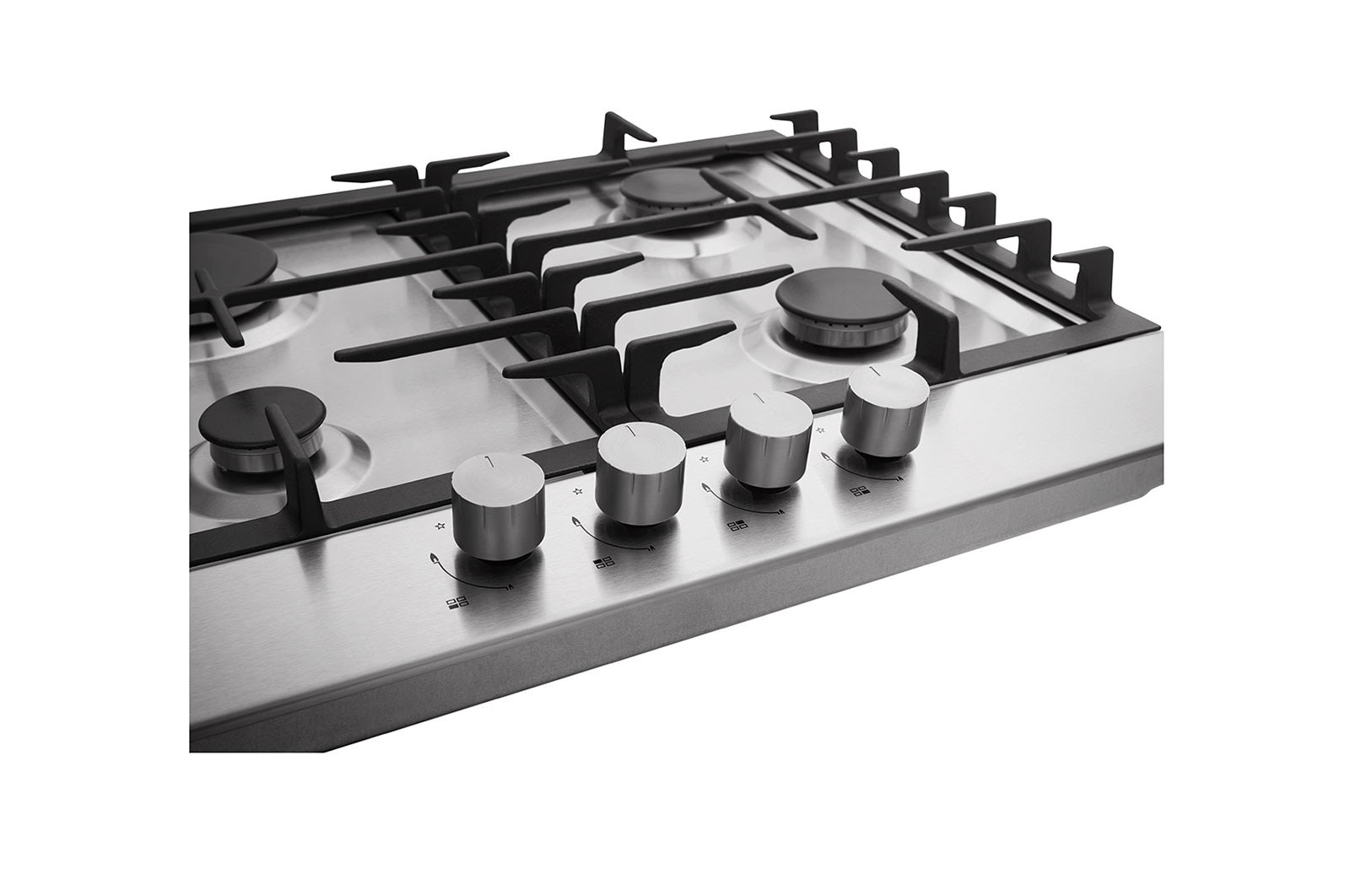

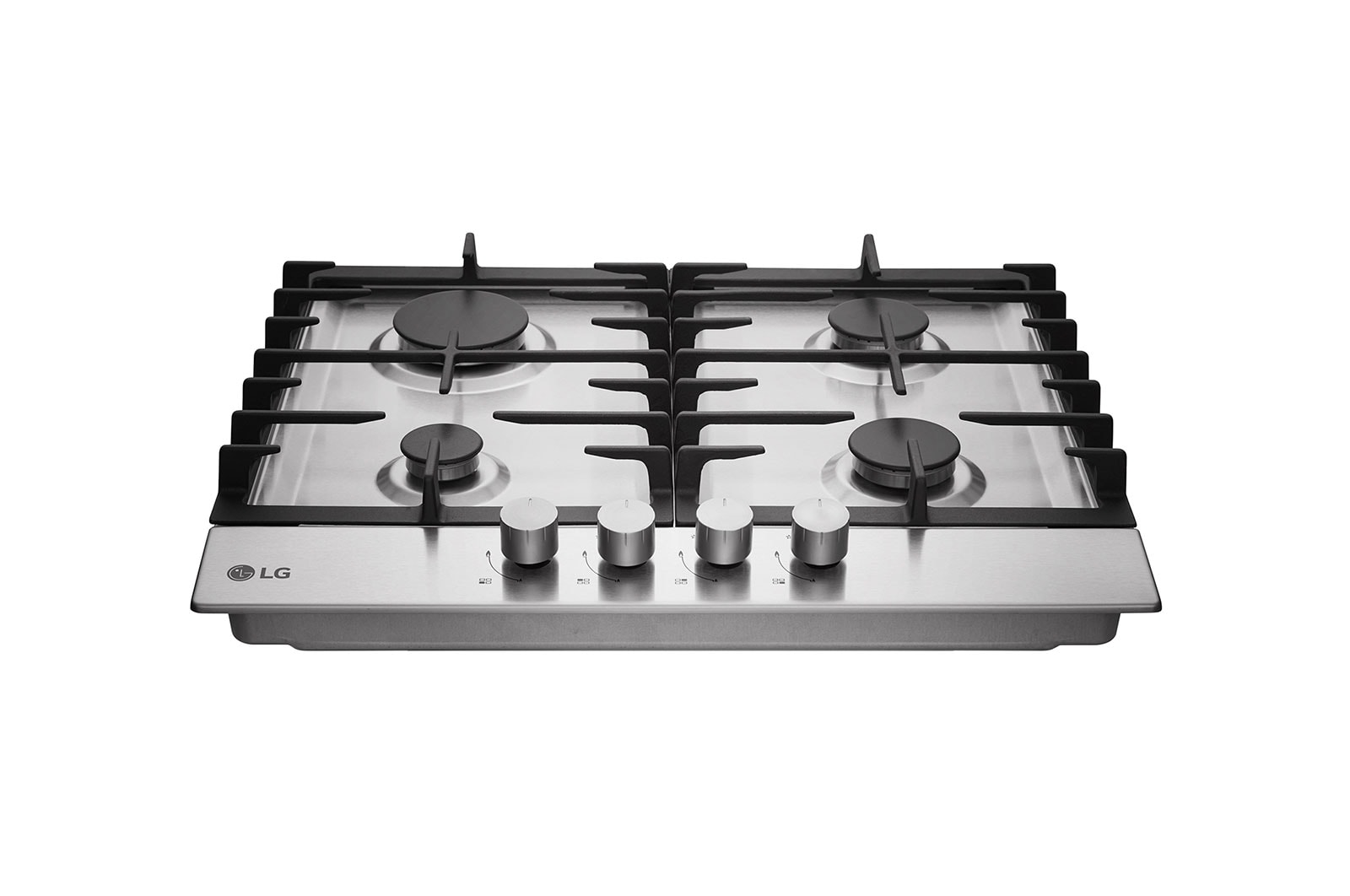

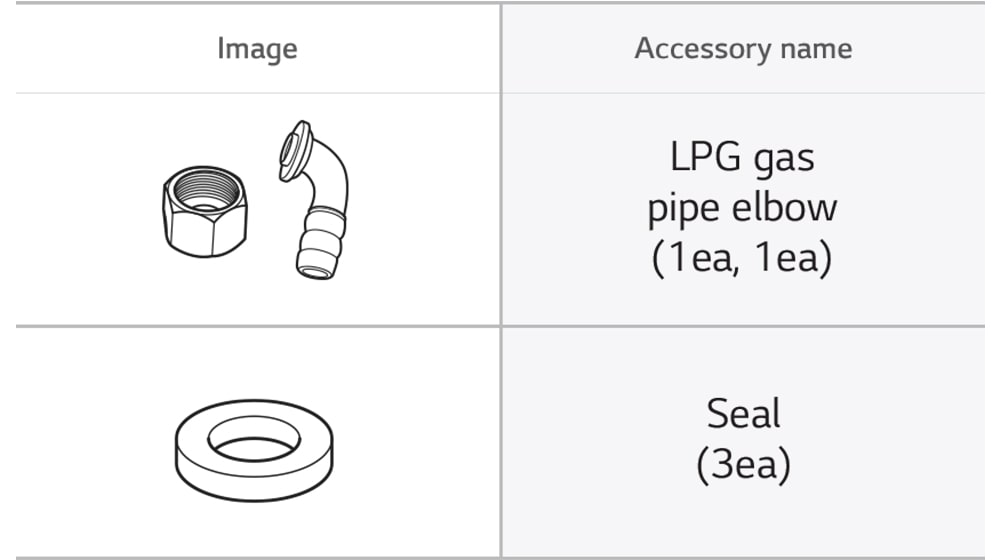

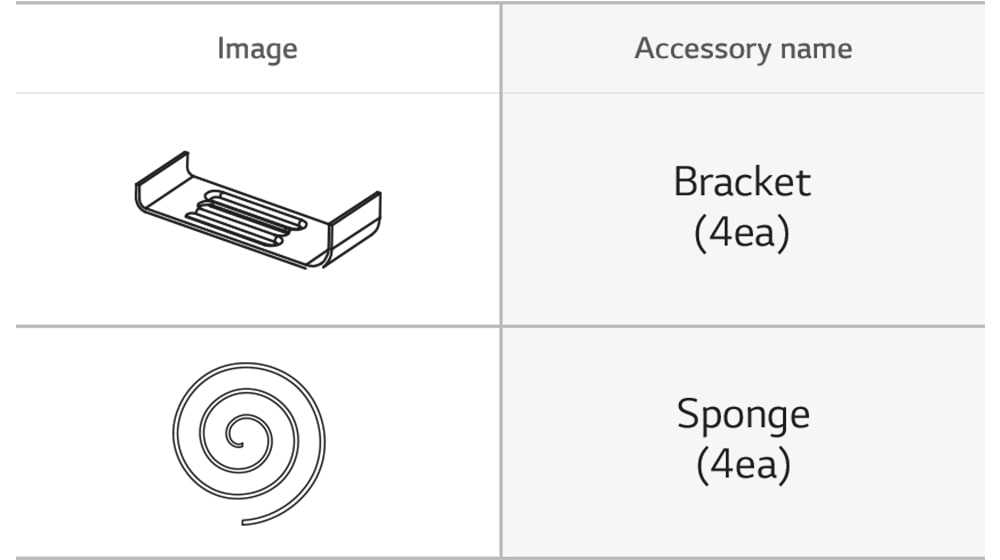

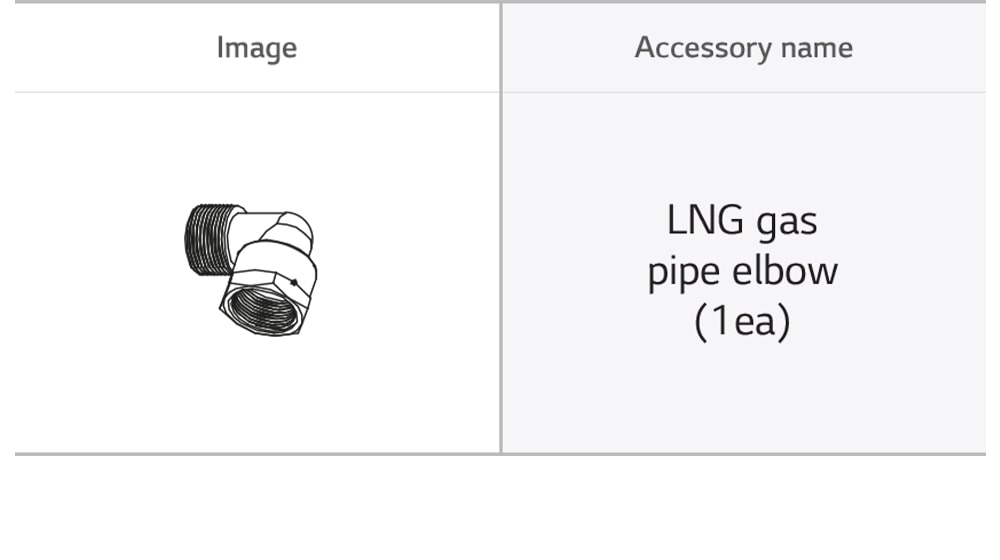

Accessories and parts images from gos hob.
Accessories and parts images from gos hob.
Accessories and parts images from gos hob.
Accessories and parts images from gos hob.
Download the manual for instructions on product usage and settings.
how to use the Control Lock function?
Press and hold down the (Lock) or (Control Lock) for 3 seconds
Why it is operates too loudly. A loud humming noise is heard?
A noise occurs due to vibrations generated by internal parts and foreign objects during operation
How to install the product?
Check user manual
Brand
LG
Country of Origin
China
Outcase Color
Stainless Steel
Cooktop Type
Sealed Burner
Fuel Type
Gas
Clock
No
Control Lock
No
Printproof Finish
No
Cooktop Color
Stainless Steel
Cooktop Control Type
Knob
Cooktop Finish
Stainless Steel
Knob Color
Stainless Steel
Knob Lighting
No
Knob Material
Aluminum
Shipping Weight (Kg)
12.7
Packing Dimensions (W x H x D) (mm)
672 x 173 x 582
Product Dimensions (W x H x D)(mm)
594 x 90 x 514
Product Weight (Kg)
9.8
Cut-out Dimensions (W x H x D)(mm)
560 x 90 x 490
Size in Width (mm)
594
Power Output (W)
7500
Required Power Supply (V/Hz)
220~240V / 50Hz, 220~240V / 60Hz
ThinQ(Wi-Fi)
No
Conversion Kit (Ea)
1
Cooktop Burner Grate Material
Cast Iron
Cooktop Type
Sealed Burner
Element/Burner Type(Single)
Left Front, Left Rear, Right Front, Right Rear
Fuel Type
Gas
Gas Burner - Left Front(LNG/LPG) (W)
1000 / 1000
Gas Burner - Left Rear(LNG/LPG) (W)
3000 / 3000
Gas Burner - Right Front(LNG/LPG) (W)
1750 / 1750
Gas Burner - Right Rear(LNG/LPG) (W)
1750 / 1750
Gas Burner - Total (LNG/LPG) (W)
7500 / 7500
Number of Cooktop Elements/Burners
4
Safety function(Cooktop)
No
Switched on(How to Switch on)
Automatic (Push & Turn Knob)
