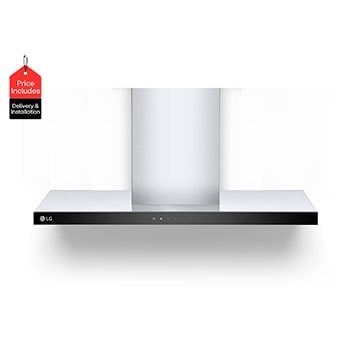

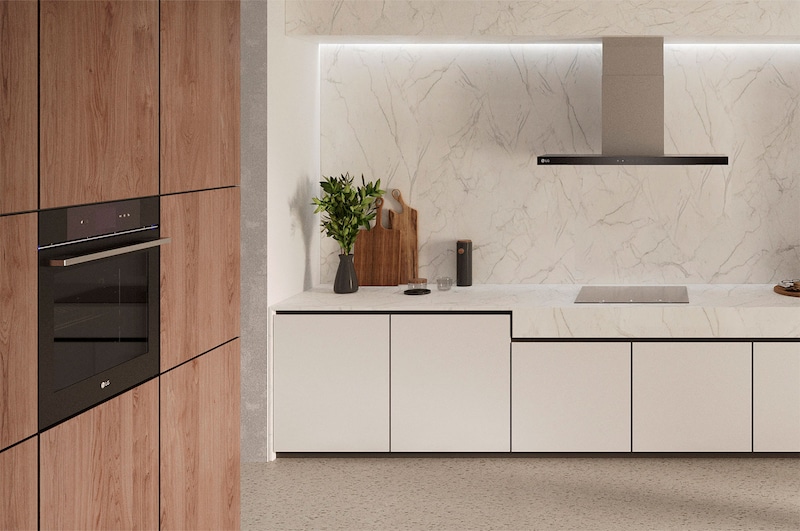

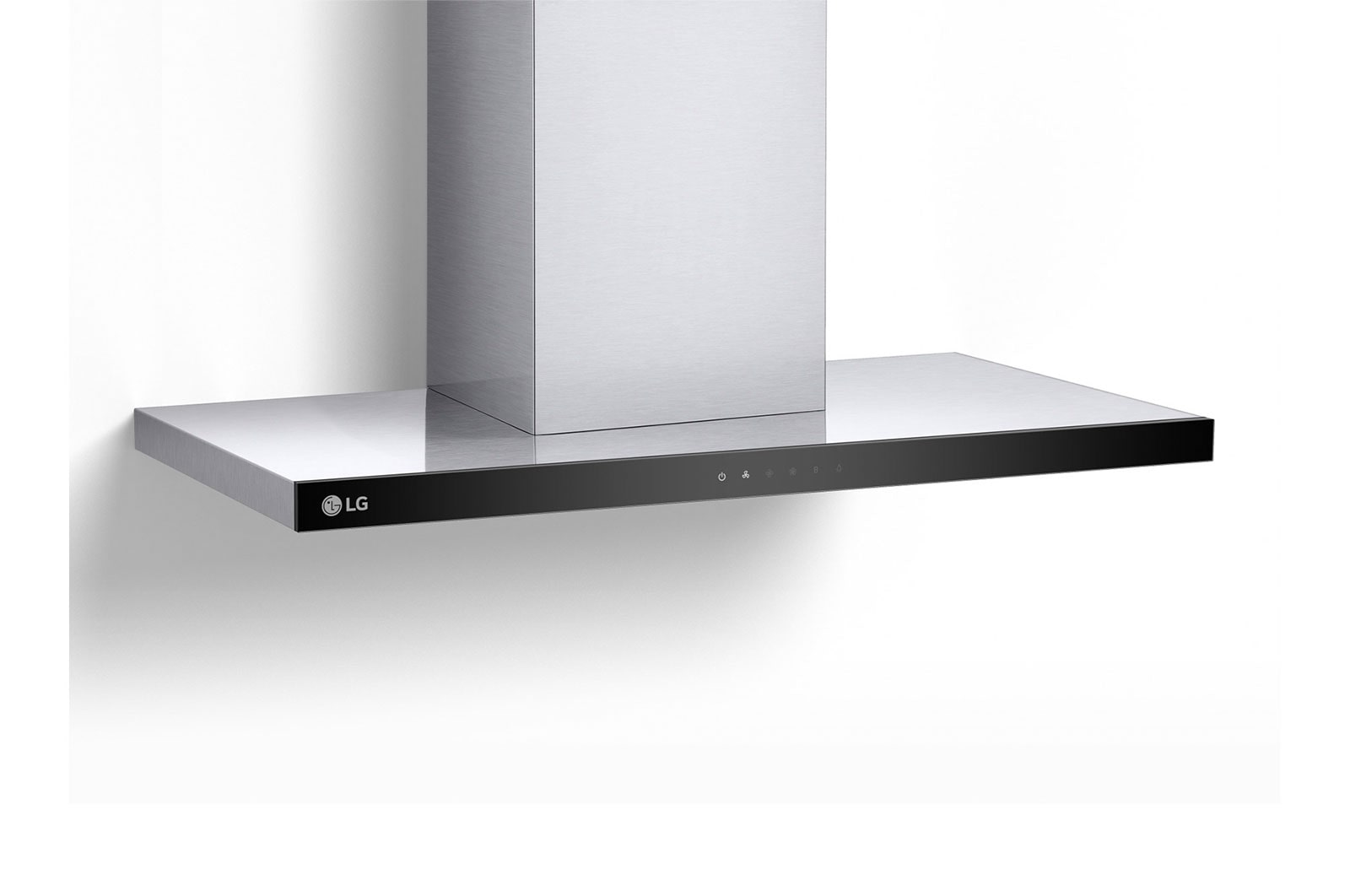

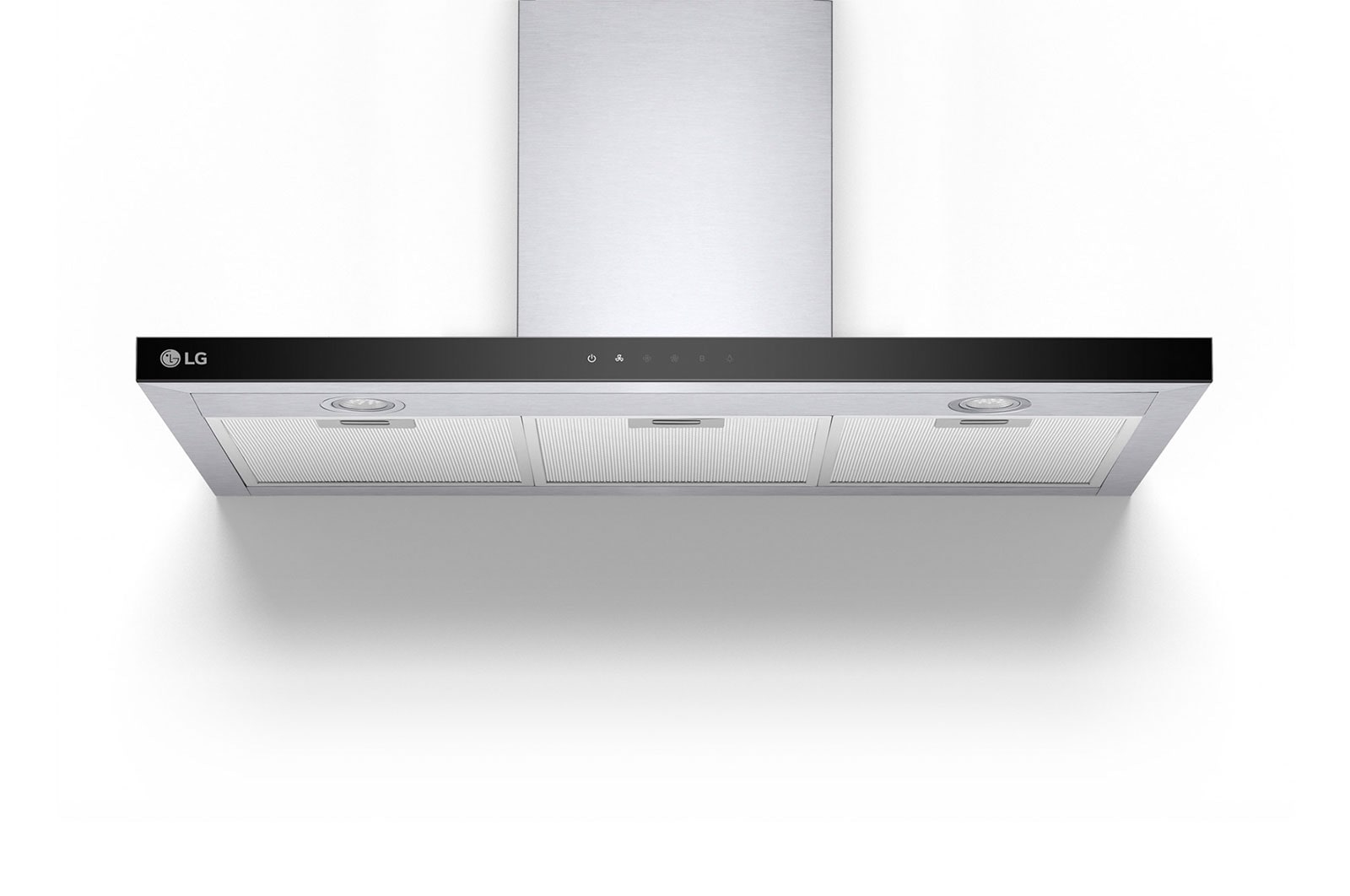

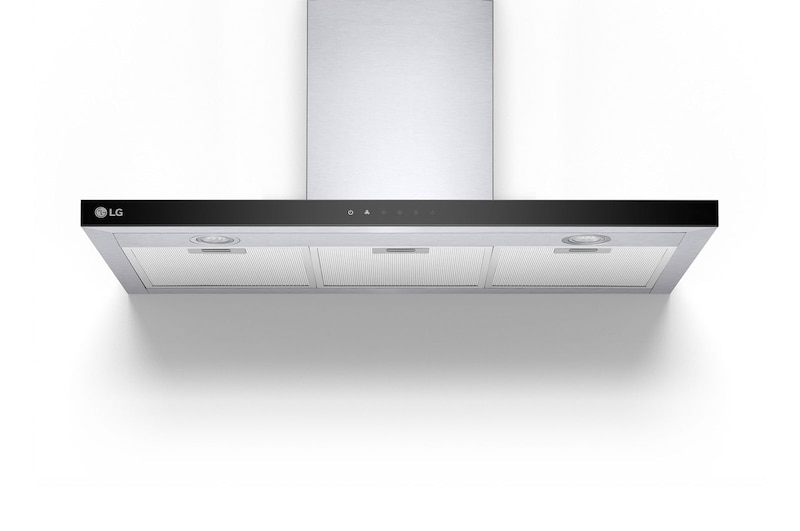

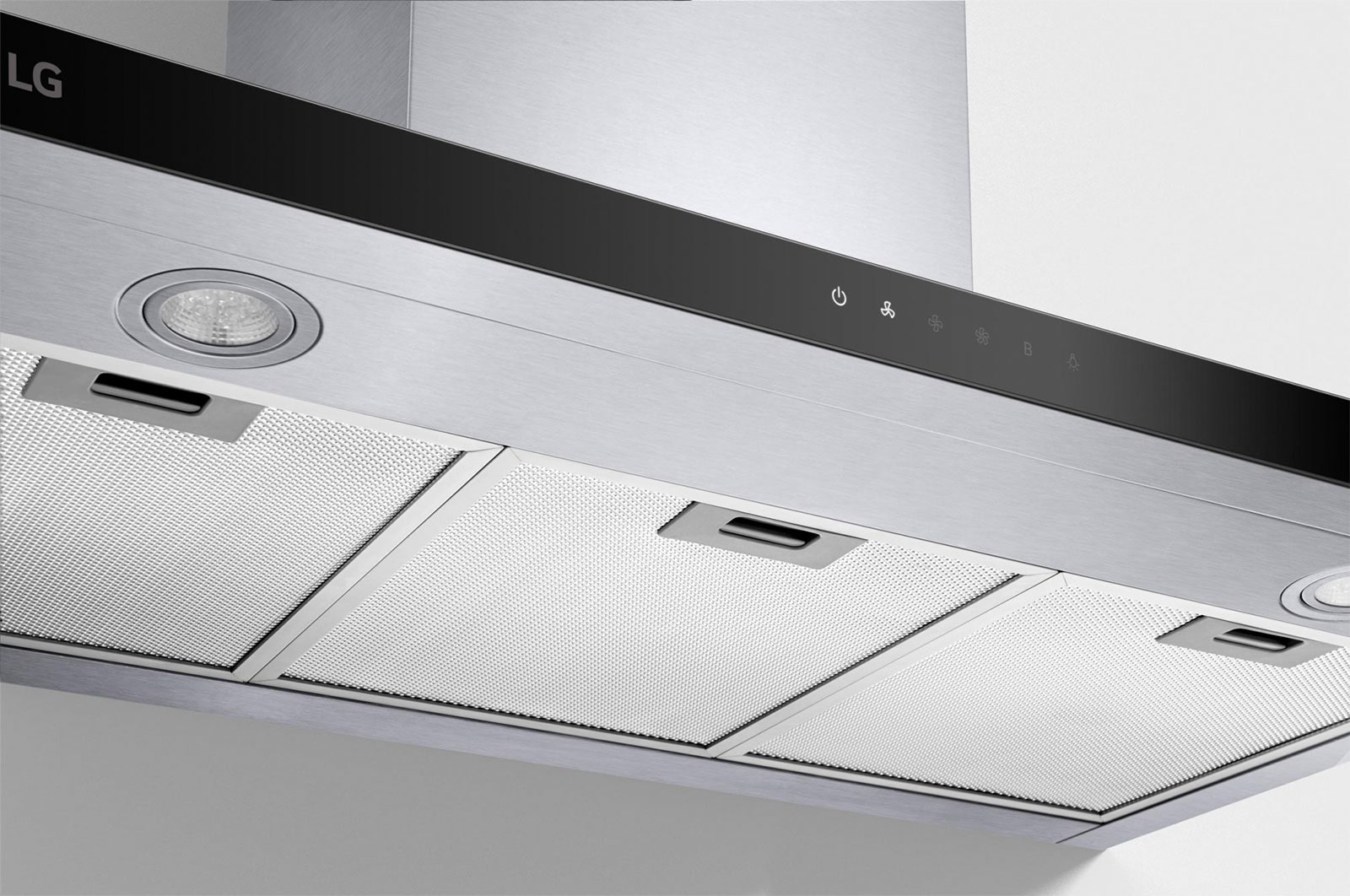

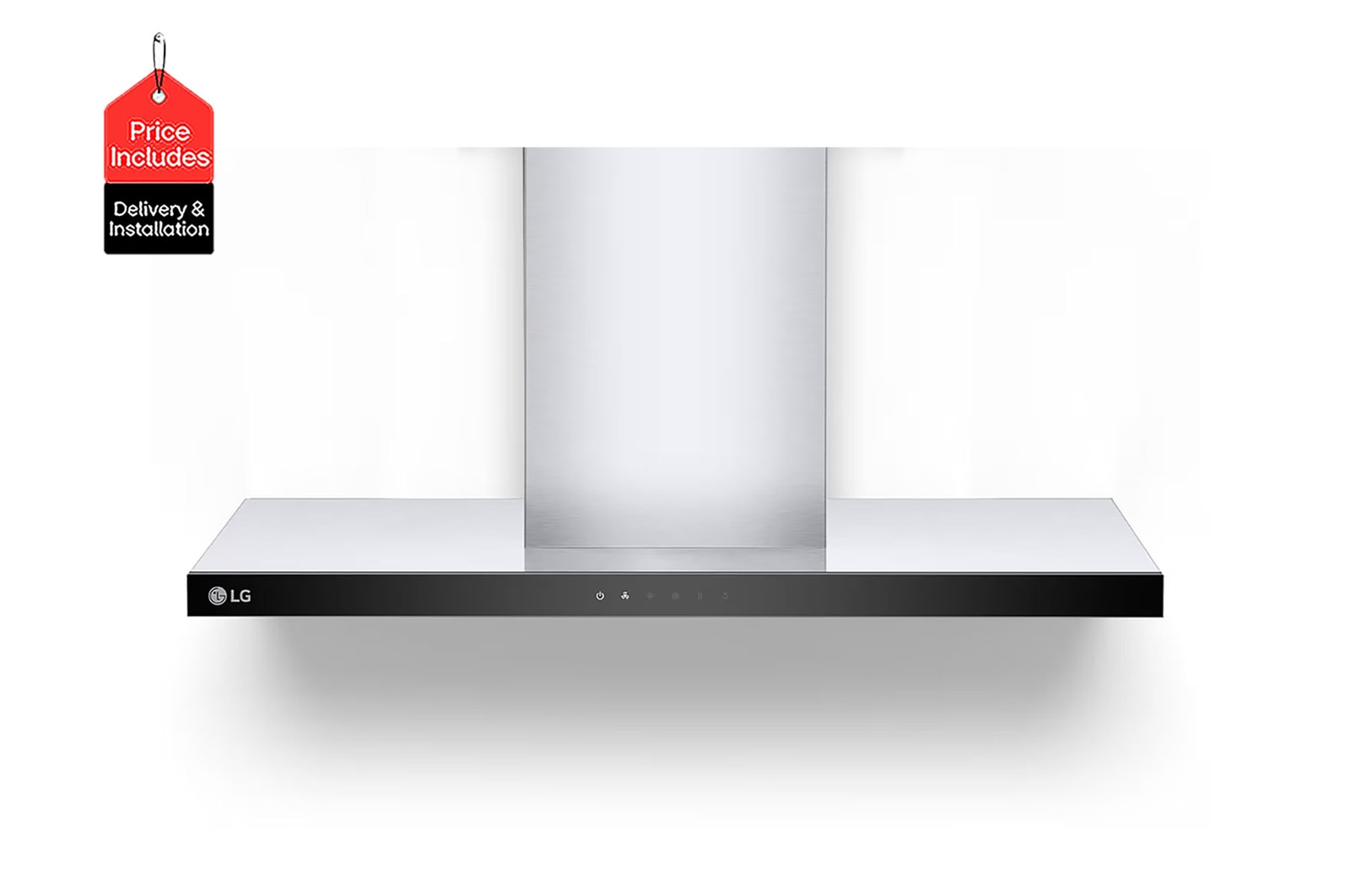

LG Hood 90 cm with Touch Control
Key Features
Experience harmony between your Induction Hob and Hood through the LG ThinQ™ app.
Select from three modes of hood operation, and enjoy clear air from its powerful suction.

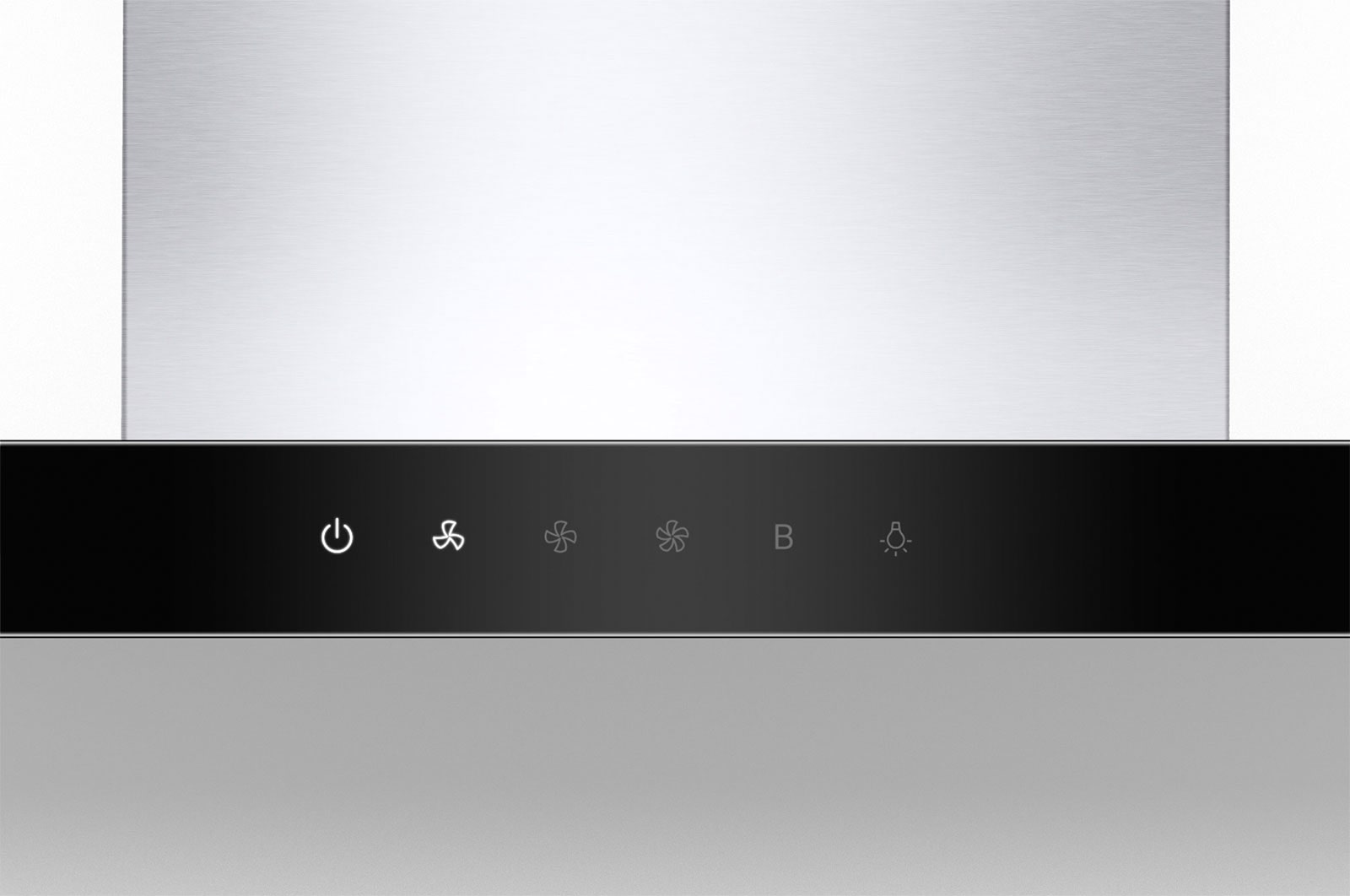

This is an image of touching the touch control of the hood with a finger.

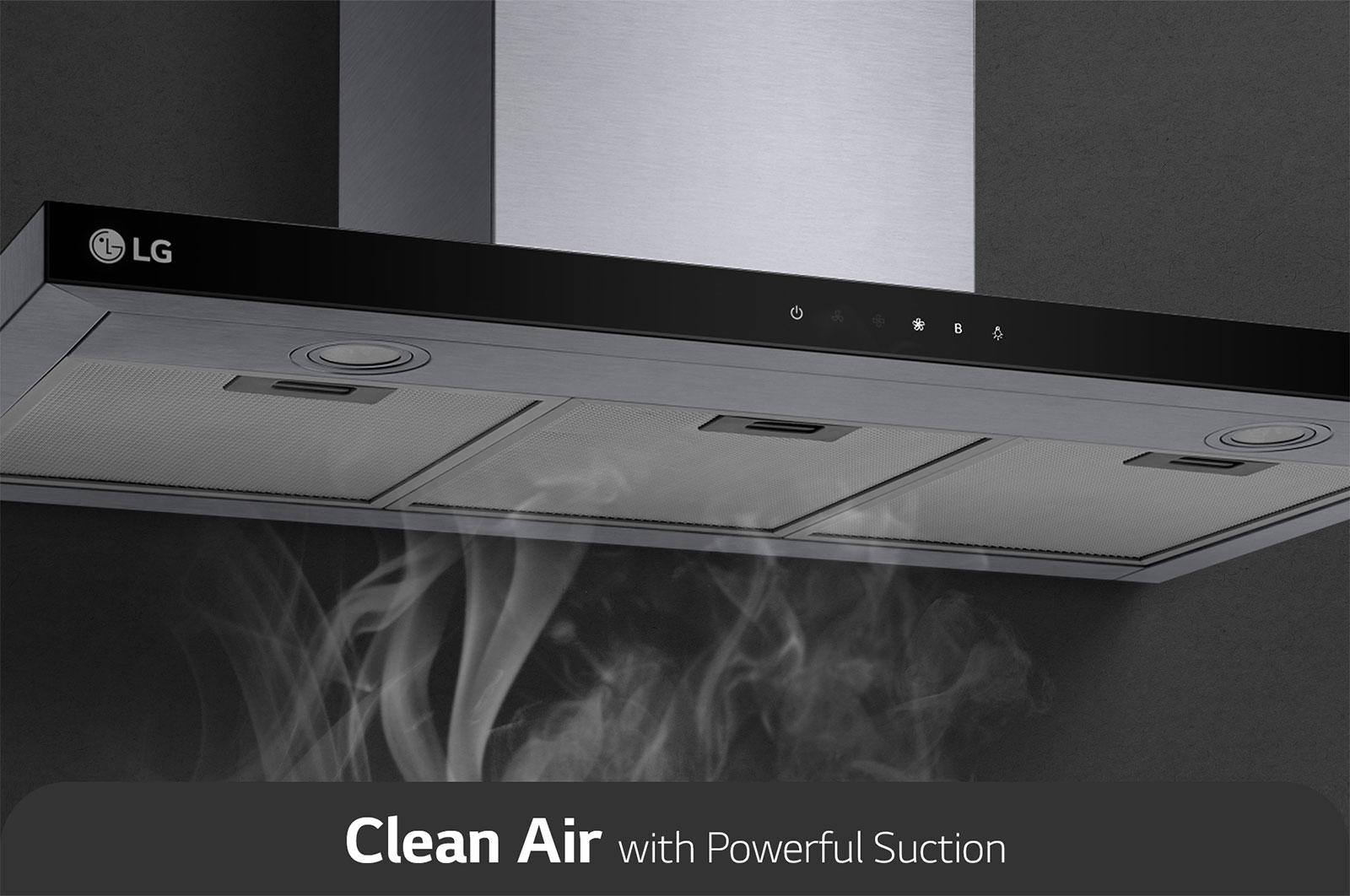

This is an image where smoke is strongly sucked into the hood.

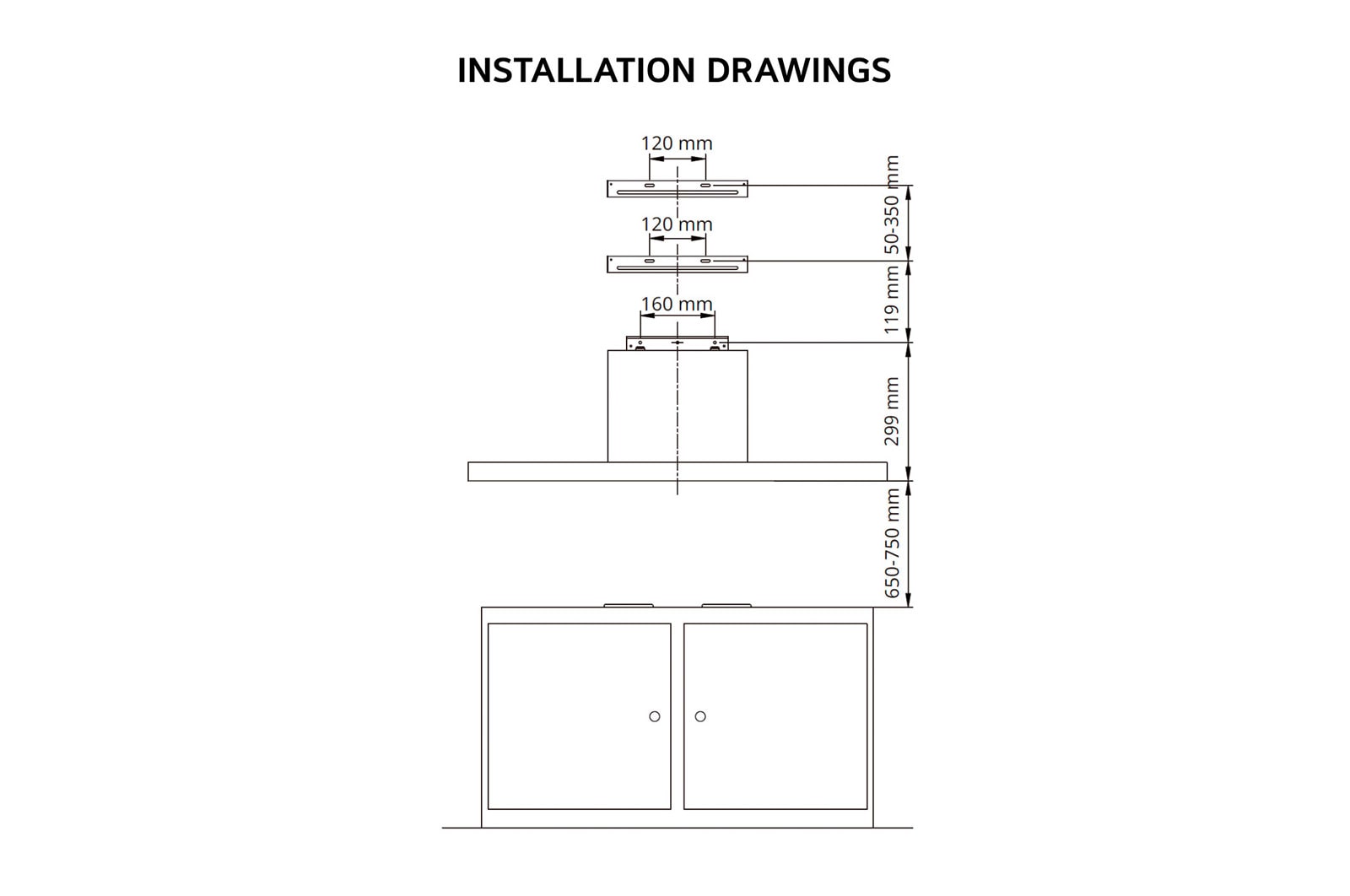

This image shows the dimension of the Hood.
Click for further details on how the Built-in Hood fits into your space, including a guide to measurements and other criteria to heed.
This image shows the dimension of the Hood.

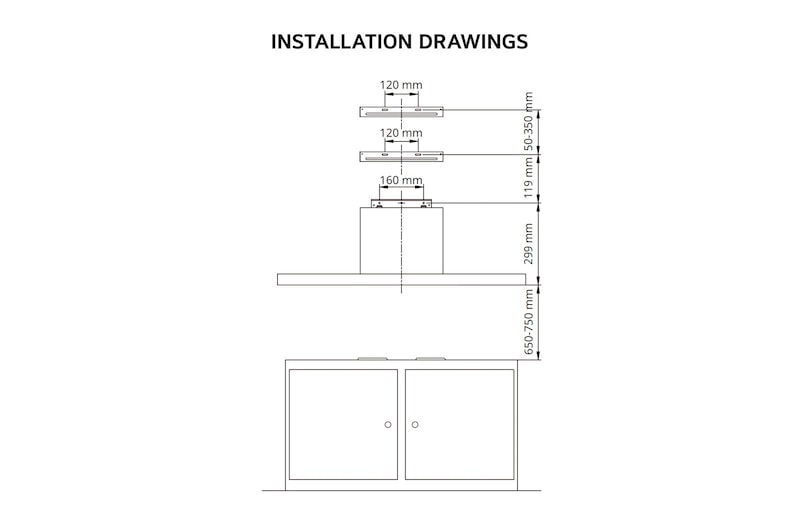

This image shows the required distance from the hob when installing the hood.
This is an image of boxes on the kitchen table.
View details of the parts you'll receive for installation.
This is an image of the hood fixing bracket (1ea) and the chimney fixing bracket (2ea), which are hood accessories.
This is an image of the hood Screws which are hood accessories.
This is an image of the Wall Plugs(7ea) and Optional Activated Charcoal Filters(2ea) which are hood accessories.
This is an image of the exhaust pipe with tape (1ea) and upper decorative chimney (1ea) which are hood accessories.
This is an image of the lower decorative chimney (1ea) which is hood accessory.
Top-Image-Hood
how to use the Control Lock function?
Press and hold down the (Lock) or (Control Lock) for 3 seconds
Why it is operates too loudly. A loud humming noise is heard?
A noise occurs due to vibrations generated by internal parts and foreign objects during operation
How to install the product?
Check user manual
Brand
LG
Country of Origin
China
Installation Type
Wall-Mount
Outcase Color
Stainless Steel
Blower CMH (min-max)
280-830
Blower dB(min-max)
55-77
Blower Speed Levels
3+Boost
Hood Type
T-Shape
Control Type
Glass Touch
Wi-Fi Control CFM
No
Wi-Fi Control Lights
No
Wi-Fi Power On/Off
No
Shipping Weight (Kg)
18.7
Packing Dimensions (W x H x D) (mm)
980 x 385 x 650
Product Dimensions (W x H x D)(mm)
898 x 280 x 500
Product Weight (Kg)
10.5
Power Output (W)
253
Required Power Supply (V/Hz)
220~240V / 50Hz, 220~240V / 60Hz
Circuit Breaker Size (A)
16
Hood Type
T-Shape
Auto Delay-Off
No
Blower CMH (min-max)
280-830
Blower dB(min-max)
55-77
Blower Speed Levels
3+Boost
Dual-Level Lighting
No
Filter Type
Washable Aluminum Grease Filiter
Installation Type
Wall-Mount
Lighting Power (W)
3
Lighting Type
LED
Outcase Color
Stainless Steel
RoHS Compliant
Yes
Size in Width (mm)
898
Vertical Internal Blower
6" Round
