Cooling Capacity (Min ~ Rated ~ Max)
0.90 ~ 6.45 ~ 7.42 KW
3,071 ~ 22,000 ~ 25,317 Btu/h
Power Input - Cooling (Min ~ Rated ~ Max)
240 ~ 2,080 ~ 2,500 W
Running Current - Cooling (Min ~ Rated ~ Max)
0.50 ~ 9.50 ~ 14.0 A
EER
10.58 (Btu/h)/W
Available Voltage Range
140 ~ 290 V
Power Supply
1, 220, 50 (Φ/V/Hz)
Power Factor - Cooling
96%
Indoor - Air Flow Rate (Cooling, Max/H/M/L)
21.0/16.1/13.1/10.5 m³/min
Indoor - Sound Pressure Level (Cooling, H/M/L/SL)
47/42/34/31 dB (A)

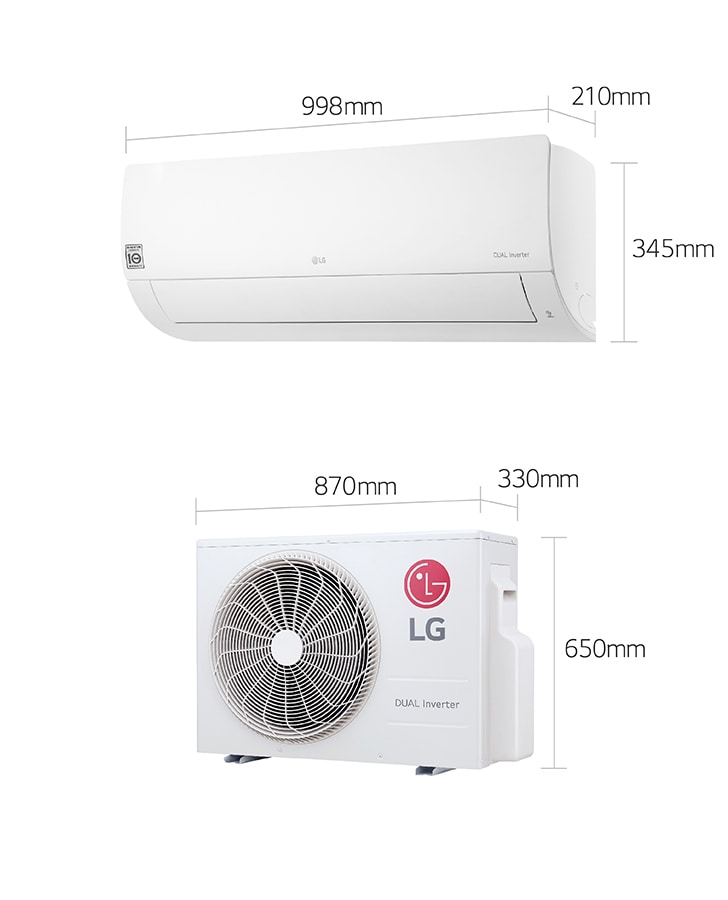

Indoor - Dimensions (W × H × D) - Net
998 × 345 × 210 mm
Indoor - Dimensions (W × H × D) - Shipping
1080 × 422 × 281 mm
Indoor - Weight (Net)
12.8 kg
Indoor - Weight (Shipping)
14.9 kg
Outdoor - Sound Pressure Level (Cooling,Max)
56 dB(A)
Outdoor - Dimensions (W × H × D) - Net
870 × 655 × 320 mm
Outdoor - Dimensions (W × H × D) - Shipping
1022 × 716 × 437 mm
Outdoor - Weight (Net)
44.7 kg
Outdoor - Weight (Shipping)
51.9 kg
Compressor - Type
Twin Rotary
Compressor - Motor Type
BLDC
Fan (Indoor) - Type
Cross Flow Fan
Fan (Indoor) - Motor Output
58 W
Fan (Outdoor) - Type
Propeller Fan
Fan (Outdoor) - Motor Output
85 W
Heat Exchanger - Condenser (Material, Tube/Fin)
Cupper
Heat Exchanger - Condenser (Corrosion Protection)
Gold
Circuit Breaker
25 A
Power Supply to Unit
Outdoor
Piping - Size (Liquid)
1/4 inch
Piping - Size (Gas)
5/8 inch
Piping - Connections Method (Indoor/Outdoor)
Flared/Flared
Drain Hose Size - O.D, I.D
21.5,16.0 mm
Between Indoor & Outdoor - Piping Length (Min/Standard/Max)
3/7.5/30 m
Between Indoor & Outdoor - Piping Length (No Charge)
7.5 m
Between Indoor & Outdoor - Max. Elevation Difference
15 m
Refrigerant - Type
R410A
Refrigerant - Pre Charge
1350 g
Refrigerant - Additional charge
30 g/m
