LDLAXVT10 component-copyModelName
CLOi CarryBot that increase work efficiency

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LDLAXVT10)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LDLAXVT10)
    $
    $
    LG Members Price
Total
CLOi CarryBot that increase work efficiency

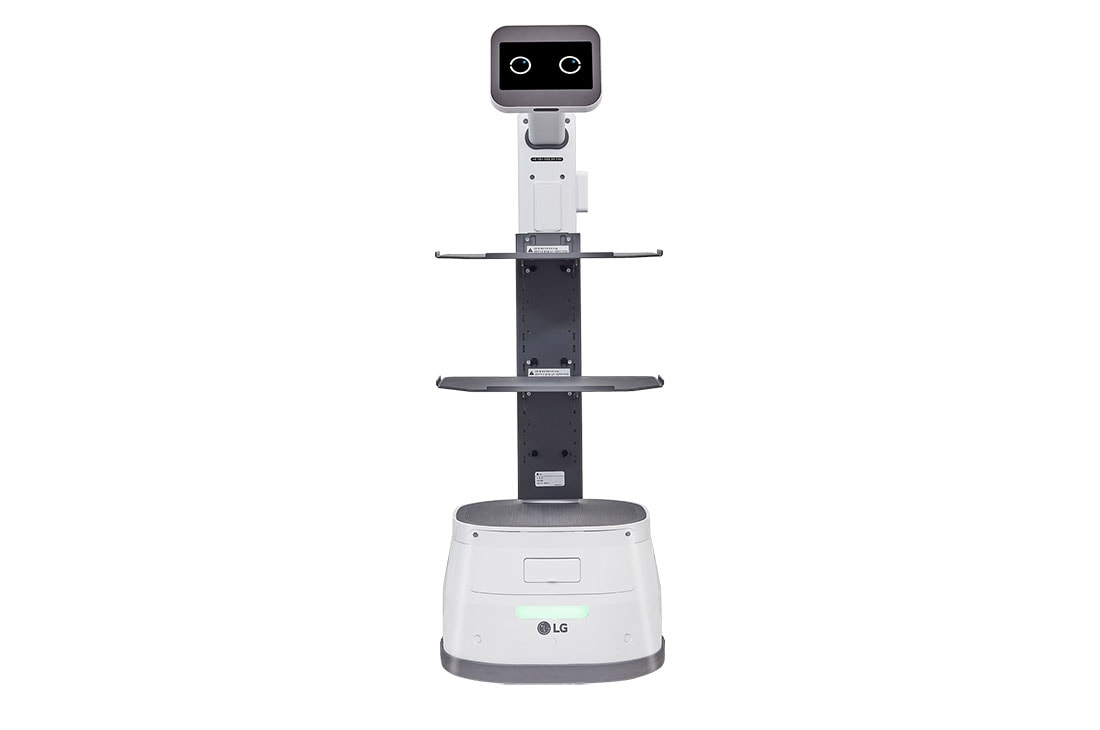

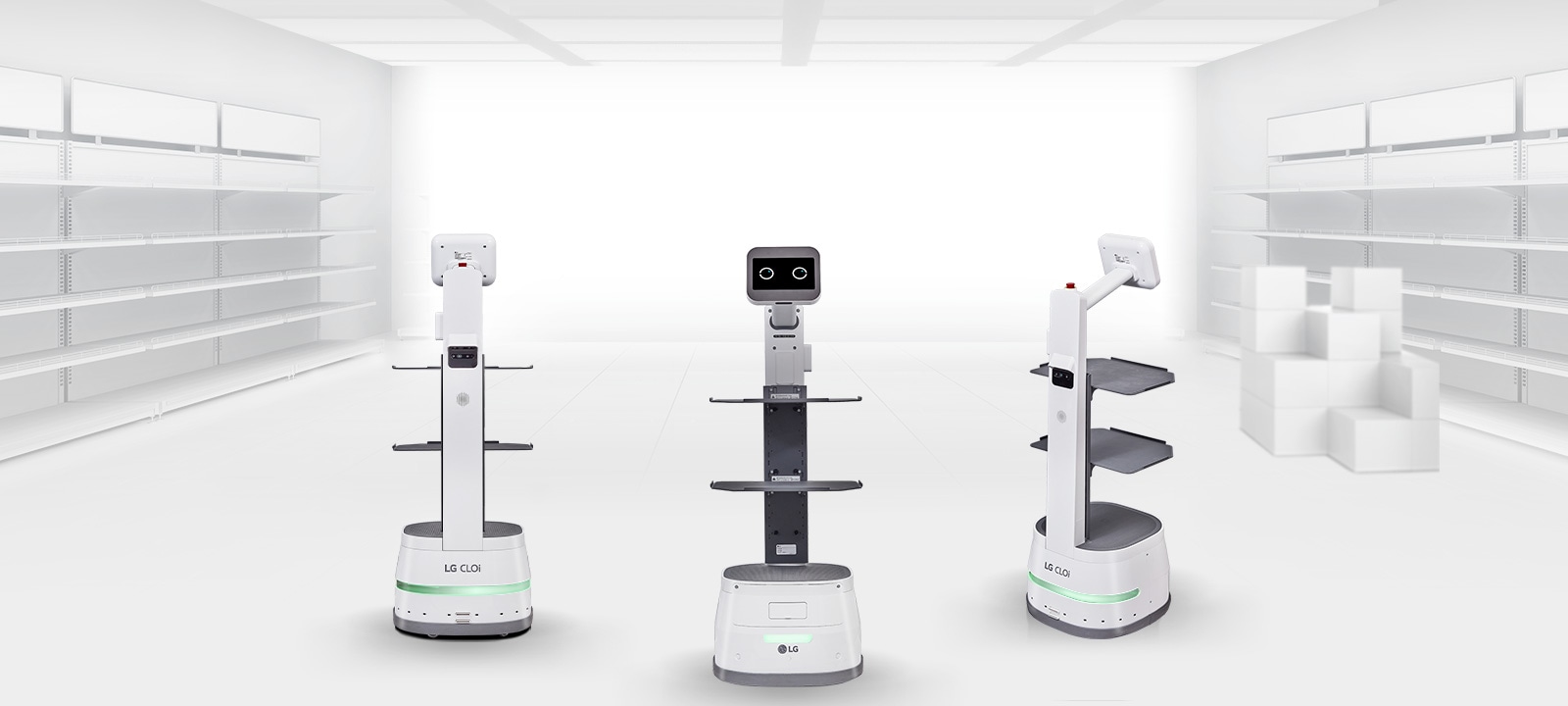

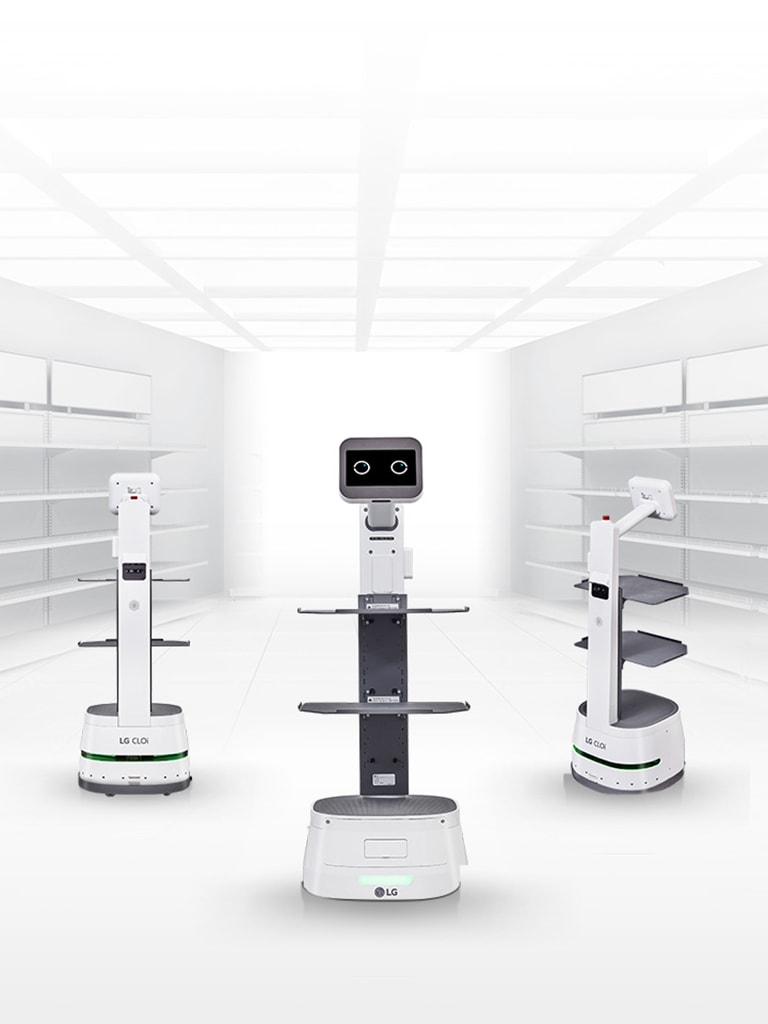

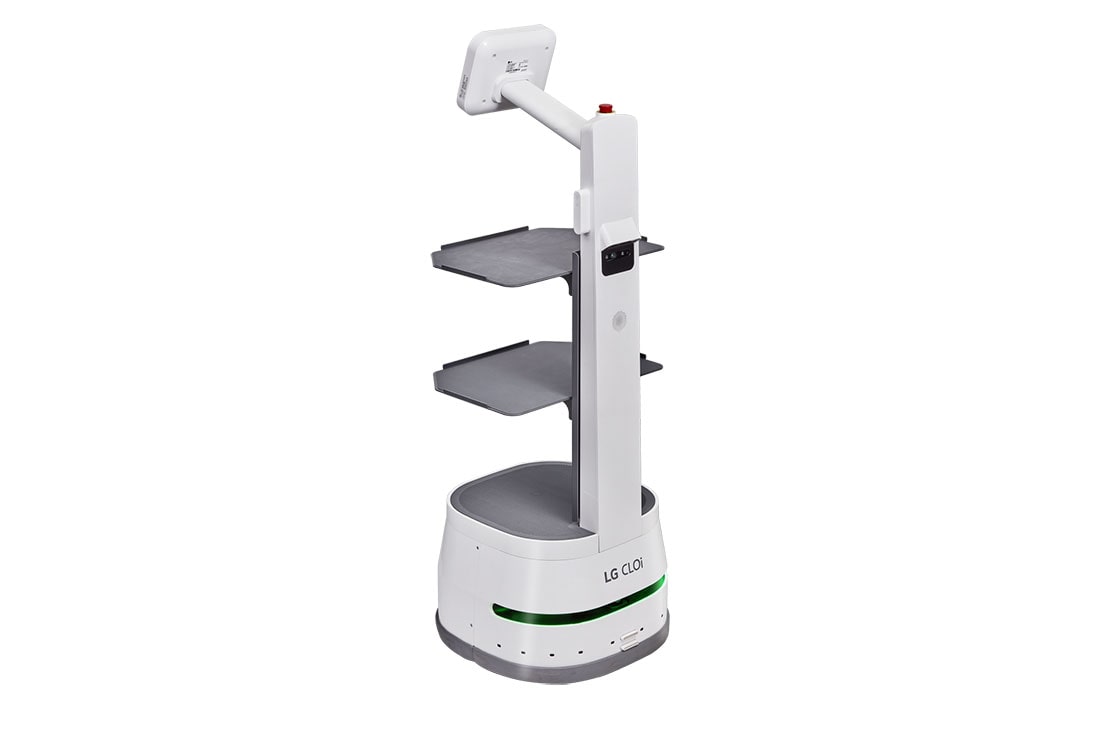

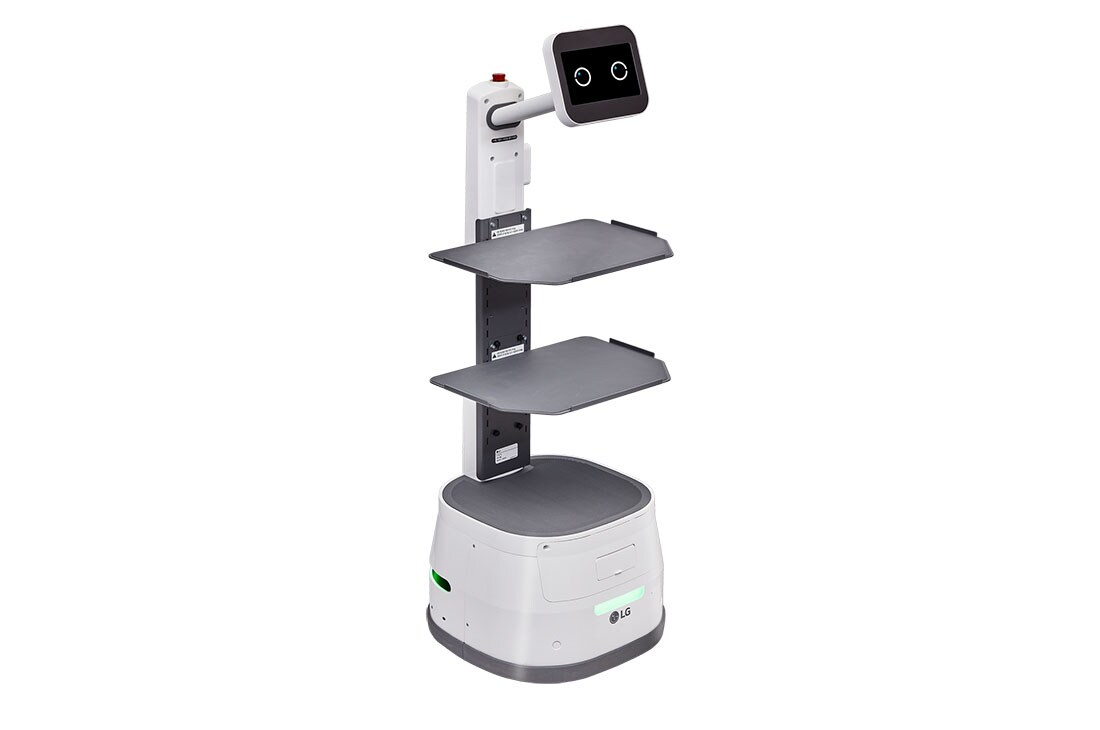

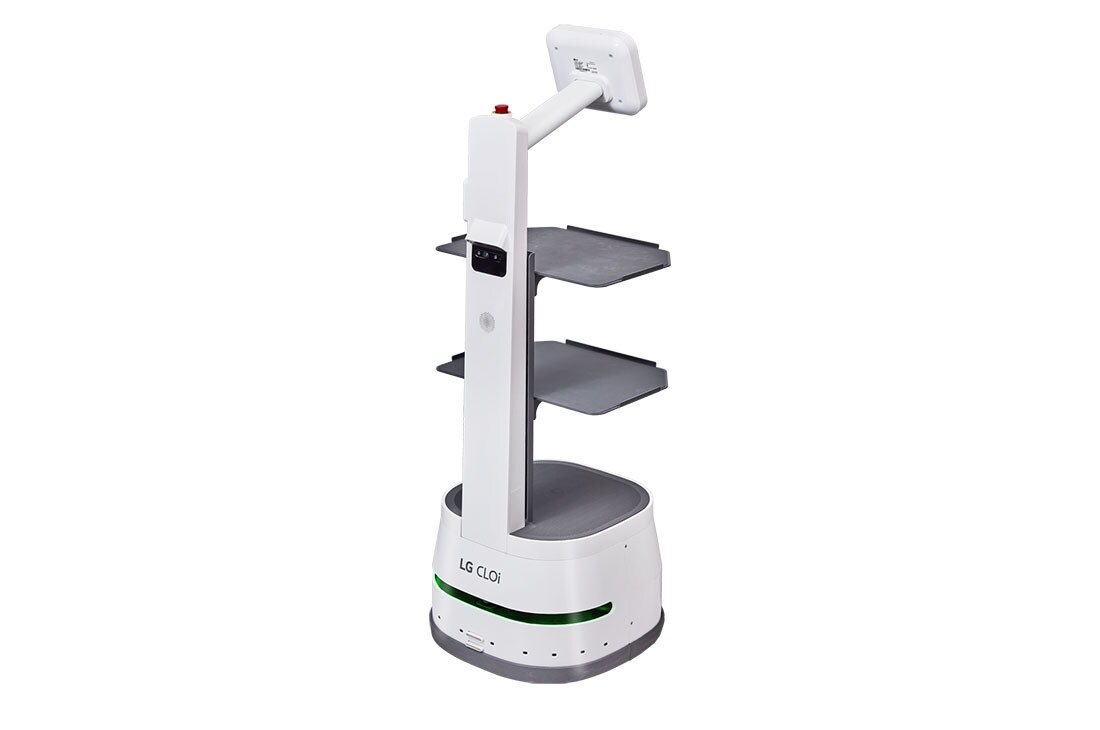

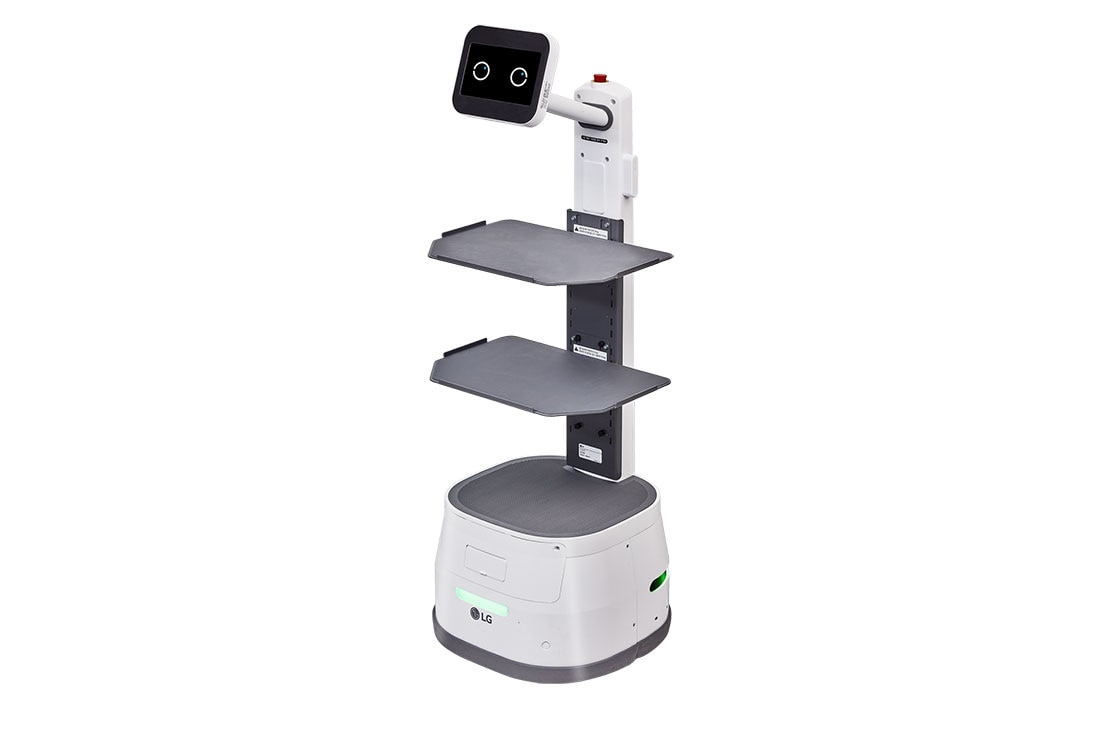

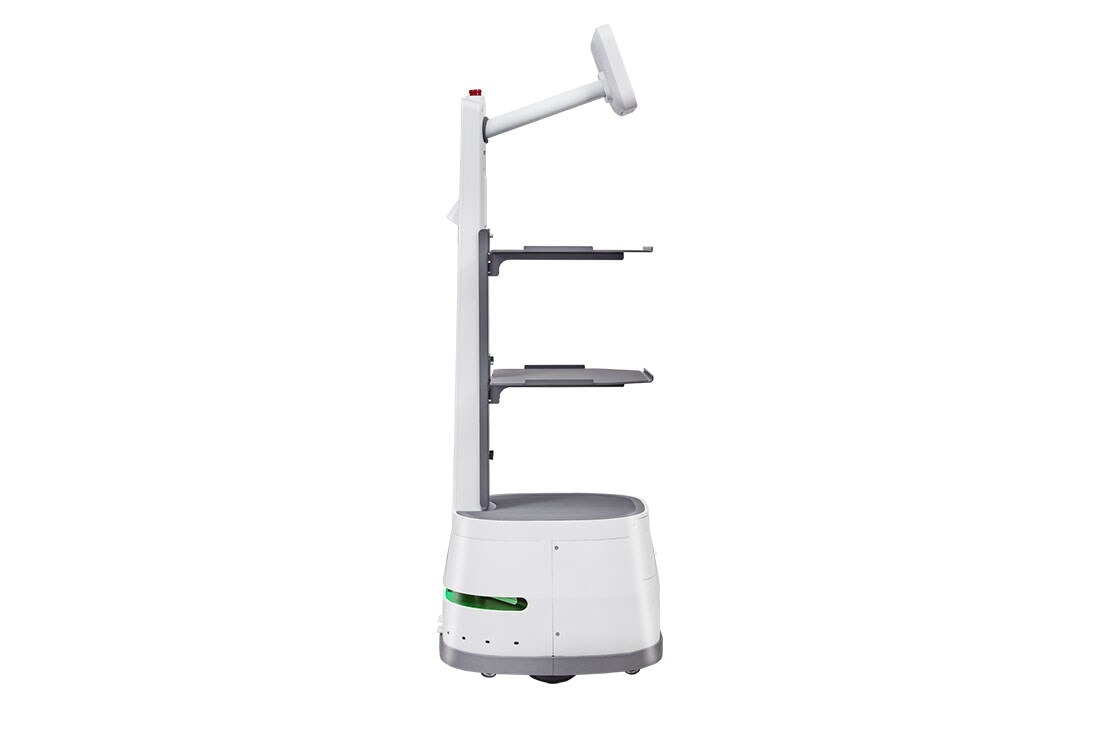

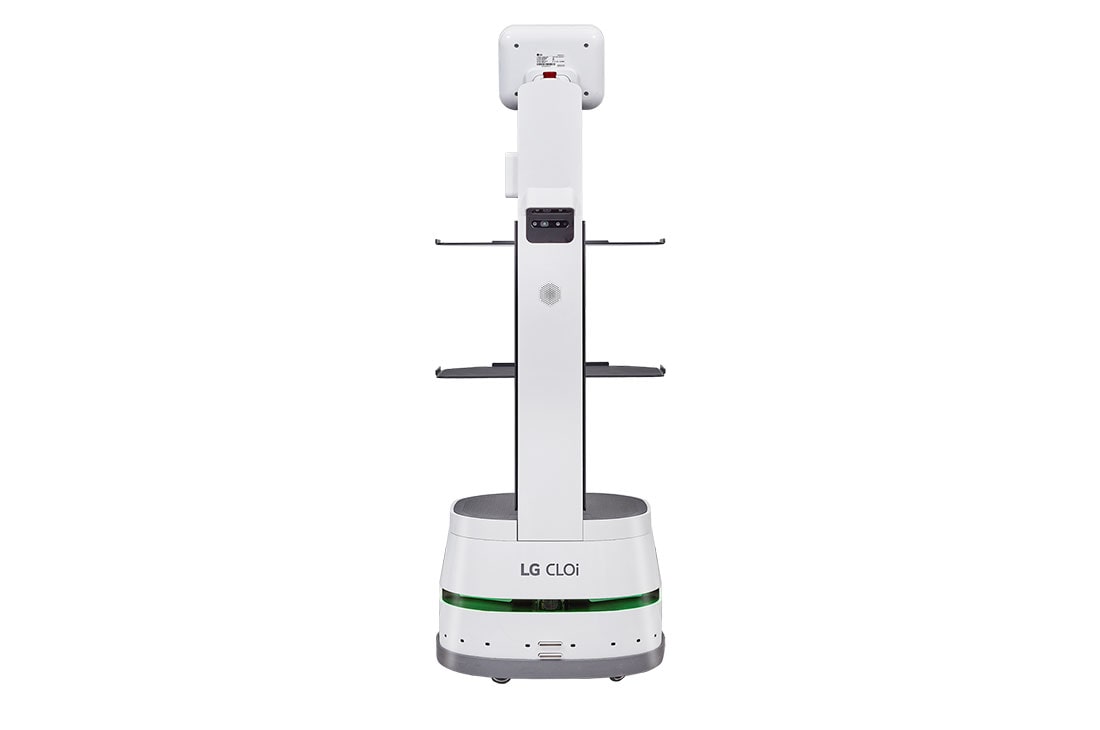

LG CLOi CarryBot from various angles LG CLOi CarryBot from various angles

Why choose LG CLOi CarryBot?

Meet reliable partners that will increase your work efficiency.

MCS Optimized order distribution and scheduling to achieve improvement in productivity

FMS Optimized driving solution with fleet management system

Optimal design Optimized display position Shelf size for different product sizes

*The images simulated to enhance feature understanding. It may differ from actual use.

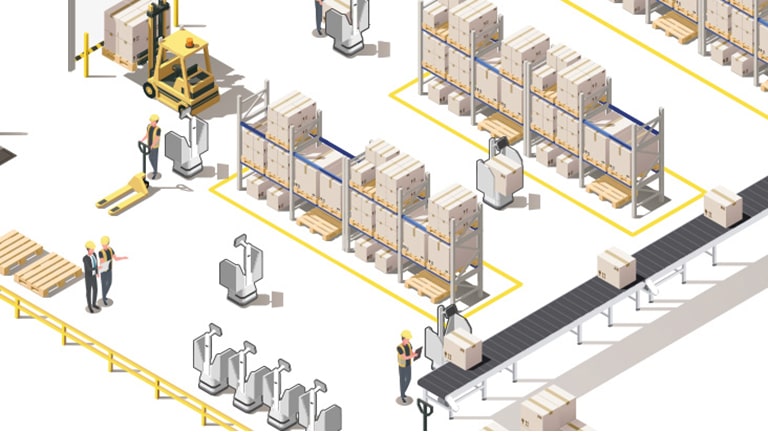

Warehouse Automation by LG CLOi CarryBot

Warehouse Automation by LG CLOi CarryBot

CarryBot supports the warehouse operation to improve efficiency and productivity with optimized solutions for various customer needs.
*The images simulated to enhance feature understanding. It may differ from actual use and actual product.
Reliable partner

Quick and convenient work

Our AMR can support operator by notifying the items to be picked and by delivering the items end-to-end while the operator can stay in the assigned zone only.

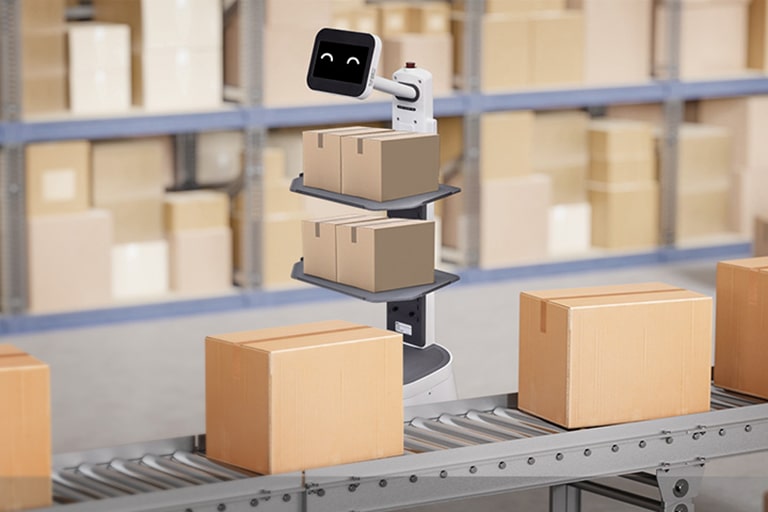

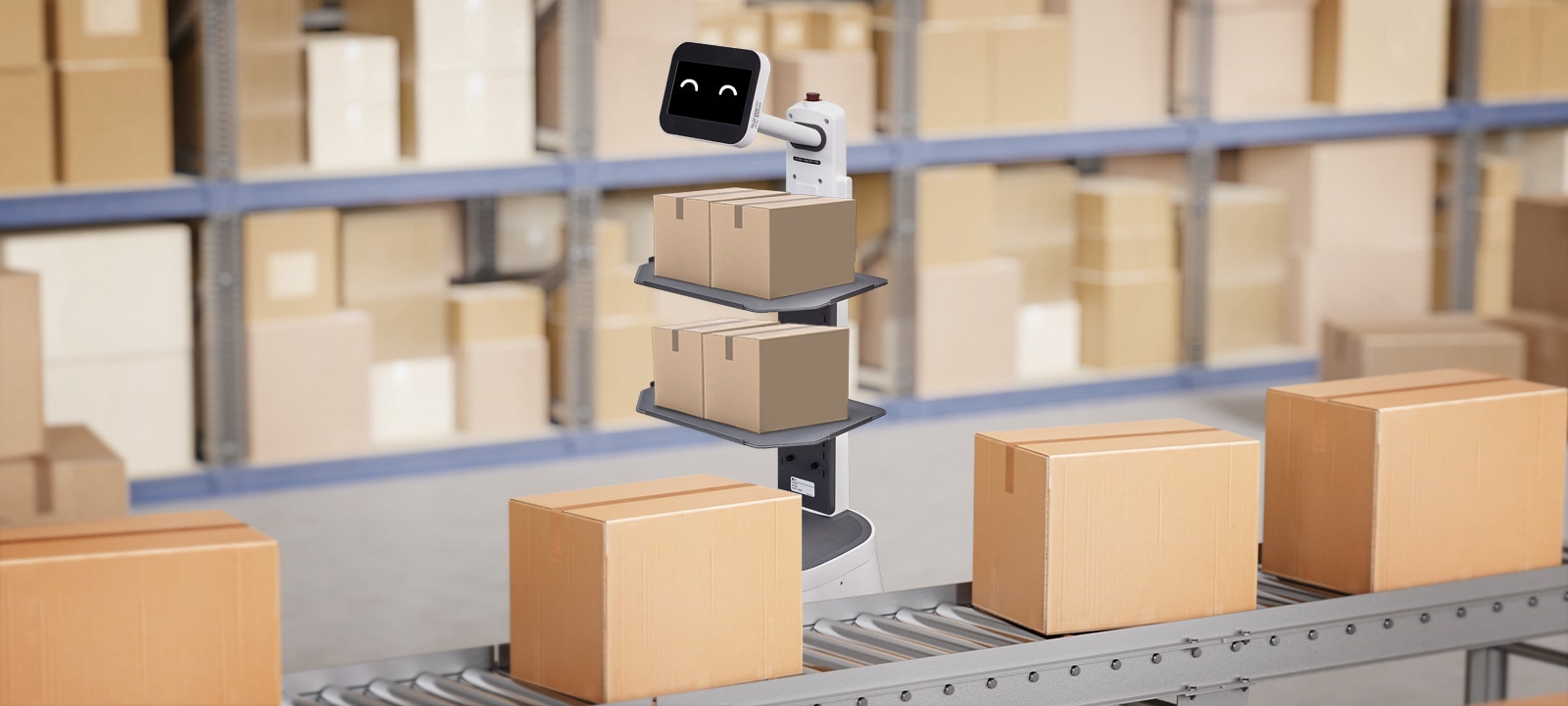

LG CLOi CarryBot is carrying two small boxes on each tray working right near the conveyor belt with smile on LCD display LG CLOi CarryBot is carrying two small boxes on each tray working right near the conveyor belt with smile on LCD display
*The images simulated to enhance feature understanding. It may differ from actual use.

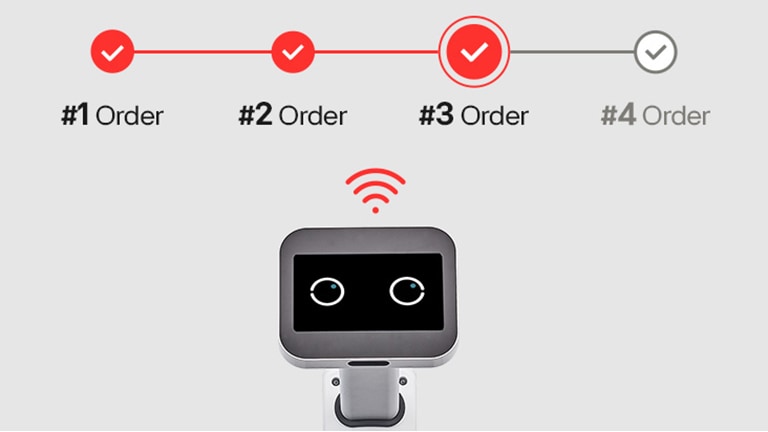

LG CLOi CarryBot uses smart ordering to rearrange up to 4 orders so they can be processed quickly.
Smart ordering

Work efficiency and productivity

By simple and clear work steps thru smart order grouping, operator is able to perform the required level of work regardless of the operators’ job experience or skills.
*The images simulated to enhance feature understanding. It may differ from actual use.

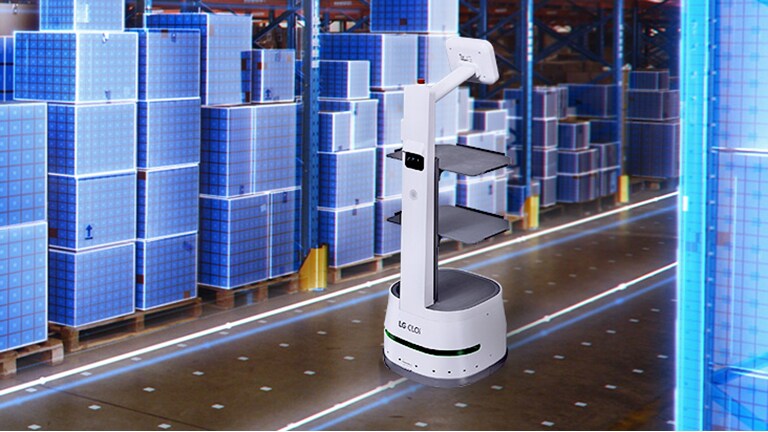

CarryBot optimizes order distribution and scheduling to achieve productivity improvement.
Material Control System (MCS)

WMS* interfacing

Optimized order distribution and scheduling to achieve improvement in productivity.
*WMS: Warehouse Management System.
*The images simulated to enhance feature understanding. It may differ from actual use.

Fleet Management System (FMS)

  • The animation shows the CarryBot arriving at its destination on the fastest route.

    Optimized driving solution

    LG AMR driving algorithm with the Fleet Management System (FMS) enables an LG CLOi CarryBot to set the fastest route to the destination.

  • The animation shows the CarryBot safely avoiding obstacles.

    Safe & Stable autonomous driving

    LG CLOi CarryBot safely drive to destinations based on autonomous driving and obstacle avoidance technology.

*The images simulated to enhance feature understanding. It may differ from actual use and actual product.
User-friendly design

Easy and efficient AMR hardware

User-friendly HW design enhance operator convenience and productivity.

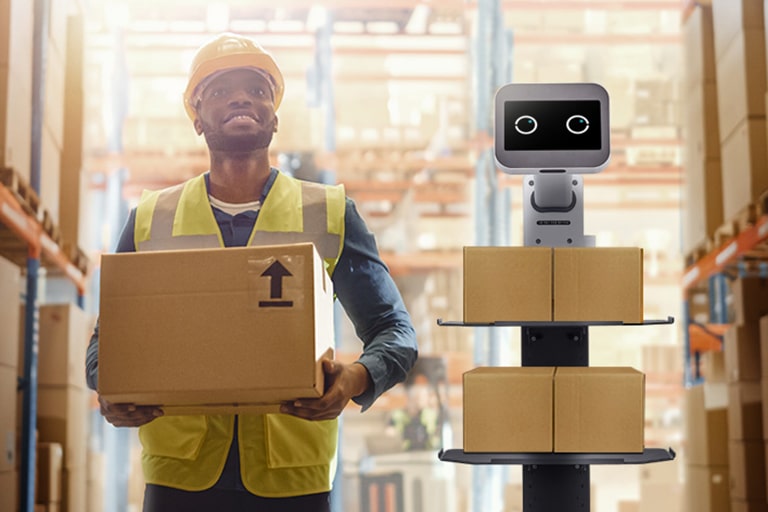

  • A man and the CarryBot is working side-by-side carrying a box facing the front

    Optimized display position

    Location of display considering operator convenience.

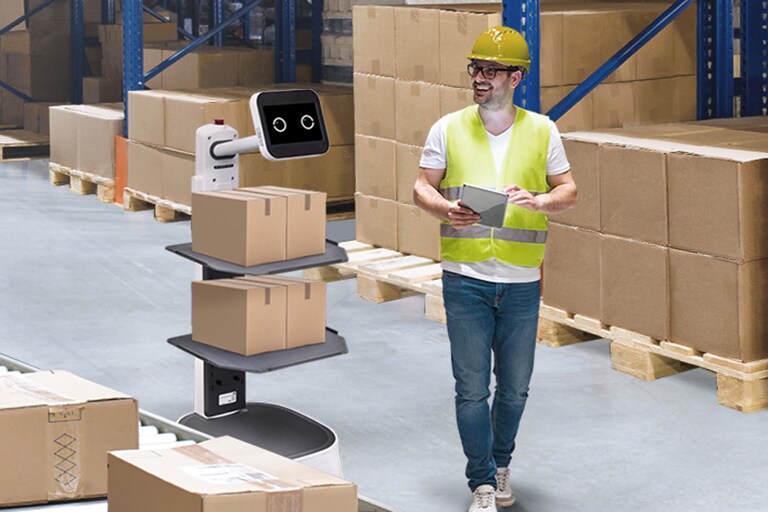

  • LG CLOi CarryBot is carrying two small boxes on each tray working right near the conveyor belt and a man is walking towards with a smile.

    Mounting shelf options

    Shelf options considering various sizes of picking items.

*The images simulated to enhance feature understanding. It may differ from actual use.

Robot Management System

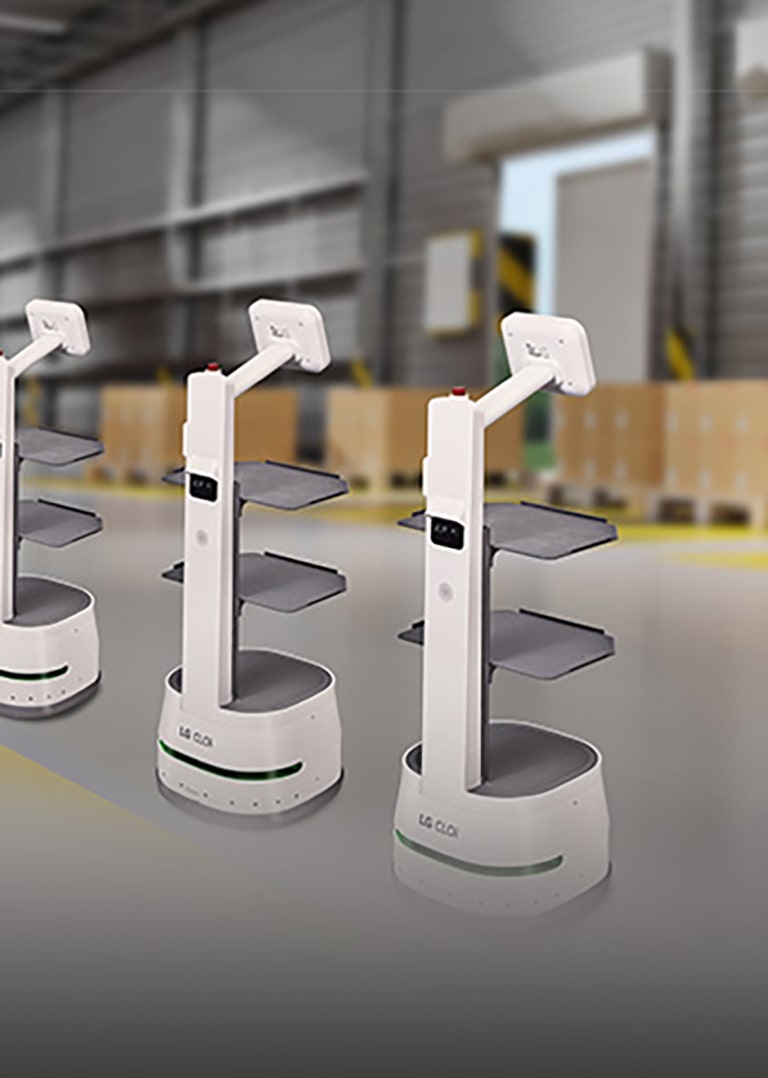

  • Multi-AMR can operate 24 hours a day.

    24 Hours

    24 Hours Multi-AMR operation

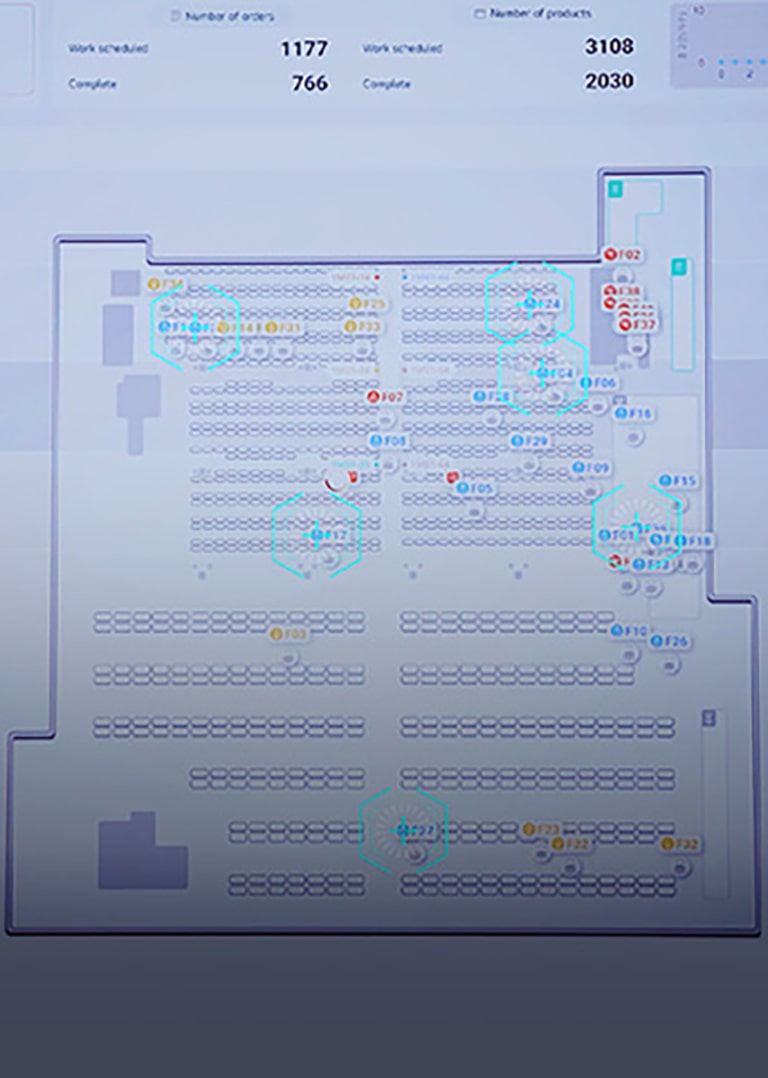

  • You can monitor the location of AMRs.

    Location

    Robot location information

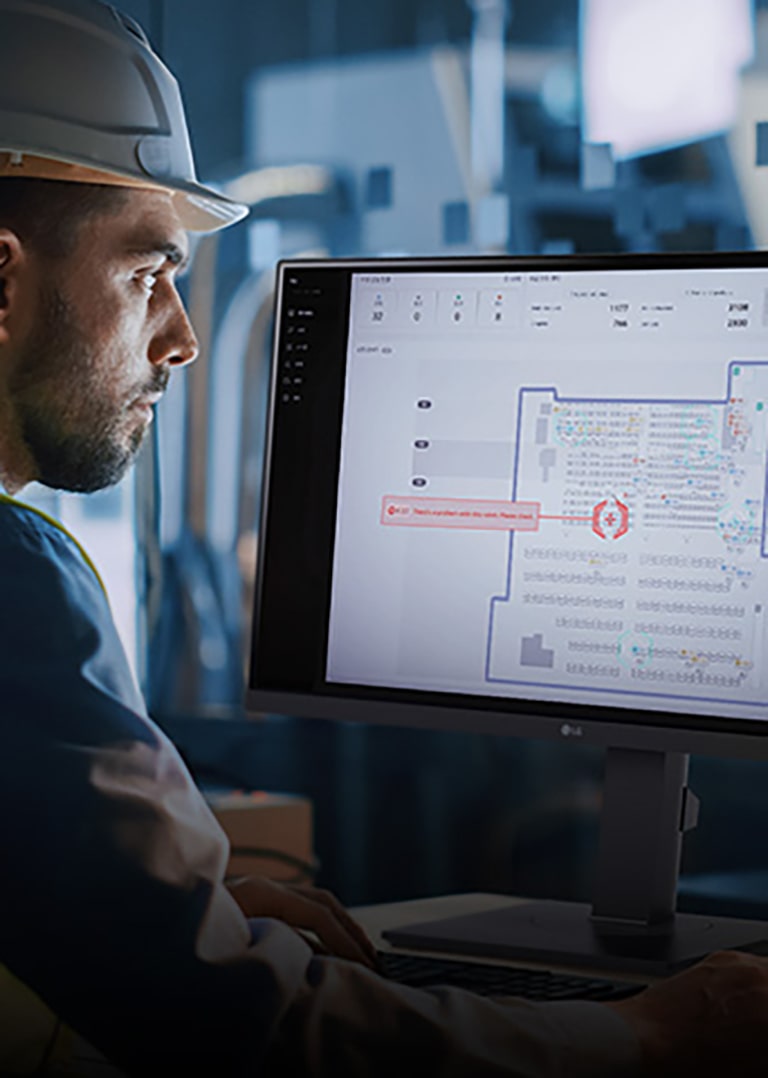

  • The system will be notified if there is a problem with the AMR.

    Monitoring

    System alerts for abnormal AMR

  • You can gather statistics on operations and productivity.

    Analysis

    Logistics data analysis

*The images simulated to enhance feature understanding. It may differ from actual use.

LG CLOi CarryBot Lineup

Specification

Collapse All
Spec Detail
  LDLAXBT10 LDLAXVT10 LDLAXWT10 LDLAXRO10
Mounting (LDLAXBT10)
Mounting (LDLAXVT10)
Mounting (LDLAXWT10)
Rolltainer (LDLAXRO10)
Features
Mounting (LDLAXBT10)
Mounting (LDLAXVT10)
Mounting (LDLAXWT10)
Rolltainer (LDLAXRO10)
Payload 30 kg (60 lb) 30 kg (60 lb) 30 kg (60 lb) 65 kg (143 lb)
AMR Dimension (W x D x H) 510 x 510 x 1,480 mm 510 x 510 x 1,480 mm 510 x 510 x 1,480 mm 510 x 510 x 1,340 mm
Shelf / Rolltainer Dimension 760 x 417 x 657 mm 760 x 417 x 657 mm 760 x 417 x 657 mm 760 x 500 x 1,050 mm
Display Touch LCD ( 9.2”) Touch LCD ( 9.2”) Touch LCD ( 9.2”) Touch LCD ( 9.2”)
Charging 25 Ah x 2 25 Ah x 2 25 Ah x 2 25 Ah x 2
Speed (max.) 1.2 m/s 1.2 m/s 1.2 m/s 1.2 m/s
Sensor ToF / LiDAR / RGBD Camera ToF / LiDAR / RGBD Camera ToF / LiDAR / RGBD Camera ToF / LiDAR / RGBD Camera
Charging Time 6 hrs / Auto Charging 6 hrs / Auto Charging 6 hrs / Auto Charging 6 hrs / Auto Charging
Continuous Operating Time Min: 18 hrs / Typ: 18.5 hrs Min: 18 hrs / Typ: 18.5 hrs Min: 18 hrs / Typ: 18.5 hrs Min: 18 hrs / Typ: 18.5 hrs
Connectivity Wi-Fi (11 a/b/g/n) Wi-Fi (11 a/b/g/n) Wi-Fi (11 a/b/g/n) Wi-Fi (11 a/b/g/n)
Collapse All
Spec Detail


Features
Payload
AMR Dimension (W x D x H)
Shelf / Rolltainer Dimension
Display
Charging
Speed (max.)
Sensor
Charging Time
Continuous Operating Time
Connectivity
Spec Detail
LDLAXBT10 LDLAXVT10 LDLAXWT10 LDLAXRO10
Mounting (LDLAXBT10)
Mounting (LDLAXVT10)
Mounting (LDLAXWT10)
Rolltainer (LDLAXRO10)
Mounting (LDLAXBT10)
Mounting (LDLAXVT10)
Mounting (LDLAXWT10)
Rolltainer (LDLAXRO10)
30 kg (60 lb) 30 kg (60 lb) 30 kg (60 lb) 65 kg (143 lb)
510 x 510 x 1,480 mm 510 x 510 x 1,480 mm 510 x 510 x 1,480 mm 510 x 510 x 1,340 mm
760 x 417 x 657 mm 760 x 417 x 657 mm 760 x 417 x 657 mm 760 x 500 x 1,050 mm
Touch LCD ( 9.2”) Touch LCD ( 9.2”) Touch LCD ( 9.2”) Touch LCD ( 9.2”)
25 Ah x 2 25 Ah x 2 25 Ah x 2 25 Ah x 2
1.2 m/s 1.2 m/s 1.2 m/s 1.2 m/s
ToF / LiDAR / RGBD Camera ToF / LiDAR / RGBD Camera ToF / LiDAR / RGBD Camera ToF / LiDAR / RGBD Camera
6 hrs / Auto Charging 6 hrs / Auto Charging 6 hrs / Auto Charging 6 hrs / Auto Charging
Min: 18 hrs / Typ: 18.5 hrs Min: 18 hrs / Typ: 18.5 hrs Min: 18 hrs / Typ: 18.5 hrs Min: 18 hrs / Typ: 18.5 hrs
Wi-Fi (11 a/b/g/n) Wi-Fi (11 a/b/g/n) Wi-Fi (11 a/b/g/n) Wi-Fi (11 a/b/g/n)
Close
Playload
  • Playload
    30 kg (66 lb)
AMR Dimension(W x D x H)
  • AMR Dimension(W x D x H)
    510x510x1,480 mm
    (20x20x58 inch)
AMR Shelf/Rolltainer Dimension
  • AMR Shelf / Rolltainer Dimension
    465x217x730 mm
    (18x8.5x26 inch)
Display
  • Display
    Touch LCD (9.2 inch)
Charging
  • Charging
    25 Ah x2
Speed(max.)
  • Speed(max.)
    1.2 m/s
Sensor
  • Sensor
    ToF / LiDAR / RGBD Camera / Magent
Charging Time
  • Charging Time
    6 hours / Auto Charging
Continuous Operating Time
  • Continuous Operating Time
    Min : 18 hours / Typ : 18 hours 30 min
Connectivity
  • Connectivity
    Wi-Fi (11 a/b/g/n)

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
