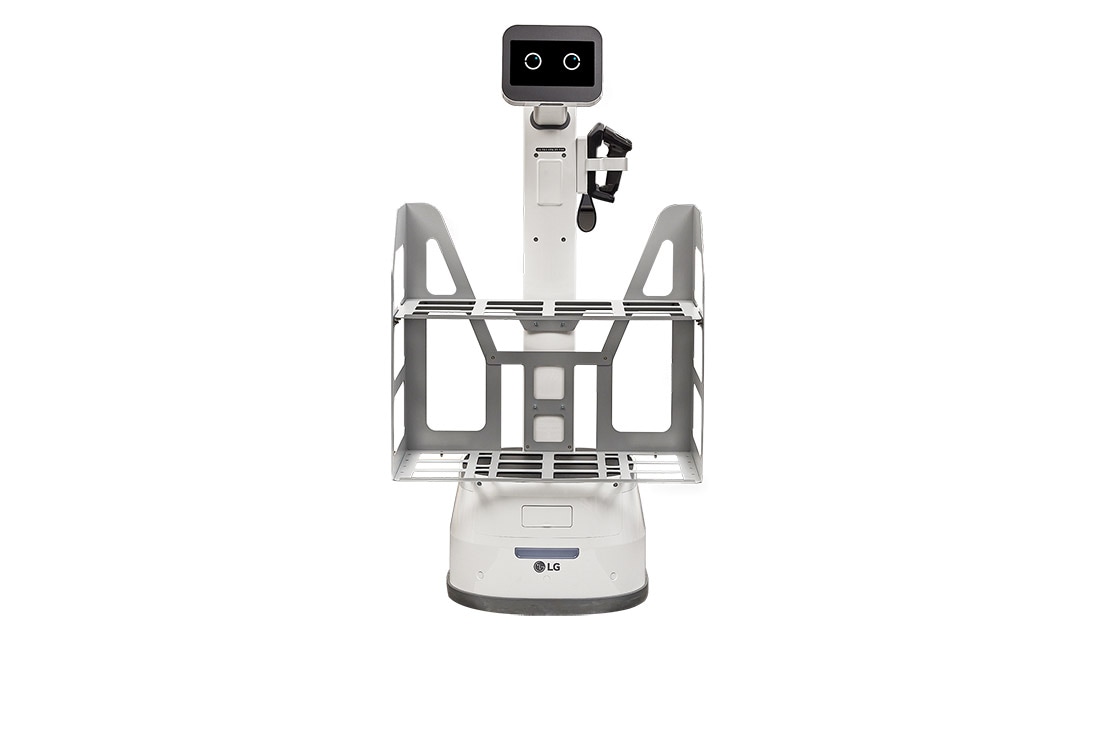

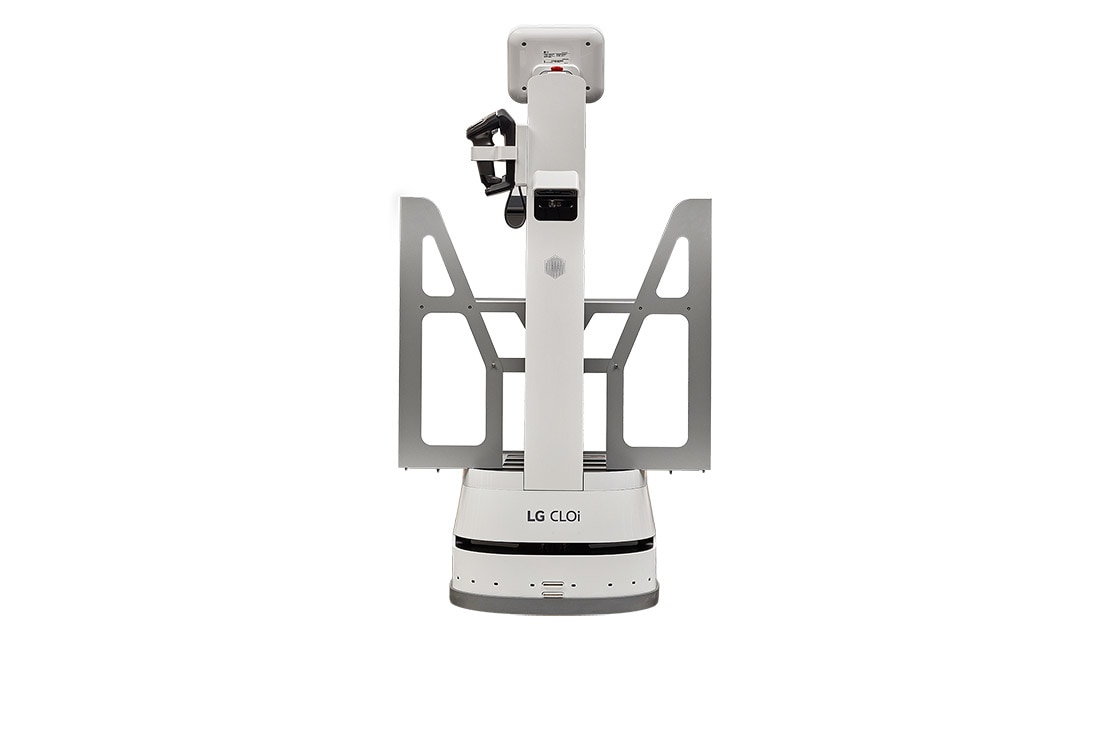

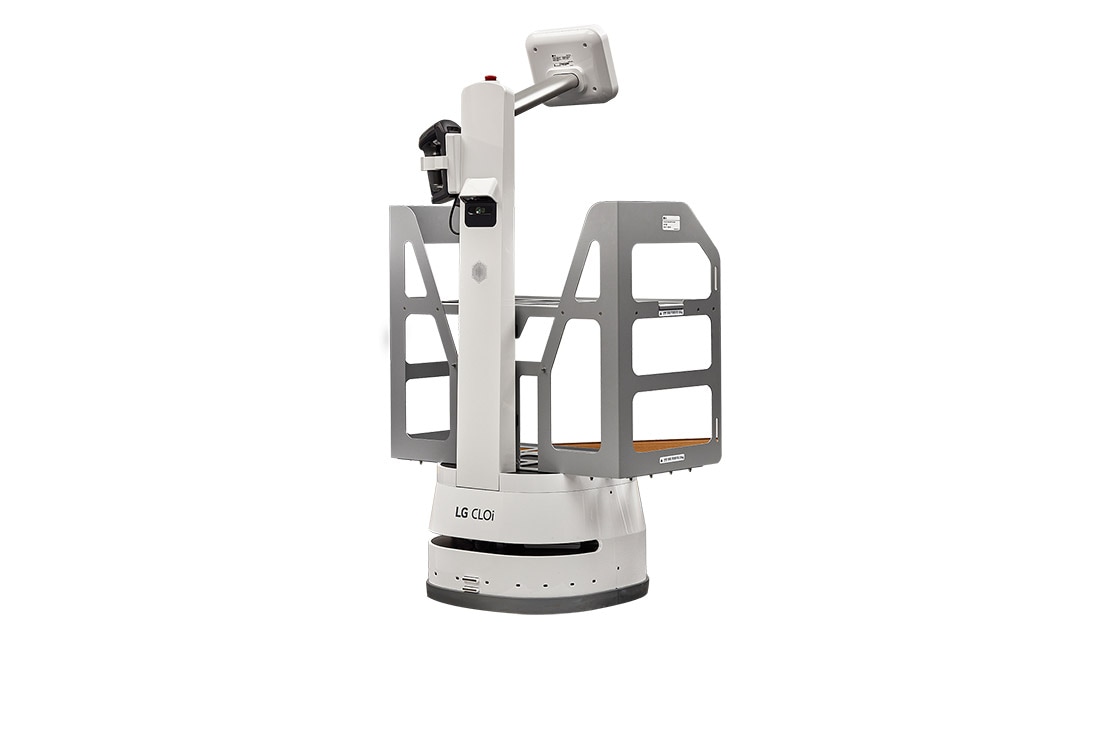

LDLAXWT10
Copy Model Name
CLOi CarryBot that increase work efficiency
/
component-OBScountrySelectDesc
*titleText*
The model name has been copied.
┗ *modelName*
$*discountedPrice*
*userFriendlyName*
bundle-unable-text
$*discountedPrice*
component-discountMsg $*discountPrice*
CLOi CarryBot that increase work efficiency
MSRP
$*rPrice*
MSRP
$*rPromoPrice*
*discountMsg*
MSRP
$
See Retailer for Pricing
MSRP
vip-price-message
$

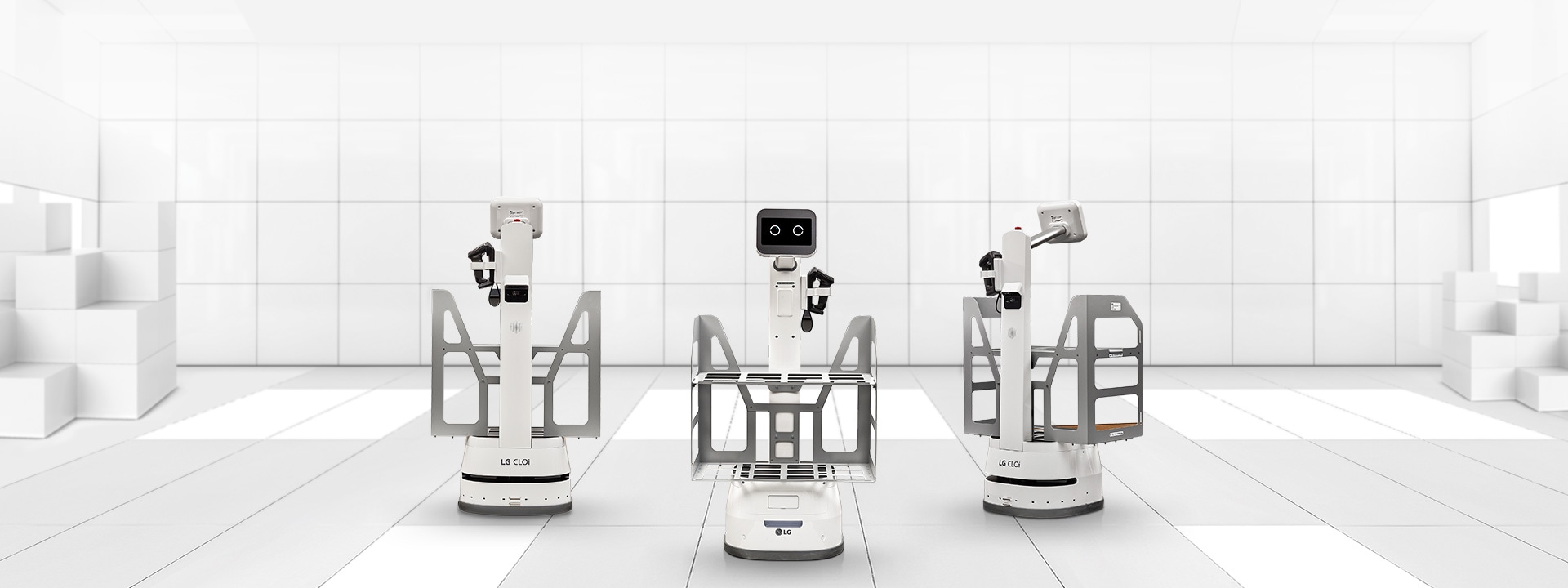

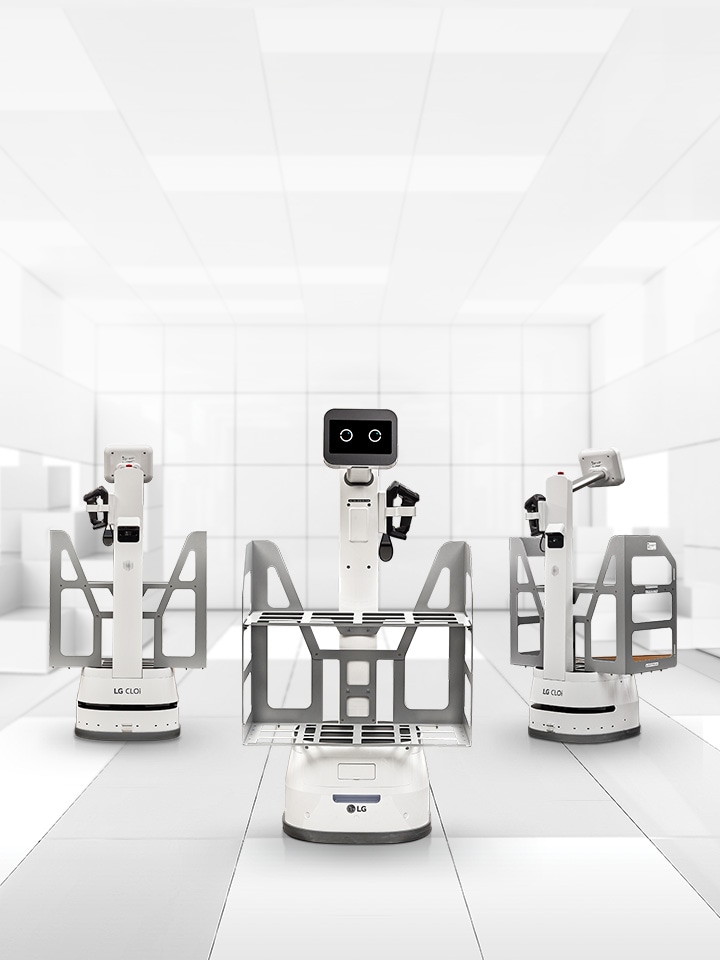

Why choose LG CLOi CarryBot?
Meet reliable partners that will increase your work efficiency.
MCS Optimized order distribution and scheduling to achieve improvement in productivity
FMS Optimized driving solution with fleet management system
Optimal design Optimized display position Shelf size for different product sizes
*The images simulated to enhance feature understanding. It may differ from actual use.
Warehouse Automation by LG CLOi CarryBot
CarryBot supports the warehouse operation to improve efficiency and productivity with optimized solutions for various customer needs.
*The images simulated to enhance feature understanding. It may differ from actual use.

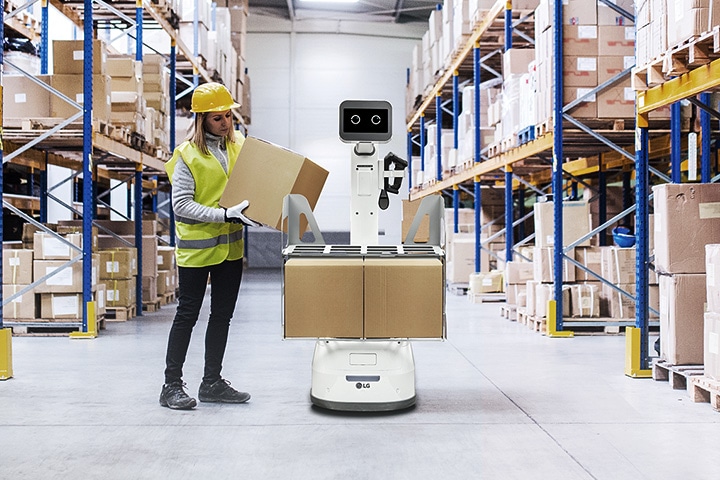

Reliable partner
Quick and convenient work
Our AMR can support operator by notifying the items to be picked and by delivering the items end-to-end while the operator can stay in the assigned zone only.
*The images simulated to enhance feature understanding. It may differ from actual use.

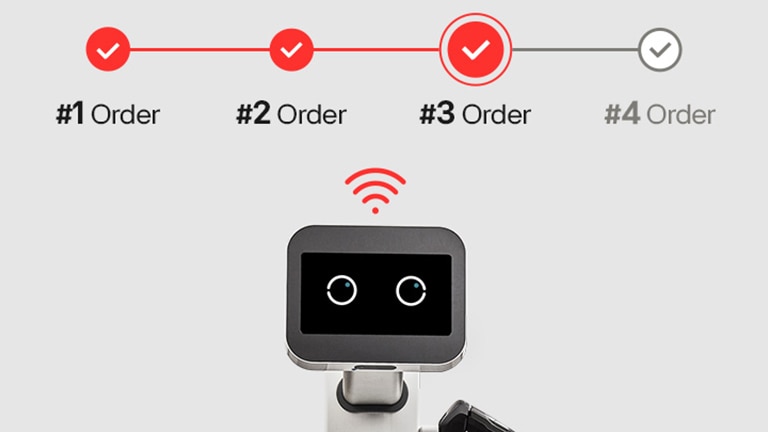

Smart ordering
Work efficiency and productivity
By simple and clear work steps thru smart order grouping, operator is able to perform the required level of work regardless of the operators’ job experience or skills.
*The images simulated to enhance feature understanding. It may differ from actual use.
Material Control System (MCS)
WMS* interfacing
Optimized order distribution and scheduling to achieve improvement in productivity.
*WMS: Warehouse Management System.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
Fleet Management System (FMS)
-

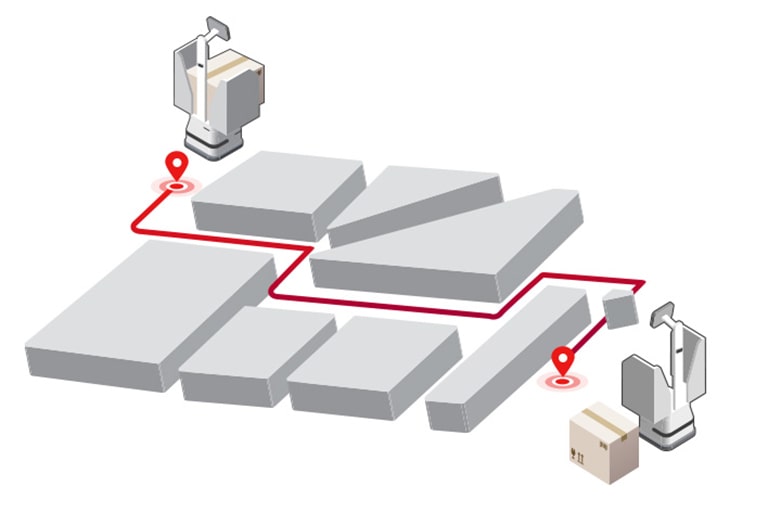

![The animation shows the CarryBot arriving at its destination on the fastest route.]()
Optimized driving solution
LG AMR driving algorithm with the Fleet Management System (FMS) enables an LG CLOi CarryBot to set the fastest route to the destination.
-

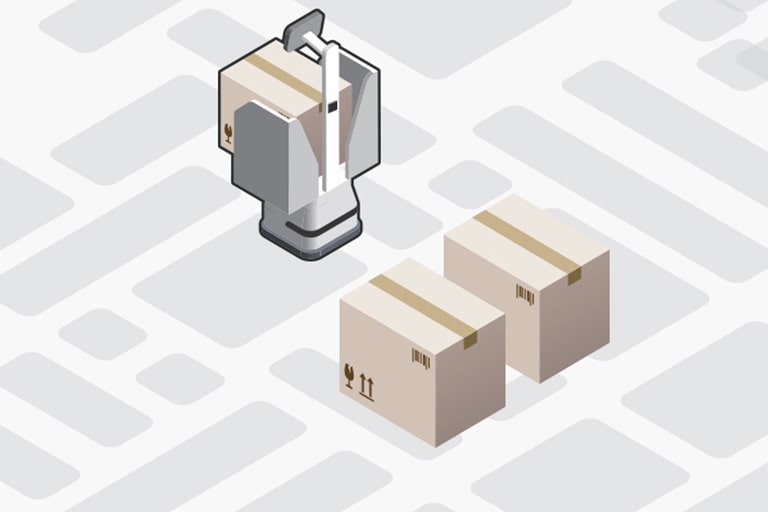

![The animation shows the CarryBot safely avoiding obstacles.]()
Safe & Stable autonomous driving
LG CLOi CarryBot safely drive to destinations based on autonomous driving and obstacle avoidance technology.
*The images simulated to enhance feature understanding. It may differ from actual use.
User-friendly design
Easy and efficient AMR hardware
User-friendly HW design enhance operator convenience and productivity.
-

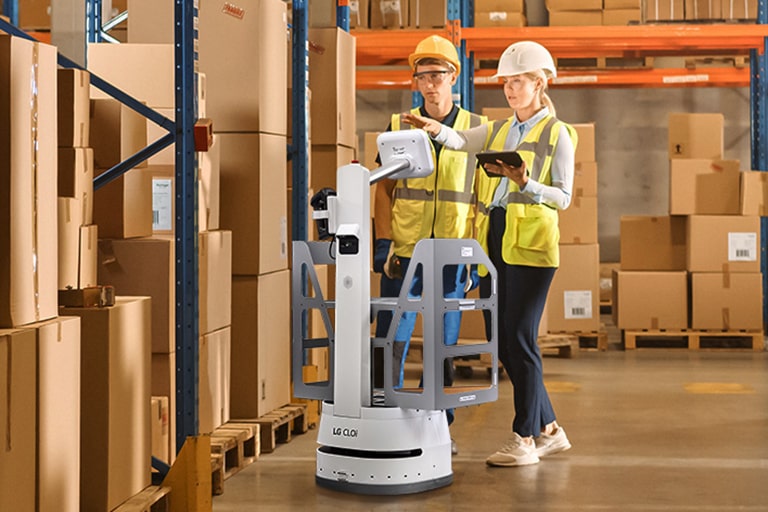

![This image shows that the display has been located for the operator's convenience.]()
Optimized display position
Location of display considering operator convenience.
-

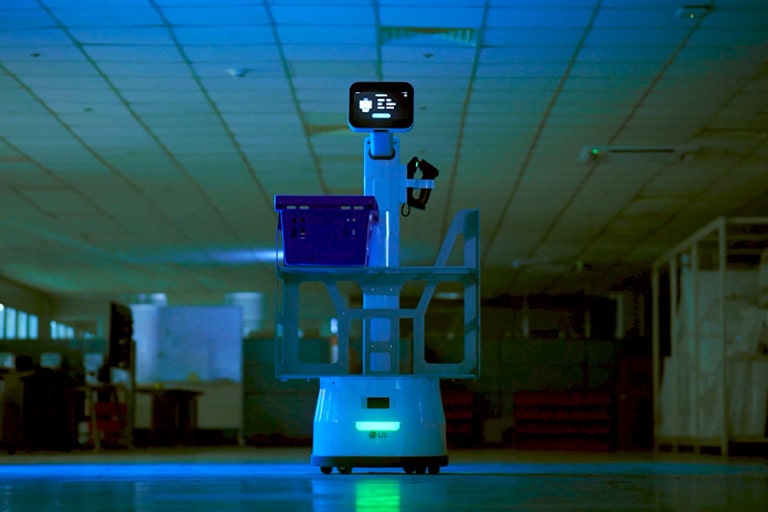

![The animation shows shelves of various sizes being loaded onto CarryBot.]()
Mounting shelf options
Shelf options considering various sizes of picking items.
*The images simulated to enhance feature understanding. It may differ from actual use.
Robot Management System
-

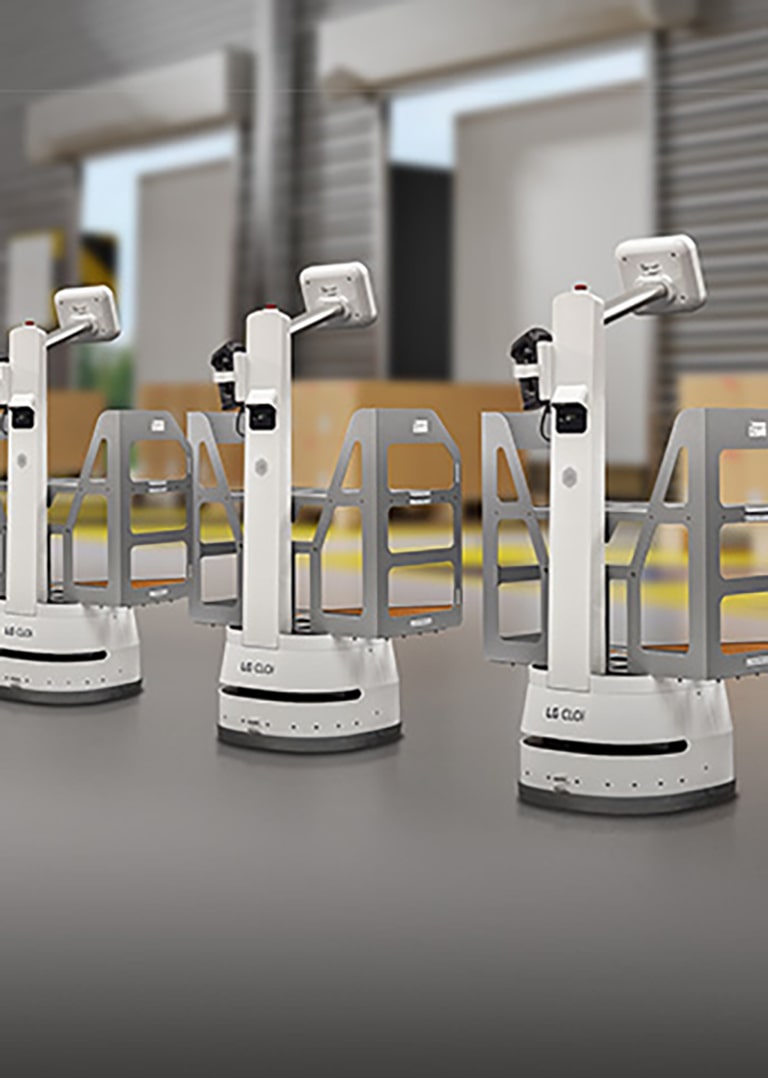

![Multi-AMR can operate 24 hours a day.]()
24 Hours
24 Hours Multi-AMR operation
-

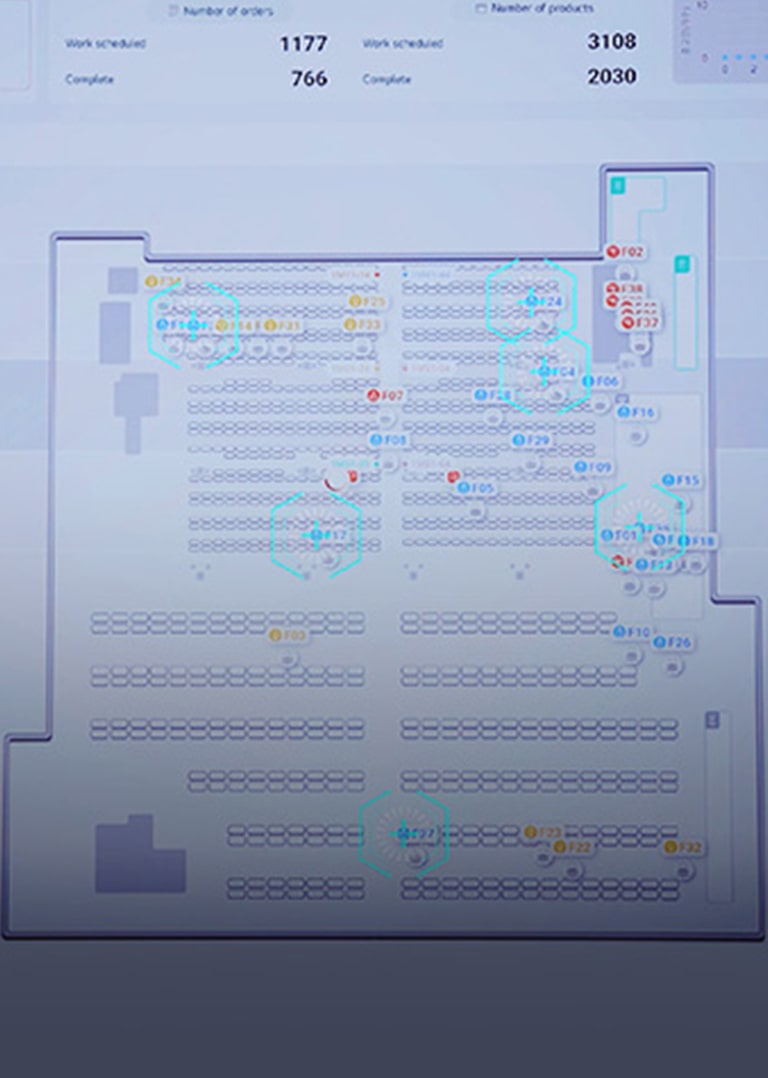

![You can monitor the location of AMRs.]()
Location
Robot location information
-

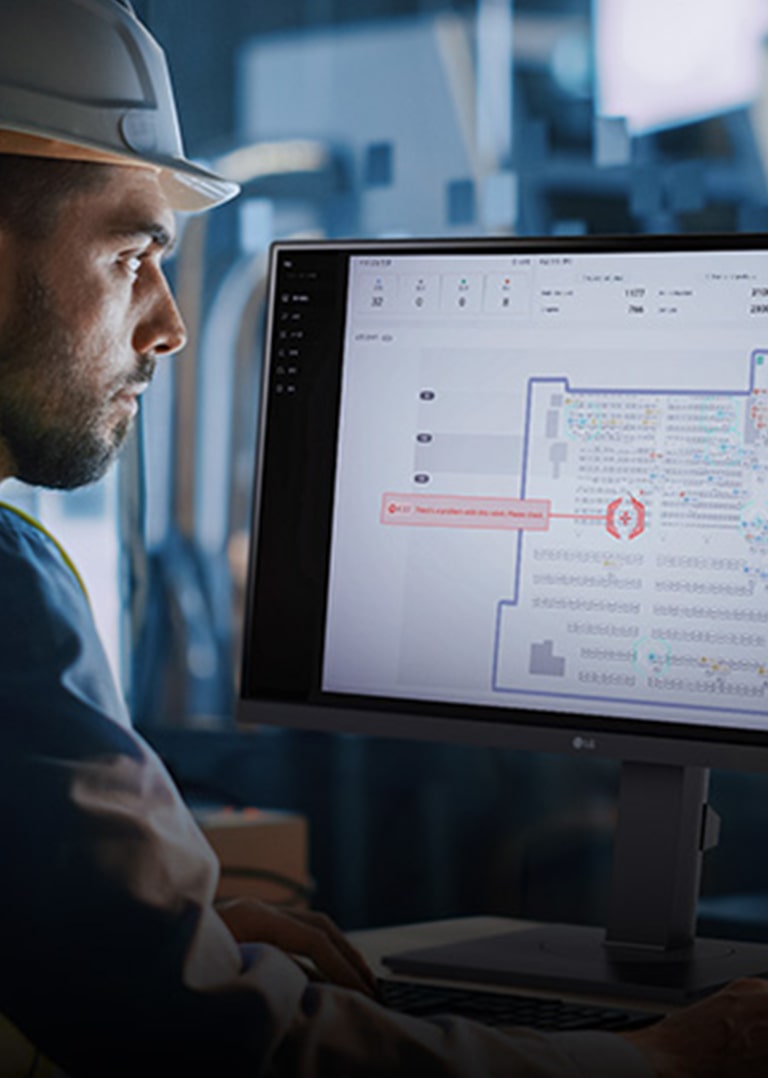

![The system will be notified if there is a problem with the AMR.]()
Monitoring
System alerts for abnormal AMR
-
![You can gather statistics on operations and productivity.]()
Analysis
Logistics data analysis
*The images simulated to enhance feature understanding. It may differ from actual use.
LG CLOi CarryBot Lineup
Specification
| LDLAXWT10 | LDLAXRO10 | |
|---|---|---|
 |
 |
|
| Features |
LG CLOi CarryBot (LDLAXWT10)
|
LG CLOi CarryBot (LDLAXRO10)
|
| Payload | 30 kg (66 lb) | 65 kg (143 lb) |
| AMR Dimension (W x D x H) | 510 x 510 x 1,480 mm | 510 x 510 x 1,340 mm |
| Shelf / Rolltainer Dimension | 760 x 417 x 657 mm | 760 x 500 x 1,050 mm |
| Display | Touch LCD ( 9.2”) | Touch LCD ( 9.2”) |
| Charging | 25 Ah x 2 | 25 Ah x 2 |
| Speed (max.) | 1.2 m/s | 1.2 m/s |
| Sensor | ToF / LiDAR / RGBD Camera | ToF / LiDAR / RGBD Camera |
| Charging Time | 6 hrs / Auto Charging | 6 hrs / Auto Charging |
| Continuous Operating Time | Min: 18 hrs / Typ: 18.5 hrs | Min: 18 hrs / Typ: 18.5 hrs |
| Connectivity | Wi-Fi (11 a/b/g/n) | Wi-Fi (11 a/b/g/n) |
| Features |
|---|
| Payload |
| AMR Dimension (W x D x H) |
| Shelf / Rolltainer Dimension |
| Display |
| Charging |
| Speed (max.) |
| Sensor |
| Charging Time |
| Continuous Operating Time |
| Connectivity |
| LDLAXWT10 | LDLAXRO10 |
|---|---|
|
|
|
|
LG CLOi CarryBot (LDLAXWT10)
|
LG CLOi CarryBot (LDLAXRO10)
|
| 30 kg (66 lb) | 65 kg (143 lb) |
| 510 x 510 x 1,480 mm | 510 x 510 x 1,340 mm |
| 760 x 417 x 657 mm | 760 x 500 x 1,050 mm |
| Touch LCD ( 9.2”) | Touch LCD ( 9.2”) |
| 25 Ah x 2 | 25 Ah x 2 |
| 1.2 m/s | 1.2 m/s |
| ToF / LiDAR / RGBD Camera | ToF / LiDAR / RGBD Camera |
| 6 hrs / Auto Charging | 6 hrs / Auto Charging |
| Min: 18 hrs / Typ: 18.5 hrs | Min: 18 hrs / Typ: 18.5 hrs |
| Wi-Fi (11 a/b/g/n) | Wi-Fi (11 a/b/g/n) |
Specification
-
- Payload
- 30 kg (66 lb)
- AMR Dimension (W x D x H)
-
510 x 510 x 1,480 mm
(20 x 20 x 58 inch)
-
- AMR Shelf / Rolltainer Dimension
-
465 x 217 x 730 mm
(18 x 8.5 x 26 inch)
- Display
- Touch LCD ( 9.2 inch)
-
- Connectivity
- Wi-Fi (11 a/b/g/n)
- Sensor
- ToF / LiDAR / RGBD Camera / Magnet
Battery
-
- Charging
- 25 Ah x 2
- Charging time
- 6 hours / Auto Charging
-
- Continuous operating time
- Min: 18 hours / Typ: 18 hours 30 min
Driving
-
- Speed (max.)
- 1.2 m/s
To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
