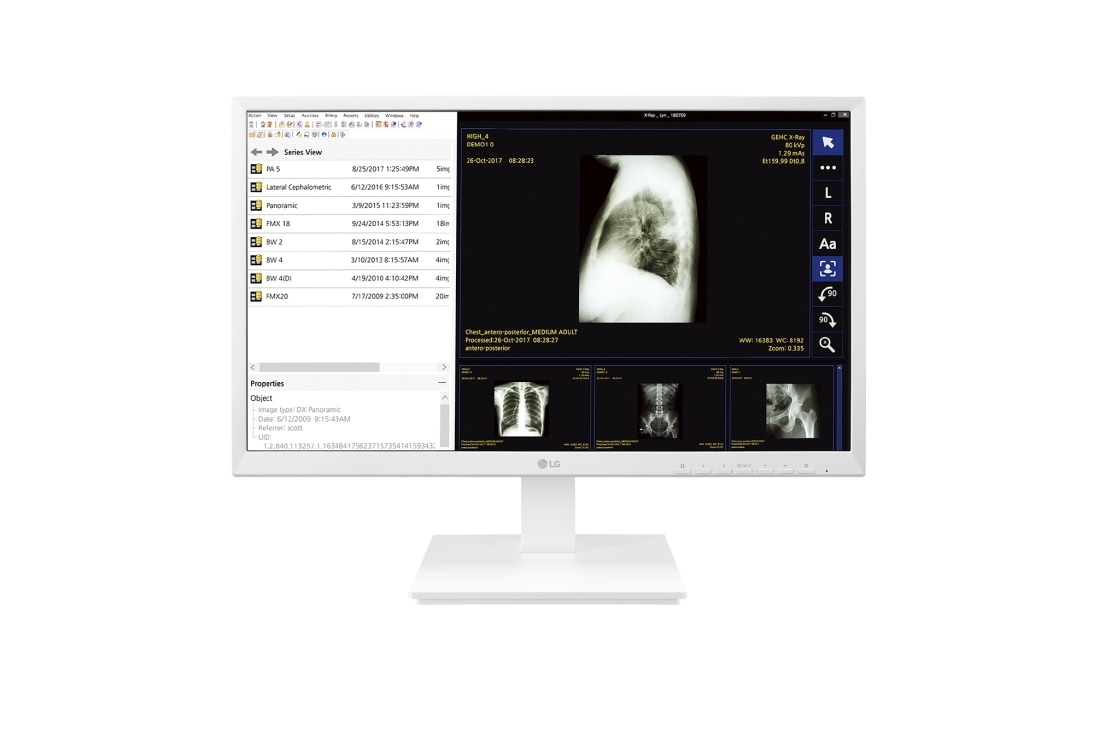

24" All-in-One Thin Client for Healthcare
Contact Us
Easy and Secure1 Easy and Secure2
Why Cloud Computing for Healthcare

Easy and Secure

LG Thin Client offers medical facilities an endpoint that delivers end-user performance and strong data protection. It provides a secure, cost-efficient, and reliable virtual desktop experience that's easy to implement and manage.

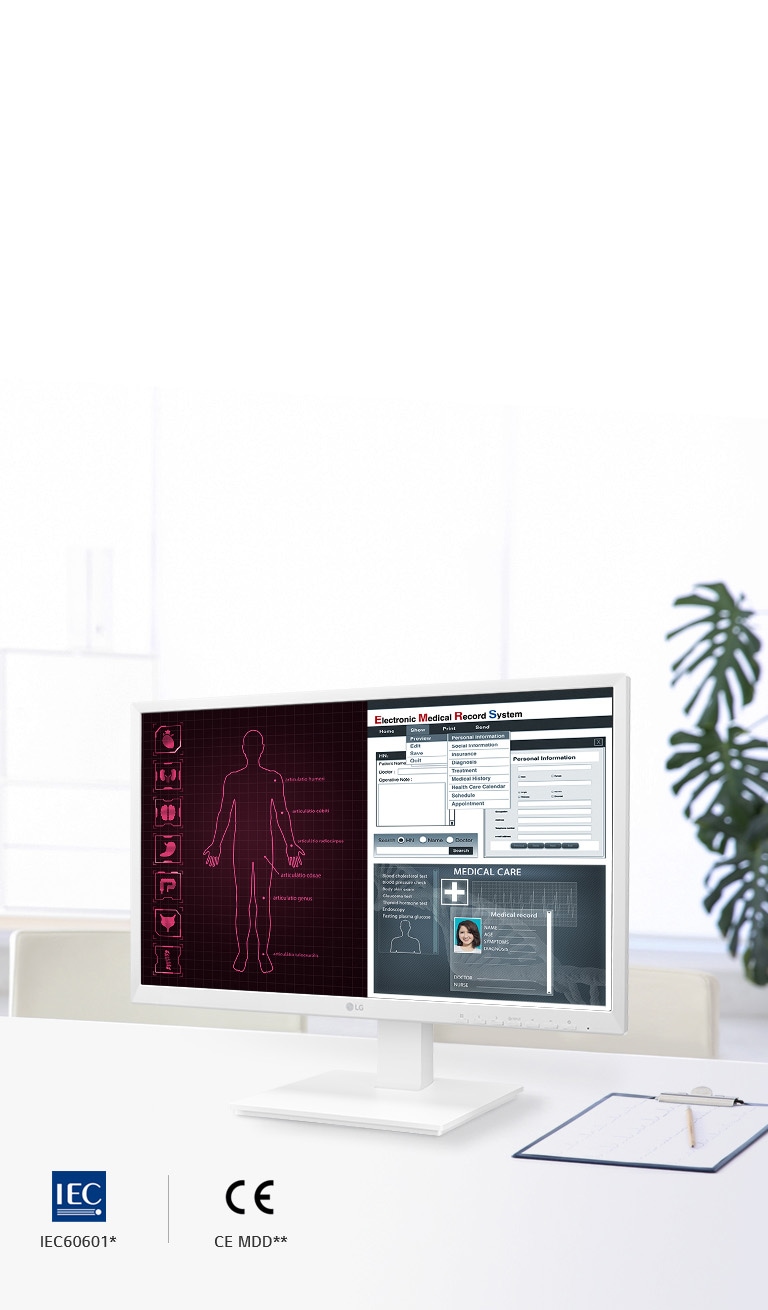

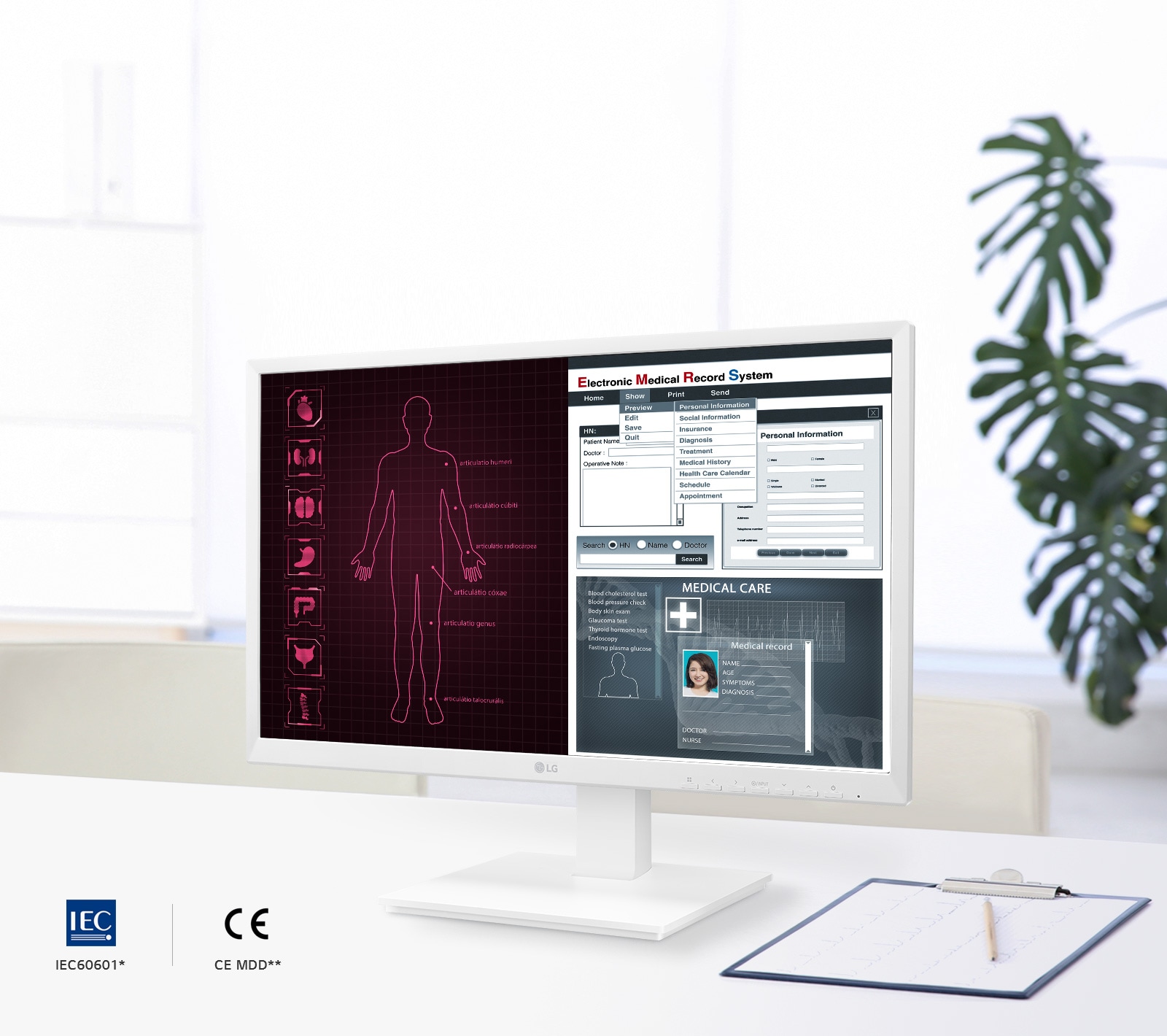

Designed for Healthcare1 Designed for Healthcare2
LG All-in-One Thin Client

Designed for Healthcare

LG's 24CK560N approved by medical standards (IEC60601*, CE MDD** and FDA Class I***), ensures its reliability at medical environment. Also its white color body helps to remove substances such as dust and dirt easily and keep it clean. So you can maintain the highest level of cleanliness**** and promote patient safety.
*IEC 60601: Series of technical standards for safety and essential performance of medical equipments, published by the International Electrotechnical Commission.
**CE marking: The medical device manufacturer's claim that a product meets the essential requirements of all relevant European Medical Device Directives.
***FDA Class I: Class I devices are subject to ‘General Controls' as are Class II and Class III devices. Class I medical devices have a low to moderate risk to the patient and/or user.
****Recommended cleaning products are Isopropanol 100%, Ethanol 70%, Cidex OPA, 0.9% NaCl solution. All excluding screen. See user guide for cleaning instructions for more details.
More Accurate at Any Angle1 More Accurate at Any Angle2
Full HD IPS Display

More Accurate at Any Angle

LG All-in-One Thin Client with IPS technology delivers visual comfort especially for sharing charts and medical information with others. Also, when 24CK560N is connected to the LG monitor*, it can provide wider workstation.
*LG monitor 24BK550Y-W has the same design with 24CK560N.
Optimized for Medical Workplace1 Optimized for Medical Workplace2
Enhanced Work Efficiency

Optimized for Medical Workplace

LG 24CK560N supports an external display up to 4K, enhancing work efficiency in medical contexts where precise expression of detailed factors is essential. Also, its low level of noise with fanless design provides pleasant medical environment.
  • External Display Support*1

    External Display Support*

    LG cloud device supports up to 4K resolution for connected displays.

  • Fanless Design1

    Fanless Design

    The fanless design reduces the noise, then helps hospital staffs to focus and concentrate more on their work.

*Limited to devices supporting 4K resolution.

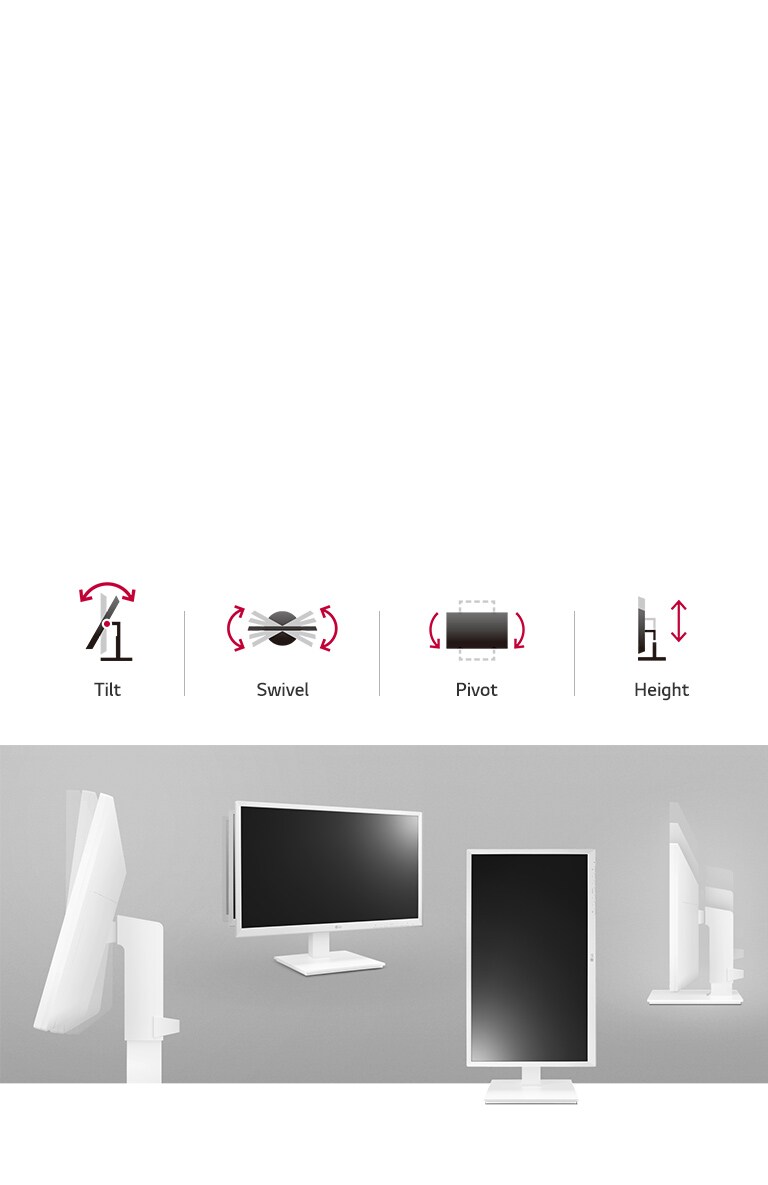

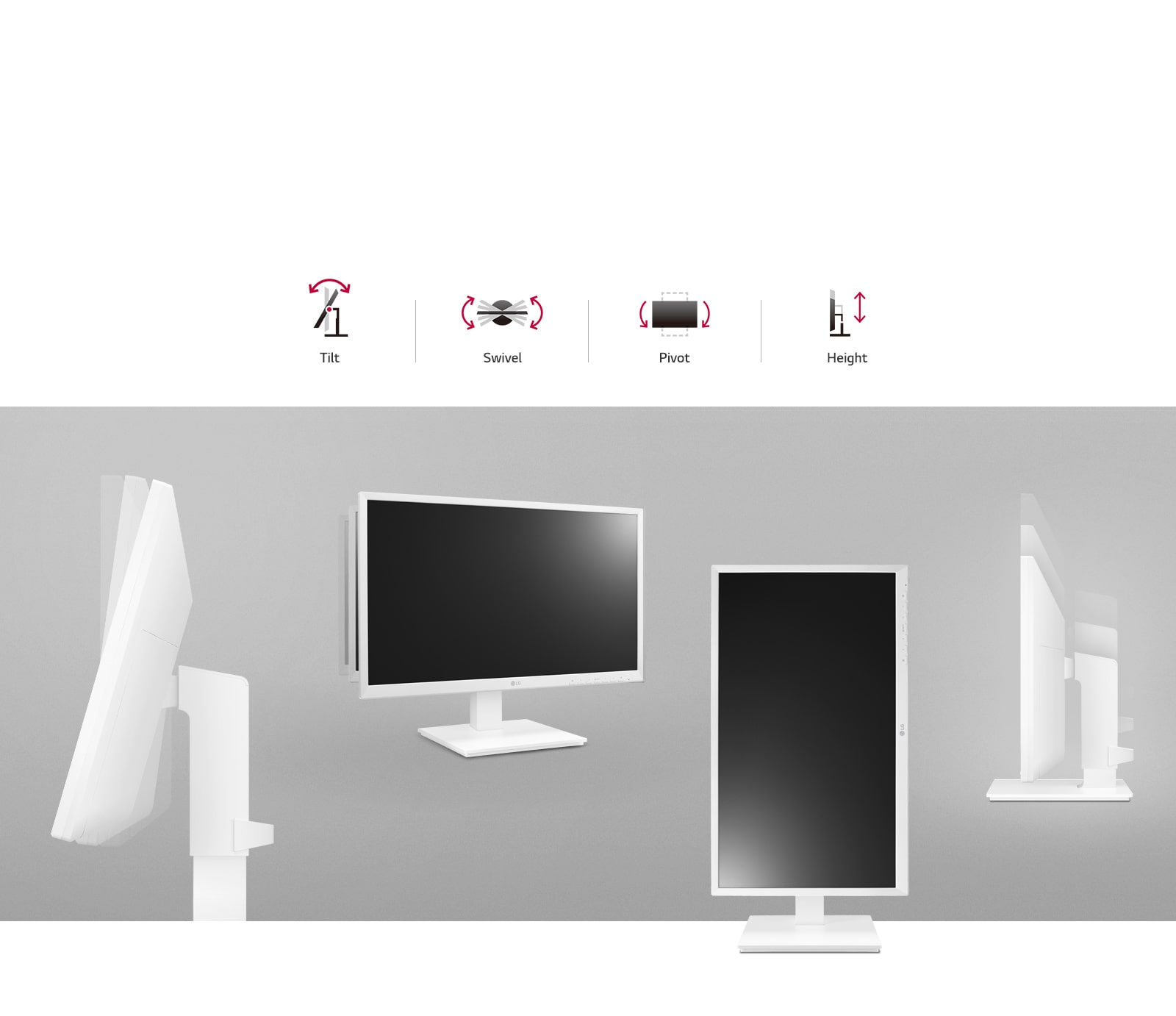

Better Workplace Ergonomics1 Better Workplace Ergonomics2
Ergonomic Design

Better Workplace Ergonomics

The 24CK560N supports tilt, swivel, pivot and height adjustment options for the best comfort at work. These ergonomics also make it easier to share content with others and set up the equipment for shift work, leading to user convenience.
Close
Feature
  • Multi - Size(Inch)
    23.8"
    Multi - Panel Type
    IPS
  • Multi - Color Gamut (CIE1976)
    72%
    Multi - Color Depth(Number of Colors)
    16.7M
  • Multi - Pixel Pitch(mm)
    0.2745 x 0.2745
    Multi - Aspect Ratio
    16:9
  • Multi - Resolution
    1920 x 1080
    Multi - Brightness
    250 cd/m2 (Typ)
    200 cd/m2 (Min)
  • Multi - Contrast Ratio(Original)
    1000 : 1 (Typ)
    Multi - Response Time(GTG)
    5ms (High)
  • Multi - Viewing Angle(CR≥10)
    178 / 178 (CR≥10)
Resolution
  • Signal-input - D-Sub
    NO
    Signal-input - DVI-D
    NO
  • Signal-input - DisplayPort
    NO
    Signal-input - HDMI
    1920 x 1080 @ 60Hz
  • Signal-input - Component
    NO
    Signal-input - Video
    NO
  • Signal Output - DVI out
    NO
    Signal Output - DisplayPort Out
    External only : 4096 x 2160 @ 60Hz
    Extension mode : 3840 x 2160 @ 60Hz
PC
  • Processor
    AMD Pairie Falcon GX-212JJ
    Operation System
    Non OS
  • Management Console
    NO
    System Memory
    4GB DDR4
  • Graphics
    Integrated Graphics
    Storage
    32GB (M.2 SSD)
    M.2 2280/2242 SSD Supported (SATA/PCIe supported)
  • Display Support
    4096x2160@50Hz, 3840x2160@60Hz (via DisplayPort 1.2 out)
    TPM (Trust Platform Module)
    Software TPM
  • VDI Support
    NO
    Certifications
    (Based on US ratings)
    NO
Interface
  • Networking - Wireless
    Intel Dual Band Wireless-AC 3168 1x1 AC (AGN support, BT 4.0 + LE Combo), Internal Antenna
    Networking - BT
    BT4.0
  • Networking - LAN
    1 x RJ45 : Ehternet 10/100/1000 (Support Wake on LAN)
    Networking - Fiber
    NO
  • Signal Input - D-Sub
    NO
    Signal Input - DVI
    NO
  • Signal Input - DisplayPort
    NO
    Signal Input - mini DisplayPort
    NO
  • Signal Input - HDMI
    YES (1.4)
    Signal Input - Thunderbolt (Ver)
    NO
  • Signal Input - DC-in
    YES
    Signal Output - DVI Out
    NO
  • Signal Output - HDMI Out
    NO
    Signal Output - DisplayPort Out
    YES(1.2)
  • Audio Input - PC Audio In
    NO
    Audio Input - Mic In
    YES
  • Audio Output - RCA
    NO
    Audio Output - Headphone Out
    YES
  • Audio Output - Line-out
    NO
    Audio Output - Optical out
    NO
  • USB
    4 x USB2.0, 2 x USB3.0
    DC-in
    YES
Speaker
  • Type
    2ch Stereo
    Audio output (watt)
    2 x 3W
Power
  • Input/Output) - Type
    Adapter
    Input/Output) - Input
    100~240V (50/60Hz)
  • Input/Output) - Output
    65 Watt
    Input/Output) - Battery
    N/A
  • Consumption - Sleep Mode(Max)
    1.0Watt
    Consumption - DC Off(Max)
    0.6Watt
  • Consumption - Long Idle(Display OFF)
    6.0Watt
    Consumption - Short Idle(Display ON)
    30Watt
  • Consumption - TEC (kWh)
    96.5 kWh
Special Feature
  • PC Features - Webcam
    NO
    PC Features - SD Card Slot
    NO
  • PC Features - Etc.
    NO
    Picture - PBP / PIP
    NO
  • Picture - Reader Mode
    YES
    Sound - Maxx Audio
    YES
  • Special Feature - Color Calibrated
    NO
    Special Feature - Dual Control
    NO
  • Special Feature - Flicker safe
    YES
    Special Feature - Smart Energy Saving
    YES
  • Special Feature - Super Resolution+
    YES
    Special Feature - True Color Pro / Finder
    NO
  • Special Feature - OSC (On Screen Control / Screen Split)
    YES
    Special Feature - Power Charge
    NO
  • Special Feature - Touch
    NO
Stand
  • Tilt(Angle)
    -5º ~ 35º
    Swivel(Angle)
    YES ('0°~355° (±5°))
  • Height range (mm)
    130mm
    Down Height (mm)
    70mm
  • Pivot
    YES (Bi-directional, 90º)
Size/Weight
  • Dimension (WxDxH) - Set (with Stand, mm)
    553.8 x 512.9 x 240 (mm)
    Dimension (WxDxH) - Set (without Stand, mm)
    553.8 x 333.1 x 67.6 (mm)
  • Dimension (WxDxH) - Box (mm)
    626 x 194 x 474 (mm)
    Dimension (WxDxH) - VESA / Wall Mount (mm)
    100 x 100 (Wall mount)
  • Weight - Set (with Stand, Kg)
    6.1 kg
    Weight - Set (without Stand, Kg)
    3.95 kg
  • Weight - Box (Kg)
    8.25 kg
ETC
  • Warranty
    3 Years
  • Datasheet
    • IT-Cloud-Flyer-24CK560N-Global-2019.pdf

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
