CQ601W component-copyModelName
Desktop Thin Client

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (CQ601W)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (CQ601W)
    $
    $
    LG Members Price
Total
Desktop Thin Client
Contact Us
Why Cloud Device

Productivity and Efficiency

LG offers various thin client form factors that add value to your work environment with powerful performance, lower costs, and compact design.

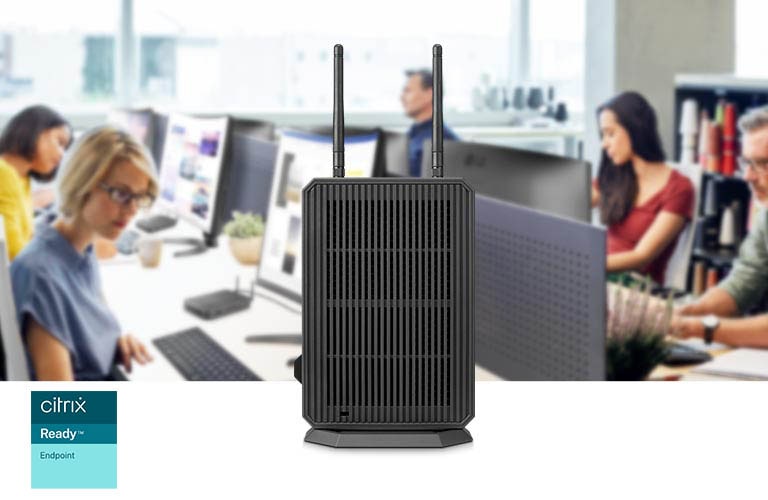

lg thin client offering powerful performance and lower costs than a conventional PC device. lg thin client offering powerful performance and lower costs than a conventional PC device.
Powerful Security icon.

Powerful Security

Access Anytime, Anywhere icon.

Access Anytime, Anywhere

Making Operations Efficiently icon.

Making Operations Efficiently

Convenient Collaboration icon.

Convenient Collaboration

Business Continuity icon.

Business Continuity

Cost Savings icon.

Cost Savings

Quad-core Processor

Powerful Performance

With Quad-core Processor and a powerful system memory option, CQ601W supports the fast work process that boosts your productivity.

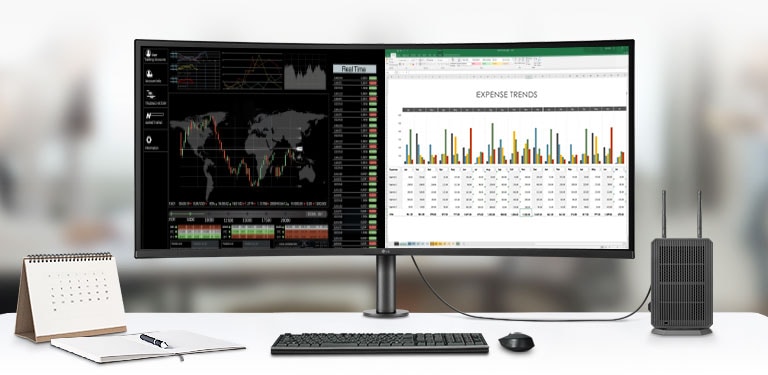

quad-core processor enabling you to get work done fast, and easily. quad-core processor enabling you to get work done fast, and easily.

CQ601W offering Intel® Pentium N6005 Processor. Processor Intel® Pentium N6005

CQ601W offering 8GB DDR4 and SSD 256GB for storage. RAM & Storage 8GB DDR4 / SSD 256GB

CQ601W offering Windows 10 IoT Enterprise for operation system. OS Windows 10 IoT Enterprise

*RAM and storage specifications as detailed above may differ by model.

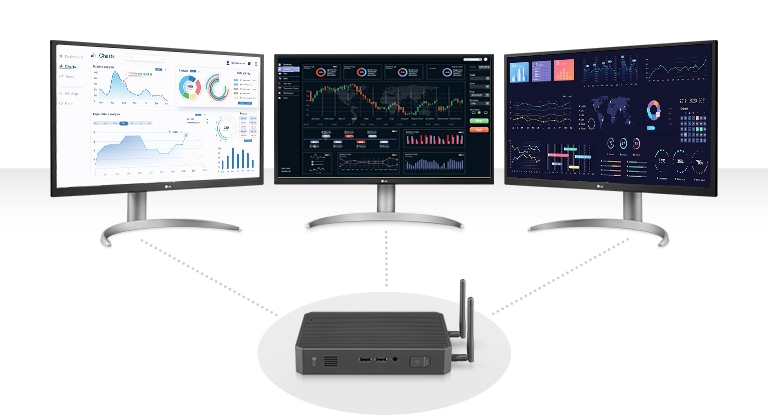

Up to 3 Display Support

Make Your Own Productive Workstation

LG CQ601W supports up to 4K UHD resolution triple displays. With flexibility for multi-monitor set-up options, you can get more done in less time.
CQ601W enabling to connect up to three uhd 4k resolution displays. CQ601W enabling to connect up to three uhd 4k resolution displays.
*Supporting connected displays via USB Type-C™ and DisplayPort out.
*USB Type-C™, DisplayPort, and HDMI cables are not included.

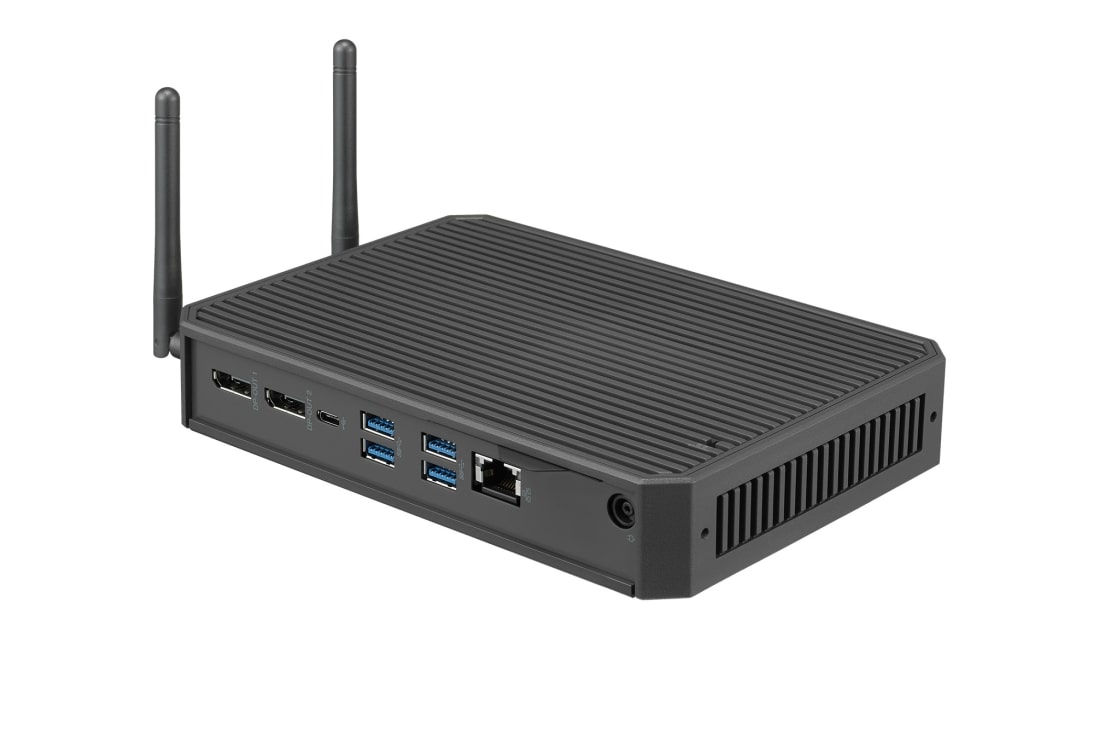

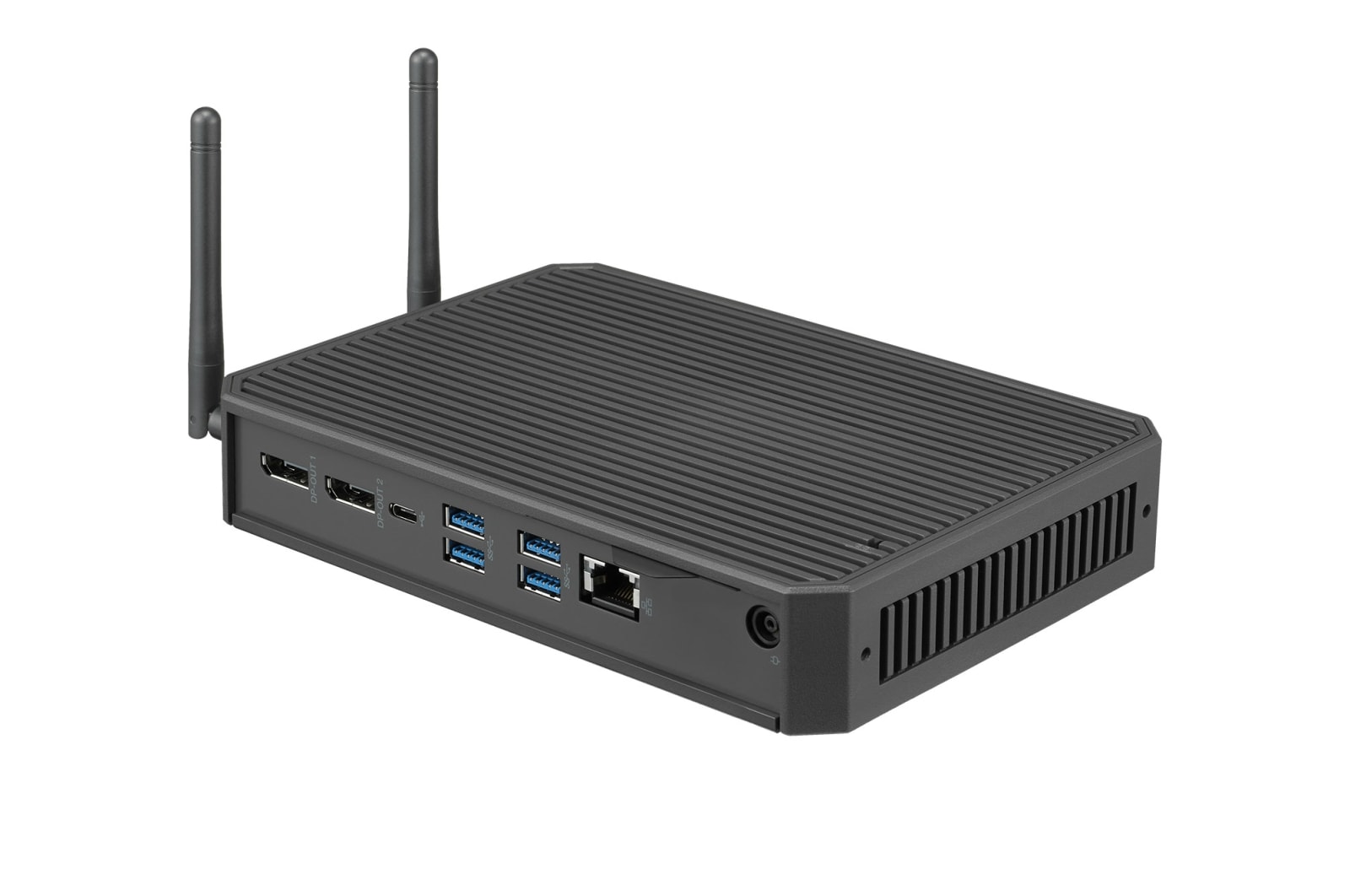

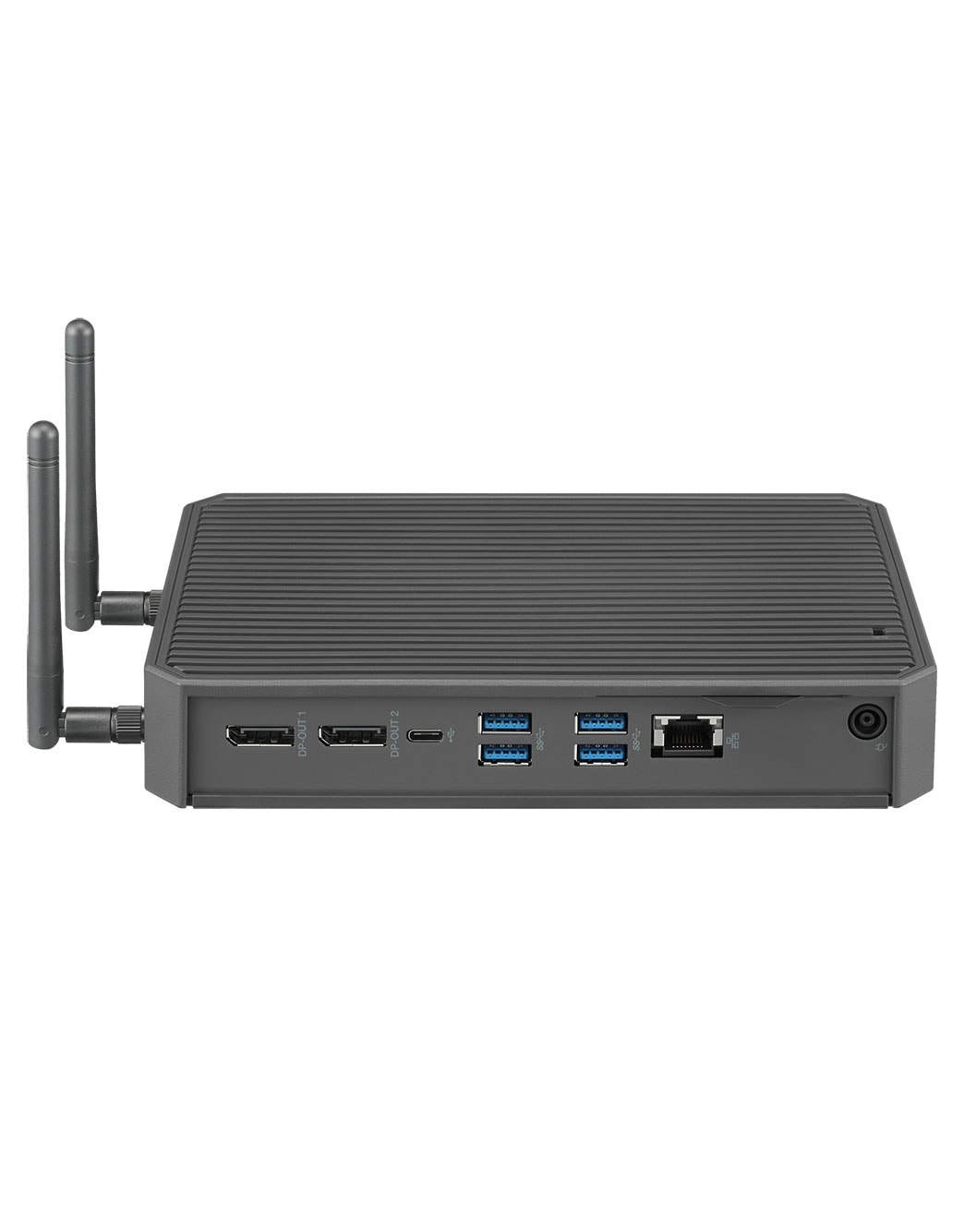

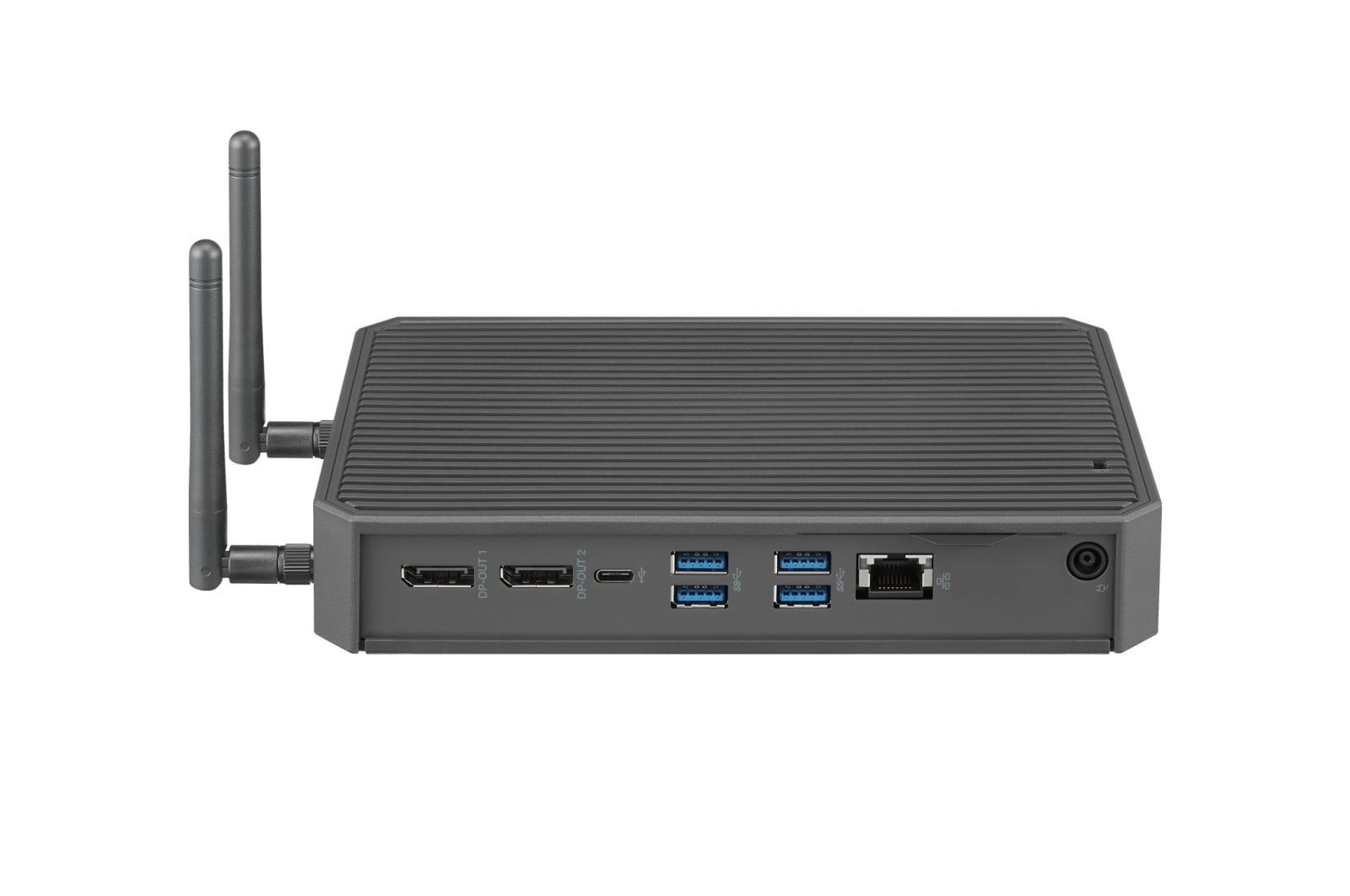

Various Interface

CQ601W's multi ports can be utilized to improve connectivity and productivity.

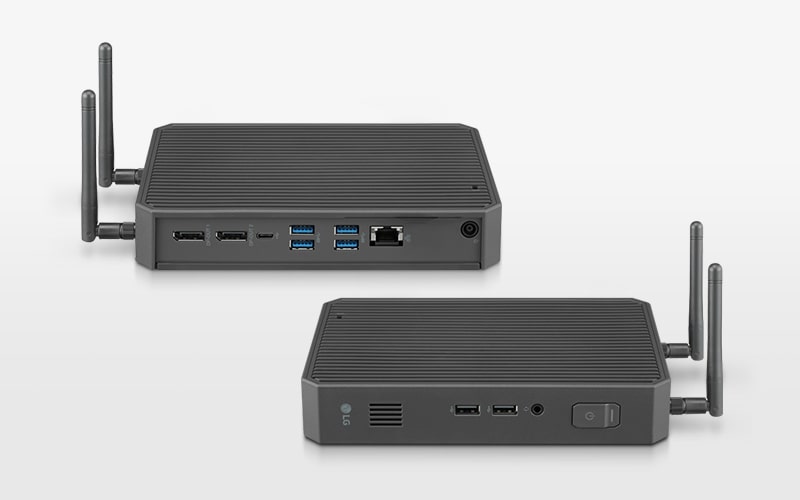

Various Interface : DisplayPort, USB Type-C™, USB 3.2 gen1, Gigabit Ethernet, USB 2.0, Headphone & Mic Combo. Various Interface : DisplayPort, USB Type-C™, USB 3.2 gen1, Gigabit Ethernet, USB 2.0, Headphone & Mic Combo.
1) DisplayPort 2) USB Type-C™ 3) USB 3.2 gen1 4) Gigabit Ethernet 5) USB 2.0
6) Headphone & Mic Combo
*Types of Inputs specified are numbered from left to right, top to bottom of the image.
*USB Type-C™, DisplayPort, and HDMI cables are not included.
USB Type-C™

High-performance Connection

CQ601W with USB Type-C™ port provides fast data transfer speeds along with high levels of power flow. With a single USB Type-C™ cable, you can simultaneously transmit data, video, and audio as well as powering CQ601W.

Display. Display

Power Delivery . Power Delivery

Data. Data

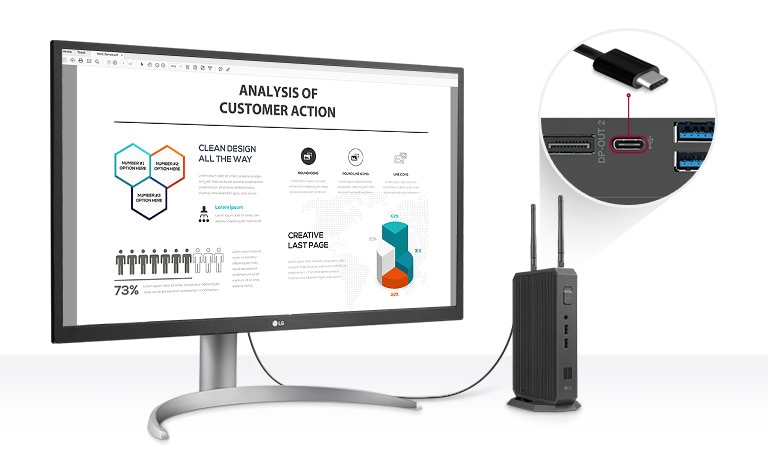

USB Type-C™ offering High-Performance Connection. USB Type-C™ offering High-Performance Connection.
*The images simulated to enhance feature understanding. It may differ from actual use.
*USB Type-C™ cable is not included.

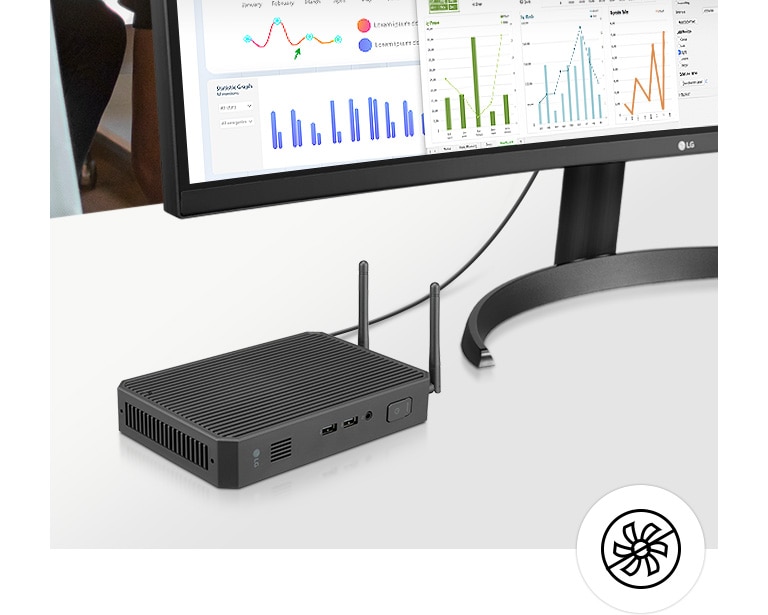

fanless design contributing to creating a pleasant office environment and increasing cost efficiency. fanless design contributing to creating a pleasant office environment and increasing cost efficiency.
Fanless Design

Silent and Cost-efficient

The fanless design increases the CQ601W's lifespan and also reduces replacement costs. Also its low-noise performance provides a pleasant work environment.
LG Cloud Device Manager enabling enhanced management for cloud device. LG Cloud Device Manager enabling enhanced management for cloud device.
LG Cloud Device Manager

Advanced Management for Cloud Device

It’s the optimized management software for LG thin clients. By installing on LG thin clients using Windows 10 IoT OS, the devices are managed and controlled centrally for high security, work efficiency and TCO reduction effect.
*TCO: Total Cost of Ownership
Close
PC Part
  • Processor
    Intel® Pentium N6005 (Quad Core 2.0GHz, up to 3.3GHz burst), Fanless
    Graphics
    Integrated Graphics
  • Operation System
    Windows 10 IoT Enterprise LTSC
    System Memory
    8GB (2x4GB) DDR4, 2666MHz, 2 SODIMM slots
  • Storage
    256GB, M.2 NVMe SSD
    Display Support
    Up to 3 displays : 3840x2160@60Hz (via 1st DisplayPort out), 3840x2160@60Hz (via 2nd DisplayPort out), 3840x2160@60Hz (via USB Type-C)
  • Expansion Slot
    M.2 Slots x 2 (Slot 1 : 256GB SSD, Slot 2 : WiFi + Bluetooth card),
    SO-DIMM x 2 (Slot 1 : 4GB DDR4, Slot 2 : 4GB DDR4)
    TPM (Trust Platform Module)
    Hardware TPM 2.0
  • VDI Support
    Citrix, VMware, Microsoft RDP, PCoIP S/W, MS AVD, Amazon WSP
SW Application
  • Management Console
    LG Cloud Device Manager
Connectivity
  • DisplayPort
    YES(out 2ea)
    DP Version
    1.4
  • DP (Max. Resolution at Hz)
    3840x2160 @ 60Hz
    MIC & Headphone out combo
    1 x 3.5mm audio-mic combo jack (CTIA Type)
  • USB
    2 x USB 2.0 Type-A, 4 x USB 3.2 gen1 Type-A, 1 x USB 3.2 gen2 Type-C with DP out
    USB-C
    YES(out 1ea)
  • USB-C (DP Version)
    1.4
    [Location]
    Horizontal
Sound
  • Speaker
    YES
    Speaker_Channel
    1ch
  • Speaker_Output (unit)
    1W
    Speaker_Direction
    Front Firing
Power
  • AC Input
    100-240Vac, 50/60Hz
    DC Output
    19V 3.42A
  • Power Consumption (DC Off)
    0.7W
    Power Consumption (Energy Star)
    27kwh
  • Power Consumption (Sleep Mode)
    1.1W
    Long Idle (Display Off)
    5.0W
  • Short Idle (Display On)
    6.2W
    Type
    External Power(Adapter)
Mechanical
  • Assembly Step
    Two-Step
    Base Detachable
    YES
  • Color (Front Cabinet)
    Charcol Gray (Texture)
    Color (Back Cover)
    Charcol Gray (Texture)
  • Color (Stand Base)
    Charcol Gray (Texture)
    Color (Others)
    Charcol Gray (Texture)
  • Wall Mountable
    100 x 100 mm
Dimensions/Weight
  • Dimension in Shiping (W x H x D)
    258 x 100 x 164 mm
    Dimension with Stand (W x H x D)
    85 x 208.1 x 144.9 mm(w/o ANTENNA), 85 x 318 x 144.9 mm(w/ ANTENNA)
  • Dimension without Stand (W x H x D)
    38 x 199.1 x 144.9 mm(w/o ANTENNA), 38 x 309 x 144.9 mm(w/ ANTENNA)
    Pallet Stuffing (20ft/40ft/40ft HC)
    4,000/9,680/11,440
  • Weight in Shipping
    1.9 kg
    Weight with Stand
    0.93 kg
  • Weight without Stand
    0.91 kg
Standard
  • CB
    YES
    CE
    YES
  • EPA
    YES (8.0)
    Energy Star
    YES
  • ERP
    YES
    FCC-B
    YES
  • KC (for Rep. of Korea)
    YES
    ROHS, REACH
    YES
  • TUV-Ergo
    YES
    TUV-GS
    YES
  • TUV-Type
    YES
    UL(cUL)
    YES
  • VESA wall mount standard
    YES
Accessory
  • Adapter
    YES
    Adapter (Color)
    Black
  • Power Cord
    YES
    Power Cord (Color/Length)
    Black / 1.55m
  • External Antenna
    YES
    VESA Bracket
    Horizontal/Vertical feet and VESA/wall mounting
Network
  • LAN
    1 x RJ45 : 10/100/1000 Base-T Gigabit Ethernet (Wake on LAN)
    Wi-Fi
    Intel Wireless-AX201 (Dual Band Wi-Fi 6 2x2, BT 5.1 Combo, Internal Antenna)
  • Bluetooth
    BT5.1
Control Key
  • Key Location
    Front
    Key Number (Power Key Included)
    1
  • Key Type
    Tact
    LED Color(On mode)
    White (PC Power / HDD)
  • LED Color(Power save mode)
    Blinking (PC)
    LED Color(Standby)
    OFF(PC)
Box Cosmetic
  • Box Printing Type
    Flexo
    Packing Material
    A-Flute
  • Stacking Type
    Vertical
ETC
  • Humidity Range
    Operating : 20%~80%, Storage : 10%~90%
    Temperature Range
    Operating : 10°C ~ 40°C, Storage : -20°C ~ 60°C
