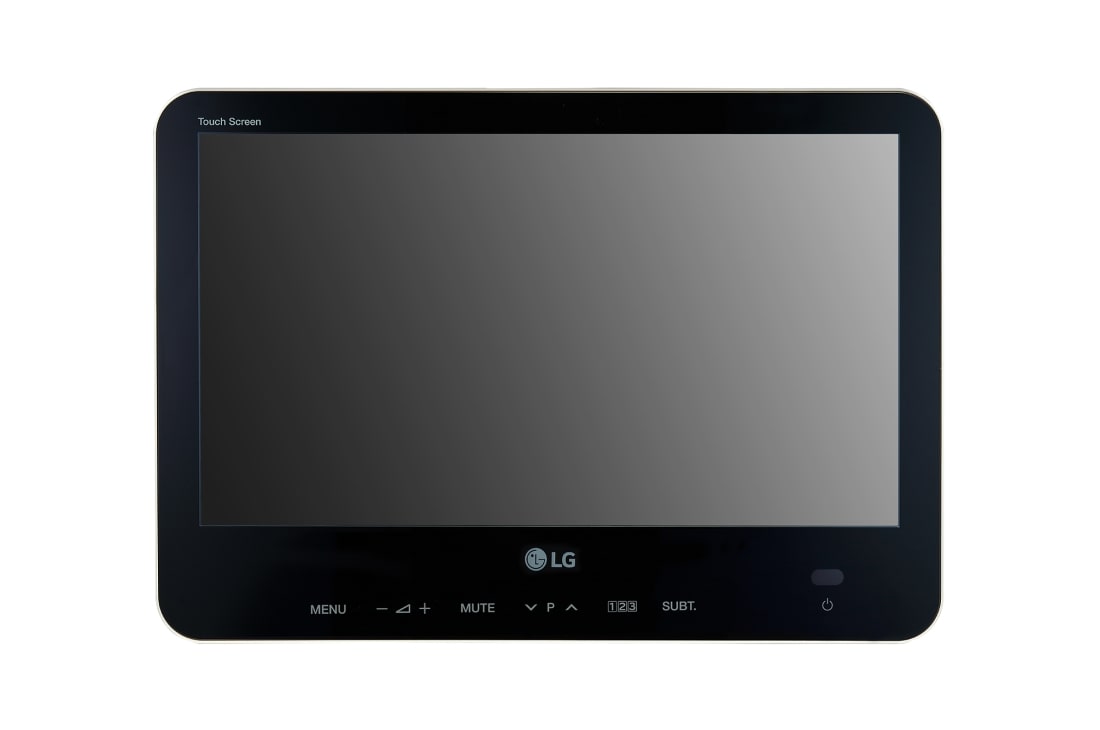

15LU766A (EU) component-copyModelName
15'' Intuitive Multi-touch Display

Key Features

Choose your Size

component-OBScountrySelectDesc

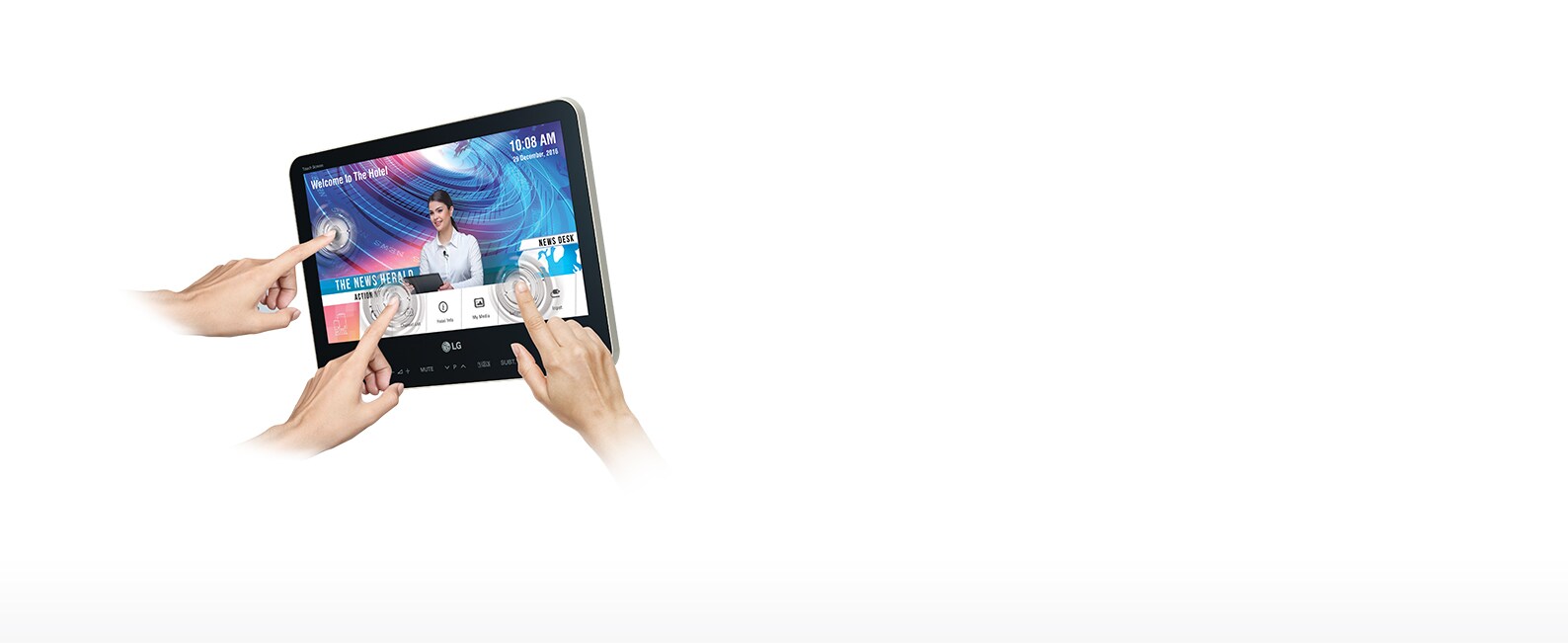

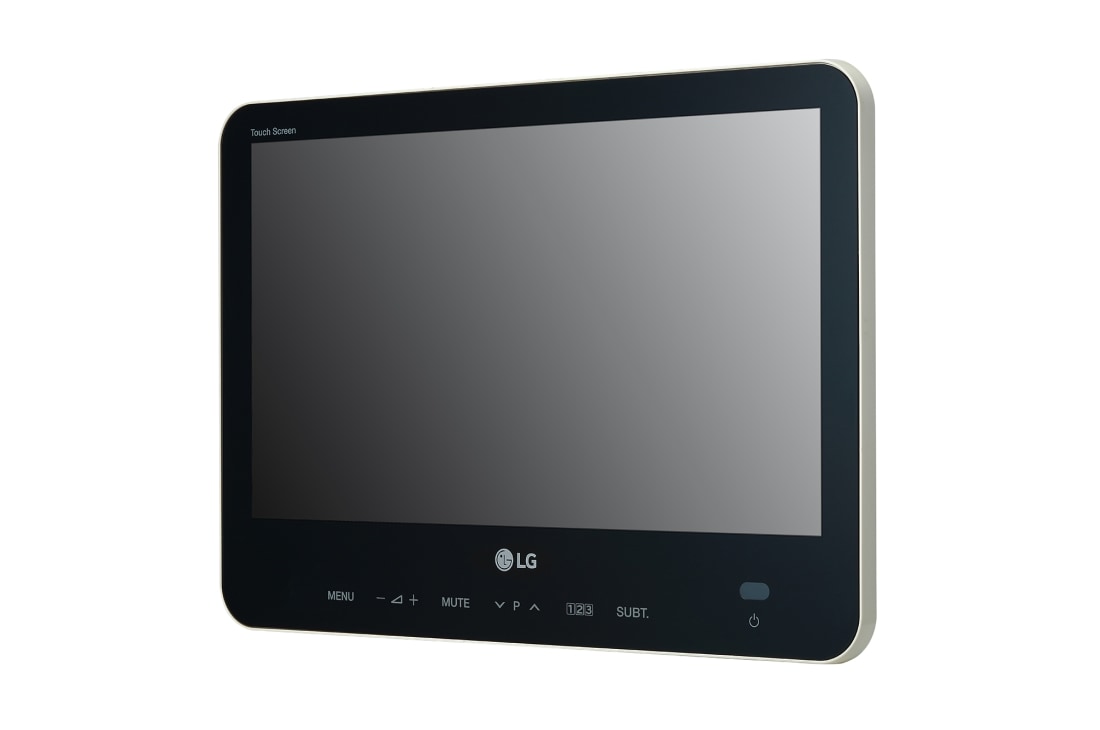

15" Intuitive Multi-touch Display
Panel
  • Screen Size
    15.6"
    Backlight Type
    LED (Direct)
  • Resolution
    1,920 x 1,080 (FHD)
    Brightness (Set, Typ, cd/m²)
    250
Broadcasting System
  • Analog
    • (PAL/SECAM)
    Digital
Video
  • XD Engine
    Aspect Ratio
    • 6 modes (16:9, Original, Full Wide, 4:3,Vertical Zoom, All-Direction Zoom)
Audio
  • Audio Output
    1W + 1W
    Speaker System
    2.0 ch
  • Sound Mode
    • 7 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
    Clear Voice
    • (Clear Voice III)
Hospitality Solution
  • Solution Type

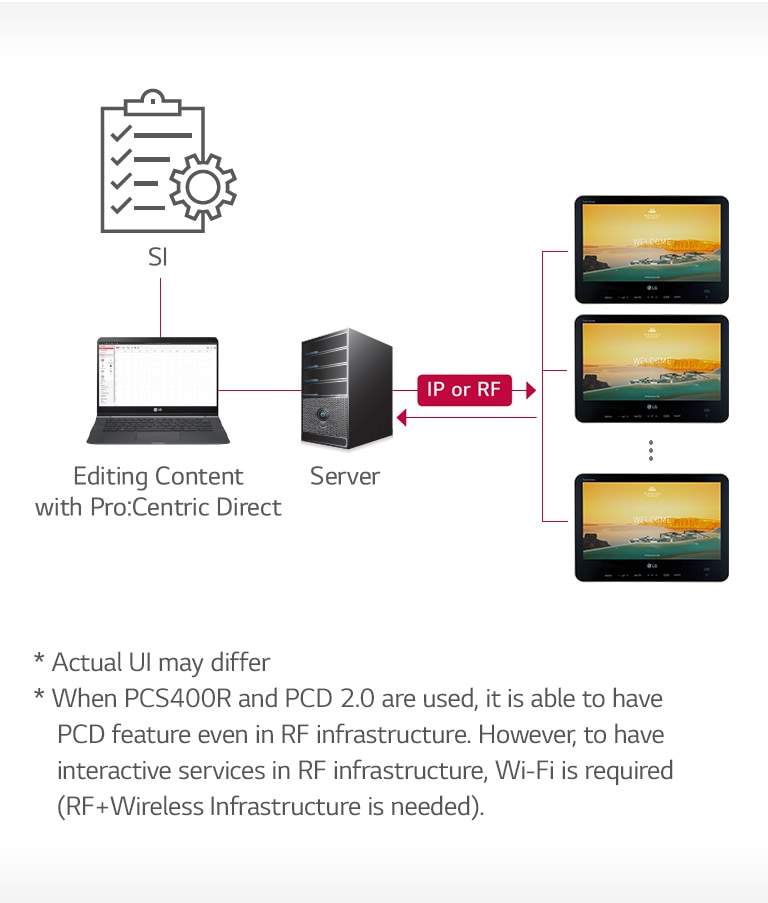

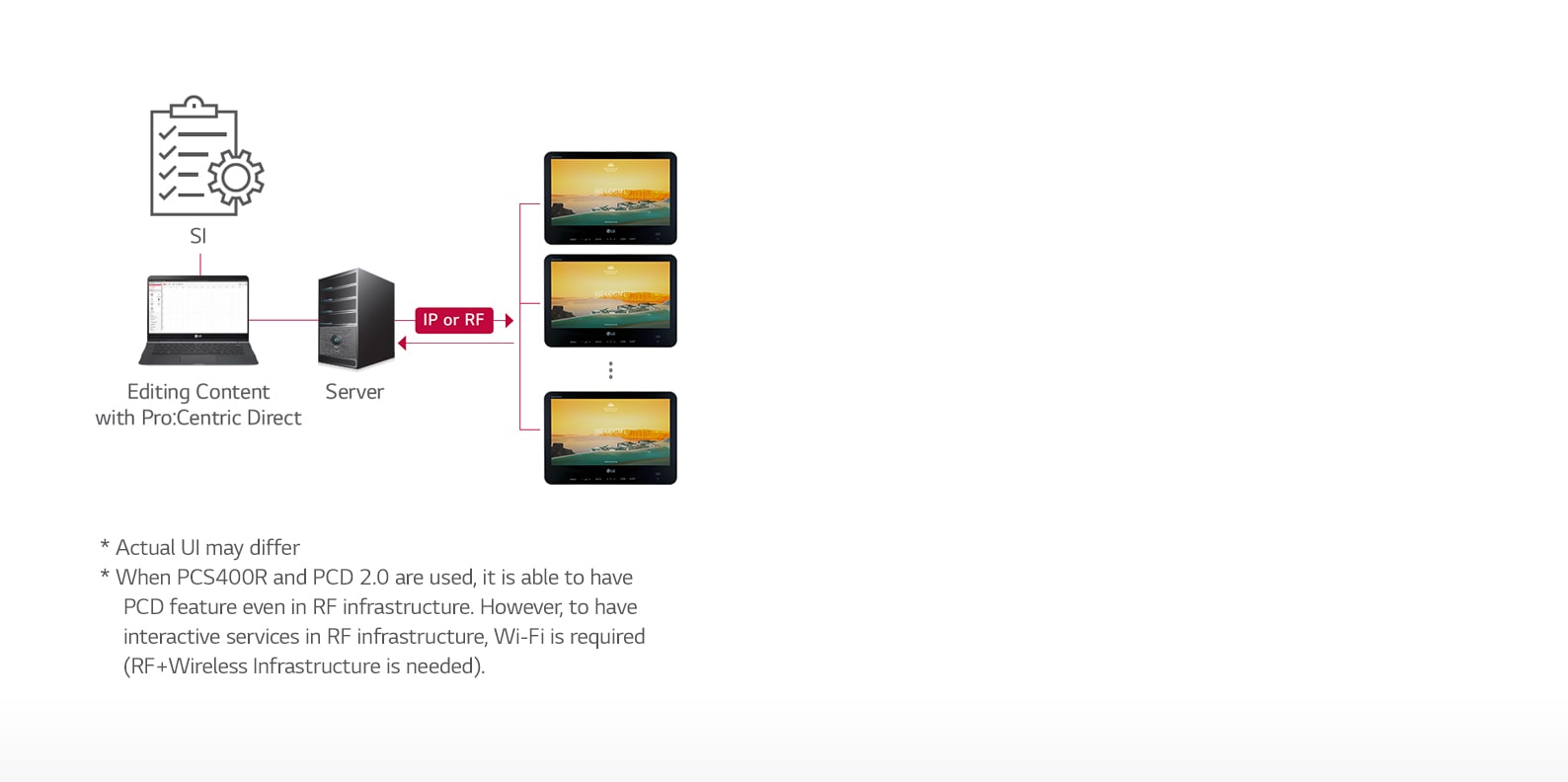

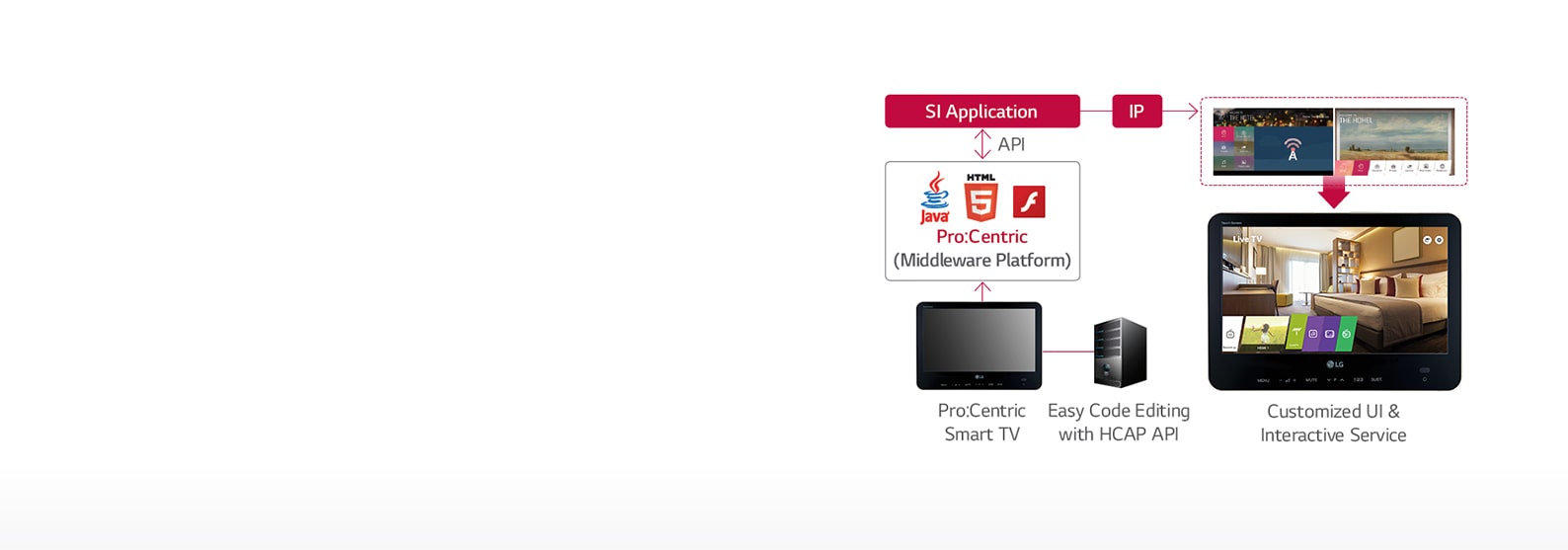

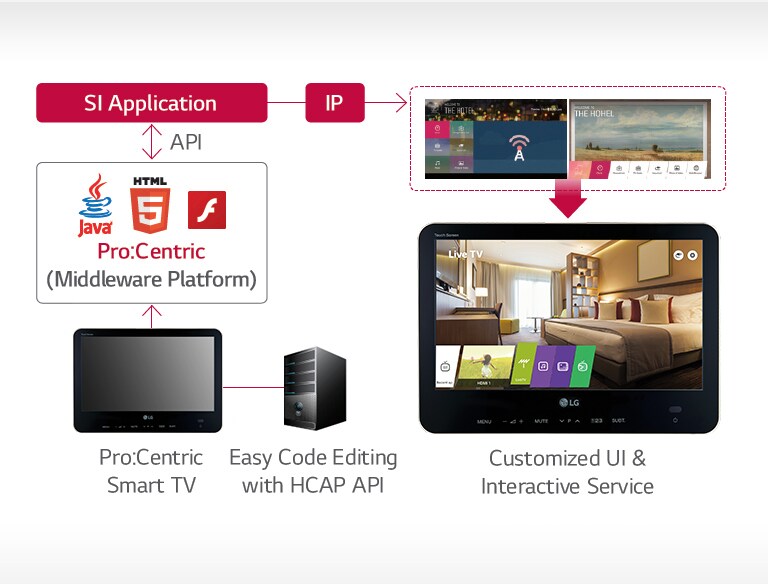

    Pro:Centric (Smart, V, Direct)
    Data Streaming (IP & RF)
  • RF
    • (1 Tuner)
    HCAP (GEM/FLASH/HTML)
    ※ Service Carousel (TLL/XML)
  • Pro:Centric Application (version)
    DRM
    Pro:Idiom
Feature
  • Hospitality

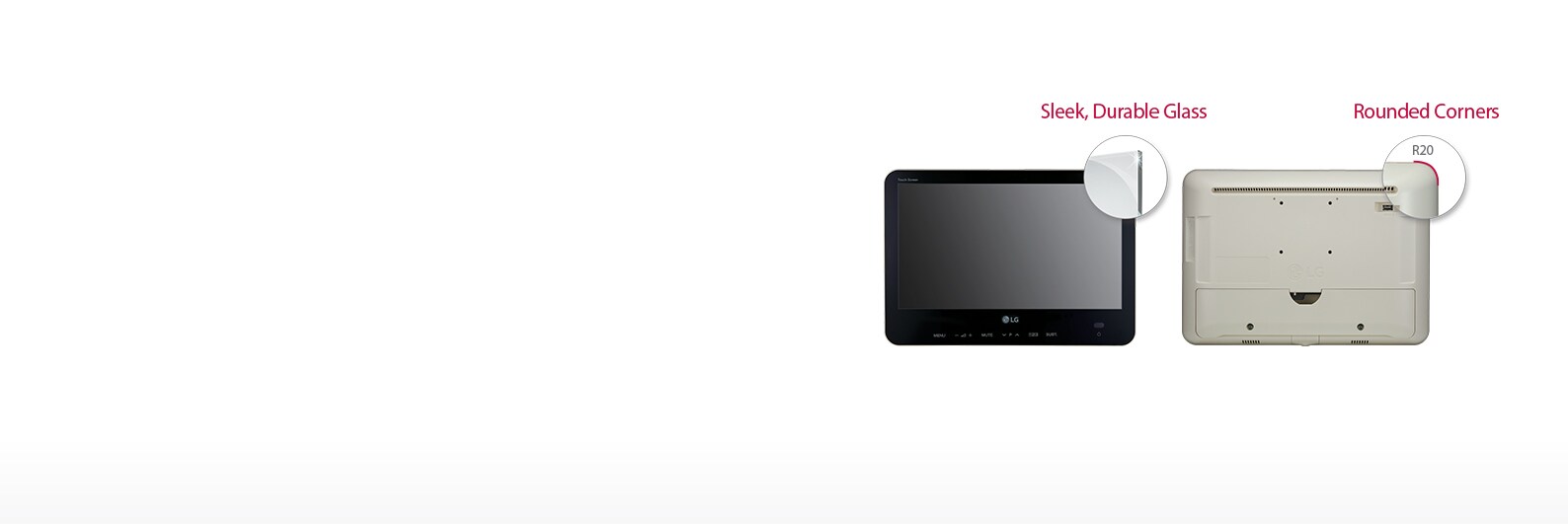

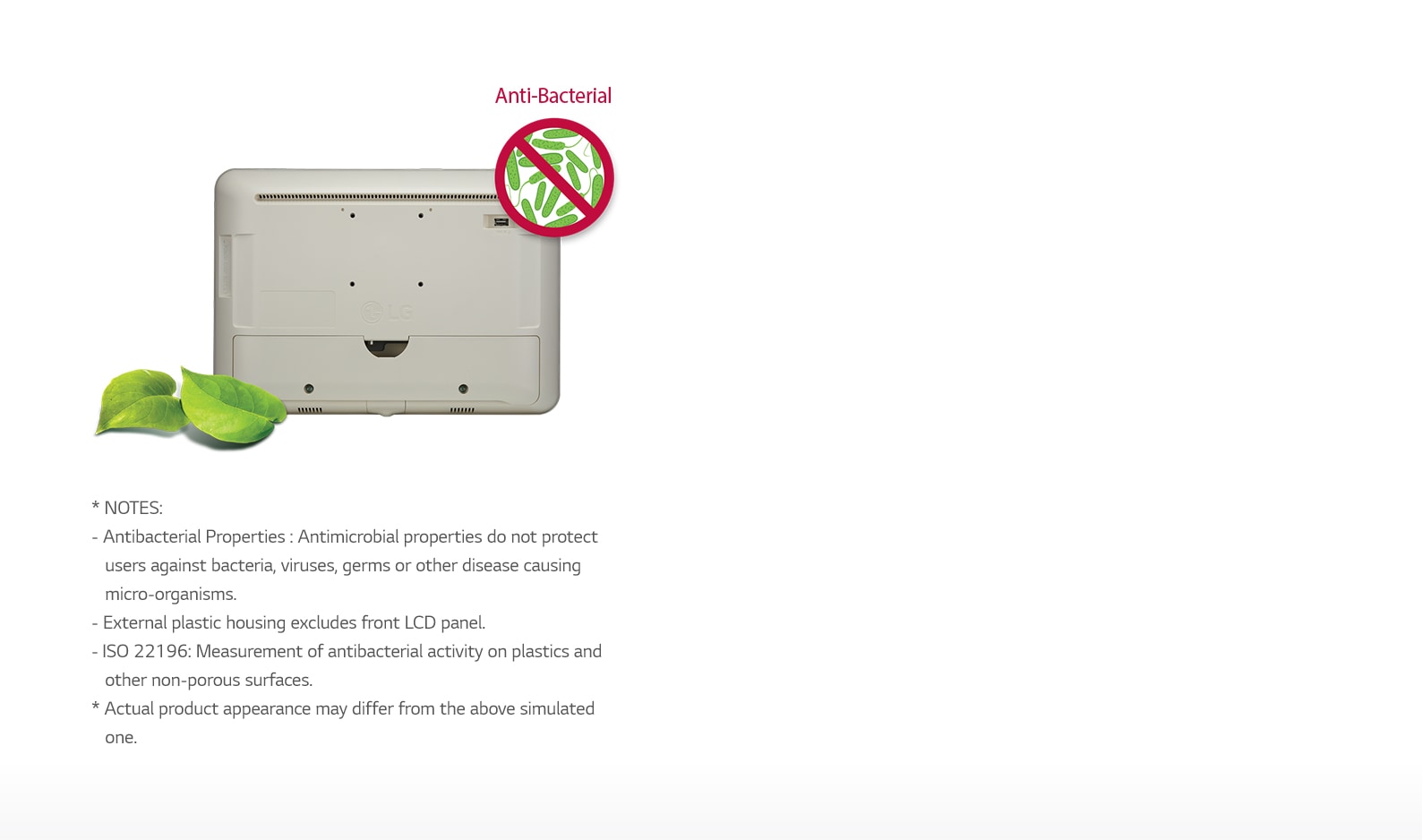

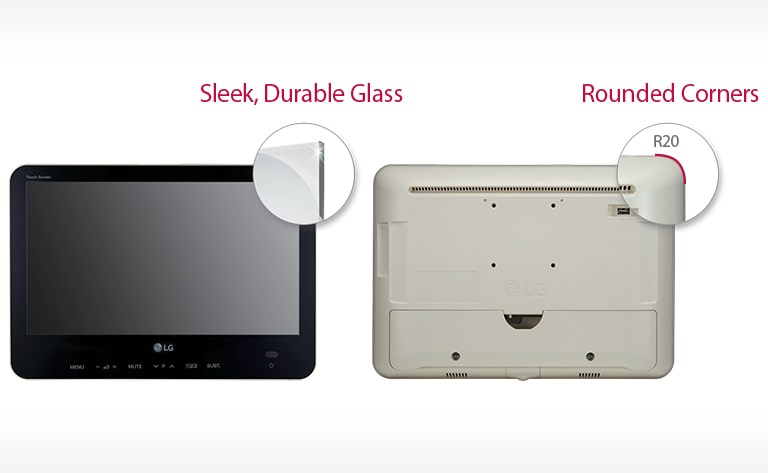

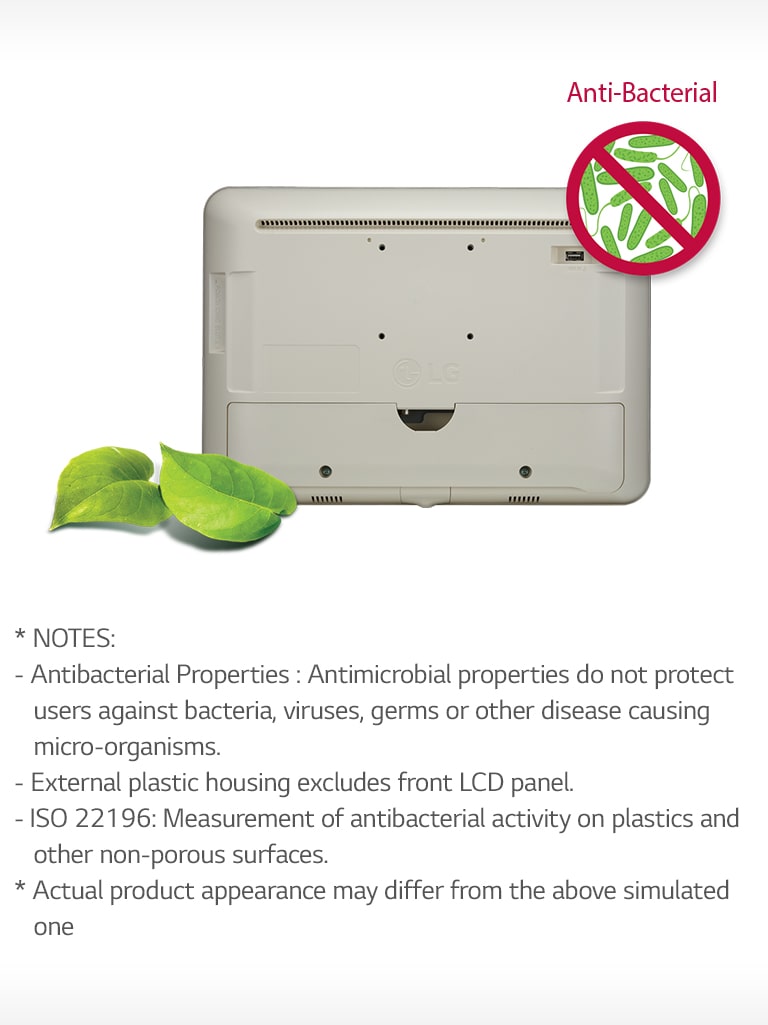

    Hotel Mode / PDM / Installer Menu, Lock mode (Limited), Welcome Screen, Insert Image, One Channel Map, Instant ON, Full Touch Screen (P-Cap), Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care, Healthcare Headphone Mode, Protection Cover (Glass), Plastic housing with Antibacterial Properties
Jack Interface

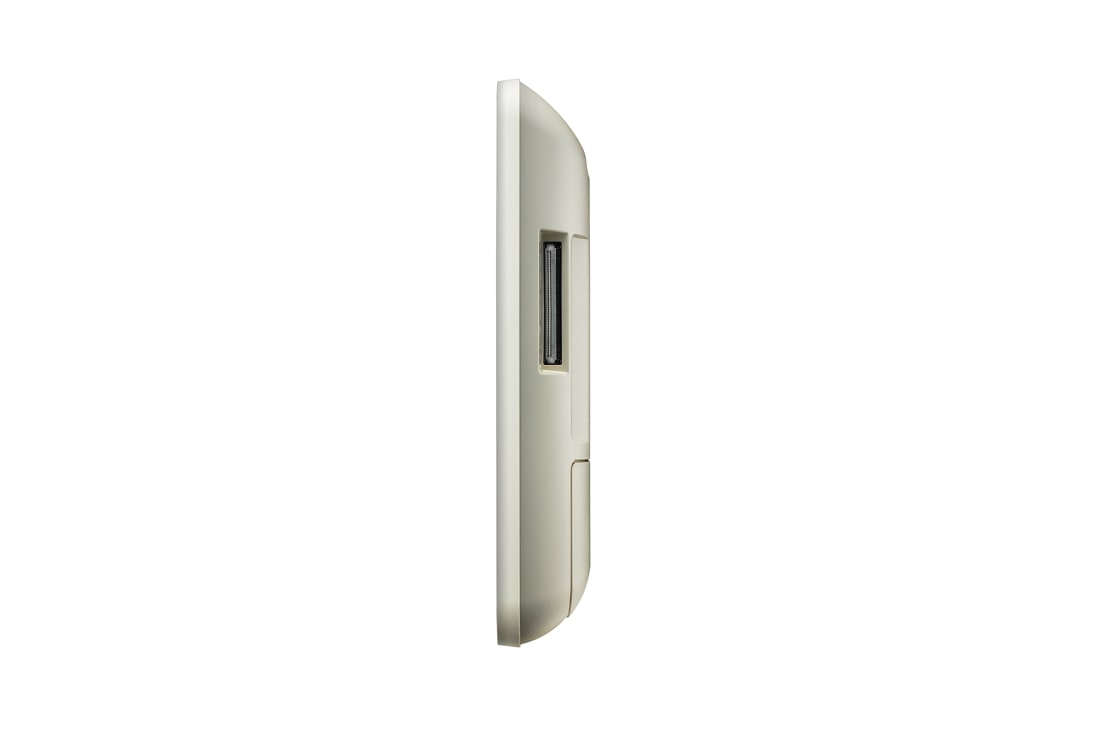

  • Set Side
    CI Slot

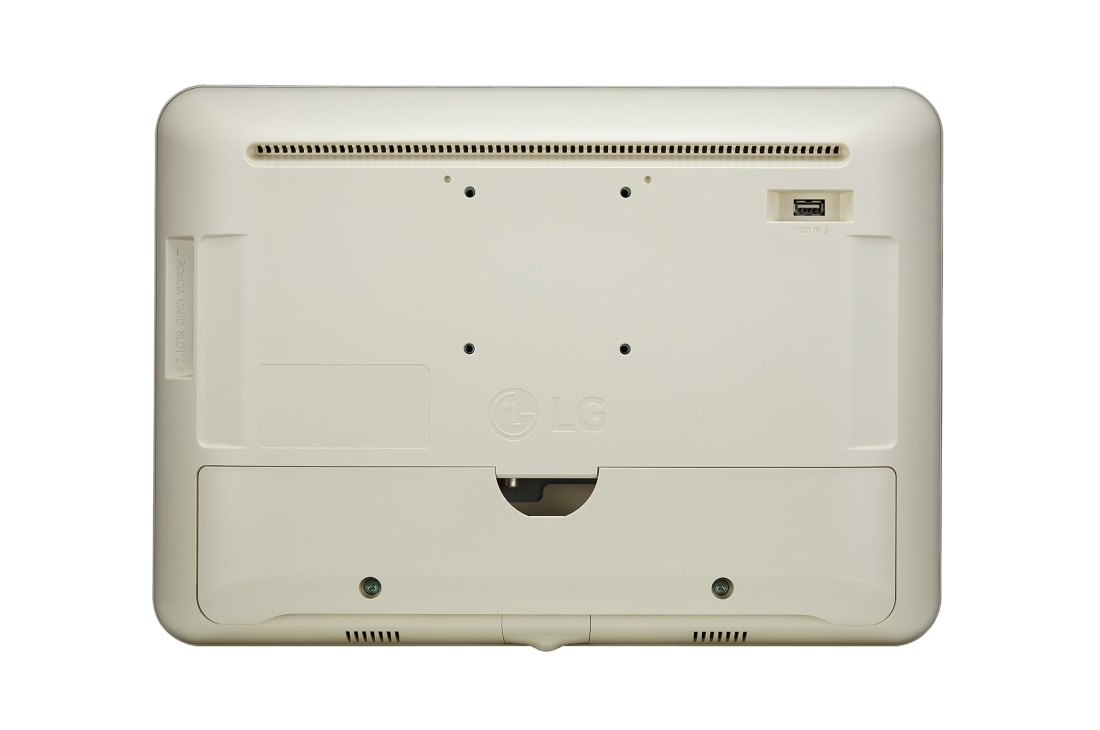

    Set Rear
    RF In (2), HDMI/HDCP Input, USB, RS-232C(phone), Headphone Out, RJ45 (Enthernet), Debug (Phone Jack Type), Adapter Jack
Dimension(Unit: mm)

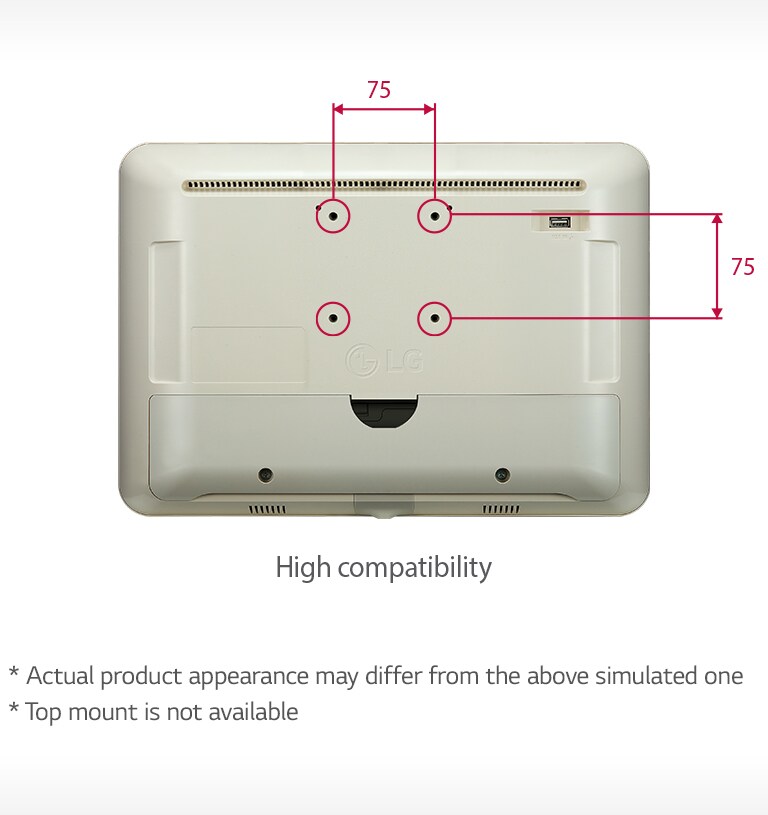

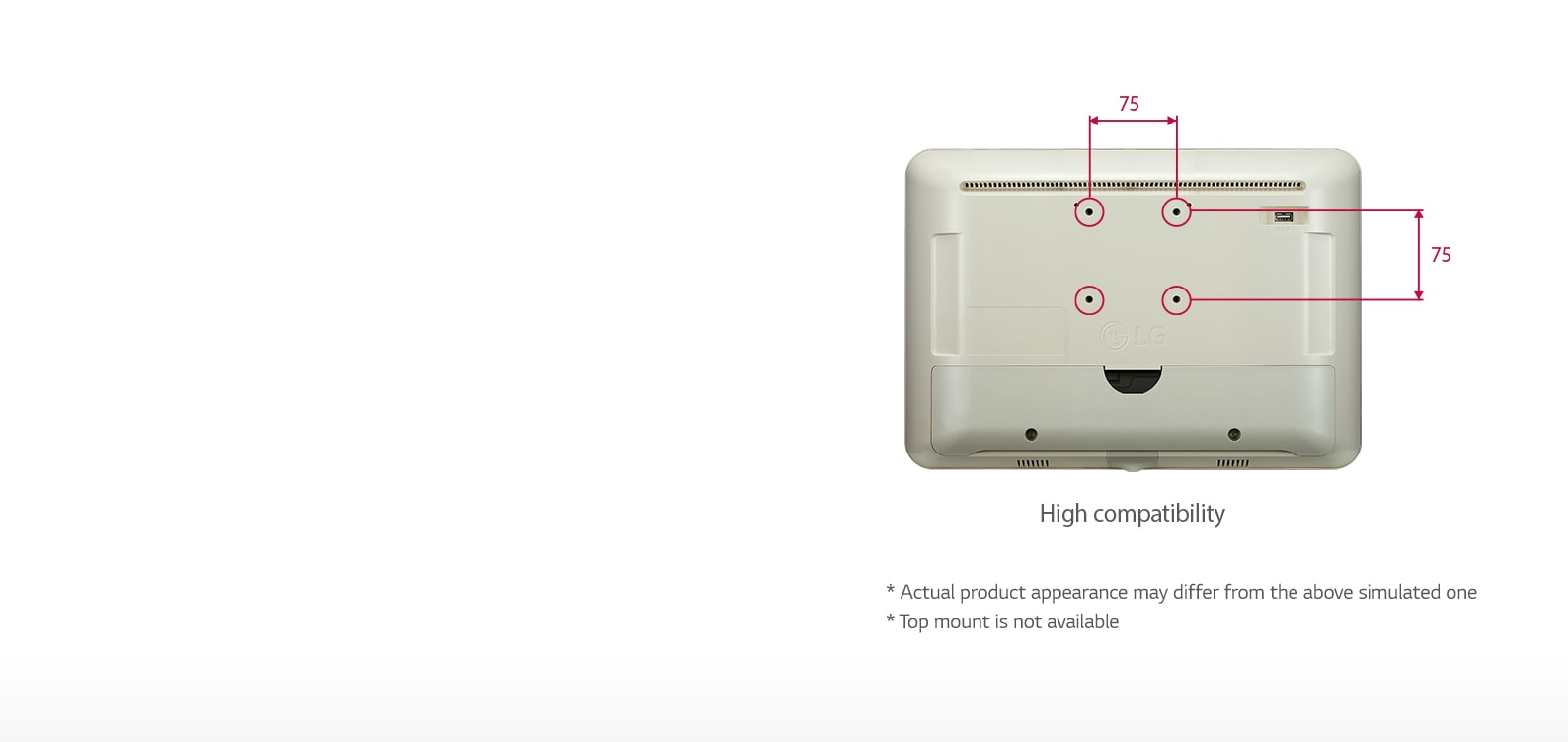

  • Vesa
    75 x 75
    W x H x D / Weight (with stand)
    -
  • W x H x D / Weight (without stand)
    391.4 x 278.6 x 46.1 / 2.7 kg
    W x H x D / Weight (Packing)
    470 x 356 x 201 / 3.6 kg (without stand)
Power(Unit : Watts)
  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Typical
    TBD
  • Stand-by
    0.3W ↓
General
  • Region
    Europe
  • Dimension
    • [Dimension] 15LU766A (EU).dwg
    • [Dimension] 15LU766A (EU).pdf
  • Datasheet
    • LU766A_EU_Preview_180905.pdf
