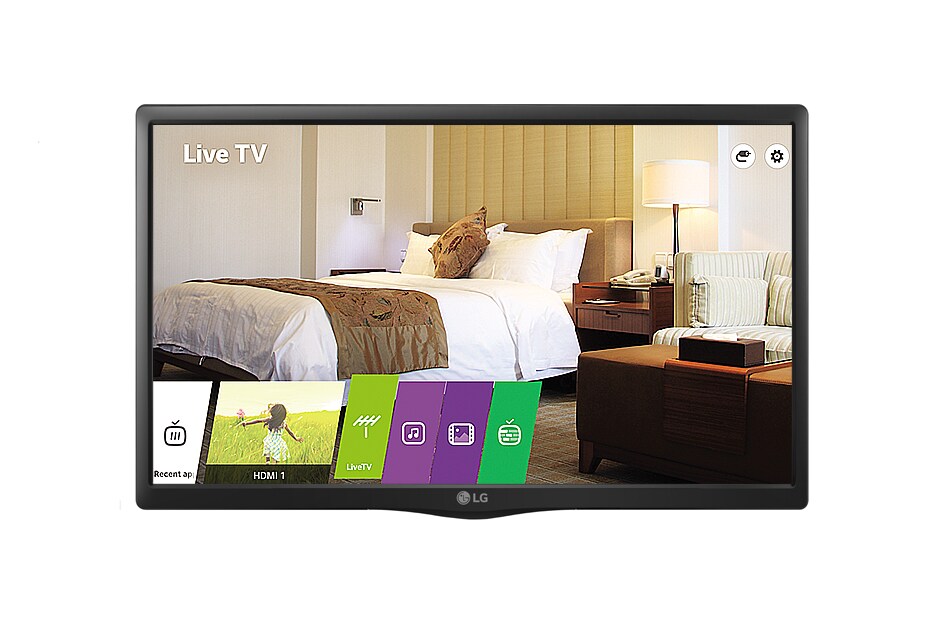

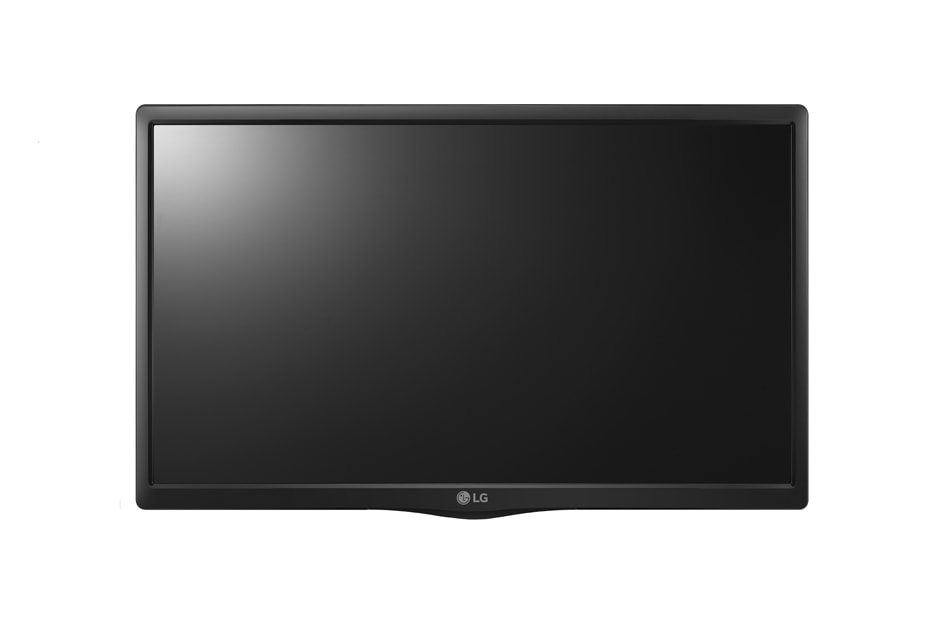

28LW760M (NA) component-copyModelName
LW760M Series

Key Features

component-OBScountrySelectDesc

LW760M Series
Panel
  • Size
    28" class (27.6" diagonal)
    Backlight Type
    Edge LED
  • Resolution
    1,366 x 768 (HD)
Broadcasting System
  • Analog
    Yes (NTSC)
    Digital
    Yes (ATSC)
Video
  • Triple XD Engine
    Yes
    Real Cinema 24p (3:3 Pull down)
    Yes
  • Aspect Ratio
    Yes (16:9, Just Scan, Set By Program, 4:3, Zoom, Cinema Zoom1)
Audio
  • Audio Output / Speaker System
    5W + 5W / 2.0 ch
    Sound Mode
    Yes (Standard, News, Music, Cinema, Sport, Game)
Side Interface
  • HDMI In
    2
    USB (2.0)
    2
  • AV In
    Yes
Rear Interface
  • RF In
    1
    Audio Out
    1 (Optical)
  • Service Only Port
    1 (Common use PTC & CPU Service, 3.5mm phone jack)
    LAN Port
    1
  • Speaker Out/Line Out
    1 (3.5mm jack)
    Pillow Speaker interface
    1 (6pin)
  • MPI Port
    1 (RJ-12)
Cabinet
  • Bezel Width (Left/Right, Upper, Bottom) : on bezel (mm)
    16/16, 15.4, 24.1
    Bezel Width (Left/Right, Upper, Bottom) : off bezel (mm)
    14.3/14.3, 13.7, 22.5
  • VESA Compatible
    100mm x 100mm
    Weight
    9.9 lbs
  • Weight (Box)
    13 lbs
    WxHxD (w/o stand)
    25.3” x 15.6” x 2.5”
  • WxHxD (Box)
    28.5” x 18.5” x 6”
General
  • Region
    North America
  • Datasheet
    • LG_SPEC-SHEET_LW760M_081603_PR.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
