32LU540H (ASIA) component-copyModelName

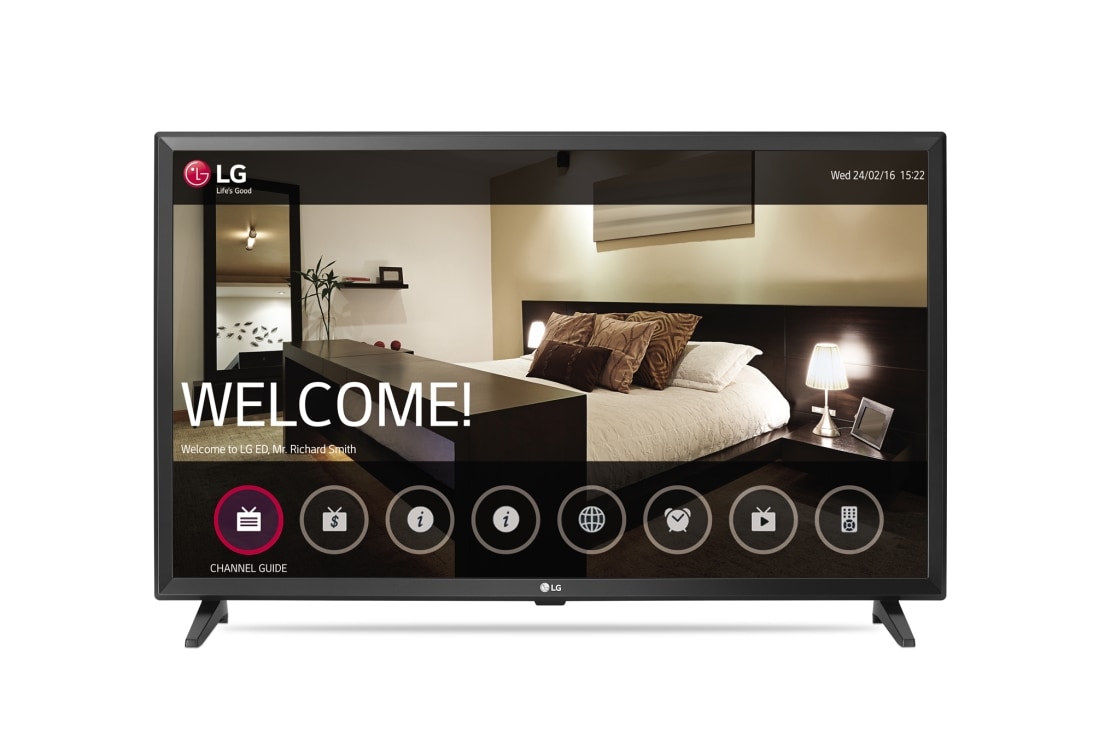

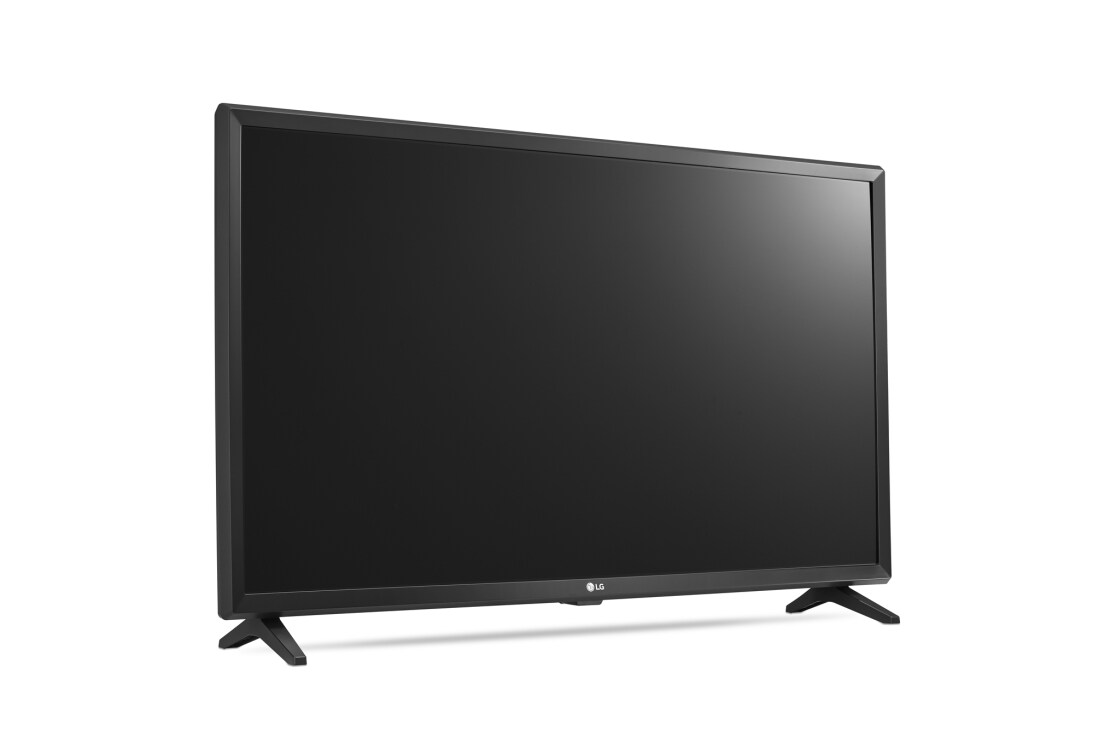

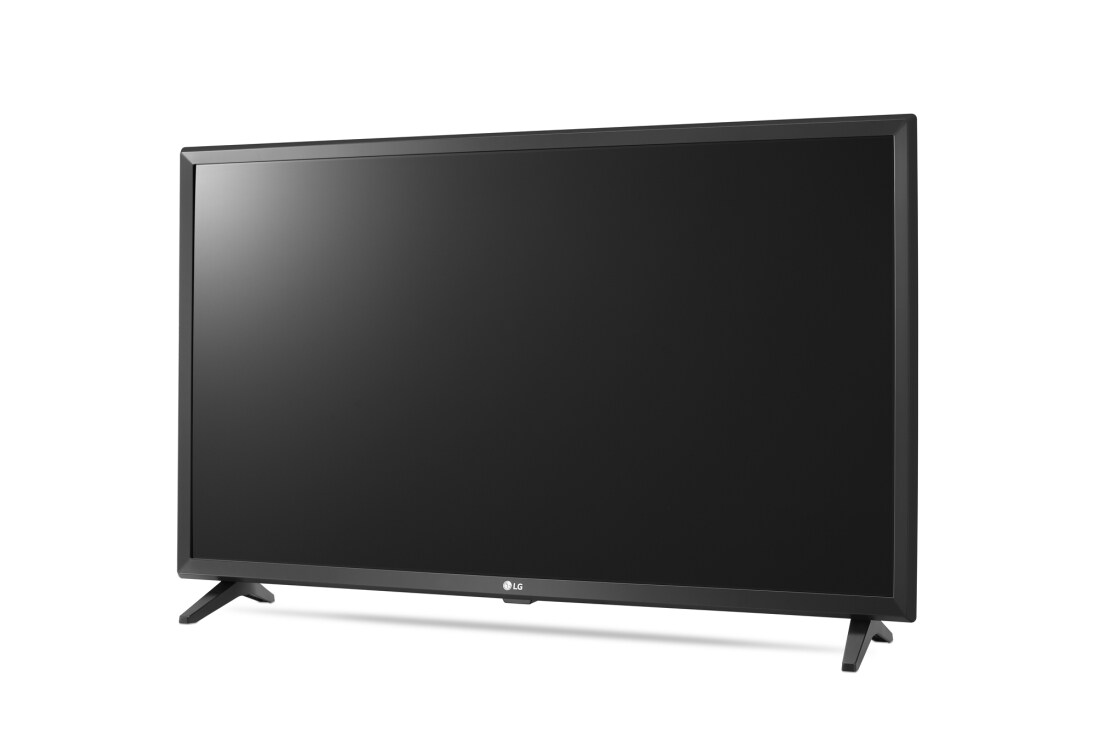

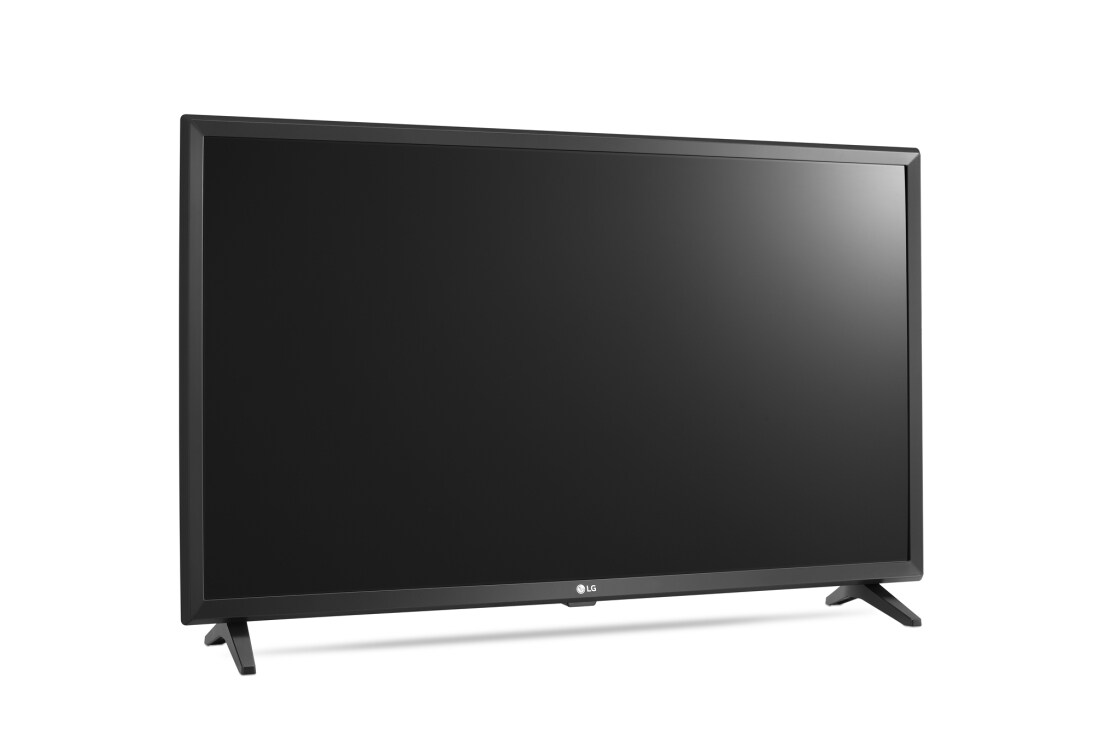

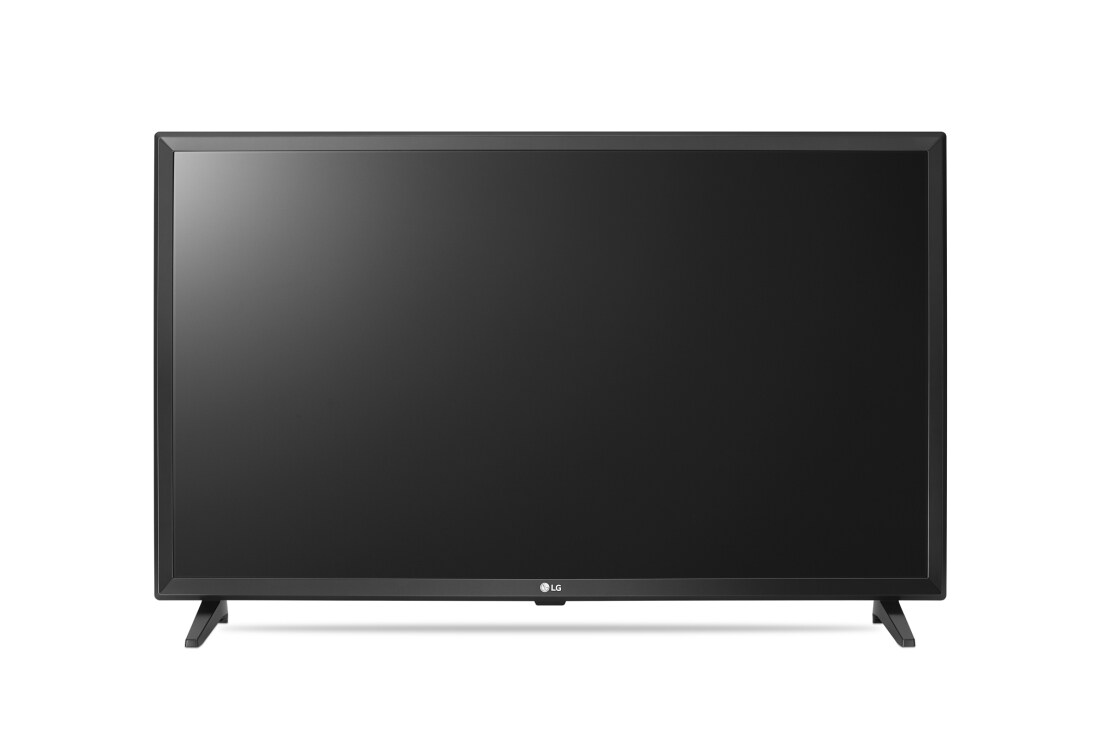

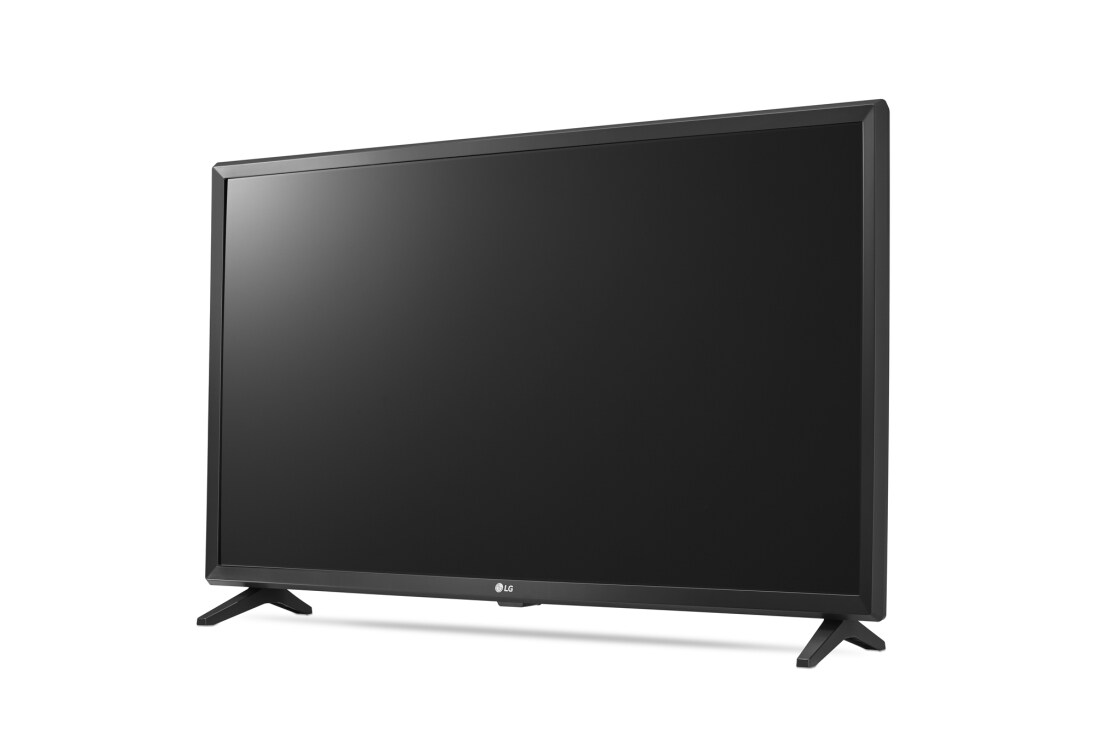

32'' Pro:Centric Hotel TV

Key Features

Choose your Size

component-OBScountrySelectDesc

32" Pro:Centric Hotel TV
Display
  • Backlight Type
    LED (Direct)
    Resolution
    1,366 x 768 (HD)
  • Brightness (cd/m²)
    240
Broadcasting System
  • Analog
    • (PAL/SECAM)
    Digital
    DVB-T2/C
Video
  • XD Engine
    Aspect Ratio
    • 6 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom, Just Scan)
Audio
  • Audio Output
    5W + 5W
    Speaker System
    2.0 ch
  • Sound Mode
    • 6 modes (Standard, Cinema, Clear Voice, Soccer, Music, Game)
    • 6 modes (India only) (Standard, Cinema, Clear Voice, Cricket, Billywood, Game)
    Clear Voice
    • (Clear Voice)
Hospitality Solution
  • Solution Type
    Pro:Centric V, Quick Menu (TV Embedded Home UI)
    Data Streaming (IP & RF)
    • (RF Only)
  • RF
    • (1 Tuner)
    HCAP (SDK)
    GEM / Flash
  • Pro:Centric Application
    PCA 3.8
Feature
  • Hospitality
    Hotel Mode, Lock mode (limited), Welcome Screen/Video, Insert Image, One Channel Map, External Speaker Out, Instant ON, External Power, RJP Compatibility, External Clock, USB Auto Playback, Time Scheduler
Jack Interface
  • Set Side
    HDMI In (2), USB (2.0), CI Slot

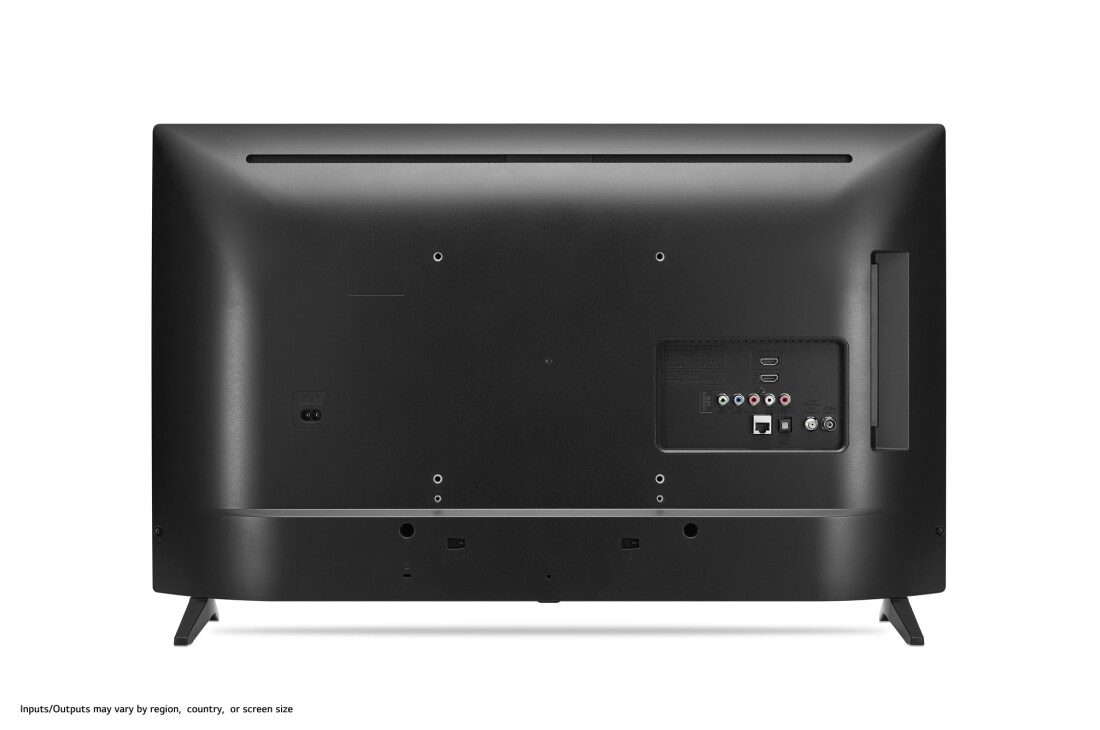

    Set Rear
    RF In, AV In, Component In (RCA5 Type), Digital Audio Out (Optical), HDMI, RS-232C (Control & Service), Headphone Out, Clock Interface (RJ12), RJ45 (SNMP), External Speaker Out (2)
Dimension(Unit: mm)
  • Vesa
    200 X 200
    W x H x D / Weight (with stand)
    739 x 472 x 168 / 4.9 kg
  • W x H x D / Weight (without stand)
    739 x 441 x 74.6 / 4.85 kg
    W x H x D / Weight (Packing)
    812 x 510 x 142 / 6.1 kg
Power
  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Max
    60
  • Typical
    36
    Energy Saving (Min/Med/Max)
    28 / 20.8 / 12.9
  • Stand-by
    0.5W↓
General
  • Region
    ASIA
  • Dimension
    • [Dimension] 32LU540H (ASIA).dwg
    • [Dimension] 32LU540H (ASIA).pdf
  • Datasheet
    • LU540H_Asia_fin_low.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
