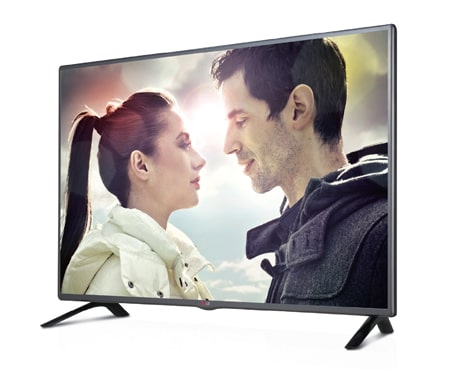

42LY750H (ASIA) component-copyModelName
LY750H Series

Key Features

component-OBScountrySelectDesc

LY750H Series
LCD Panel Specification
  • Resolution
    1,920 x 1,080 (FHD)
    Cinema 3D
    -
Broadcasting System
  • Analog
    PAL/NTSC-M
    Cable
    DVB-T/C (Varied by region)
Video
  • Aspect Ratio
    8 modes (16:9, Just scan, Original, Full Wide, 4:3, 14:9, Cinema Zoom 1, Zoom)
Audio
  • Audio Output
    10W + 10W
    Wireless Sound Sync
    -
Feature - Pro:Centric
  • Type
    P:C Smart
    Hybrid Streaming (IP & RF)
    Yes
  • RF (1/2Tuner)
    RF (1Tuner)
    Pro:Centric Application
    Yes
  • HCAP (GEM/FLASH/HTML)
    GEM/FLASH/HTML
Interface - Set Side
  • HDMI In
    1
    USB (2.0)
    2
  • CI Slot
    -
    Headphone Out (3.5mm Phone Jack)
    1
  • AV in
    -
Interface - Set Rear
  • RF In
    1
    AV In (Composite)
    1
  • Component In (Y, Pb,Pr) + Audio (L/R)
    1 (Phone Jack)
    Digital Audio Out (Optical)
    1
  • RGB In (D-sub 15pin)
    -
    Clock Interface (D-sub 15pin)
    -
  • PC Audio Input
    1
    USB (2.0/3.0)
    -
  • Headphone Out (3.5mm Phone Jack)
    -
    RS-232C (D-sub 9pin)
    1
  • HDMI In
    1
    LAN (RJ45)
    2
  • Full Scart
    -
    RJP interface (RJ45)
    -
  • Ext SPK out (3.5mm Phone Jack)
    2 (Spk-out 1, Vol. Control 1)
    TV link Configuration (phone jack type)
    -
Power
  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Typical (Watts)
    94W
Tool Description
  • Swivel (angle)
    -
    VESA Compatibility
    400 X 400
Required Listing(Certification)
  • Safety
    CB, BIS, SIRIM, TISI, BPS
    ETC.
    MEPS, Tick, BEE, EE, CIF
Dimension
  • Set Size (W/O Stand, WxHxD, mm)
    961 X 567 X 55.5
    Set Size (With Stand, WxHxD, mm)
    961 X 610 X 218
General
  • Region
    ASIA
  • Datasheet
    • [Revised Leaflet] Final_LY750H_LY751H_EU_CIS_MEA.pdf
  • Software
    • LY750H-ZA_mtk5369_V03.29_Rev12080_0xC2124B6D_THGBMAG5A1JBAIR_20150224.epk
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
