43LT570H (NA) component-copyModelName

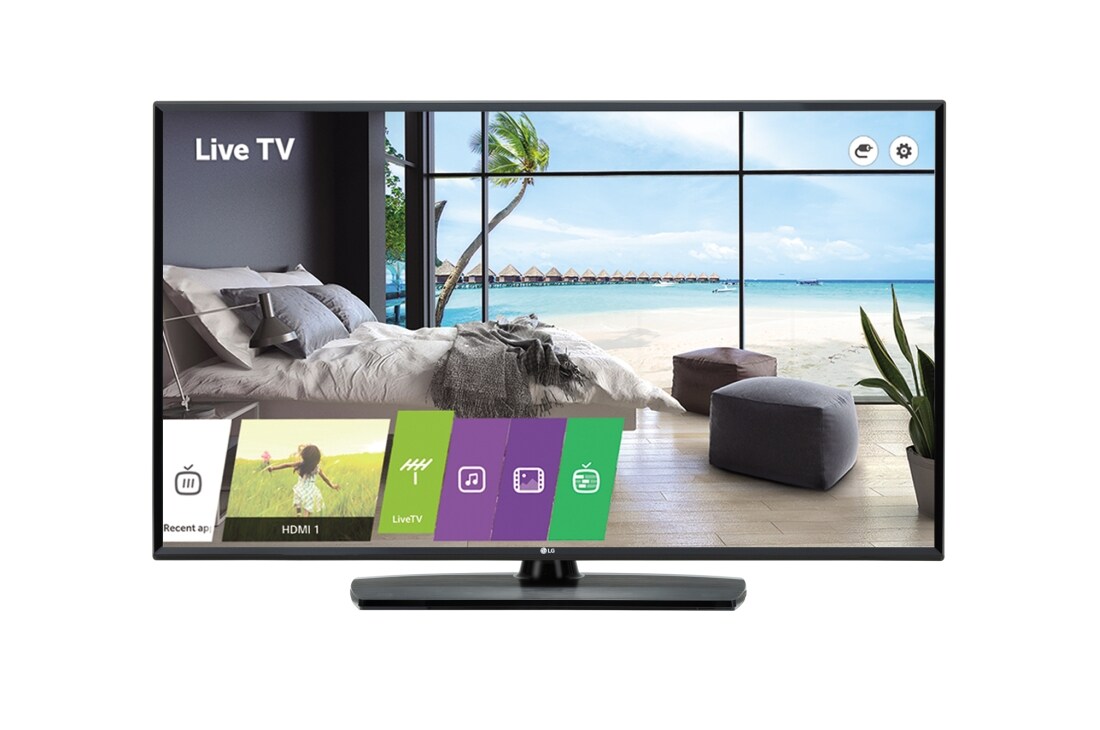

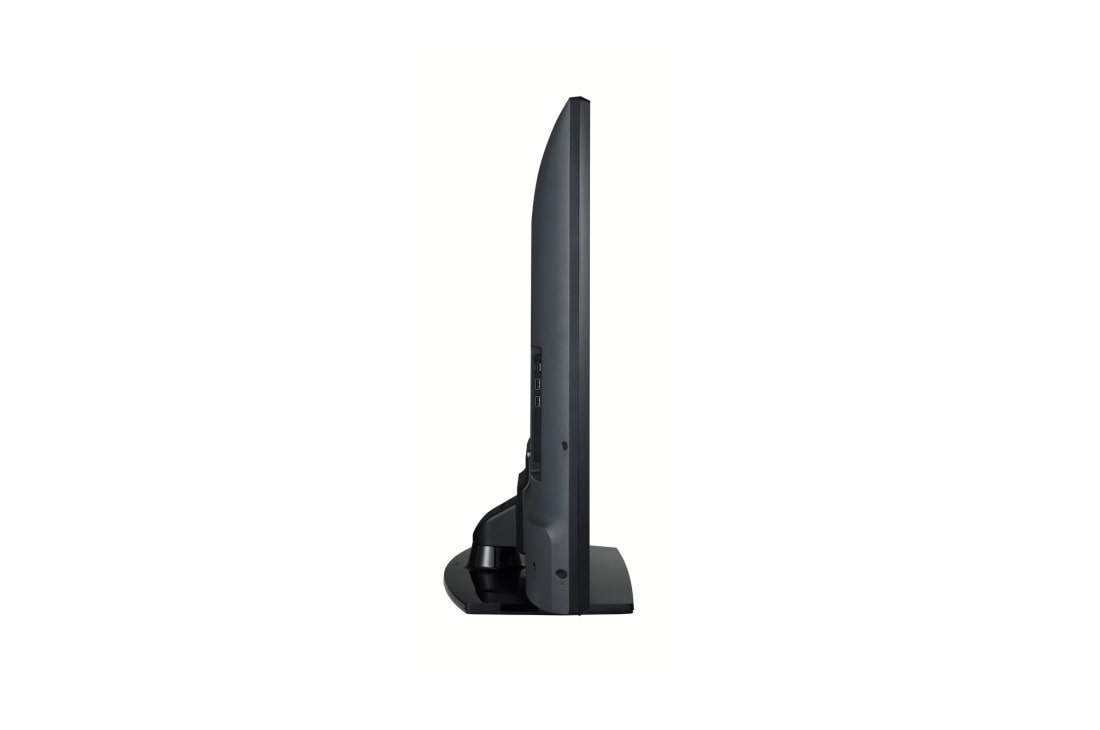

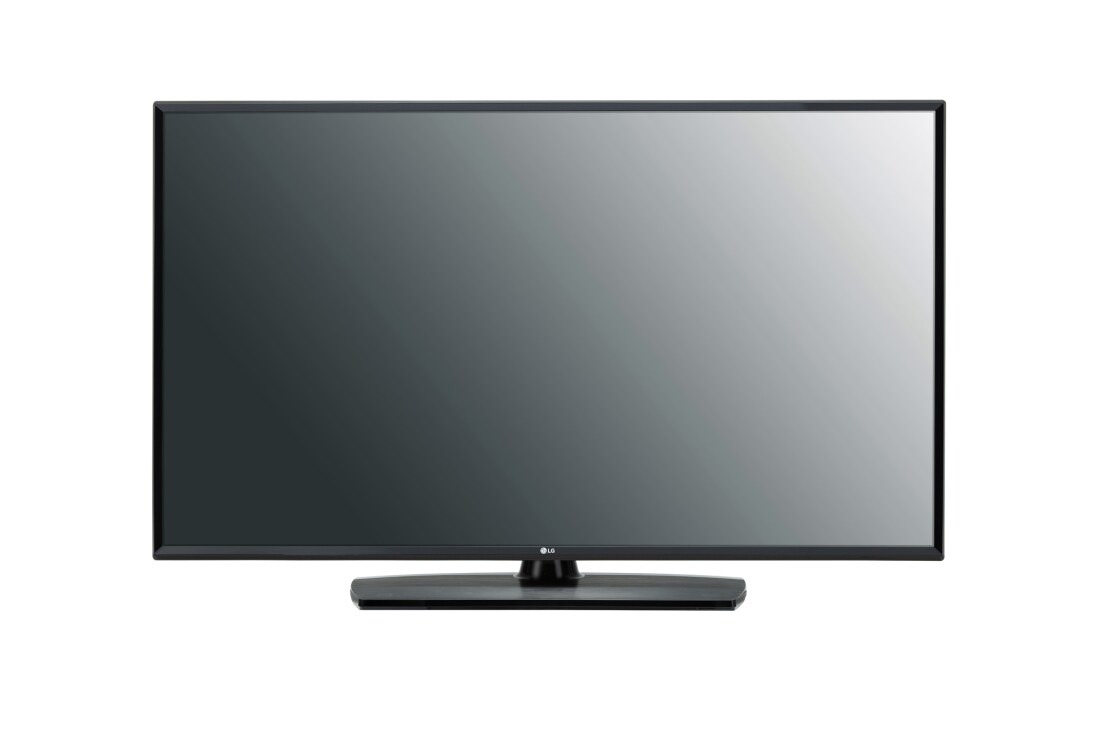

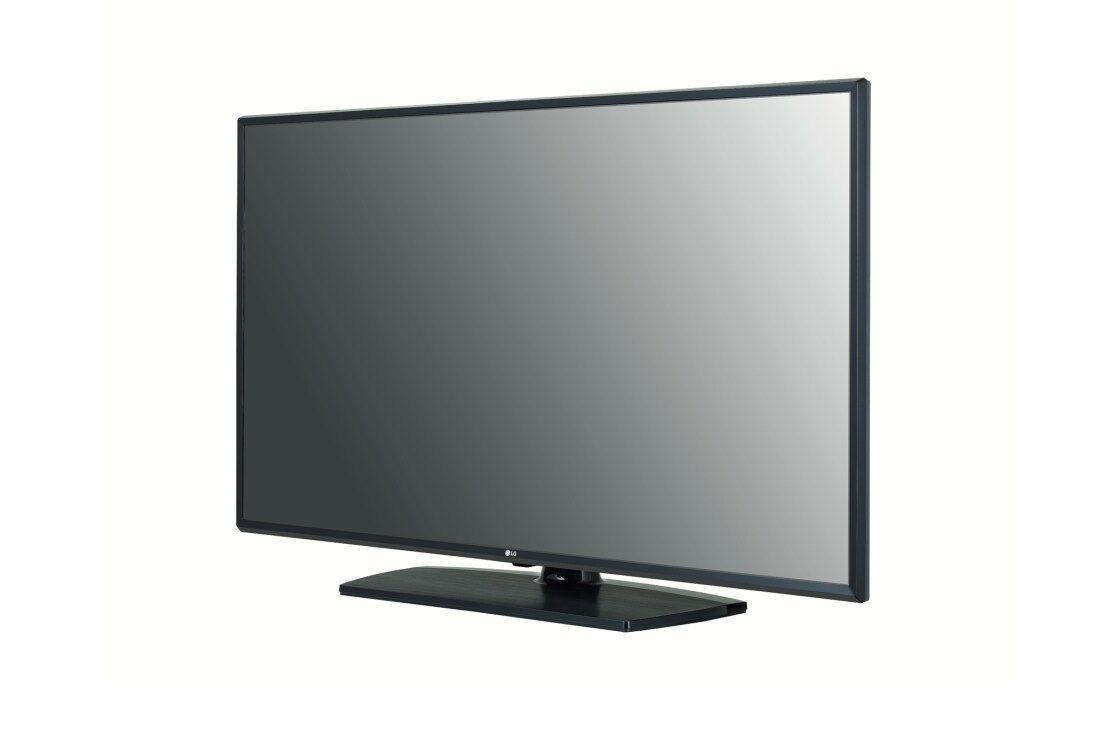

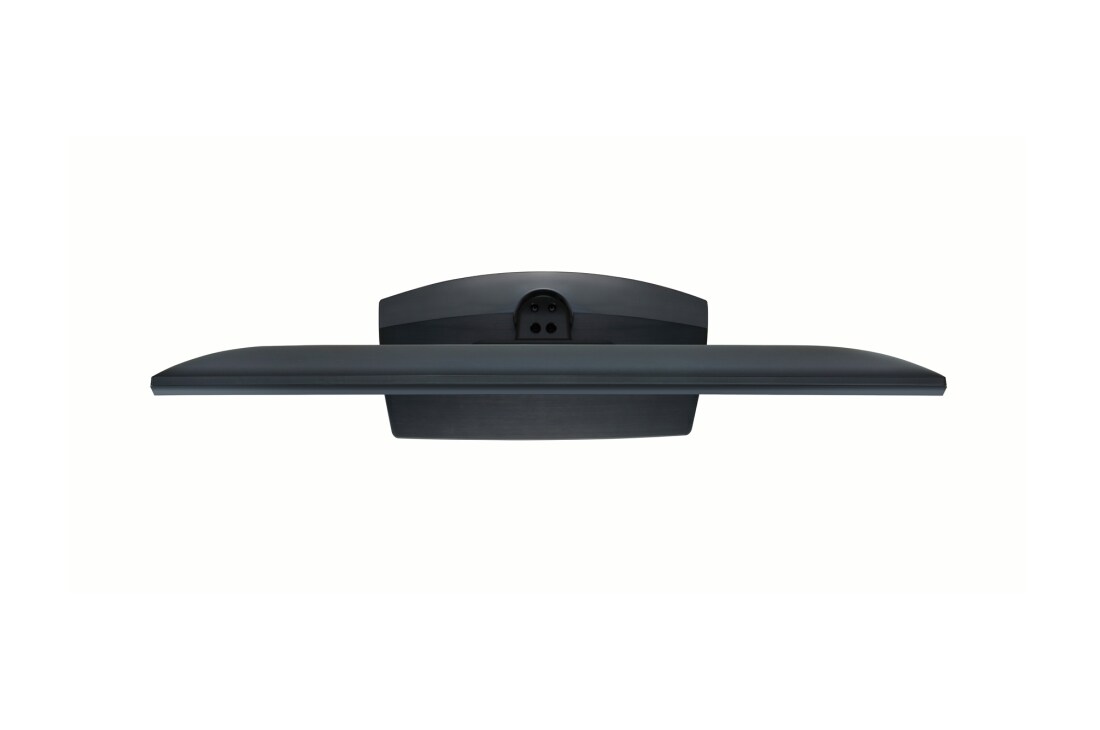

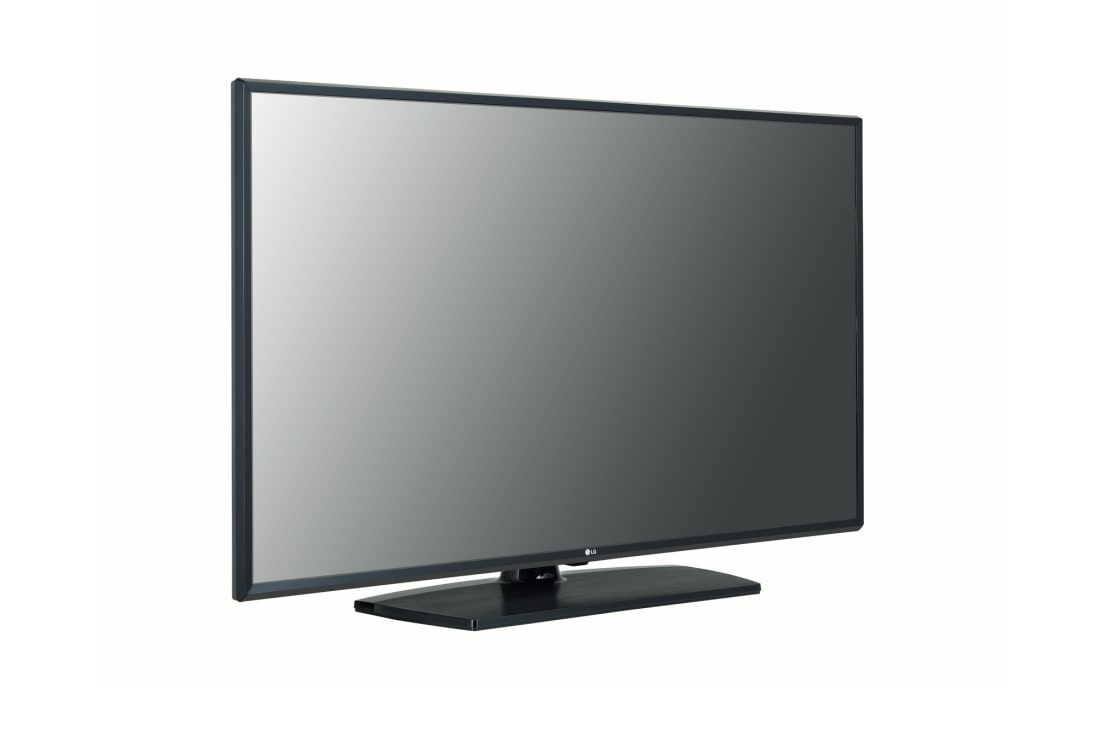

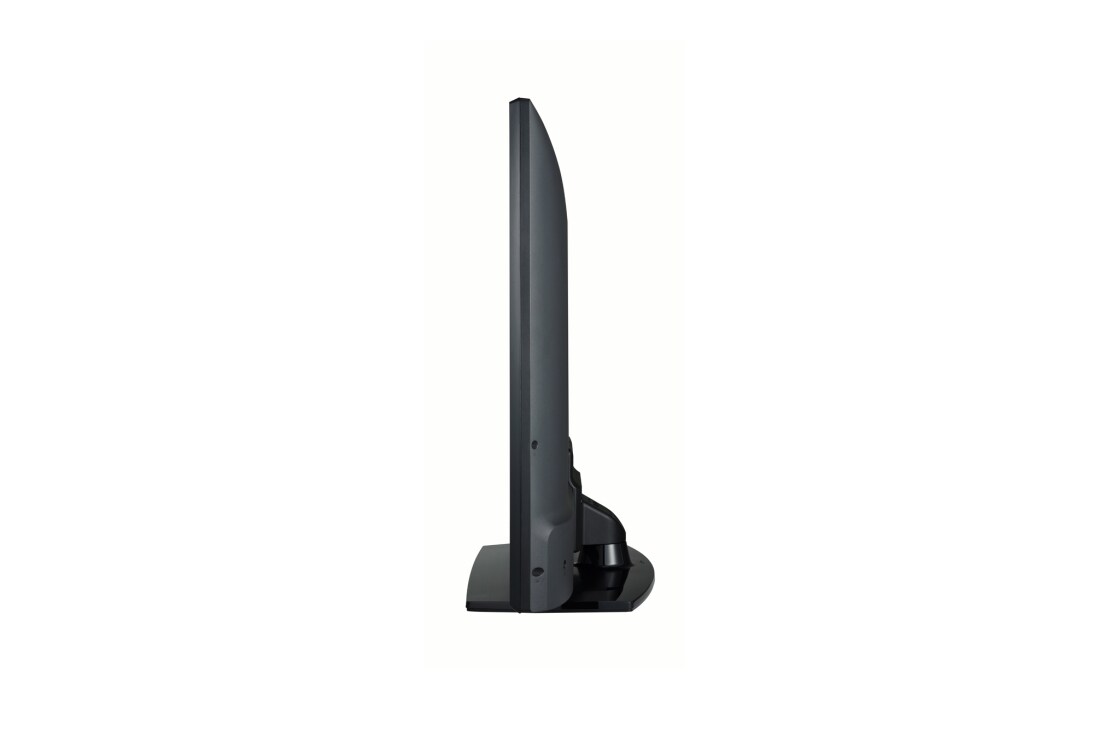

43'' TV Signage

Key Features

Choose your Size

component-OBScountrySelectDesc

43" TV Signage
Display
  • Inch
    43"
    Resolution
    1,920 x 1,080 (FHD)
  • Backlight Unit Type
    Direct BLU
    Brightness (cd/m²)
    400
Broadcasting System
  • TV Reception
    ATSC (QAM / VSB), Analog NTSC
Video
  • HDR / HDR Dolby Vision
    No / No
Audio
  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
Hospitality Solution
  • Solution Type
    Pro:Centric (V)
    Pro:Centric Smart
    No
  • Data Streaming (IP & RF)
    No
    HCAP (GEM/FLASH/HTML)
    ※ Service Carousel (TLL/XML)
    GEM
  • Pro:Centric Server
    PCS400R
    DRM
    Pro:Idiom (H/W Type)
FEATURES
  • Hospitality
    b-LAN embedded, EzManager (Simplicity), USB Cloning, Diagnostics (USB), TVLink Interactive(RS-232C, MPI), HTNG-CEC (1.4), Simplink (HDMI-CEC, 1.4), IR Out, Multi IR Code, PDM (Installer Menu), Welcome Screen, Insert Image, One Channel Map, External Speaker Out, Instant ON, RJP (Remote Jack Pack) Compatibility, Auto Off / Sleep Timer, Motion Eye Care, Anti-theft System (Kensington Lock, Credenza / Security Screw Hole, Lock Down Plate), Chromecast Dongle Anti-theft Cover (Optional, 49" only)
Jack Interface
  • Set Side
    HDMI In 1.4 (2), USB 2.0
    Set Rear
    HDMI In (HDCP) - 1.4, RF In (Single b-LAN), AV In (RCA3 Type), Digital Audio Out (Optical), PC Audio Input (Share with Composite Audio), RS-232C (Control & Service), RJ45 (RJP Interface, Pro:Centric), External Speaker Out (3.5mm Phone Jack, Spk-out & Line Out), MPI Port (RJ12 jack), Debug (Phone Jack Type, CPU/PTC), TV link Configuration (Phone Jack Type, b_LAN Service)
Dimension(Unit: mm/kg)
  • Vesa
    200 x 200
    W x H x D / Weight (with stand)
    977 x 630 x 303 / 11.2
  • W x H x D / Weight (without stand)
    977 x 575 x 71.7 (80.8) / 8.0
    W x H x D / Weight (Shipping)
    1,147 x 660 x 175 / 13.9
Power(Unit : Watts)
  • Voltage, Hz
    120, 50/60
    Typical
    60.0W
  • Stand-by
    Under 0.5W
General
  • Region
    North America
  • Dimension
    • [Dimension] 43LT570H (NA).dwg
    • [Dimension] 43LT570H (NA).pdf
  • Datasheet
    • LT570H_NA_Datasheet_Low_190924.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
