43LV540H (SCA ISDB-T) component-copyModelName

LV540H Series

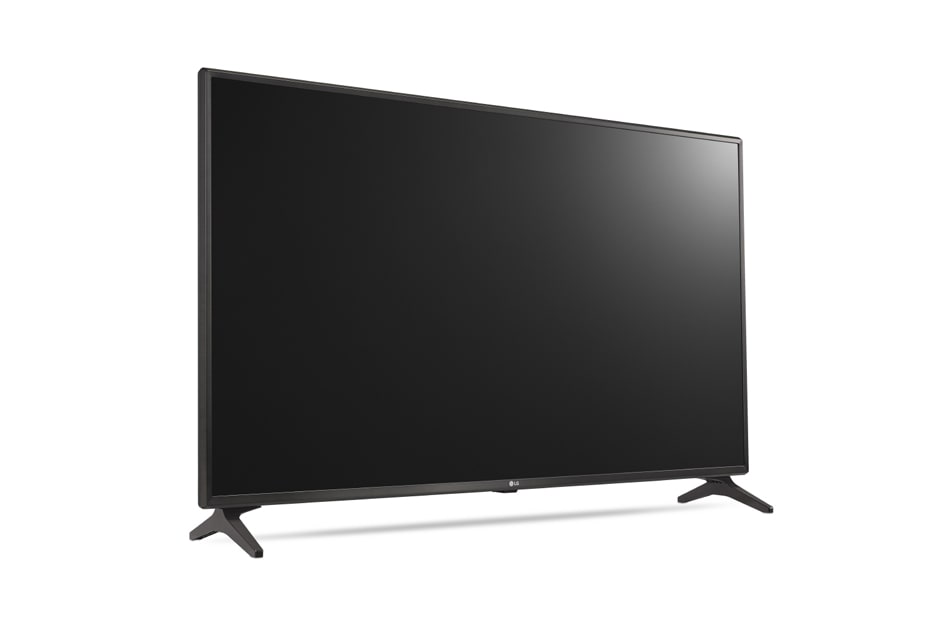

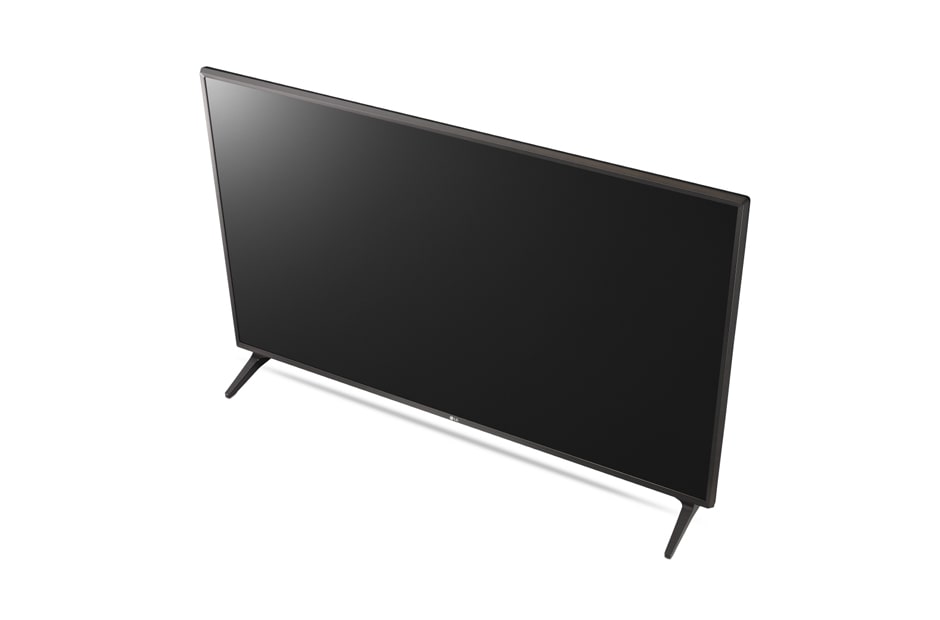

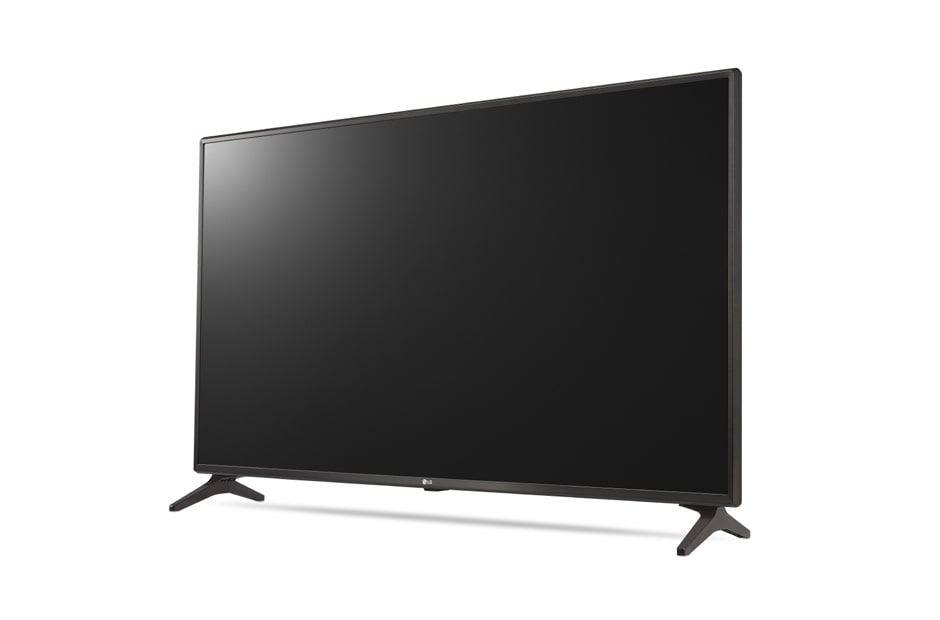

LG LV540H Series, 43LV540H (SCA ISDB-T), thumbnail 1

LG LV540H Series, 43LV540H (SCA ISDB-T), thumbnail 2

LG LV540H Series, 43LV540H (SCA ISDB-T), thumbnail 3

LG LV540H Series, 43LV540H (SCA ISDB-T), thumbnail 4

LG LV540H Series, 43LV540H (SCA ISDB-T), thumbnail 5

LG LV540H Series, 43LV540H (SCA ISDB-T), thumbnail 6

LG LV540H Series, 43LV540H (SCA ISDB-T), thumbnail 7

LG LV540H Series, 43LV540H (SCA ISDB-T), thumbnail 8

LG LV540H Series, 43LV540H (SCA ISDB-T), thumbnail 9

LG LV540H Series, 43LV540H (SCA ISDB-T), thumbnail 10

Discontinued

43LV540H (SCA ISDB-T) component-copyModelName

LV540H Series

Key Features

Pro:Centric Application
Embedded Customizable Templates
Multiple Channel Spooling
NEW Quick Menu
EZ-Manager for quick and simple TV settings

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Pro:Centric Application
Embedded Customizable Templates
Multiple Channel Spooling
NEW Quick Menu
EZ-Manager for quick and simple TV settings

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

LV540H Series

Enhanced Guest Experience

Pro:Centric enables to differentiate guest room experiences with customizable billboards and EPG
Easy Content Management

Pro:Centric enables centralized and intuitive TV control from the TV settings to content creation.
Optimized Cost of Ownership

Optimize TCO with Pro:Centric by saving workforce and time for having hospitality solutions.

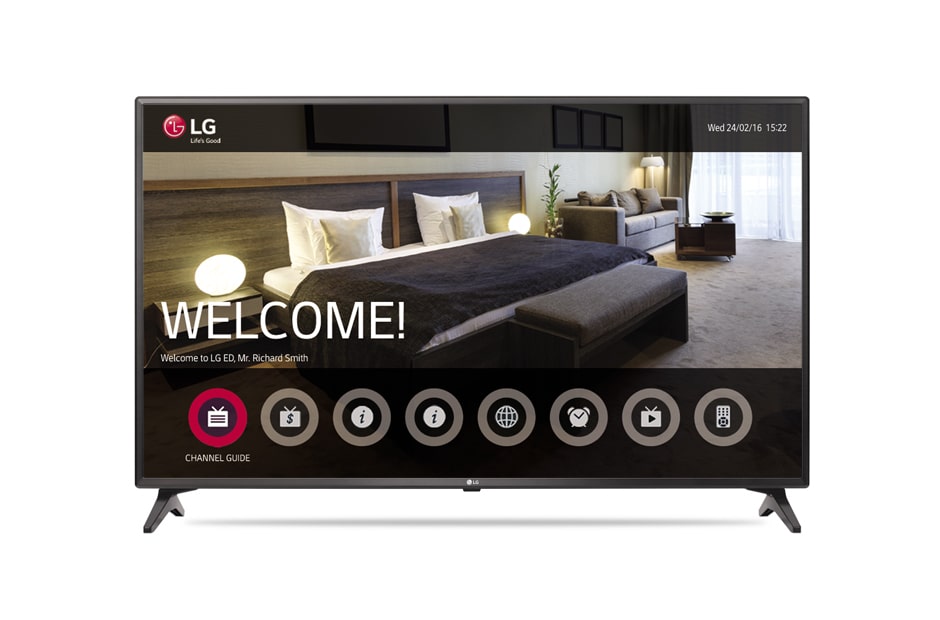

Welcome Screen/Video

With the capability to display various video formats* as well as images, Commercial Lite TVs allow for a greater variation of greeting mes sages in hotel rooms which make customers feel more welcome and cared for.
* mp4, avi, mov, tp, wma, ts etc.
Self Diagnostics

Enable service engineers to recognize technical issues of a TV quickly and easily through a USB. The TV stores any technical issues encountered and can output them to a USB device.
IR OUT

Just connect your interactive set-top-box to LG Commercial TV. With a single remote control, the LG TVs in your hotel solution fall under your control.

External Speaker Out

Enhance the entertainment experience by adding an additional speaker. Guests listen to and control the TV audio from anywhere in the business areas, including restrooms.
USB Cloning

Clone all commercial TVs with astonishing speed and ease. The USB Cloning feature allows you to simply copy the TV settings to all TVs using a USB memory device.
Multi IR

Multi IR function eliminate the remote control signal interference between TVs in multiple dwelling beds.

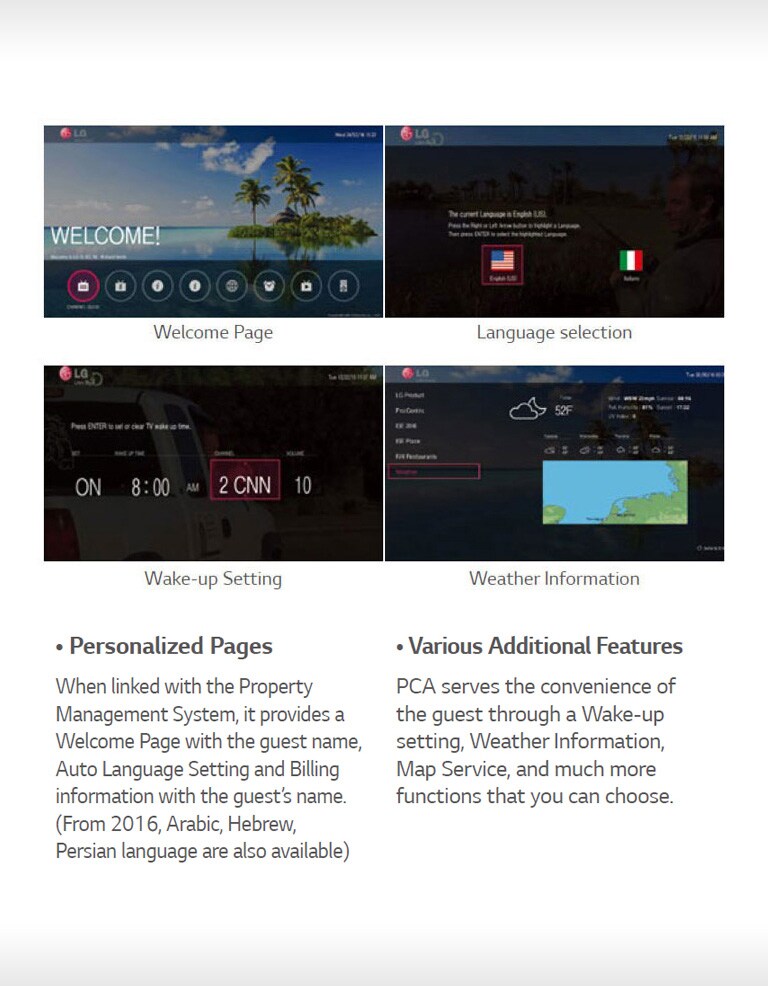

Enhanced Customer Experience

Personalize the page with the Pro : Centric applications(PCA) which improves guests' in-room experience by providing a variety of additional features conveniently just for them.

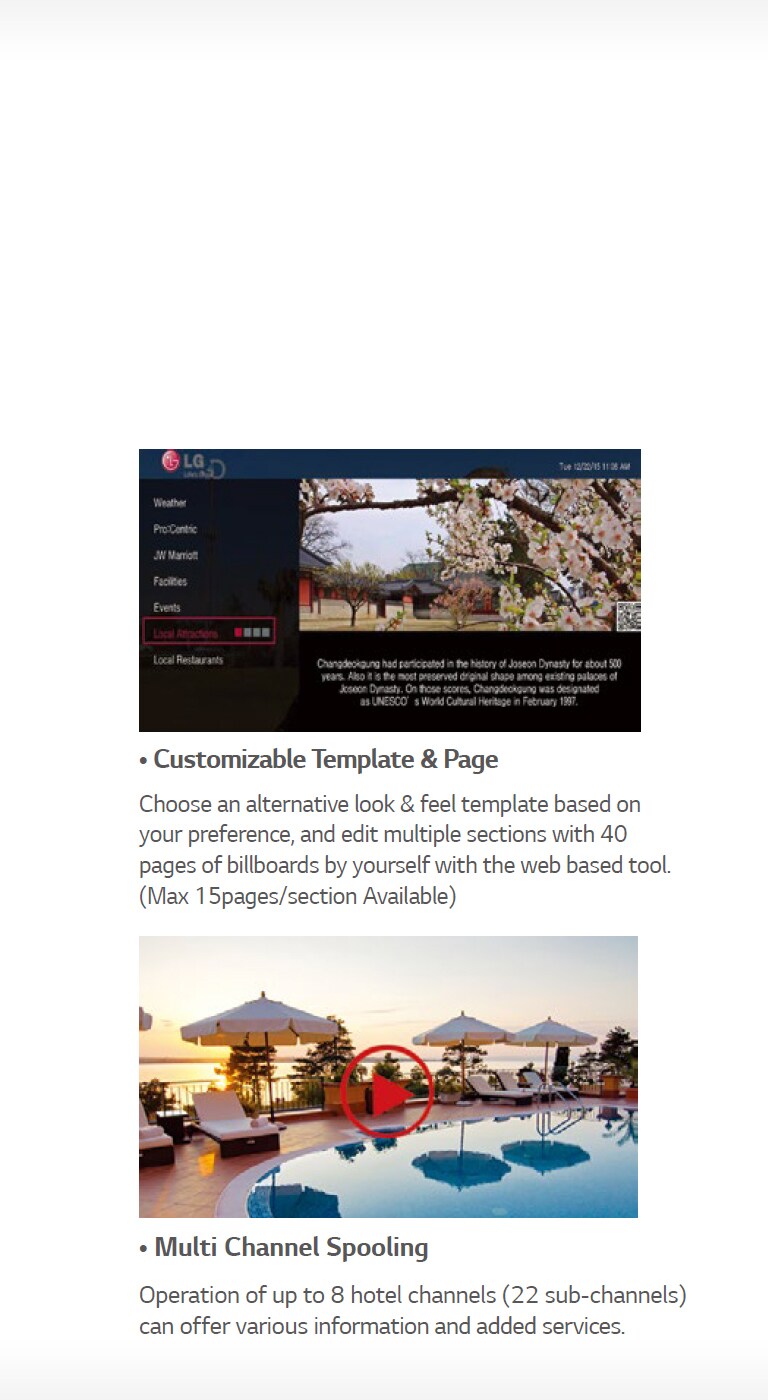

Easy Content Creation & Management

You can now differentiate your hotel with our customizable templates pages which can be specialized for your property.

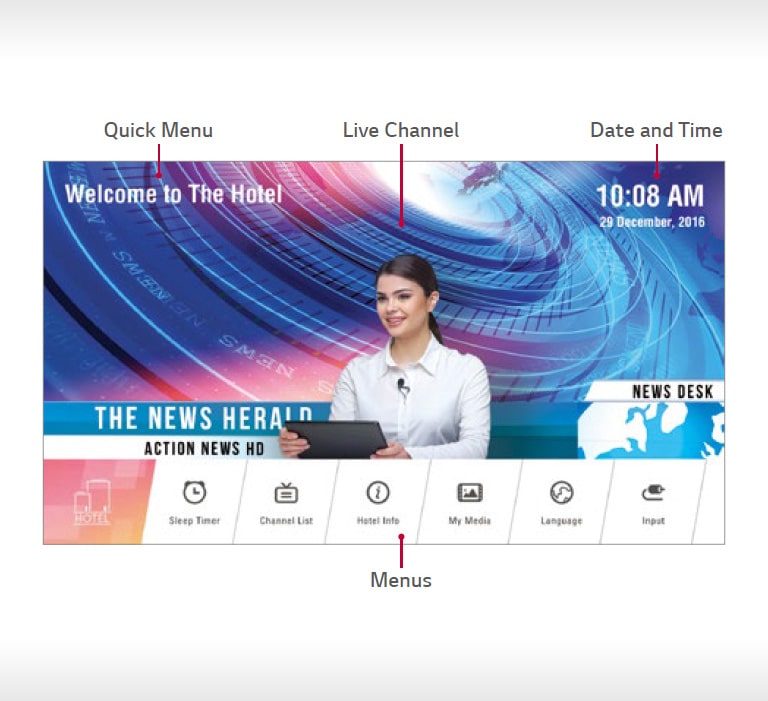

Quick Menu

You can now enjoy LG's simple home menu solution, Quick Menu. It provides editable welcome message, date/time and other frequently used menus in the form of bar. These can be all set with a remote control or USB, and guests are able to easily access the menus they want improving satisfaction of their stay.

Display

Type

Direct LED

Resolution

1,920 x 1,080 (FHD)

Broadcasting System

Analog

PAL-M/N, NTSC-M

Digital

ISDB-T

Video

Picture Engine

Triple XD Engine

Real Cinema 24p (3:3 Pull down)

•
Aspect Ratio

• 6 modes (16:9, Just scan, Set by program, 4:3, Zoom, Cinema zoom1)

Audio

Audio Output / Speaker System

10W + 10W / 2.0 ch

Sound Mode

• 6 modes (Standard, News, Music, Cinema, Sport, Game)

Solution

Type

Pro:Centric V, Quick Menu (TV Embedded Home UI)

RF

• (1 Tuner)
HCAP (SDK)

GEM / Flash

Pro:Centric Application

PCA 3.7.5
Pro:Centric Server

PCS200S

FEATURES

Installation

EzManager, USB Cloning

Management

Wake on RF, Self Diagnostics, TVLink Interactive, IR Out, Multi IR Code, HTNG/HDMI-CEC
Hospitality

Hotel Mode, Lock Mode, Welcome Screen/Video, Insert Image, External Speaker Out, Instant ON, RJP Compatibility, Time Scheduler

Interface

Side

HDMI In, USB

Rear

RF In, AV In, Component In (RCA5), Digital Optical Audio Out, HDMI Input, RS-232C, RGB In, PC Audio Input, RJ45, External Speaker Out

Dimension(Unit: mm)

Vesa

200 X 200

W x H x D / Weight (with stand)

974 x 625 x 220 / 9.3kg
W x H x D / weight (packing)

1,060 x 660 x 152 / 11.3kg
