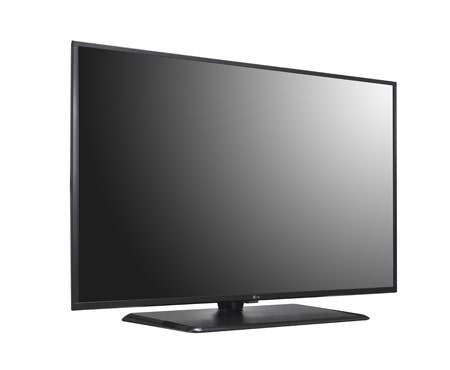

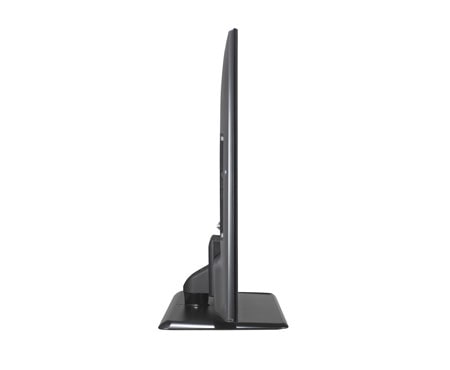

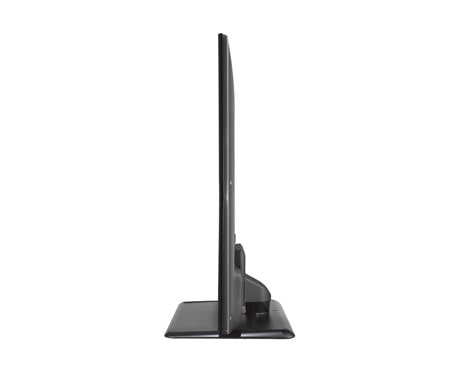

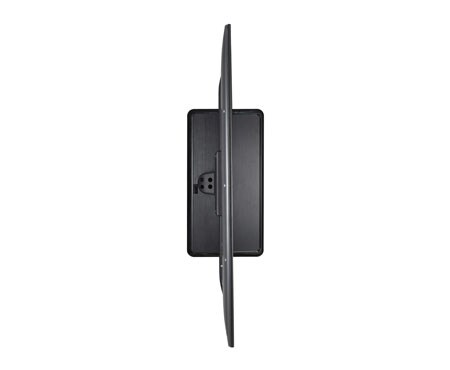

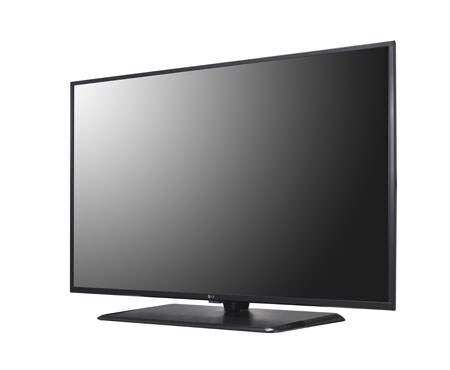

43LX541H (SCA ISDB-T) component-copyModelName
LX541H Series

Key Features

component-OBScountrySelectDesc

LX541H Series
LCD Panel Specification
  • Backlight Type
    Edge
    Cinema 3D
    -
  • Resolution
    1,920 x 1,080 (FHD)
    Brightness (cd/m²)
    300
Broadcasting System
  • Analog
    PAL-M/N / NTSC-M
    Terrestrial
    ISDB-T
  • Cable
    ATSC/QAM
    Satellite
    -
Video
  • 24p Real Cinema (24p 5:5/2:2 Pull down)
    Yes
    Aspect Ratio
    7 modes (16:9, Just scan, Set by program, 4:3, Zoom, Zoom2, Cinema zoom1)
Audio
  • Audio Output
    10W + 10W
    Wireless Sound Sync
    -
Feature
  • Pro:Centric
    Yes (Pro:Centric lite : USB Type)
    Pro:Idiom
    -
Interface - Set Side
  • Headphone Out
    -
    AV in
    -
  • S-Video In
    -
    RGB In (D-sub 15pin)
    -
  • Component In (Y,Pb,Pr)
    -
    PC Audio Input
    -
  • HDMI In
    1
    USB (2.0)
    2
  • CI Slot
    -
Interface - Set Rear
  • RF In
    1
    AV In
    1 (Share with Component)
  • AV Out
    -
    S-Video In
    -
  • Full Scart
    -
    Component In (Y, Pb,Pr) + Audio (L/R)
    1
  • Digital Audio Out (Coaxial / Optical)
    1 (Optical)
    HDMI/HDCP Input
    1
  • USB 2.0
    -
    RGB In (D-sub 15pin) - PC
    1
  • PC Audio Input
    1 (Share with Component Audio)
    RS-232C (D-sub 9pin)
    1 (Control & Service)
  • Headphone Out
    -
    Clock Interface
    -
  • LAN Port
    -
    RJ45 (RJP interface)
    -
  • External Speaker Out (3.5mm phone jack)
    -
    TV link Configuration (phone jack type)
    -
Power
  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Typical (Watts)
    80.6W
Tool Description
  • Swivel (angle)
    -
    VESA Compatibility
    200 X 200
Required Listing(Certification)
  • Safety
    CB
    EMC
    -
  • ETC.
    ROHS
Dimension
  • Set Size (W/O Stand, WxHxD, mm)
    973 X 573 X 55.1
    Set Size (With Stand, WxHxD, mm)
    973 X 624 X 325
General
  • Region
    South America
  • Dimension
    • [Drawing] LX541H_SCA_43LF63_Swivel.dwg
    • [Drawing] LX541H_SCA_43LF63_Swivel.pdf
  • Datasheet
    • [Leaflet] LX541H_SCA_151120.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
