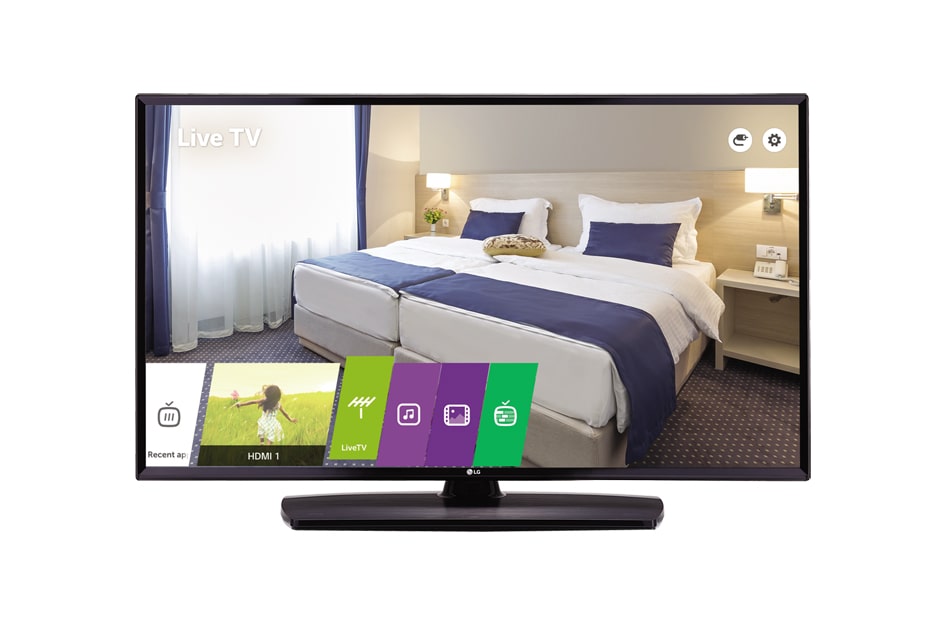

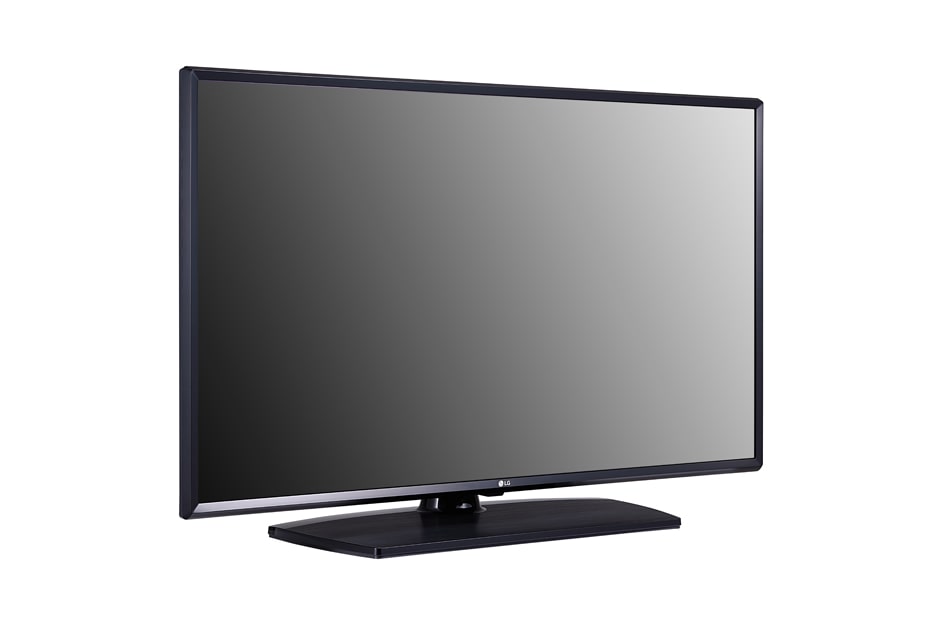

49LV661H (EU) component-copyModelName
LV661H Series

Key Features

component-OBScountrySelectDesc

LV661H Series
Display
  • Type
    Direct LED
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness
    400
Broadcasting System
  • Analog
    PAL / SECAM
    Digital
    DVB-T2/C/S2
Video
  • Picture Engine
    XD Engine
    Real Cinema 24p (3:3 Pull down)
  • Aspect Ratio
    • 6 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom, Just Scan)
Audio
  • Audio Output / Speaker System
    10W + 10W / 2.0 ch
    Sound Mode
    • 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
Solution
  • Type

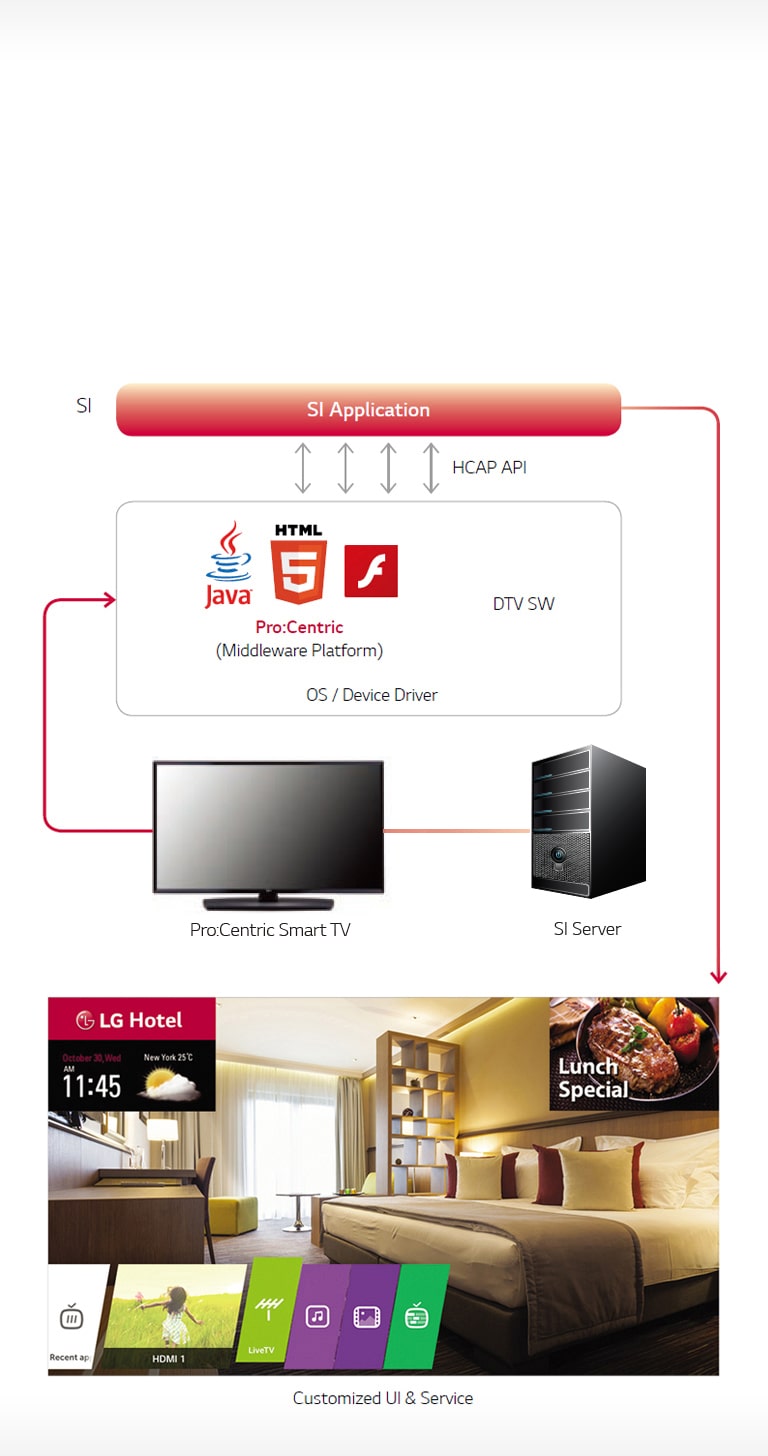

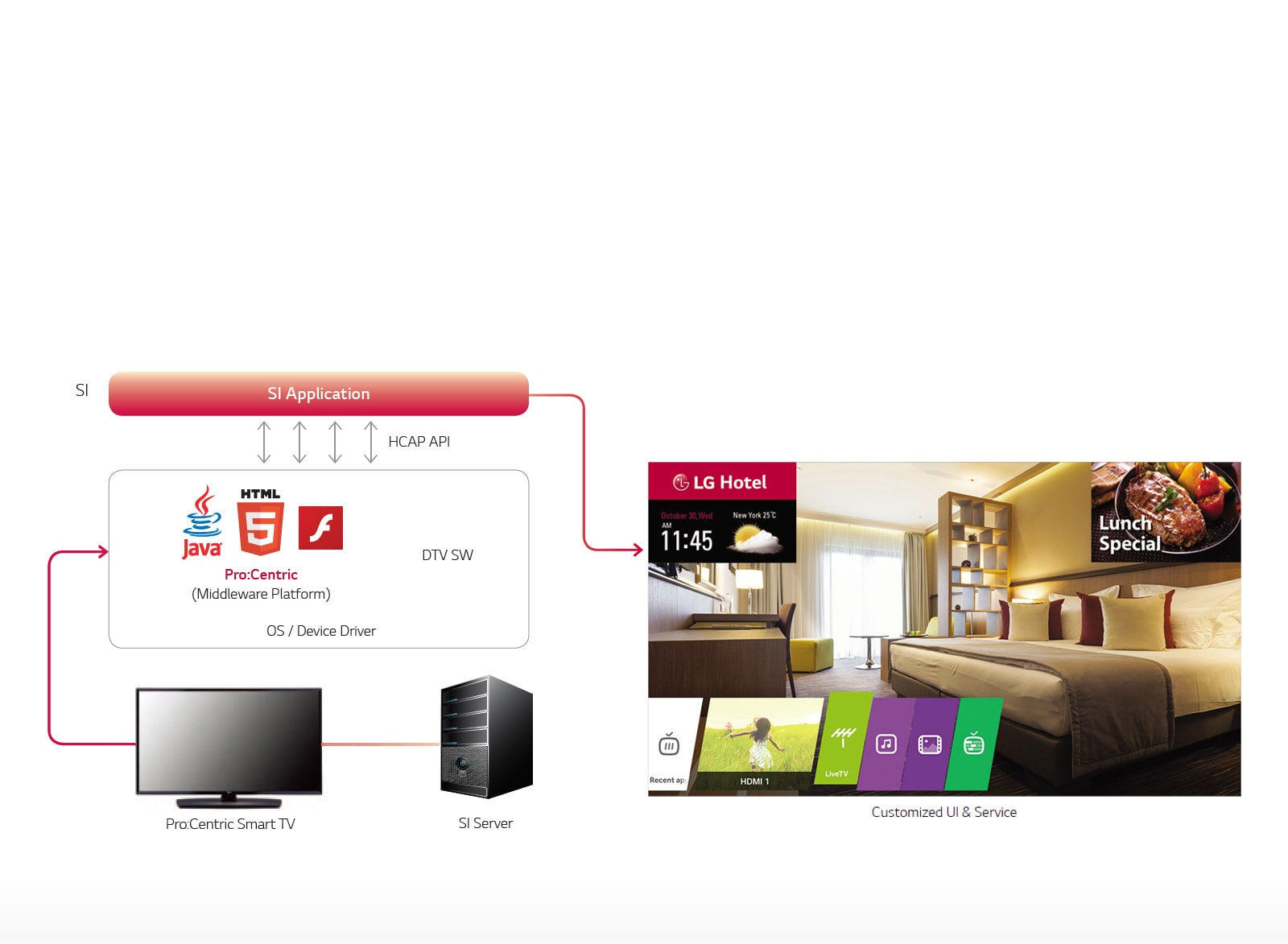

    Pro:Centric Smart, V, Direct
    Data Streaming (IP &RF)
  • RF
    • (1 Tuner)
    HCAP (SDK)
    GEM / Flash /HTML5

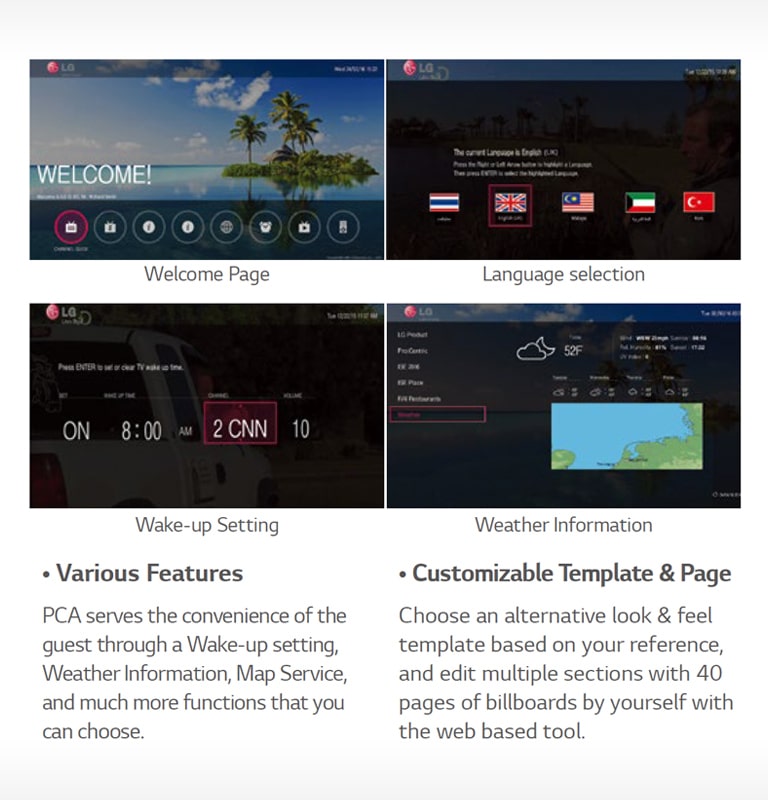

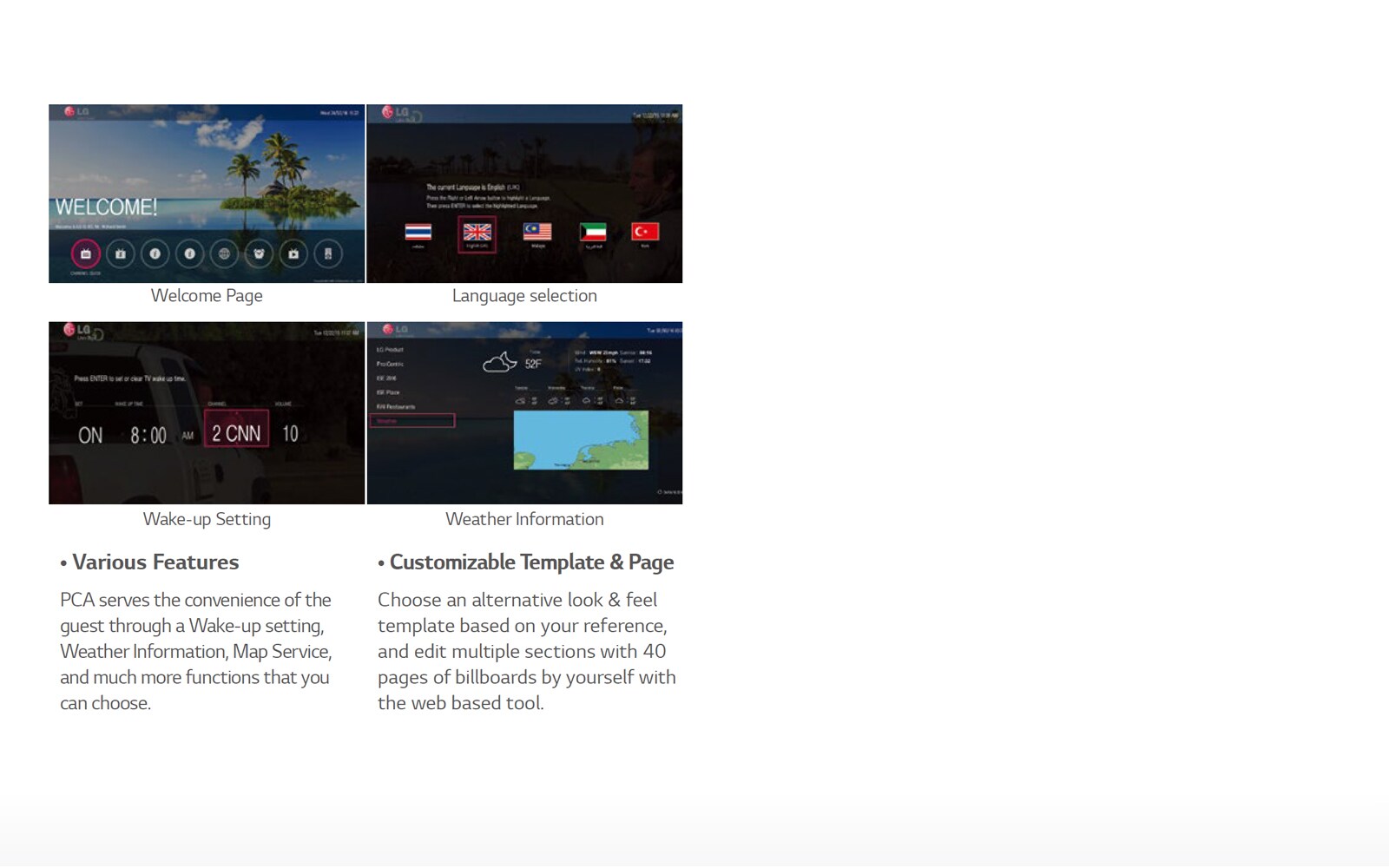

  • Pro:Centric Application
    PCA 3.7
Smart Features
  • Smart UX
    webOS 3.5, Commercial Smart Home, Web Browser, Pre-loaded Apps, SDP (Service Delivery Platform) compatibility, Magic Remote Ready
    Connectivity

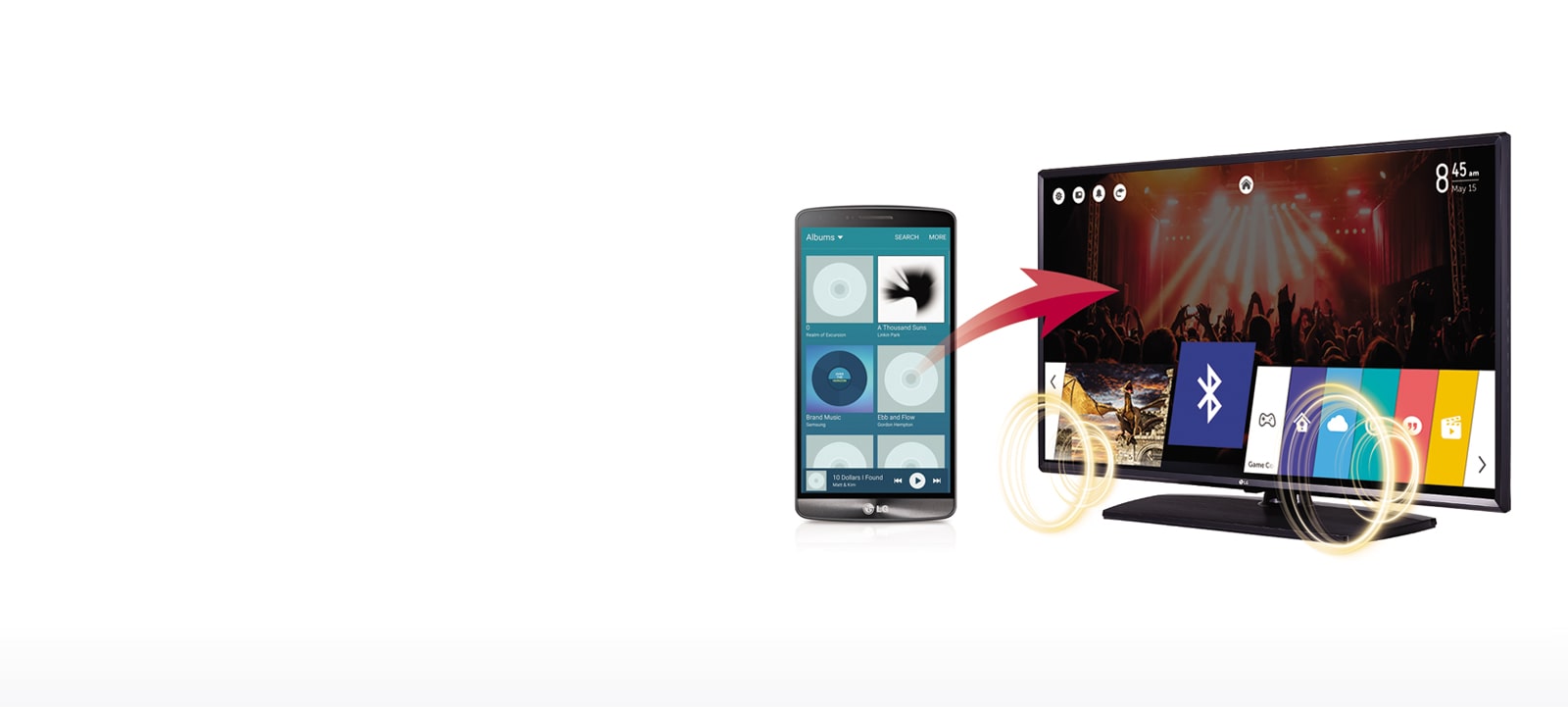

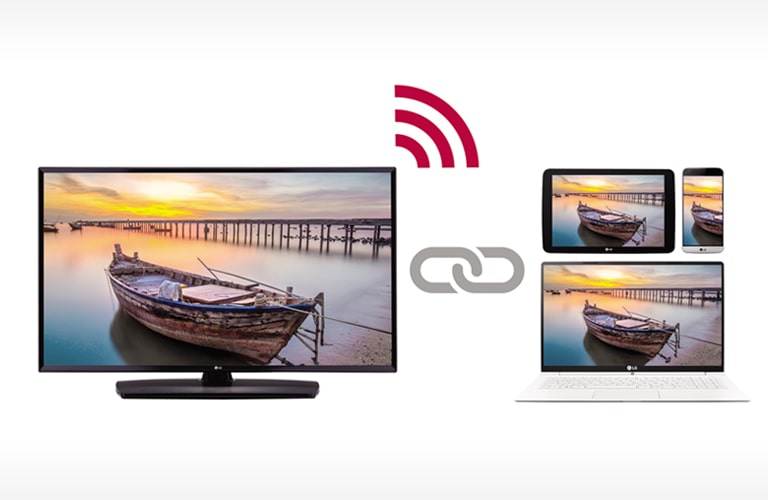

    SoftAP, WiFi (ac), ScreenShare (Miracast), SmartShare, DIAL, Bluetooth Sound Sync, LG Sound Sync
Feature
  • Installation
    EzManager, USB Cloning
    Management
    Wake on RF, WOL, SNMP, Remote Diagnostics, TVLink Interactive, IR Out, Multi IR Code, HTNG/HDMI-CEC
  • Hospitality
    Hotel Mode, Lock Mode, Welcome Screen, Insert Image, External Speaker Out, Instant ON, One Channel Map, RJP Compatibility
Interface
  • Side
    HDMI In, USB (2), CI Slot
    Rear
    RF In (2), AV In, Video Component In (Phone Jack Type), HDMI Input, RS-232C, Headphone Out, RJ45, External Speaker Out (2)
Dimension(Unit: mm)
  • Vesa
    300 x 300
    W x H x D / Weight (with stand)
    1,110 x 705 x 303 / 14.5kg
  • W x H x D / weight (packing)
    1,296 x 770 x 171 / 17.2kg
General
  • Region
    Europe
  • Datasheet
    • 1016_LV661H_EU_page.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
