49UU660H (ASIA) component-copyModelName

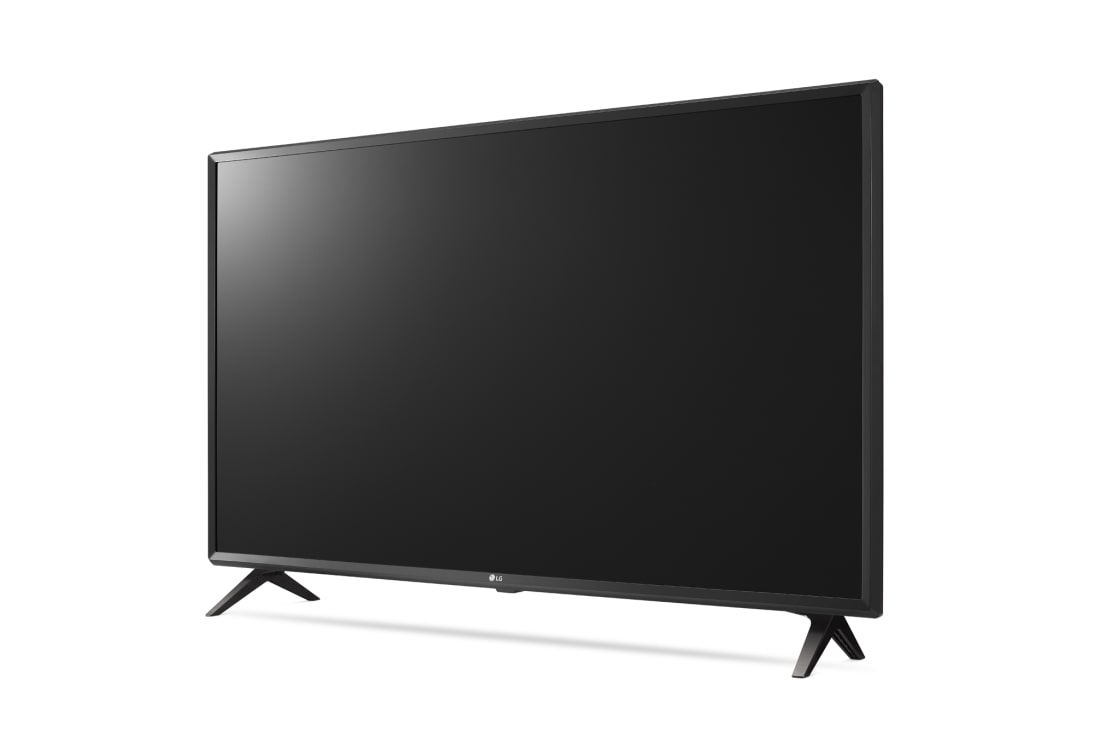

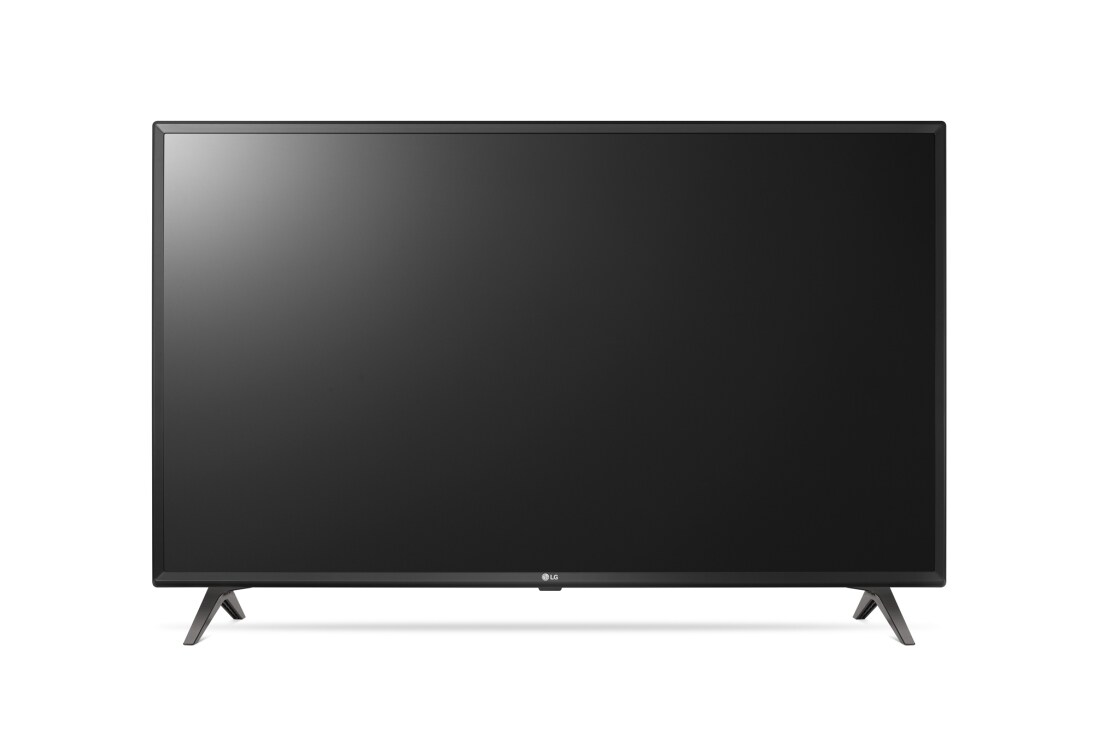

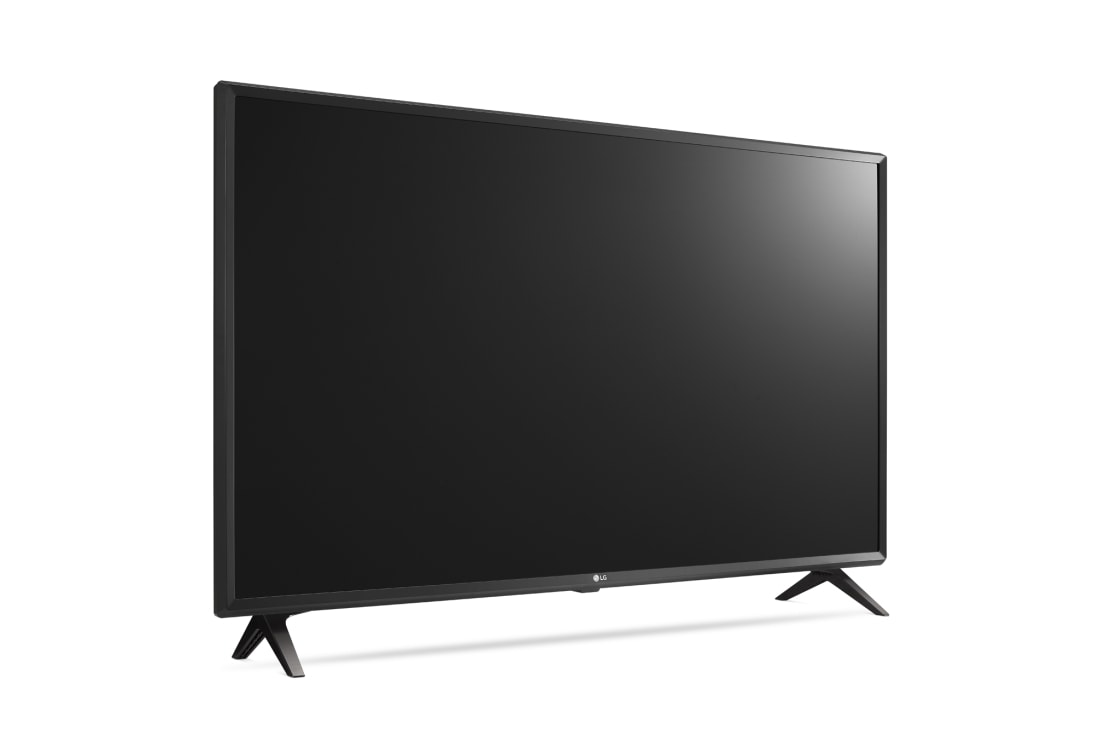

49'' UHD Commercial TV

Key Features

Choose your Size

component-OBScountrySelectDesc

49" UHD Commercial TV
Panel
  • Screen Size
    49"
    Backlight Type
    LED (Direct)
  • Resolution
    3,840 x 2,160 (4K UHD)
    Brightness (cd/m²)
    400
Broadcasting System
  • Analog
    • (PAL/SECAM)
    Digital
    • (varied by countries)
Video
  • XD Engine
    Aspect Ratio
    • 5 modes
    (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom)
  • HDR 10 / HDR Dolby Vision
    • / -
Audio
  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • Sound Mode
    • 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
    • 6 modes (Only for India, Sri Lanka) (Standard, Cinema, Clear Voice III, Cricket, Music, Game)
    Clear Voice
    • (Clear VoiceⅢ)
Hospitality Solution
  • Solution Type
    Pro:Centric (Smart, V, Direct)
    Data Streaming (IP & RF)
  • RF
    • (1 Tuner)
    HCAP (GEM/FLASH/HTML)
    ※ Service Carousel (TLL/XML)
    GEM / Flash / HTML5
  • Pro:Centric Application
    PCA 3.8
    DRM
    Pro:Idiom (S/W Type)
Jack Interface
  • Set Side
    HDMI In, USB 2.0 (2), CI Slot

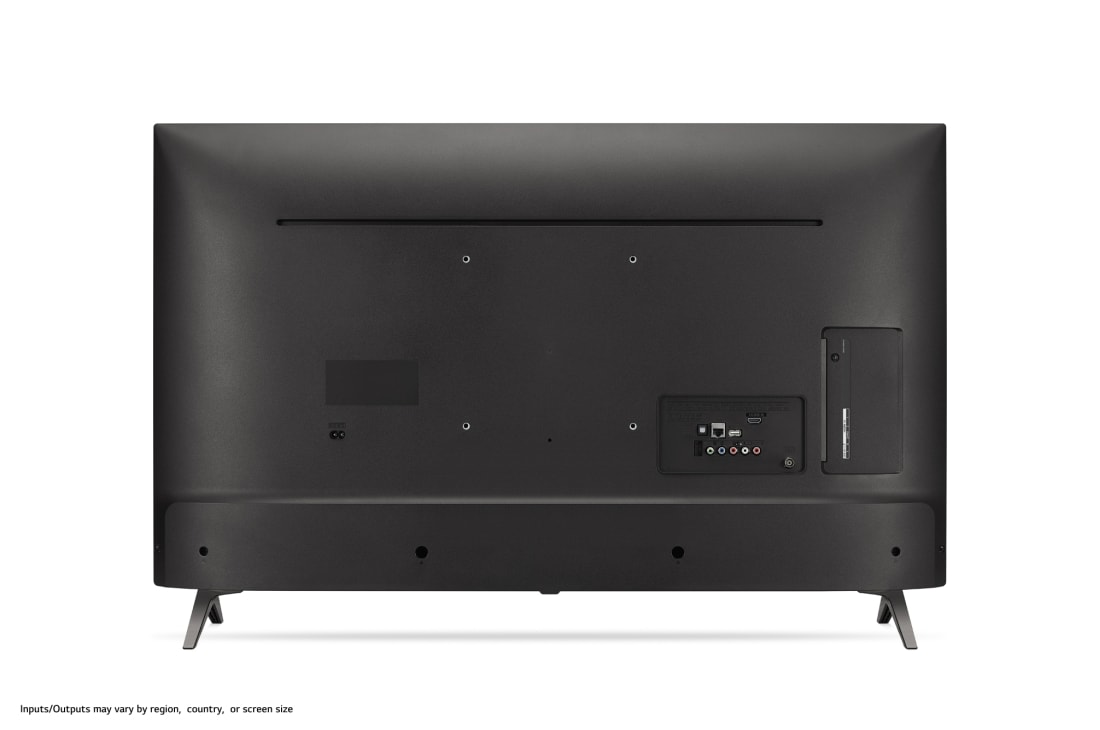

    Set Rear
    RF In, AV In, Component in (Y,Pb,Pr-Video), Digital Audio Out (Optical), HDMI / HDCP Input (2.0), RS-232C (Control & Service), Headphone Out, Clock Interface (RJ12), RJ45 (2), External Speaker Out
Mechanic
  • Vesa
    300 x 300 mm
    W x H x D / Weight (with stand)
    1,110 x 709 x 231 mm / 11.3 kg
  • W x H x D / Weight (without stand)
    1,110 x 650 x 72 mm (SPK: 81.1) / 11.1 kg
    W x H x D / Weight (Packing)
    1,193 x 770 x 158 mm / 13.4 kg
Power(Unit : Watts)
  • Voltage, Hz
    100~240V, 50 / 60 Hz
    Max
    131.9 W
  • Typical
    106.6 W
    Energy saving (Min / Med / Max)
    31.98 W / 58.63 W / 85.28 W
  • Stand-by
    0.5 W
General
  • Region
    ASIA
  • Dimension
    • [Dimension] 49UU660H (ASIA).dwg
    • [Dimension] 49UU660H (ASIA).pdf
  • Datasheet
    • UU660H Asia_Low.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
