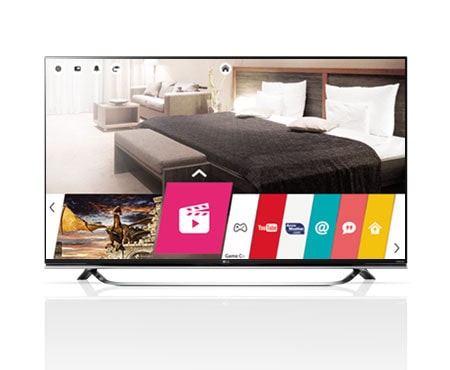

49UX960H (MEA) component-copyModelName
UX960H Series

Key Features

component-OBScountrySelectDesc

UX960H Series
LCD Panel Specification
  • Backlight Type
    UHD Edge LED
    Cinema 3D
    Yes (Except for 79")
  • Resolution
    3,840 x 2,160 (UHD)
    Brightness (cd/㎡)
    400
Broadcasting System
  • Analog
    PAL/SECAM
    Terrestrial
    DVB-T2
  • Cable
    DVB-C
    Satellite
    DVB-S2
Video
  • Real Cinema 24p (3:3 Pull down)
    Yes
    Aspect Ratio
    8 modes (16:9, Just scan, Original, Full Wide, 4:3, 14:9, Cinema Zoom 1, Zoom)
Audio
  • Audio Output
    10W + 10W
    Wireless Sound Sync
    Yes
Feature
  • Pro:Centric
    Yes (Smart)
    Pro:Idiom
    Yes
Interface - Set Side
  • Headphone Out
    1
    RF In
    -
  • AV in
    -
    S-Video In
    -
  • RGB In (D-sub 15pin)
    -
    Component In (Y,Pb,Pr)
    -
  • PC Audio Input
    -
    HDMI In
    2
  • USB (2.0)
    3
    CI Slot
    1
  • IR Out
    -
Interface - Set Rear
  • RF In
    2
    AV In
    1 (RCA type)
  • AV Out
    -
    S-Video In
    -
  • Full Scart
    -
    Component in (Y,Pb,Pr) + Audio
    1
  • Digital Audio Out (Coaxial / Optical)
    1 (Optical)
    HDMI/HDCP Input
    1
  • USB 2.0
    -
    RGB In (D-sub 15pin) - PC
    -
  • PC Audio Input
    -
    RS-232C (D-sub 9pin)
    1
  • Headphone Out
    -
    Clock Interface
    -
  • LAN Port
    2
    RJ45 (RJP interface)
    -
  • External Speaker Out (3.5mm phone jack)
    2 (Spk-out 1, Vol. Control 1)
    TV link Configuration (phone jack type)
    -
Power
  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Typical (Watts)
    TBD
Tool Description
  • Swivel (angle)
    -
    VESA Compatibility
    300 X 300
Required Listing(Certification)
  • Safety
    CB
    EMC
    CE
  • ETC.
    ROHS
Dimension
  • Set Size (W/O Stand, WxHxD, mm)
    1,095.1 X 649.5 X 51.3
    Set Size (With Stand, WxHxD, mm)
    1,095.1 X 703.6 X 260.6
General
  • Region
    Middle East & Africa
  • Dimension
    • [Drawing]49UX960H_49UF85.dwg
    • [Drawing]55UX960H_55UF8500.dwg
    • [Drawing]60UX960H_60UF85.dwg
    • [Drawing]49UX960H_49UF85.pdf
    • [Drawing]55UX960H_55UF8500.pdf
    • [Drawing]60UX960H_60UF85.pdf
  • Datasheet
    • [Leaflet] UX960H_MEA_151222.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
