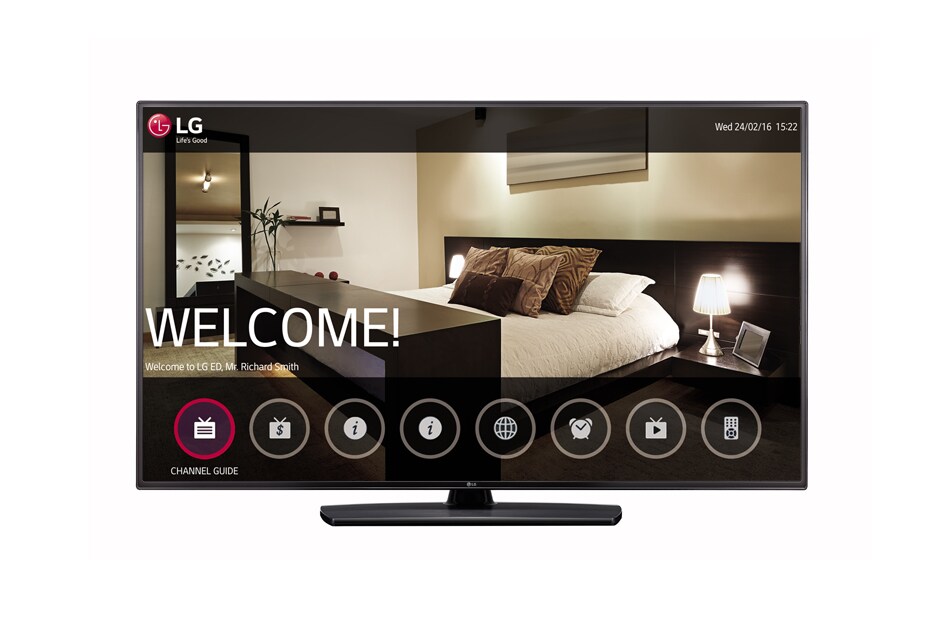

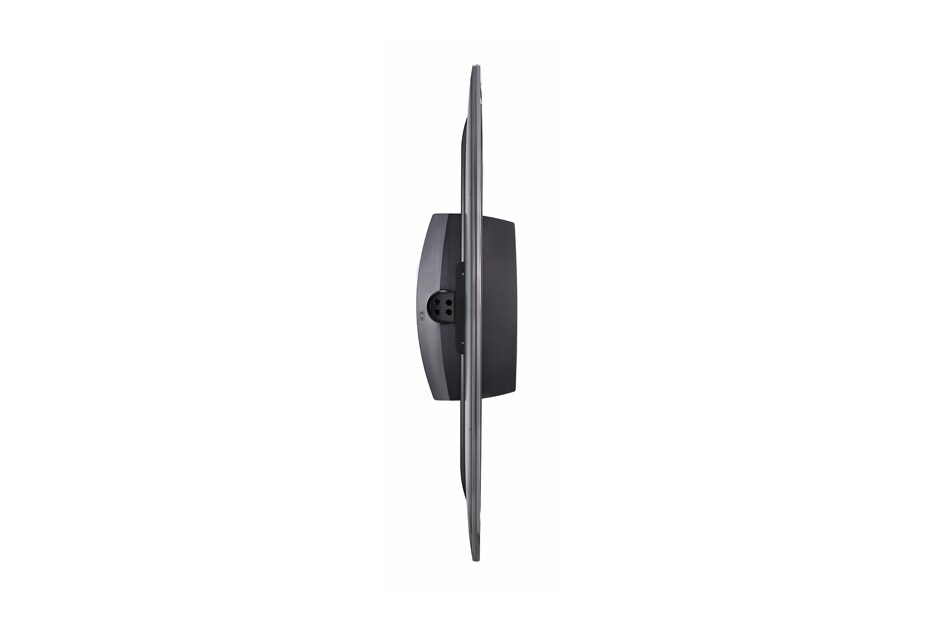

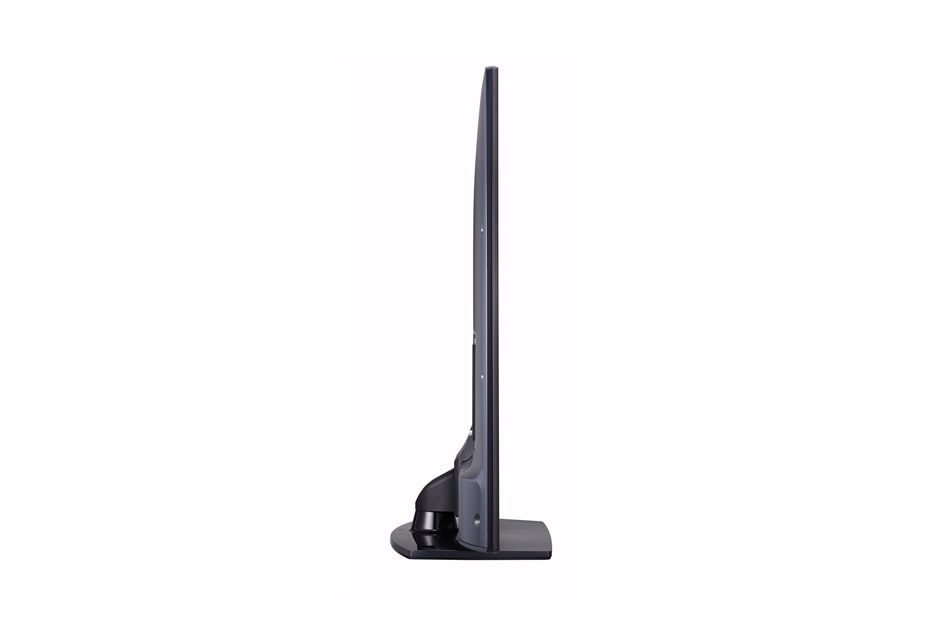

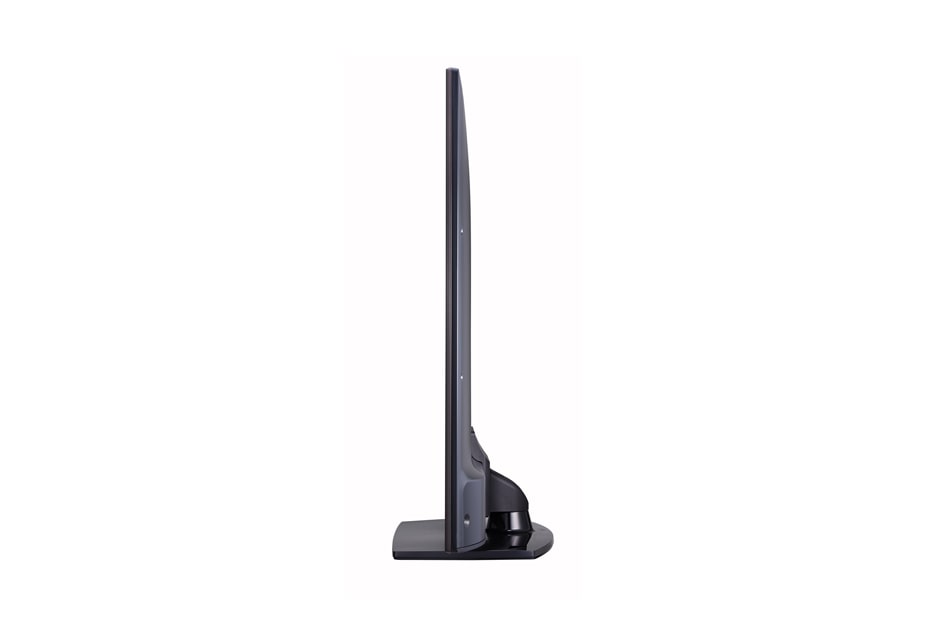

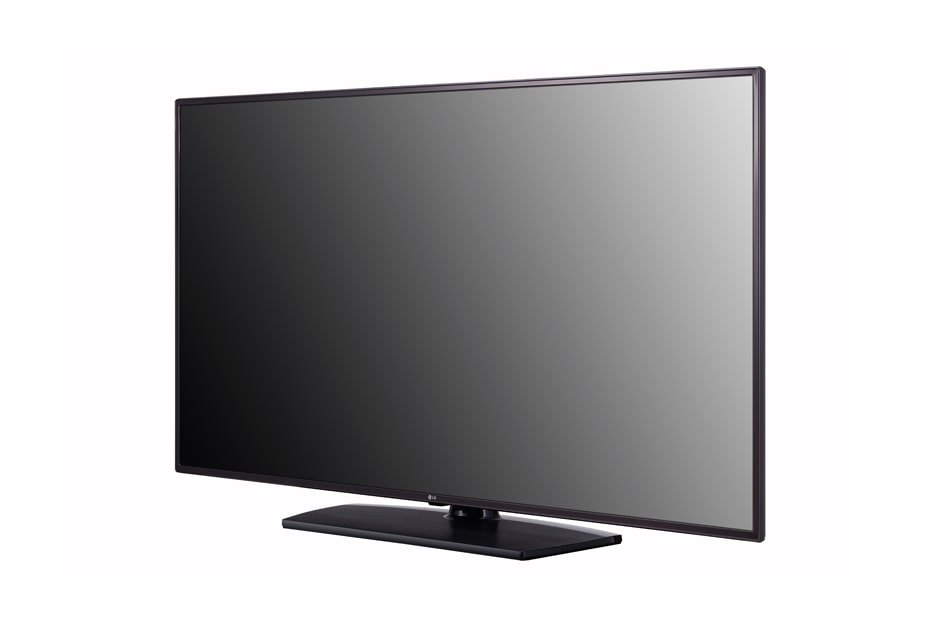

55LV541H (EU) component-copyModelName
LV541H Series

Key Features

component-OBScountrySelectDesc

LV541H Series
Display
  • Type
    Edge LED
    Resolution
    1,920 x 1,080 (FHD)
Broadcasting System
  • Analog
    PAL/SECAM
    Digital
    DVB-T2/C/S2
Video
  • Picture Engine
    Triple XD Engine
    Real Cinema 24p (3:3 Pull down)
  • Aspect Ratio
    • 6 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom, Full wide)
Audio
  • Audio Output / Speaker System
    10W + 10W / 2.0 ch
    Sound Mode
    • 6 modes (Standard, Cinema, Clear Voice, Sports, Music, Game)
Solution
  • Type
    Pro:Centric V, Quick Menu (TV Embedded Home UI)
    Data Streaming (IP &RF)
    • (RF Only)
  • RF
    • (1 Tuner)
    HCAP (SDK)
    GEM / Flash
  • Pro:Centric Application
    PCA 3.7
FEATURES
  • Installation
    EzManager, USB Cloning
    Management
    Wake on RF, Self Diagnostics, TVLink Interactive, IR Out, Multi IR Code, HTNG/HDMI-CEC
  • Hospitality
    Hotel Mode, Lock Mode, Welcome Screen/Video, Insert Image, One Channel Map, External Speaker Out, Instant ON, External Power, RJP Compatibility, External Clock, USB Auto Playback, Time Scheduler
Interface
  • Side
    HDMI In (2), USB , CI Slot
    Rear
    RF(2), AV In, Component In (RCA5), Digital Optical Audio Out, HDMI Input, RS-232C, Headphone Out, Clock Interface, External Speaker Out (2), RJ45 (SNMP)
Dimension(Unit: mm)
  • Vesa
    300 x 300
    W x H x D / Weight (with stand)
    1,241 x 770 x 303 / 19.7kg
  • W x H x D / weight (packing)
    1,360 x 890 x 190 / 24.4kg
General
  • Region
    Europe
  • Datasheet
    • LV541H_EU_CIS_low 180122.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
