LV560H Series
Display
  • Diagonal Size
    54.6"
    Type
    Edge LED
  • Resolution
    1,920 x 1,080 (FHD)
Design
  • Color
    Black Coffee
    Stand
    (20/45/90°) Swivel
Broadcasting System
  • Analog
    NTSC
    Digital
    ATSC / VSB / Clear QAM
Video
  • Triple XD Engine
    Real Cinema 24p (3:3 Pull down)
  • Aspect Ratio
    6 modes (16:9, Just scan, Set by program, 4:3, Zoom, Cinema zoom1)
Audio
  • Audio Output / Speaker System
    10W + 10W / 2.0 ch
    Sound Mode
    6 modes (Standard, News, Music, Cinema, Sport, Game)
Feature
  • Installation
    EZ-Manager Wizard (for Initial Configuration), USB Cloning
    Management

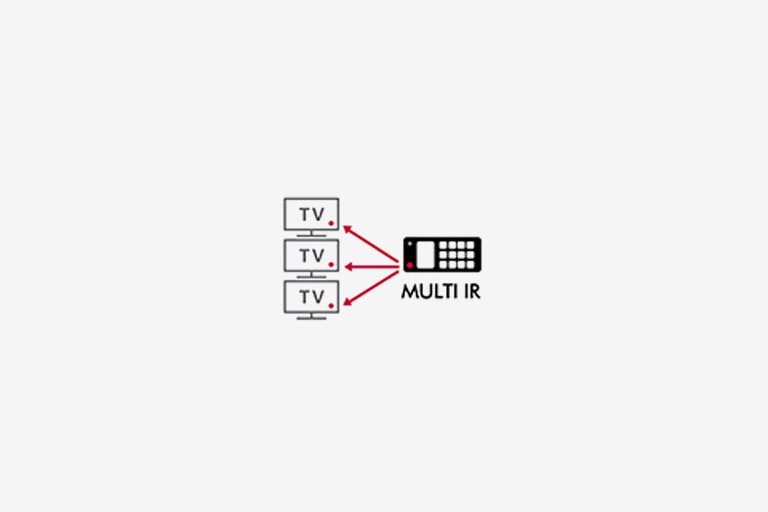

    Wake on RF, Self Diagnostics via USB, TVLink Interative, IR Out (MPI Jack), Multi IR Code
  • Hospitality
    Installer Menu, Welcome Screen (Splash Image), Logical Channel Map (LCM), External Speaker Out, Instant On, RJP Compatibility
Interface
  • Side
    HDMI In (2), USB 2.0
    Rear
    RF In, AV In, Digital Optical Audio Out, HDMI Input, RGB In, PC Audio Input, RJ45, External Speaker Out, MPI Port, Debug
Dimension
  • Vesa (mm)
    300 x 300
    W x H x D / Weight (without stand)
    48.9" x 28.3" x 1.6" / 35.9lb
  • W x H x D / weight (with stand)
    48.9" x 30.3" x 11.9" / 43.0lb
    W x H x D / weight (Carton)
    53.5" x 33.9" x 7.5" / 53.4lb
General
  • Region
    North America
  • Datasheet
    • LV560H_NA_page.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
