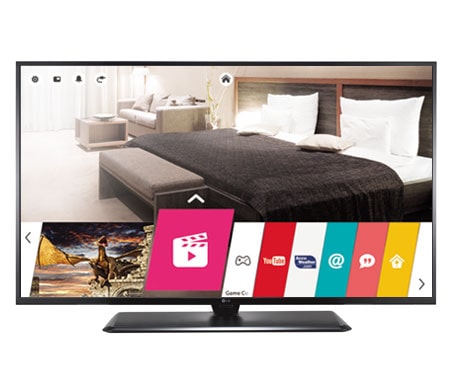

55LX761H (EU) component-copyModelName
LX761H Series

Key Features

component-OBScountrySelectDesc

LX761H Series
LCD Panel Specification
  • Backlight Type
    Edge LED
    Cinema 3D
    -
  • Resolution
    1,920 x 1,080 (FHD)
    Brightness (cd/m²)
    330
Broadcasting System
  • Analog
    PAL/SECAM
    Terrestrial
    DVB-T2
  • Cable
    DVB-C
    Satellite
    DVB-S2
Video
  • Real Cinema 24p (3:3 Pull down)
    Yes
    Aspect Ratio
    8 modes (16:9, Just scan, Original, Full Wide, 4:3, 14:9, Cinema Zoom 1, Zoom)
Audio
  • Audio Output
    10W + 10W
    Wireless Sound Sync
    -
Feature
  • Pro:Centric
    Yes (Smart)
    Pro:Idiom
    Yes
Interface - Set Side
  • Headphone Out
    1
    RF In
    -
  • AV in
    -
    S-Video In
    -
  • Component In (Y,Pb,Pr)
    -
    RGB In (D-sub 15pin)
    -
  • PC Audio Input
    -
    HDMI In
    1 (2.0)
  • USB (2.0)
    2 (2.0)
    CI Slot
    1
  • IR Out
    -
Interface - Set Rear
  • RF In
    2
    AV In
    -
  • AV Out
    -
    S-Video In
    -
  • Full Scart
    1
    Component in (Y,Pb,Pr-Video)
    -
  • Component in (Audio)
    -
    Digital Audio Out (Coaxial / Optical)
    1 (Optical)
  • HDMI/HDCP Input
    1 (2.0)
    RGB In (D-sub 15pin) - PC
    -
  • PC Audio Input
    -
    RS-232C (D-sub 9pin)
    1
  • Headphone Out
    -
    Clock Interface
    1
  • LAN Port
    2
    RJ45 (RJP interface)
    -
  • External Speaker Out (3.5mm phone jack)
    2 (Spk-out 1, Vol. Control 1)
Power
  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Typical (Watts)
    100.1W
Tool Description
  • Swivel (angle)
    Yes
    VESA Compatibility
    300 X 300
Required Listing(Certification)
  • Safety
    CB , CU TR
    EMC
    CE
  • ETC.
    ROHS, ErP
Dimension
  • Set Size (W/O Stand, WxHxD, mm)
    1,242 X 724 X 37 (SPK 55.1)
    Set Size (With Stand, WxHxD, mm)
    1,242 X 780 X 325
General
  • Region
    Europe
  • Dimension
    • [Drawing] LX761H_32LF63_with commercial stand.dwg
    • [Drawing] LX761H_43LF63_with commercial stand.dwg
    • [Drawing] LX761H_49LF63_with commercial stand.dwg
    • [Drawing] LX761H_55LF63_with commercial stand.dwg
    • [Drawing] LX761H_32LF63_with commercial stand.pdf
    • [Drawing] LX761H_43LF63_with commercial stand.pdf
    • [Drawing] LX761H_49LF63_with commercial stand.pdf
    • [Drawing] LX761H_55LF63_with commercial stand.pdf
  • Datasheet
    • 0714_Final_LX761H_EU+CIS.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
