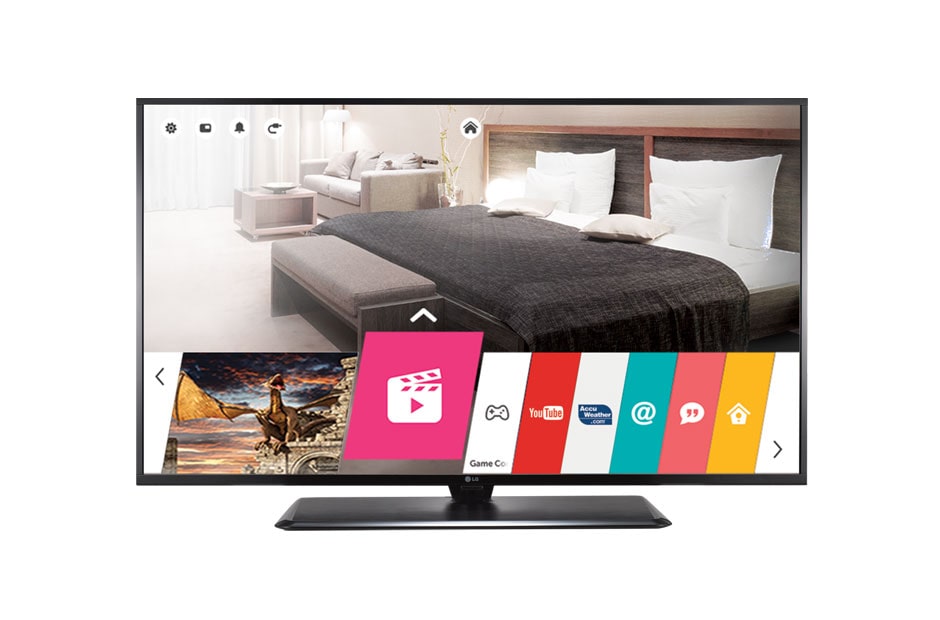

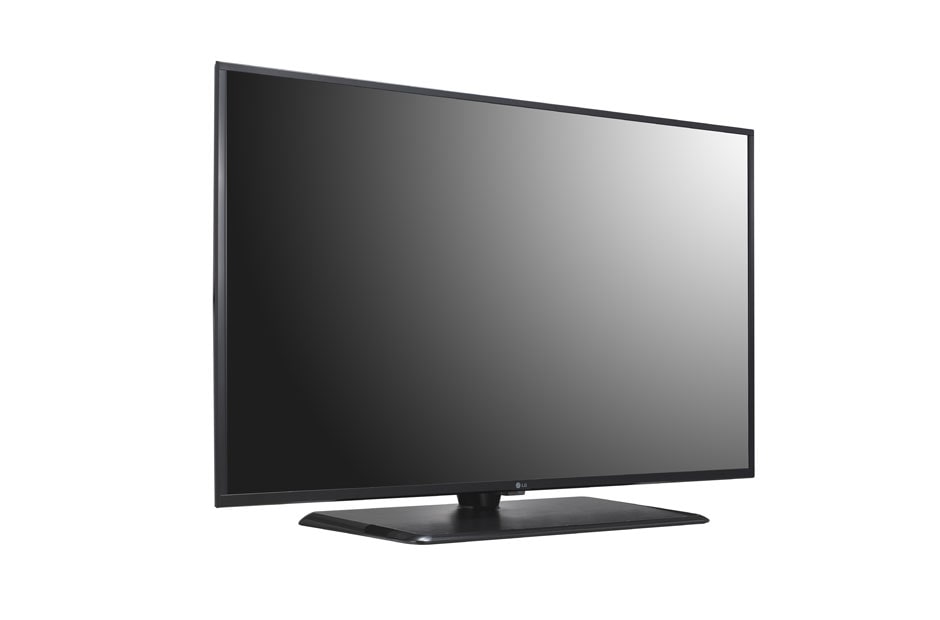

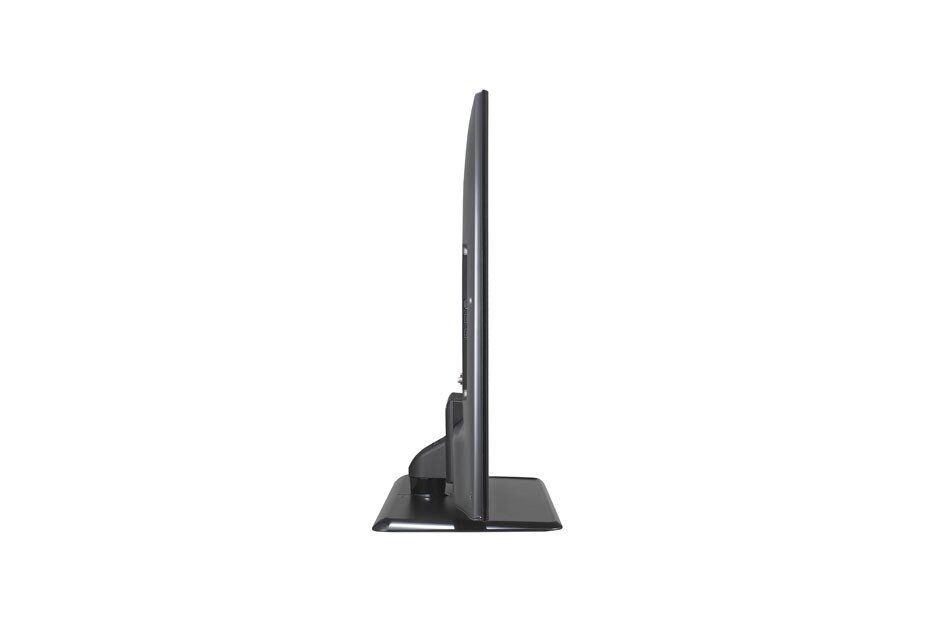

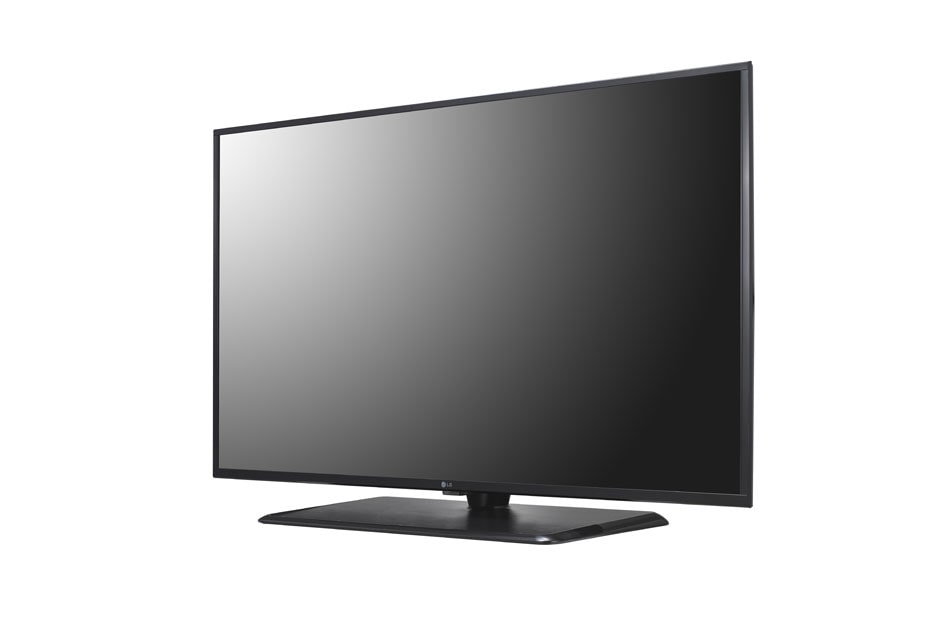

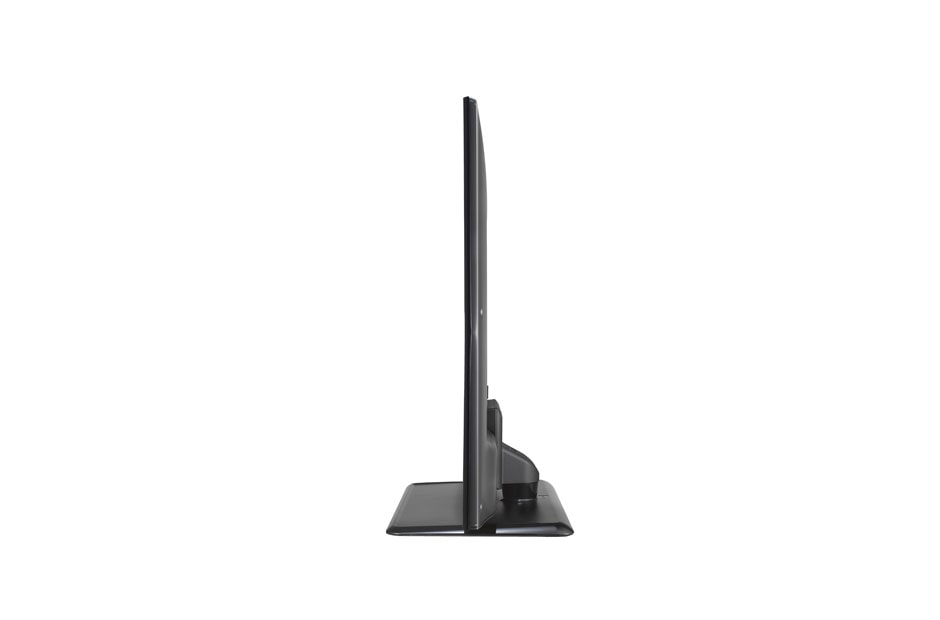

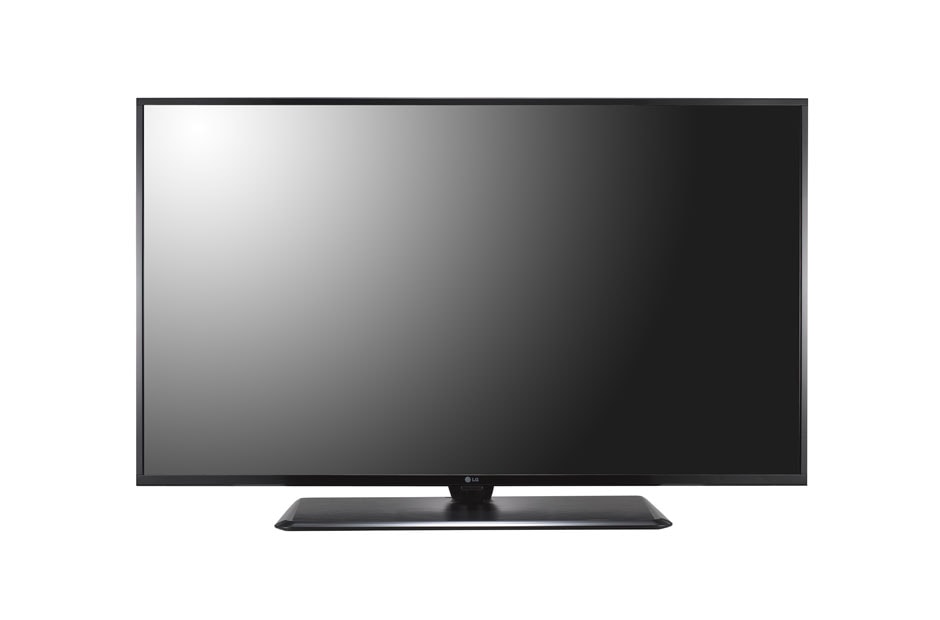

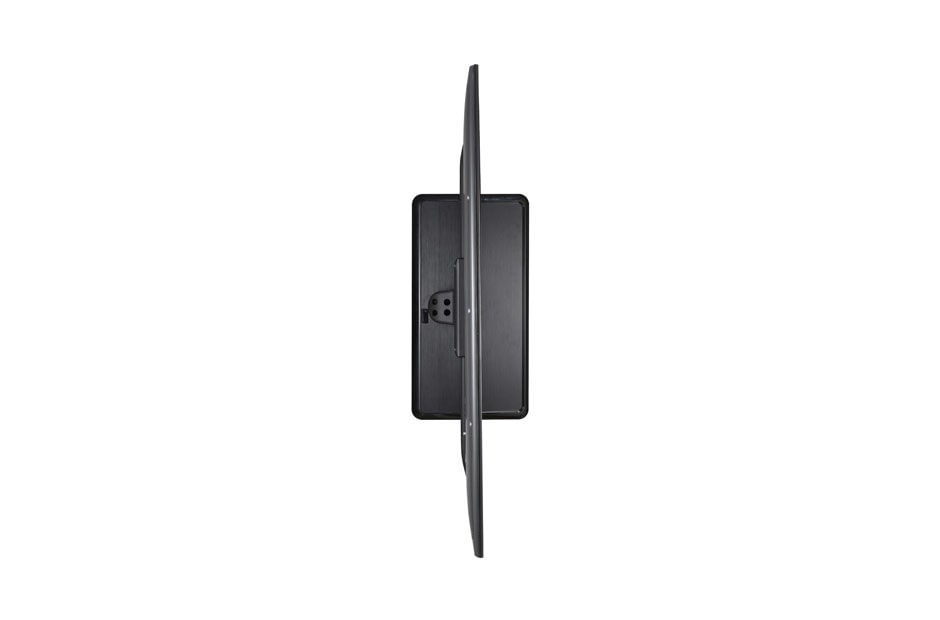

55LX765H (ASIA) component-copyModelName
The Smart Solution for a Better Stay

Key Features

component-OBScountrySelectDesc

The Smart Solution for a Better Stay
Display
  • Screen Size
    55
    Type
    Edge LED
  • Resolution
    1,920 x 1,080 (FHD)
Broadcasting System
  • Analog
    PAL/NTSC-M
    Digital
    DVB-T2/C/S2
Audio
  • Audio Output
    10W + 10W
Interface - Side
  • Headphone Out
    1
    HDMI In
    1
  • USB
    2 (2.0)
Interface - Rear
  • RF In
    2
    AV in(Composite)
    1
  • Component In(Y, Pb, Pr) + Audio
    1
    Digital Audio Out (Coaxial / Optical)
    1 (Optical)
  • HDMI/HDCP Input
    1
    RS-232C (D-sub 9pin)
    1
  • PC Audio Input
    1(Commonly used with AV)
    LAN Port
    2
  • Ext SPK out (3.5mm Phone Jack)
    2 (Spk-out 1, Vol. Control 1)
Power
  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Max (Watts)
    121.4W
  • Typical (Watts)
    98.6W
General
  • Region
    ASIA
  • Dimension
    • [Drawing] 32LX765H_ASIA_32LF63_Commercial.pdf
    • [Drawing] 43LX765H_ASIA_43LF63_Commercial.pdf
    • [Drawing] 49LX765H_ASIA_49LF63_Commercial.pdf
    • [Drawing] 55LX765H_ASIA_55LF63_commercial.pdf
  • Datasheet
    • [Leaflet] 0121_Final_LX765H_Asia.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
