55UT660H (ASIA) component-copyModelName

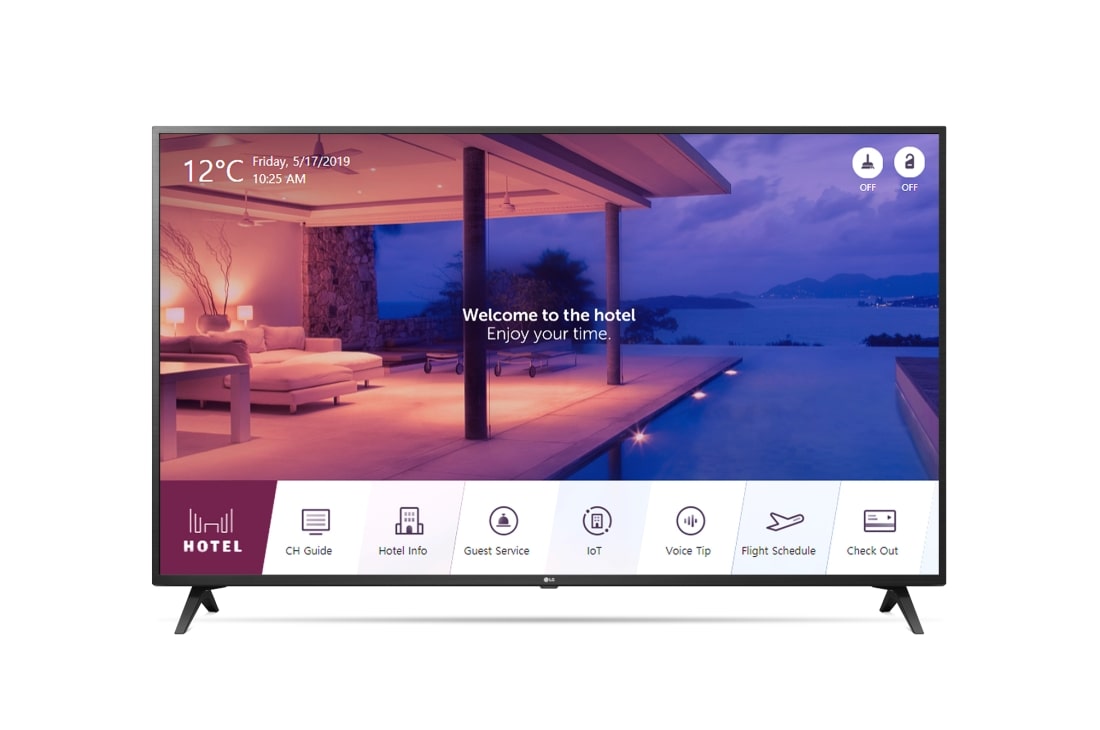

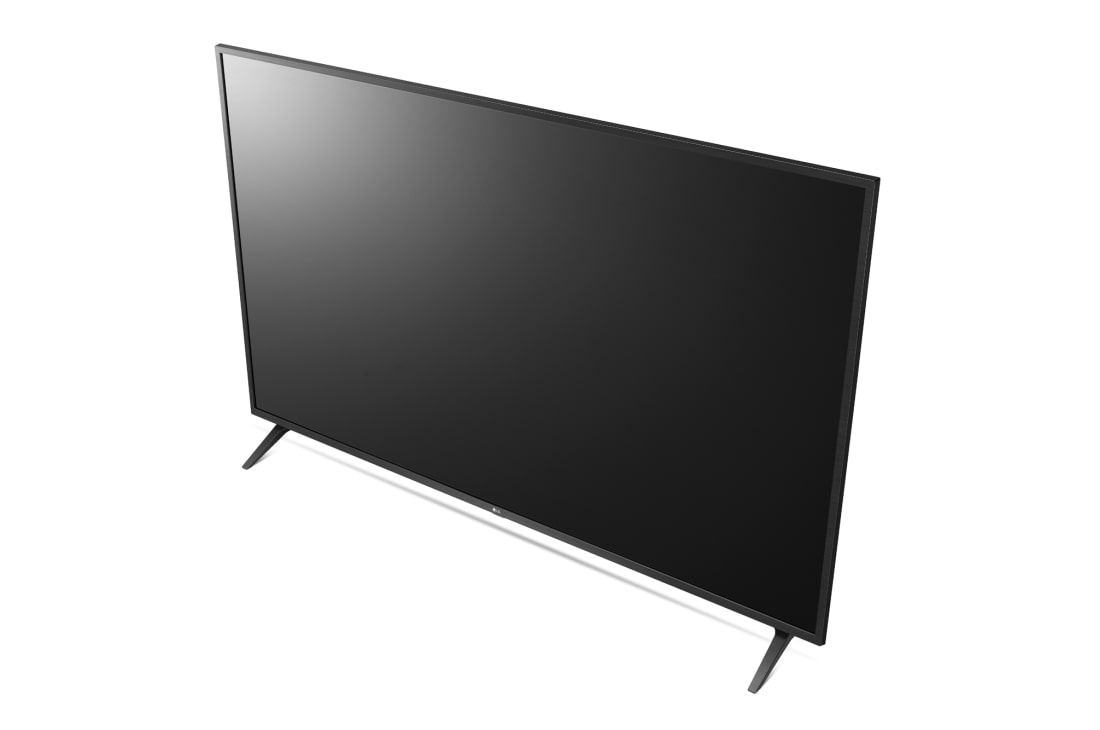

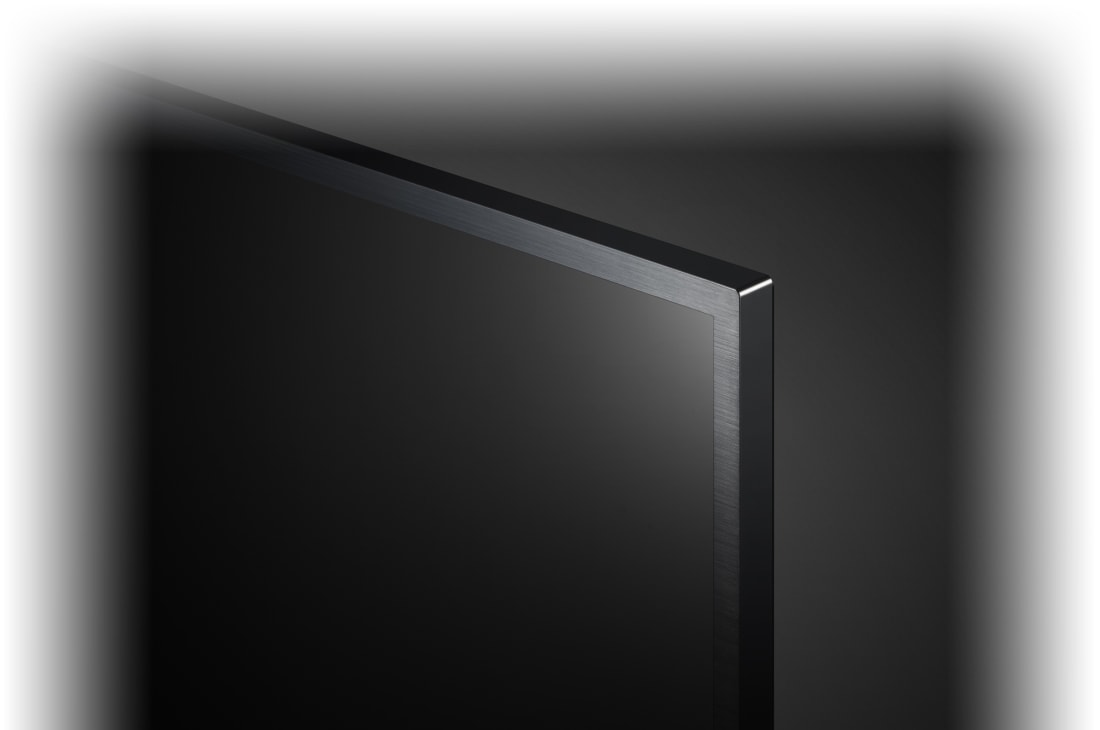

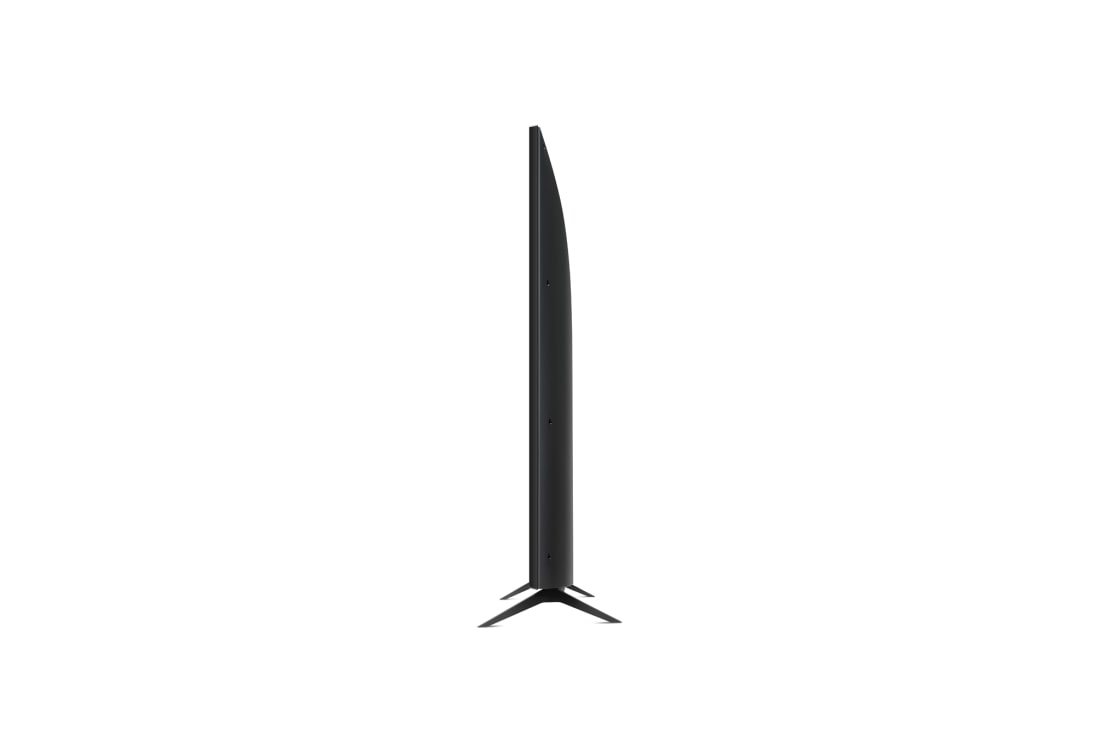

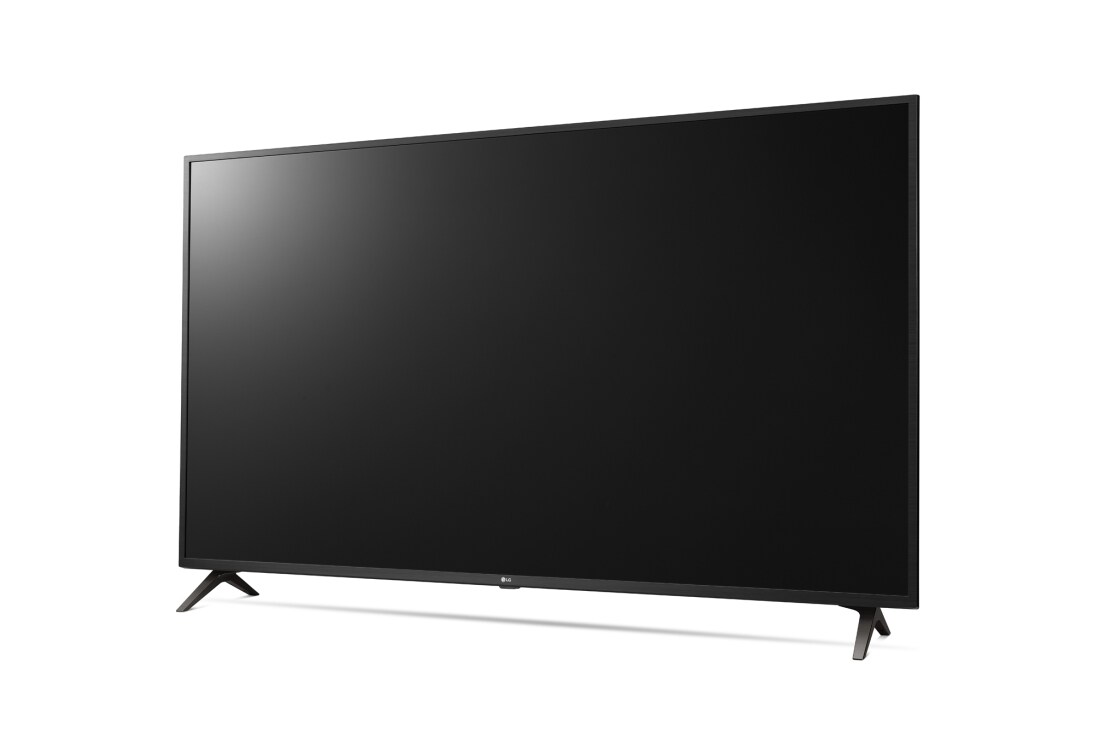

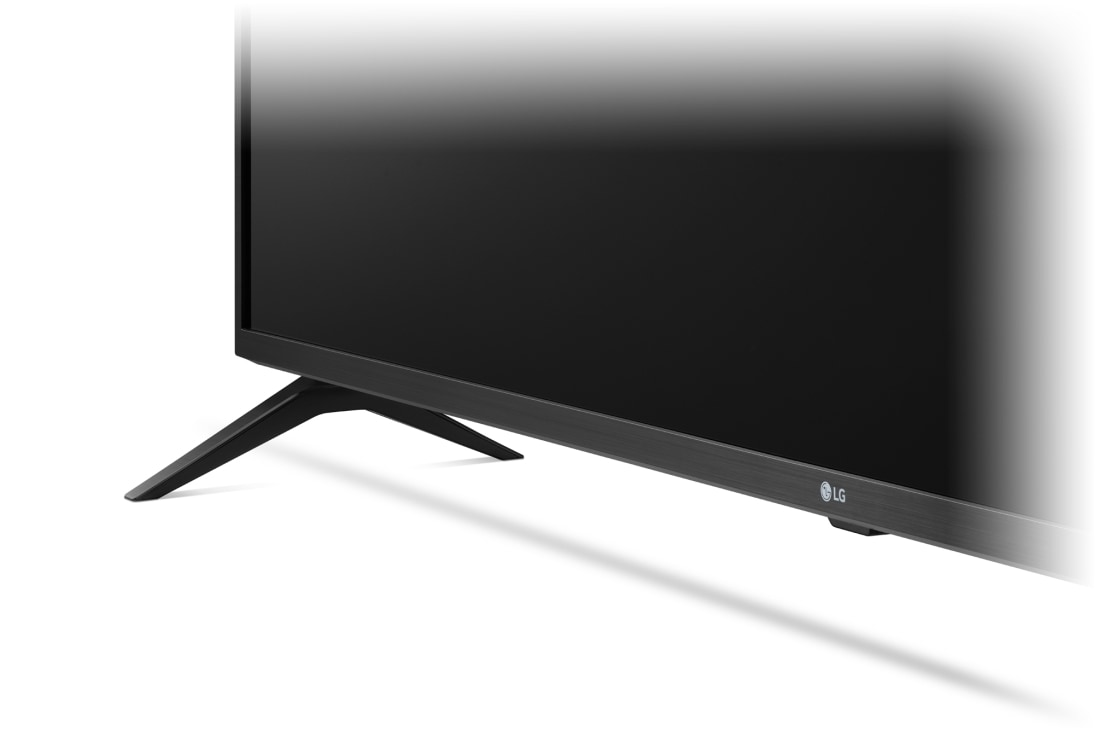

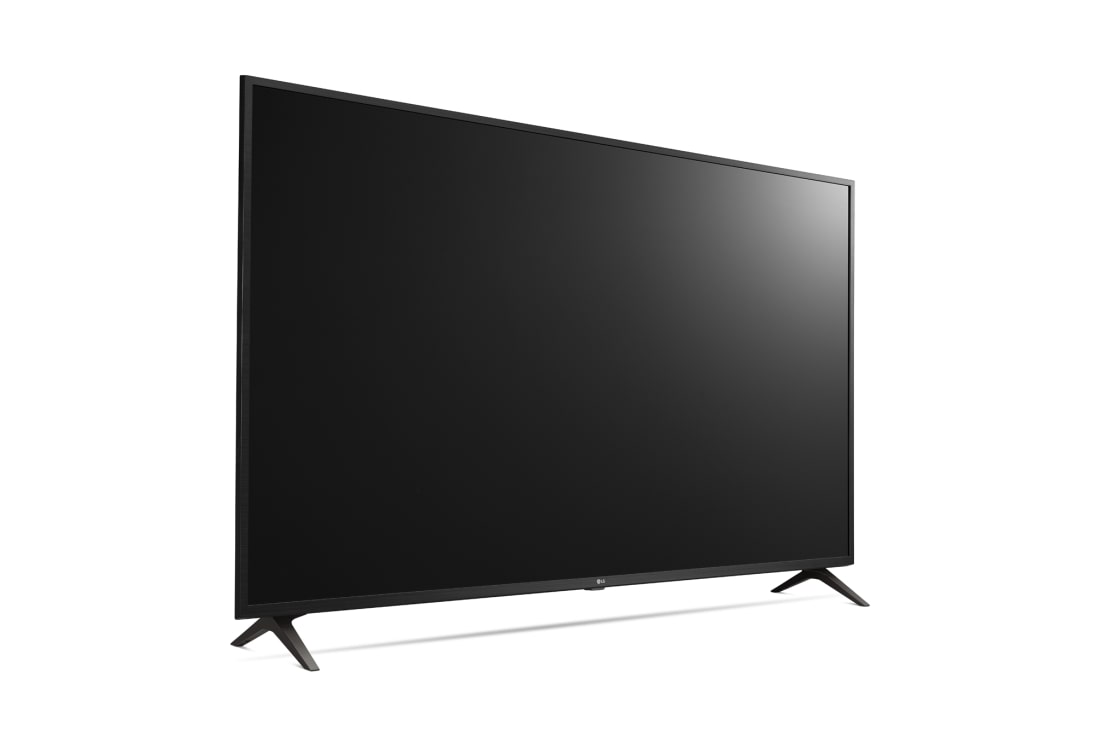

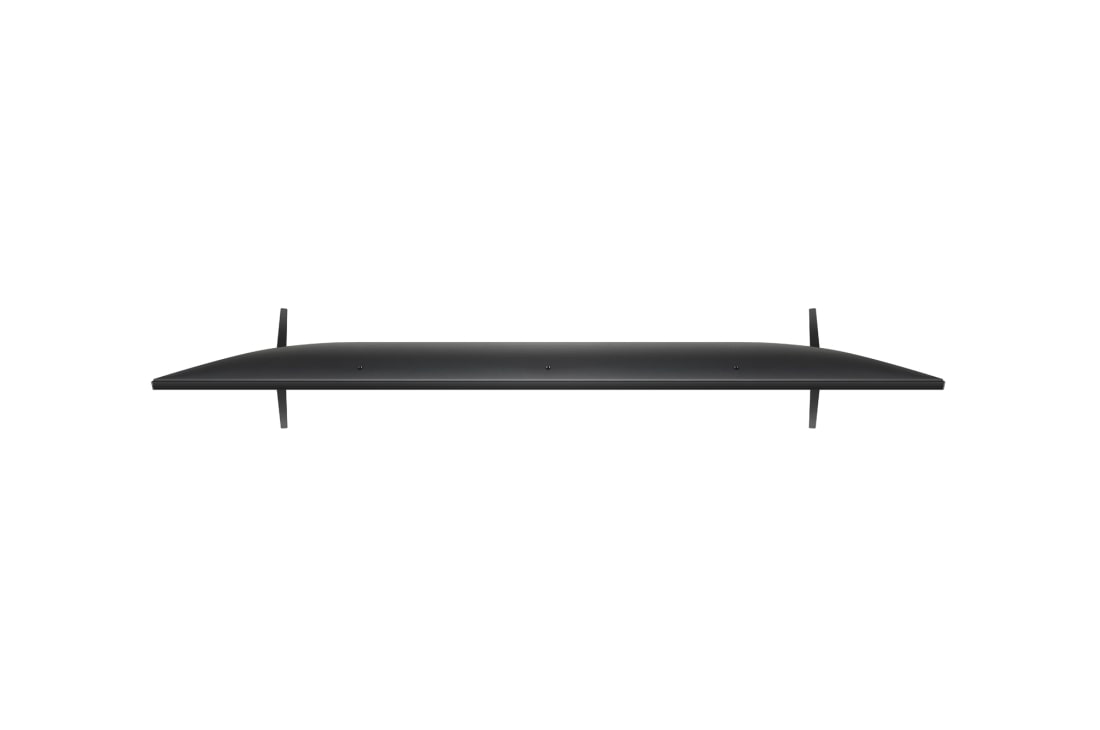

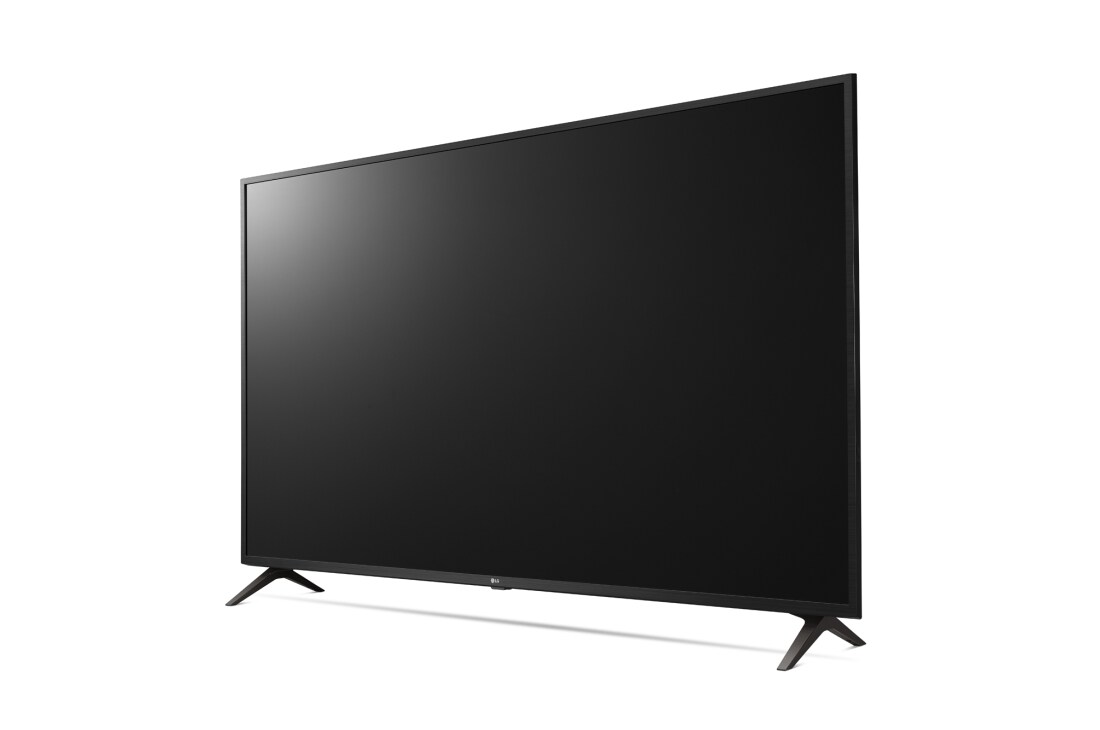

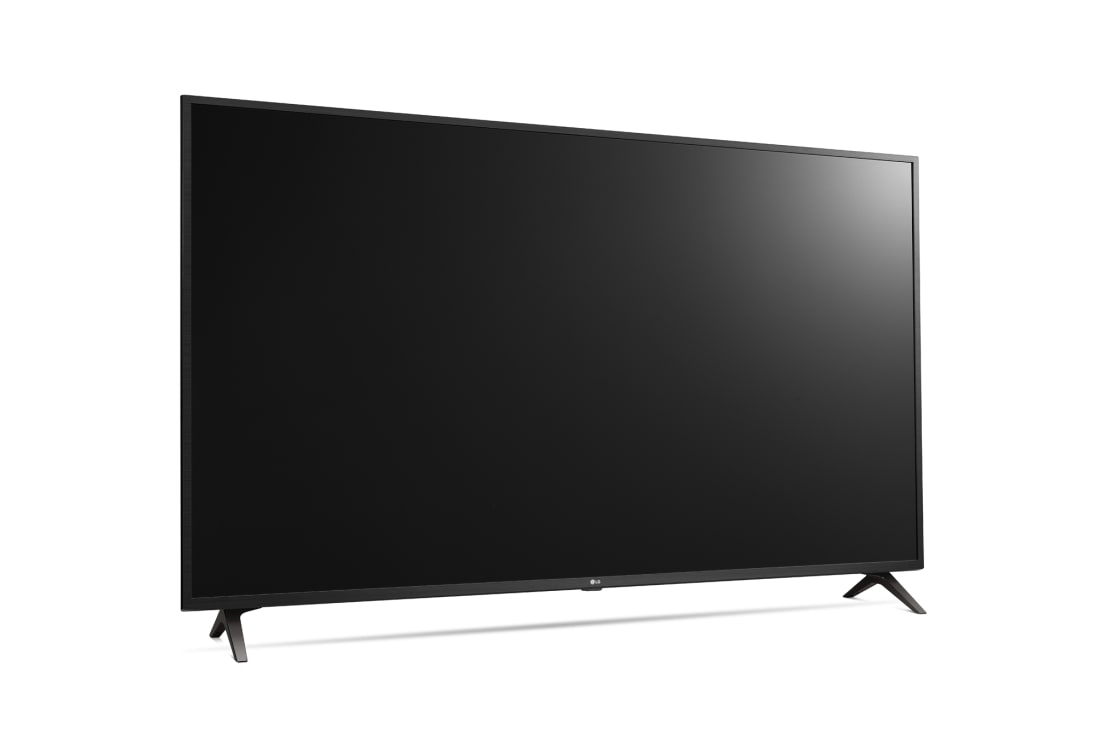

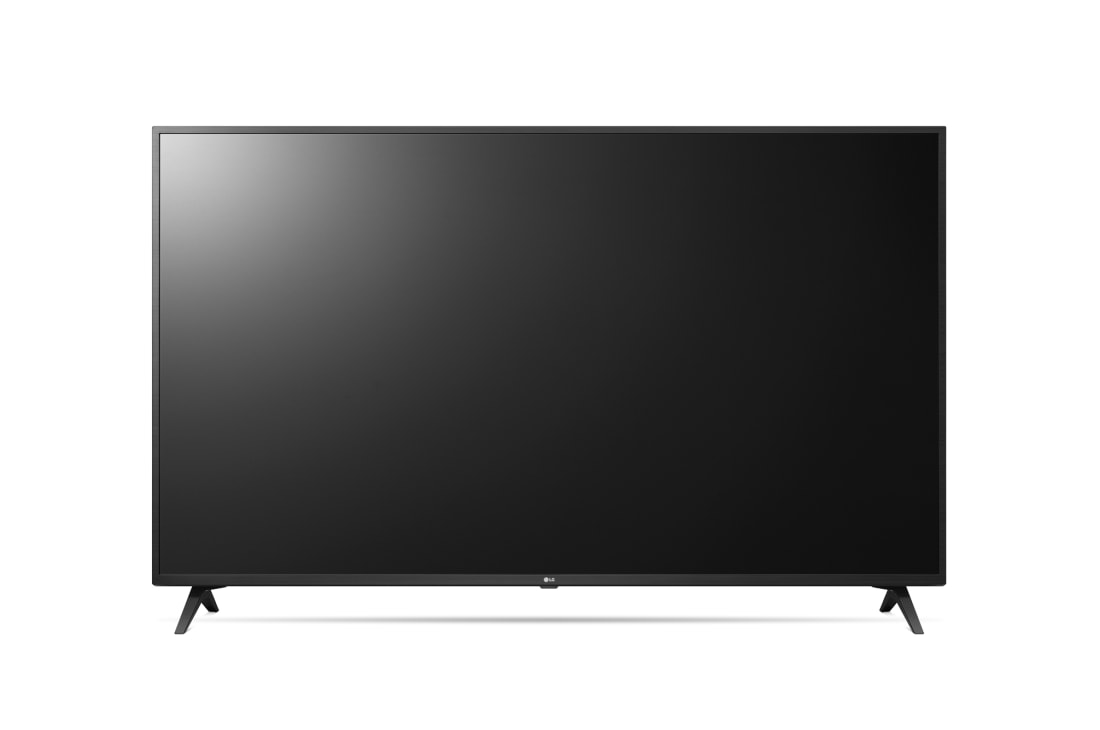

55'' Pro:Centric Hotel TV

Key Features

Choose your Size

component-OBScountrySelectDesc

55" Pro:Centric Hotel TV
Display
  • Inch
    55
    Resolution
    3,840 x 2,160 (UHD)
  • Backlight Unit Type
    Direct
    Brightness (cd/m²)
    400
Broadcasting System
  • Digital
    • (DVB -T2 / C)
Video
  • HDR (10 Pro / HLG)
    • / •
Audio
  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • DOLBY ATMOS
    -
    One Touch Sound Tuning
    • (Ready)
  • LG Sound Sync
    • (Bluetooth required)
Hospitality Solution
  • Solution Type
    Pro:Centric (Smart, V, Direct), Quick Menu 3.0
    Data Streaming (IP & RF)
  • HCAP (GEM/FLASH/HTML)
    ※ Service Carousel (TLL/XML)
    GEM / HTML5
    IP Return path
  • Multicast / Unicast ready
    webRTC (Real Time Communication)
  • Pro:Centric Application (version)
    • (PCA3.8)
    Pro:Centric Server
    PCS400R
  • DRM
    Pro:Idiom (S/W Type), Pro:Idiom Media
FEATURES
  • Hospitality
    Hotel Mode(Installer Menu), Lock mode (Limited), Welcome Video / Screen(Splash Image), Insert Image, One Channel Map, IP Channel Manager, External Speaker Out (Int / Ext Variable / Fixed), Instant ON, External Power Out, V-Lan Tag, RJP (Remote Jack Pack) Compatibility, External Clock Compatibility (LEC-005), Moving Picture Playback (SD / HD / Plus HD), Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care
Jack Interface
  • Set Side
    HDMI In 2.0, USB 2.0 (2), CI Slot
    Set Rear
    HDMI In (HDCP, 2.0), Headphone Out, RF In, AV In (Phone Jack Type), Component in (Y, Pb, Pr-Video, Phone Jack Type), Digital Audio Out (Optical), RS-232C (Control & Service), Clock Interface (RJ12), RJ45 (Usage Purpose : 2 (Ethernet, Aux)), External Speaker Out (3.5mm Phone Jack) : 2 (Spk-out 1, 4W (Stereo, R : 2.0W, L : 2.0W, 8Ω) - Vol. Control1)
Dimension(Unit: mm/kg)
  • Vesa
    300 x 300
    W x H x D / Weight (with stand)
    1,244 x 786 x 231 / 14.5
  • W x H x D / Weight (without stand)
    1,244 x 726 x 87.1 / 14.3
    W x H x D / Weight (Shipping)
    1,360 x 835 x 175 / 19.5
Power(Unit : Watts)
  • Power Supply (Voltage, Hz)
    100 ~ 240V, 50/60Hz
    Typical
    142W
  • Stand-by
    0.5W
General
  • Region
    ASIA
  • Dimension
    • [Dimension] 55UT660H (ASIA).pdf
  • Datasheet
    • UT660H(ASIA)_Datasheet_Hotel TV_Commercial TV_ID_190701(low).pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
