55UU661H (CIS) Copy Model Name

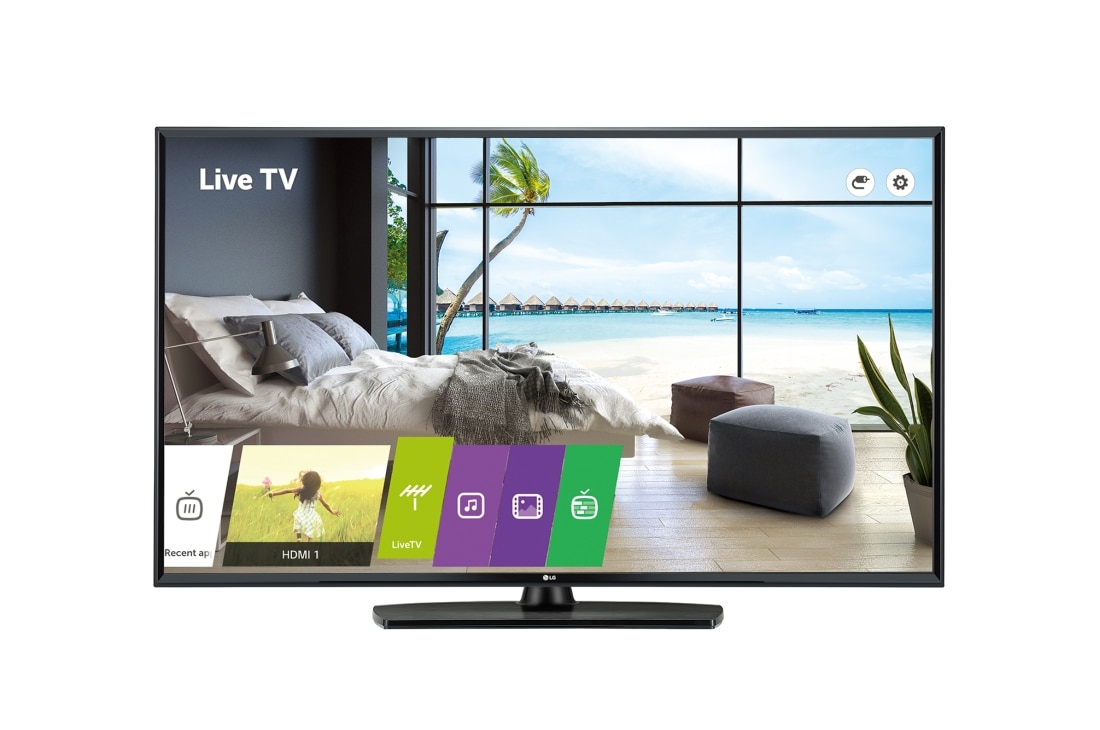

55'' UHD Commercial TV

Key Features

Choose your Size

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

55" UHD Commercial TV
Contact Us
Close
Panel
  • Screen Size
    55"
    Backlight Type
    LED (Direct)
  • Resolution
    3,840 x 2,160 (4K UHD)
    Brightness (cd/m²)
    500
  • Viewing Angle (H x V)
    178 x 178
Broadcasting System
  • Analog
    • (PAL/SECAM)
    Digital
    •
Video
  • XD Engine
    •
    Aspect Ratio
    • 6 modes (16:9, Original, Full wide, 4:3, Vertical Zoom, All-Direction Zoom)
  • HDR 10 / HDR Dolby Vision
    • / -
Audio
  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • Sound Mode
    • 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
    Clear Voice
    • (Clear VoiceⅢ)
Hospitality Solution
  • Solution Type
    Pro:Centric (Smart, Direct, V)
    Data Streaming (IP & RF)
    •
  • RF (1/2Tuner)
    • (1 Tuner)
    HCAP (GEM/FLASH/HTML)
    ※ Service Carousel (TLL/XML)
    GEM / Flash / HTML5
  • Pro:Centric Application (version)
    PCA 3.8
    DRM
    Pro:Idiom
Feature
  • Smart
    webOS 4.0, Quick Menu 2.0, Smart Home (Launcher Bar), Quick Access, Voice Recognition, Web Browser, Pre-loaded App, SDP Server Compatibility, Magic Remote Compatibility, Soft AP, Wi-Fi (ac), Screen Share (Miracast), Smart Share (DLNA), LG TV Plus App, DIAL, MHL, Bluetooth Audio Playback, LG Sound Sync/bluetooth, Mobile Connection Overlay, Music Player, IoT (Ready, MR 11/4W), BEACON
    Hospitality
    Hotel Mode / PDM / Installer Menu, Lock mode (Limited), Welcome Screen, Insert Image, One Channel Map, External Speaker Out, Instant ON, External Power, VLAN ID, RJP Interface, External Clock Compatibility, Clock (World Clock / Alarm), 360 Viewer, Healthcare Headphone Mode
Function
  • Function
    EzManager(Simplicity), USB Cloning, Wake on RF, WOL, SNMP, Diagnostics, SI Compatible (TVLink Interactive), HTNG-CEC (1.4), HDMI-CEC (1.4), IR Out, Multi IR Code, Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care
Jack Interface
  • Set Side
    HDMI 2.0, USB 2.0 (2), CI Slot

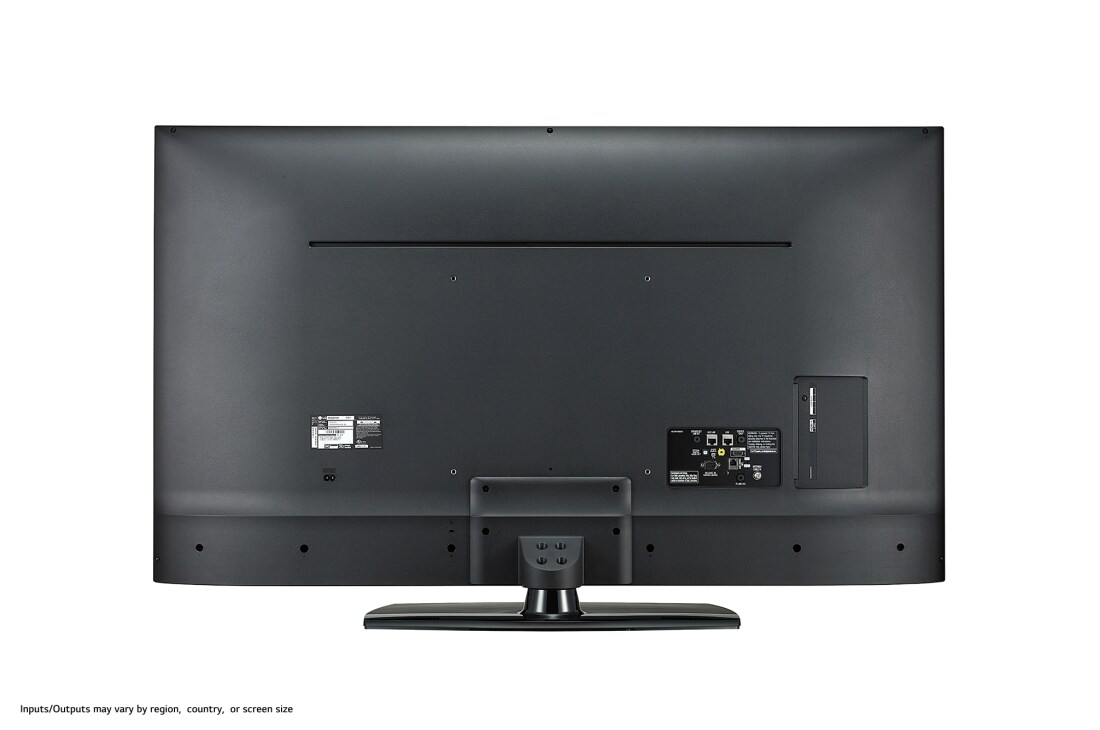

    Set Rear
    RF In (2), AV In, Component in (Y,Pb,Pr-Video), Digital Audio Out (Optical), HDMI/HDCP Input 2.0, RS-232C (Control & Service), Headphone Out, Clock Interface (RJ12), RJ45 for Ethernet/Aux, External Speaker Out
Dimension(Unit: mm)
  • Vesa
    300 x 300
    W x H x D / Weight (with stand)
    1,247 x 781 x 303 / 16.9 kg
  • W x H x D / Weight (without stand)
    1,247 x 729 x 78 (SPK: 88.6) / 13.7 kg
    W x H x D / Weight (Packing)
    1,360 x 860 x 207 / 22.5 kg
Power(Unit : Watts)
  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Max
    152.3
  • Typical
    126.1
    Energy saving (Min / Med / Max)
    100.88 / 69.355 / 37.83
  • Stand-by
    0.3
General
  • Region
    CIS
  • Dimension
    • [Dimension] 55UU661H (EU_CIS).dwg
    • [Dimension] 55UU661H (EU_CIS).pdf
  • Datasheet
    • UU661H_EU_CIS_Preview_181008.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.

Compare

0
Compare 0
Product design, features and specifications are subject to change without notice and may also differ based on your region of purchase. Screen images simulated and/or dramatized. Some features in videos may not be available on all models. Please refer to the TECHNICAL SPECIFICATIONS tab for a complete list of features by model.
