55UU761H (EU) component-copyModelName
55'' UHD Commercial TV

Key Features

Choose your Size

component-OBScountrySelectDesc

55" UHD Commercial TV
Display
  • Backlight Type
    LED (Edge)
    Resolution
    3,840 x 2,160 (4K UHD)
  • Brightness (cd/m²)
    330
Broadcasting System
  • Analog
    • (PAL/SECAM)
    Digital
Video
  • XD Engine
    Aspect Ratio
    • 6 modes (16:9, Original, Full wide, 4:3, Vertical Zoom, All-Direction Zoom)
  • HDR 10 / HDR Dolby Vision
    • / -
Audio
  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • Sound Mode
    • 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
    Clear Voice
    • (Clear VoiceⅢ)
Hospitality Solution
  • Solution Type
    Pro:Centric (Smart, V, Direct), Quick Menu 2.0
    Data Streaming (IP &RF)
  • RF
    • (1 Tuner)
    HCAP (SDK)
    GEM / Flash / HTML5
  • Pro:Centric Application
    PCA 3.8
Feature
  • Hospitality
    Hotel Mode, Lock Mode, Welcome Screen, Insert Image, One Channel Map, External Speaker Out, Instant ON, External Power, V-Lan Tag, RJP Interface, RJP Compatibility, External Clock Compatibility, Clock (World Clock / Alarm), 360 Viewer, Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care
Jack Interface
  • Set Side
    HDMI In 2.0, USB 2.0 (2), CI Slot

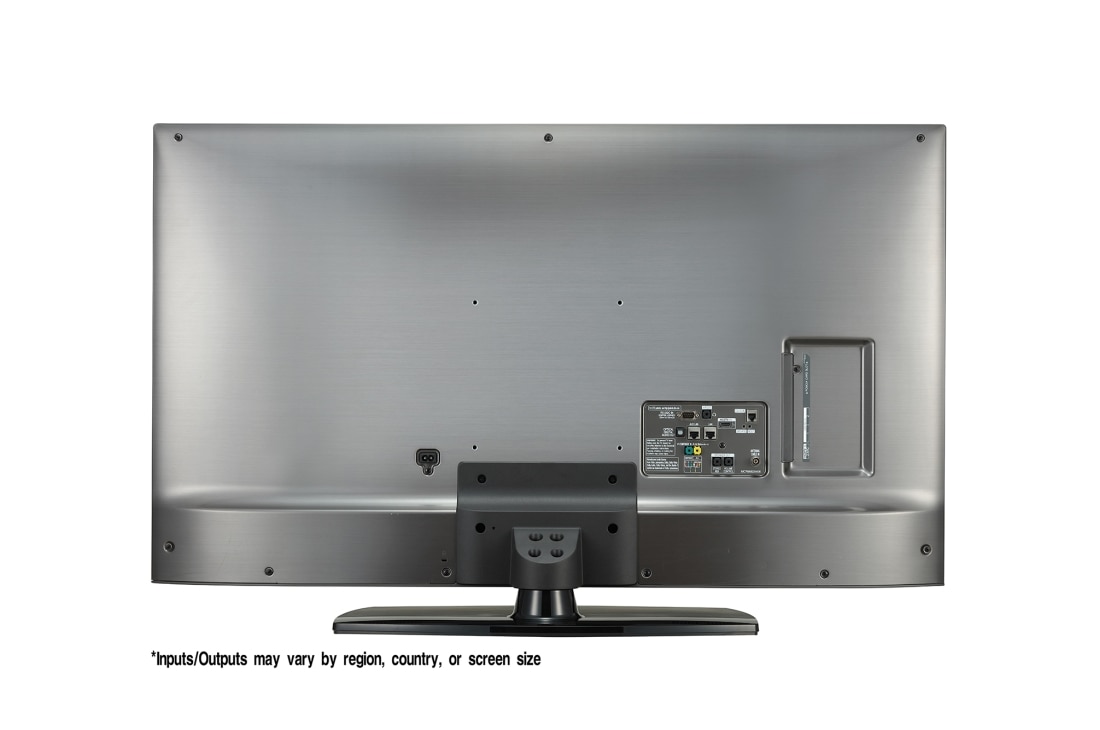

    Set Rear
    RF In (2), AV In, Component In (Phone Jack Type), Digital Audio Out (Optical), HDMI / HDCP Input, RS-232C (Control & Service), Headphone Out, Clock Interface (RJ12), External Speaker Out
Dimension(Unit: mm)
  • Vesa
    300 x 300
    W x H x D / Weight (with stand)
    1,237 x 774 x 303 / 19.4kg
  • W x H x D / Weight (without stand)
    1,237 x 716 (721) x 36.6 (SPK: 63.3) / TBD
    W x H x D / weight (packing)
    1,360 x 860 x 190 / 24.1kg
Power(Unit : Watts)
  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Max
    167
  • Typical
    142
    Energy saving (Min / Med / Max)
    96 / 69 / 42
  • Stand-by
    0.3
General
  • Region
    Europe
  • Dimension
    • [Dimension] 55UU761H (EU_CIS).dwg
    • [Dimension] 55UU761H (EU_CIS).dxf
    • [Dimension] 55UU761H (EU_CIS).pdf
  • Datasheet
    • UU761H_EU_CIS_low_180726.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
