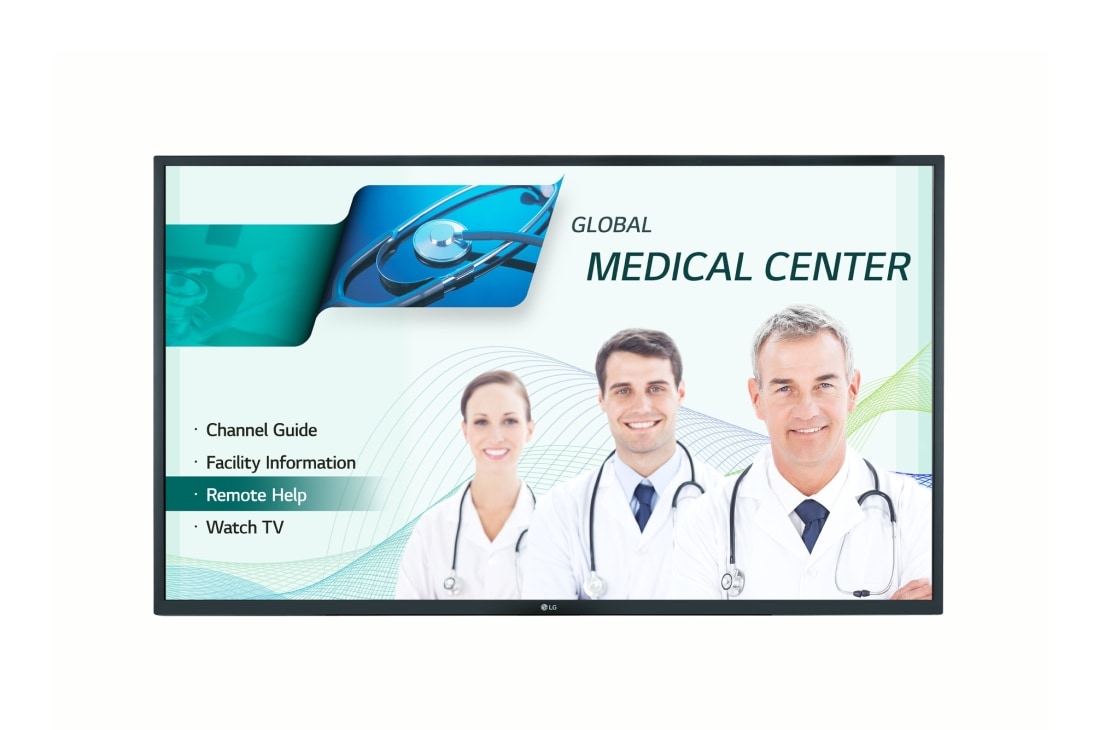

LG UT662M Series, Front view with infill image, 55UT662M (MEA), thumbnail 1

LG UT662M Series, Front view, 55UT662M (MEA), thumbnail 2

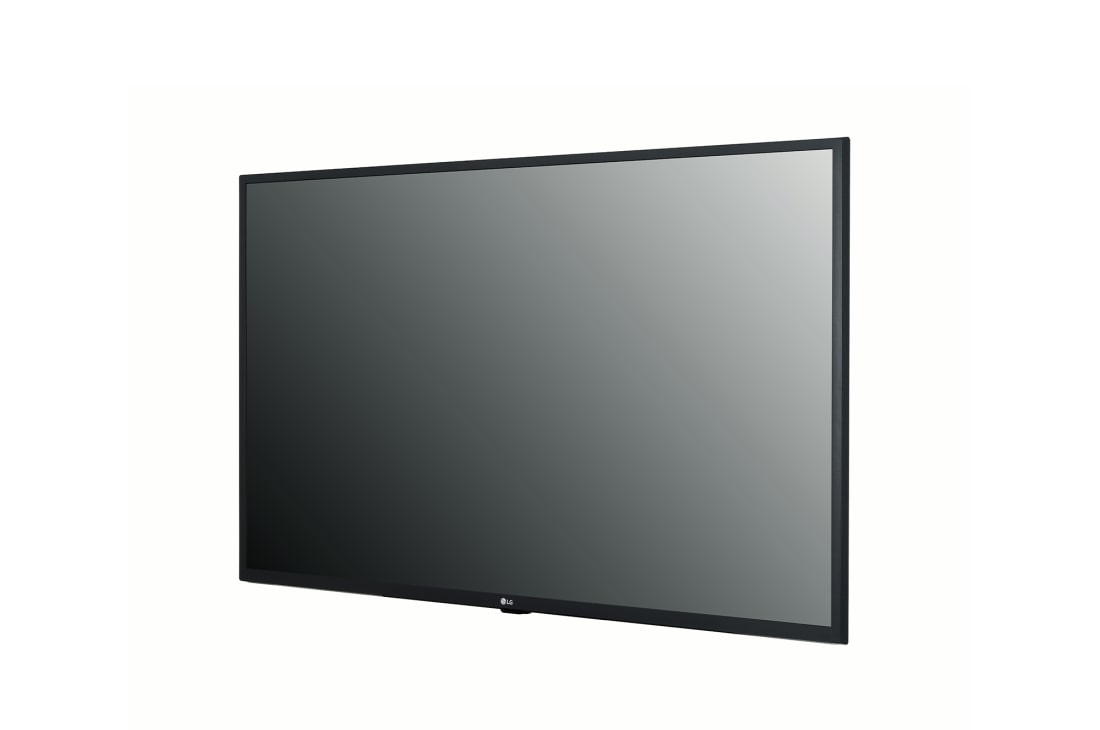

LG UT662M Series, -45 degree side view, 55UT662M (MEA), thumbnail 3

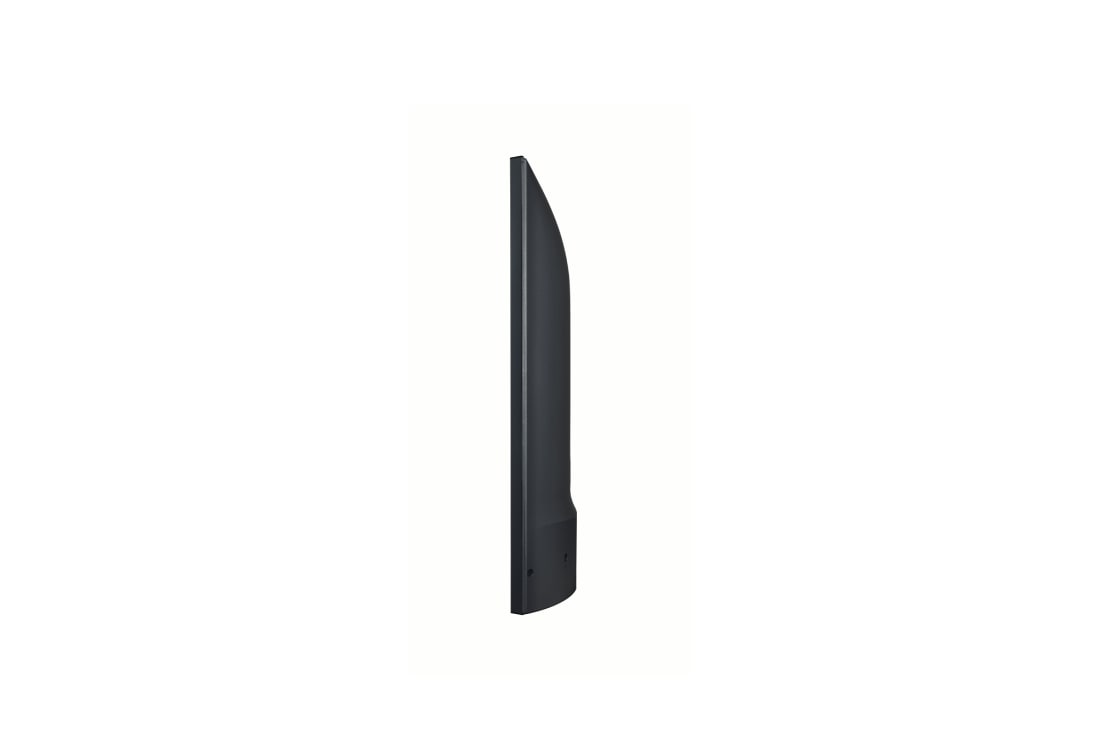

LG UT662M Series, -90 degree side view, 55UT662M (MEA), thumbnail 4

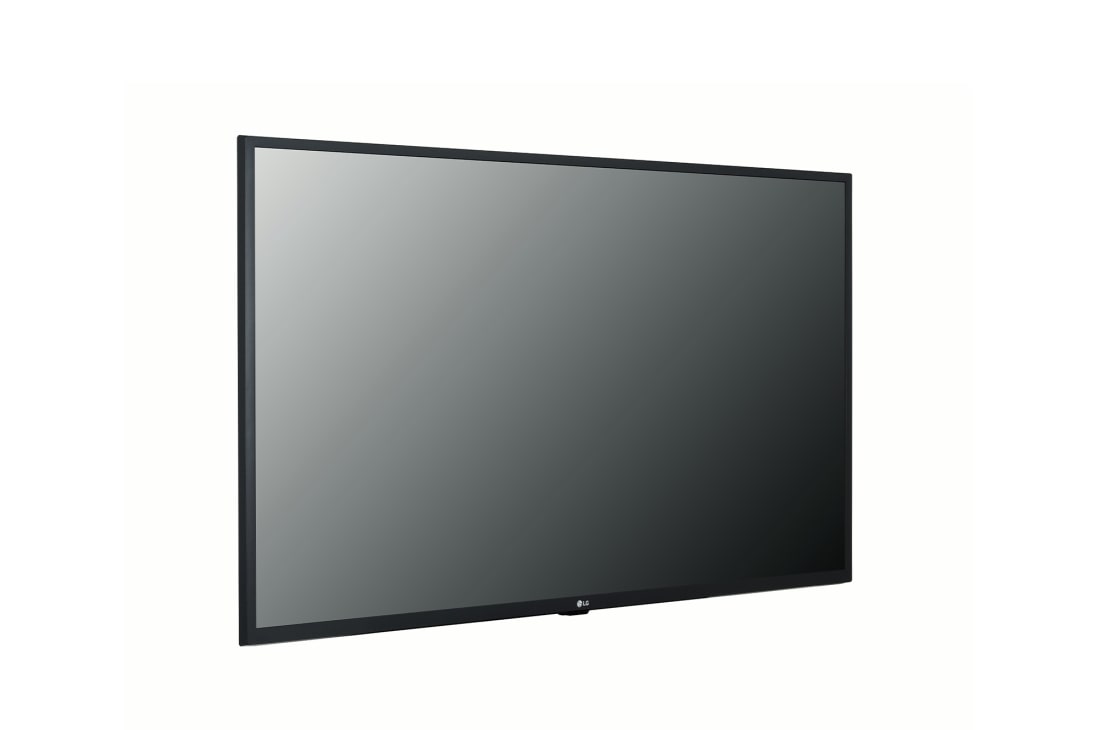

LG UT662M Series, +45 degree side view, 55UT662M (MEA), thumbnail 5

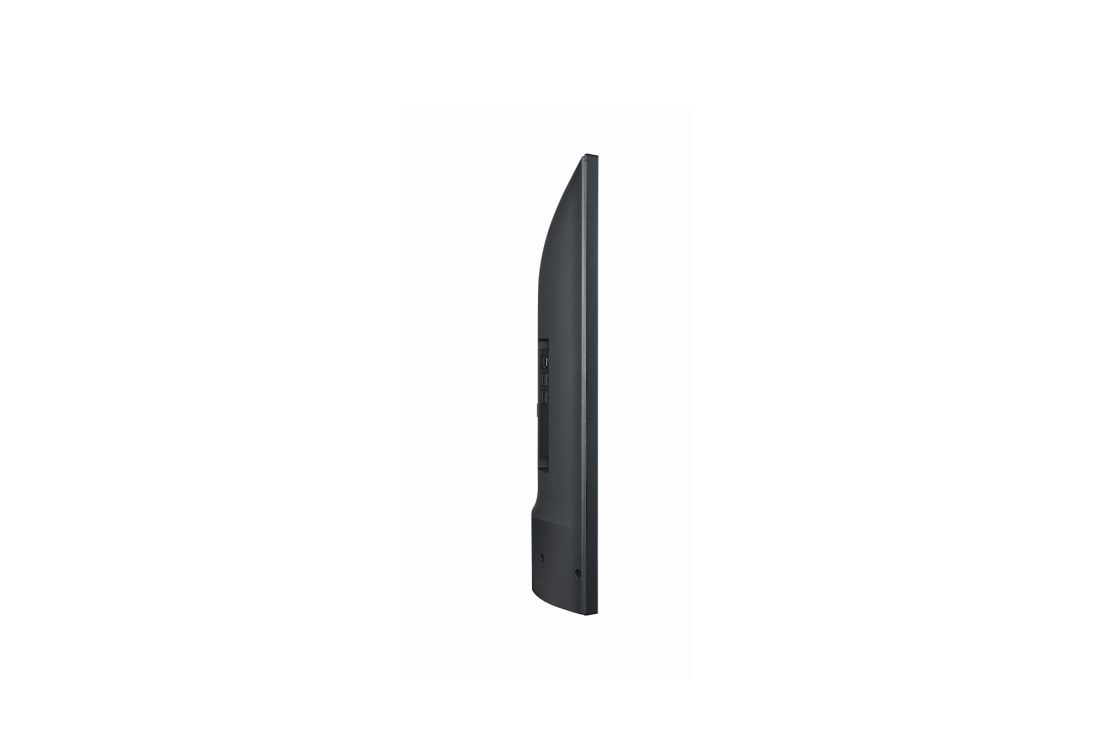

LG UT662M Series, +90 degree side view, 55UT662M (MEA), thumbnail 6

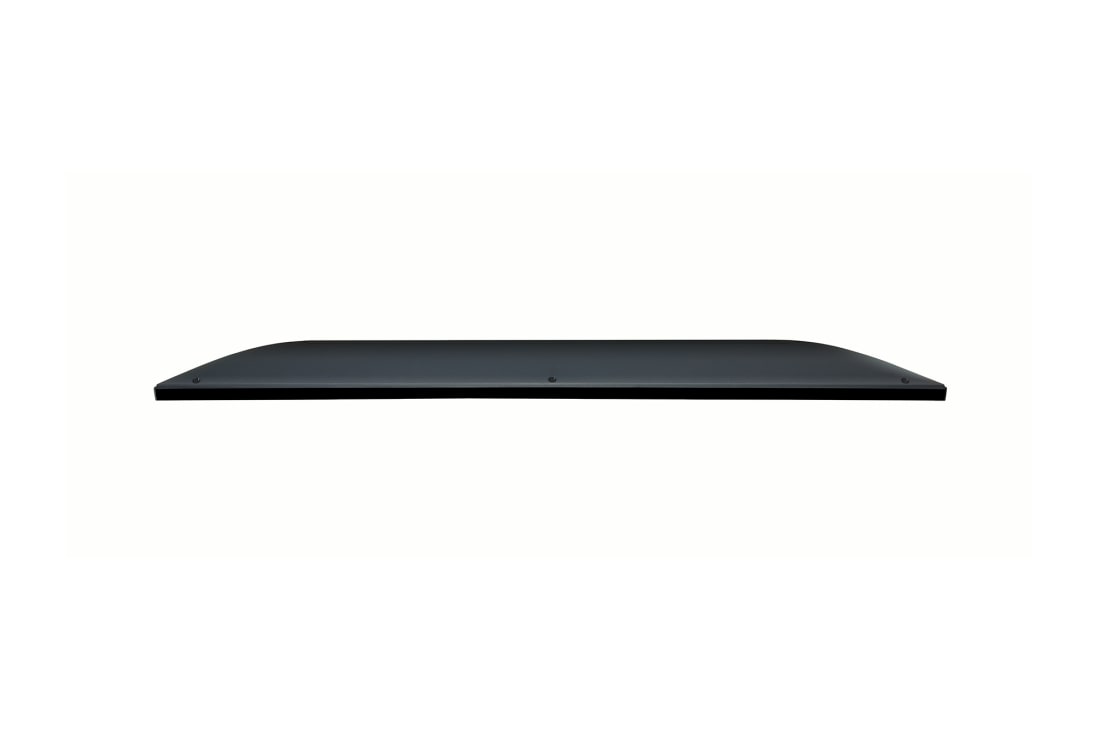

LG UT662M Series, Top view, 55UT662M (MEA), thumbnail 7

Discontinued

55UT662M (MEA) component-copyModelName

UT662M Series

Key Features

UL Hospital Grade Listed
Pillow Speaker & Nurse Call Ready
Pro:Centric Hospital Management Solution

SEE ALL SPECS

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

UL Hospital Grade Listed
Pillow Speaker & Nurse Call Ready
Pro:Centric Hospital Management Solution

SEE ALL SPECS

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

UT662M Series

UL-Listed Hospital TVs with UHD Content Delivery

The UT662M Hospital TV series provides a cost-effective solution designed for patients and staff. All features including pillow speaker support with UL certification, are designed for patient-oriented care, meeting the specific needs of hospitals.

A TV is installed on the hospital room’s wall, and a nurse points to it while explaining to the patient.

* Actual product appearance may differ from the image above.

Hospital-Focused Functions

A patient lying in the bed is controlling the TV through a pillow speaker connected to the UT662M.

Pillow Speaker Ready

The hospital TV is equipped with the interface compatible with a pillow speaker* which controls sound and videos on TV directly from a patient’s bedside.

* Pillow speaker is not provided by LG. (sold separately)
Nurse Call System Ready

Through nurse call system provided by a pillow speaker connected to LG hospital TV, staff can be called immediately for emergency.
UL Hospital Grade Listed

The UT662M series is designed for the healthcare and hospital environment, meeting safety requirements by UL.

Pro:Centric
Hospital Management Solution

The hospital content management solution Pro:Centric Direct offers easy and simple editing tools, making it easy to perform service and IP network-based remote management. The Pro:Centric Direct solution enables users to edit their interface easily by providing customized interface and efficiently manages all TVs in the hospital.

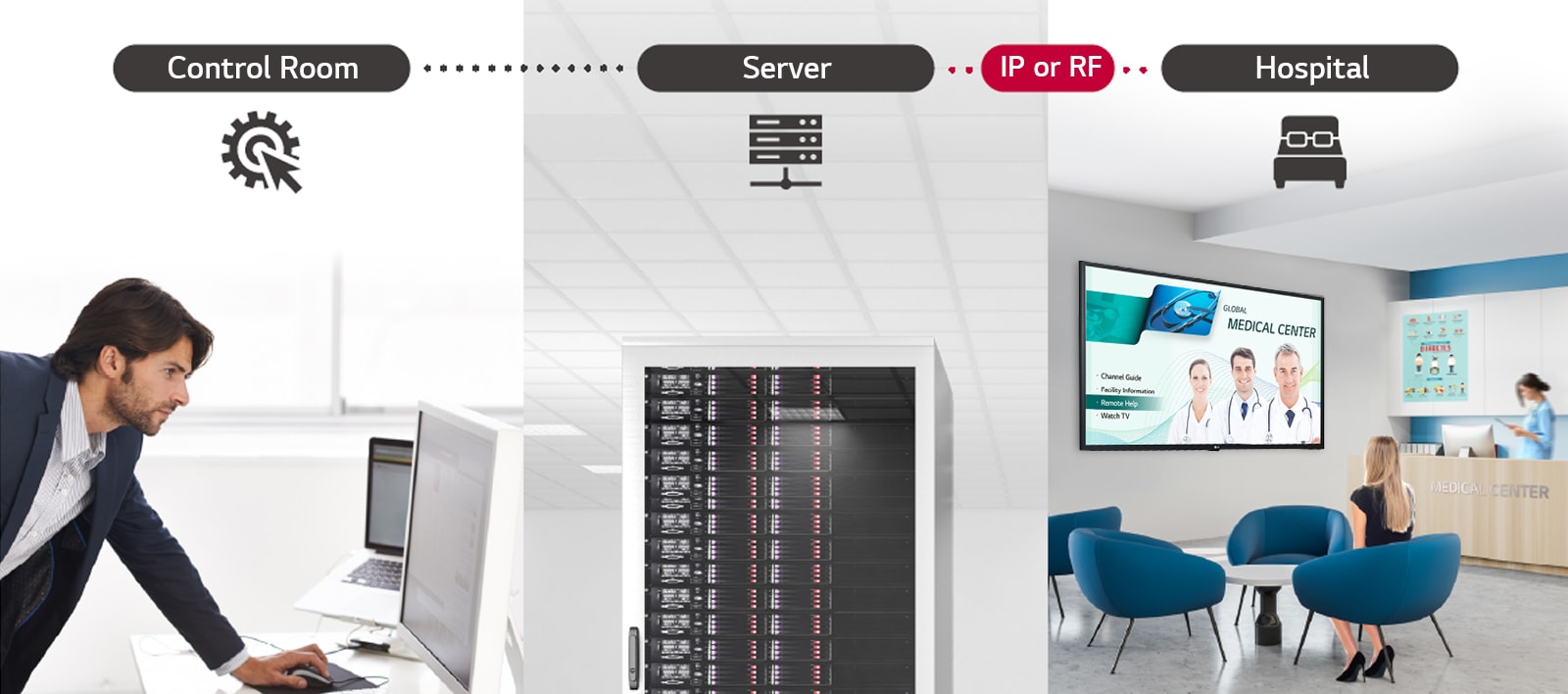

A man is managing some contents and settings of TV in the hospital using Pro:Centric Direct solution through server.

* The actual screen may be slightly different.
** Some features may not be supported based on PCD versions.

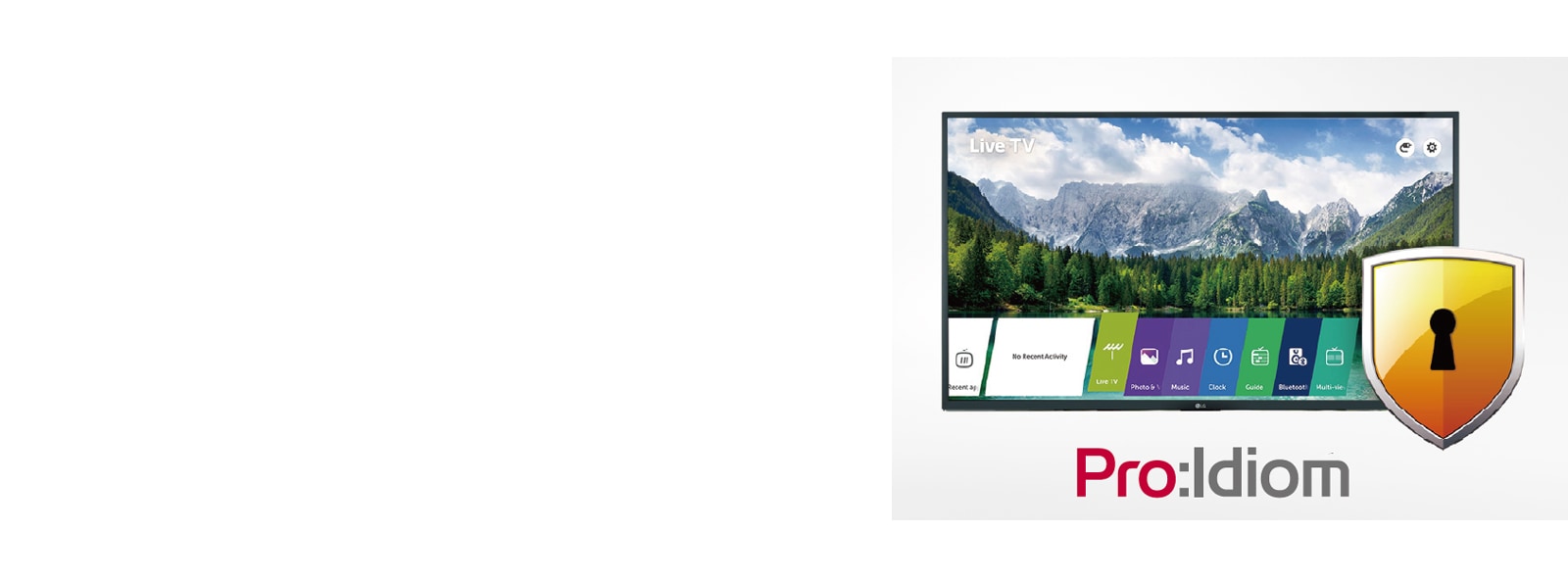

Pro:Idiom

The UT662M provides embedded Pro:Idiom decryption, unlocking access to high-value digital content with Pro:Idiom DRM (Digital Right Management) which prevents illegal copying of the content.

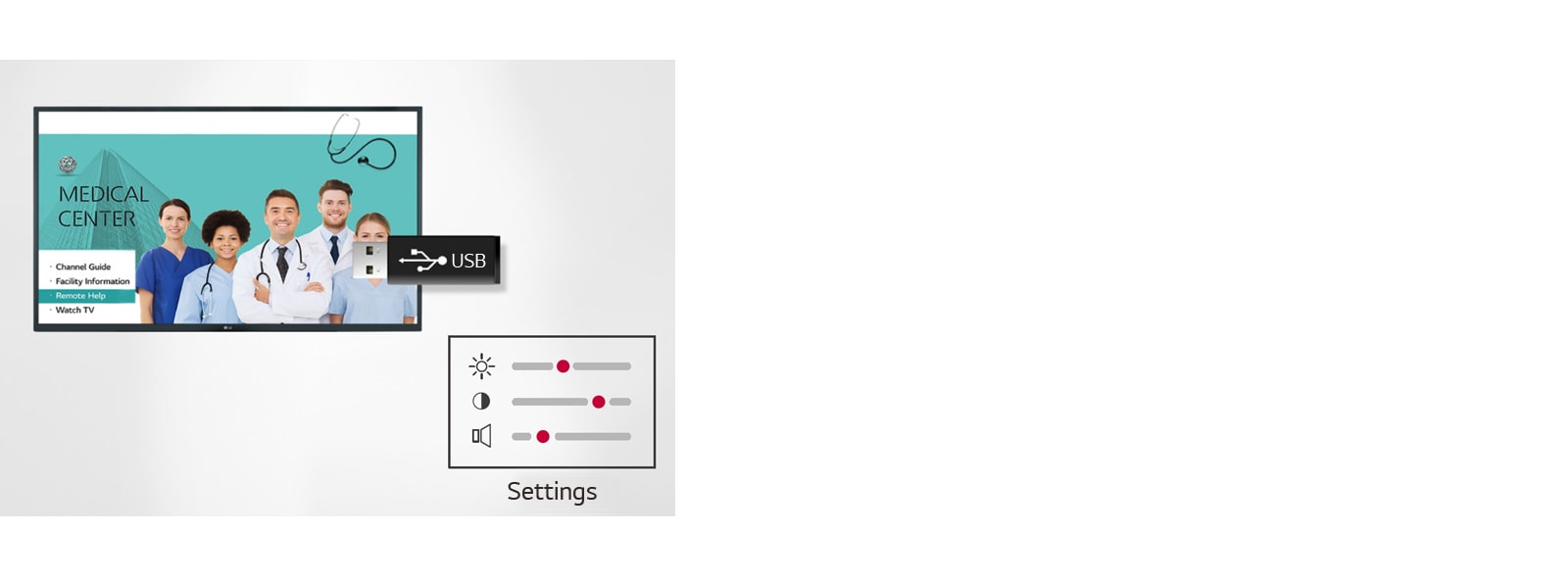

Setting data of the display can be stored on USB and transmitted to other displays.

USB Cloning

USB data cloning makes managing multiple displays more efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display, and be sent to the other displays through a USB plug-in.

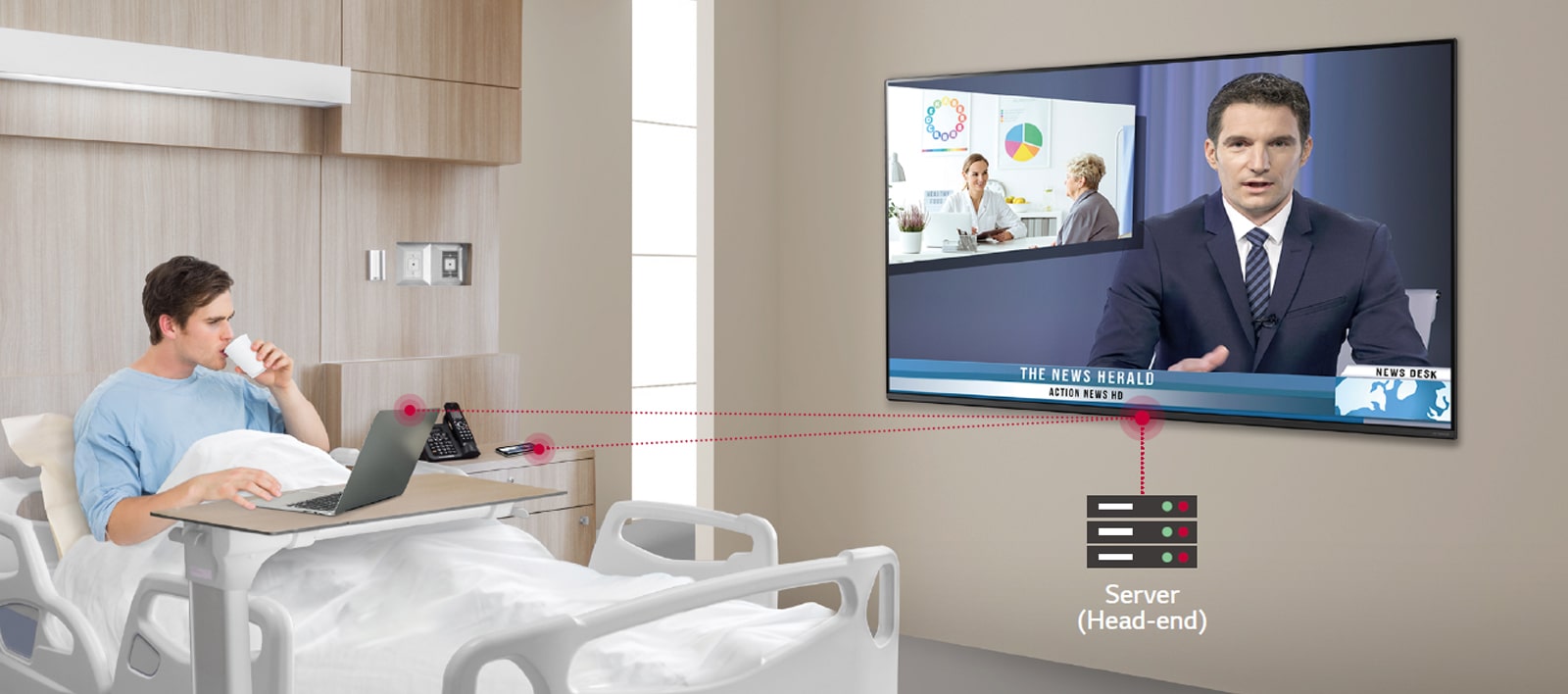

Soft AP

Software-enabled Access Point (Soft AP) is a "virtual" Wi-Fi feature that uses TV as a wireless hotspot, enabling patients to connect their own devices to the Soft AP.

With the Virtual Wi-Fi feature, tablets, mobiles, and laptops can easily be connected to the TV.

* Soft AP should be set in the installation menu after the TV is turned on.
** Screen Share may not be operated at the same time.

Voice Recognition

Thanks to the embedded Natural Language Processing on webOS, Voice recognition* allows users to easily control LG hospital TV simply using their voices.

* Magic Motion Remote is required. (sold separately)

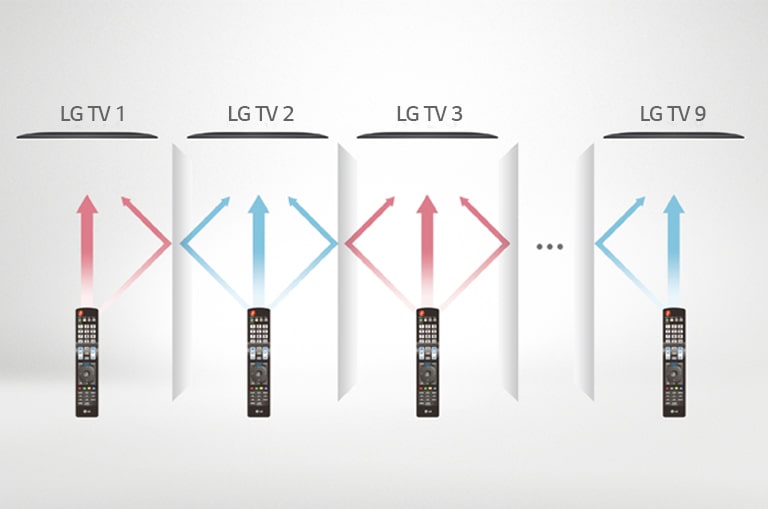

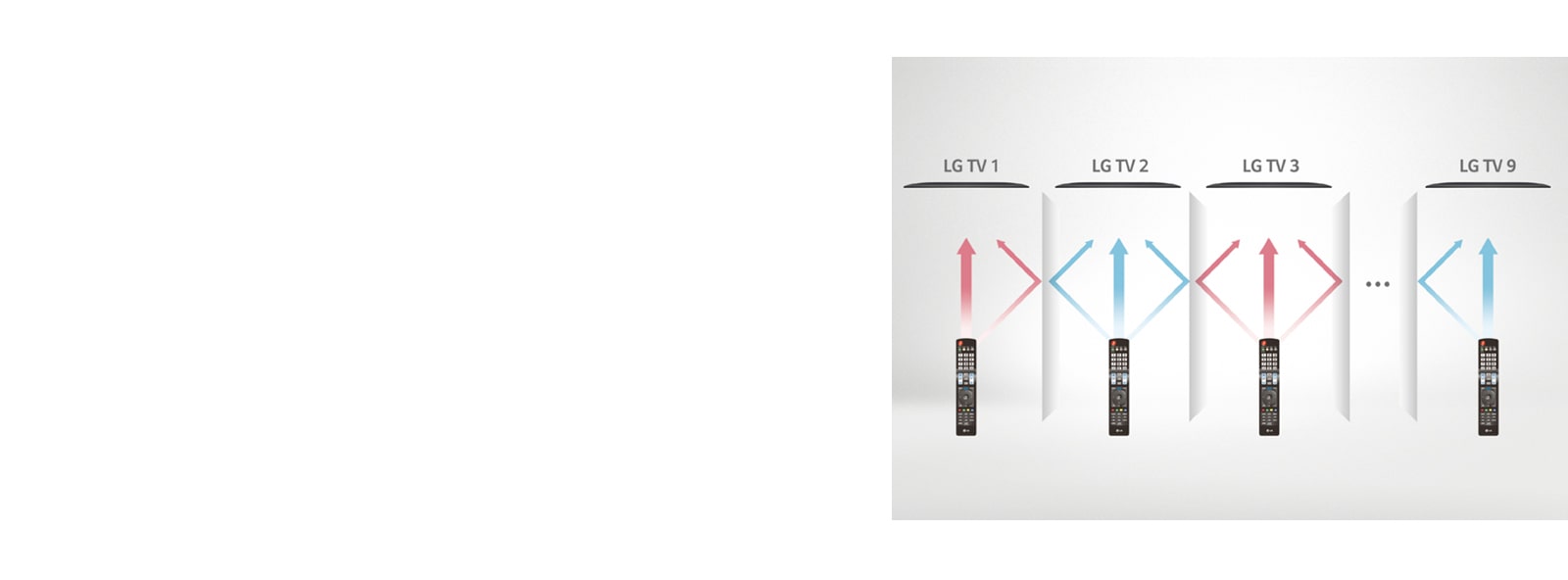

Each remote control only controls a designated TV without tangling each other.

Multi IR

Multi IR* function eliminates the signal interference of remote controls that occurs between multiple TVs in one place. The UT662M series supports this, so users can freely control their own TVs without disturbing the others.

* Separately purchased multi-IR remote controller

Design

Stand Type

No Stand
For Accessory : 1 pole (Swivel)

Front color

Ceramic BK

Display

Inch

55"

Resolution

3840 X 2160 (UHD)
Static (Panel) Contrast Ratio

1,300:1

Video

HDR (Dolby Vision / 10 Pro / HLG)

No / Yes / Yes

Audio

Speaker (sound output)

10W + 10W

Speaker System

2.0 ch
DOLBY ATMOS

No

LG Sound Sync

Yes (Required Bluetooth)

Broadcasting System

Digital (Terrestrial,Cable,Satellite)

DVB-T2/C/S2

Analog (NTSC / SECAM / PAL)

PAL / SECAM

Hospitality Solution

Solution Type

Pro:Centric Smart, Direct, V

Quick Menu (Version)

Yes (3.0)

Feature

Smart

webOS 4.5, Smart Home (Launcher Bar), Web Browser, Pre-loaded App, SDP Server Compatibility, Magic Remote Compatibility (Ready, MR18HA), Soft AP, Wi-Fi (802.11ac), Screen Share (Miracast), Smart Share, Bluetooth Audio Playback, LG Sound Sync (Bluetooth Required), Voice Recognition (Standalone / Solution), IoT, USB Cloning, SI Compatible (TVLink Interactive, RS-232C), IR Out (RS-232C 4pin, HDMI)

Hospitality

Hotel Mode, One Channel Map, Instant ON, Required Approval (UL), Pillow Speaker

Jack Interface

Set Side

HDMI In 2.0, USB 2.0 (2)

Set Rear

HDMI In (HDCP, 2.0), RF In (2), Digital Audio Out (Optical), RS-232C (Phone Jack Type), RJ45 (Ethernet), Pillow Speaker Interface (6 Pin, CPU / PTC Debug)

Dimension

VESA Compatible

300 × 300 mm

Kensington Lock

Yes
W x H x D / Weight (without stand)

1,244 x 726 x 87.1 mm / 14.3 kg

Weight (Shipping)

19.3 kg

Power

Power Supply (Voltage, Hz)

AC 100 ~ 240V, 50/60Hz

Power Consumption(Max)

170W
Power Consumption(Typ)

150W

Standby Power Consumption

0.5W

Required Listing(Certification)

Safety

CB, UL

EMC

CE

General

Region

Middle East & Africa

Datasheet
- UT662M(MEA)_Datasheet(low)_Hospital TV_220404.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
