60LX541H (ASIA) component-copyModelName
LX541H Series

Key Features

component-OBScountrySelectDesc

LX541H Series
LCD Panel Specification
  • Backlight Type
    Edge
    Cinema 3D
    -
  • Resolution
    1,920 x 1,080 (FHD)
    Brightness (cd/m²)
    350
Broadcasting System
  • Analog
    PAL/NTSC-M
    Terrestrial
    DVB-T2
  • Cable
    DVB-C
    Satellite
    -
Video
  • Real Cinema 24p (3:3 Pull down)
    Yes
    Aspect Ratio
    8 modes (16:9, Just scan, Original, Full Wide, 4:3, 14:9, Cinema Zoom 1, Zoom)
Audio
  • Audio Output
    10W + 10W
    Wireless Sound Sync
    -
Feature

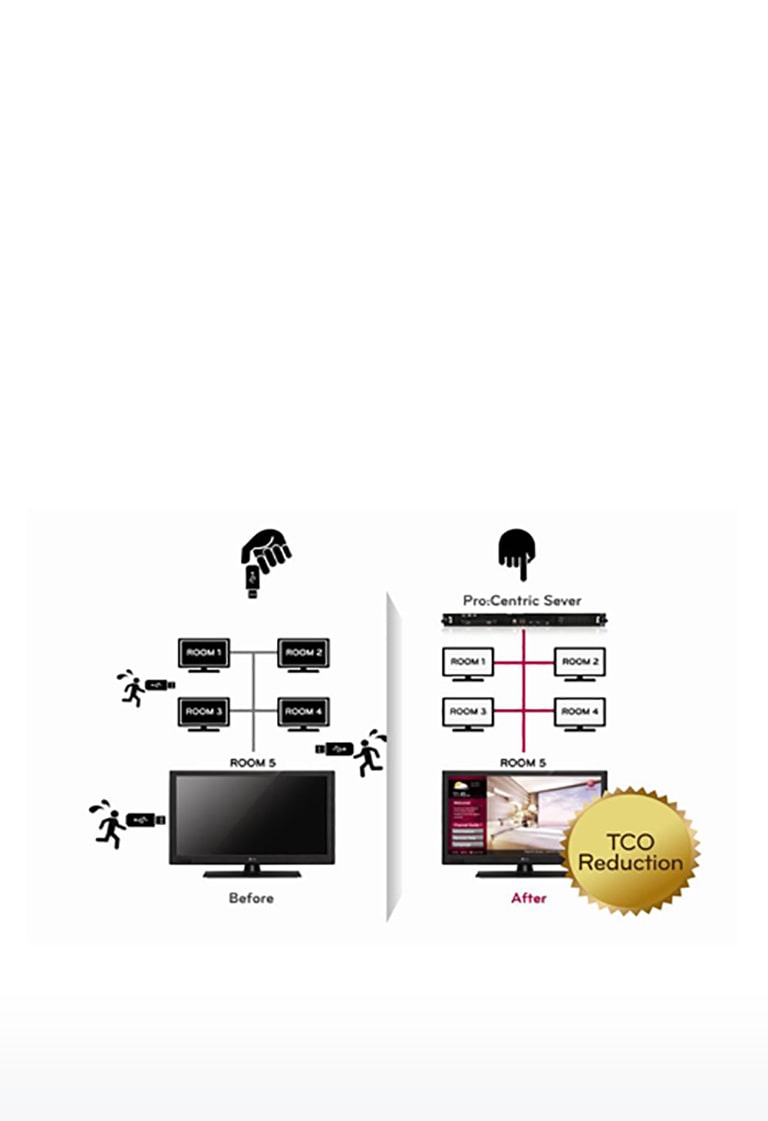

  • Pro:Centric
    Yes (V)
    Pro:Idiom
    -
Interface - Set Side
  • Headphone Out
    1
    RF In
    -
  • AV in
    -
    S-Video In
    -
  • RGB In (D-sub 15pin)
    -
    Component In (Y,Pb,Pr)
    -
  • PC Audio Input
    -
    HDMI In (HDMI1.4)
    2
  • USB (2.0)
    2
    CI Slot
    -

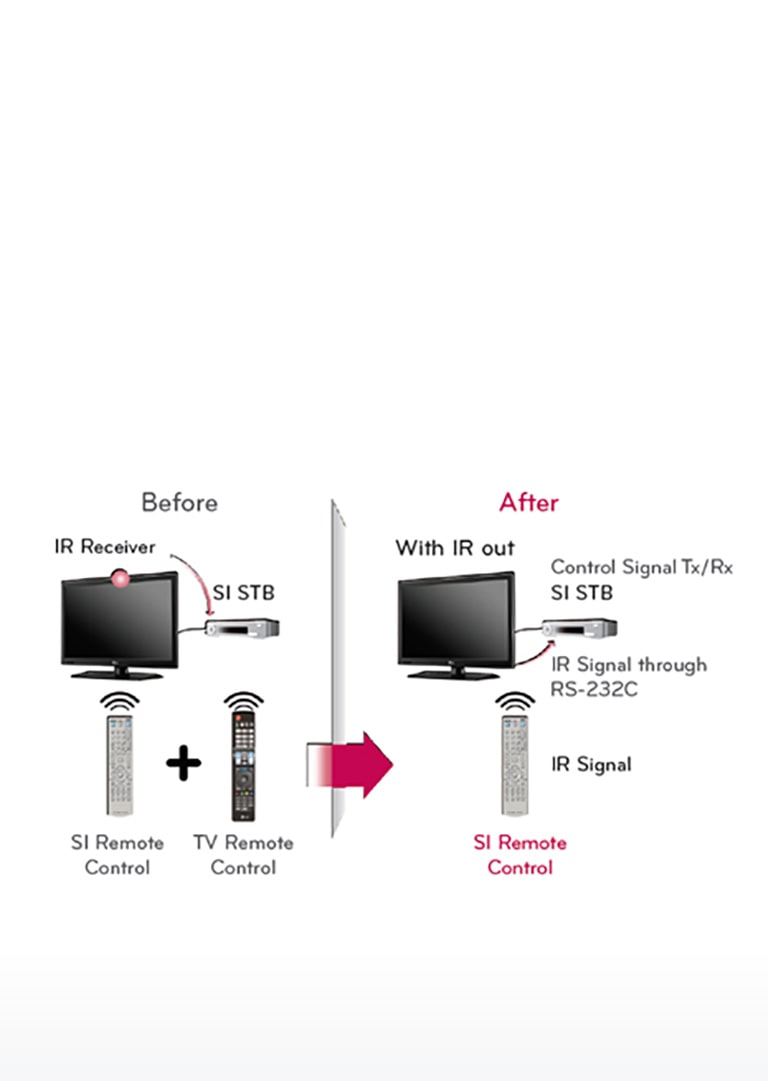

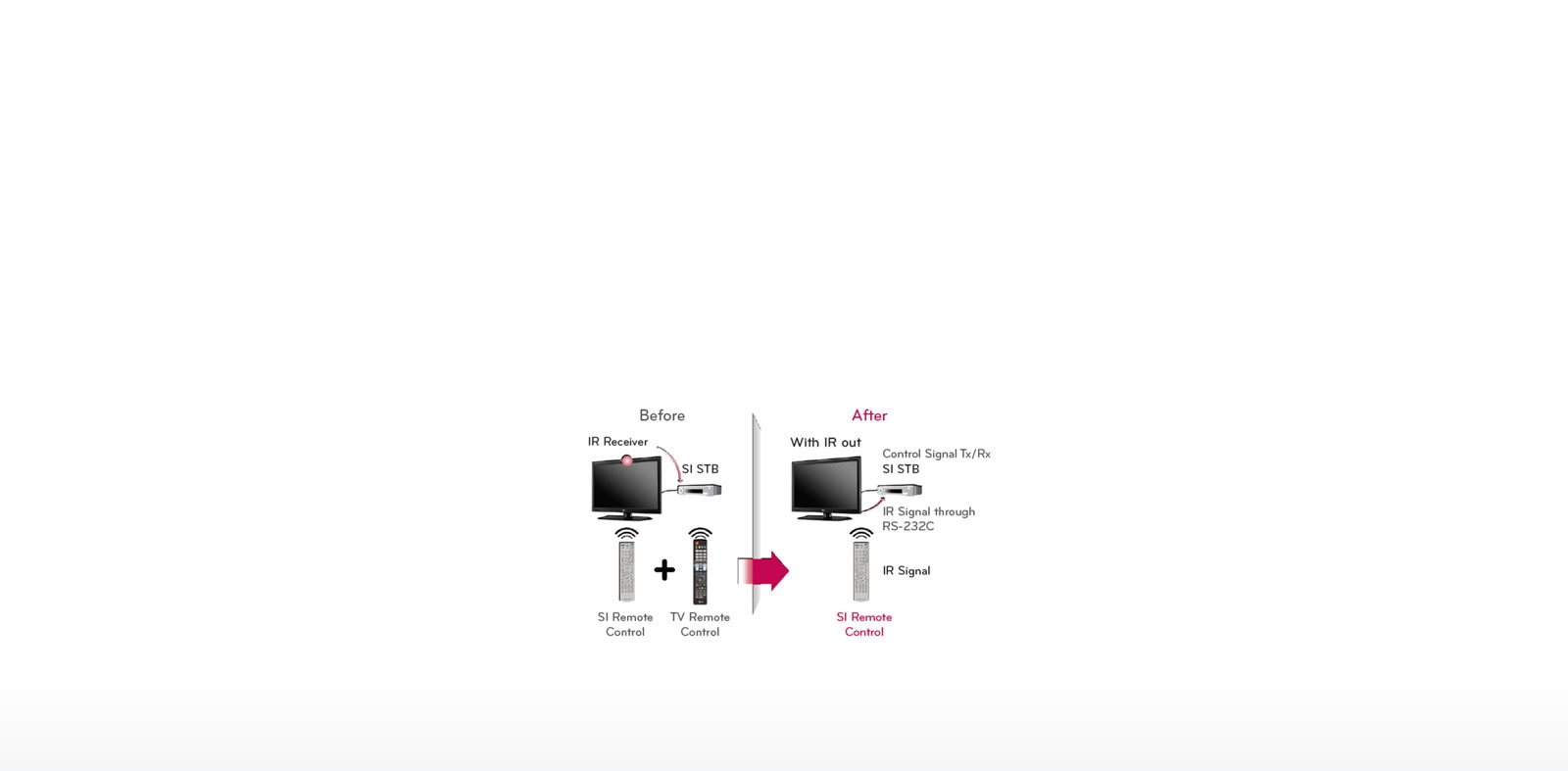

  • IR Out
    -
Interface - Set Rear
  • RF In
    1
    AV In
    1
  • AV Out
    -
    S-Video In
    -
  • Full Scart
    -
    Component in (Y,Pb,Pr) + Audio
    1 (Commonly used w/AV)
  • Digital Audio Out (Coaxial / Optical)
    1 (Optical)
    HDMI (HDMI1.4) / HDCP Input
    1
  • USB 2.0
    -
    RGB In (D-sub 15pin) - PC
    1
  • PC Audio Input
    1 (Commonly used w/AV)
    RS-232C (D-sub 9pin)
    1
  • Headphone Out
    -
    Clock Interface
    -
  • LAN Port
    1
    RJ45 (RJP interface)
    -
  • External Speaker Out (3.5mm phone jack)
    2 (Spk-out 1, Vol. Control 1)
    TV link Configuration (phone jack type)
    -
Power
  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Typical (Watts)
    132.1W
Tool Description
  • Swivel (angle)
    Yes (± 20 degrees)
    VESA Compatibility
    300 X 300
Required Listing(Certification)
  • Safety
    CB, BIS, SIRIM, TISI, BPS, PSB, SNI
    EMC
    CISPR
  • ETC.
    MEPS, Tick, EE, CIF, BEE, Freeview
Dimension
  • Set Size (W/O Stand, WxHxD, mm)
    1,363 X 792 X 39 (SPK 57.1)
    Set Size (With Stand, WxHxD, mm)
    1,363 X 844 X 294
General
  • Region
    ASIA
