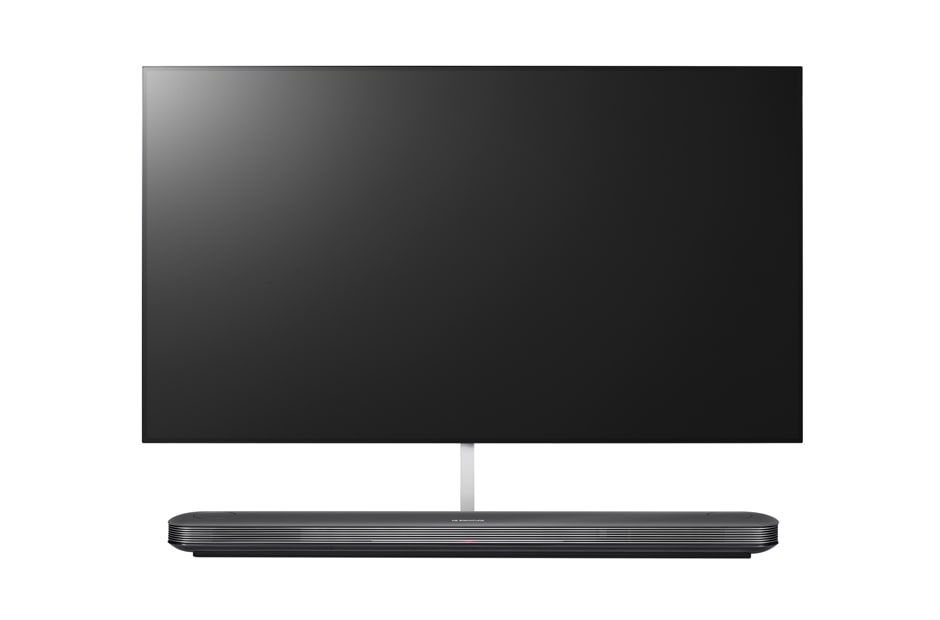

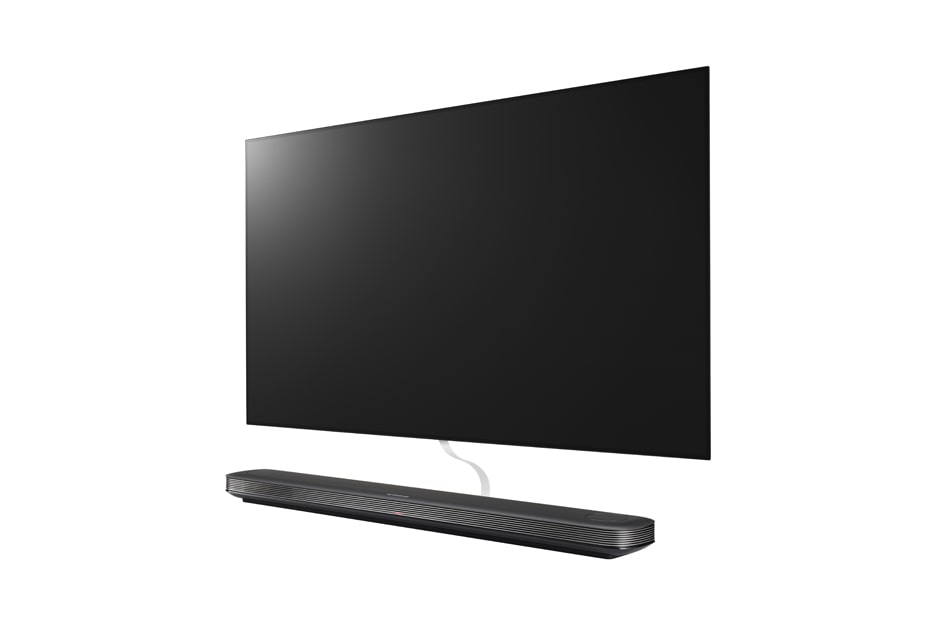

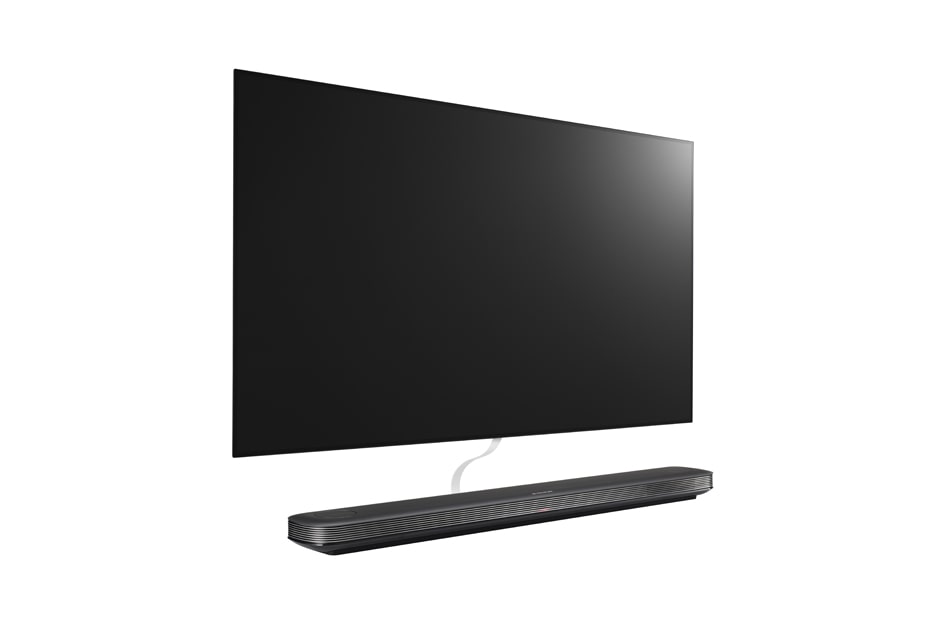

65EV960H (NA) component-copyModelName
OLED Wallpaper Hotel TV With Premier IP-based Solution

Key Features

component-OBScountrySelectDesc

OLED Wallpaper Hotel TV With Premier IP-based Solution
Display
  • Type
    OLED
    Resolution
    3,840 x 2,160 (UHD)
Broadcasting System
  • Analog
    NTSC
    Digital
    ATSC / VSB / Clear QAM
Video
  • Triple XD Engine
    Real Cinema 24p (3:3 Pull down)
  • Aspect Ratio
    • 6 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom, Just Scan)
    HDR
    Dolby Vision™ HDR, HDR10
Audio
  • Audio Output
    60W
    Speaker System
    4.2Ch
  • Sound Mode
    • 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
Solution
  • Type

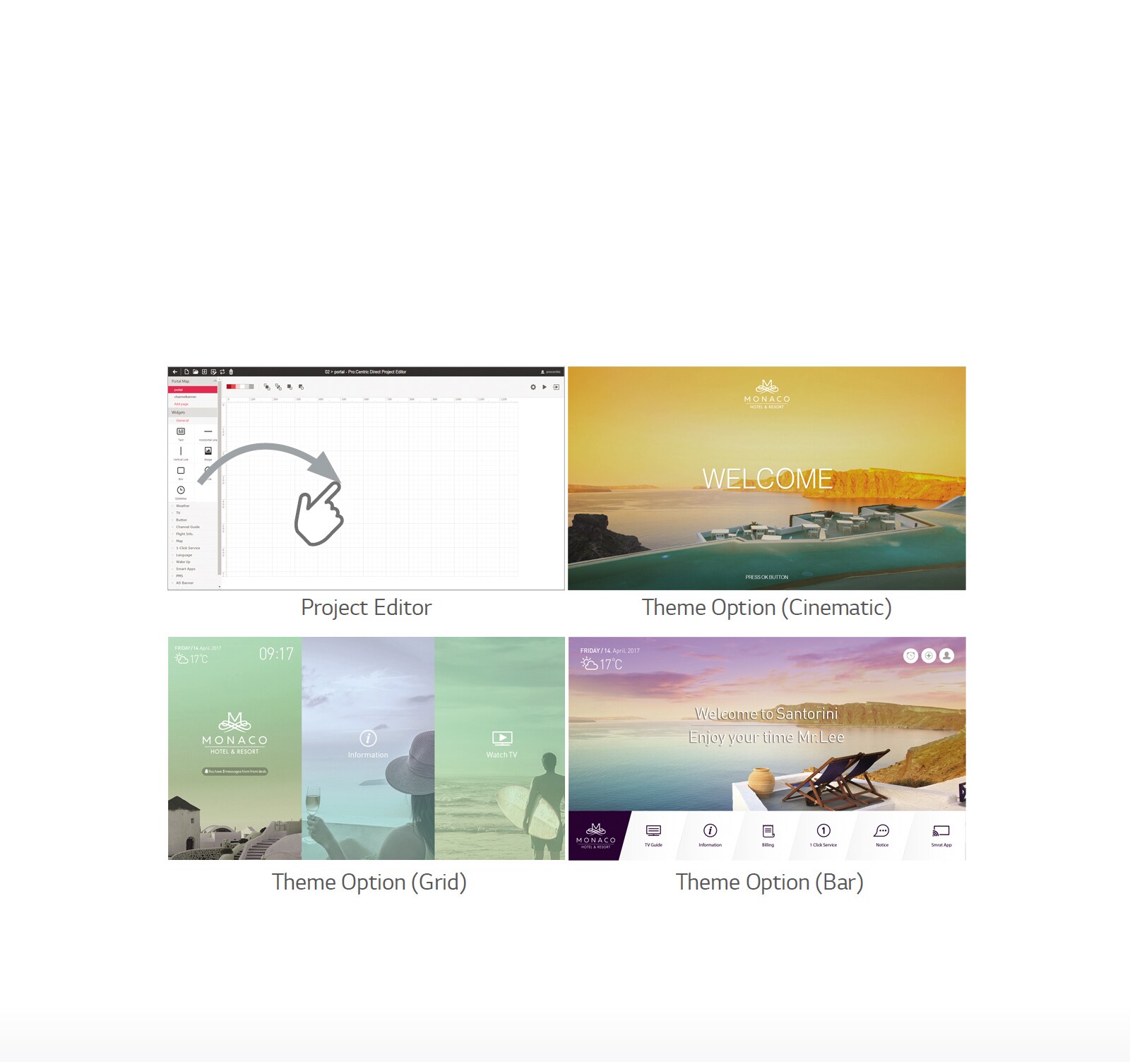

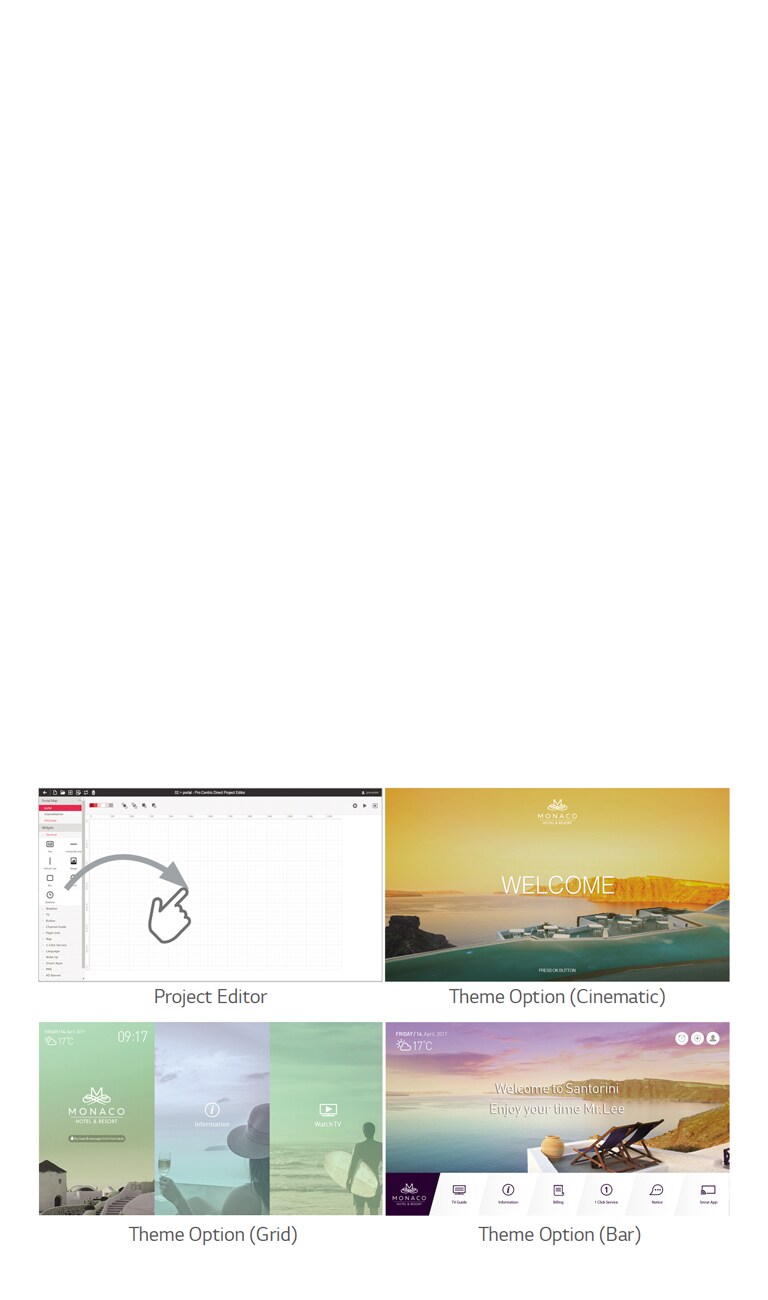

    Pro:Centric Smart, V, Direct
    Data Streaming (IP &RF)

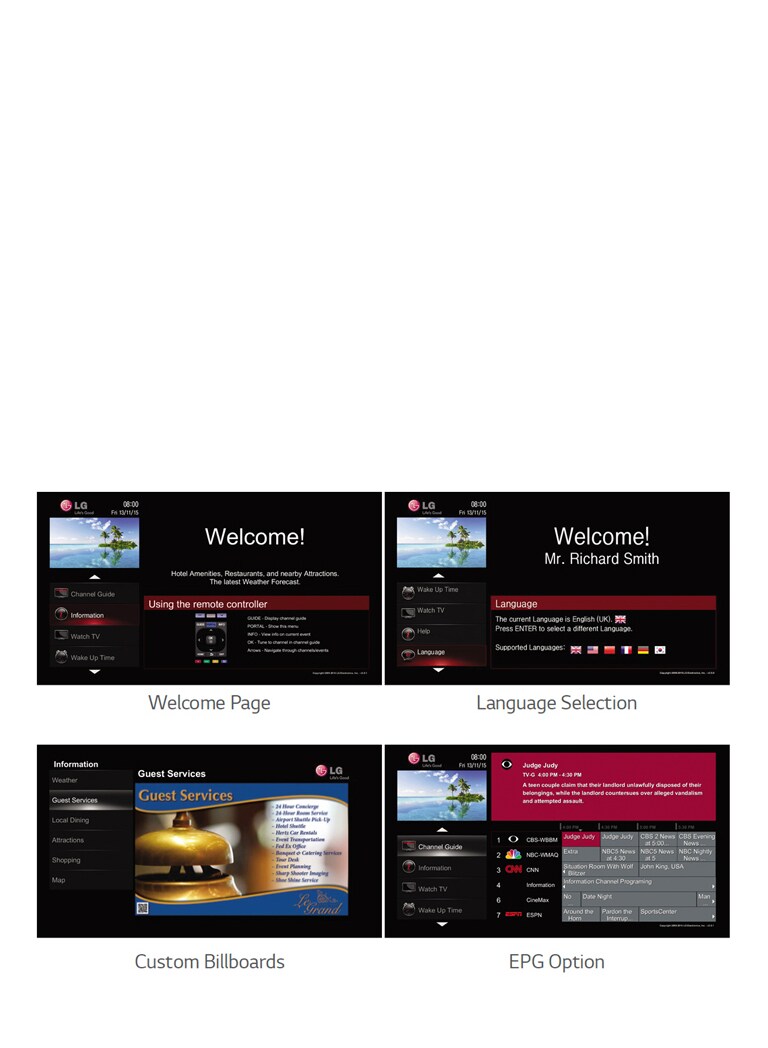

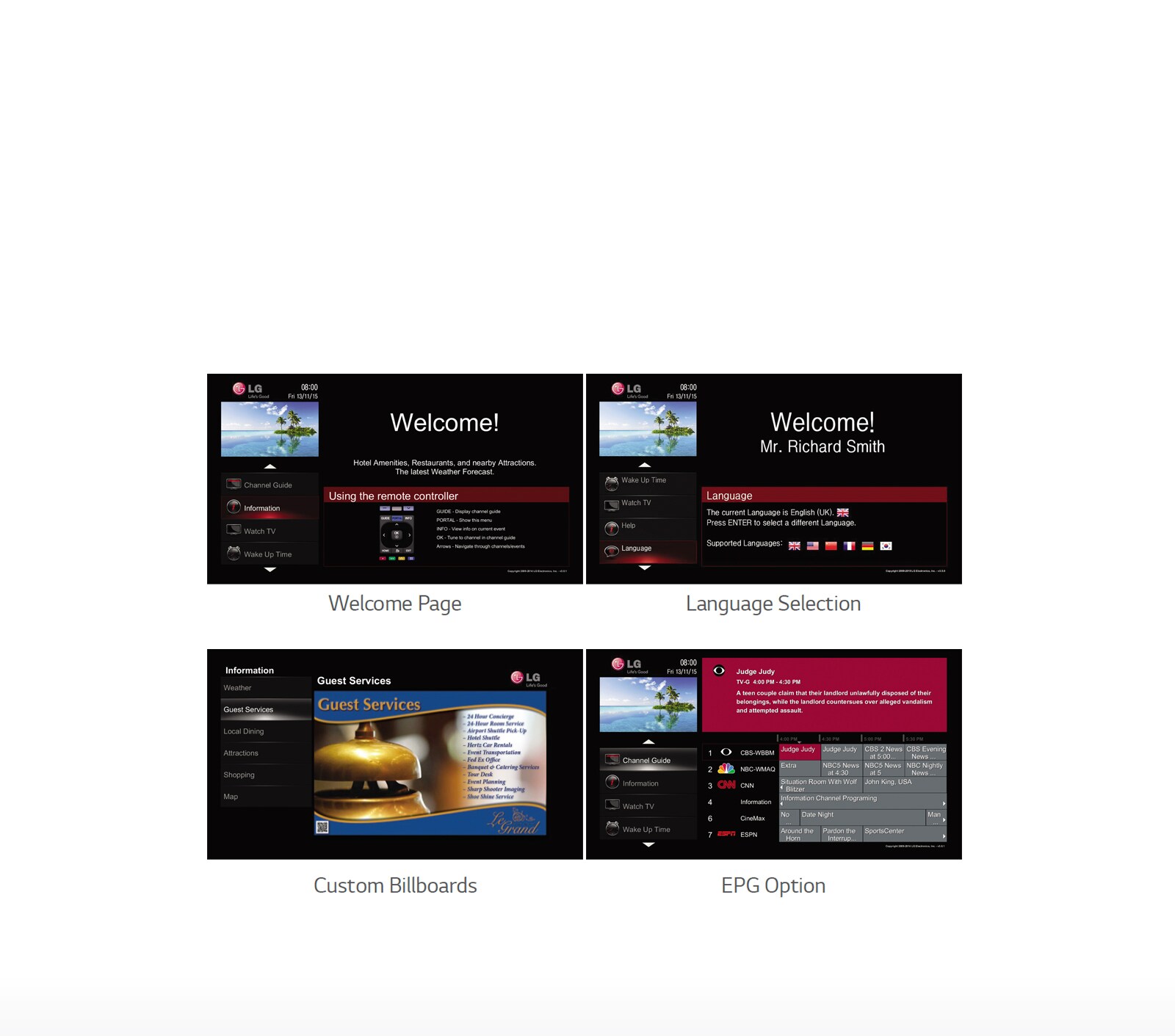

  • Pro:Centric Application
    RF
    • (1 Tuner)
  • HCAP (SDK)
    GEM / Flash / HTML
    IP Return Path
  • Server
    PCS400R, PCS200S
    Digital Right Management
    Pro:Idiom
Smart Features
  • Smart UX

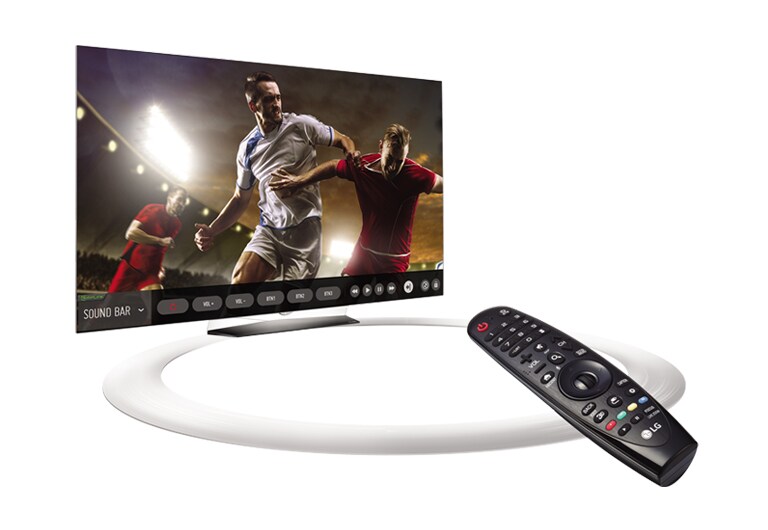

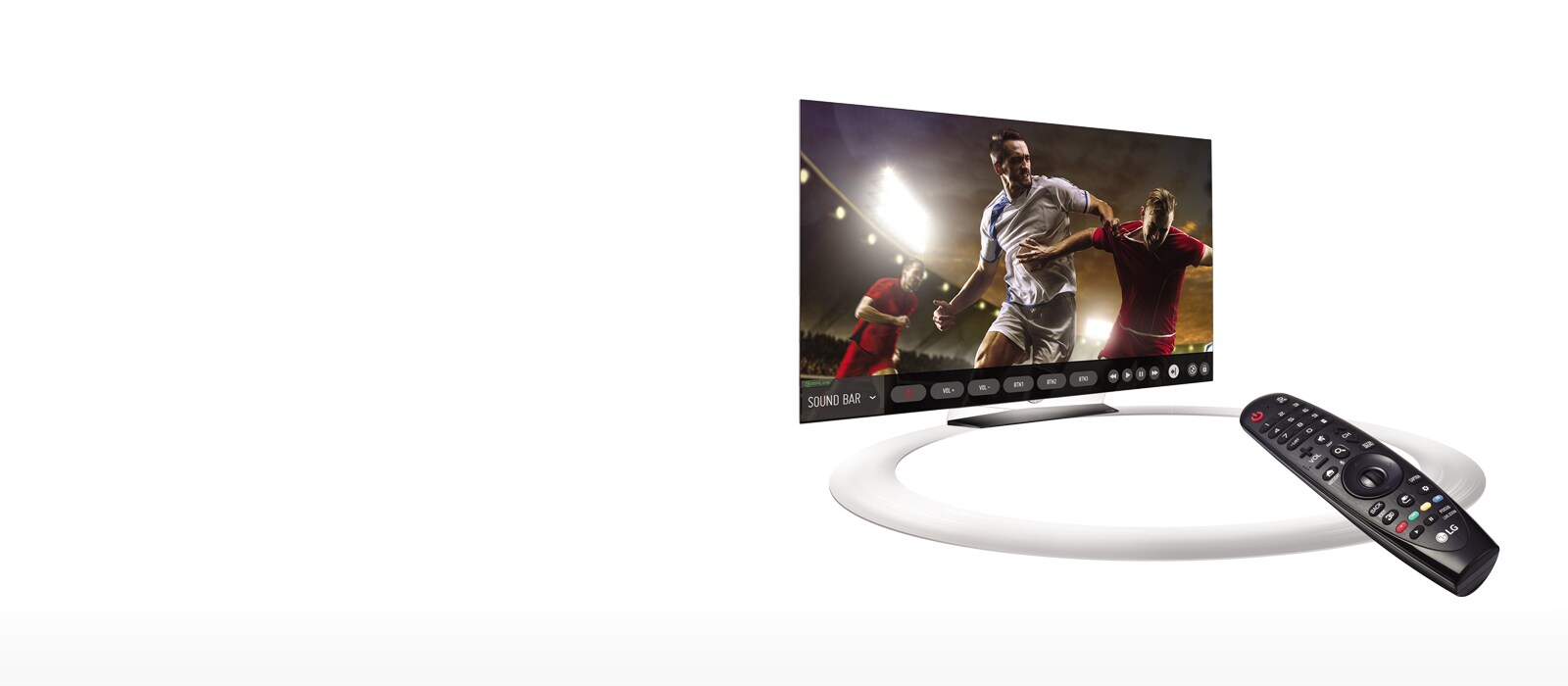

    webOS 3.5, Commercial Smart Home, Web Browser, Pre-loaded Apps, SDP (Software Defined Perimeter), Magic Remote
    Connectivity

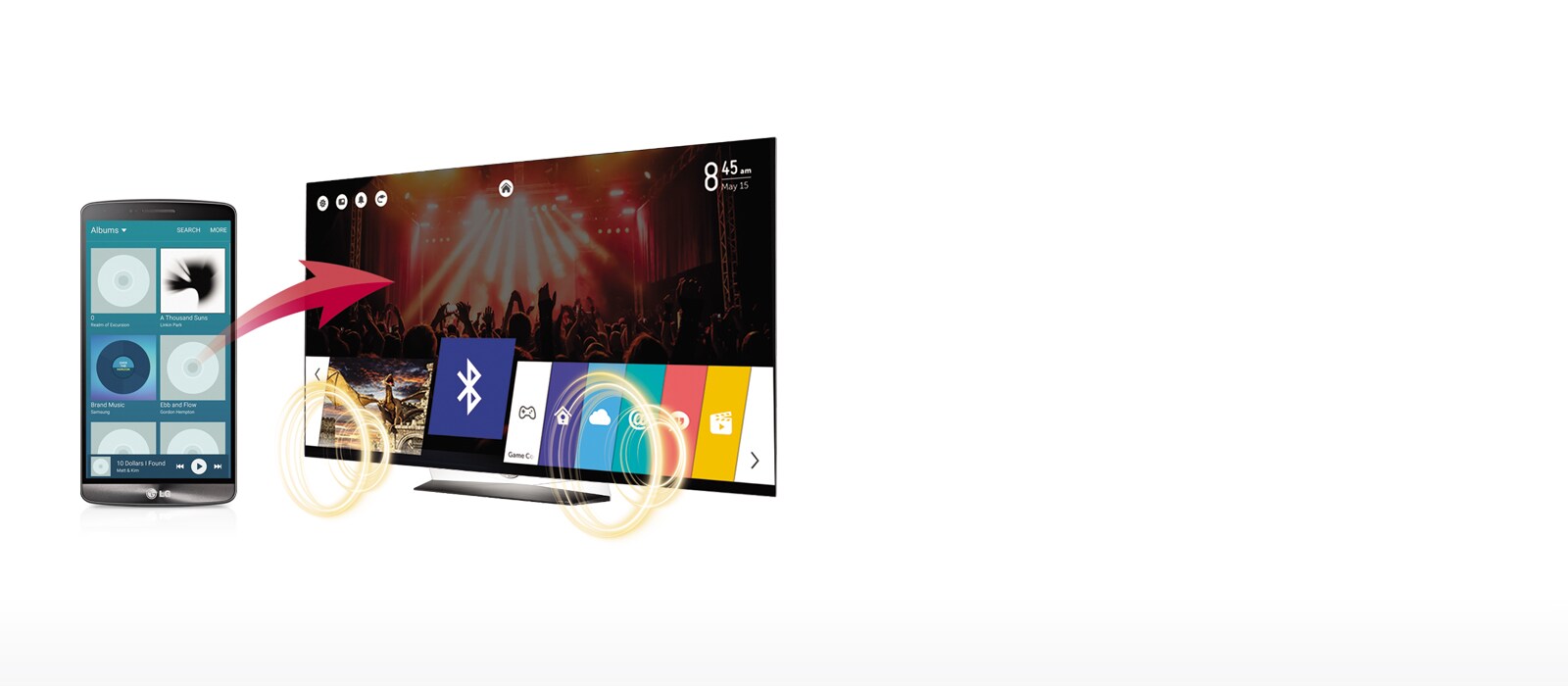

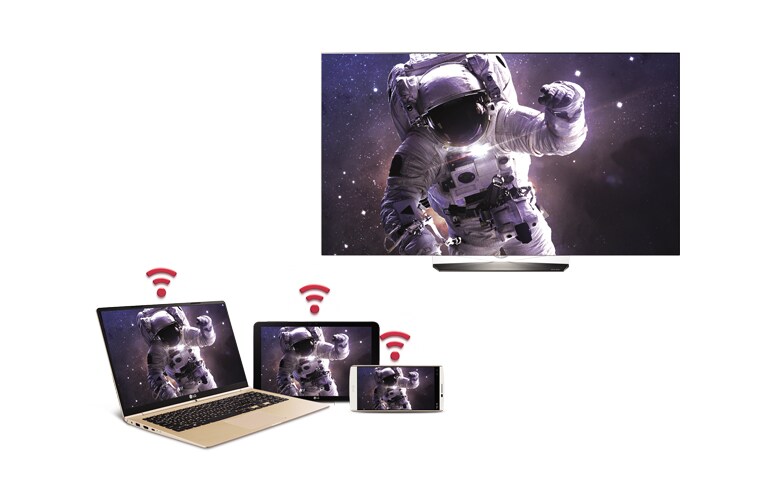

    SoftAP, Wi-Fi (Built-in Type), Screen Share (Miracast/WiDi), Smart Share (Wi-Fi Direct/DLNA), DIAL, Bluetooth Sound Sync, LG Sound Sync
Feature
  • Installation
    EzManager, USB Cloning
    Management
    Wake on RF, WOL (Wake on LAN) SNMP, Remote Diagnostics, MPI Protocol, IR Out, Multi IR Code, HTNG/HDMI-CEC
  • Hospitality
    Hotel Mode (Installer Menu), Welcome Spalsh Screen, Logical Channel Map, External Speaker Out, Instant On
Interface
  • Rear
    RF In, Optical Digital Audio Out, HDMI (2), USB 3.0, USB 2.0, RS-232C (Control), LAN (2), External Speaker Out, MPI, Debug (2)
Dimension(Unit: mm)
  • W x H x D / weight (Screen)
    1,450 x 825 x 3.85 / 7.6kg* (Weight of Wall Mount is not included.)

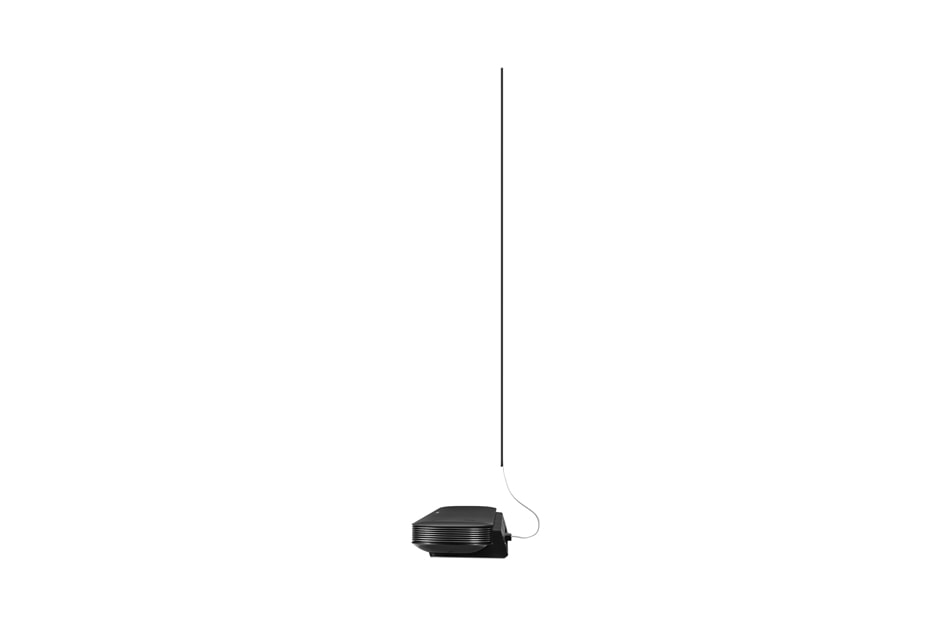

    W x H x D / weight (AIO)
    1,260 x 78 x 198 / 10kg
  • W x H x D / weight (packing)
    1,641 x 952 x 288 / 33kg
Dimension
  • Bezel Width (L / R, U, B) : on bezel based
    10.6mm, 10.6mm, 11.1mm
    Bezel Width (L / R, U, B) : off bezel based
    1.2mm, 1.2mm, 1.2mm
  • W x H x D / weight (with stand)
    Head : 57.1" x 32.5" x 0.15" / 21.8lb
    AIO BOX : 49.6" x 3.1" x 7.8" / 22.0lb
    W x H x D / weight (Carton)
    64.3" x 37.6" x 11.3" / 72.8lb
General
  • Region
    North America
  • Datasheet
    • SPEC_EV960H_081705_PR.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
