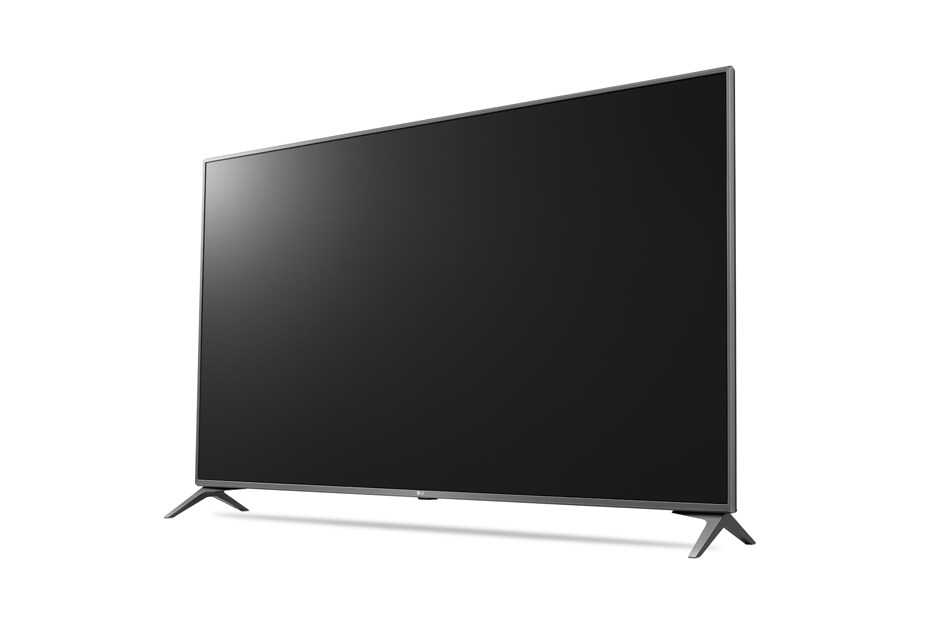

65UV560H (NA) component-copyModelName
UV560H Series

Key Features

Choose your Size

component-OBScountrySelectDesc

UV560H Series
Display
  • Diagonal Size
    64.6"
    Type
    Edge LED
  • Resolution

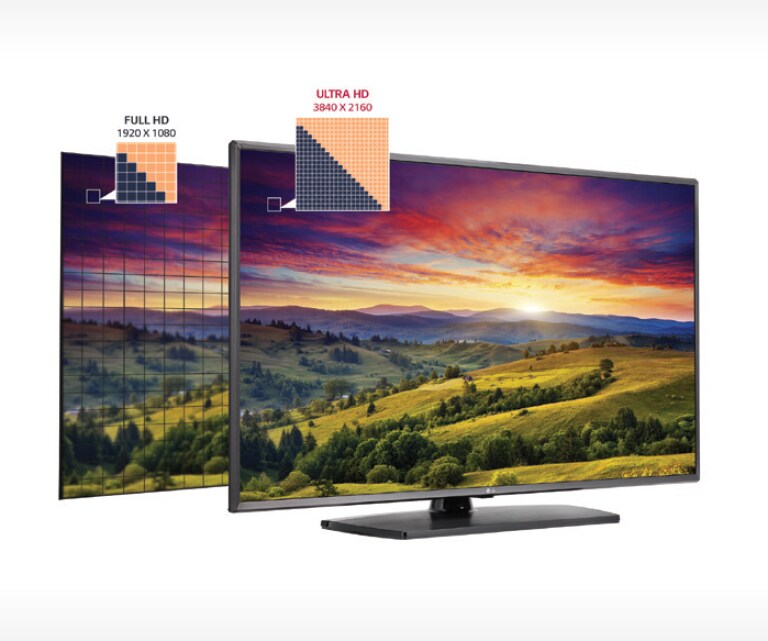

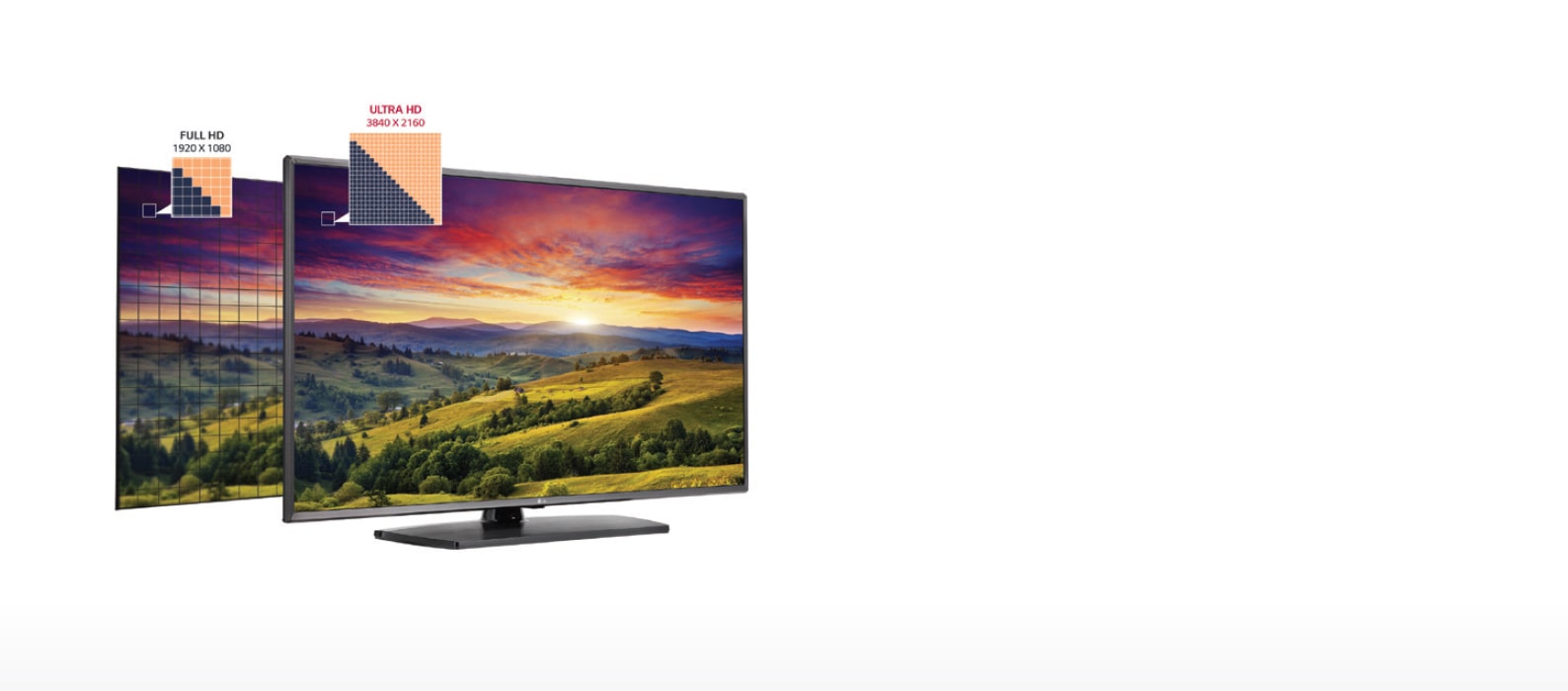

    3,840 x 2,160 (4K UHD)
Broadcasting System
  • Analog
    NTSC
    Digital
    ATSC / VSB / Clear QAM
Video
  • XD Engine
    Real Cinema 24p (3:3 Pull down)
  • Picture Mode
    • 9 modes (Vivid, Standard, APS (Eco), Cinema, Sports, Game, HDR Effect, Expert (Bright Room), Expert (Dark Room))
    Aspect Ratio
    • 6 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom, Just Scan)
  • HDR
    HDR10
Audio
  • Audio Output / Speaker System
    10W + 10W / 2.0 ch
    Sound Mode
    • 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
Feature
  • Installation
    EZ-Manager Wizard (for Initial Configuration), USB Cloning
    Management
    Wake on RF, Remote Diagnostics, SI Compatibility (MPI / RS-232C Protocol), IR Out (MPI Jack / RS-232C), Multi IR Code
  • Hospitality

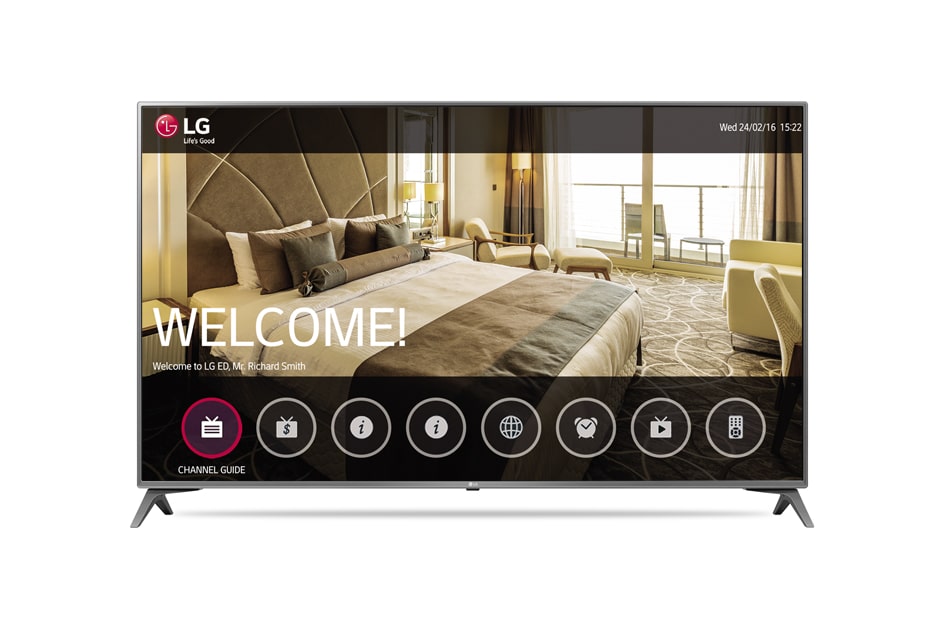

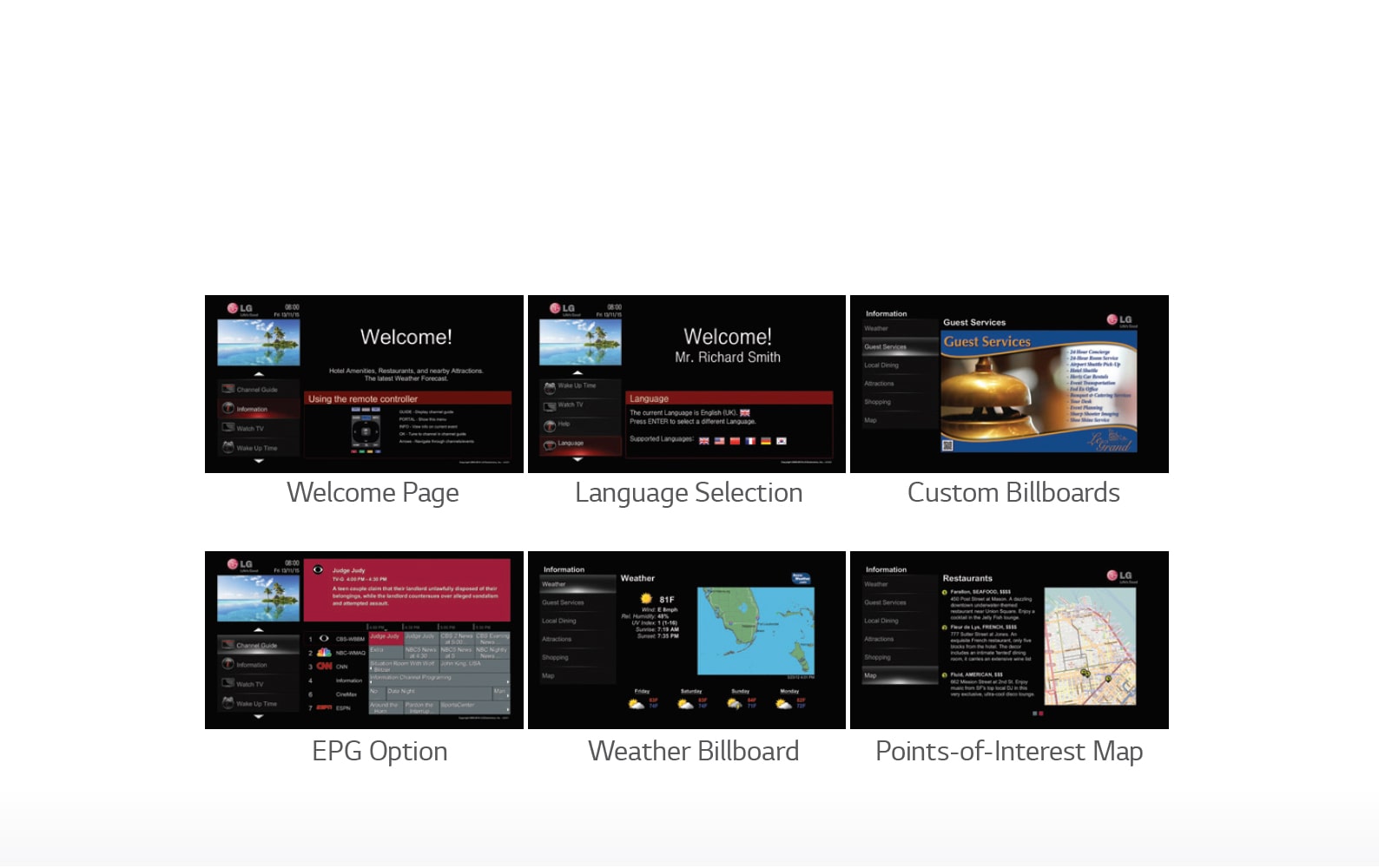

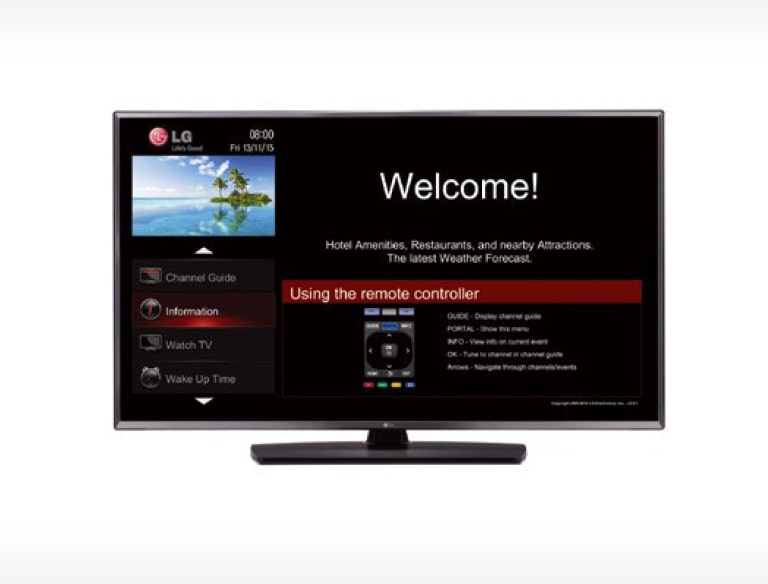

    Installer Menu, Welcome Screen (Splash Image), Logical Channel Map (LCM), External Speaker Out, Instant On, RJP Compatibility
Interface
  • Side
    HDMI (2), USB 2.0
    Rear
    RF In, AV In, Digital Optical Audio Out, HDMI Input, RS-232C (Control & Service), RJ45, External Speaker Out, MPI Port, Debug
Dimension
  • Vesa (mm)
    300 x 300
    W x H x D / Weight (without stand)
    57.3" x 33.1" x 1.6" / 57.3lb
  • W x H x D / weight (with stand)
    57.3" x 35.8" x 10.7" / 58.2lb
    W x H x D / weight (Carton)
    63.0" x 38.2" x 6.9" / 72.3lb
General
  • Region
    North America
