65UV770H (NA) component-copyModelName
UV770H Series

Key Features

Choose your Size

component-OBScountrySelectDesc

UV770H Series
Display
  • Diagonal Size
    64.8"
    Type
    Edge LED
  • Resolution
    3,840 x 2,160 (4K UHD)
Broadcasting System
  • Analog
    NTSC
    Digital
    ATSC / VSB / Clear QAM
Video
  • Triple XD Engine
    Real Cinema 24p (3:3 Pull down)
  • Picture Mode
    • 9 modes (Vivid, Standard, APS (Eco), Cinema, Sports, Game, HDR Effect, Expert (Bright Room), Expert (Dark Room))
    Aspect Ratio
    • 6 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom, Just Scan)
  • HDR
    Dolby Vision™ HDR, HDR10
Audio
  • Audio Output / Speaker System
    10W + 10W / 2.0ch
    Sound Mode
    • 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
Solution
  • Type

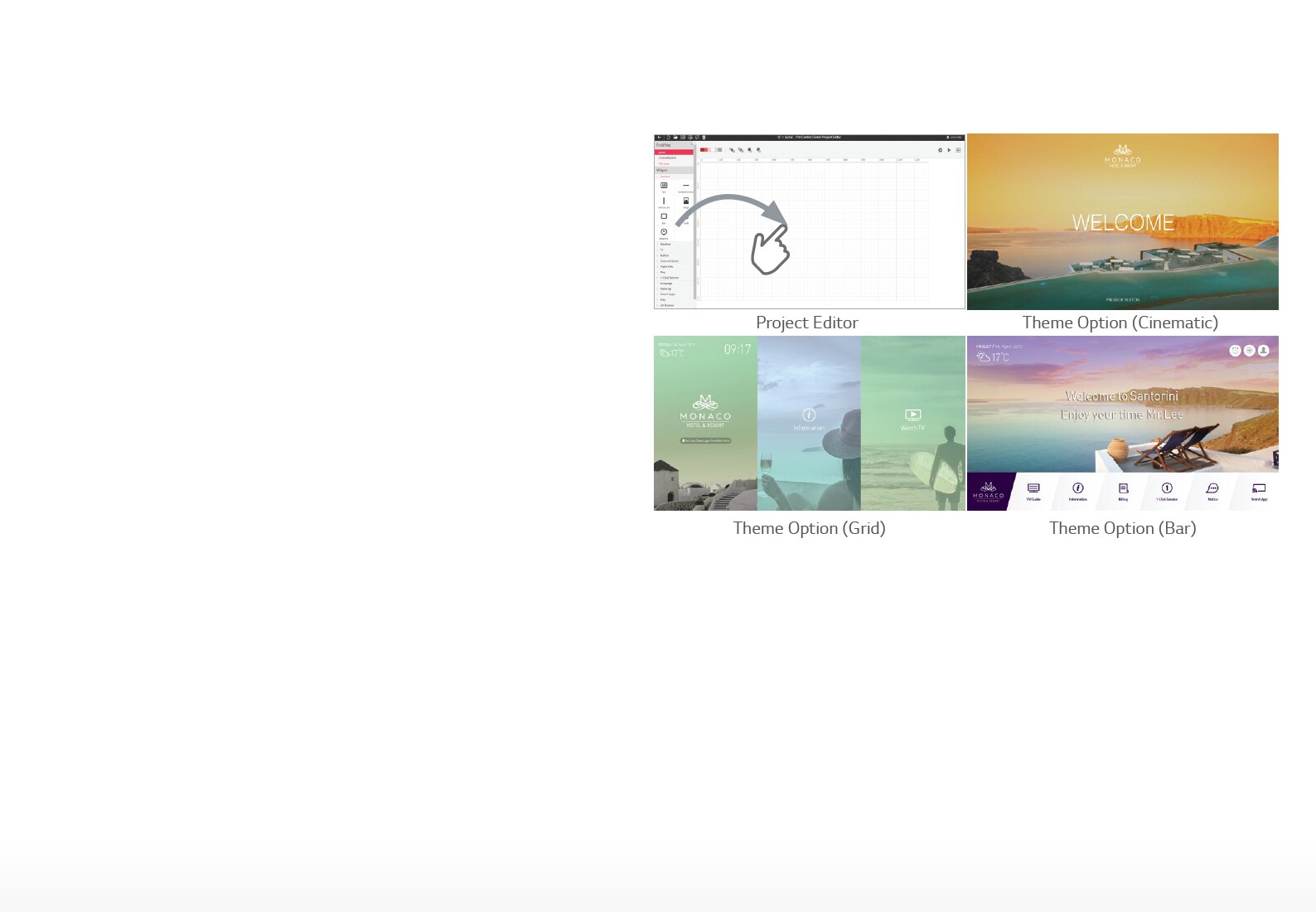

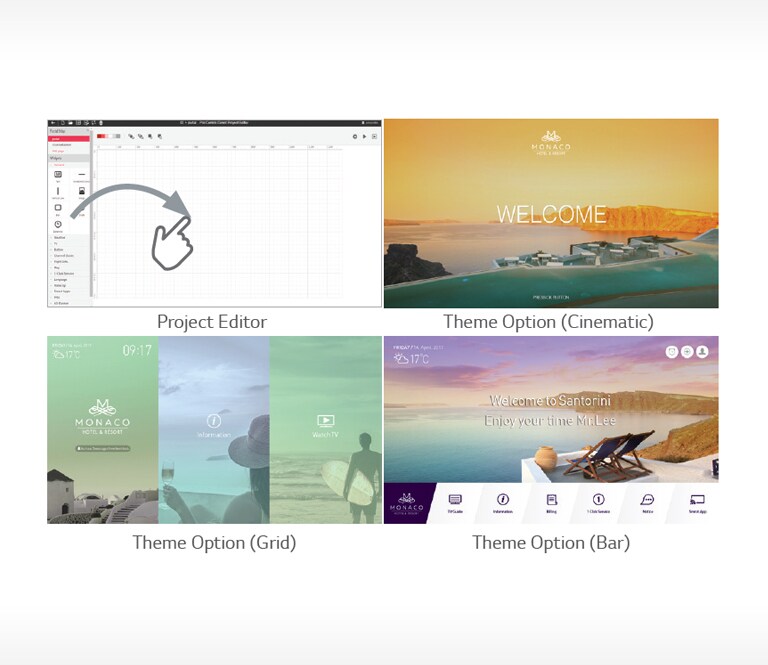

    Pro:Centric SMART / Pro:Centric Direct
    Data Streaming (IP &RF)

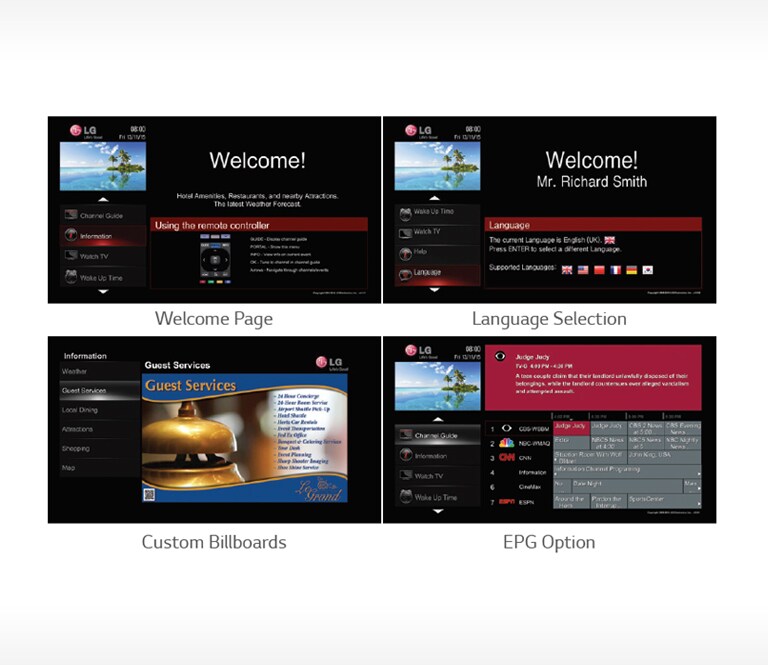

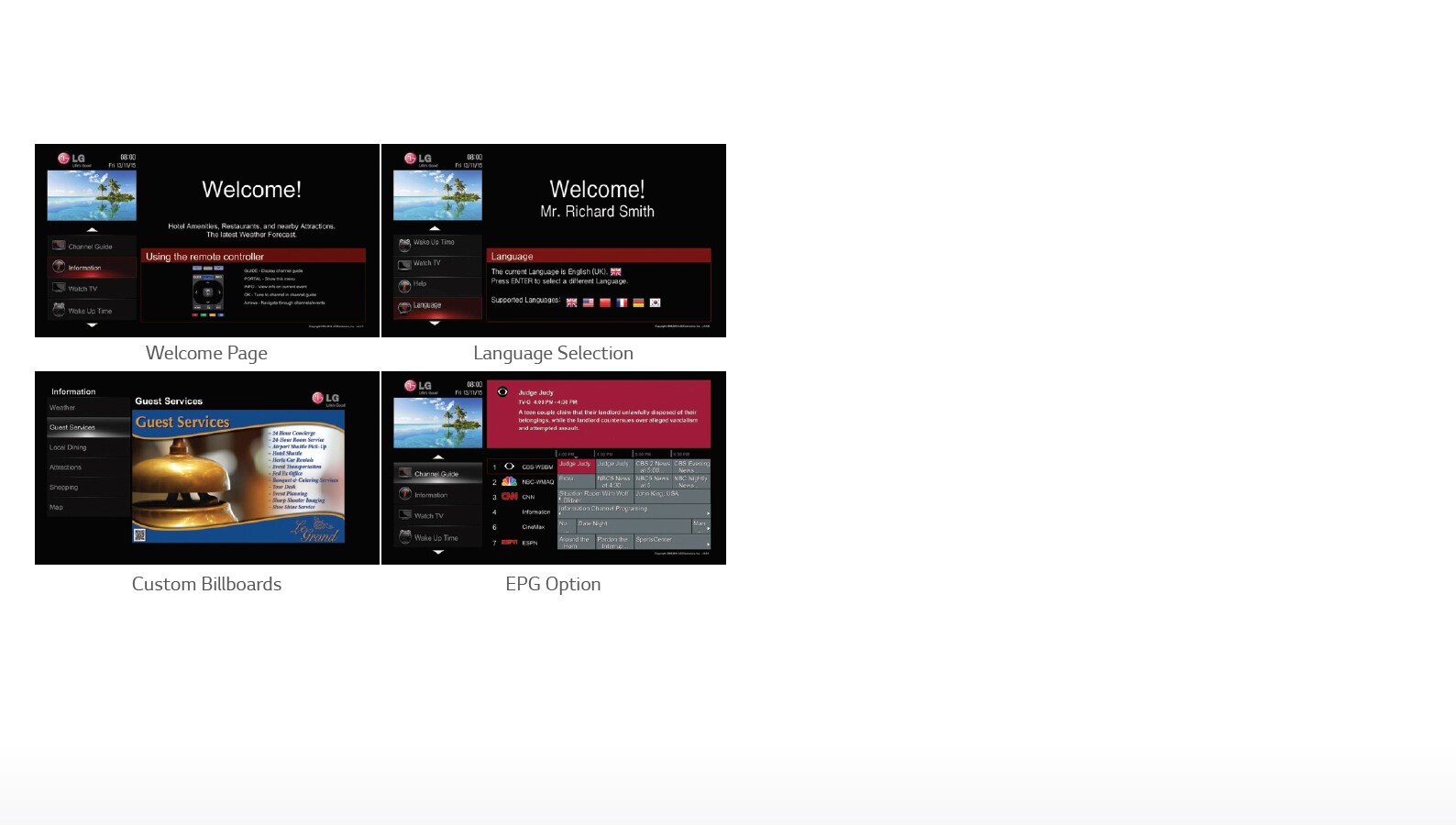

  • Pro:Centric Application
    RF
    2 Tuner
  • HCAP (SDK)
    GEM / Flash / HTML
    IP Return Path
  • Server
    PCS400R, PCS200S
    Digital Right Management
    Pro:Idiom
Smart Features
  • Smart UX
    webOS 3.5, Commercial Smart Home, Web Browser, Pre-loaded Apps, SDP (Service Delivery Platform), Magic Remote (Optional)
    Connectivity

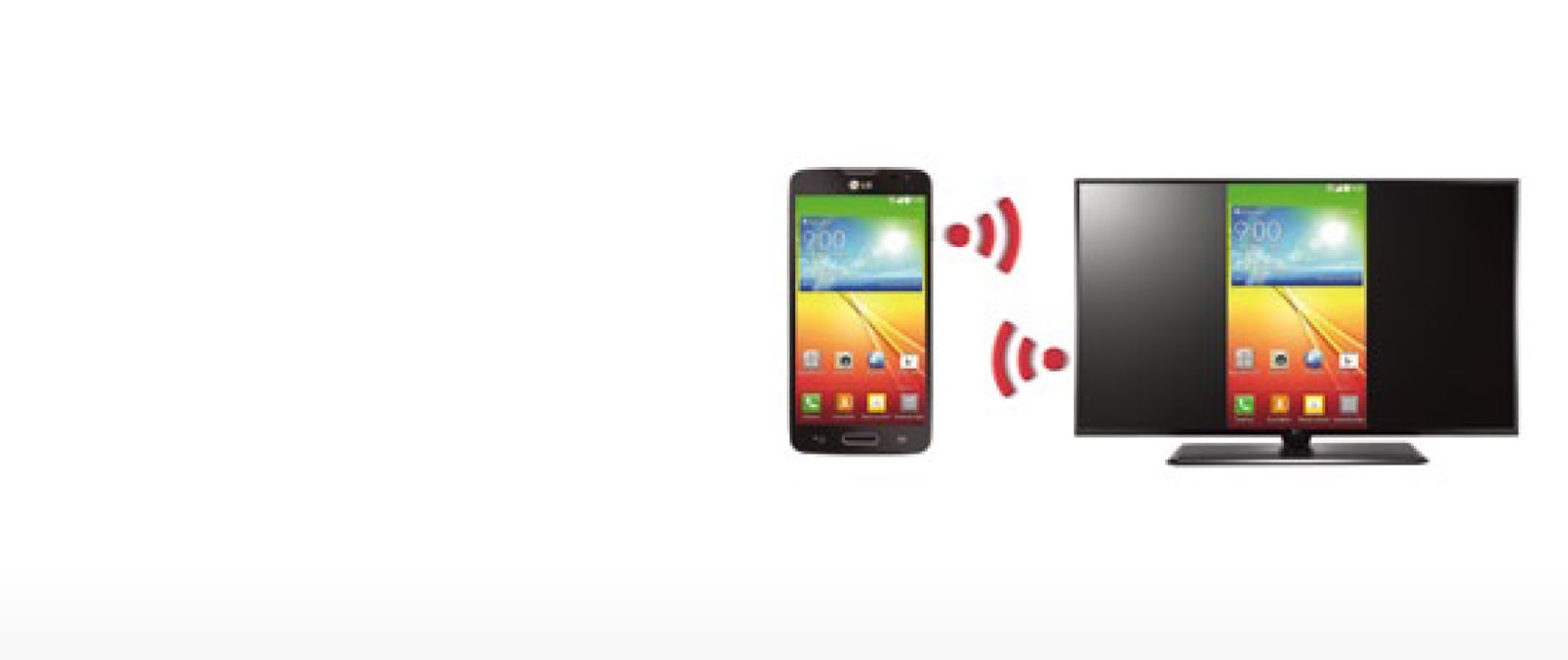

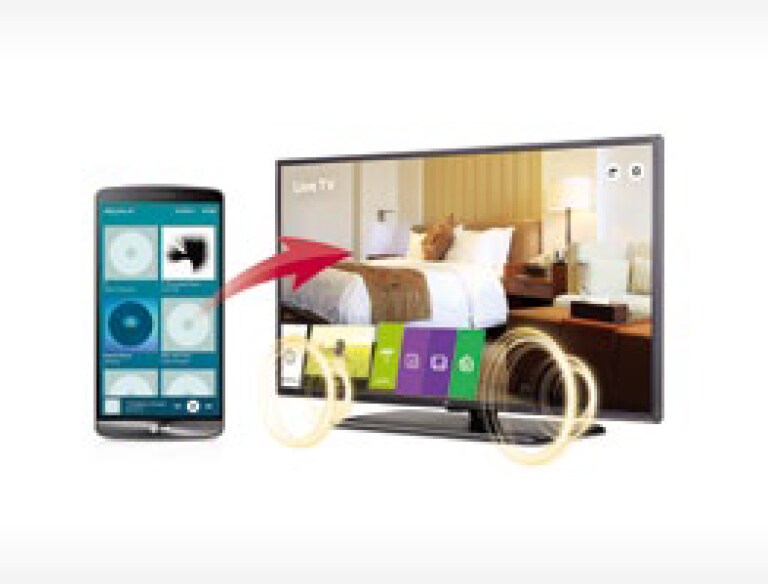

    SoftAP, WiFi (802.11a/b/g/n/ac), ScreenShare (Miracast), SmartShare, DIAL, Bleutooth Sound Sync, LG Sound Sync
Feature
  • Installation
    EzManager, USB Cloning
    Management
    Wake on RF, WOL (Wake on LAN) SNMP, Remote Diagnostics, MPI Protocol, IR Out, Multi IR Code, HTNG/HDMI-CEC
  • Hospitality

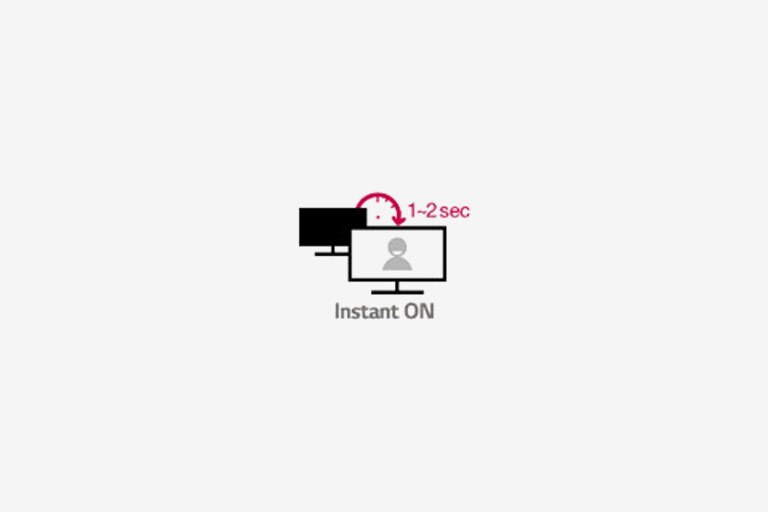

    PDM(Installer menu), Welcome Screen(Splash Image), Insert Image(webOS default), Logical Channel Map, External Speaker Out, Instant ON, RJP Compatibility, b-LAN™ embedded
Interface
  • Side
    HDMI In, USB 2.0
    Rear
    RF In (b-LAN), AV In, Digital Optical Audio Out, HDMI Input, USB, RS-232C(Control & Service), RJ45(2), External Speaker Out, TV Link Configuration (b-LAN Service), MPI Port, Debug
Dimension
  • Bezel Width (L / R, U, B) : on bezel based
    9.1, 9.1, 17.2 (mm)
    Bezel Width (L / R, U, B) : off bezel based
    6.6, 6.6, 15.2 (mm)
  • Vesa (mm)
    300 x 300
    W x H x D / Weight (without stand)
    57.3"x33.1"x1.7" / 52.9lb
  • W x H x D / weight (with stand)
    57.3" x 35.4" x 12.3" / 56.2lb
    W x H x D / weight (Carton)
    63.0" x 40.7" x 7.5" / 73.0lb
General
  • Region
    North America
  • Datasheet
    • SPEC_UV770H_101709_PR.PDF
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
