75UT770H (NA) component-copyModelName

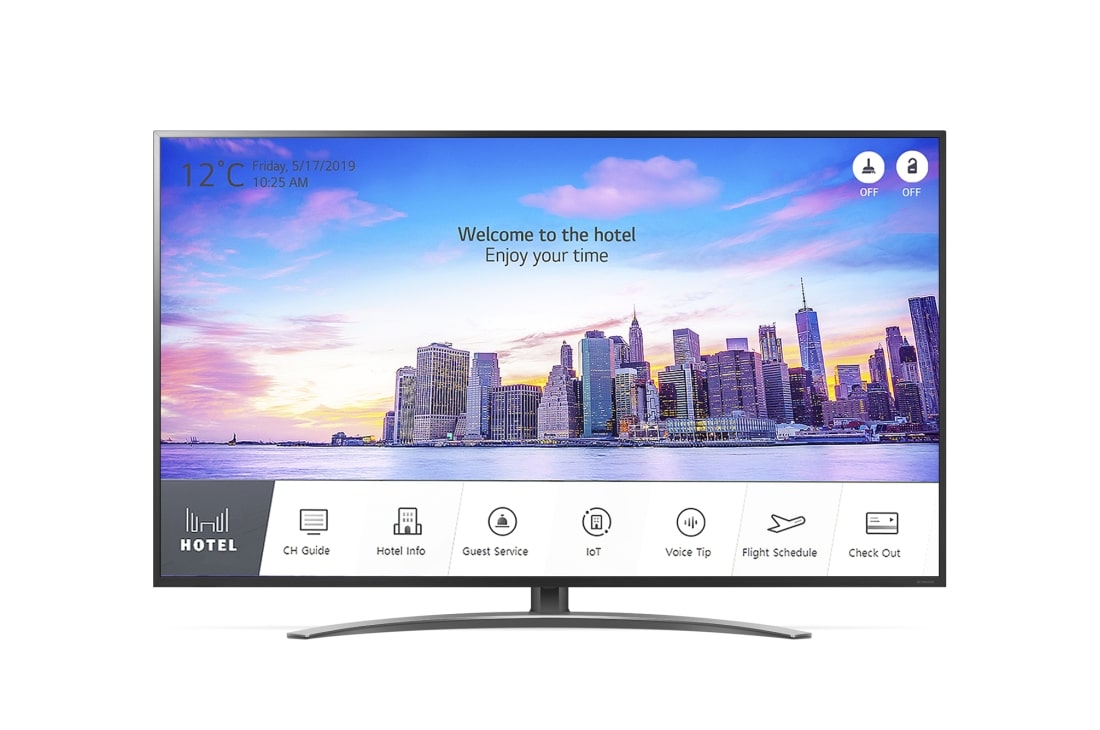

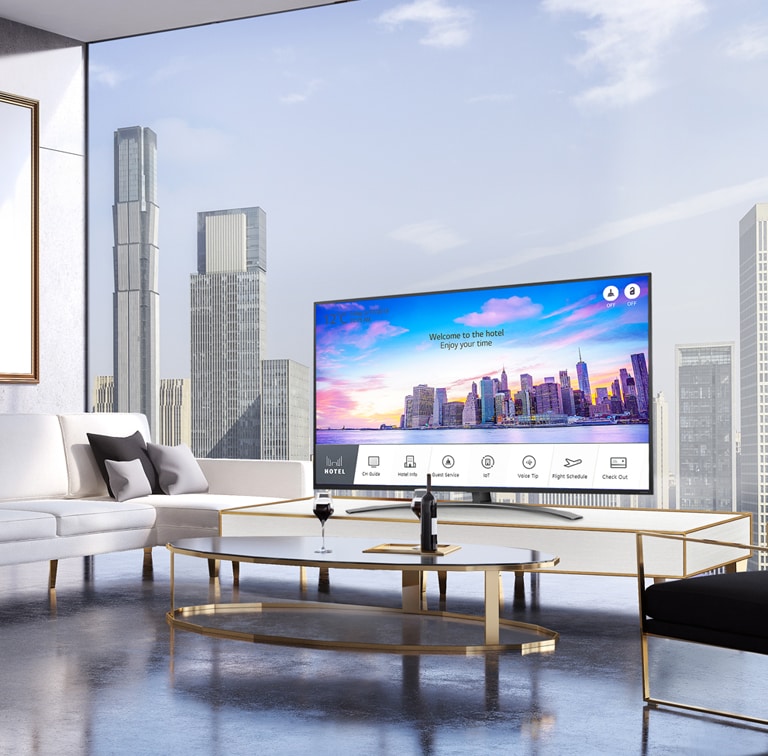

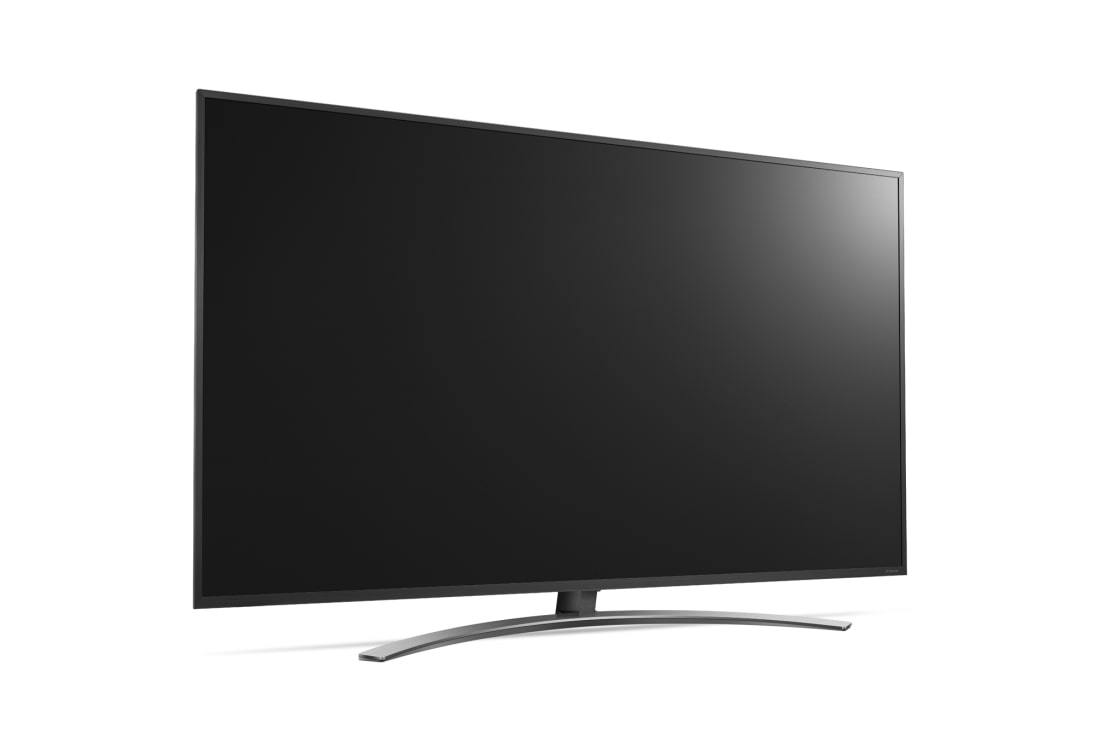

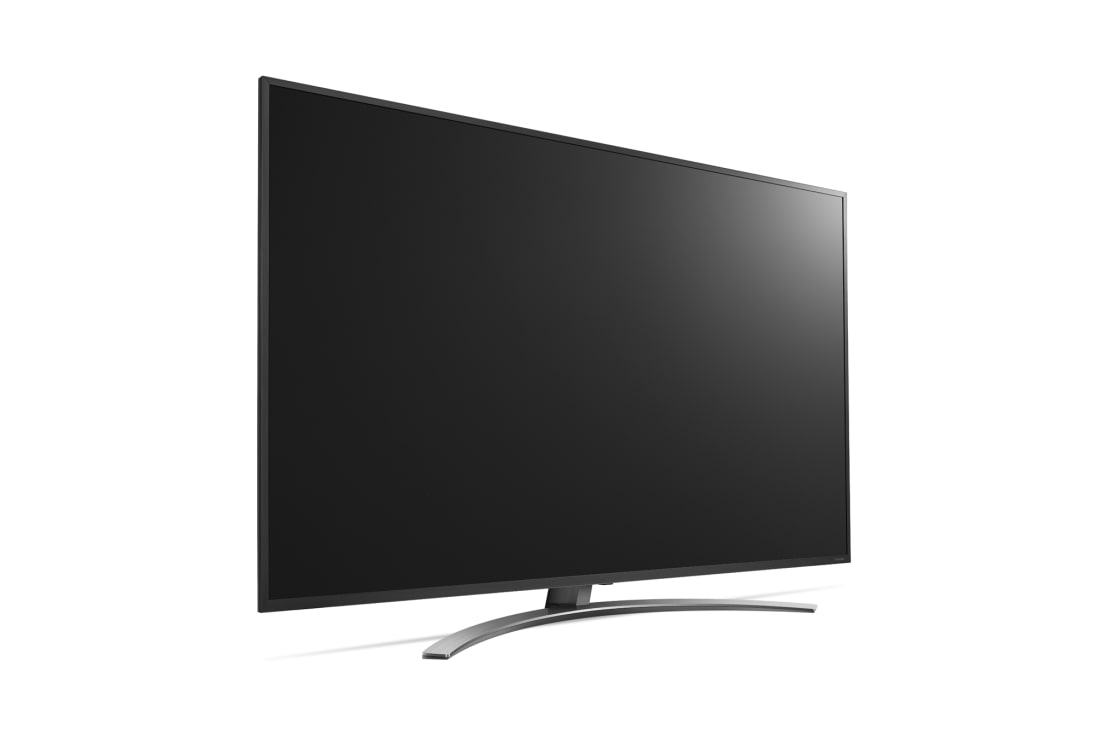

75'' UHD Pro:Centric NanoCell Hotel TV

Key Features

Choose your Size

component-OBScountrySelectDesc

75" UHD Pro:Centric NanoCell Hotel TV
Display
  • Inch
    75
    Type

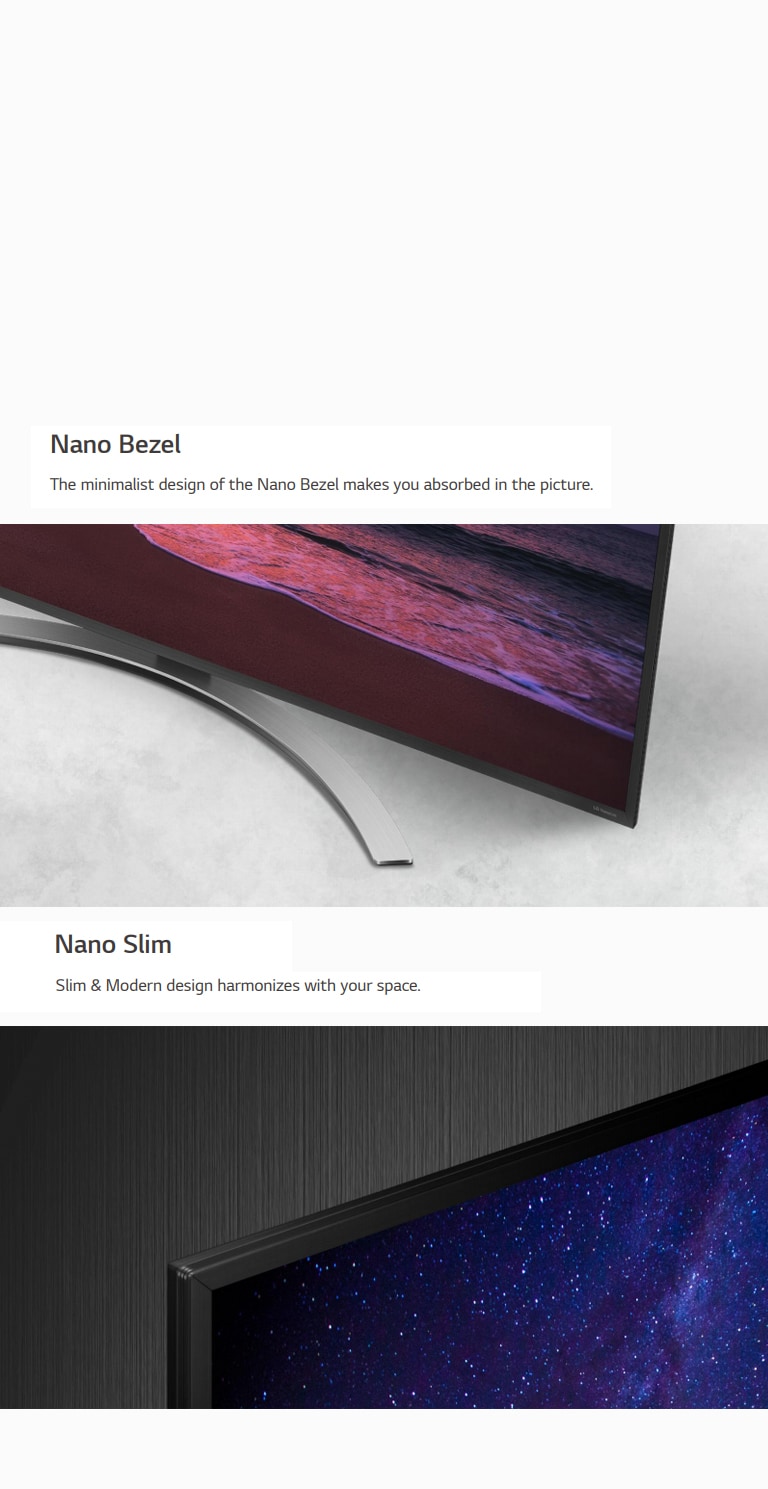

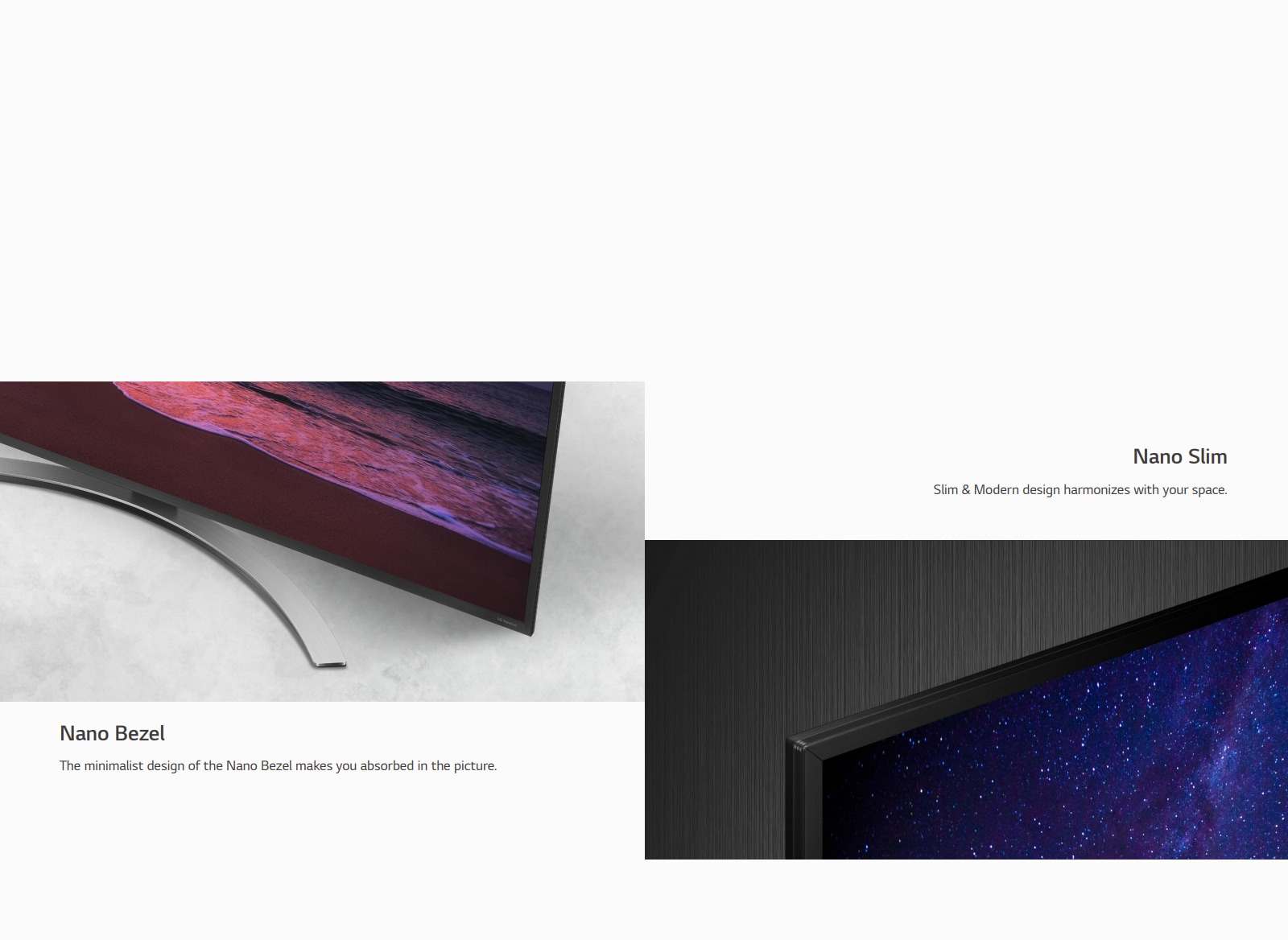

    Nanocell (Nano Bezel)
  • Resolution
    3,840 x 2,160 (UHD)
    Backlight Unit Type
    Edge
  • Brightness (nit)
    400
Broadcasting System
  • TV Reception
    ATSC / Clear QAM/VSB, Analog NTSC
Video
  • HDR (Dolby Vision / 10 Pro / HLG)
    Yes / Yes / Yes
Audio
  • Audio Output
    20W + 20W
    Speaker System
    2.0 ch
  • DOLBY ATMOS
    Yes
    One Touch Sound Tuning
    Ready
  • LG Sound Sync
    Bluetooth required
Hospitality Solution
  • Solution Type

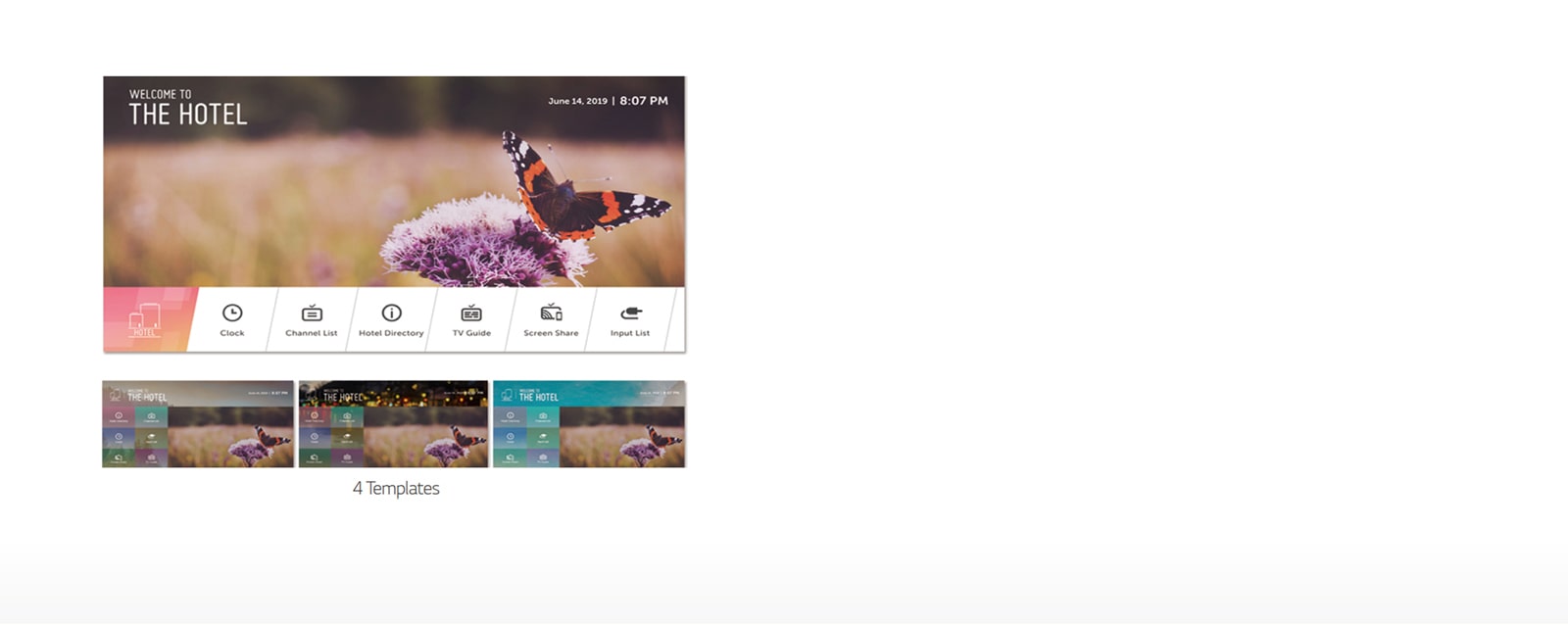

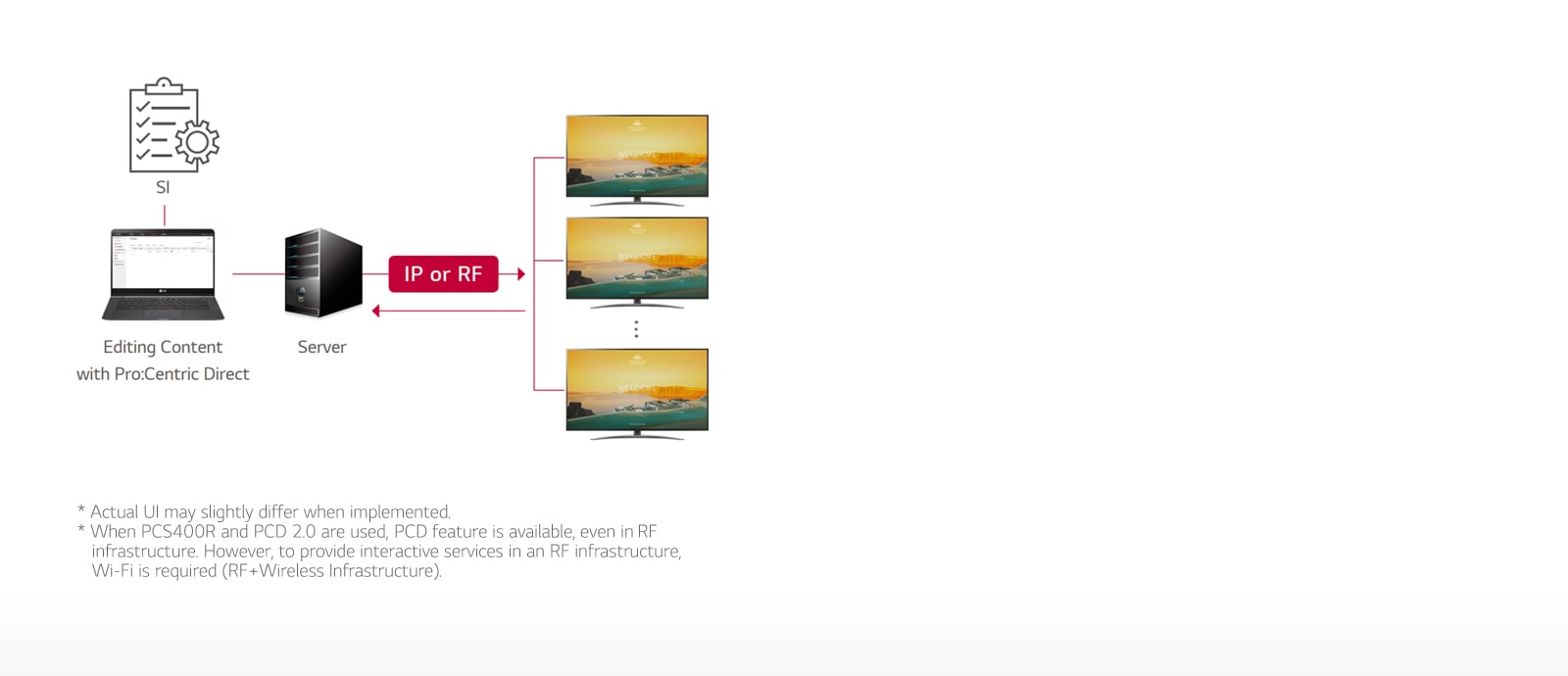

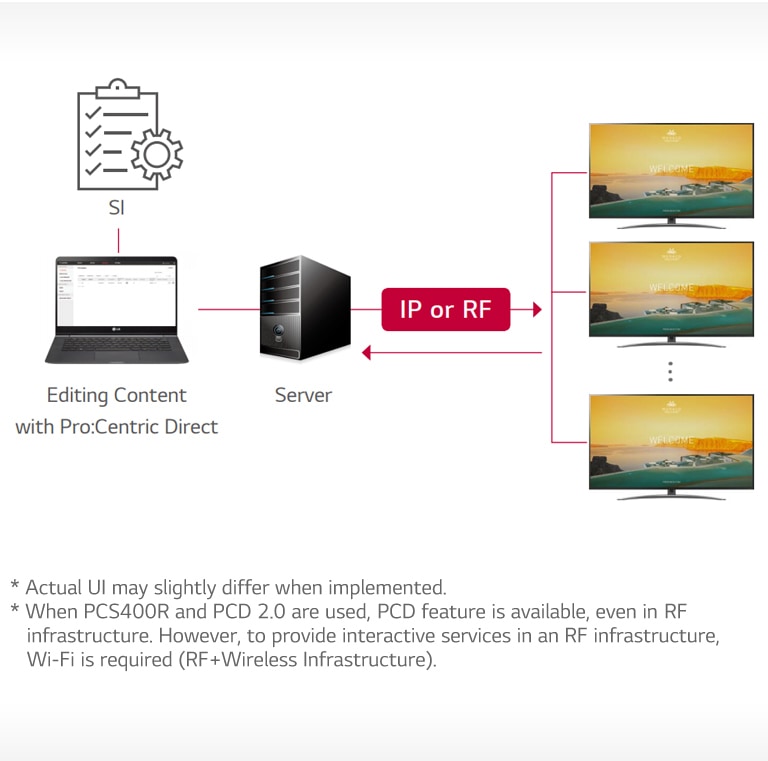

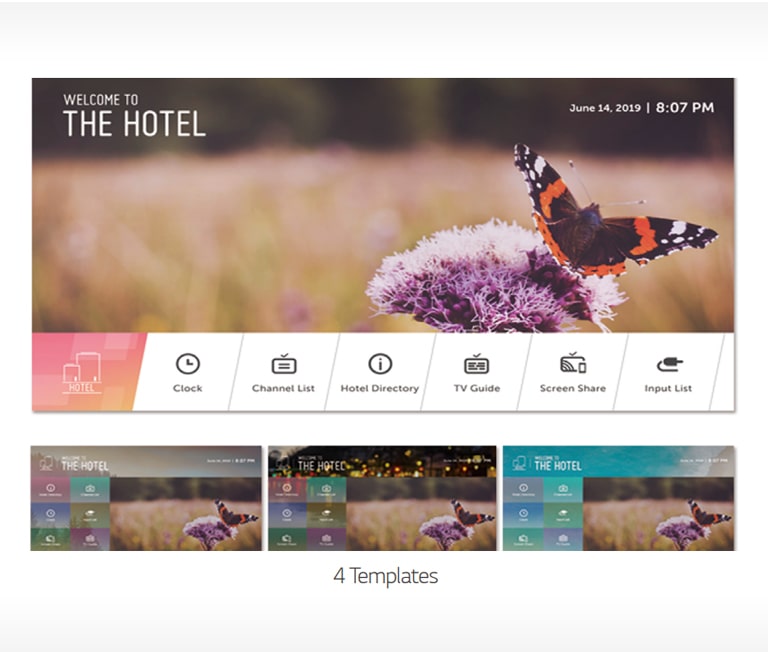

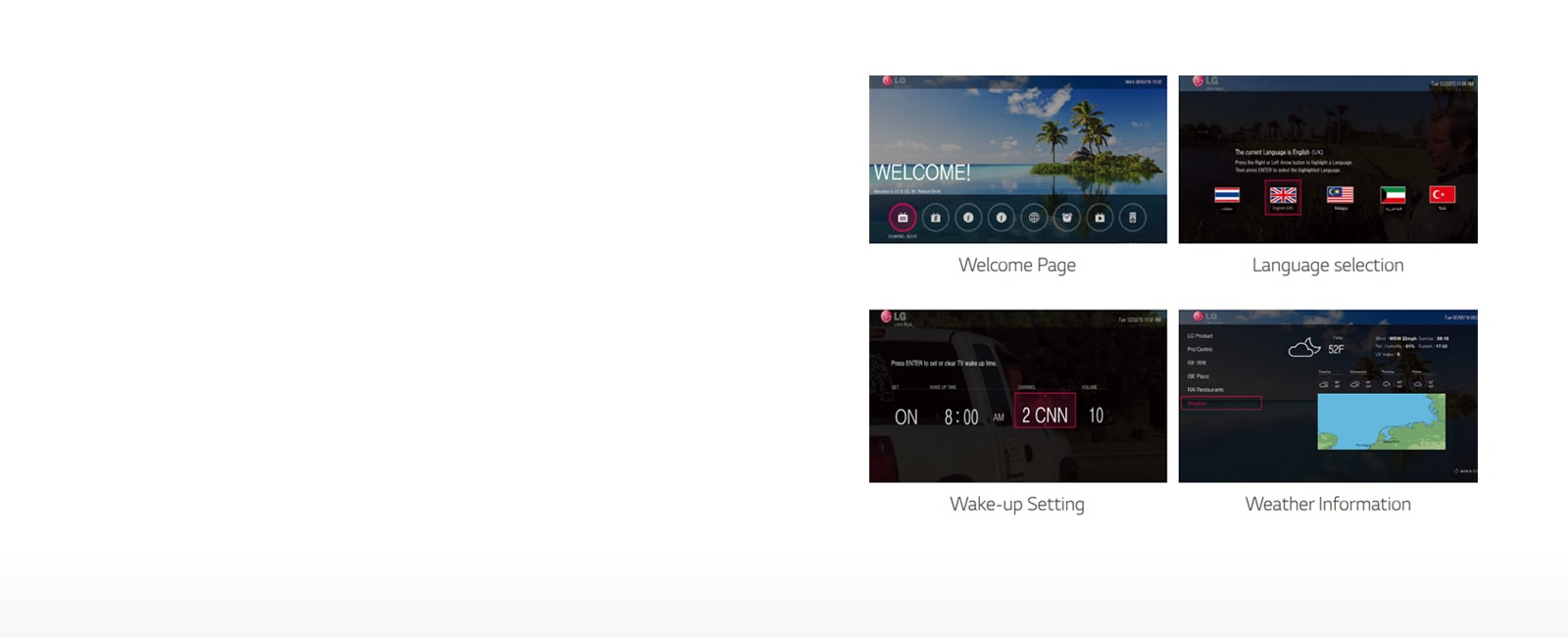

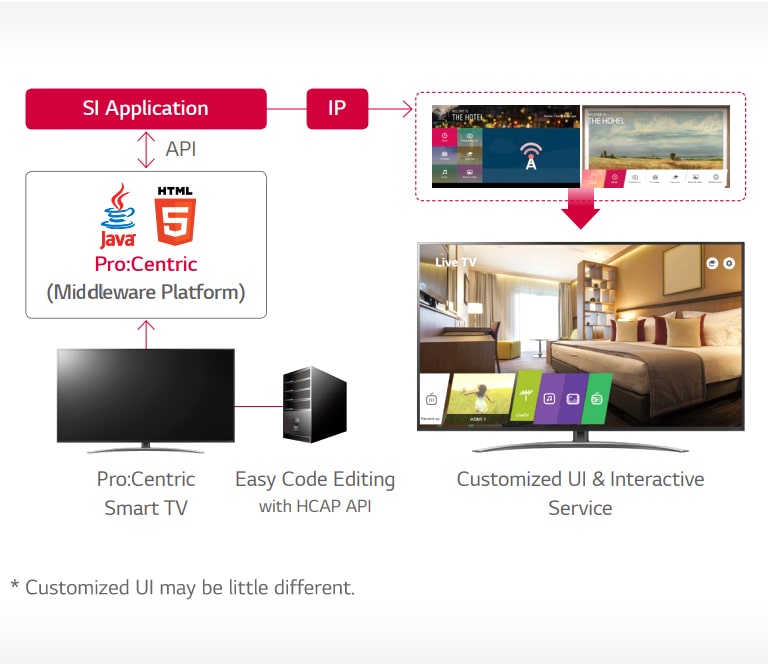

    Pro:Centric (Smart, V, Direct), Quick Menu 3.0
    Data Streaming (IP & RF)
    Yes
  • HCAP (GEM/FLASH/HTML)
    ※ Service Carousel (TLL/XML)
    GEM / HTML5
    IP Return path
    Yes
  • Multicast / Unicast ready
    Yes / Yes
    webRTC (Real Time Communication)
    Yes

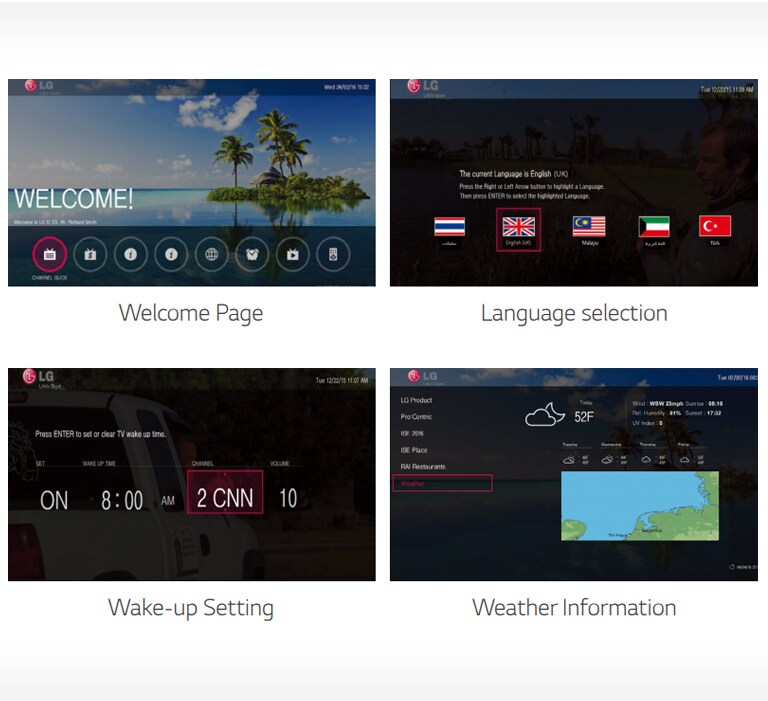

  • Pro:Centric Application (version)
    PCA3.8
    Pro:Centric Server
    PCS400R
  • DRM
    Pro:Idiom (S/W Type), Pro:Idiom Media
FEATURES
  • Hospitality

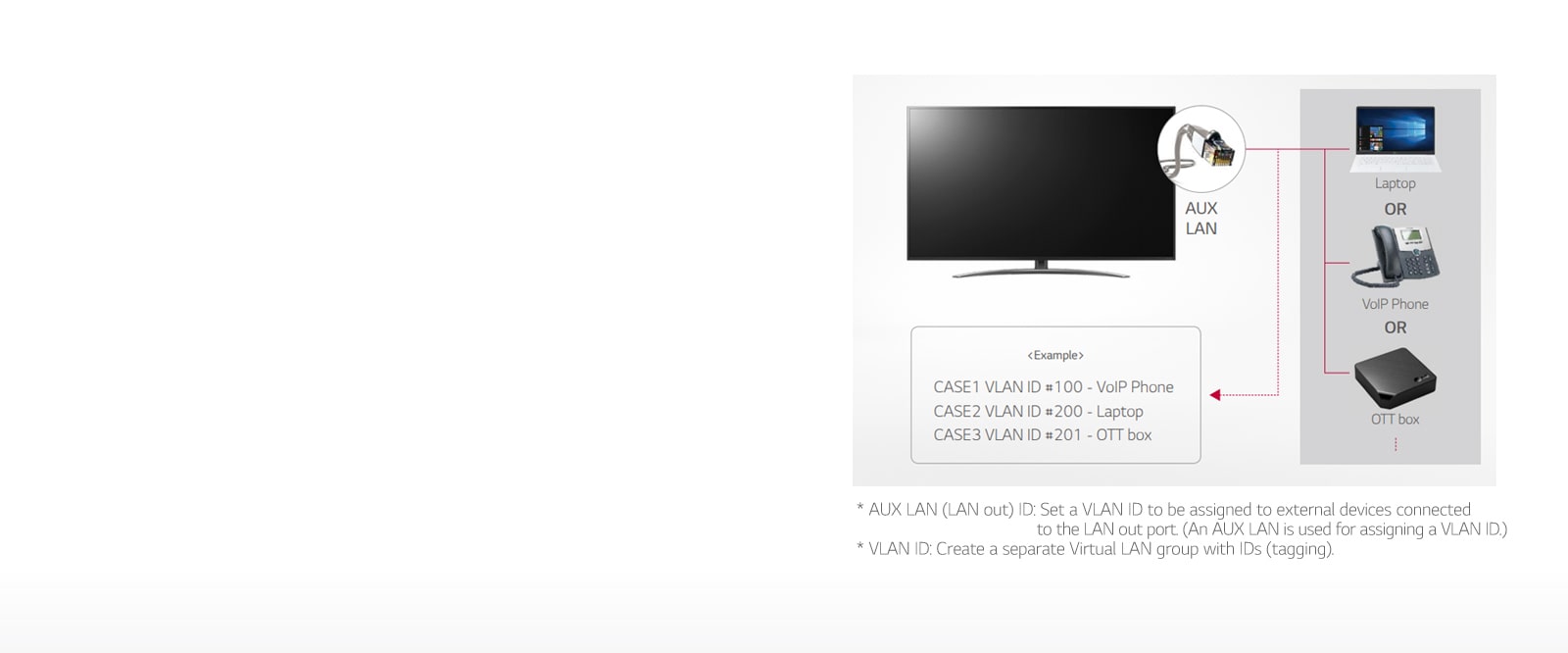

    Hotel Mode(Installer Menu), Welcome Screen(Splash Image), Insert Image, One Channel Map(LCM), External Speaker Out (Int / Ext Variable / Fixed), Instant ON, V-Lan Tag, RJP (Remote Jack Pack) Compatibility, Auto Off / Sleep Timer, Motion Eye Care
Jack Interface
  • Set Side
    HDMI In 2.0(2), USB 2.0
    Set Rear
    RS-232C (Control & Service, Phone Jack Type), RJ45 (Usage Purpose : 1 (Ethernet)), RF In(Dual b-Lan), Digital Audio Out (Optical), External Speaker Out (3.5mm Phone Jack) : 1 (Spk-out fixed 0.01W~1.00W and line out), TV link Configuration(phone jack type) : 1 (b-LAN Service), MPI Port(RJ12 jack), Debug (Phone Jack Type) : 1(CPU/PTC)
Dimension(Unit: mm/kg)
  • Vesa
    600 x 400
    W x H x D / Weight (with stand)
    1,683 x 1,043 x 369.8 / 41.6
  • W x H x D / Weight (without stand)
    1,683 x 974 x 35.1(65.2) / 38.8
    W x H x D / Weight (Shipping)
    1,839 x 1,166 x 231 / 52.2
Power(Unit : Watts)
  • Voltage, Hz
    AC 120 V ~ 50 / 60 Hz
    Typical
    183.3W
  • Stand-by
    Under 0.5W
General
  • Region
    North America
  • Dimension
    • [Dimension] 75UT770H (NA).dwg
    • [Dimension] 75UT770H (NA).pdf
  • Datasheet
    • UT770H(NA)_Datasheet_Hotel TV_Commercial TV_ID_190920_low.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
