75US760H(EU ONLY) component-copyModelName
US760H Series

Key Features

Choose your Size

component-OBScountrySelectDesc

US760H Series
Design
  • Stand Type
    2 pole
    Front color
    Ceramic BK (Cinema Screen)
Display
  • Inch
    75"
    Resolution
    3840 X 2160 (UHD)
  • Nano
    Yes
    Brightness
    400nit
  • HDR_Dolby Vision
    No
    HDR_HDR 10 Pro
    Yes
  • HDR_HLG
    Yes
Audio
  • Speaker (sound output)
    20W + 20W
    Speaker System
    2.2 ch
  • DOLBY ATMOS
    No
    LG Sound Sync
    Yes (Required Bluetooth)
Broadcasting System
  • Digital (Terrestrial,Cable,Satellite)
    DVB-T2/C/S2
    Analog (NTSC / SECAM / PAL)
    PAL
Hospitality Solution
  • Pro:Centric Smart
    Yes (Smart)

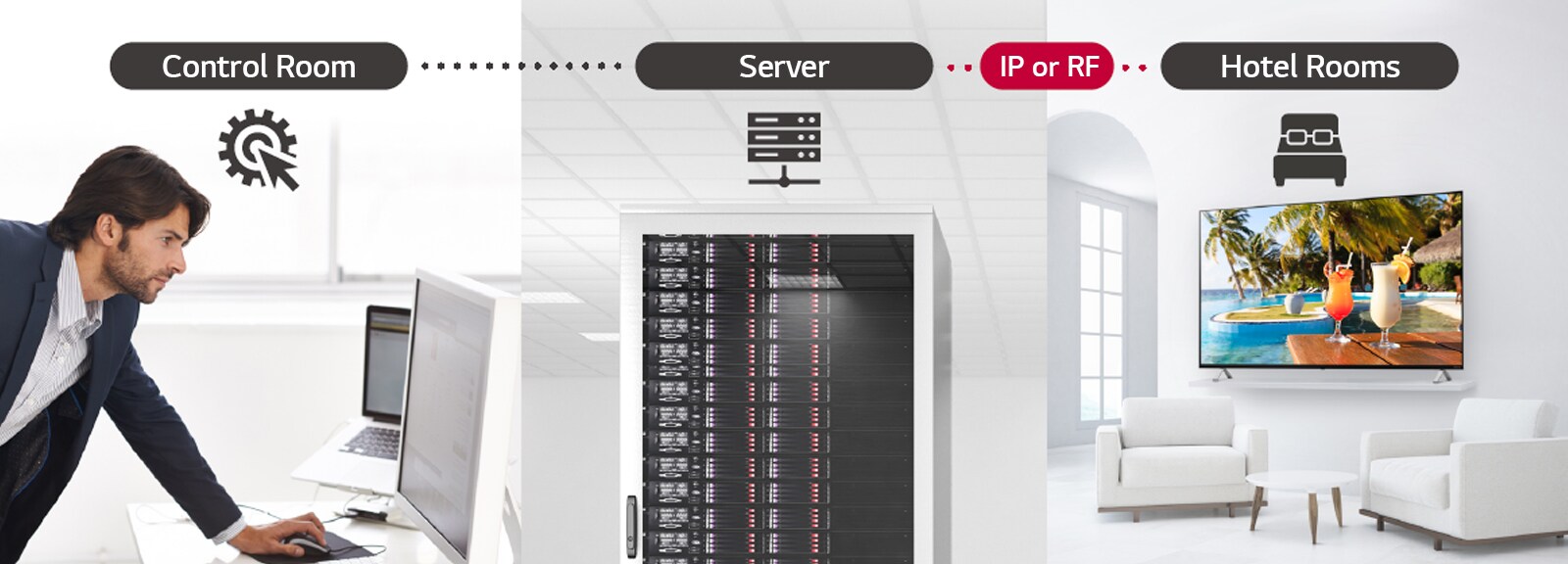

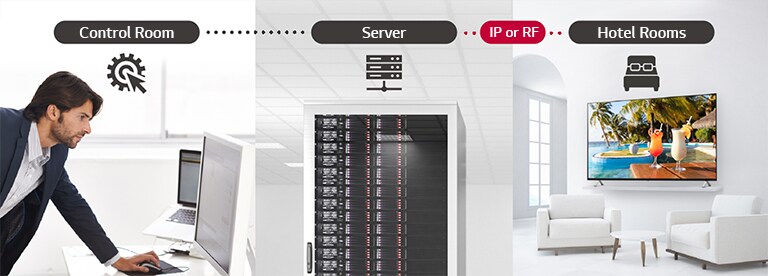

    Pro:Centric Direct (version)
    Yes (4.0)
  • Pro:Centric Application (version)
    Yes (PCA3.8)
    Quick Menu (Version)
    Yes (4.0)
  • Pro:Idiom (H/W Type)
    No
    Pro:Idiom (S/W Type)
    Yes
  • Pro:Idiom(Media)
    Yes
Smart Function

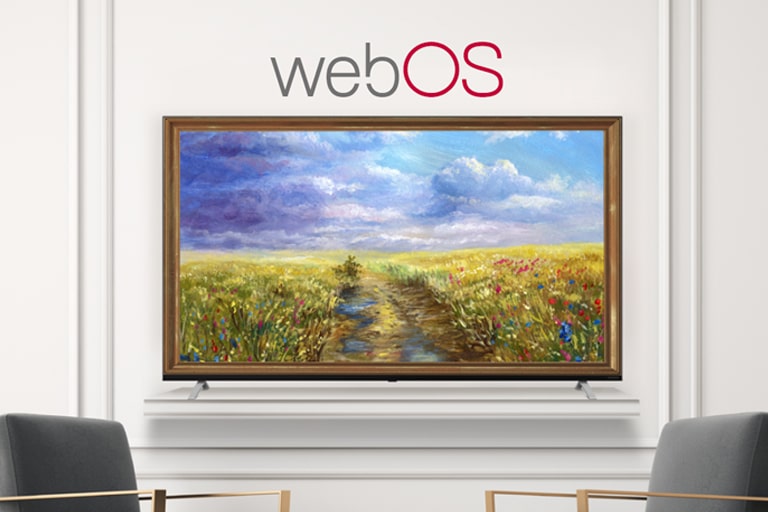

  • webOS version
    Yes (webOS 5.0)
    Gallery Mode
    Yes
  • Web Browser
    Yes
    CP App
    Yes
  • Magic Remote Compatibility
    Yes (Ready, MR18HA)
    Mood Display
    Yes

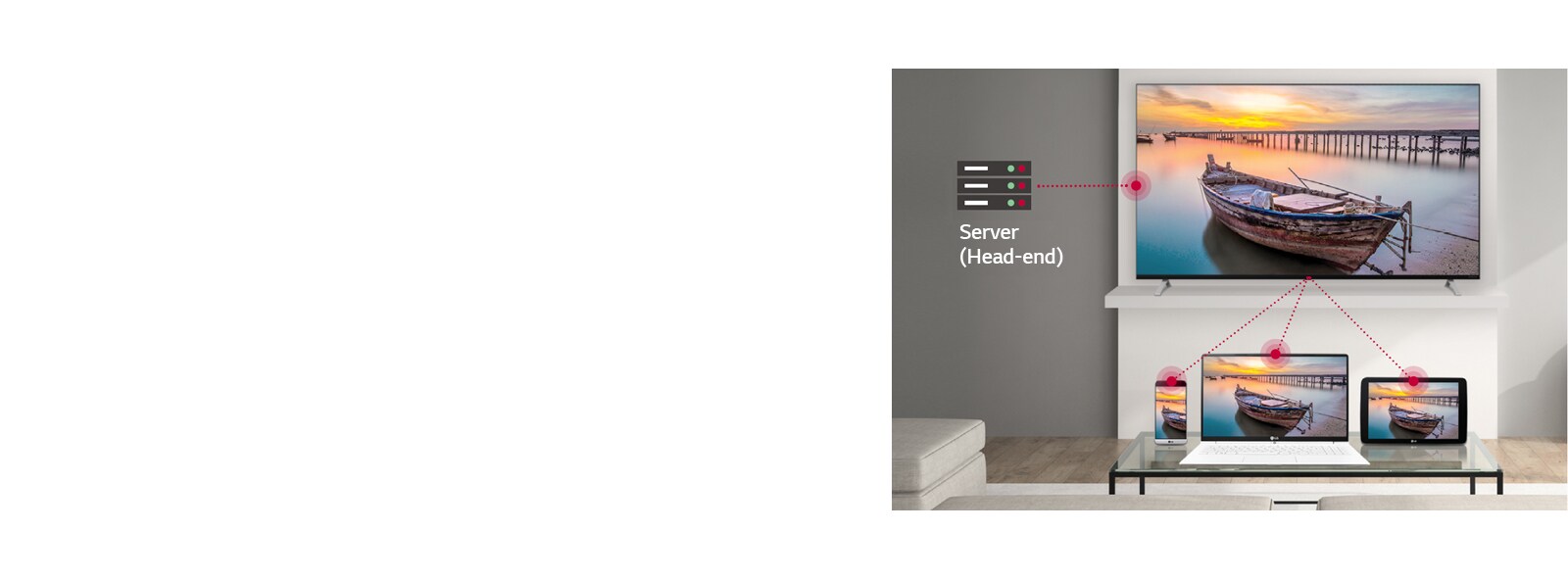

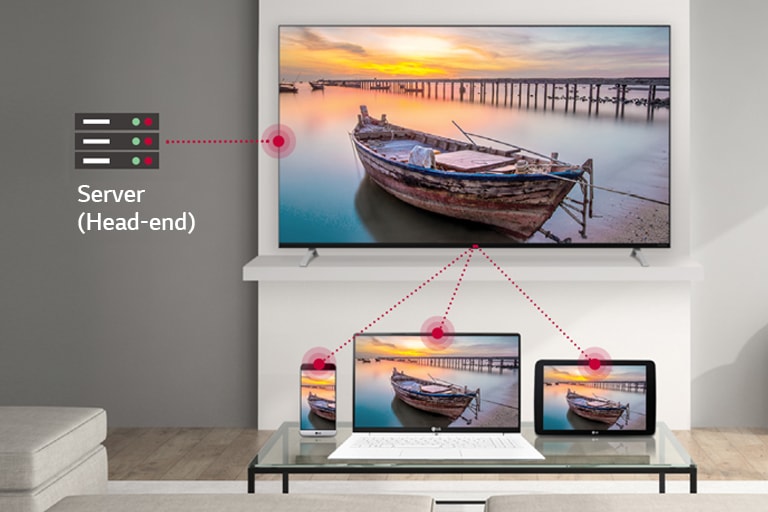

  • Soft AP
    Yes
    WiFi (version)
    Yes
  • Screen Share (Miracast)
    Yes
    Smart Share (DLNA)
    Yes
  • Bluetooth Audio Playback
    Yes
    LG Sound Sync/bluetooth
    Yes
  • Voice Recogion (Standalone/Solution)
    Yes
    IoT
    Yes
other Feature

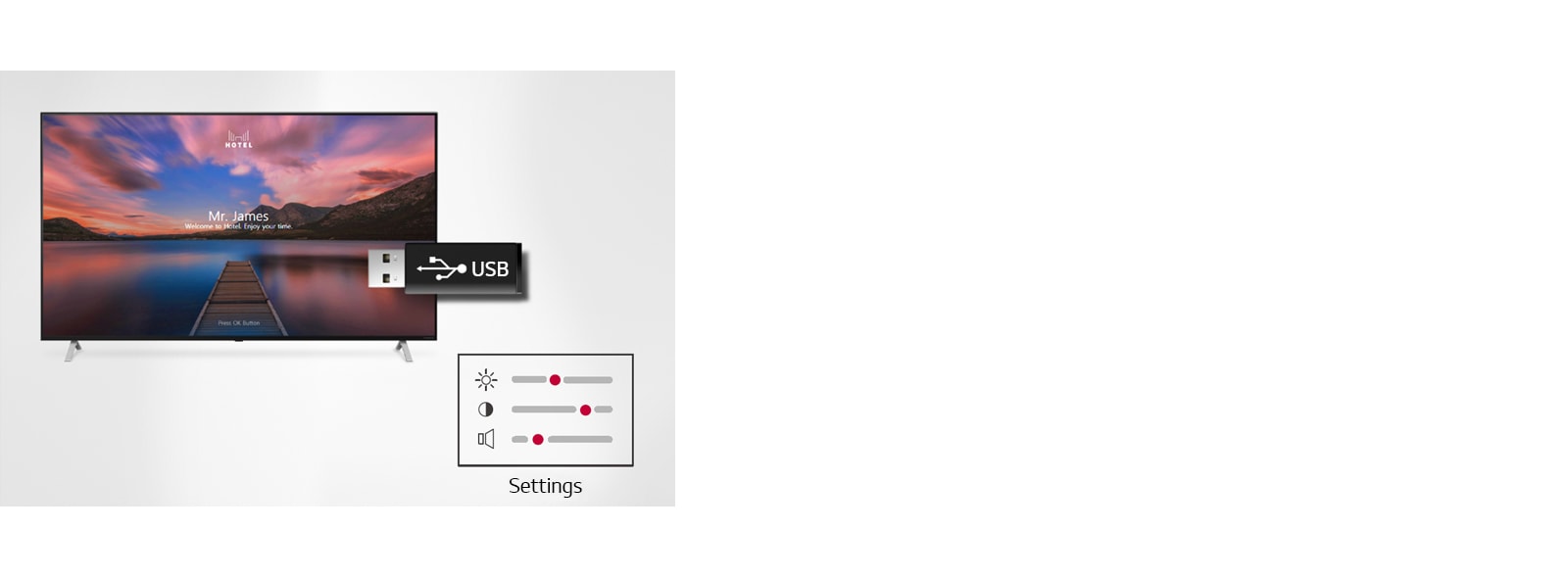

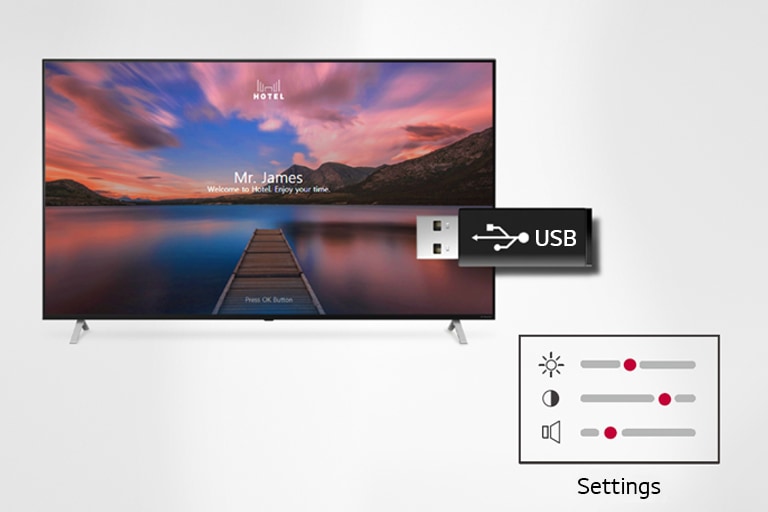

  • USB Cloning
    Yes
    SI Compatible
    Yes (TV Link tuner, RS232C)

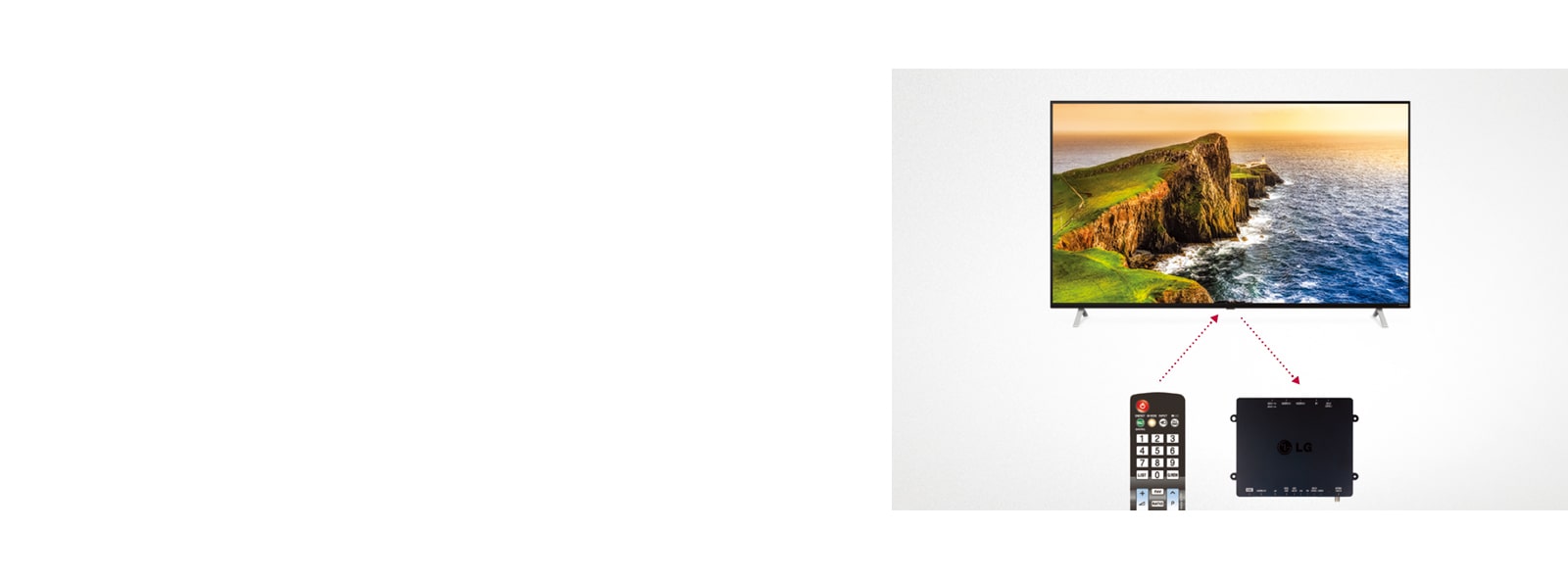

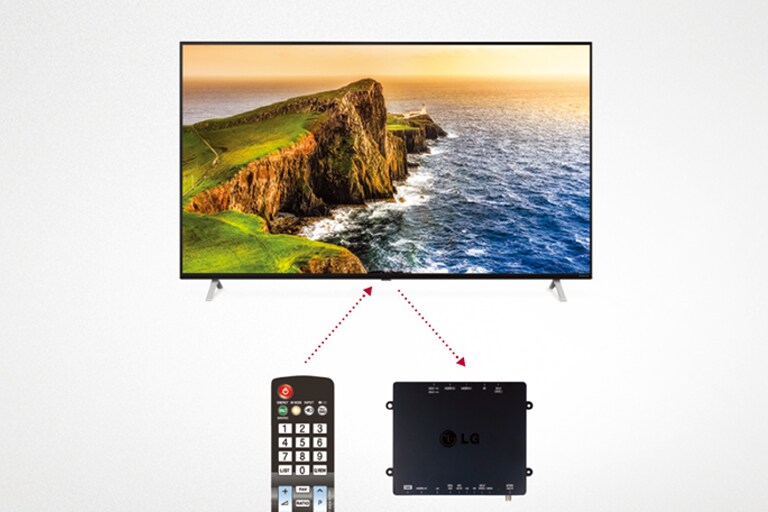

  • IR Out
    Yes(RS-232C, HDMI)

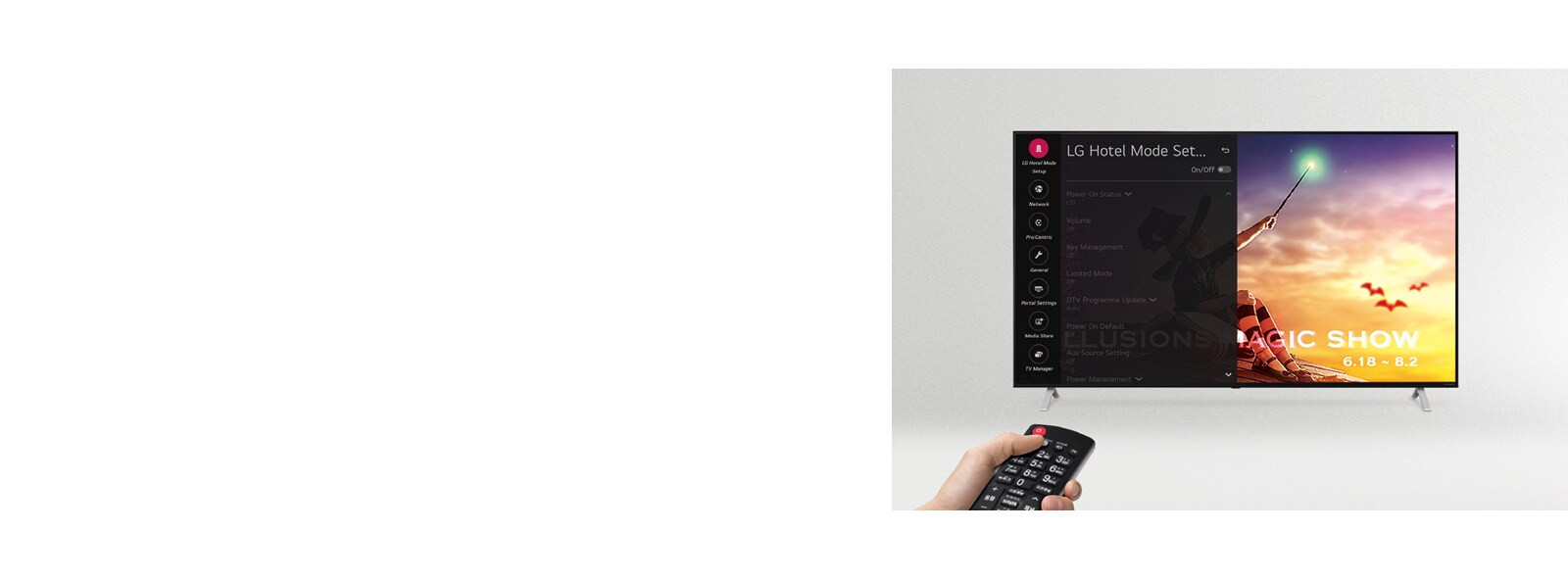

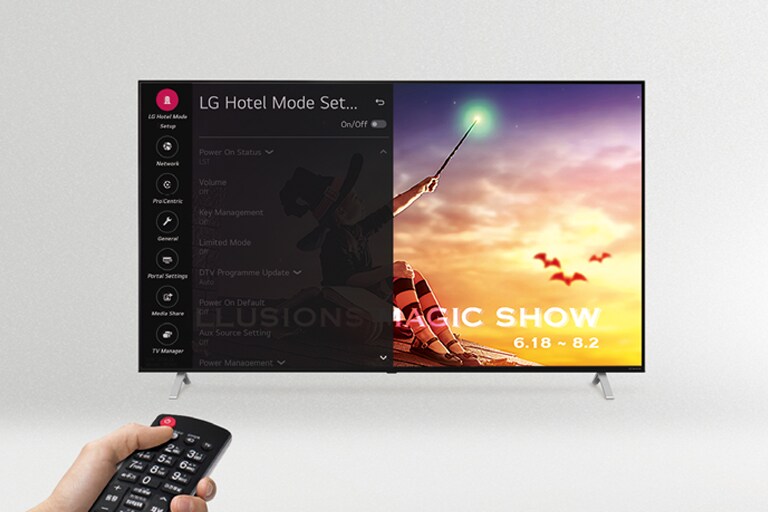

    Hotel Mode / PDM / Installer Menu
    Yes(Hotel Mode)
  • One Channel Map
    Yes
    IP Chanenel Manager
    Yes
  • External Speaker Out
    Yes(Int / Ext Variable/Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 2W with 8Ω)
    Instant ON
    Yes
  • V-Lan Tag
    Yes
    External Clock Compatibility
    Yes (LEC-005)
  • Full Touch Screen
    No
    b-LAN embedded
    No
  • Conformal Coating
    No
Vertical Function
  • Required Approval
    No
    Pillow Speaker
    No
  • Big Size Menu (Big Font UI)
    No
    Healthcare Headphone Mode
    Yes
  • Protection Cover (Glass)
    No
    Antimicrobial
    No
  • Video Tag
    Yes (2 Supported) (MR)
Jack Interface
  • Set Side
    Headphone Out 1, HDMI In 3 (2.0), USB 2 (2.0), CI Slot 1
    Set Rear
    RF In 2, Digital Audio Out (Optical) 1, RS-232C(D-Sub 9pin / Phone jack) 1 (Phone Jack), Clock Interface (RJ12) 1, RJ45 (Usage Purpose) 2 (Ethernet, Aux), External Speaker Out(3.5mm phone jack) 2 (Spk-out 1, 4W (Stereo, R: 2.0W, L: 2.0W, 8Ω) Vol. Control 1)
etc
  • VESA Compatible
    Yes 600x400
    Kensington Lock
    Yes
  • Credenza/Security Screw Hole
    No
    Lock Down Plate (for easy installing )
    No
Mechanic
  • Weight without Stand
    37.7
    Weight with Stand
    38.4
  • Weight in Shipping
    48.1
    Size without Stand
    1674 x 64.6 x 966
  • Size with Stand
    1674 x 362 x 1031
Power
  • Power Supply (Voltage, Hz)
    AC 100~240V, 50/60Hz
    Power Consumption(Max)
    307W
  • Power Consumption(Typ)
    252W
    Standby Power Consumption
    0.5W Under
