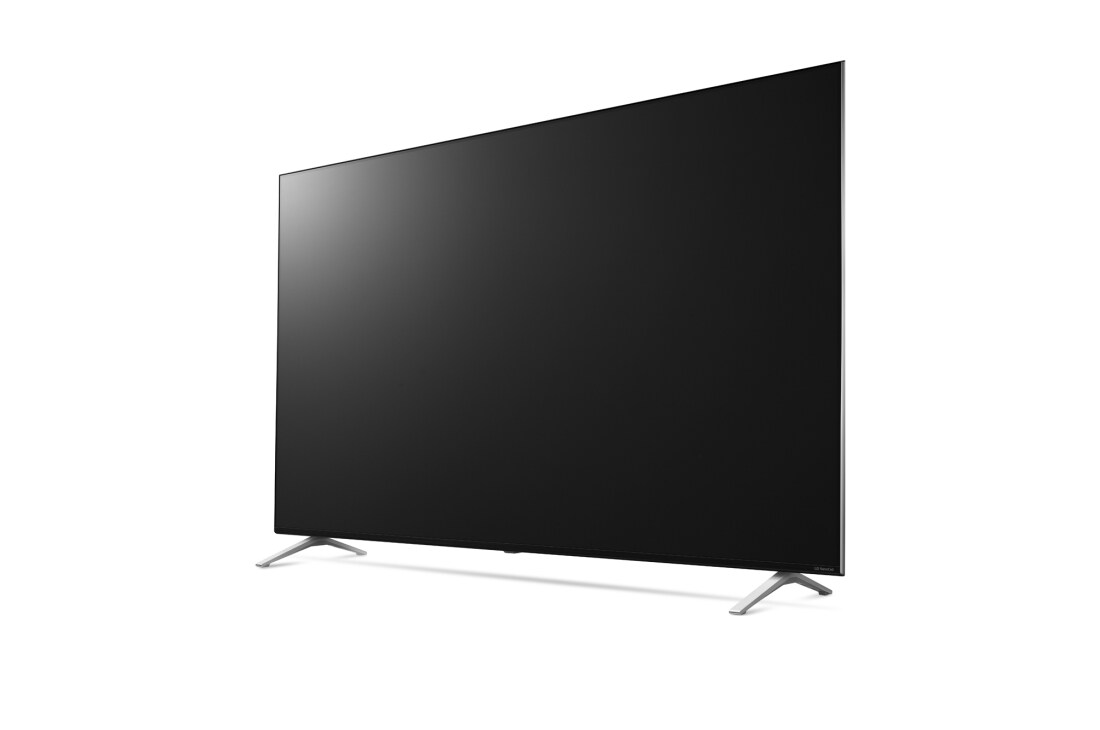

LG US770H Series, -45 degree side view, 75US770H(NA), thumbnail 4

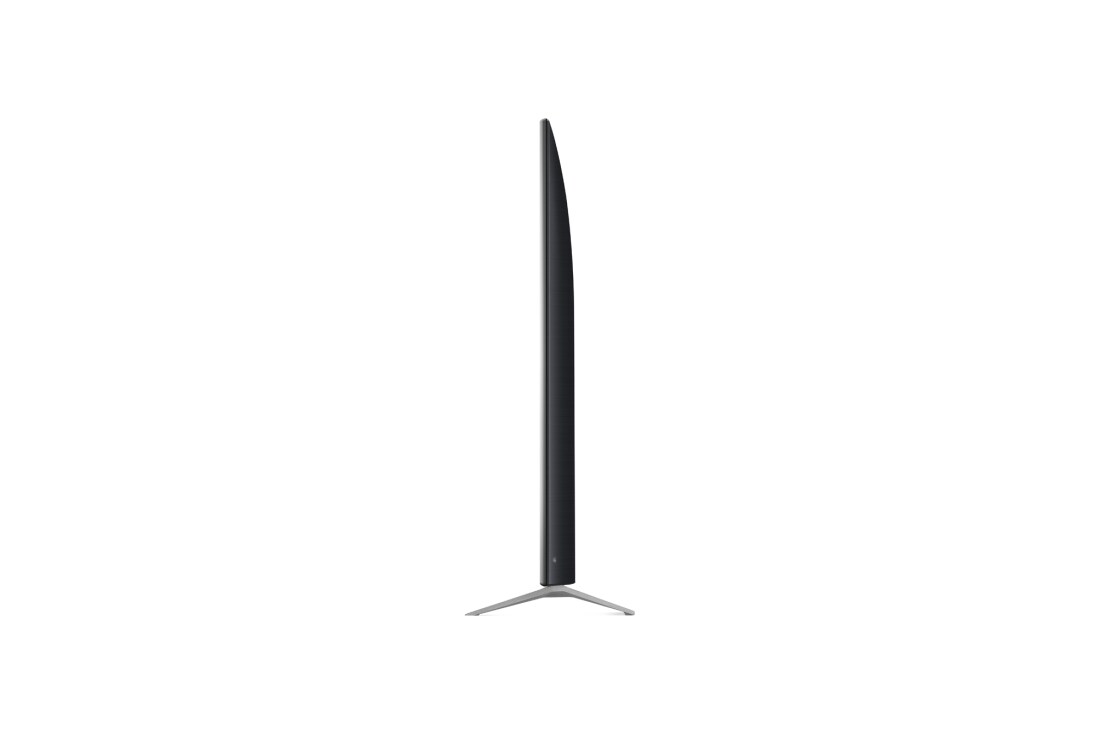

LG US770H Series, -90 degree side view, 75US770H(NA), thumbnail 5

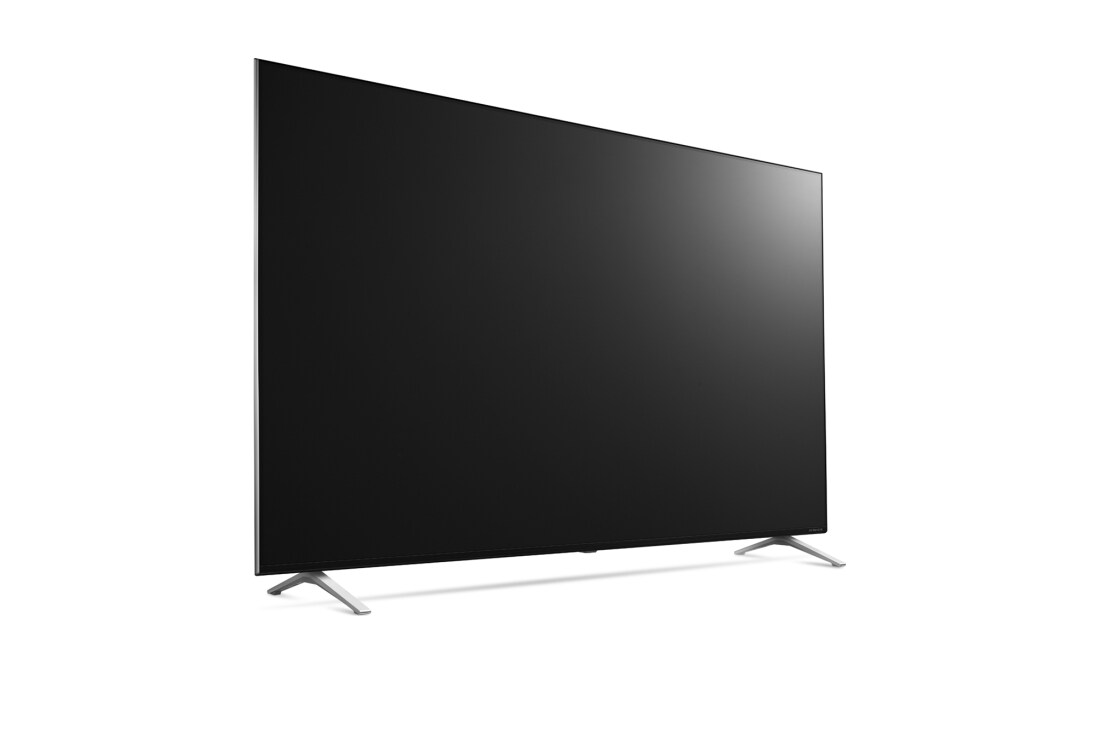

LG US770H Series, +45 degree side view, 75US770H(NA), thumbnail 6

LG US770H Series, +15 degree side view, 75US770H(NA), thumbnail 7

LG US770H Series, Close-up image of bottom, 75US770H(NA), thumbnail 8

LG US770H Series, Close-up image of top right corner, 75US770H(NA), thumbnail 9

LG US770H Series, Image taken from the top right, 75US770H(NA), thumbnail 10

LG US770H Series, top view, 75US770H(NA), thumbnail 11

Discontinued

75US770H(NA) component-copyModelName

US770H Series

Key Features

Pro:Centric Hotel Management Solution
NanoCell Display
Embedded b-LAN

SEE ALL SPECS

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Pro:Centric Hotel Management Solution
NanoCell Display
Embedded b-LAN

SEE ALL SPECS

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

US770H Series

4K UHD Hospitality TV with NanoCell Display, Pro:Centric Solutions and Embedded b-LAN

US770H with NanoCell Display features UHD resolution that creates vivid details and a virtually flawless picture. And It features Pro:Centric technologies for easy management, configuration, and updates on guest room TVs via a centralized management system. It also supports Smart Share, Screen Share, Pro:Idiom® and embedded b-LAN™.

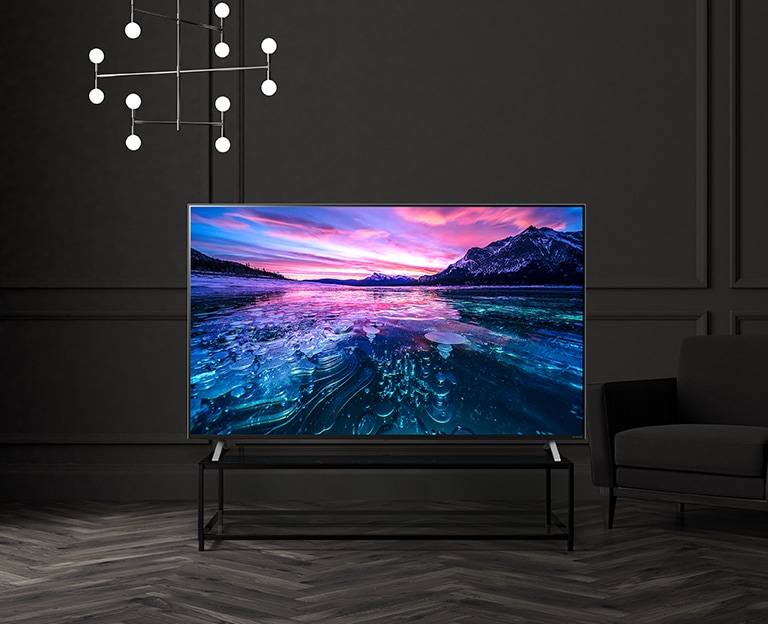

A TV on the hotel table shows a vivid and bright screen.

* 75 inch
* All images are for illustrative purposes only.

Real 4K Made by Pure Colors

NanoCell TV delivers a broad spectrum of colors and lifelike accuracy with advanced NanoCell technology, making LG Hotel TV virtually flawless. Discover brilliant and clear visual experience with the Real 4K that NanoCell TV delivers.

The comparison between NanoCell TV and LG Conventional TV, screening dews on a leaf.

* 75 inch

Nano Bezel Adds Sophisticated Ambiance

With its minimal Nano Bezel, NanoCell is designed to blend into any interior and delivers an immersive and delicate viewing experience.

A TV's bezel is so thin that it reduces the difference between the screen and the real thing, so the zebras on the screen look lively.

* 75 inch

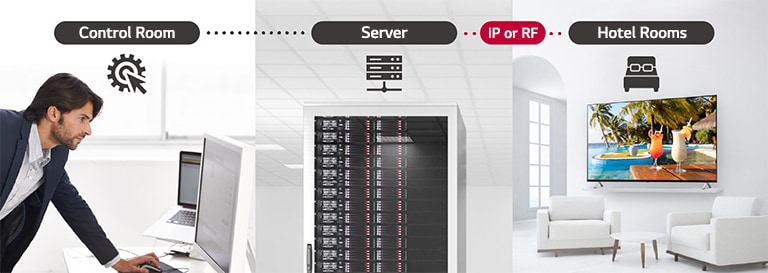

Pro:Centric Direct

The hotel content management solution Pro:Centric Direct offers easy and simple editing tools, making it easy to perform service and IP network-based remote management. The Pro:Centric Direct solution enables users to easily edit their interface by providing a customized interface and efficiently manages TVs in the rooms. The current PCD version provides IoT-based in-room control as well as a voice control function through LG Natural Language Processing (NLP). These IoT and voice-related functions will be your starting point to prepare for the hotel rooms of the next generation through artificial intelligence.

* Some devices may have limited compatibility with the IoT and Voice Control function.

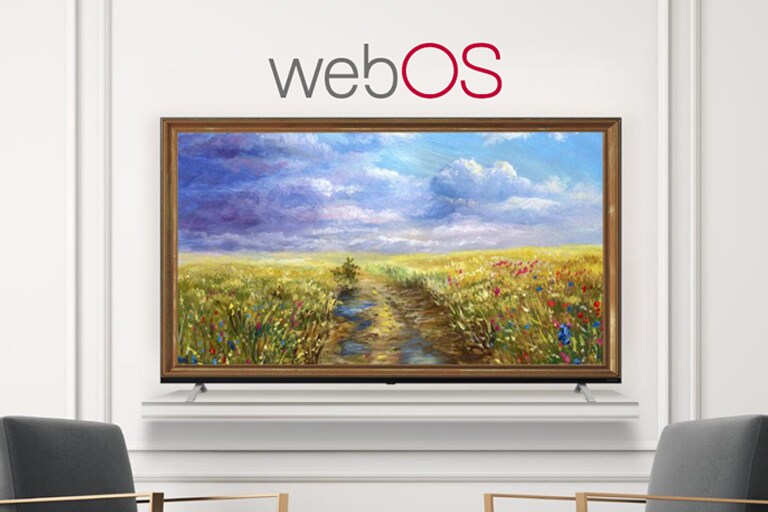

A TV is screening an art piece with Gallery Mode based on webOS 5.0.

More Innovative LG webOS 5.0

Explore the latest LG Smart TV features. Newly added Mood Display & Gallery modes enable you to utilize the TV as a customized clock and a piece of artwork which harmonizes with your space and life.

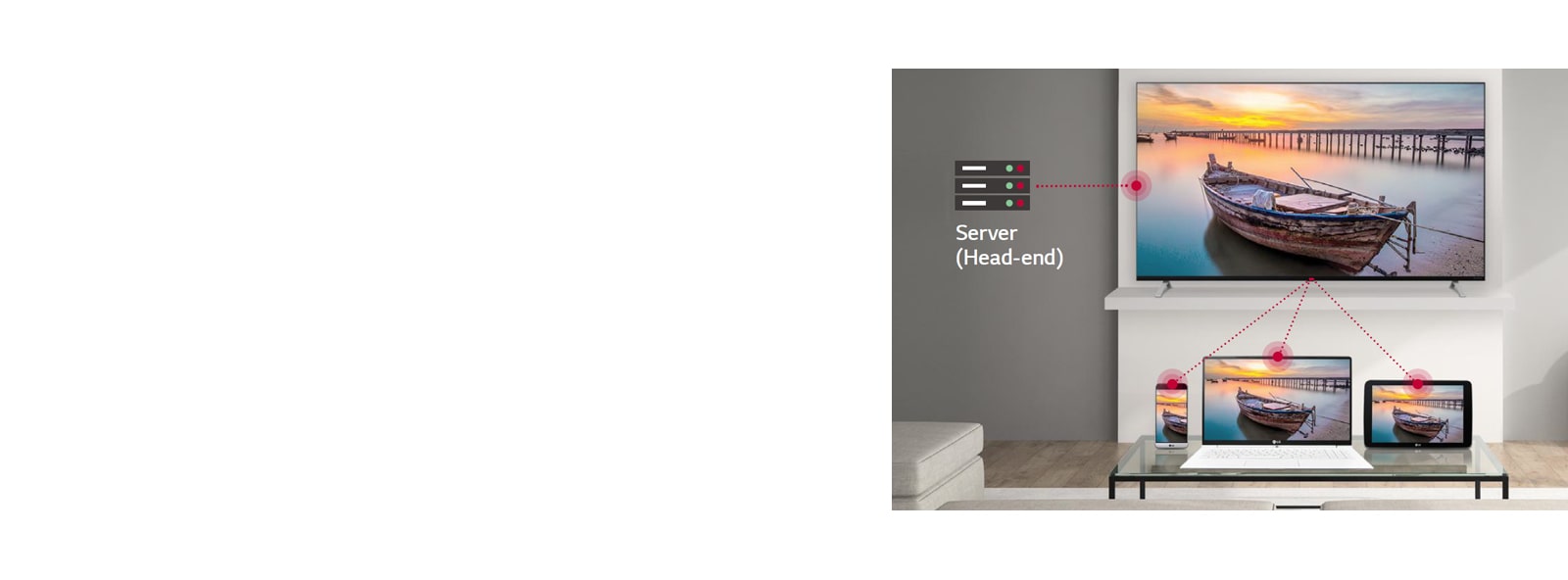

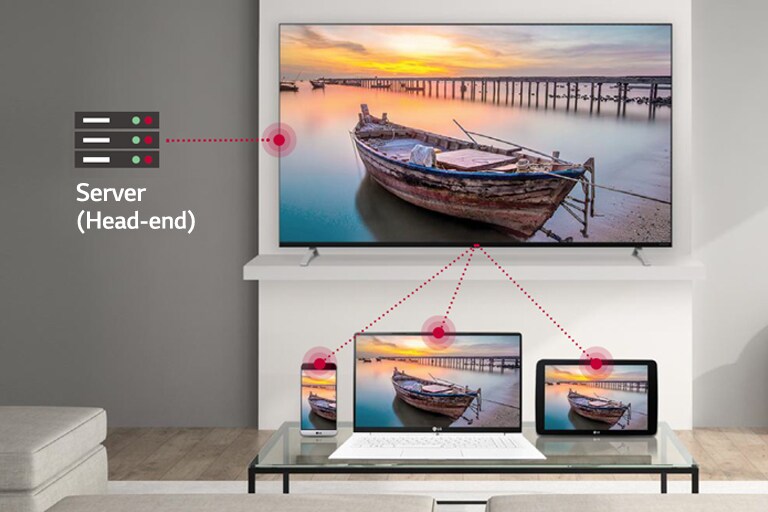

Soft AP

Software-enabled Access Point (Soft AP) is a "virtual" Wi-Fi feature that uses the TV as a wireless hotspot, enabling guests to connect their own devices to the Soft AP. It supports Bridge Mode, allowing administrators to manage in-room Soft AP information such as signal level, Soft AP passwords, etc.

* Soft AP should be setup in the installation menu after the TV is turned on.
* Smart Mirroring may not be operated at the same time.

The LG Commercial TV is screening greeting messages with images.

Welcome Screen

With the capability to display several images, LG Commercial TV allows for a greater variation in greeting messages in hotel rooms which make customers feel more welcomed and cared for.

A person is controlling the TV settings with Public Display Mode.

Public Display Mode (Hotel Mode)

From channel selection to volume level, you can control the TV settings in business areas. It also enables you to restore default settings, as required, on the TVs.

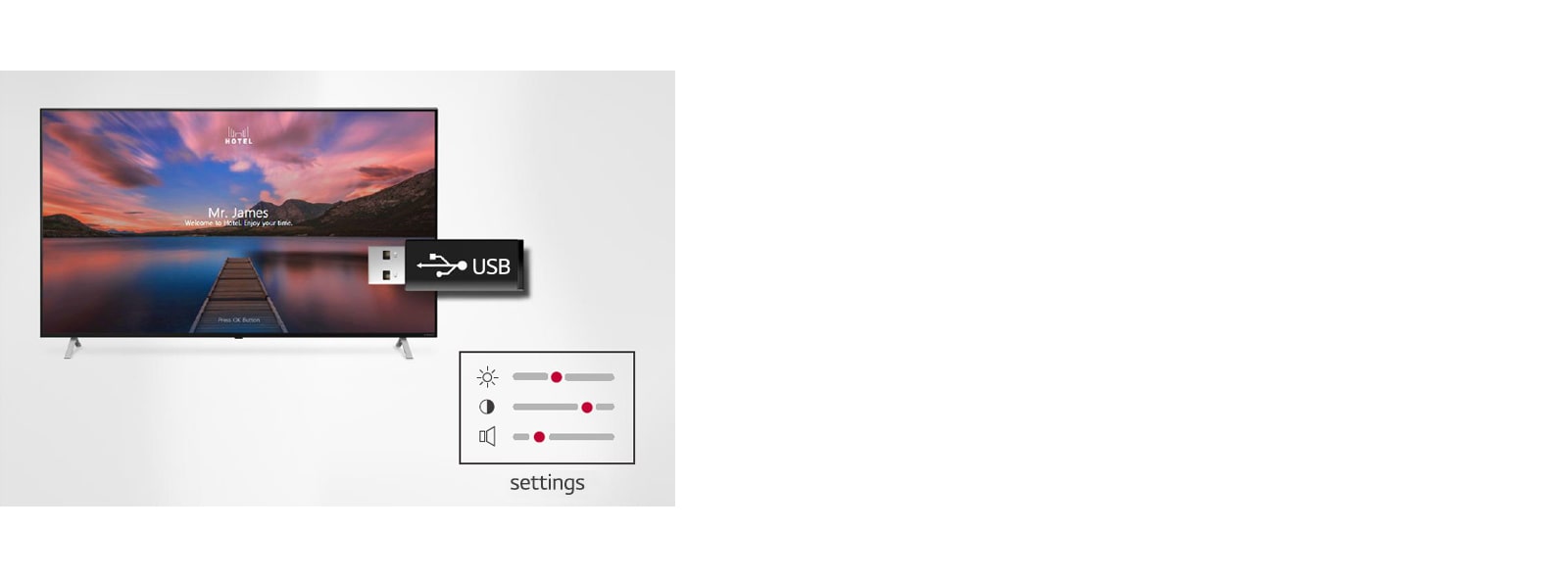

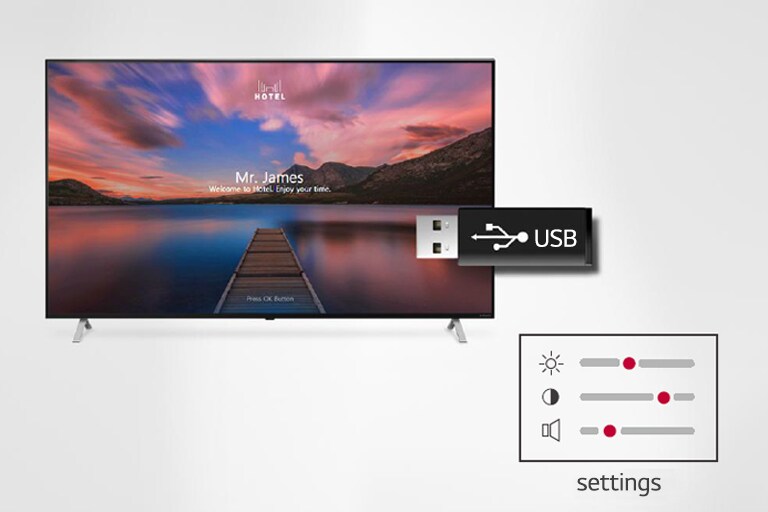

A USB which cloned another TV's setting is helping to make setting up a TV.

USB Cloning

USB data cloning makes setting up multiple displays more efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display and can be sent to the other displays via USB plug-in.

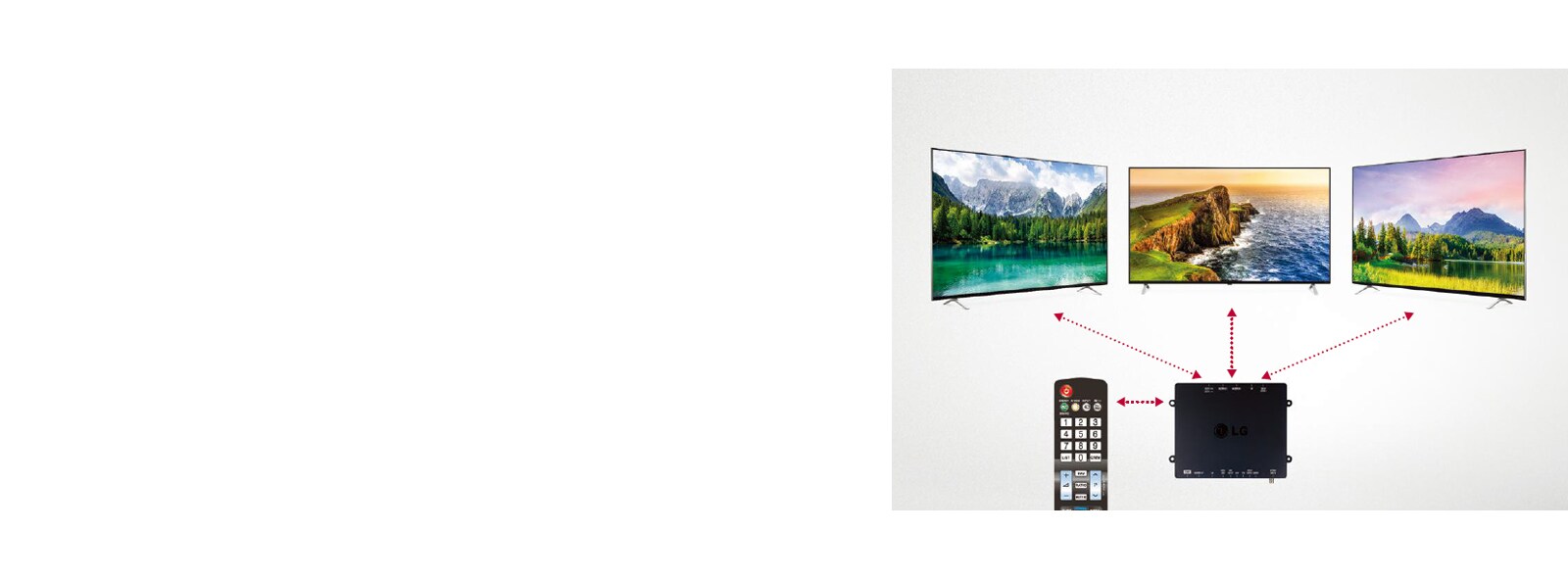

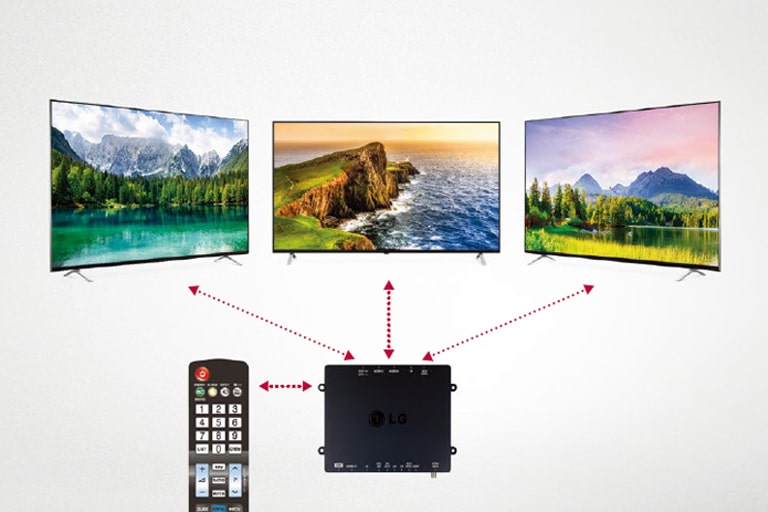

A set-top box with a remote control is controlling several LG Commercial TVs.

IR Out

Using the interactive set-top box, LG Commercial TVs can be controlled with a single remote control.

* This feature may have a restriction depending on the TV models.

Design

Stand Type

2 pole

Front color

Ceramic BK (Cinema Screen)

Display

Inch

75"

Resolution

3840 X 2160 (UHD)
Nano

Yes

Brightness

400

Video

HDR_Dolby Vision

No

HDR_HDR 10 Pro

Yes
HDR_HLG

Yes

Audio

Speaker (sound output)

20W + 20W

Speaker System

2.2 ch
DOLBY ATMOS

No

LG Sound Sync

Yes (Required Bluetooth)

Broadcasting System

Digital (Terrestrial,Cable,Satellite)

ATSC (Clear QAM)

Analog (NTSC / SECAM / PAL)

NTSC

Hospitality Solution

Pro:Centric Smart

Yes (Smart)

Pro:Centric Direct (version)

Yes (4.0)
Pro:Centric Application (version)

Yes (PCA3.8)

Quick Menu (Version)

Yes (4.0)
Pro:Idiom (H/W Type)

No

Pro:Idiom (S/W Type)

Yes
Pro:Idiom(Media)

Yes

Smart Function

webOS version

Yes (webOS 5.0)

Gallery Mode

Yes
Web Browser

Yes

CP App

Yes
Magic Remote Compatibility

Yes (Ready, MR18HA)

Mood Display

No
Soft AP

Yes

WiFi (version)

Yes
Screen Share (Miracast)

Yes

Smart Share

Yes
Bluetooth Audio Playback

Yes

LG Sound Sync/bluetooth

Yes
Voice Recogion (Standalone/Solution)

Yes

IoT

Yes

other Feature

USB Cloning

Yes

SI Compatible

Yes (MPI, RS232C)
IR Out

Yes (MPI,RS232C)

Hotel Mode / PDM / Installer Menu

Yes(Installer Menu)
One Channel Map

Yes (LCM)

IP Chanenel Manager

No
External Speaker Out

Yes(Int Variable /Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 1W with 8Ω)

Instant ON

Yes
V-Lan Tag

Yes

External Clock Compatibility

No
Full Touch Screen

No

b-LAN embedded

Yes
Conformal Coating

No

Vertical Function

Required Approval

No

Pillow Speaker

No
Big Size Menu (Big Font UI)

No

Healthcare Headphone Mode

No
Protection Cover (Glass)

No

Antimicrobial

No
Video Tag

No

Jack Interface

Set Side

RS-232C(D-Sub 9pin / Phone jack) 1(Phone Jack type)，External Speaker Out(3.5mm phone jack) 1 (Spk-out fixed 0.01W~1.00W and line out)，LG SVC only (Phone jack type) 1(CPU/PTC)，HDMI In 3 (2.0)，USB 2 (2.0)

Set Rear

RF In 1 (Dual b-Lan), Digital Audio Out (Optical) 1, RJ45 (Usage Purpose) 2 (Ethernet, Aux), TV link Configuration(phone jack type) 1 (b-LAN Service), MPI Port (RJ12 jack) 1

etc

VESA Compatible

Yes 600x400

Kensington Lock

Yes
Credenza/Security Screw Hole

No

Lock Down Plate (for easy installing )

No

Mechanic

Weight without Stand

37.7

Weight with Stand

38.4
Weight in Shipping

48.1

Size without Stand

1674 x 64.6 x 966
Size with Stand

1674 x 362 x 1031

Power

Power Supply (Voltage, Hz)

AC 120 V ~ 50 / 60 Hz

Power Consumption(Max)

TBD
Power Consumption(Typ)

TBD

Standby Power Consumption

Under 0.5W
