Fixed Speed Scroll Compressor

Our Fixed Speed Scroll Compressors range from 1.5 to 8 tons, offering a variety for commercial and residential use.
A frontview of LG Fixed Speed Scroll Compressor with a light gray background A frontview of LG Fixed Speed Scroll Compressor with a light gray background

What is Fixed Speed Scroll Compressor?

The Fixed Speed Scroll Compressor efficiently performs compression work by rotating the orbiting scroll at a constant speed, providing an reliable operation.
WATCH VIDEO

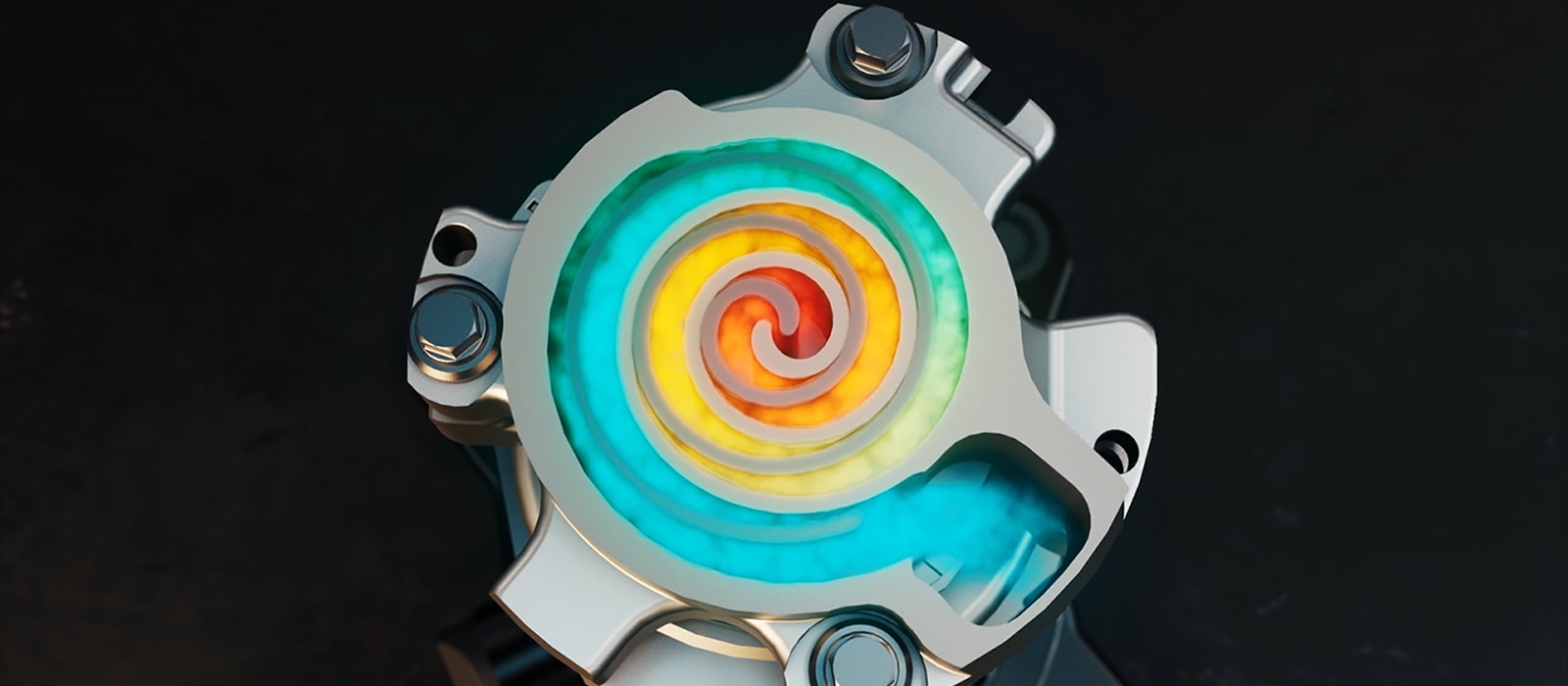

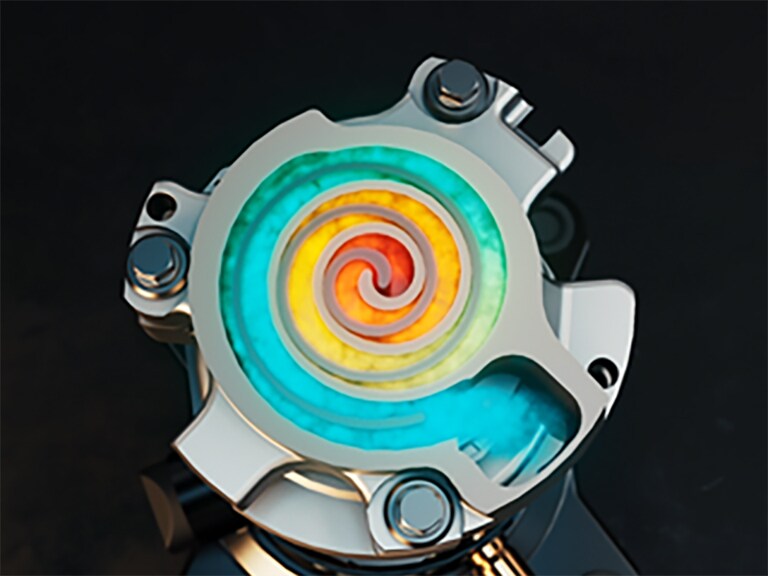

A Fixed Speed Scroll Compressor is shown in operation, with the orbiting scroll rotating at a constant speed. A Fixed Speed Scroll Compressor is shown in operation, with the orbiting scroll rotating at a constant speed.

Products Lineup

Air conditioning blowing in a home, with a Fixed Speed Scroll Compressor and house icon overlaid on the picture. Air conditioning blowing in a home, with a Fixed Speed Scroll Compressor and house icon overlaid on the picture.

Residential
Air Conditioning

Designed for relatively small spaces such as residential and small commercial facilities, offering high energy efficiency.

- Refrigerant: R410A, R54B, R22
- Capacity: 1.5-5.0 Ton
Air conditioning blowing at a hotel, with a Fixed Speed Scroll Compressor and building icon overlaid on the picture. Air conditioning blowing at a hotel, with a Fixed Speed Scroll Compressor and building icon overlaid on the picture.

Commercial
Air Conditioning

Suitable for large-scale spaces such as commercial buildings, hotels, and hospitals.

- Refrigerant: R410A, R454B
- Capacity: 6.0-8.0 Ton
Commercial Refrigeration is on with a Fixed Speed Scroll Compressor and refrigeration icon overlaid on the picture. Commercial Refrigeration is on with a Fixed Speed Scroll Compressor and refrigeration icon overlaid on the picture.

Commercial Refrigeration

Featuring a sight glass, it is easy to monitor the refrigerant status and manage the performance.

- Refrigerant: R404A, R407C, R507
- Capacity: 1.5-6.5 Ton

Product Specifications

Horizontal Table
Refrigerant Series Cooling Capacity (Ton) Cooling Capacity (kW)
R410A AP, AB, AR 1.5 - 8.0 5.3 - 28.0
R454B YB, YP Confidential Confidential
R404A MP, MB, MR 1.5 - 6.5 5.3 - 22.8
Horizontal Table
Refrigerant Series Cooling Capacity (Ton) Cooling Capacity (kW)
R410A AP, AB, AR 1.5 - 8.0 5.3 - 28.0
R454B YB, YP Confidential Confidential
R404A MP, MB, MR 1.5 - 6.5 5.3 - 22.8
* The capacity is tested under ARI conditions at 60Hz.

FAQs

Q.
What is the difference between Fixed Speed Scroll and Variable Speed Scroll Compressor?
A.
The Fixed Speed Scroll Compressors operate by supplying a constant fixed voltage to the motor, meaning that the compressor always work at its full capacity. On the other hand, the Variable Speed Scroll Compressors maintain a constant air pressure and adjust the motor speed to match the air demand.
Q.
Is a Fixed Speed Scroll Compressor efficient?
A.
LG’s unique by-pass valve helps to improve Fixed Speed Scroll Compressor’s system efficiency. Reed valves strategically place by-pass ports that relieve pressure at startup and maximize operational efficiency. Also, Fixed Speed Scroll Compressor discharges reed valve to prevent back flow of refrigerant.

Discover More About
Fixed Speed Scroll Compressor

Please inquire to buy for more information on the product and we will get in touch with you.
Contact Us
