105BM5P component-copyModelName
Stretch Signage

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (105BM5P)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (105BM5P)
    $
    $
    LG Members Price
Total
Stretch Signage
Contact Us

Experience a Whole New Level of Viewing with Our 21:9 Widescreen Display

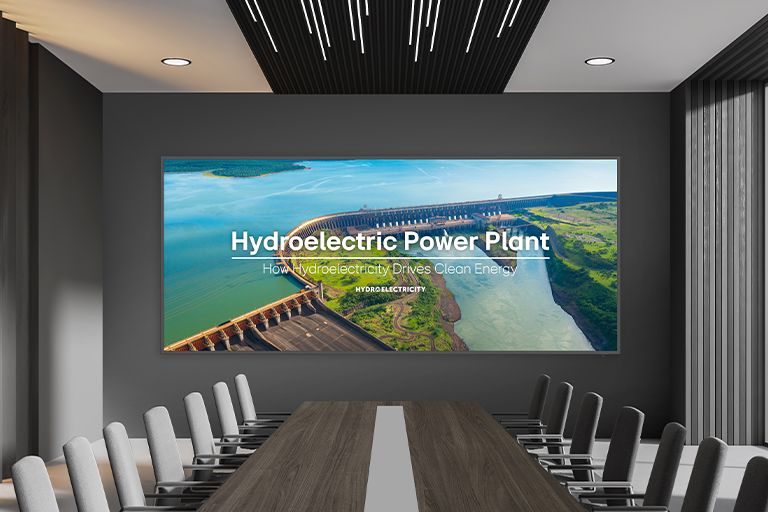

A wide display is installed on the wall of the spacious conference hall, and presentation is prominently and clearly displayed on the large screen. A wide display is installed on the wall of the spacious conference hall, and presentation is prominently and clearly displayed on the large screen.
* All images in this page are for illustrative purposes only.

21:9 Extended Wide Format

With support for a 21:9 widescreen aspect ratio, 105BM5P provides an immersive viewing experience with the wider screen than 16:9 display. Its screen specialization helps display 21:9 content including widescreen videoconferencing platforms with the natural details.

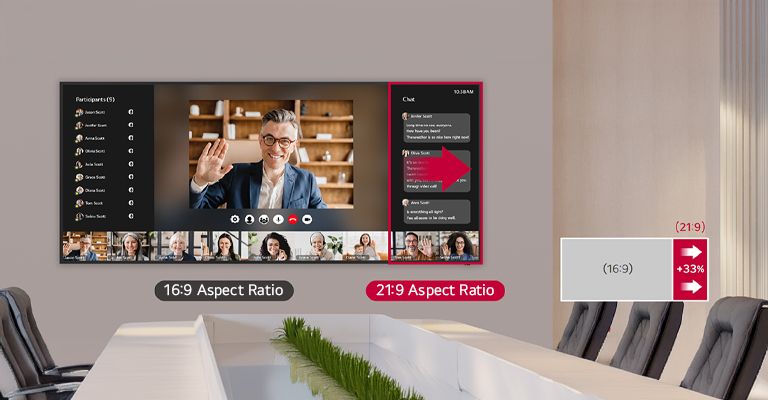

The 105BM5P screen with a 21:9 ratio is installed in a meeting room, providing more information than a 16:9 screen. The 105BM5P screen with a 21:9 ratio is installed in a meeting room, providing more information than a 16:9 screen.
* Proximity Sensor operates smoothly within a range of 3 meters in an obstacle-free environment.

Portrait / Landscape Mode

The 105BM5P offers versatile usage, with the ability to be used in both vertical and horizontal orientations. This flexibility allows it to adapt to various installation and usage scenarios.
The 105BM5P is mounted vertically in the left image and horizontally in the right image, showcasing content. The 105BM5P is mounted vertically in the left image and horizontally in the right image, showcasing content.
* The orientation must be manually adjusted when changing the installation direction.

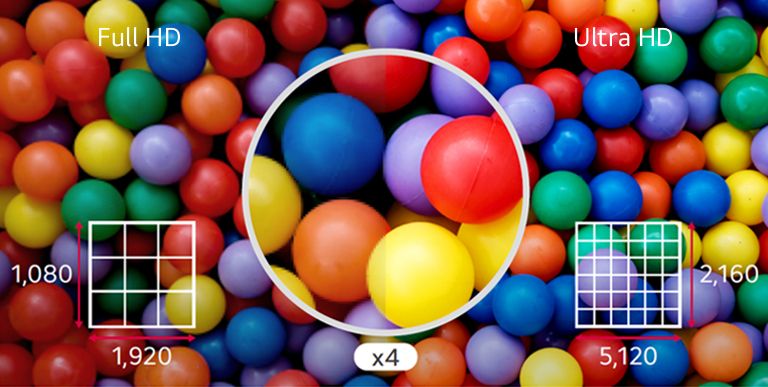

The difference comparing at a glance is shown in Ultra HD quality, which is more than four times higher than Full HD. The difference comparing at a glance is shown in Ultra HD quality, which is more than four times higher than Full HD.

High Resolution Display

It provides a resolution that's more than 4 times higher than FHD, making the viewer satisfied visually. With a resolution of 5,120 × 2,160 and a high pixel density, every single detail of the display screen is conveyed vividly.

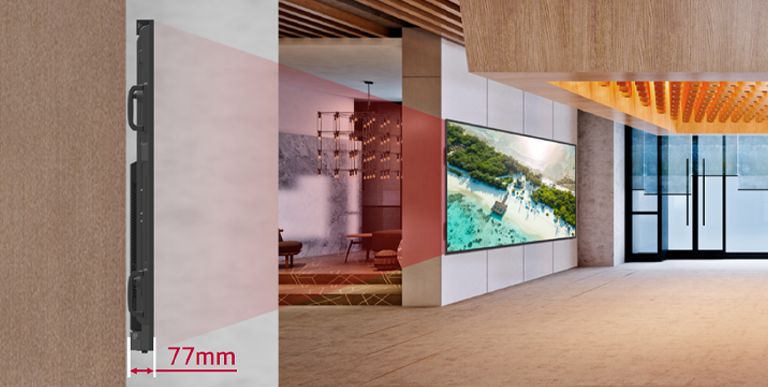

The 105BM5P is installed on the building's lobby wall, with an enlarged view of its side profile visible to the left. The 105BM5P is installed on the building's lobby wall, with an enlarged view of its side profile visible to the left.

Slim Depth Design

The 105BM5P stands out with its slim bezel and sleek depth design with reduced weight. Not only does it save space, but it also facilitates easy installation, making it an ideal choice for a variety of settings.

* We recommend professional installation. If you choose to install it yourself, please ensure that at least two people are involved.

Easily Connect & Charge with USB Type-C

USB Type-C connectivity simplifies connections which enables charging and sending data simultaneously over just one single cable.

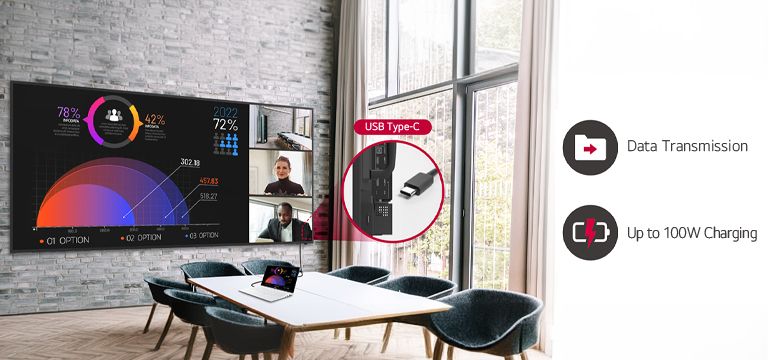

A laptop is connected to the 105BM5P in a meeting room. The 105BM5P supports USB Type-C, allowing simultaneous data transfer and charging through a single cable, promoting a seamless meeting environment. A laptop is connected to the 105BM5P in a meeting room. The 105BM5P supports USB Type-C, allowing simultaneous data transfer and charging through a single cable, promoting a seamless meeting environment.
* USB Type-C cables are sold separately.

Wireless ScreenShare

The 105BM5P offers a wireless screen sharing feature, known as LG CreateBoard Share, allowing for easy sharing of presentation materials wirelessly, thus eliminating the clutter of wires. This enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device. Also, files from the host can be easily sent to any devices connected to the app.

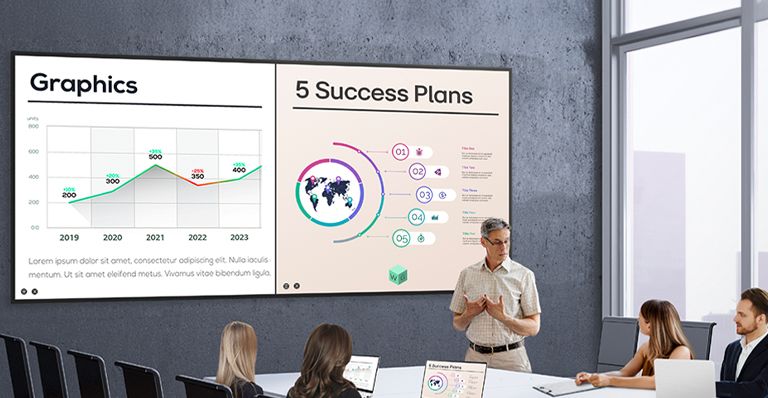

The screens of meeting participants are wirelessly shared on the 105BM5P widescreen, allowing multiple people to share their materials simultaneously on a single screen without any cable interference. The screens of meeting participants are wirelessly shared on the 105BM5P widescreen, allowing multiple people to share their materials simultaneously on a single screen without any cable interference.
* LG CreateBoard also supports app-less sharing for PC (via website) and mobile devices within the same network.
* For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share).

OPS Slot

105BM5P supports OPS slots, allowing you to conveniently mount OPS Module at the back of the screen without the hassle of connecting to an external desktop, enabling various PC functions and Windows software even on the 105BM5P.

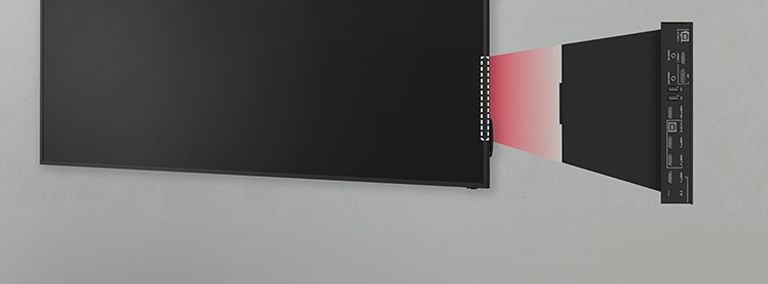

Through the OPS slots, users can conveniently mount the OPS Module on the 105BM5P, enabling various PC functions and Windows software on the 105BM5P. Through the OPS slots, users can conveniently mount the OPS Module on the 105BM5P, enabling various PC functions and Windows software on the 105BM5P.
* OPS : Open Pluggable Specification
* OPS Player for 105BM5P supports 4K output and is sold separately.

LG ConnectedCare DMS

LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of devices. This feature enables IT managers to manage important resources on operating devices without physically visiting sites.
* LG ConnectedCare DMS needs to be purchased separately.
* The availability of the LG ConnectedCare DMS service differs by region, so please contact the LG sales representative in your region for more details.
* LG ConnectedCare DMS supports TV Signage (UM340E, UR640S), LG CreateBoard (TR3 Series) and Stretch Signage (105BM Series) as of now (plus more to come) under a cloud environment.

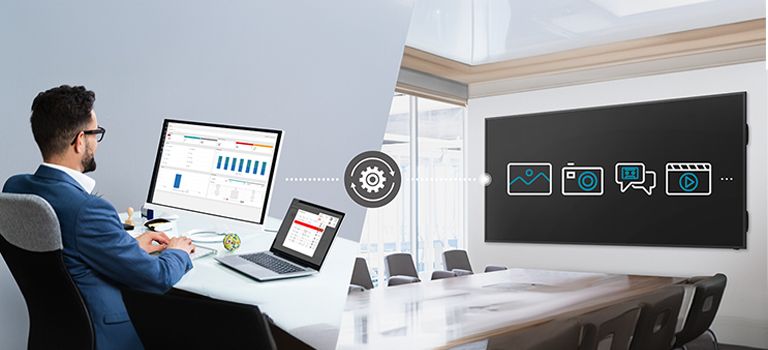

The IT administrator can remotely control and set up devices within the meeting room via LG ConnectedCare DMS. The IT administrator can remotely control and set up devices within the meeting room via LG ConnectedCare DMS.

Remote Control

Thanks to LG ConnectedCare DMS, IT manager can select specific devices to be controlled remotely and update their settings all at once. General settings, power settings, application management, and multimedia can all be effectively managed and controlled simultaneously, enabling the stable operation of clients' businesses.

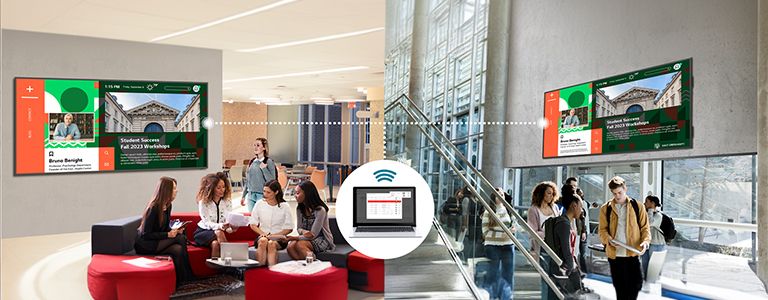

Campus news and announcements are being displayed on wide screens installed in various lobbies. With LG ConnectedCare DMS, the IT manager can remotely broadcast the content to specific devices. Campus news and announcements are being displayed on wide screens installed in various lobbies. With LG ConnectedCare DMS, the IT manager can remotely broadcast the content to specific devices.

Broadcast / Alert Message

Messages and a range of other content can be sent from the main system's hub to individual devices connected to LG ConnectedCare DMS and you can easily display important company notices or schedules right on your device. In case of urgent occasions such as a fire or a natural disaster, alert messages can be distributed manually across the system, which helps people promptly take a safety action.
Close
Panel
  • Screen Size
    105"
    Panel Technology
    IPS(ADS)
  • Panel Technology
    Direct
    Aspect Ratio
    21:9
  • Native Resolution
    5120 X 2160 (5K)
    Refresh Rate
    60Hz
  • Brightness
    440nit (typ.),385nit (Min.)
    Contrast Ratio
    1200:1
  • Dynamic CR
    5000:1
    Color gamut
    NTSC 72%
  • Viewing Angle(H x V)
    178 X 178
    Color Depth
    10bit(8bit + FRC)
  • Response Time
    8ms
    Surface Treatment(Haze)
    25%
  • Life time
    50,000 Hours (Min)
    Operation Hours (Hours/Day)
    16/7
  • Portrait / Landscape
    Yes / Yes
Connectivity(Jack Interface)
  • Input - Digital - HDMI
    Yes (4) HDCP 2.3 ※ O(1, HDMI2.1), O(3, HDMI2.0)
    Input - Digital - DP
    Yes (1) HDCP 2.3
  • Input - Audio In
    Yes (1)
    Input - RS232C IN
    Yes (1)
  • Input - RJ45(LAN)
    Yes (1)
    Input - USB
    USB Type C(1)(100W PD, DP-Alt)
    USB3.0 Type A(4)
    USB2.0 Type A(3)
    USB2.0 Type B out (3)
  • Output - DP Out
    No, HDMI Out (1)
    Output - Audio Out
    Yes (1, Optical 1(SPDIF))
  • Output - RJ45(LAN)
    Yes (1)
Mechanical Specification
  • Bezel Color
    Black
    Bezel Width
    T/R/L/B : 18/18/18/18mm
  • Weight(Head)
    54.1Kg
    Packed Weight
    75.9Kg
  • Monitor Dimension(W x H x D)
    2490 X 1074 X 77mm
    Carton Dimensions(W x H x D) (Box outer size)
    2668×280×1233mm
  • Handle
    Yes
    VESA™ Standard Mount Interface
    1000 X 600mm
Key Feature
  • HW - Internal Memory
    64GB
    HW - Wi-Fi - Built-in
    Yes (Slot type)
  • HW - Sensor - Auto Brightness sensor
    Yes
    HW - Power Indicator
    Yes
  • HW - Local Key Operation
    Yes (Power Key)
    SW - webOS ver.
    Android 13.0 (AOSP)
  • SW - USB Plug & Play
    Yes
    SW - Fail over
    Yes
  • SW - Multi-screen - PIP
    Yes (1 external source)
    SW - Screen Share
    Yes (LG CreateBoard Share)
  • SW - 3rd Party Compatibility - Crestron v2.0
    Yes
    SW - Power - PM mode
    Yes
  • SW - Power - Wake on LAN
    Yes
    SW - Power - Network Ready
    Yes
  • SW - HDMI-CEC
    Yes
Environment Conditions
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 90 %
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    412W
    Max.
    632W
  • BTU (British Thermal Unit)
    1406 BTU/Hr(Typ.), 2156 BTU/Hr(Max)
    DPM
    ≤0.5W
  • Power off
    ≤0.5W
Sound
  • Speaker
    Yes (16W x 2 + 15W)
Certification
  • Safety
    CB / NRTL (cULus)
    EMC
    FCC Class "A" / CE
  • ErP / Energy Star
    Yes / Yes
OPS Compatibility
  • OPS Type Compatible
    Yes (Slot)
    OPS Power Built In
    Yes
Software Compatibility
  • LG ConnectedCare DMS
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil) Russian, Portugues(Europe), Dutch, Czech, Greek, Türkiye, Swedish, Finnish, Norwegian, Danish
Accessory
  • Basic
    Power cord, HDMI Cable, Remote Controller
    Remote battery, SI07B, Wall Mount
    Optional
    OPSJ-5LDJA(4K)
ANDROID SYSTEM
  • SoC
    A76x4 + A55x4
    GPU
    Mali-G610 MP4
  • Internal Memory - Storage
    64GB
    Internal Memory - RAM
    8GB
  • Wi-Fi
    802.11a/b/g/n/ac/ax (WiFi 6)
    LAN
    Gigabit LAN
  • Bluetooth
    Bluetooth 5.2
Product Dedicated Feature
  • DPM
    Yes
    Power On/Off Schedule
    Yes
  • Power On Default (Power On)
    Yes
    Customized Background
    Yes
  • Input Auto Switching
    Yes
    LG RS232C Command
    Yes
  • Power on Status
    Yes
    No Signal Power Off
    Yes
  • No IR Power Off
    Yes
    100W PD (w/USB-C)
    Yes

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
