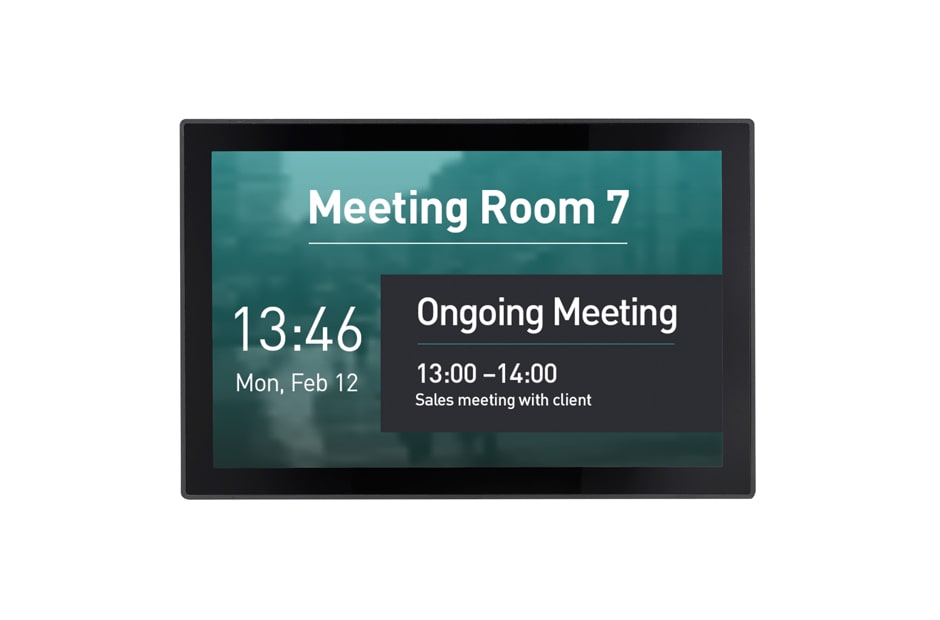

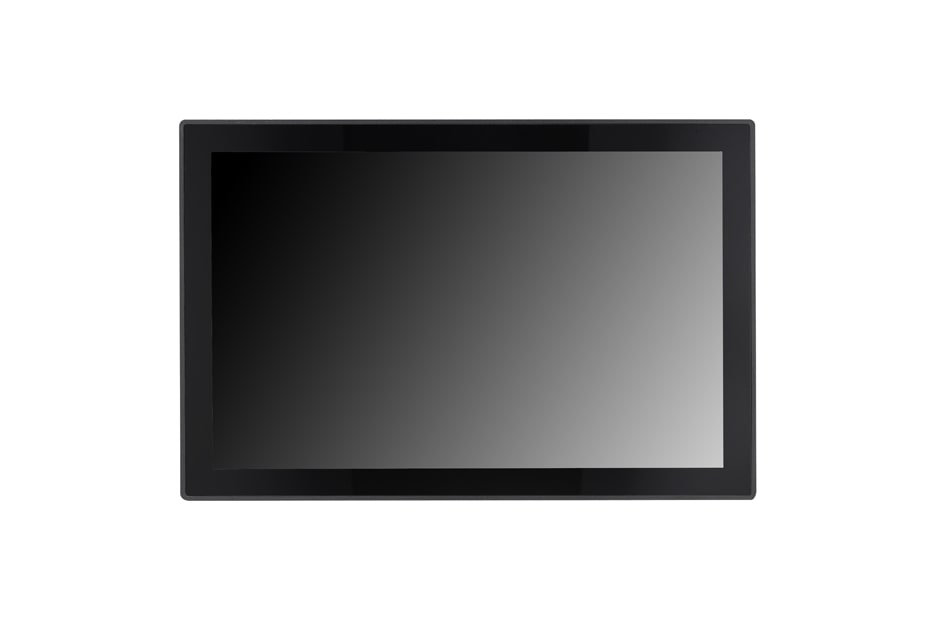

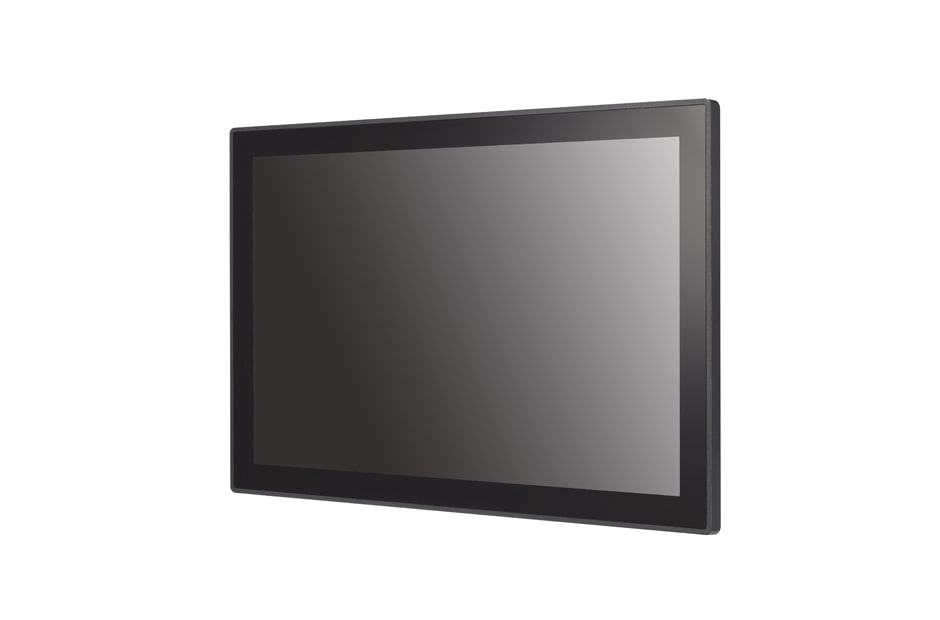

10SE3E component-copyModelName

SE3E Series

Discontinued

10SE3E component-copyModelName

SE3E Series

Key Features

Brightness(Typ.): 400 cd/m²
Bezel: 14 mm (T/B/R/L, Even bezel)
Depth: 29.7 mm
Interface : HDMI, USB, RJ45, Built-in IR
Special Features : Power over Ethernet, Built-in Wi-Fi, USB Auto Playback

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 400 cd/m²
Bezel: 14 mm (T/B/R/L, Even bezel)
Depth: 29.7 mm
Interface : HDMI, USB, RJ45, Built-in IR
Special Features : Power over Ethernet, Built-in Wi-Fi, USB Auto Playback

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

SE3E Series

Convenient Maintenance

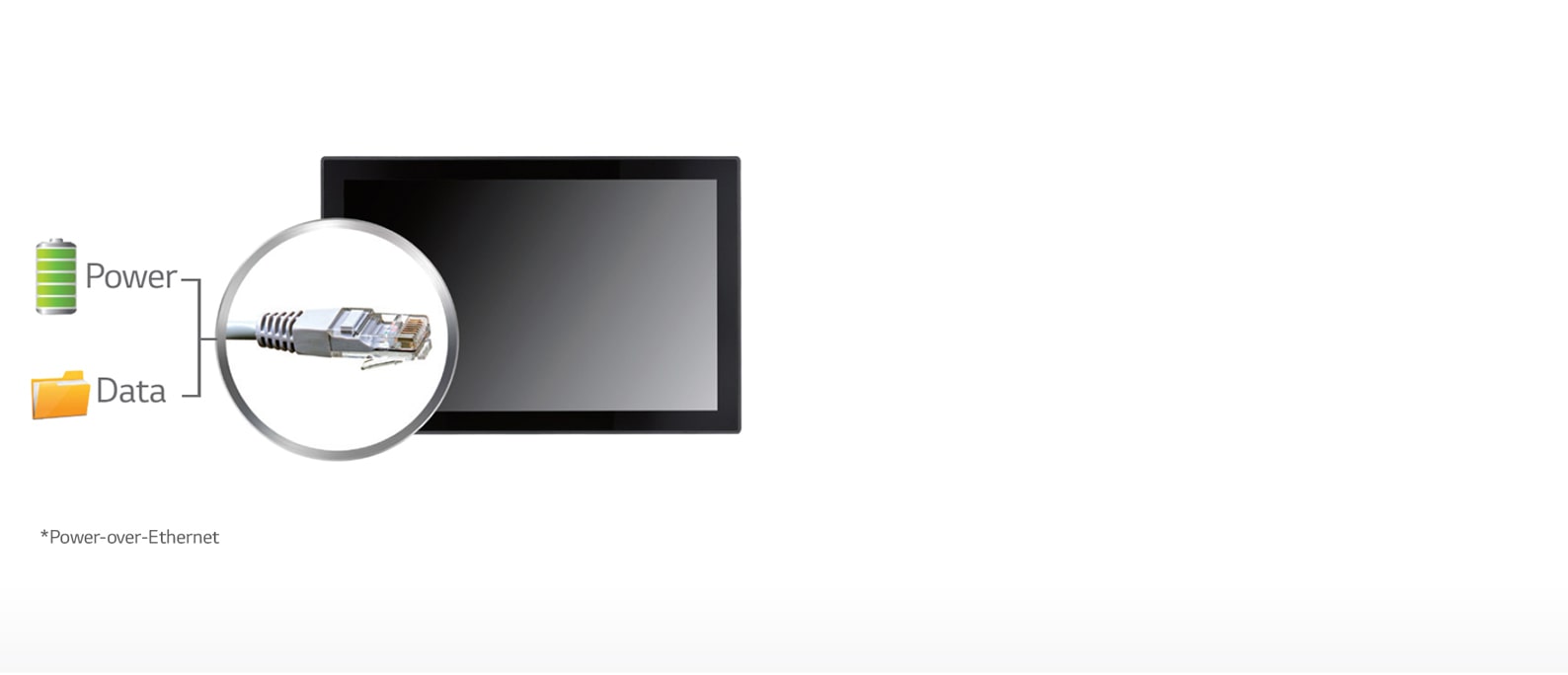

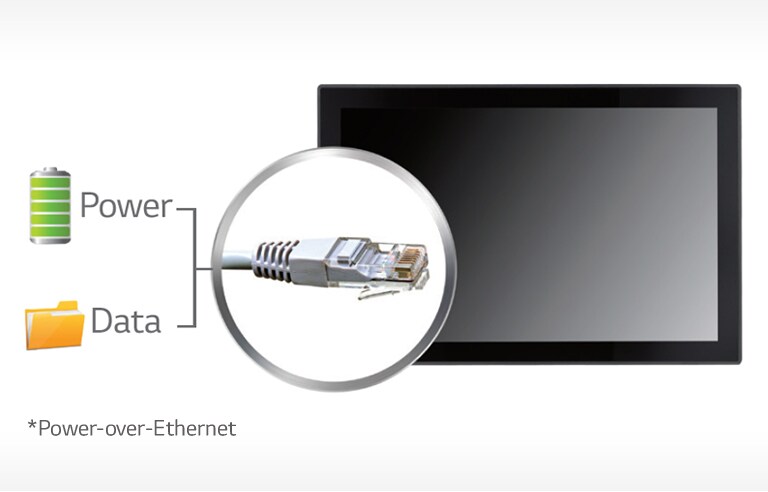

Power & Network
in One Line

PoE* allows the installer to connect the power and network using a single wire. This greatly simplifies the installation and maintenance processes in locations where adding a power outlet is expensive or prohibited.

Convenient Maintenance

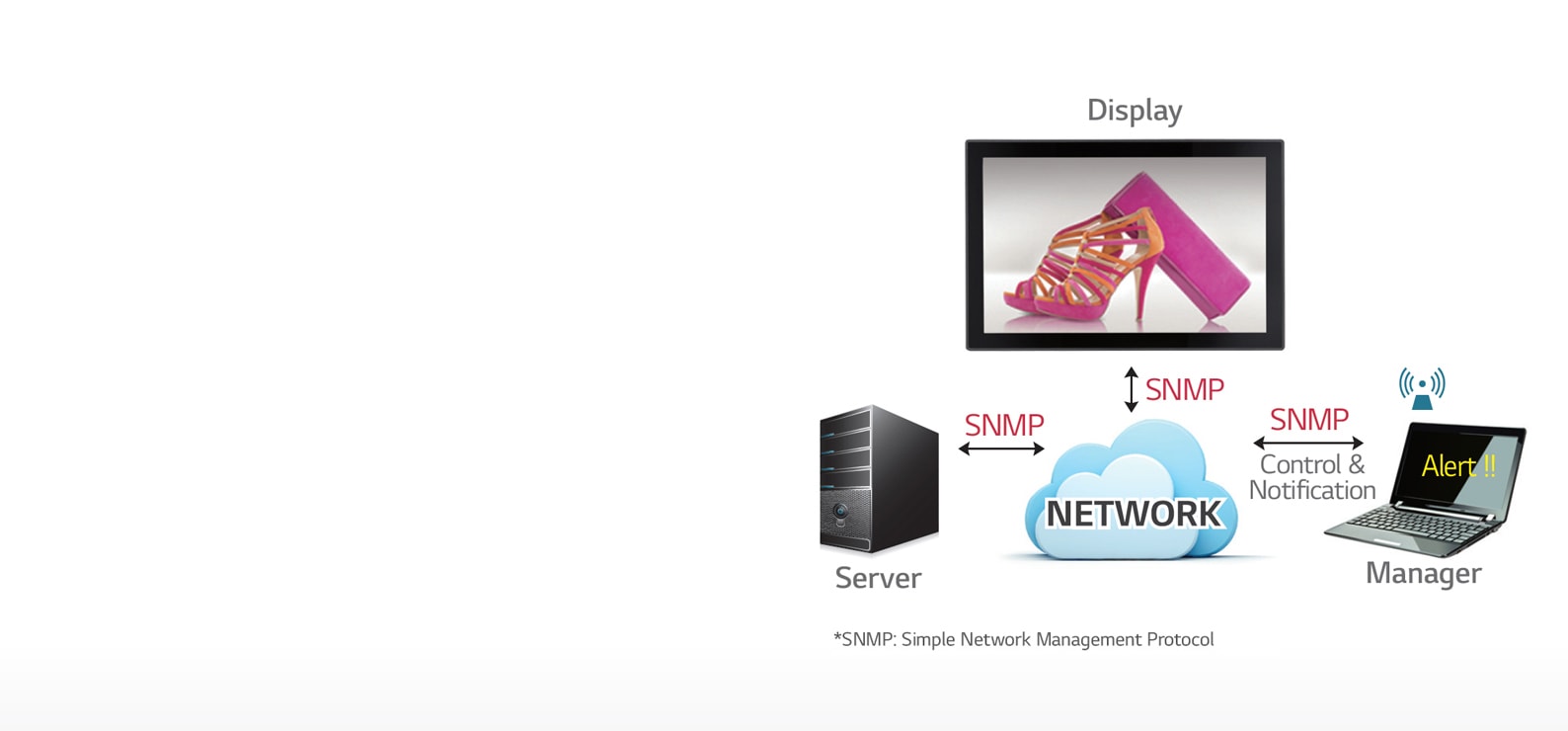

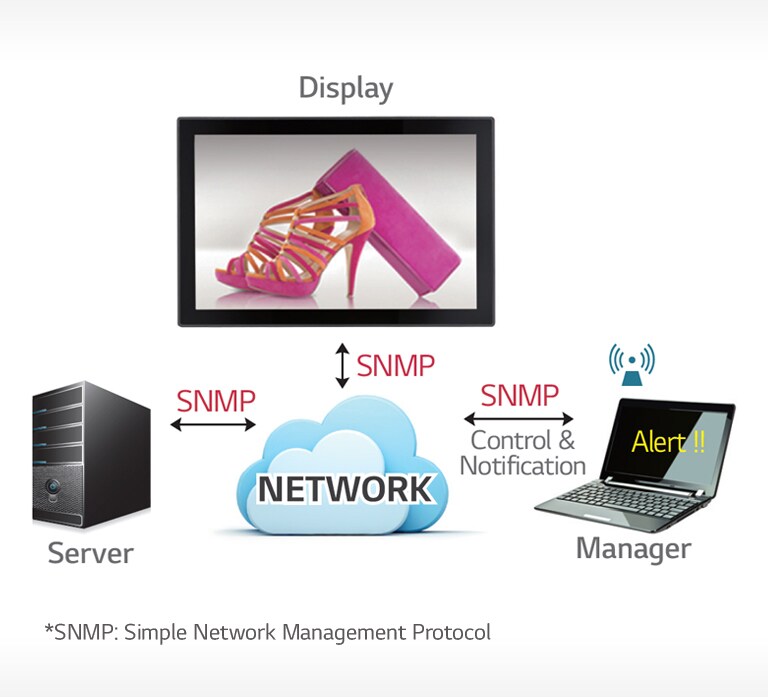

Simple Network Management

10SE3E supports SNMP*, which ensures convenient device management through network.

Convenient Maintenance

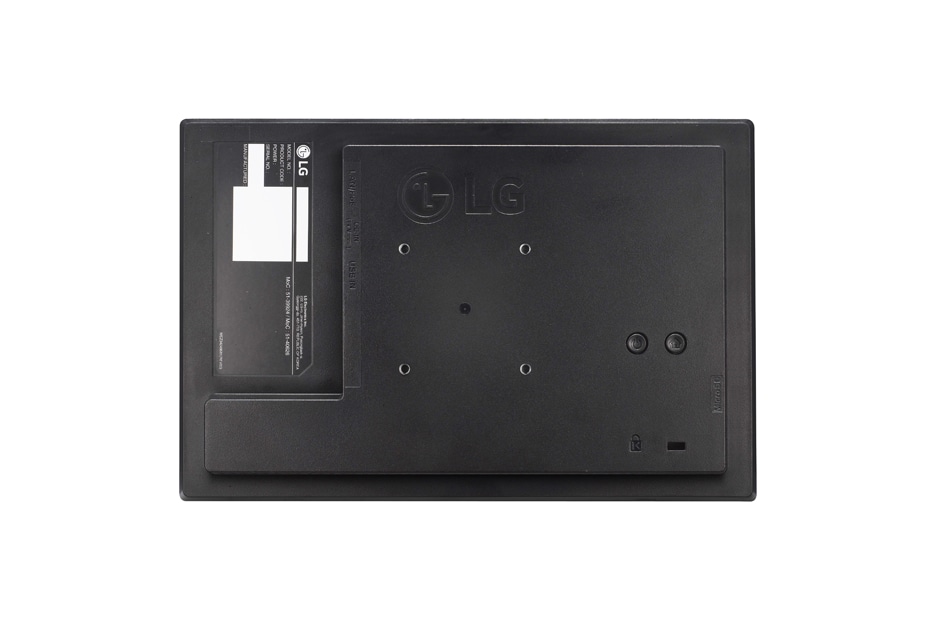

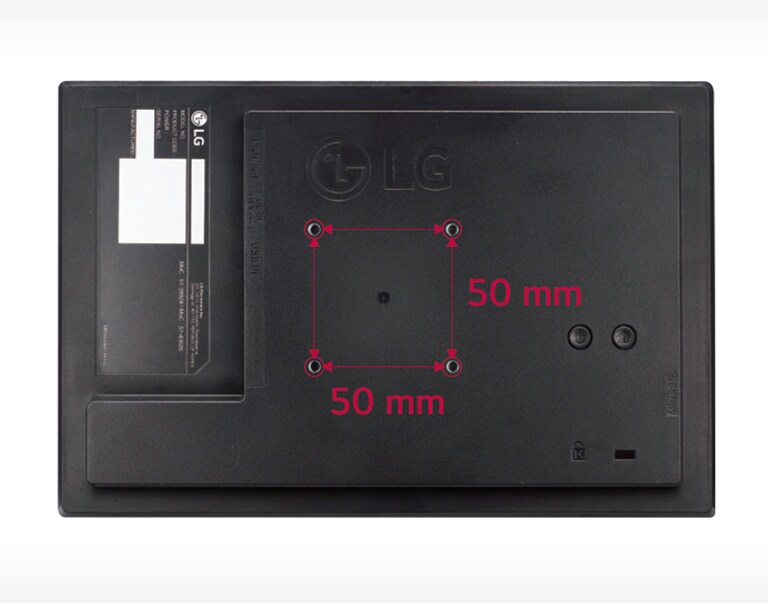

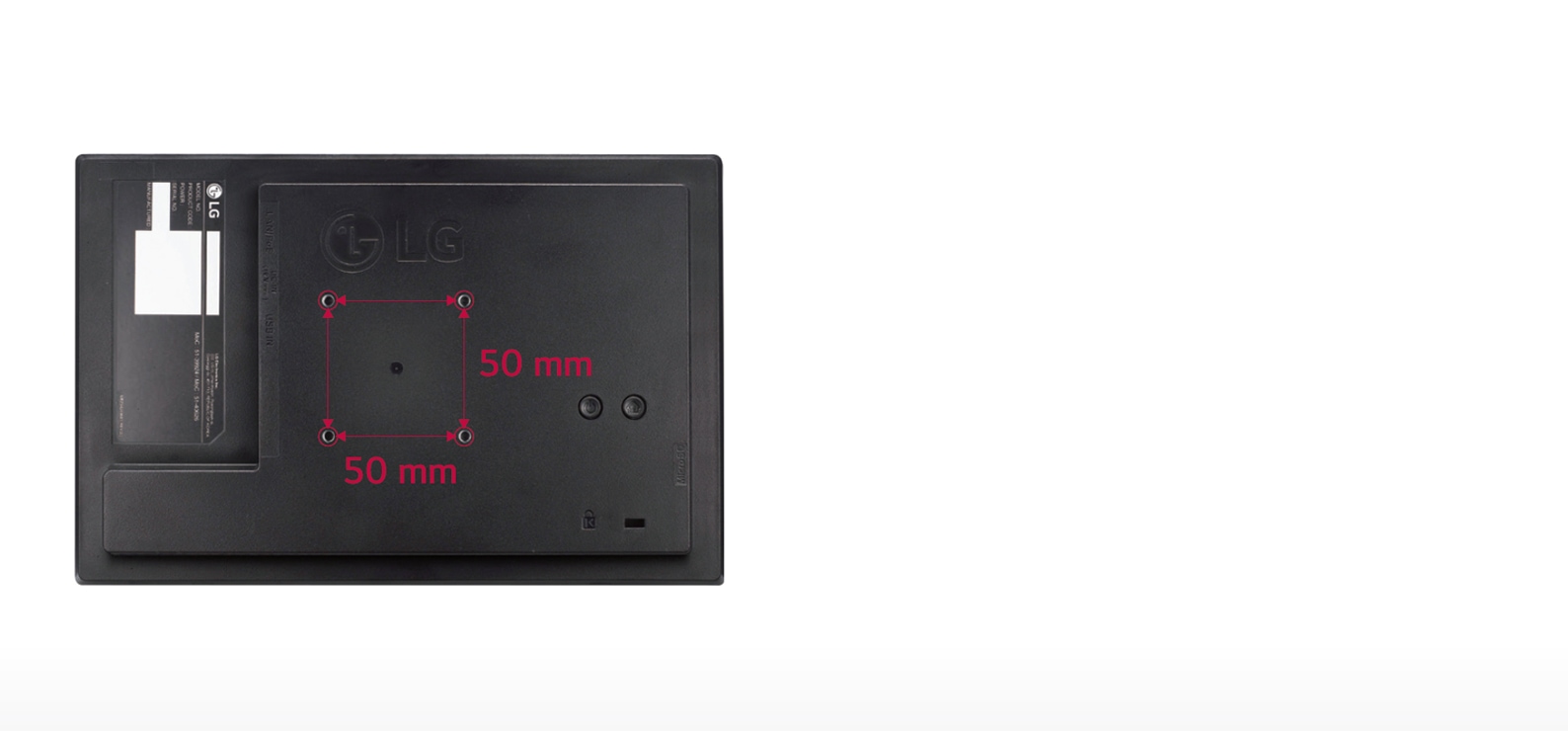

Easy Wall Mounting

Based on VESATM standards, it can be easily attached to the wall using a dedicated wall bracket without the need for additional wall mount casing.

Content Managment

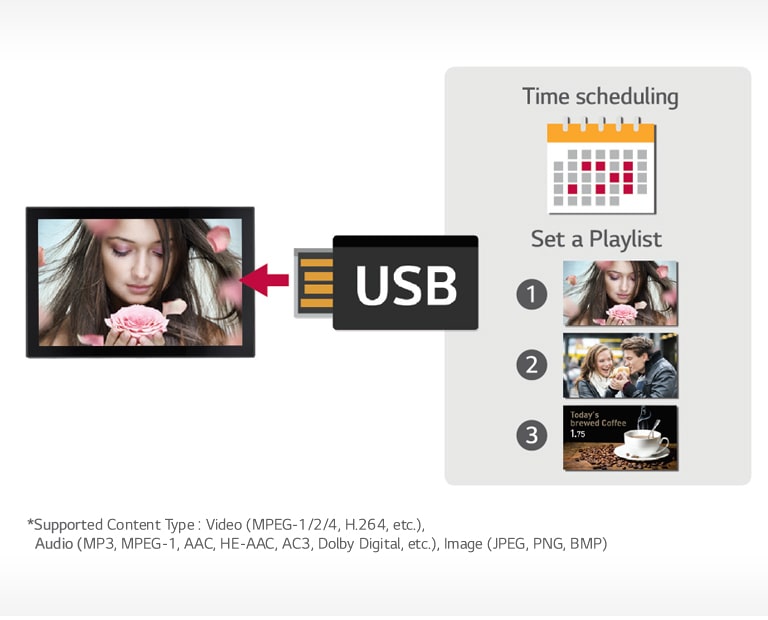

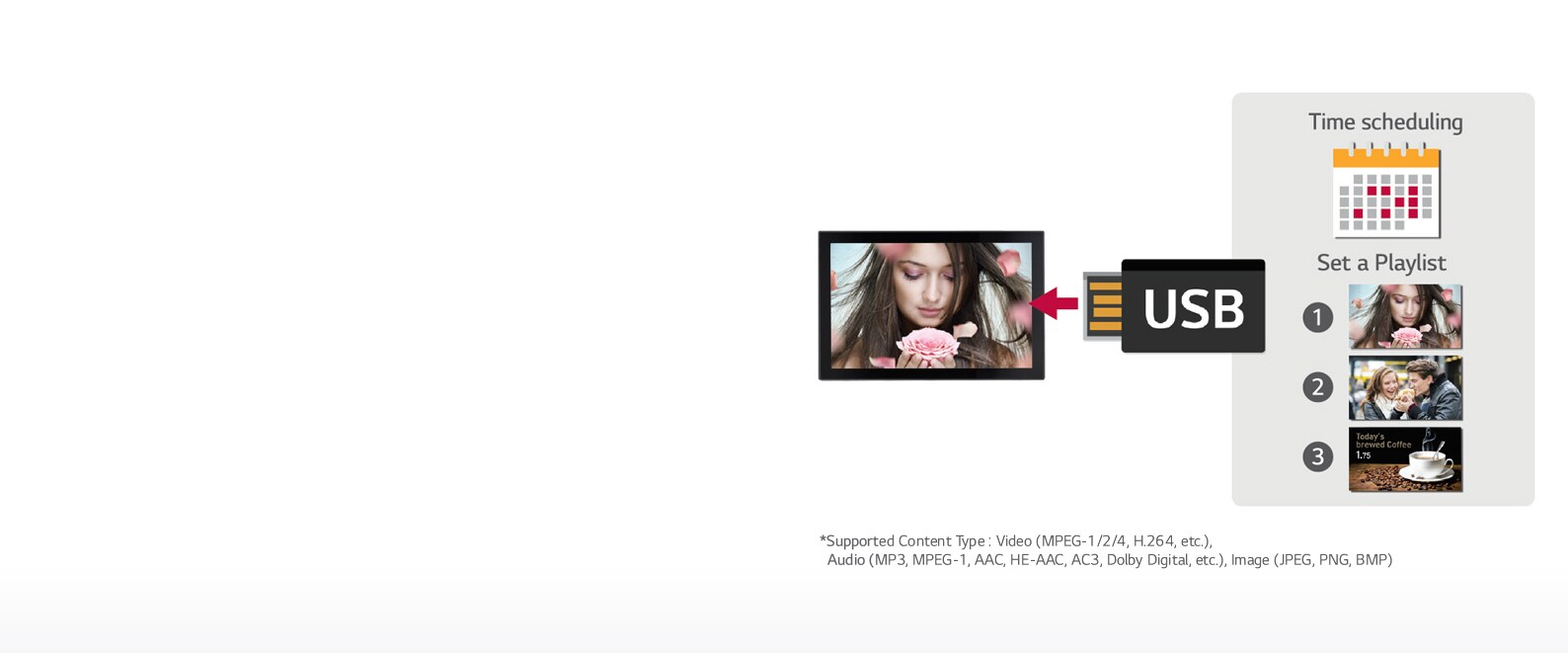

USB Content Scheduling

There is no need for additional server or media player connections because 10SE3E supports USB playback and scheduling. Users can set a playlist and timing for playing content using a USB.

Content Managment

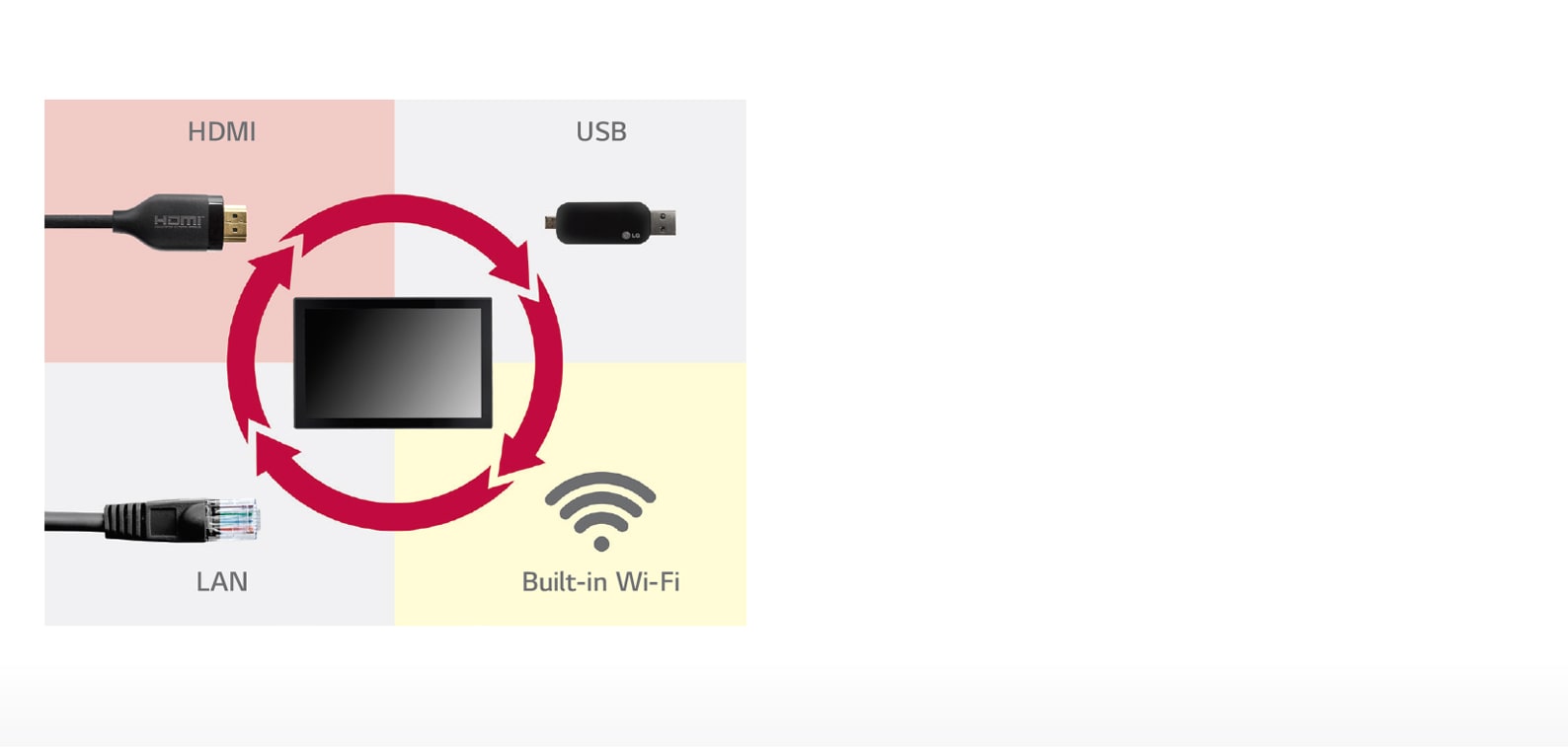

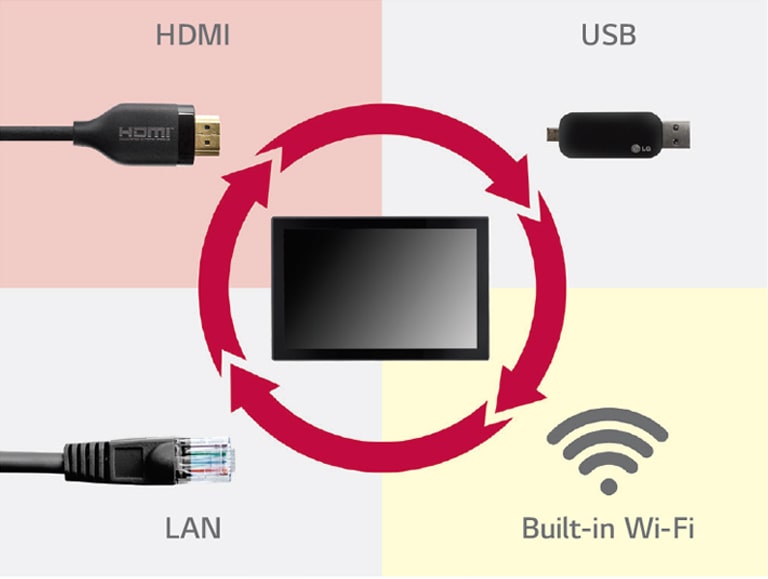

A Wide Range of Interfaces

Through its diverse interfaces, users can connect signage with various sources for optimal use.

User Convenience

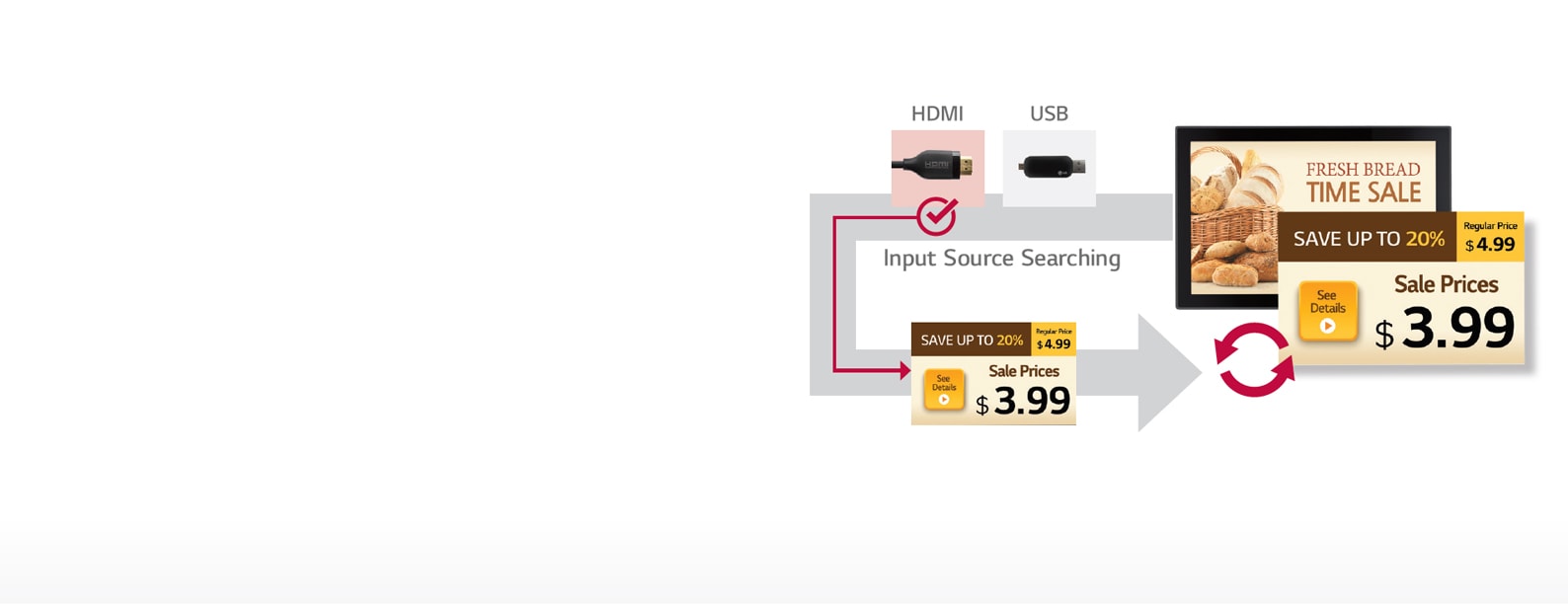

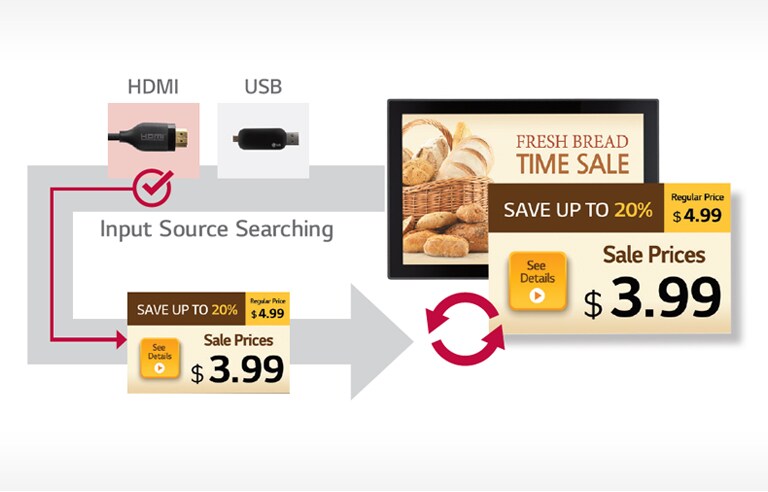

Auto Signal Switching

The failover function enables the display detect the available input signals and automatically change the source when the current signal is disconnected. Users can prepare backup sources in case an unexpected error occurs.

User Convenience

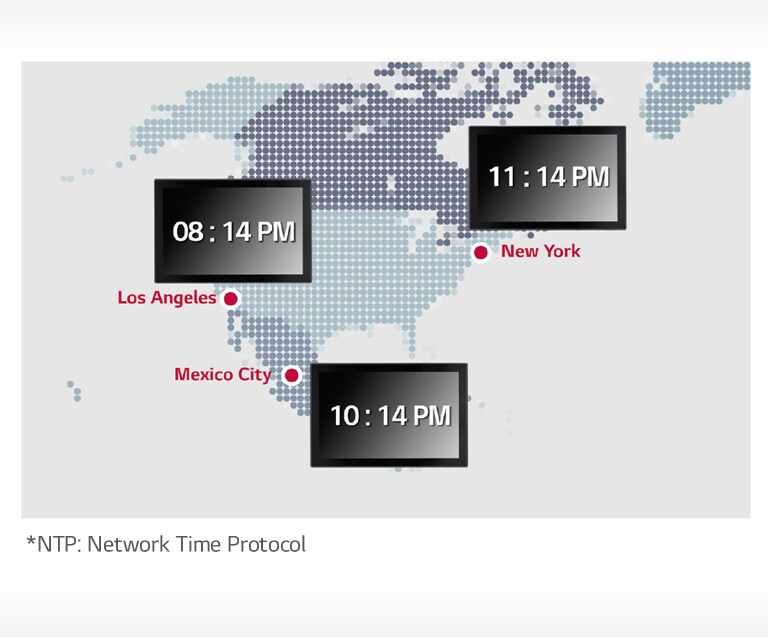

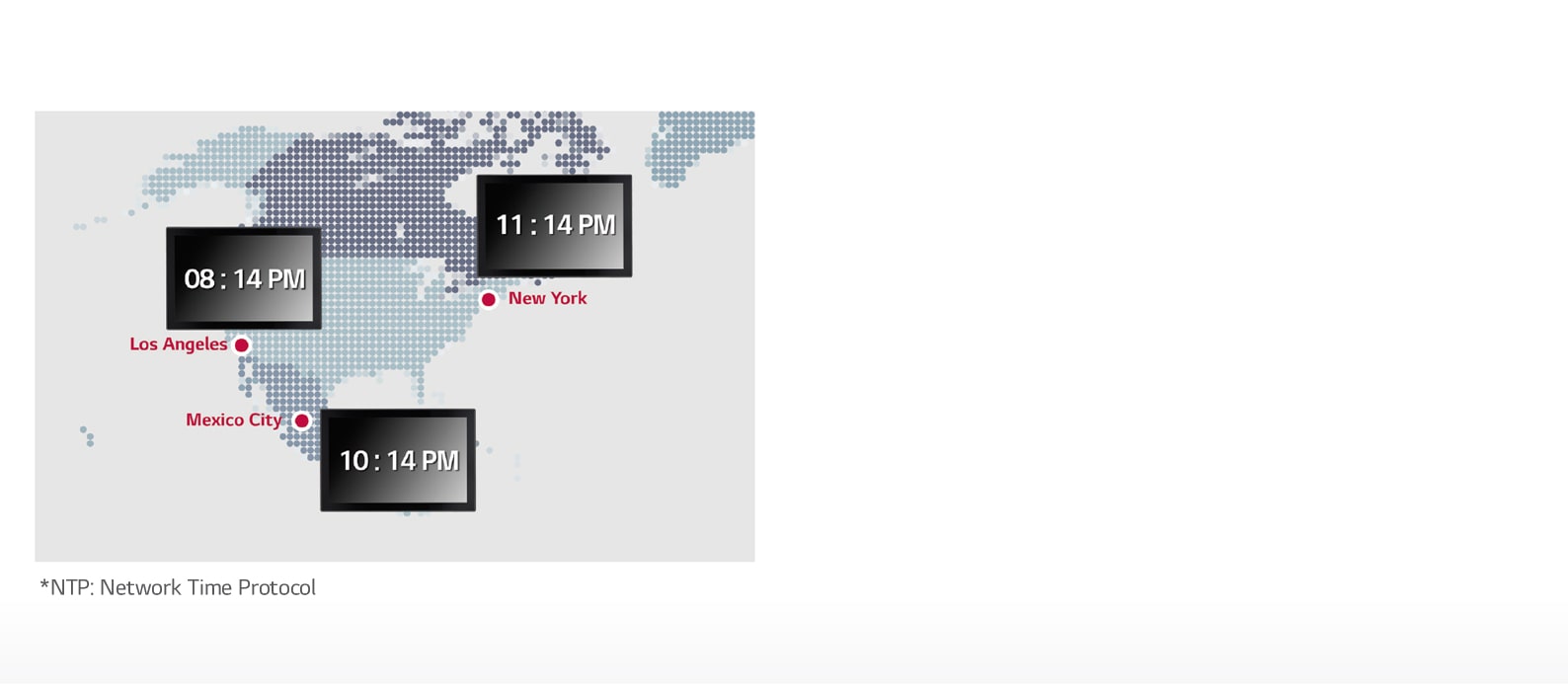

Local Time Auto Setting

A time zone can be configured at initial installament, so that the signage display accesses the local NTP* server and automatically sets the local time.

Panel

Screen Size

10"

Resolution

1,280 x 800 (HD)
Brightness(Typ.,cd/m²)

400

Connectivity

Input

HDMI, USB 2.0

External Control

RJ45 In, Built-in IR In

Physical Specification

Bezel Width

14 mm (T/B/R/L, Even bezel)

Monitor Dimension (W x H x D)

245.6 x 164.2 x 29.7 mm
Weight (Head)

0.69 kg

Carton Dimensions (W x H x D)

327 x 224 x 95 mm
Packed Weight

1.4 kg

VESA™ Standard Mount Interface

50 x 50 mm

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

POE, Adaptor

Power Consumption

Typ.

10 W

Max

12 W

Standard(Certification)

Safety

UL / cUL / TUV

EMC

FCC Class "A" / CE
ErP / Energy Star

ErP Class "B" / NA

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Link

Accessory

Basic

Adaptor, Manual (Web), ESG

Dimension
- [Dimension]10SE3E.dwg
- [Dimension]10SE3E.pdf
Datasheet
- 10SE3E Leaflet(preview)_11801(2).pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
