27KC3PK-C component-copyModelName

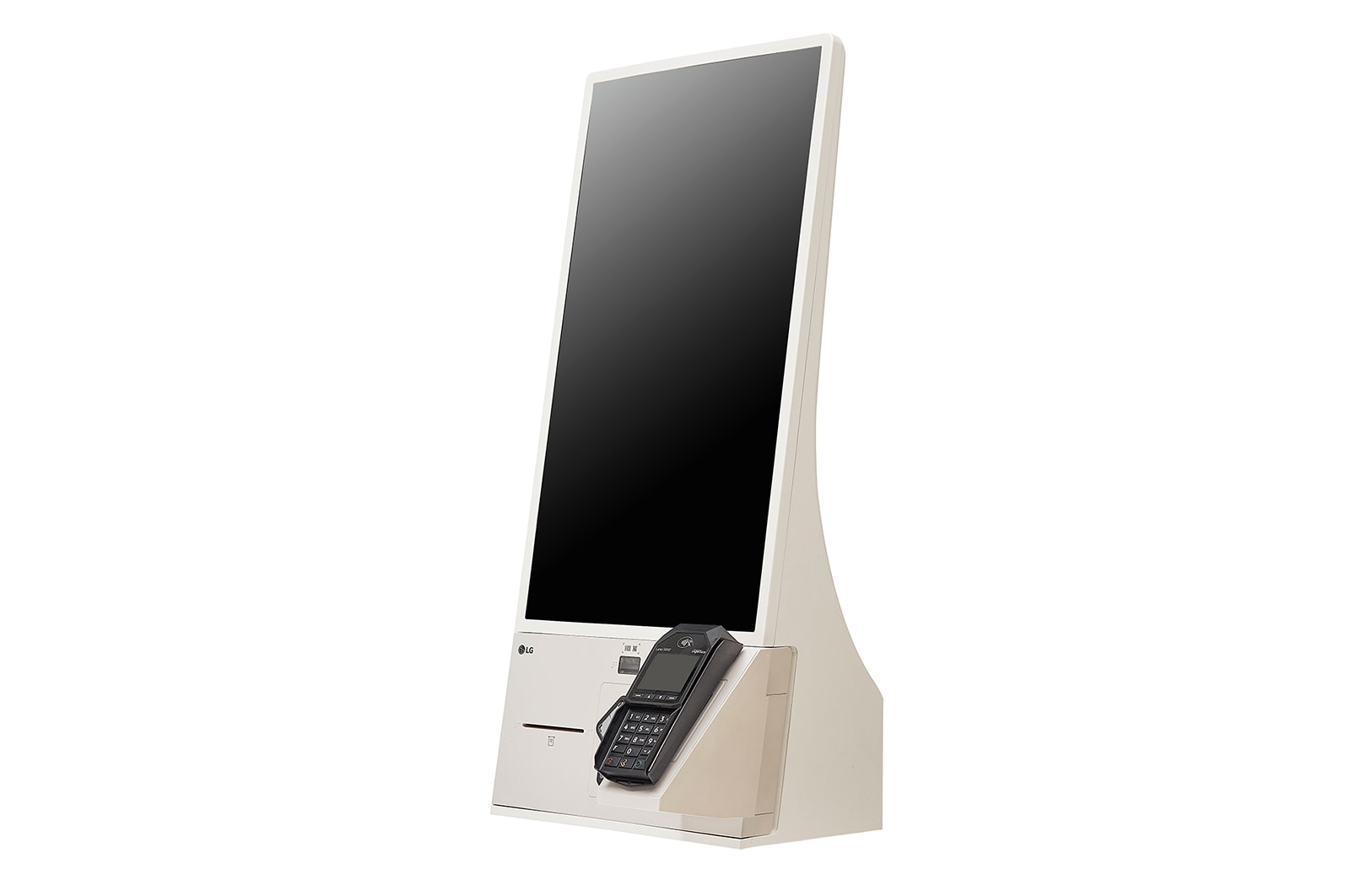

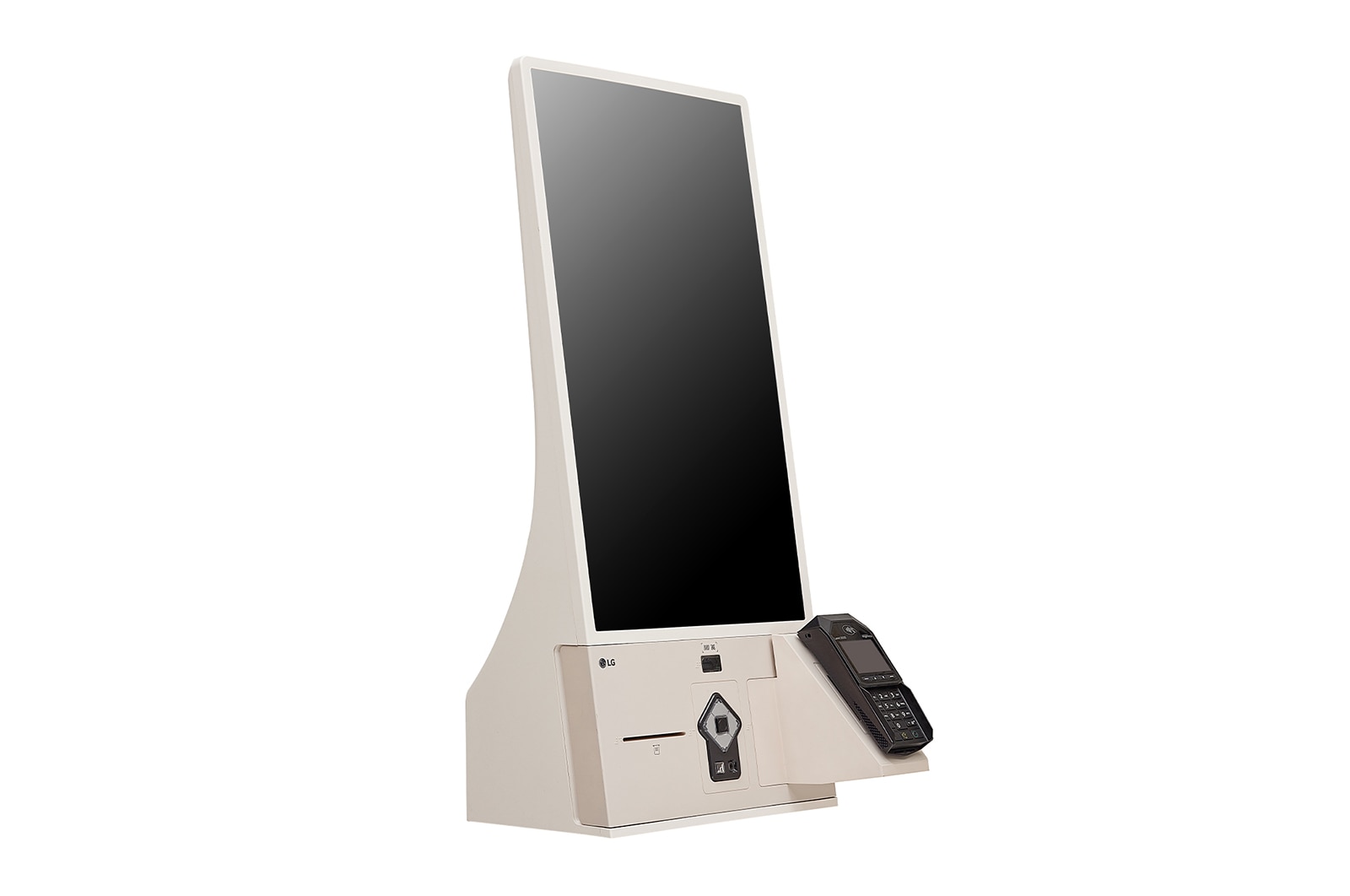

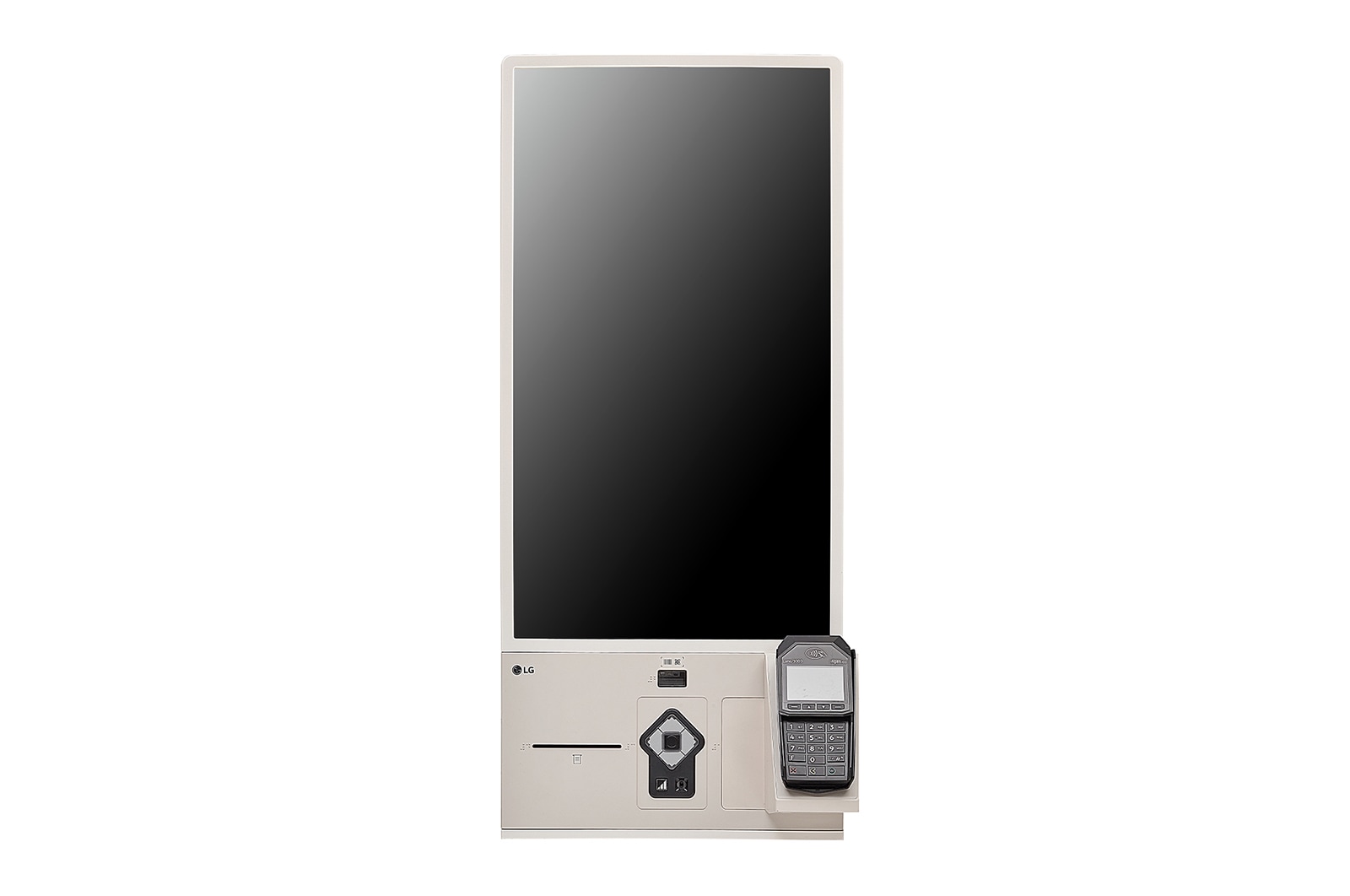

LG Self-ordering Kiosk

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (27KC3PK-C)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (27KC3PK-C)
    $
    $
    LG Members Price
Total
LG Self-ordering Kiosk
Contact Us

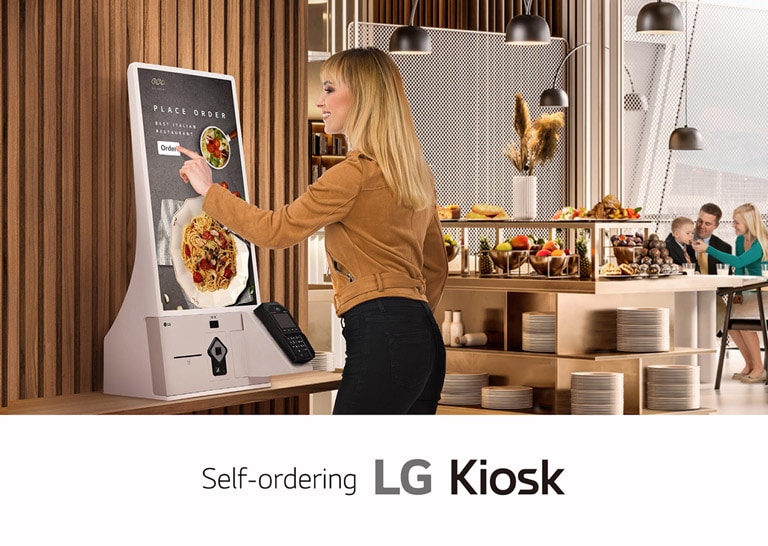

A woman is ordering food at a kiosk in a family restaurant. A woman is ordering food at a kiosk in a family restaurant.
* All images in this page are for illustrative purposes only.

Interior Fit Design
in Calming Beige Colors

The seamless design in two tones of calming beiges of the kiosk, creating a harmonious atmosphere which fits your business space interior.

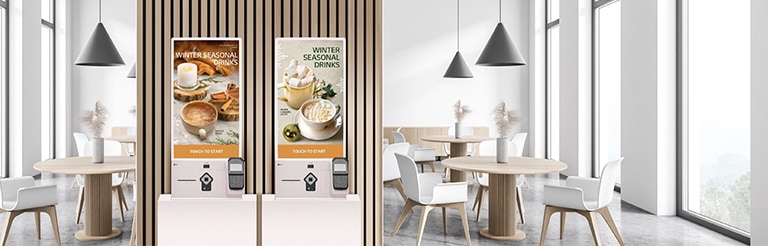

Two two-tone beige kiosks are installed side by side in harmony with the store’s interior atmosphere. Two two-tone beige kiosks are installed side by side in harmony with the store’s interior atmosphere.

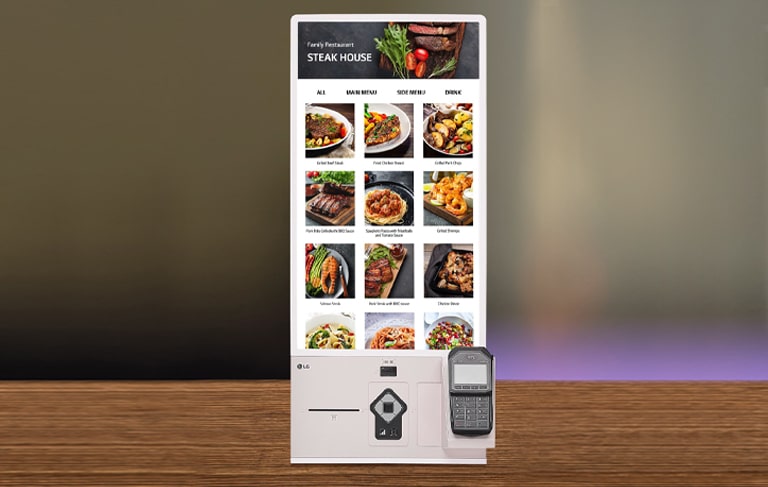

Various store menus are being guided through the screen in vivid images. Various store menus are being guided through the screen in vivid images.

27-inch Screen

Through a 27-inch display, the users can access more information with vivid product images for placing an order. This display can be also utilized as a large advertising screen by showing advertisements when in standby mode.

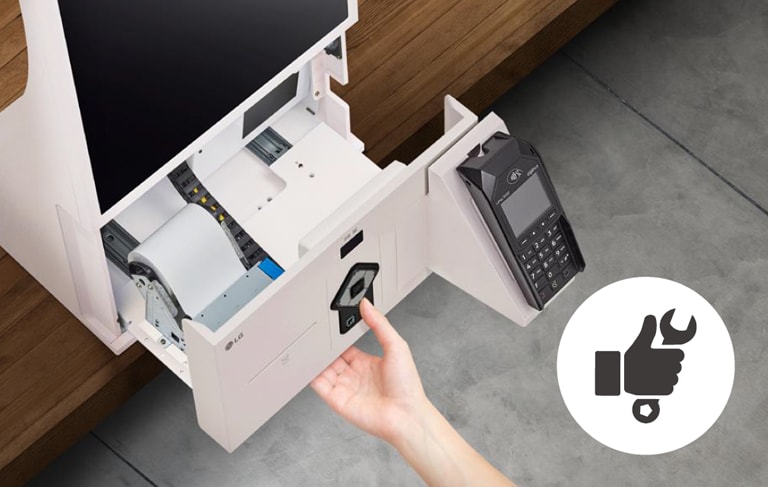

The built-in drawer at the kiosk’s bottom has a receipt printer and a card reader, which can be managed by opening the drawer. The built-in drawer at the kiosk’s bottom has a receipt printer and a card reader, which can be managed by opening the drawer.

Easy Maintenance

The drawer-type design of the kiosk allows for convenient device maintenance of the receipt printer, card reader, etc. by simply opening the drawer without needing to disassemble the body.

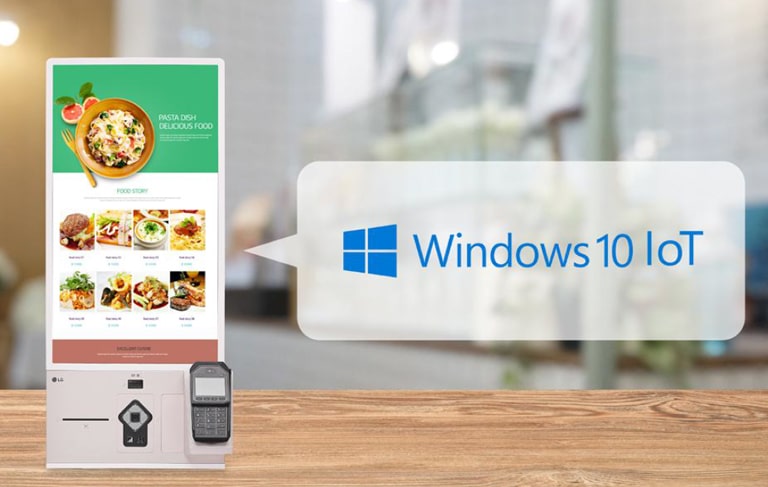

27KC3PK-CW applies Windows® 10 IoT Enterprise. 27KC3PK-CW applies Windows® 10 IoT Enterprise.

Windows OS

By applying Windows 10 IoT Enterprise, it is compatible with various peripheral devices and applications.

Various Payment Methods

Various payment methods such as Bar codes, QR codes, IC Chip card* and MST cards* are supported. In addition, a built-in printer can easily print out receipts without additional peripherals.
27KC3PK-CW supports barcodes, QR codes, IC chip cards, and MST cards. 27KC3PK-CW supports barcodes, QR codes, IC chip cards, and MST cards.
* EMV terminal is required by local payment company to support the functions.

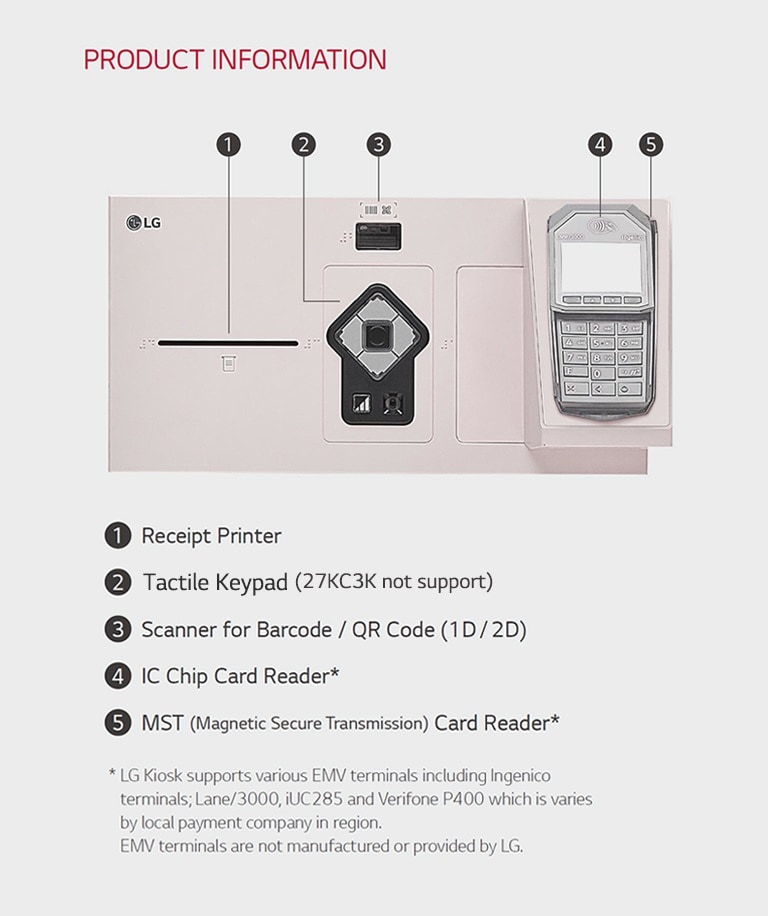

PRODUCT INFORMATION PRODUCT INFORMATION
Close
Display
  • Size
    27 inch
    Resolution
    FHD (1920 x 1080)
  • Brightness
    300nits
    Touch type
    In-cell
Speaker
  • Speaker
    Stereo Max 2W x 2 (built-in)
Network
  • Network
    Ethernet
SoC
  • Processor
    Intel® Celeron® Quad-Core N5105 SoC onboard Processors (Jasper Lake)
    Memory(RAM)
    SO-DIMM, DDR4 3200MHz, 8GB
  • Storage
    SSD 128GB
    OS
    Windows® 10 IoT Enterprise
Receipt printer
  • Type
    Thermal
    Printing speed
    Max 250mm/sec
  • Cuting
    Auto
    Paper size
    3.15 inch (Roll diameter 80mml)
QR/Barcode scanner
  • QR/Barcode scanner
    2D, 1D
Card Reader
  • Card Reader
    depend on EMV terminal
Frontal drawer
  • Type
    Sliding
    Area
    Receipt printer / Bar code scanner / Card reader
Accessibility
  • Audio assistive technology
    Storm Interface AudioNav Keypad, EN 301 549 / ADA Compliant, Mini USB B & 3.5mm Audio Jack Socket
    Braille assistive guide
    Yes (Embossed Braille with Arabic numerals)
Jack Interface
  • VGA (D-SUB) / Audio Jack
    1 / 2
    HDMI
    1
  • USB
    4 (USB3.2 Gen1)
    RJ45 (Ethernet)
    1
  • RJ11
    1 (For Cash drawer 12V/24V)
    Serial Port (RS232C)
    3 (1*RS232/422/485, 2*RS232 5/12/Ring switch by BIOS)
  • Power Input
    1 (DC-12V, 4-pin Lockable DC Jack 4P Connector)
Power
  • Rated Volage
    220V ~ 60Hz
    Power Consumption (On Mode) (W/h)
    40
  • Power Consumption (Sleep Mode) (W/h)
    0.5
Weight
  • Set
    14.6Kg
Color
  • Color
    Calming Beige
Power cable
  • Power cable
    1.5m
Dimension
  • Desk Top (WxHxD)
    364.3 x 812 x 342 mm (with a cradle)
Operation condition
  • Temperature
    0°C~40°C
    Humidity
    10%~80%

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
