29KC5P2J-WG component-copyModelName

LG Thermal Sensing Terminal

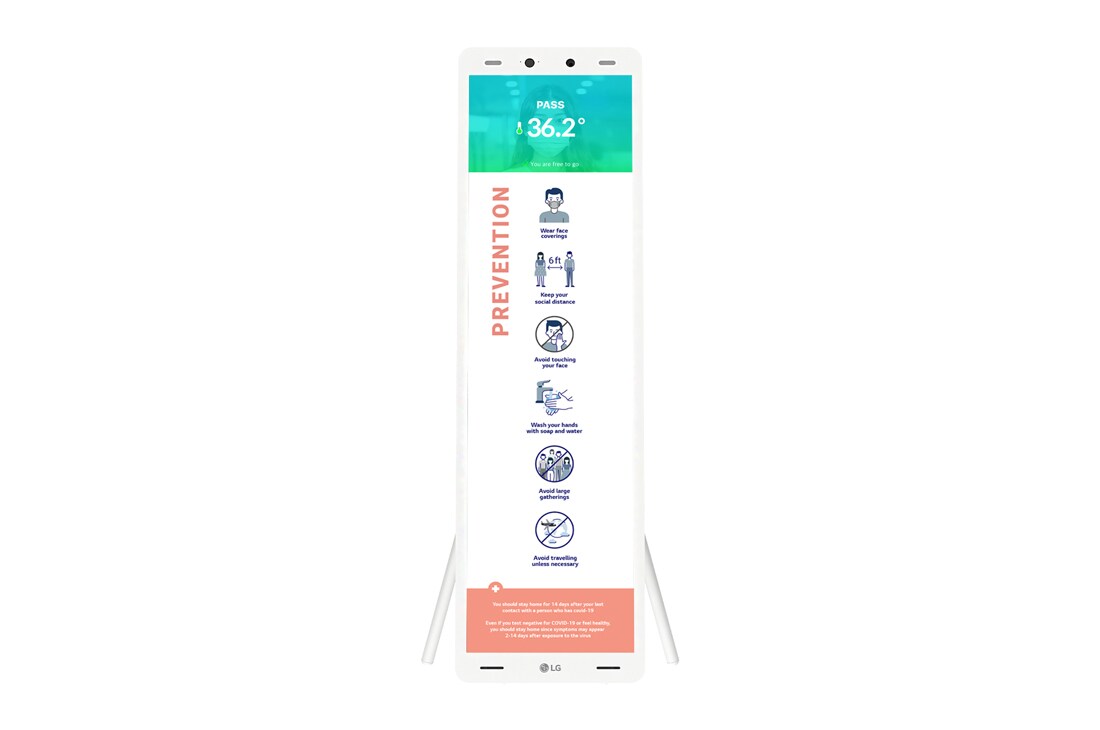

LG Thermal Sensing Terminal, Front view with infill image, table stand, 29KC5P2J-WG, thumbnail 1

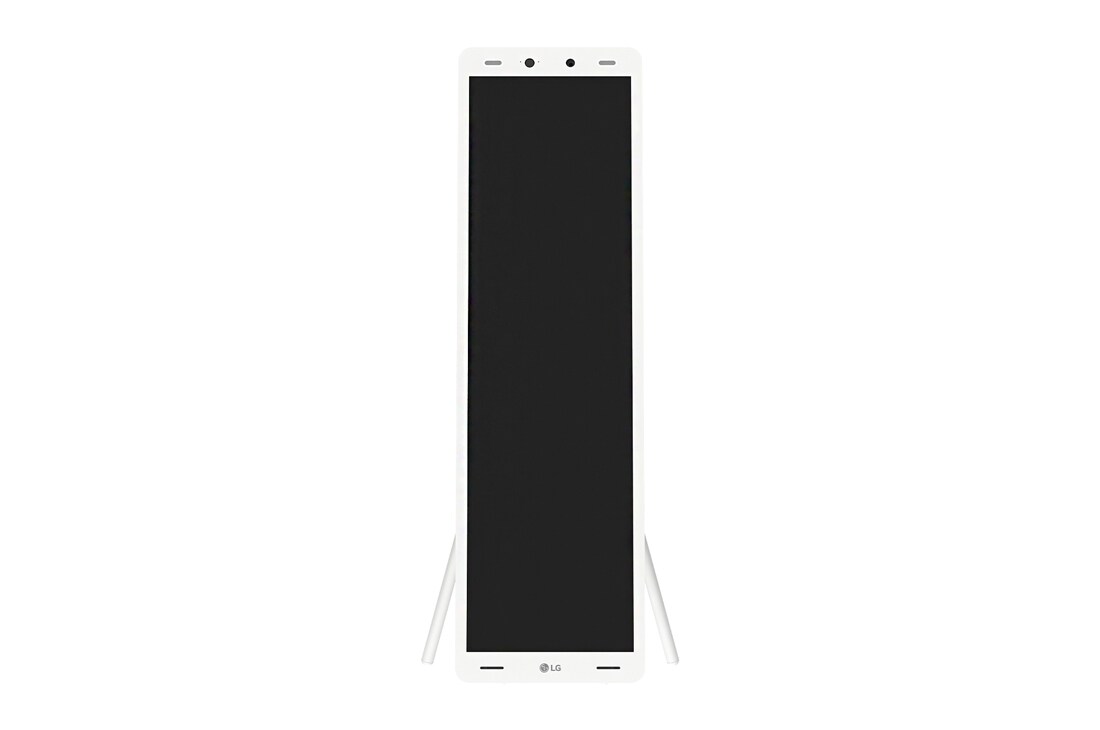

LG Thermal Sensing Terminal, Front view with table stand, 29KC5P2J-WG, thumbnail 2

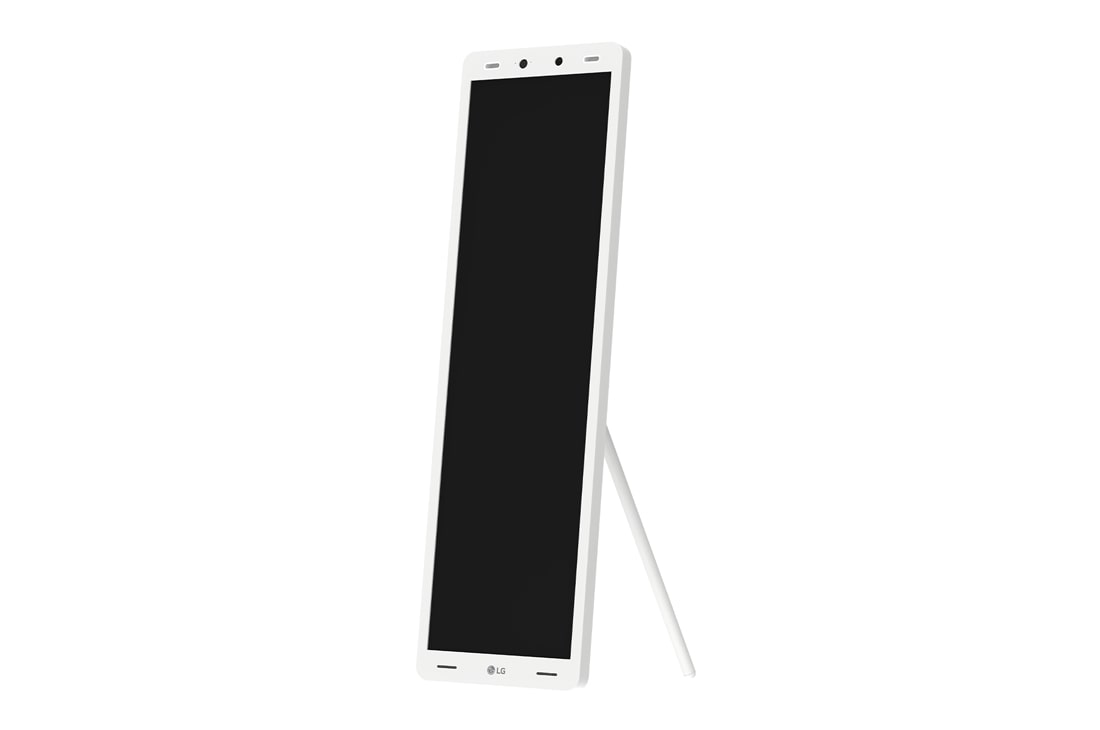

LG Thermal Sensing Terminal, -45 degree side view with table stand, 29KC5P2J-WG, thumbnail 3

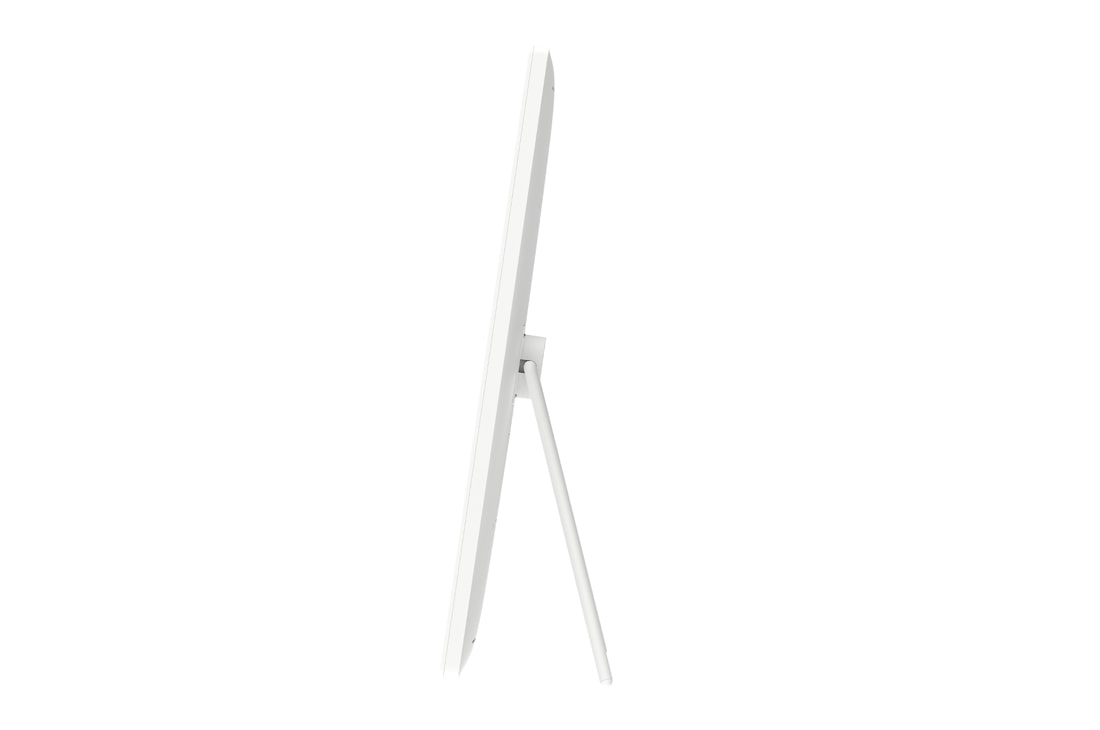

LG Thermal Sensing Terminal, -90 degree side view with table stand, 29KC5P2J-WG, thumbnail 4

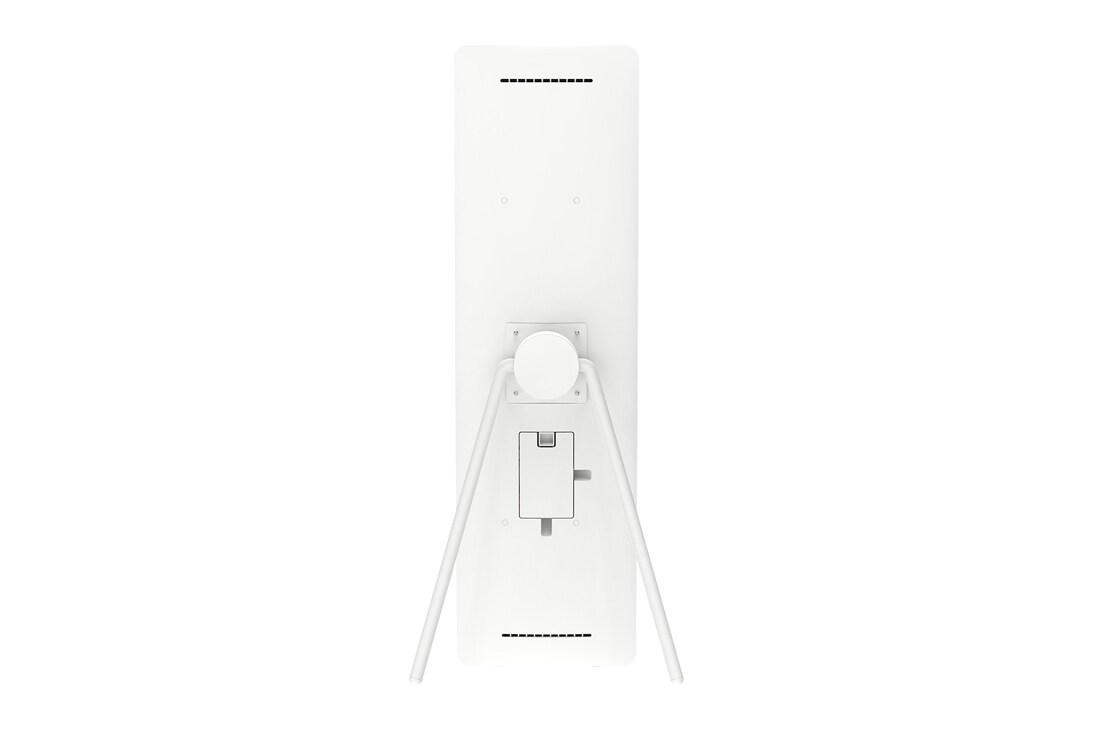

LG Thermal Sensing Terminal, Rear view with table stand, 29KC5P2J-WG, thumbnail 5

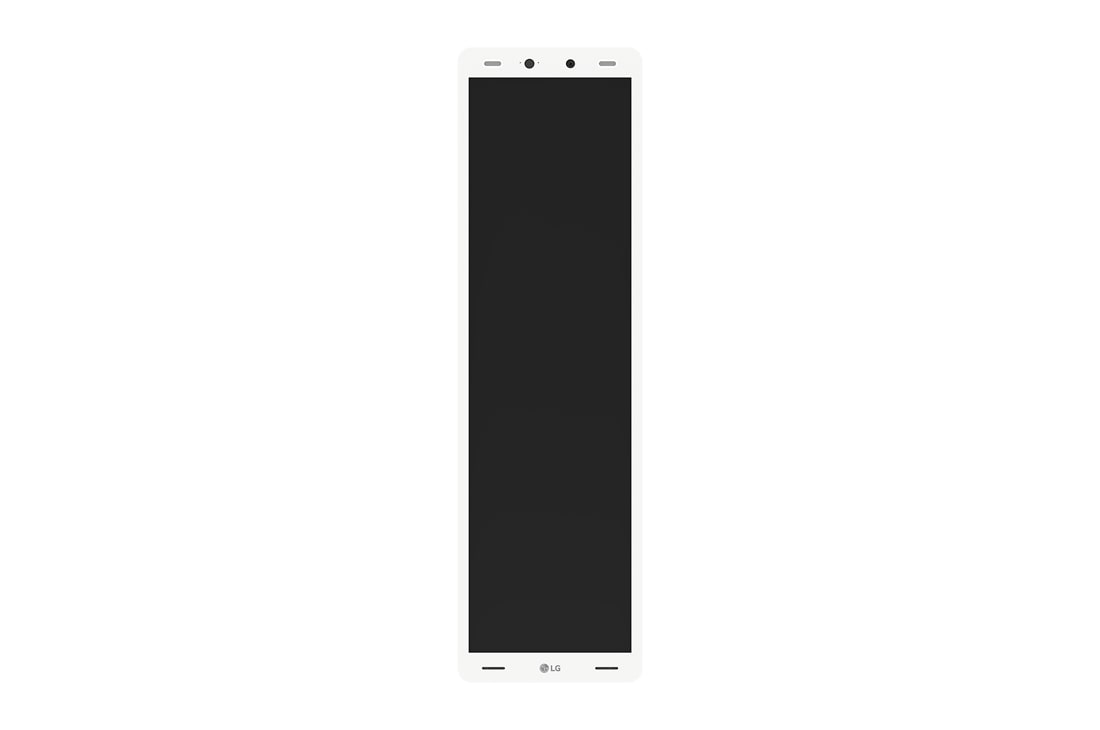

LG Thermal Sensing Terminal, Front view, 29KC5P2J-WG, thumbnail 6

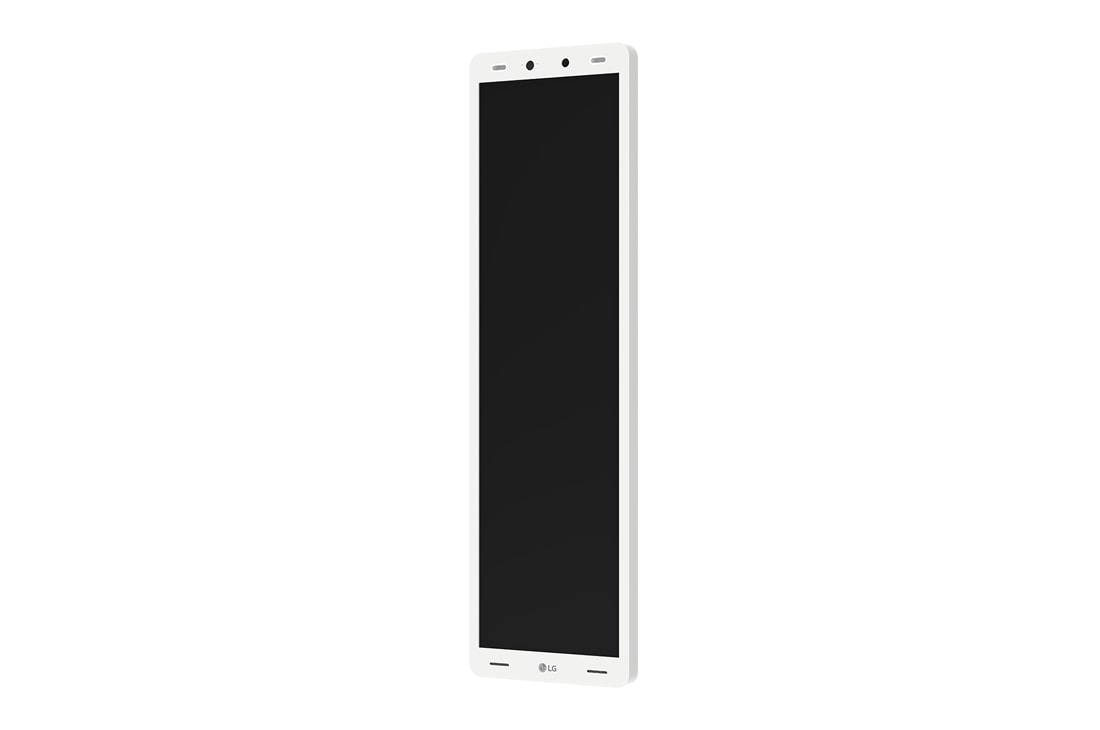

LG Thermal Sensing Terminal, -45 degree side view, 29KC5P2J-WG, thumbnail 7

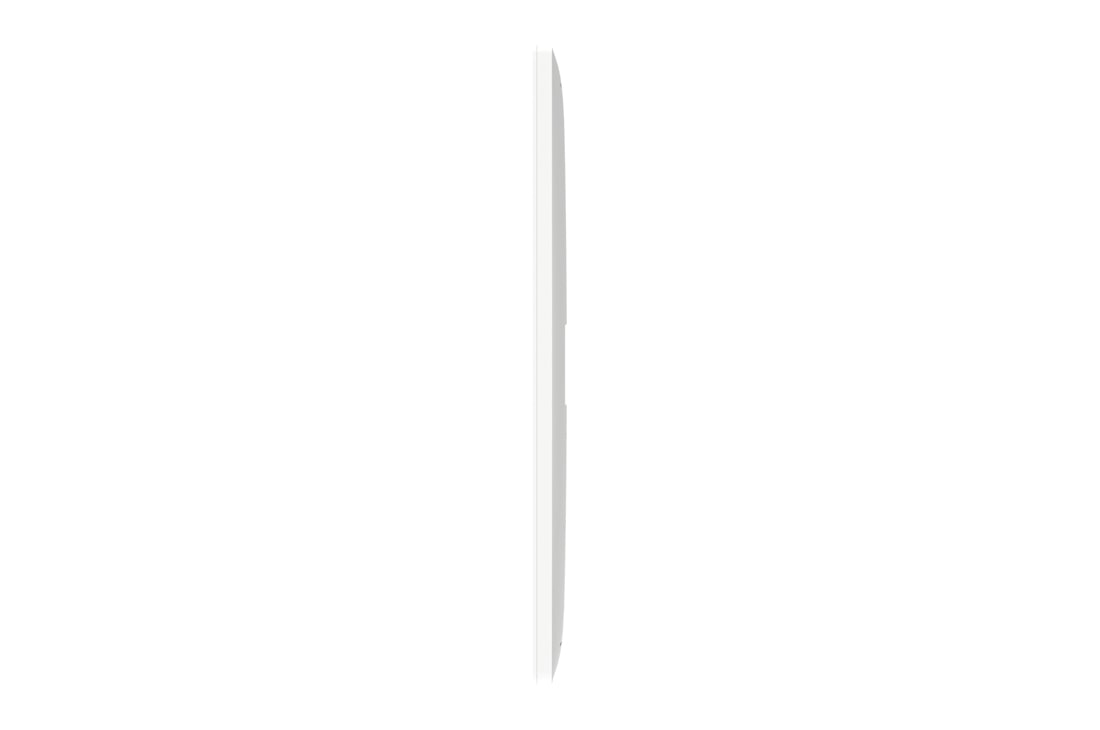

LG Thermal Sensing Terminal, -90 degree side view, 29KC5P2J-WG, thumbnail 8

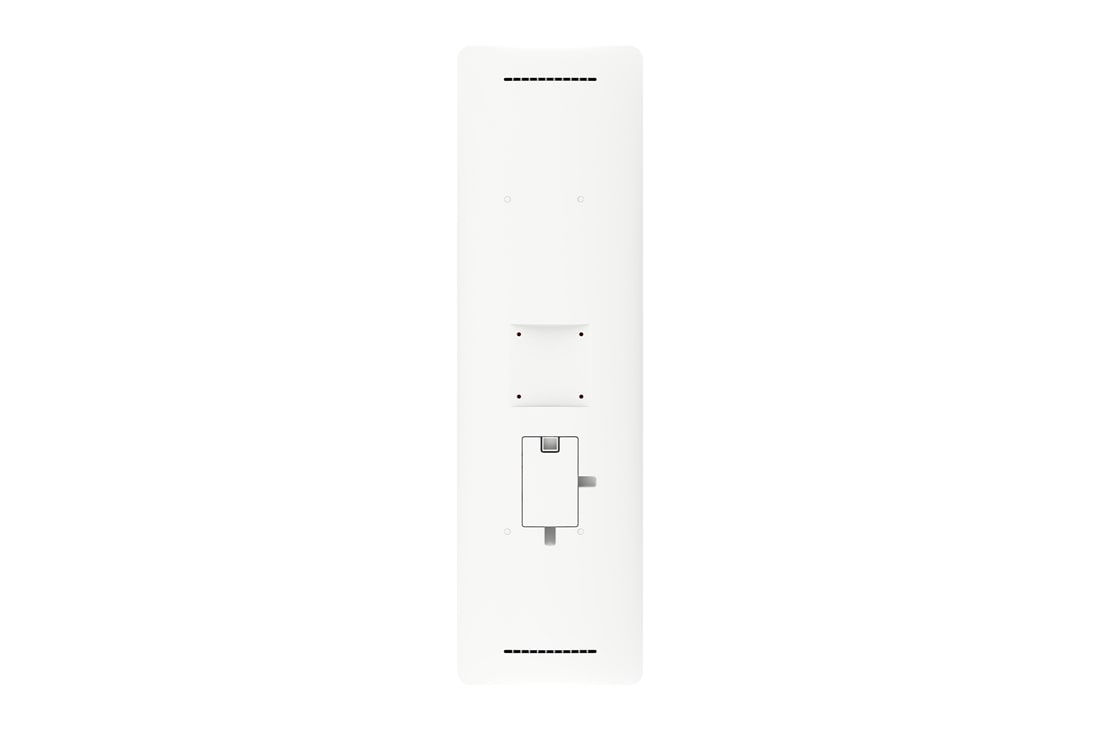

LG Thermal Sensing Terminal, Rear view, 29KC5P2J-WG, thumbnail 9

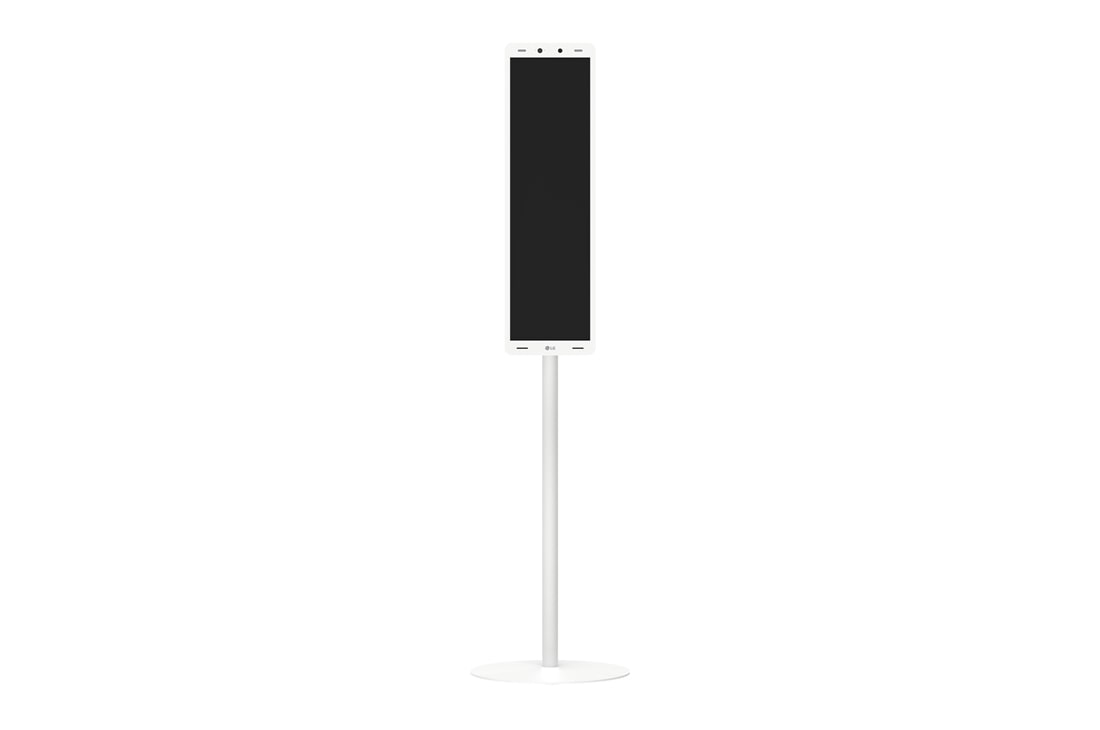

LG Thermal Sensing Terminal, Front view with floor stand, 29KC5P2J-WG, thumbnail 10

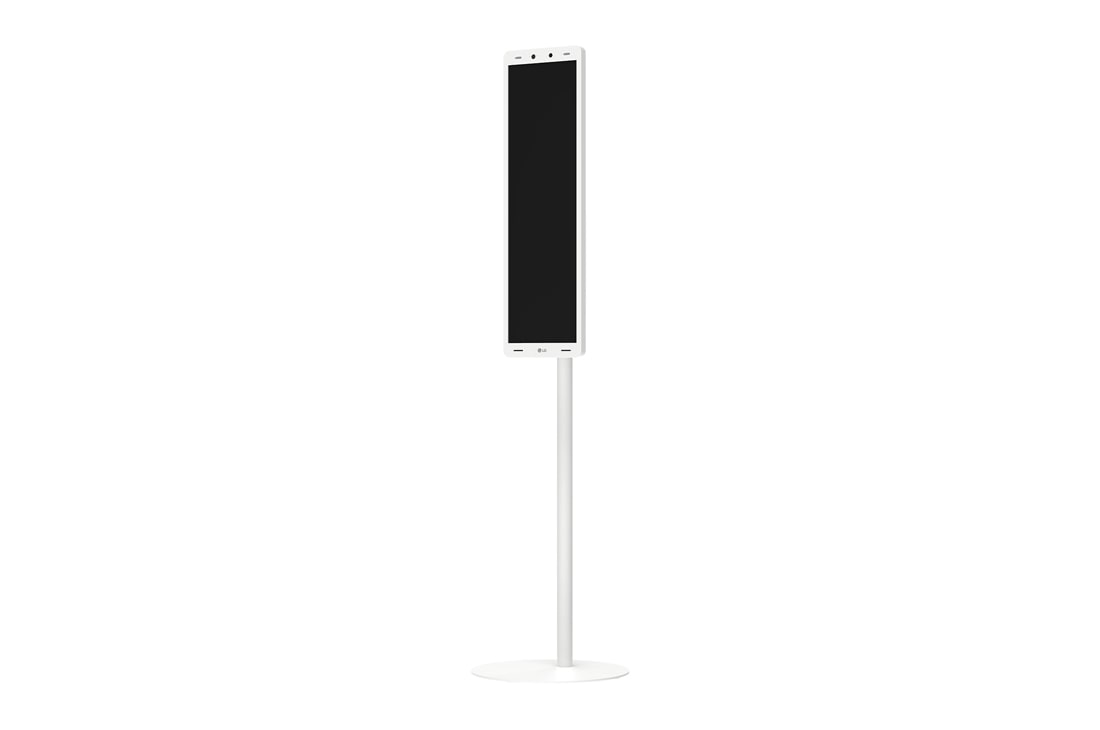

LG Thermal Sensing Terminal, -45 degree side view with floor stand, 29KC5P2J-WG, thumbnail 11

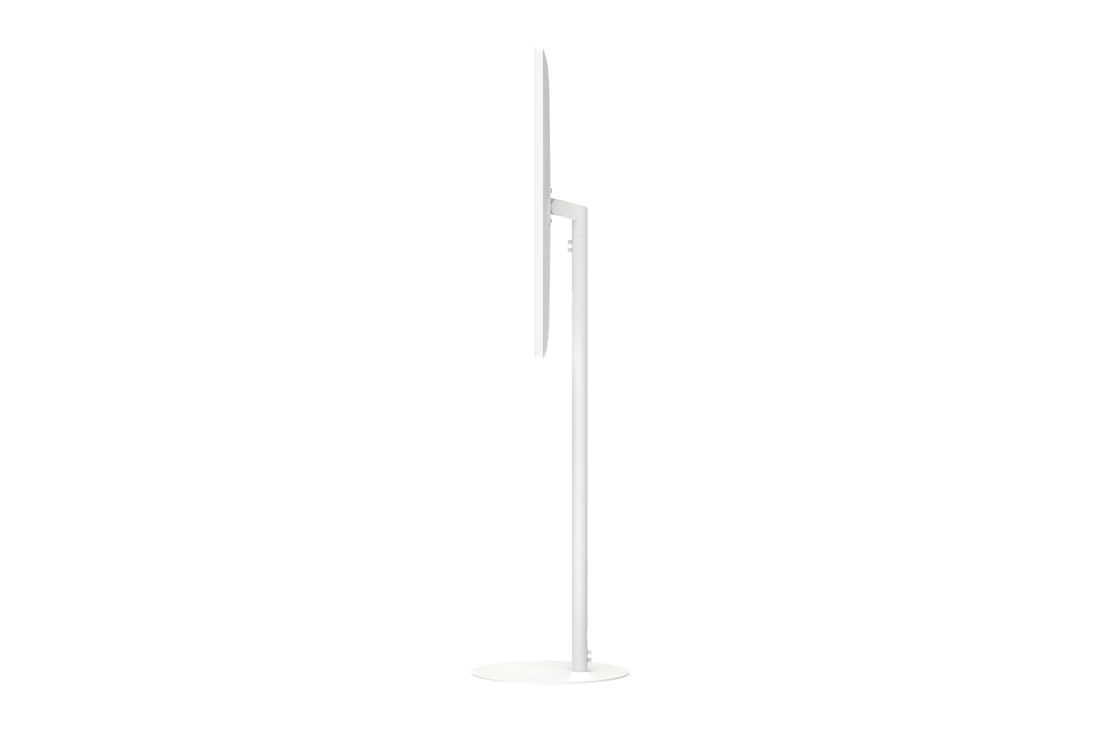

LG Thermal Sensing Terminal, -90 degree side view with floor stand, 29KC5P2J-WG, thumbnail 12

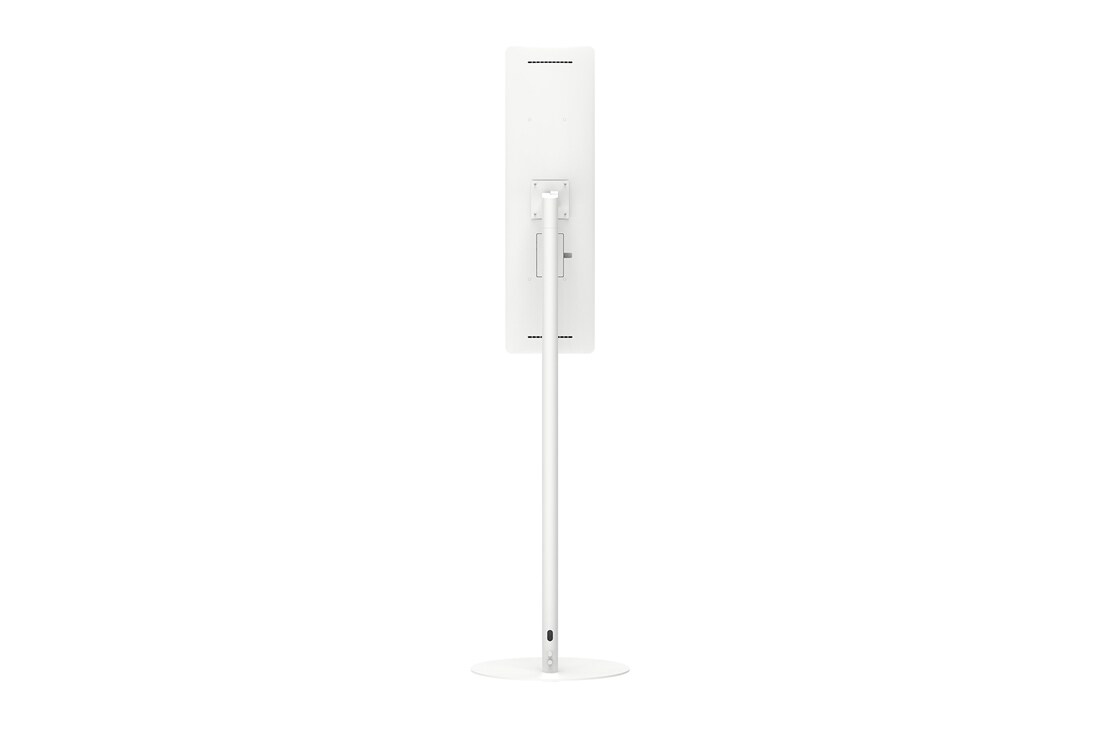

LG Thermal Sensing Terminal, Rear view with floor stand, 29KC5P2J-WG, thumbnail 13

Discontinued

29KC5P2J-WG component-copyModelName

LG Thermal Sensing Terminal

Key Features

In-cell Touchscreen LCD Display (Resolution : 540 × 1,920)
RGB Camera : HD (1,280 × 720)
Quad Core RK3288 Chipset (Andrioid OS Base)
Supports Wi-Fi 2.4G / Bluetooth 4.2
Ethernet (RJ45), USB (1, OTG 1 ea), Relay
* For ASIA (except Australia, New Zealand, Thailand) Regions

Add to Compare

component-OBScountrySelectDesc

Key Features

In-cell Touchscreen LCD Display (Resolution : 540 × 1,920)
RGB Camera : HD (1,280 × 720)
Quad Core RK3288 Chipset (Andrioid OS Base)
Supports Wi-Fi 2.4G / Bluetooth 4.2
Ethernet (RJ45), USB (1, OTG 1 ea), Relay
* For ASIA (except Australia, New Zealand, Thailand) Regions

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

LG Thermal Sensing Terminal

Smart Thermal Scanner
That Secures Your Space

* For ASIA (except Australia, New Zealand, Thailand) Regions

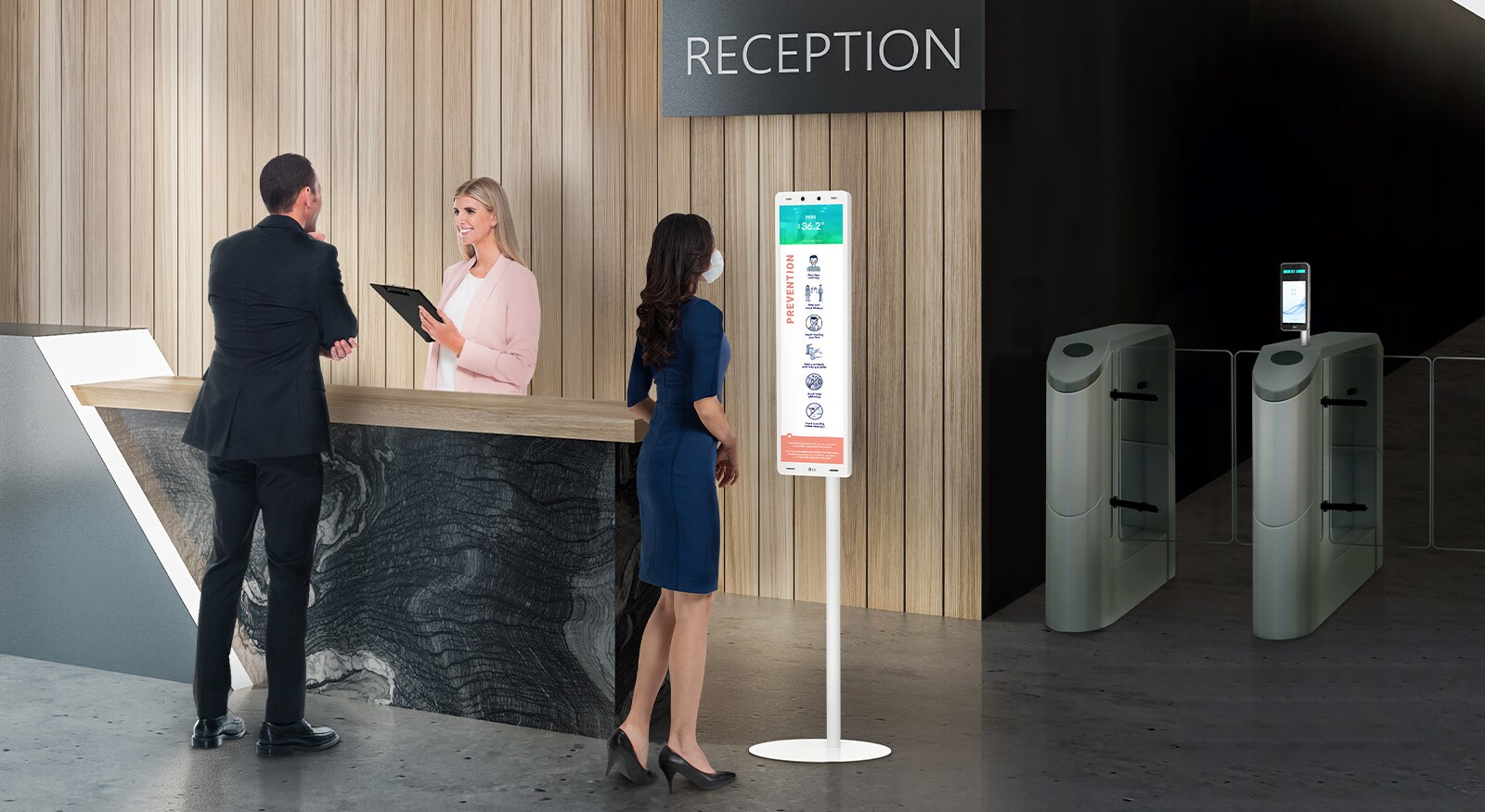

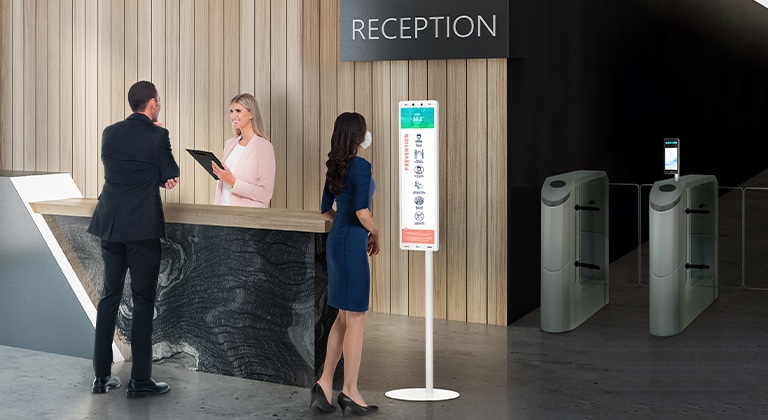

The 29" Thermal sensing terminal is placed near the reception desk. And The employee with a mask stands in front of the terminal to check her fever .

* All images in this web page are for illustrative purposes only and may differ from the actual product.
* Stands sold separately.

This shows the process to check passenger' fever. After ROI Area Setting, LG Thermal Sensing Terminal checks and displays the facial temperature.

Accurate Heat Detection Sensor

LG Thermal Sensing Terminal detects fever accurately powered by Heimann thermopile sensor. It sets ROI (Region of Interest) area on the face by dividing into 1,024 cells and displays the estimated temperature near the area with the maximum value.

* Heat measurement and face recognition recommendation distance : 0.5 m
* Need to avoid direct sunlight
* Error range for temperature measurement (Ambient temperature for testing: 25°C): within ±0.3°C for repeated measurements
* Above performances and results are based on internal testing.

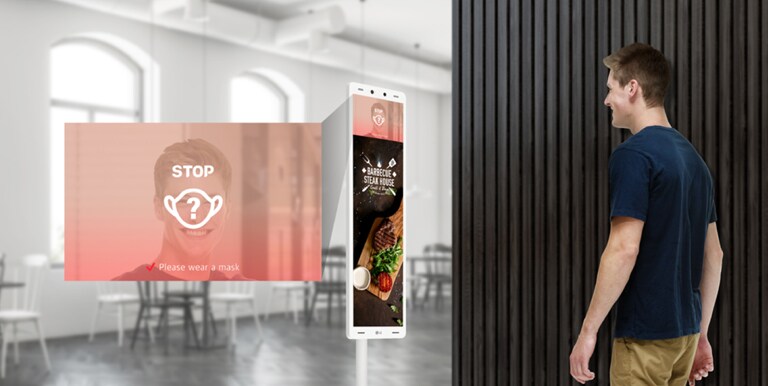

The alarm of LG Thermal Sensing Terminal is activated identifying the man without a mask in front of the entrance.

Mask-on Recognition

It is able to perform quick and accurate mask-on recognition, by detecting a face and then determining whether the subject is wearing a mask or not before sending out an alarm. This strengthens the necessary measurements for mask-wearing protocol as well as security, within contactless settings.

* Mask-on recognition recommendation distance : 0.5 m
* Its performances may vary by detection environments.

Promote Safety,
Promote a Service

Utilize a 29” screen for promoting your services or products as well as managing entry. Many different places are efficiently taking advantage of screens such as shopping malls for promotions, restaurants for their menus, hotels for instructions, and public offices for safety regulation.

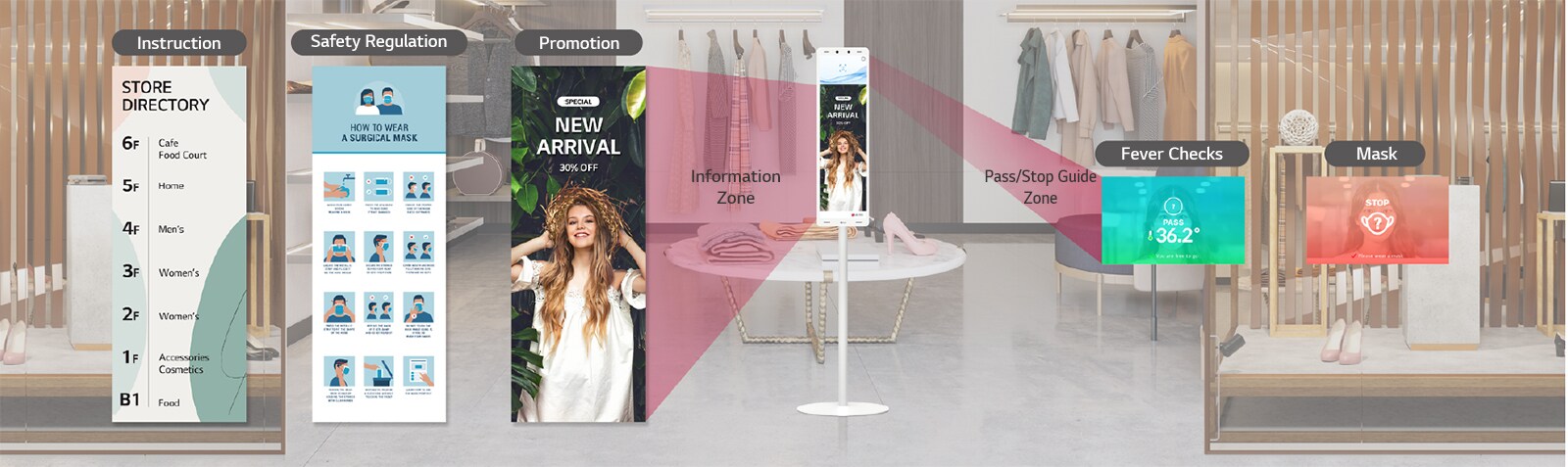

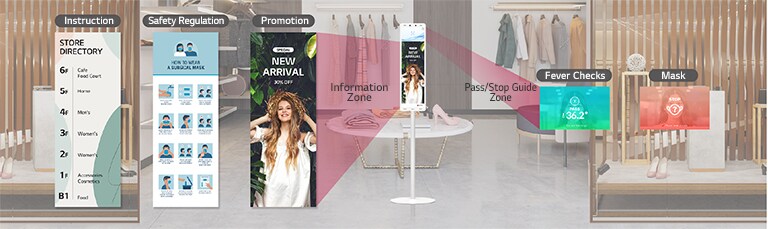

LG Thermal Sensing Terminal is installed at the store’s entrance. The upper Pass/Stop Guide Zone of the 29” screen can be used for fever and mask checks. The Information Zone at the bottom of the 29” screen shows instructions, safety regulations, promotions, etc., such as floor guidance.

The identification check is made by LG Thermal Sensing Terminal for an employee to enter the restricted area and the zoomed screen identifies him as a member of the company and allows him to enter.

Precise and Qualified Face Recognition

Alchera is a facial recognition technology applied to LG Thermal Sensing Terminal and ranked high in the face mask effects results of the Face Recognition Vendor Test (FRVT) conducted by the US National Institute of Standards and Technology (NIST). Its qualified facial recognition system helps to identify and track an individual's entry and exit, suitable for various places such as front building entrances, technology development centers, or VIP facilities requiring access controls.

* Tested at June, 2021 and based on Alchera-003

Entry Check with QR Code

29” LG Thermal Sensing Terminal can scan and recognize QR codes with its RGB camera, so that managers can utilize this function for the buildings or shops entry when needed.

Sleek Design
with Optional Dedicated Stand

The 29” LG Thermal Sensing Terminal has a sleek design with a dedicated stand (optional) which can blend in in various places. Users can select its installation type, either mounted on a wall or on a stand using the dedicated stand accessory, which supports the screen tilted up and down from -10° to 28°. Otherwise, it can also be installed with different stand accessories suitable to its VESA mount based on the user’s preference.

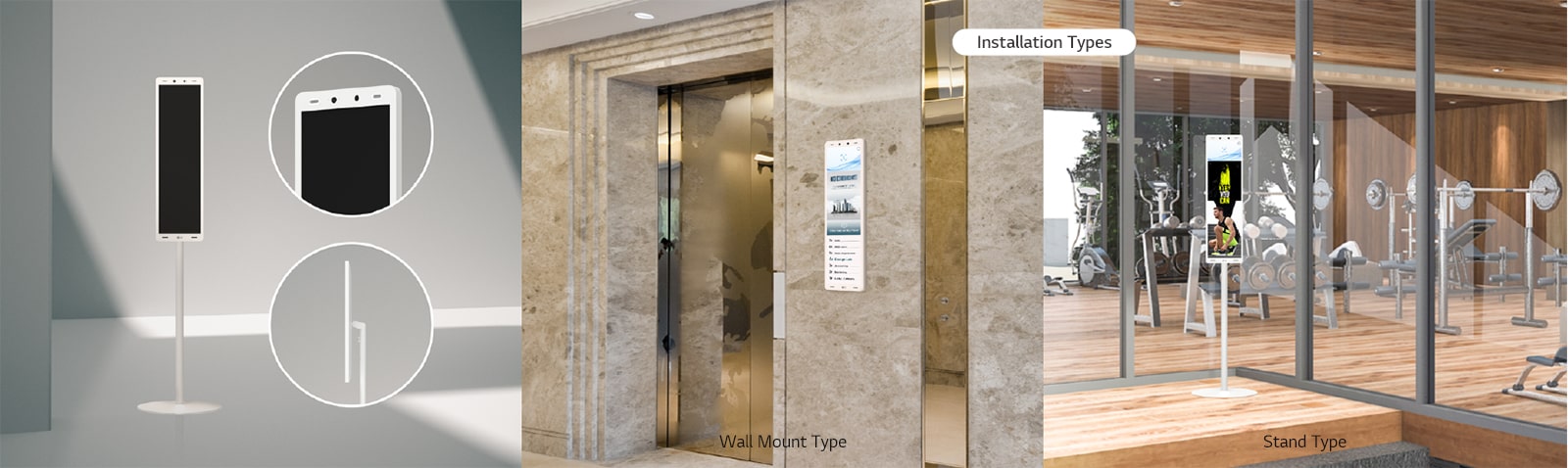

A sleek-designed 29" LG Thermal Sensing Terminal is installed in numerous ways in various spaces. It is installed as a 'Wall Mount Type' next to the elevator and as a 'Stand Type' in front of the entrance door.

* Stand type accessory is sold separately. (Pole : ST-290FL, Plate : ST-290FP)

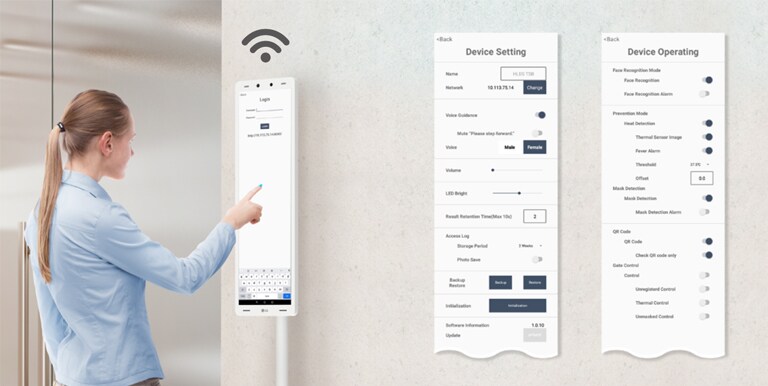

A user is touching the LG Thermal Sensing Terminal’s screen. Users can update the software with a simple touch.

Easy Software Update

Easily download the newest version of the software via network, and touch the screen for consistent software updates. The 29KC5P2J series with user-friendly Android based UI will help you no longer prepare a USB stick or other connected devices for the update.

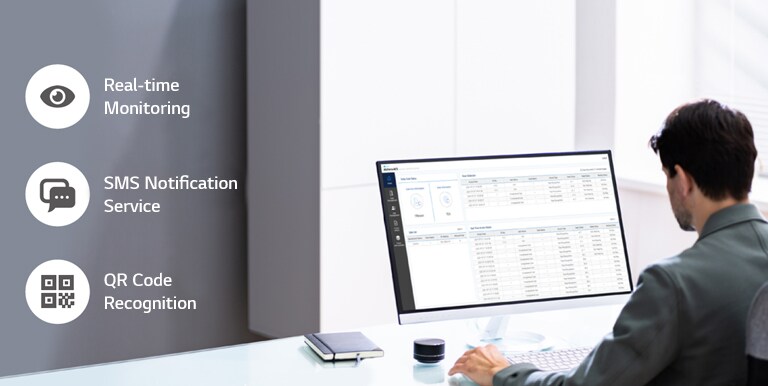

PC Administrator Tools

With PC Administration tools, the real-time access status including fever detection alarm and QR code recognition with pre-registered users' information can be monitored.

Display

Inch

29 Inch

Resolution

540 x 1,920
Operating System

Android 7.1

CPU

RK3288 (4 x A17)
RAM

1GB

eMMC

8GB
RGB/IR Camera

RGB Camera : HD (1280x720)

LED Lighting (Status Lighting)

Front (White : No status Lighting)
Speaker

2W x 2, 4R speakers

Software

Online Update

Support

Admin Tools

PC / Mobile

Face Recognition

Mask Check

Support

Detection Speed

Under 2 sec
Face Recognition Distance

0.3 m-0.8 m

Data Encryption

Support
Anti-Spoofing

Deep Learning + RGB

Thermal Sensing

Body Temperature

Support

Fever Alarm

Support
Thermal Sensor

Heimman Sensor 32 × 32 (1,024 Pixels)

Thermal Detection Distance

0.3 m-0.8 m (Recommendation 0.5 m)
Thermal Detection Range

32-42℃

Network/Interface

Wi-Fi

Wi-Fi 2.4G

Ethernet (RJ45)

1 (10m / 100m Adaptive Ethernet)
USB

1 (Type-A / Format : FAT32, NTFS)

Relay

1 (Output Port )
DC Power Jack

1

Wiegand Input

Not Available
RS232 / Wiegand Output

Not Available

Power

Power Supply (Adapter)

Input : AC 100~240V, 50/60Hz, 1.5A
Output : DC 12V/4A

Power Consumption (Typ.)

35W

Mechanic

Dimensions (W × D × H)

226 x 42 x 775mm

Weight

About 4.0 Kg

Accessories(Optional)

Type

Floor Stand (Pole : ST-290FL, Plate : ST-290FP)

Size (W × D × H)

Floor Stand
Pole : 99 x 98 x 1210mm (W x D x H)
Plate : 400 x 400 x 80mm (W x D x H)

Dimension
- 29kc5p2j_2d.dxf
- 29kc5p2j_2d.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
