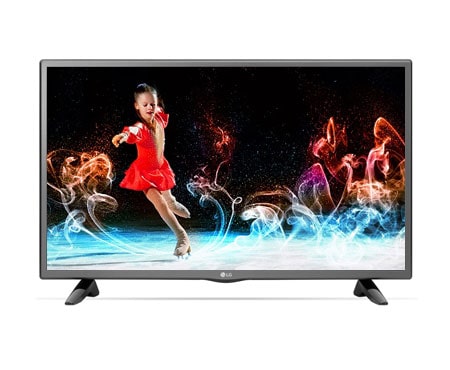

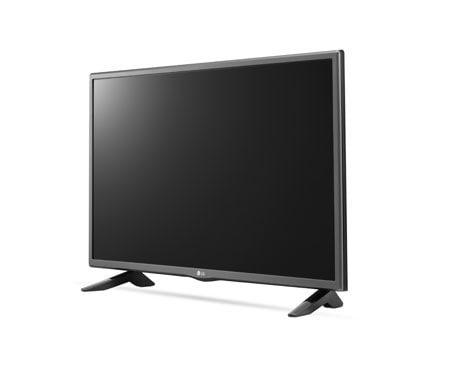

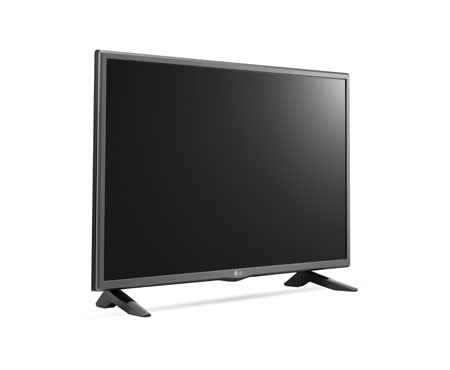

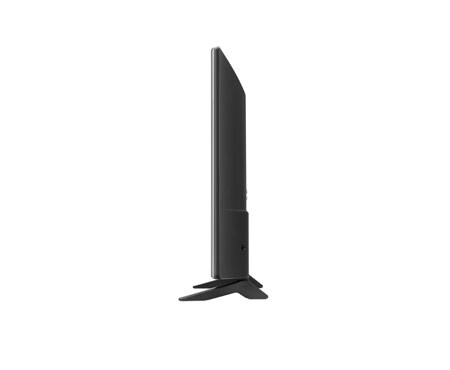

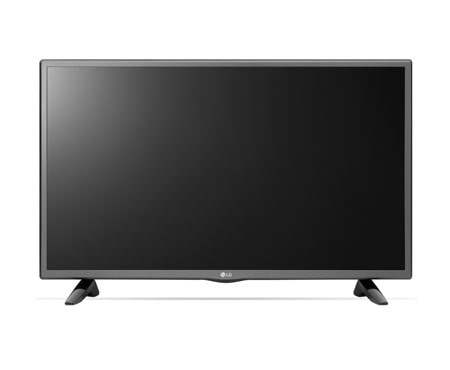

32LX300C (EU) component-copyModelName
LX300C Series

Key Features

component-OBScountrySelectDesc

LX300C Series
LCD Panel Specification
  • Backlight Type
    Slim Direct LED/Extream CI
    Cinema 3D
    -
  • Resolution
    1,366 X 768 (HD)
    Brightness (cd/m²l, Typ)
    200
Broadcasting System
  • Analog
    PAL/SECAM
    Terrestrial
    DVB-T
  • Cable
    DVB-C
    Satellite
    -
Video
  • Real Cinema 24p (3:3 Pull down)
    Yes
    Aspect Ratio
    6 modes (16:9, Just scan, Original, 4:3, Cinema Zoom, Zoom)
Audio
  • Audio Output
    3W + 3W
    Wireless Sound Sync
    -
Feature
  • Pro:Centric
    -
    Pro:Idiom
    -
Interface - Set Side
  • Headphone Out
    -
    RF In
    -
  • AV In
    -
    S-Video In
    -
  • RGB In (D-sub 15pin)
    -
    Component in (Y,Pb,Pr)
    -
  • PC Audio Input
    -
    HDMI In
    -

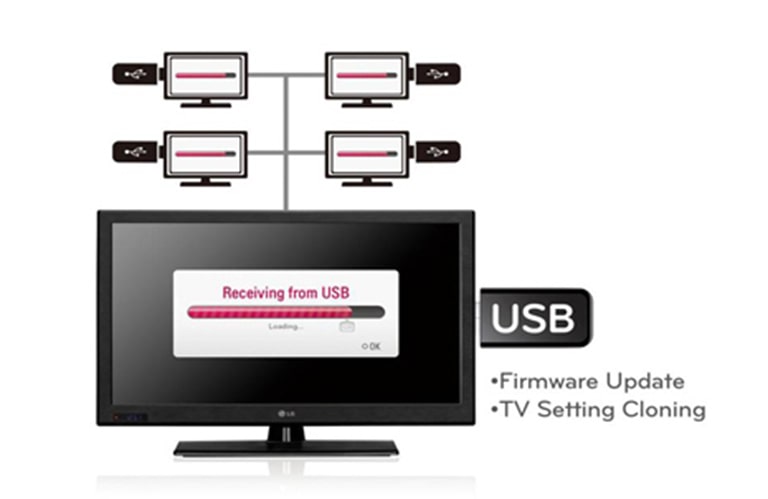

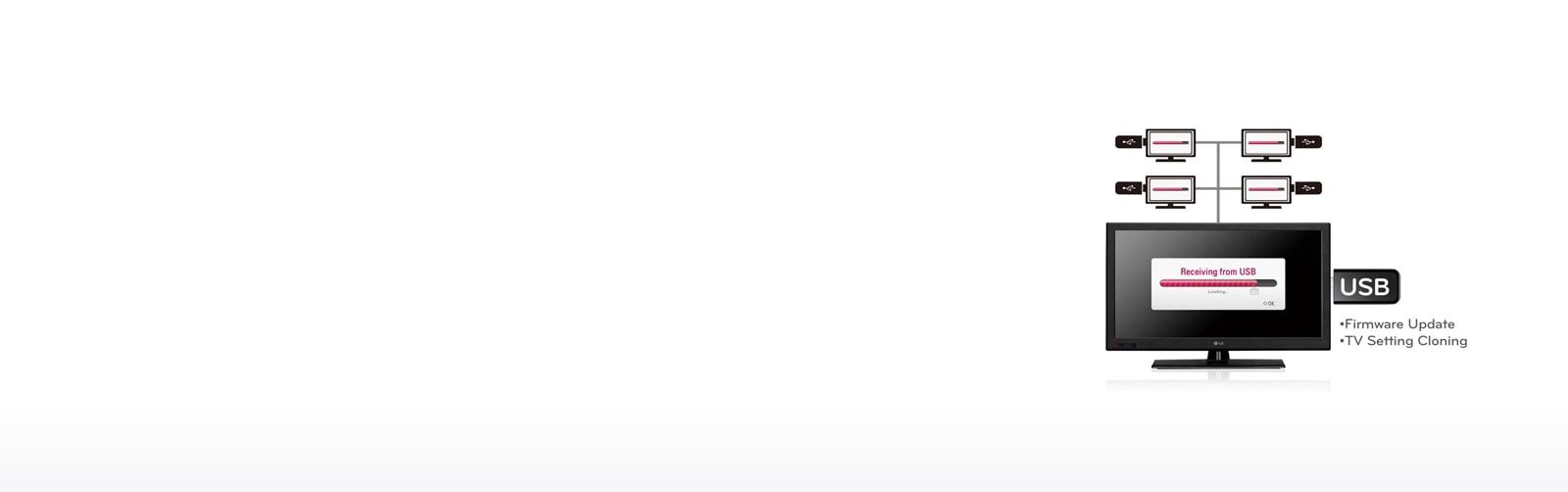

  • USB (2.0)
    -
    CI Slot
    1
  • IR Out
    -
Interface - Set Rear
  • RF In
    1
    AV In
    -
  • AV Out
    -
    S-Video In
    -
  • Full Scart
    1
    Component in (Y,Pb,Pr-Video)
    1 (Phone Jack)
  • Component in (Audio)
    1 (Phone jack):Component/DVI/PC Audio
    Digital Audio Out (Coaxial / Optical)
    -
  • HDMI/HDCP Input
    1
    USB 2.0
    1
  • RGB In (D-sub 15pin) - PC
    -
    PC Audio Input
    1 (Phone Jack, Component)
  • RS-232C (D-sub 9pin)
    1
    Headphone Out
    1
  • Clock Interface
    -
    LAN Port
    -
  • RJ45 (RJP interface)
    -
    External Speaker Out(3.5mm phone jack)
    -
  • TV link Configuration (phone jack type)
    -
Power
  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Typical (Watts)
    27.55W
Tool Description
  • Swivel (angle)
    -
    VESA Compatibility
    200 X 200
Required Listing(Certification)
  • Safety
    CB
    EMC
    CE
  • ETC.
    ROHS, ErP
Dimension
  • WxHxD (w/o stand, mm)
    734 X 474 X 66.5 (SPK 71)
    WxHxD (with stand, mm)
    734 X 474 X 172
General
  • Region
    Europe
  • Dimension
    • Drawing_32LX300C_EU.dwg
    • Drawing_32LX300C_EU.pdf
  • Datasheet
    • 0714_Final_LX300C+LX308C_EU+CIS.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
